Product Type	External USB Analog Modem / Router
Brand	ENCORE
Model	ENF656-USB-MOTO
Dimensions (approx.)	80 x 25 x 15 mm
Weight (approx.)	50 g
Power Source	USB bus-powered (5V, 500mA)
Connectivity	USB 2.0 Type A, RJ-11 phone line
Supported Standards	V.92, V.90, V.34, V.32bis, etc.
Data/Fax Capability	Data and fax modem
Operating Systems	Windows 2000, XP, Vista
Package Contents	USB modem, RJ-11 cable, USB cable, installation CD, quick guide
Software Included	FAX TALK Communicator SE, Adobe Reader, Panda Antivirus (Windows 2000/XP)
Installation Method	Driver installation from CD, plug and play
Safety Certifications	FCC Part 15 compliant
Maintenance	No special maintenance required; keep dry and clean
Repairability	Not user-serviceable; contact dealer for issues

Frequently Asked Questions - ENF656-USB-MOTO ENCORE

How do I install the ENCORE ENF656-USB-MOTO?

Connect the modem to your PC via USB cable and to the phone line using the RJ-11 cable. Insert the installation CD and click 'Install Driver'. Follow on-screen instructions for your Windows version (Vista, XP, or 2000).

Does this modem work with Windows 10?

The modem is officially supported only on Windows 2000, XP, and Vista. It may not have drivers for Windows 10. Check the manufacturer's website for updated drivers or compatibility.

What is the maximum speed of this modem?

The modem supports V.92 standard with a maximum data rate of 56 kbps downstream and 48 kbps upstream. Actual speed depends on line quality.

Can I use this modem for faxing?

Yes, it is a data/fax modem. The included FAX TALK Communicator SE software allows you to send and receive faxes from your computer.

The driver installation CD is not auto-running. What should I do?

Open the CD drive in File Explorer, locate the 'Setup.exe' or 'autorun.exe' file, and double-click to start installation manually.

Why is my modem not detected after installation?

Ensure the USB cable is properly connected. Open Device Manager and look for any devices with yellow exclamation marks. If found, right-click and update the driver, pointing to the CD folder.

Does this modem support Mac or Linux?

No, the modem is designed only for Windows operating systems. It may not have drivers or be compatible with Mac or Linux.

What should I do if I lose the installation CD?

Contact ENCORE support or check their website for driver downloads. Alternatively, third-party generic drivers may work but are not guaranteed.

Is there a warranty for this product?

Yes, standard warranty applies. Contact your dealer for details. Keep the purchase receipt and serial number for service.

Can I use this modem with a VoIP line?

It may work with some VoIP adapters, but performance is not guaranteed. The modem is designed for analog PSTN phone lines.

USER MANUAL ENF656-USB-MOTO ENCORE

Copyright © 2006 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

Disclaimer

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Caution

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Contents

1. Introduction......3

1.1 System Requirements .... 3
1.2 Package Contents....3

2. Hardware Installation Instructions.... 4

2.1 USB Analog Modem......4

3. Software Driver Installation .... 4

3.1 Modem Software Driver Installation Procedures......4

3.1.1 For Windows Vista ....5

3.1.2 For Windows XP & 2000 ....7

3.2 Contact Information....9

1. Introduction

Fax Modem Installation CD is an installation utility for external Data / FAX Analog Modems. It automatically detects and installs recently installed modem hardware under Windows OS. This utility includes Install Driver, Install Software Utilities, User Manual and Readme four sections. Click Install Driver to start analog modem device driver installation process. Install Software Utilities includes "FAX TALK Communicator SE" (all modem software driver installation program), Adobe Reader and Panda Antivirus Platinum. User Manual includes this user's manual and specs for modem this utility supports. Readme includes modem software driver locations and modem hardware installation instructions.

1.1 System Requirements

[For Windows 2000 & XP]

● Pentium 100 MHz CPU or faster
● 32 MB system memory or more
● 10 MB free space on your hard drive
● 256-color VGA or higher resolution
- CD-ROM drive
● One available PCI slot for internal modem.

● Microsoft Windows 2000, XP or Vista operating system disk

[For Windows Vista]

● 1 GHz 32-bit (x86) or 64-bit (x64) processor
● 1 GB of system memory
● 40 GB hard drive with at least 15 GB of available space
● Support for DirectX 9 graphics with:

→ WDDM Driver

→ 128 MB of graphics memory (minimum)
→ Pixel Shader 2.0 in hardware
→ 32 bits per pixel

1.2 Package Contents

● One External USB Modem
● One RJ-11 Cable
● One USB Cable for USB model
● Fax Modem Installation CD
- Quick Installation Guide

If any of above items is missing or damaged, please contact your local dealer immediately.

2. Hardware Installation Instructions

2.1 USB Analog Modem

1) Connect modem and PC with USB cable.

2) Plug one end of RJ-11 cable into modem's LINE jack and the other end into telephone wall jack.

3. Software Driver Installation

3.1 Modem Software Driver Installation Procedures

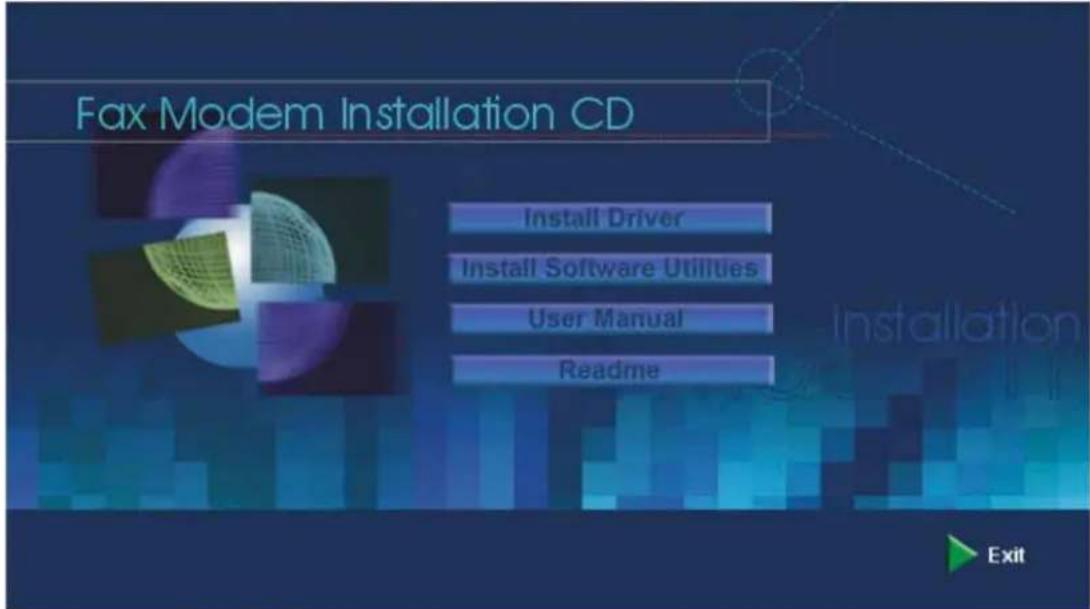

Insert FAX Modem Installation CD into CD-ROM drive then window below will appear.

Install Driver: Click Install Driver to start analog modem installation process.

Install Software Utilities: Install Software Utilities includes "FAX TALK Communicator SE" (all modem software driver installation program), Adobe Reader 6.0 and Panda Antivirus Platinum

9.0 (Panda only supports Windows 2000 & XP OS).

User Manual: User Manual includes this user's manual and specs for all modems this utility supports.

Readme: Readme includes modem software driver locations and modem hardware installation instructions.

3.1.1 For Windows Vista

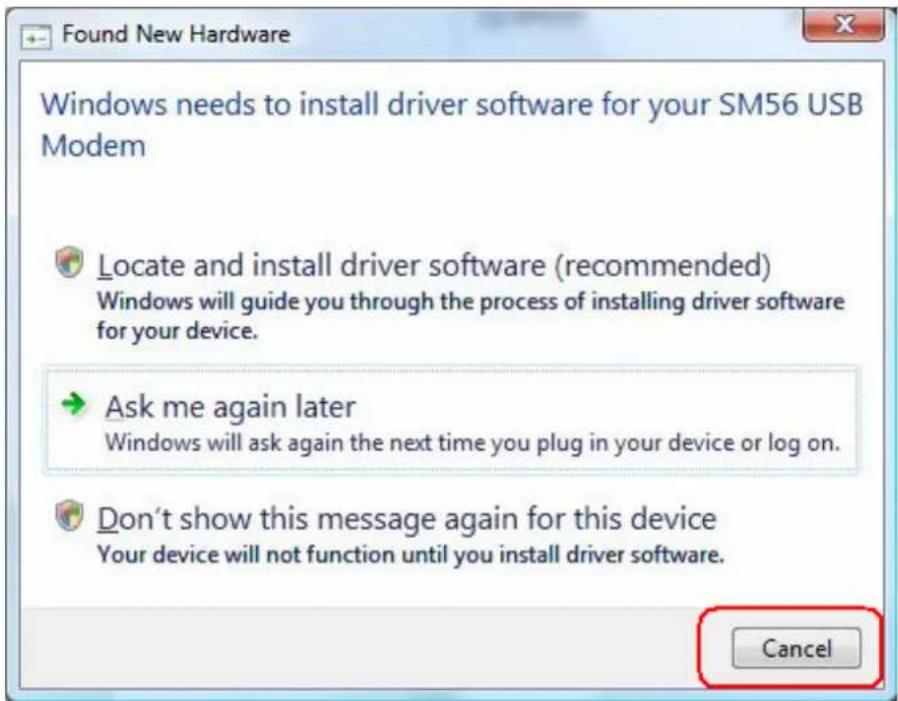

Step 1: After the Modem hardware is installed in your computer, the system will find the new hardware device and show the window as below. Just simply click "Cancel" to close the windows.

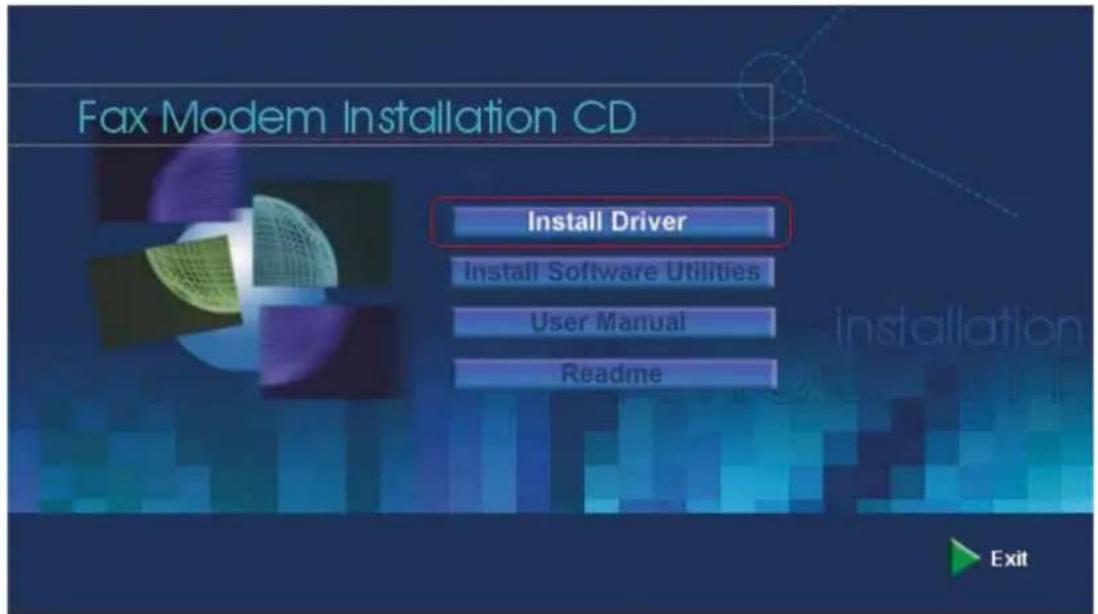

Step 2: Please insert your installation CD into your CD drive, and then the CD will auto-run and show the main installation screen as below. Please click "Install Driver" to start the installation

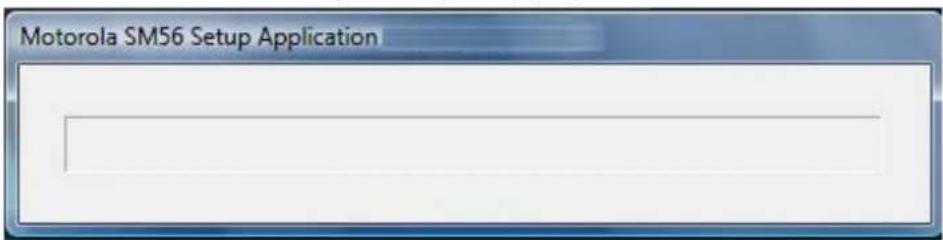

Step 3: Please wait for while during the easy setup program installs the driver.

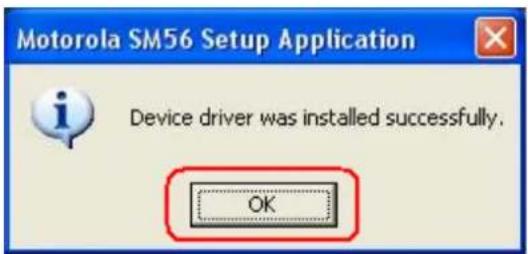

Step 4: After Device Drier was installed successfully, click "OK" to exit.

Step 5: To check if modem is properly installed:

Right-Click "My Computer" from Desktop icon → Choose "Properties" → Select "Device Manager".

3.1.2 For Windows XP & 2000

Step 1: After the Modem hardware is installed in your computer, the system will find the new hardware device and show the window as below. Just simply click "Cancel" to close the windows.

Step 2: Please insert your installation CD into your CD drive, and then the CD will auto-run and show the main installation screen as below. Please click "Install Driver" to start the installation.

Step 3: Please wait for while during the easy setup program installs the driver.

Step 4: After Device Drier was installed successfully, click "OK" to exit.

Step 5: To check if modem is properly installed:

Click "Start → Settings → Control Panel → System → "Hardware" tab

→ Choose "Device Manager"

(For Windows XP)

(For Windows 2000)

3.2 Contact Information

If you have trouble to install modem on your system, please contact us. Before contacting us, make sure collect following information. With complete information of your problem, we will provide you accurate answers.

Model Name:

Serial Number:

PC Settings:

Other:
