Product Type	4-Port DVI USB KVM Switch
Brand	StarTech.com
Model	SV431TDVIUA
Number of Ports	4
Video Connection	DVI-I Dual Link
USB Connection	USB 2.0 Type A
Audio Support	Yes (3.5mm jack for microphone and speakers)
Max Video Resolution	2560x1600 @ 60Hz
Power Supply	External AC adapter (included)
Dimensions (L x W x H)	18.1 x 6.7 x 2.5 cm
Weight	0.5 kg
Material	Metal housing
Mounting	Desktop or optional rack mount
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	0% to 80% non-condensing
Control Method	Front panel buttons, IR remote, or keyboard hotkeys
Compatible Operating Systems	Windows, macOS, Linux
Included Accessories	DVI cables (4), USB cables (4), audio cables, power adapter, remote control
Security	KVM lock port for theft prevention
Maintenance	Clean with a dry cloth; avoid liquids
Repairability	No user-serviceable parts; contact StarTech.com support

Frequently Asked Questions - SV431TDVIUA StarTech.com

Can I connect different types of monitors to the SV431TDVIUA?

Yes, the SV431TDVIUA supports DVI-I dual link, so it works with DVI-D, DVI-A, and VGA (via adapter) monitors. The switch can handle resolutions up to 2560x1600.

How do I switch between computers?

You can switch using the front panel buttons, the included IR remote control, or keyboard hotkeys (e.g., Scroll Lock twice followed by a number). The default hotkeys are Scroll Lock + Scroll Lock.

Does this KVM switch support audio?

Yes, it has separate 3.5mm jacks for microphone and speaker audio. The audio follows the video source so you can use your headset with each computer.

What operating systems are compatible?

The SV431TDVIUA works with Windows, macOS, and Linux without special drivers. It uses standard USB HID emulation.

Can I use the switch with a USB 3.0 port?

Yes, USB 3.0 ports are backward compatible with USB 2.0. The switch uses USB 2.0, so it will work but at USB 2.0 speeds.

How do I connect the cables?

Connect one KVM cable (DVI, USB, audio) from the switch to each computer. Then connect your shared monitor, keyboard, mouse, and audio devices to the switch's console ports.

What is the maximum distance between the switch and computers?

For best performance, keep cable lengths under 5 meters (16 feet). Longer cables may degrade video quality.

Does the switch remember the last used port?

Yes, the SV431TDVIUA retains the last selected port when powered off and on. It supports auto-scan mode to cycle through ports.

Can I use the IR remote from a distance?

The IR remote works up to about 5 meters (16 feet) in a direct line of sight. The receiver is located on the front panel.

How do I reset the switch?

To reset, turn off the switch and disconnect power for 10 seconds. Alternatively, there is a pinhole reset button on the rear panel.

USER MANUAL SV431TDVIUA StarTech.com

2/4 Port Triple Monitor DVI USB KVM Switch with Audio and USB 2.0 Hub

SV231TDVIUA

SV431TDVIUA

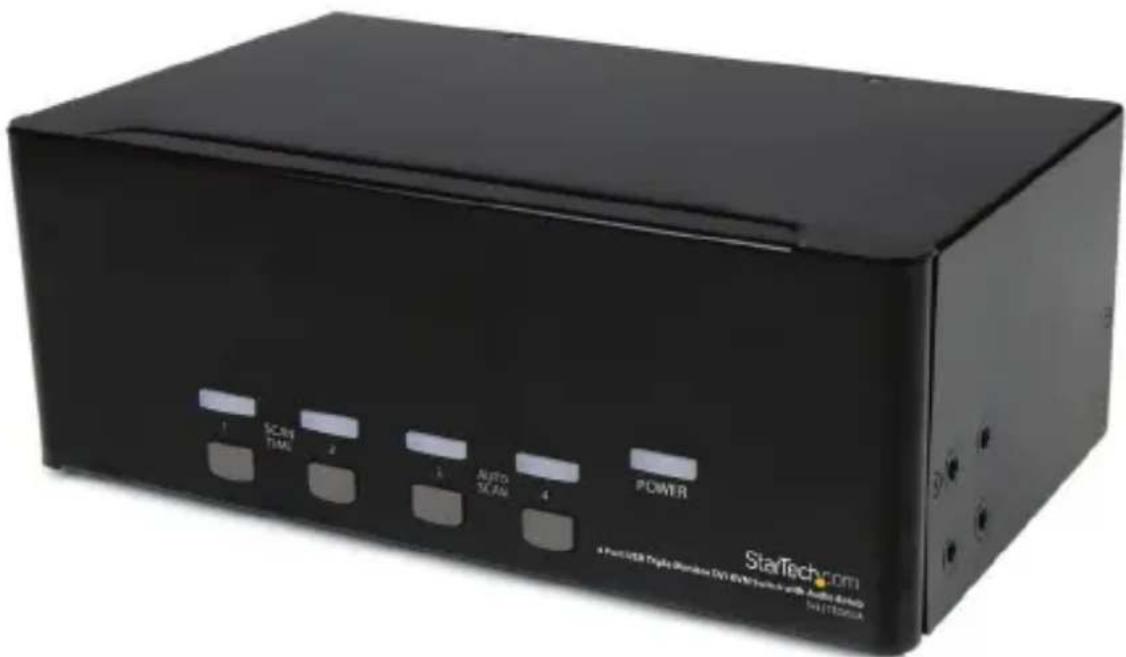

Black StarTech 3.0 microcontroller device with labeled buttons (no readable text beyond branding)

*SV431TDVIUA shown

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company

Table of Contents

Introduction......1

Packaging Contents .... 1

System Requirements....1

Front View 2

Rear View....2

Installation 3

Hardware Installation .... 3

Driver Installation....4

Operation 4

Front Panel....4

Hotkey Control....5

Alternative Hotkey Commands....8

Change Leading Hotkey 9

Specifications....10

Technical Support 11

Warranty Information......11

Introduction

The 2/4-Port Triple Monitor DVI USB KVM Switch allows 2 or 4 PCs, each with 3 DVI video outputs, to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.

The Triple DVI KVM switch allows you to switch back and forth between multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals to be shared between attached systems - eliminating duplicate peripheral costs, and offering the convenience of sharing stored data between PCs.

Packaging Contents

• 1 x Triple Display KVM Switch
- 4 x Rubber Foot Pads
• 1 x Universal Power Adapter (NA/ UK/ EU)
• 1 x Instruction Manual

System Requirements

• Up to three DVI enabled display devices (i.e. monitor, projector, TV, etc.)
  • DVI male/ male cable for each display
• A DVI output for each DVI display device for each computer
  • DVI/ USB KVM cable for each computer
  • Additional DVI cable(s) for each additional display beyond the first
• USB enabled computer system with available USB port
• Standard 104-key wired USB keyboard
• Standard 3-button wired USB mouse

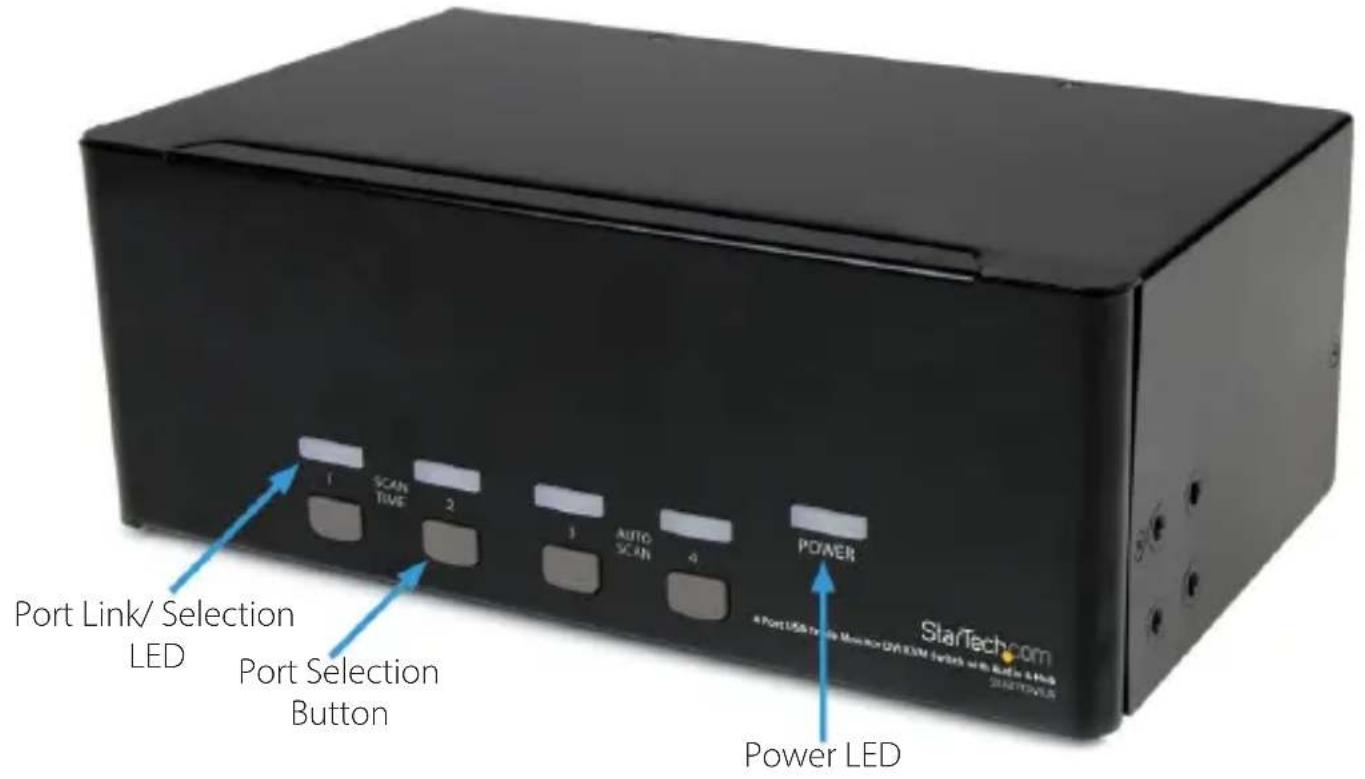

Front View *SV431TDVIUA shown

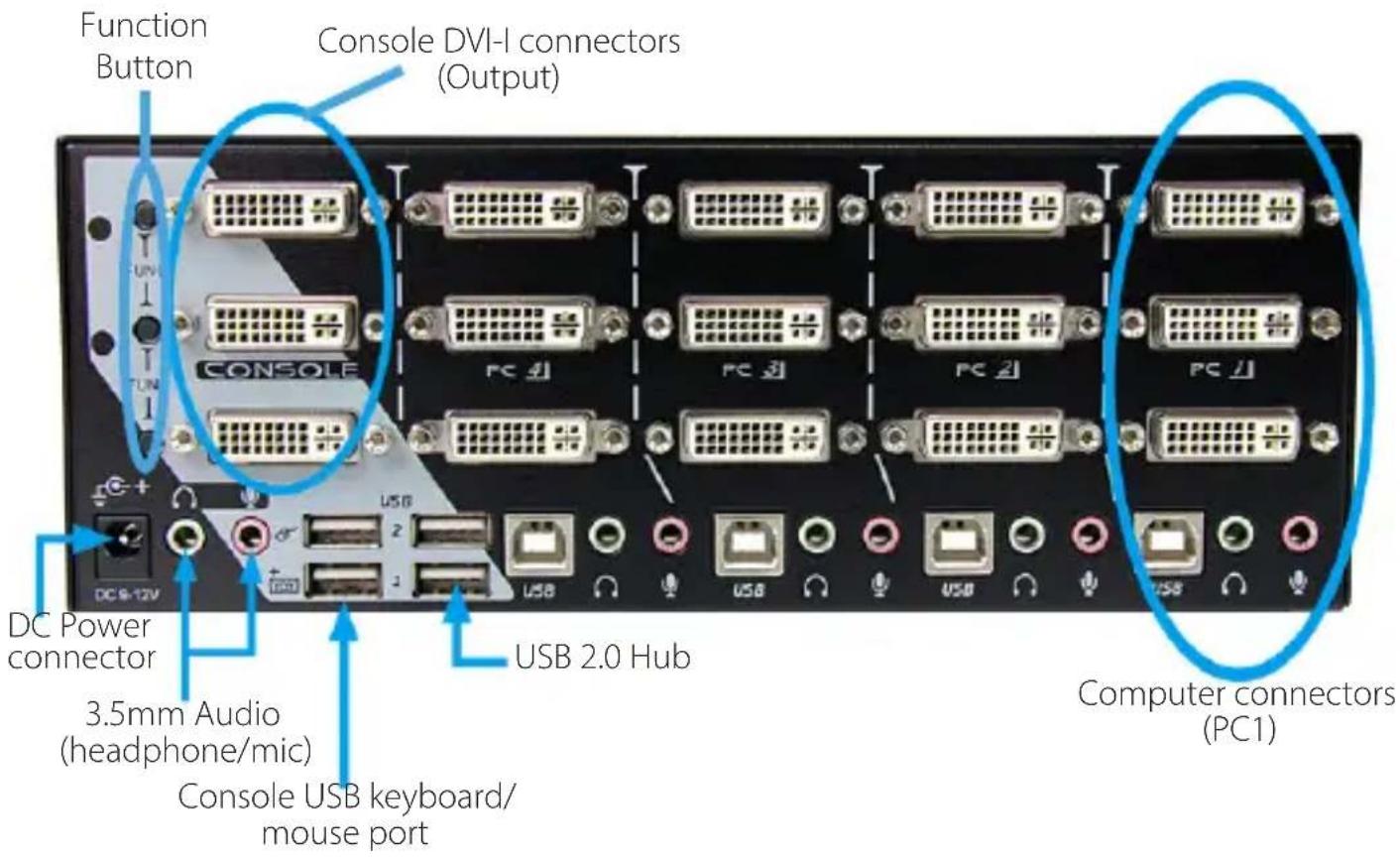

Rear View *SV431TDVIUA shown

Installation

NOTE: Prior to the installation, please power off all devices that will be connected to this system.

- Ensure that all devices you will connect are properly grounded.

- Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise.

- If you experience any problems using a USB KVM switch, the following BIOS setup changes may be necessary for PC users and not necessary for Mac users:

• Set 'HALT ON ERROR' to 'ALL BUT KEYBOARD'.
• Under 'PNP AND PCI SETUP', set the option 'PNP OS INSTALLED' to YES and set 'USB IRQ' to ENABLED.

- Different systems may use different naming, so contact your system manufacturer for further assistance with these settings.

Hardware Installation

1. Connect up to three monitor(s) into the Console's DVI connectors; plug a USB keyboard and a USB mouse into the dedicated USB keyboard and mouse ports on the KVM switch. If using audio, also connect speakers with 3.5mm mini-jack plugs.

2. Use male-to-male DVI video cable(s) to connect the DVI connector(s) on the computer's video card, to the DVI ports for one of the KVM's PC ports (i.e. PC1).

NOTE: Do not mix different types of DVI cables (DVI-I, DVI-D) on the same KVM.

1. Use a USB type A-B Cable to connect the KVM's USB port (type B, square connector) for the PC port used in Step 2, and the USB port on the computer (type A, flat connector). If using audio, connect 3.5mm mini-jack cables from the PC port to the sound card.

NOTE: DVI + USB + Audio KVM combo cables are also available which can be used in place of separate individual cables (e.g. StarTech.com ID: DVI4N1USB6).

1. Repeat Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM.

2. OPTIONAL: Connect any other USB peripheral you wish to share between the connected computers/devices to the extra USB Hub port on the Console side.

3. Connect the external power adapter from a wall outlet to the power connector on the rear panel of the KVM switch.

4. Power up the first computer/device and wait for it to fully boot and test keyboard/mouse functionality.

5. Once operation has been successfully confirmed, switch to the next port and power up that computer/device and confirm.

6. Once completed for all computers/devices connected to the KVM switch, you should be able to switch between ports freely.

Driver Installation

No driver installation is required for the KVM switch, as the keyboard/mouse use USB drivers that are already installed on any operating system that fully supports USB.

Operation

Front Panel

Port Selection/Link LED

The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected.

Port Selection Button

For 2 Port model, each push of the Selection Button on the front of the KVM switch will immediately switch between the two ports on the KVM switch.

For 4 Port model, each push of the Selection Button on the front of the KVM switch will immediately switch to the selected computer.

Auto Scan

The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below). To activate Auto Scan, press down front panel push buttons "3" and "4" simultaneously. The port LED flashes during Auto Scan. Auto Scan is effective for powered-on computers only. To exit the Auto Scan mode, just tap any one of the push buttons. (4 port model only)

NOTE: When Auto Scan detects any keyboard activity, it suspends the scanning until the activity stops; it then resumes with the next computer in sequence. The length of the Auto Scan interval (Scan Rate) is adjustable, see below.

Scan Time

Four options are available for users to set the Scan Time duration, which includes 3, 8, 15 and 30 seconds.

To change the Scan Time interval, press both front panel buttons "1" and "2" simultaneously. The unit beeps 1, 2, 3 or 4 times for Scan Time of 3, 8, 15 or 30 seconds respectively. (4 port model only)

NOTE: Scan Time is automatically set to the default of 3 seconds when the units loses power.

Hotkey Control

A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left keystrokes (successively within 0.2 seconds) followed by one or two more keystrokes. A built-in tone generator creates a high-pitch beep for correct hotkey command; otherwise, one low-pitch beep is generated for errors and the bad key sequence will not be forwarded to the selected computer.

NOTE: Press and hold Left and press twice, then release followed by pressing left once, which will enable / disable the hotkey feature.

To select a computer:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < 1 > $$

(Example: Selects the computer at port 1.)

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < 2 > $$

(Example: Selects the computer at port 2.)

NOTE: Do not use the keypad on the right-side of the keyboard.

Auto Scan

The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below).

To start Auto Scan:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F1 } > $$

To abort the Auto Scan mode, press the left key twice. When Auto Scan detects any keyboard or mouse activity, it suspends the scanning till the activity stops; it then resumes with the next computer in sequence. The length of the Auto Scan interval (Scan Time) is adjustable, see below.

Manual Scan allows users to manually switch back and forth between powered-on computers.

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F2 } > $$

To select the previous or the next computer, press or arrow keys. To abort the Manual Scan, press any other key.

Scan Time

Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds.

Note: Scan Time is set to 3 seconds by default.

To adjust Scan Time, set the scan time of duration before switching to the next computer:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F3 } > $$

The KVM Switch generates 1 to 4 beeps indicating a scan time duration for 3, 8, 15 or 30 seconds respectively.

Adjust Video Signal (for 4 port model only)

The video signal can be optimized to the length or quality of your DVI cable. Only perform this operation if you are experiencing video quality issues.

Step 1. Press the "FUNC" button 3 times. The "POWER" LED will start flashing.

Step 2. The settings are adjusted by pressing the numbered buttons on the front of the KVM.

A) Button "1" Adjusts the EQUALIZATION of the video source. 1 Beep is normal, 2 beeps is enhanced.
B) Button "3" Adjusts the output CURRENT of the video source. 1 Beep is normal, 2 beeps is enhanced.
C) Button "4" Adjusts the AMPLIFICATION of the video source. 1 Beep is normal, 2 beeps is low, 3 beeps is medium, 4 beeps is high.

Step 3. Press the same "FUNC" button from Step 1 to exit.

Audio Lock

There are two options for Audio Lock: ON and OFF. When ON, audio selection follows computer selection. When OFF, audio selection stops following computer selection. It is useful if you want to listen to a particular computer's audio signal while operating other computers.

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { F5 } > $$

The KVM switch beeps once or twice corresponding to ON and OFF respectively.

To change which computer port the audio stays on to the currently selected port, press the following hotkey:

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + < \text { A } > $$

Alternative Hotkey Commands

In addition to the Left + Left hotkeys, there are two alternative hotkey sequences available.

1. For the following operations, users may press twice instead of pressing left twice.

To select a computer:

$$ < \text { ScrollLock } > + < \text { ScrollLock } > + < 1 > $$

(Example: Select the computer at port 1.)

$$ < \text { ScrollLock } > + < \text { ScrollLock } > + < 2 > $$

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

1. For those keyboards that do not have or support , please press and HOLD the Left and press twice instead of pressing Left twice.

To select a computer:

$$ \begin{array}{l} \text {Hold Left < SHIFT > + Press < NumLock> + Press < NumLock>} \ \text {then release < SHIFT > + Press < 1 >} \end{array} $$

(Example: Select the computer at port 1.)

$$ \begin{array}{c} \text {Hold Left < SHIFT > + Press < NumLock> + Press < NumLock>} \ \text {then release < SHIFT > + Press < 2 >} \end{array} $$

(Example: Select the computer at port 2.)

NOTE: Do not use the keypad at the right of the keyboard.

Change Leading Hotkey

The default leading hotkey sequence involves pressing the left twice in succession (e.g. left + left ). This can be changed to the right key instead, to avoid accidental activation due to using the left key for functions such as Copy/Paste.

To change the leading hotkey sequence to Right :

$$ \text { Left } < \text { CTRL } > + \text { Left } < \text { CTRL } > + \text { hold } < \text { ALT } > + \text { press Right } < \text { CTRL } > $$

All hotkey commands that previously required pressing the Left will be switched to requiring the right instead.

To change the leading hotkey sequence back to Left :

$$ \text { Right } < \text { CTRL } > + \text { Right } < \text { CTRL } > + \text { hold } < \text { ALT } > + \text { press Left } < \text { CTRL } > $$

Specifications

	SV231TDVIUA SV431TDVIUA
Number of Ports 2 4
Console Connectors	3 x 19-pin DVI-I female4 x USB type A female2 x 3.5mm Audio female
Computer Connectors (per port)	3 x 19-pin DVI-I female1 x USB type B female2 x 3.5mm Audio female
LEDs	2 x Computer Link/Selection	1 x Power4 x Computer Link/Selection
Switching Modes Push button, Hot-key
Maximum Video Resolution 1920x1200
DDC2B Support Yes
Audio Support Yes (headphone/ mic)
On Screen Display No
Cascadable No
Power Adapter 12V DC, 1500mA, center positive, type M plug
Enclosure Material Metal
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -10°C ~ 60°C (14°F ~ 140°F)
Humidity	0% ~ 80% RH
Dimensions (WxDxH)	159.0mm x 100.0mm x 74.0mm	219.0mm x 130.0mm x 81.0mm
Weight	900g 1500g

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a three year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Hard-to-find made easy. At StarTech.com, that isn't a slogan. It's a promise.

StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need to go. Just talk to one of our tech advisors or visit our website. You'll be connected to the products you need in no time.

Visit www.StarTech.com for complete information on all StarTech.com products and to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.

Reviews

Share your experiences using StarTech.com products, including product applications and setup, what you love about the products, and areas for improvement.

StarTech.com Ltd.

45 Artisans

Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com LLP

4490 South

Hamilton Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT

Hoofddorp

The Netherlands

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com
