RP3740 - Alarm clock radio RCA - Free user manual and instructions

Type	Alarm clock radio with CD player
Brand	RCA
Model	RP3740
Power Supply	120V~60Hz, 15W
Radio Bands	AM / FM with built-in AFC (FM)
CD Player	Plays audio CDs, track skip/search, repeat/random modes
Alarms	Dual wake-up (Wake 1 and Wake 2) with tone, radio, or CD
Gradu-Alarm	Volume gradually increases over 30-45 seconds
Sleep Timer	1 minute to 2 hours, with radio or CD
Nap Timer	10 minutes to 2 hours, tone only
Snooze	Adjustable 1 to 30 minutes (default 9 minutes), up to 2 hours total
Weekend Cancel	Disables alarms on Saturday and Sunday
Clock Setting	Automatic time set via AC power; manual adjustment available
Time Zones	Selectable Pacific, Mountain, Central, Eastern (US/Canada)
Daylight Saving Time	On/Off by button
Display	Backlit with 3 brightness levels
Backup Battery	2 x AA batteries (user-replaceable) for time/alarm retention during power loss
Antenna	AM: built-in ferrite rod; FM: power cord
Headphone Jack	3.5mm
Dimensions (approx)	7.5 x 5.5 x 3.5 inches
Weight (approx)	1.5 lbs
Maintenance	Clean with soft cloth; do not use solvents
Safety	FCC Part 15 compliant; polarized plug; no user-serviceable parts

Frequently Asked Questions - RP3740 RCA

How do I set the clock manually?

Press SET TIME / WAKE repeatedly until the clock icon blinks. Use REV or FWD to set the hour and minute. Press SET TIME / WAKE again to save. The clock is 12-hour format with AM/PM indicators.

How do I set the alarm to wake me with a CD?

Insert a CD, then press WAKE 1 or WAKE 2 repeatedly until the CD icon appears. Press and hold CD WAKE TRACK then use REV/FWD to select a track. Press PLAY/PAUSE to set volume, then OFF.

How do I use the snooze feature?

When the alarm sounds, press SNOOZE to silence it for the set snooze period (default 9 minutes). To adjust the snooze time, press and hold SNOOZE then press REV/FWD to set 1-30 minutes. Snooze can be repeated up to 2 hours total.

What happens if the power goes out?

If backup batteries (2 x AA) are installed, the clock time and alarm settings are retained, but the display will not light. Alarms will still sound with the tone (not radio/CD). When AC power is restored, normal operation resumes. If no batteries, the display blinks to indicate power interruption, and you must reset the time.

How do I set the time zone?

Locate the time zone selector switch on the bottom of the unit. Slide it to Pacific, Mountain, Central, or Eastern to match your region. Do this before plugging in for automatic time set.

How do I enable or disable Daylight Saving Time?

Press and hold the DAYLIGHT SAVING button on the side of the unit. The DST icon will appear on the display when activated. Press and hold again to deactivate.

How do I cancel the alarm on weekends?

Press and hold WEEKEND CANCEL until the WEEKEND CANCEL icon appears on the display. The alarms will then be inactive on Saturday and Sunday. To deactivate, press and hold again until the icon disappears.

How do I adjust the display brightness?

Press the DISPLAY BRIGHTNESS button on the side of the unit repeatedly to cycle through three brightness levels: low, medium, and high.

How do I use the nap timer?

Press NAP once; the NAP indicator flashes. While flashing, press REV or FWD to set the nap duration (10 minutes to 2 hours). After 5 seconds, the clock returns with the NAP indicator lit. When nap ends, the alarm sounds (tone only). Press NAP or OFF to stop it.

Why is my FM reception poor?

The power cord acts as the FM antenna. Make sure it is fully stretched out and not coiled or bunched. Try repositioning the cord for better reception. The built-in AFC helps lock onto FM stations.

USER MANUAL RP3740 RCA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

In accordance with FCC requirements, changes or modifications not expressly approved by Thomson Inc. could void the user's authority to operate this product. This device generates and uses radio frequency (RF) energy, and if not installed and used properly, this equipment may cause interference to radio and television reception. If this equipment does cause interference to radio or television reception (which you can determine by unplugging the unit), try to correct the interference by one or more of the following measures:

- Re-orient the receiving antenna (that is, the antenna for the radio or television that is "receiving" the interference).

- Move the unit away from the equipment that is receiving interference. - Plug the unit into a different wall outlet so that the unit and the equipment receiving interference are on different branch circuits. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, "How To Identify and Resolve Radio TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. Please specify stock number 004-000-00345-4 when ordering copies.

Technical Specification

Product: Clock Radio

Brand: RCA

Model: RP3740

Electrical Consumption

Power Supply: 120V-60Hz

Power Consumption: 15 Watts

IMPORTER

In the event that service should be required, you may need both the model number and the serial number. In the space below, record the date and place of purchase:

Date of Purchase:

Place of Purchase:

Service Information

This product should be serviced only by those specially trained in appropriate servicing techniques. For instructions on how to obtain service, refer to the warranty included in this Guide.

- Do not use your set immediately after transport from a cold place to a warm place: there may be condensation problems.

- This set uses a laser beam. To prevent any accident due to this type of beam, the set should only be opened by properly trained personnel.

• Make sure that you keep your set away from water and high temperatures.

- To prevent personal injury, do not reverse any battery and do not mix battery types.

Ecology

Help protect the environment - we recommend that you dispose of used batteries by putting them into specially designed receptacles.

Maintenance

Clean the unit with a soft cloth, or a damp chamois leather. Never use solvents.

RISK OF ELECTRIC SHOCK DO NOT OPEN

THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF "DANGEROUS VOLTAGE" INSIDE THE PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.

SEE MARKING ON BOTTOM / BACK OF PRODUCT

WARNING TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARDO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Table of Content

EN

FCC information / Safety Information

Before Your Begin 2

1. Before Plug-In 2

Automatic Time Set 2

Setting Time Zone 2

U.S. Time Zone (Figure 1) .... 3

Canadian Time Zone (Figure 2) ..... 3

1. Plugging In for Power 4

For Your Safety 4

1. Daylight Saving Time .... 4

General Controls 5

Front View 5

Top View 5

Side Views 6

Display 7

Setting the Clock 8

Weekday Setting 8

Setting Clock 8

Operating the Radio 9

Built-In AFC 9

Antennas 9

Turning on/off the Radio 9

Selecting Bands 9

Tuning to Stations 9

Radio Frequency Memory 10

CD Player 10

Play and Pause CD 10

Stop 10

Skip/Search Tracks 10

Playback Options 10

Wake Settings 11

Setting Wake Time 11

Wake by Selected Source 11

Wake to Tone 11

Wake to Radio 11

Wake to CD 12

Cancel Wake Setting 12

Turning off Alarm 12

Operating the Clock 13

Sleep Mode 13

Nap Mode 13

Snooze Alarm Operation 14

Weekend Cancel 14

Seconds Time Display 14

Display Brightness 14

Installing Back-Up Batteries ..... 15

Battery Back-Up 15

Installing batteries 15

Power Failure Indicator 15

U.S. Warranty 16

Canadian Warranty 18

1

Before You Begin

1. Before Plug-In

Automatic Time Set

You do not have to set the clock time as a built-in automatic time set system is equipped in this clock powered by 3V (2 x "AA" batteries (included)). All you have to do is to plug this clock for power and current time will be shown automatically.

Before plugging in for power, follow the steps below to select time zone.

Setting Time Zone

You may slide the time zone selector at the bottom of the clock to Pacific, Mountain, Central or Eastern.

Refer to Figure 1 for U.S. Time Zone details. Refer to Figure 2 for Canadian Time Zone details.

EN

2

Before Your Begin

EN

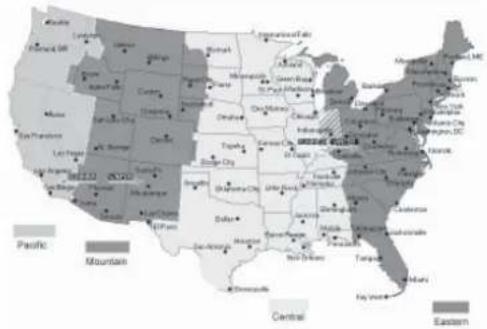

U.S. Time Zone (Figure 1)

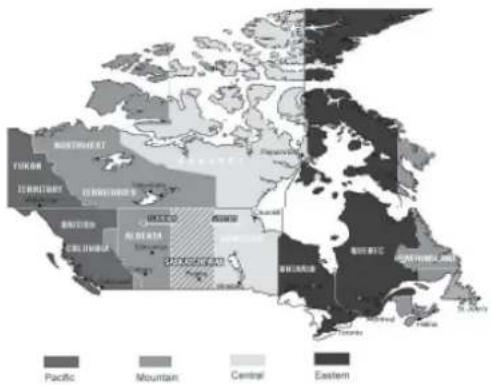

Canadian Time Zone (Figure 2)

3

Before You Begin

2. Plugging In For Power

AC OUTLET POWER SUPPLY:

120V\~60Hz

For Your Safety

The AC power plug is polarized (one blade is wider than the other) and only fits into AC power outlets one way. If the plug will not go into the outlet completely, turn the plug over and try to insert it the other way. If it still does not fit, contact a qualified electrician to change the outlet, or use a different one. Do not attempt to bypass this safety feature.

NoteNote

Power is fed to the unit even when it is not functioning. To cut the power supply off, the power cable must be unplugged.

3. Daylight Saving Time

Press and hold DAYLIGHT SAVING

button at the side of the unit to turn on/off daylight saving time in areas observing/ not observing such time change. The daylight saving time icon will be displayed when the feature is activated.

Line drawing of a portable radio with control knobs and a circular vent (no text or symbols)

WARNING: WARNING'd playing with the DAYLIGHT SAVING button and TIME ZONE switch after entering the Clock/Wake set mode.

EN

4

Front View

Top View

RADIO ON / BAND - Turns radio on. Selects between FM and AM radio band.

OFF - Turns power off.

MEMO RECALL - In radio mode, access memory location.

MEMO SET - In radio mode, stores preset memory.

SLEEP - Activates sleep function.

WAKE CANCEL - Cancels wake settings.

REV - In clock and wake setting mode, counts backwards for clock time. In radio mode, tunes down radio frequency.

FWD - In clock and wake setting mode, moves forward for clock time. In radio mode, tunes up radio frequency.

SET TIME / WAKE - Enters clock and wake setting mode.

WAKE 1 - Activates Wake 1 settings and change wake 1 mode.

WAKE 2 - Activates Wake 2 settings and change wake 2 mode.

PLAY/PAUSE - Starts and pauses CD playback.

STOP - Stops CD playback.

SKIP FORWARD - Skips to the next track.

SKIP BACKWARD - Skips to the previous track.

CD WAKE TRACK - Selects Wake to CD mode track number.

MODE - Selects among playback options: random playback, repeat all and repeat all with random playback.

SNOOZE - Enters snooze mode where the alarm will quiet but will sound again once the snooze period is over.

Note: R#Ve: / FWD and SKIP FORWARD / SKIP BACKWARD buttons have the same function.

General Controls

Side Views

Line drawing of a portable electronic device with control buttons (no text or symbols)

NAP - Activates nap function.
WEEKEND CANCEL - Deactivates Wake function on weekends (SAT and SUN).
DAYLIGHT SAVING - Enable and disable Daylight Saving Time in areas observing/not observing such time change.

Line drawing of a portable radio with control knobs and a speaker grille (no text or symbols)

DISPLAY BRIGHTNESS - Adjusts display light brightness.
VOLUME - Adjusts volume level.
Headphones - Insert headphones here.
Note: Notakers will still sound when any wake mode is activated even if headphone is plugged in.

EN

6

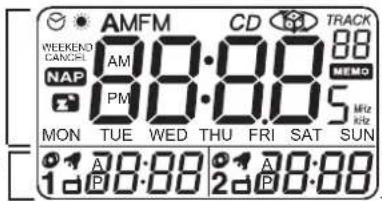

Display

EN

Clock Display

Wake 1 Display

Wake 2 Display

Clock Display Section

In clock setting mode.

- Daylight Saving Time activated.

WEEKEND CANCEL - Weekend cancel is activated. Wake settings are cancelled on Sat and Sun.

NAP- Nap activated.

- Sleep activated.

AM - In AM radio band.

FM - In FM radio band.

CD - In CD mode.

- random playback

<> - repeat disc.

- repeat disc and random playback.

TRACK- In CD mode, displays track number.

00- In radio mode, displays memory location.

MHz / kHz - Radio frequency unit.

MON TUE WED THU FRI SAT SUN - Weekday indicator

Wake 1 and Wake 2 Display

1 - Wake 1 settings.

2 - Wake 2 settings.

- Wake to CD.

- Wake to tone.

d - Wake to radio.

A - AM time indicator.

P - PM time indicator.

38:88 Wake time.

7

Setting the Clock

This unit has a built-in automatic time set system that automatically generates the correct clock time once the unit is plugged in. You are not required to set the clock manually, however, in case the memory holding batteries are accidentally removed, you may reset the clock as follow:

Be sure Time Zone and Daylight Saving Time is adjusted before operating the clock.

Weekday Setting

1. Press SET TIME / WAKE button repeatedly until the weekday icon is blinking.
2. Press REV or FWD to select the date.
3. The setting will automatically be save if no buttons are pressed after a few seconds.
   You can also press SET TIME / WAKE once to save you setting and return to standby mode.

Setting Clock

1. Press the SET TIME / WAKE button repeatedly until the clock setting icon is displayed.
2. Press REV or FWD to set the time. Press and hold the respective buttons to fast forward or fast reverse clock time.
3. Clock time will automatically be saved if no buttons are pressed after a few seconds.
   You can also press SET TIME / WAKE twice to save your setting and return to standby mode.

Note: Note clock is in 12 hour format. The AM and PM indicators will light to show am and pm time.

EN

Operating the Radio

EN

Built-In AFC

The Built-In Automatic Frequency Control (AFC) works only on FM. It helps to reduce drift on FM reception and to keep the radio locked in on the FM station to which it is tuned.

Antennas

AM Antenna - A built-in ferrite rod antenna eliminates the need for an outside antenna for AM reception. Rotating the unit slightly may improve reception of distant AM stations.

FM Antenna - The power cord acts as your FM antenna. The power cord picks up moderate to strong stations and eliminates the need for an external antenna in most strong signal areas. Be sure the power cord is stretched out to its full length. Do not coil or bunch the cord together. Changing position of the power cord may improve reception.

Turning on/off the Radio

Press RADIO ON/BAND to turn on the radio.

Press OFF to turn off the radio.

Selecting Bands

Press RADIO ON/BAND repeatedly to select between FM and AM band.

Tuning to Stations

Press REV to search down radio frequency.

Press FWD to search up radio frequency.

Press and hold REV or FWD to automatically search for the next station in the respective direction.

9

Operating the Radio

Radio Frequency Memory

1. Refer to "Selecting Bands" and "Tuning to Stations" to select the station to be stored into memory.
2. Press MEMO SET and the next available memory location will be displayed with the memory icon MEMO flashing.
3. To select another memory location, press MEMO RECALL.
4. Once the desired memory location is selected, press MEMO SET to save setting.

Memory Recall

1. Press MEMO RECALL repeatedly to recall preset stations when radio is on.

Cancel Memory

1. Press MEMO RECALL to select the memory location you want to cancel.
2. Press and hold MEMO SET to cancel memory setting.

EN

CD Player

Play and Pause CD

Press ▶ PLAY/PAUSE to begin CD playback.

Press ▶ II PLAY/PAUSE during playback to pause CD. Press again to resume.

Note: Note will flash on the display if the disc compartment is empty.

STOP

Press ■ STOP to end playback.

Skip/Search Tracks

Press SKIP FORWARD to skip to the next track.

Press SKIP BACKWARD to skip to the previous track.

Press and hold SKIP FORWARD or SKIP BACKWARD to search fast forward or backwards for the current track in the respective direction.

Playback Options

Press MODE repeatedly to toggle playback options.

The corresponding indicator for each option will light when selected.

• Random playback.
  <> Repeat All.
  164 Random playback and Repeat all.

Wake Settings

EN

Setting WAKE Time

Your digital clock operates on a 12-hour standard mechanism. A will light for AM time and P will light for PM time.

1. Press SET TIME / WAKE button repeatedly until wake 1 or wake 2 icon is blinking.

1. Press REV or FWD to set the wake time. Press and hold REV or FWD to fast search reverse or forward clock time.

Waking by Selected Source

Press WAKE 1 or WAKE 2 repeatedly to select wake source for the respective wake setting.

You may be woken up by TONE 📤, RADIO 📋 or CD 🔒.

The corresponding icon will show on the display.

Wake to Tone

When wake to tone is selected, the icon will be displayed.

The unit is equipped with GRAD-U-WAKE feature, the alarm tone volume will increase gradually to its maximum in about 30 to 45 seconds.

Tip: Tip you set SLEEP function with low volume level before going to bed, we advise using Wake to tone mode to wake you up since its volume will automatically increase.

Wake to Radio

When wake to radio is selected, the icon will be displayed.

Setting Wake Station

1. Select radio band.
2. Select desired station.
3. Press MEMO SET to enter preset mode.
4. Press MEMO RECALL repeatedly until the "AL" memory location is reached.
5. Press MEMO SET to save the station into alarm memory location.
6. Adjust the volume by turning VOLUME.

Note: When you turn off the alarm by pressing OFFOFFE alarm will turn on at the same time tomorrow.

Wake Settings

Wake to CD

The wake to CD is selected, the icon will be displayed.

1. Insert a disc into the CD compartment.
2. Press and hold CD WAKE TRACK then press REV or FWD to select the track to wake up to.
3. Press PLAY/PAUSE to listen to the wake up volume.
4. Adjust the volume until the desired volume is reached.
5. Press OFF to turn off the unit.

Note: Note the CD compartment is empty, the alarm tone will sound instead.

Cancel Wake Setting

1. Press WAKE CANCEL.
2. Press WAKE 1 or WAKE 2 button to cancel the corresponding wake function permanently.
   OFF will be displayed as the Wake setting.

Turning off Alarm

Silence the alarm momentarily

Press SNOOZE. The alarm will sound again when the snooze period is over. (see "Snooze Alarm Operation").

Stop the alarm

Press OFF. Then, the alarm will be on the following day at the same time.

Tip Tip can activate the previously set alarm time by pressing WAKE 1WAKE 1 or WAKE 2WAKE 2

Note: Note: 1. Note: 2. Note: 3. Note: 4. Note: 5. Note: 6. Note: 7. Note: 8. Note: 9. Note: 10. Note: 11. Note: 12. Note: 13. Note: 14. Note: 15. Note: 16. Note: 17. Note: 18. Note: 19. Note: 20. Note: 21. Note: 22. Note: 23. Note: 24. Note: 25. Note: 26. Note: 27. Note: 28. Note: 29. Note: 30. Note: 31. Note: 32. Note: 33. Note: 34. Note: 35. Note: 36. Note: 37. Note: 38. Note: 39. Note: 40. Note: 41. Note: 42. Note: 43. Note: 44. Note: 45. Note: 46. Note: 47. Note: 48. Note: 49. Note: 50. Note: 51. Note: 52. Note: 53. Note: 54. Note: 55. Note: 56. Note: 57. Note: 58. Note: 59. Note: 60. Note: 61. Note: 62. Note: 63. Note: 64. Note: 65. Note: 66. Note: 67. Note: 68. Note: 69. Note: 70. Note: 71. Note: 72. Note: 73. Note: 74. Note: 75. Note: 76. Note: 77. Note: 78. Note: 79. Note: 80. Note: 81. Note: 82. Note: 83. Note: 84. Note: 85. Note: 86. Note: 87. Note: 88. Note: 89. Note: 90. Note: 91. Note: 92. Note: 93. Note: 94. Note: 95. Note: 96. Note: 97. Note: 98. Note: 99. Note: 100. Note:

Note: Note: AC power is interrupted and the unit is operating through the DC backup batteries, all wake mode will work with buzzer instead.

Operating the Clock

EN

Sleep Mode

In sleep mode, the unit will turn off automatically after a specified time.

Setting Sleep Time

1. Press SLEEP then the time display will exhibit 0:59 and the radio will turn on.
2. While holding SLEEP, press REV or FWD to set the sleep time. The time range is from 1 minute to 2 hours.
3. Release SLEEP and the current time will be shown again. The sleep icon 📋 is displayed when it is activated.

Sleep to Radio

The radio is turned on after step 3 in Setting Sleep Time and you may select the station as usual. The radio will turn off when the preset time elapses. If you decide to turn off the radio sooner, press SNOOZE or OFF.

Sleep to CD

Press PLAY/PAUSE ▶II after step 3 in Setting Sleep Time to begin CD playback. The unit will turn off automatically once sleep time is reached.

View Remaining Time

Press SLEEP to read the remaining sleep time.

Note: When SLEEP SLEEPvated again, the sleep time will be the same as the one you have set before.

Nap Mode

This function wakes you up after a short period of time. Only alarm sound can be selected for Nap.

1. Press NAP and release. The NAP indicator will flash. During this period, adjust NAP time by pressing REV or FWD. The range is from 10 minutes to 2 hours.

2. The clock will be shown after 5 seconds if no button is pressed. The NAP indicator will lit up.

View NAP time

Press NAP once to show time left.

Cancel NAP

Press and hold NAP to cancel the nap setting.

Stop the Nap alarm

Press NAP or follow "Turning off Alarm".

Note: Noa will not be activated again the following day at the same time.

Nap alarm is equipped with GRAD-U-GRAD-U-WAKEWEDE.

Operating the Clock

Snooze Alarm Operation

This operation allows extra sleep time after the alarm is on. The alarm will be off by pressing SNOOZE until the snooze period is over. Snooze function can be used repeatedly up to 2 hours. After this, the alarm will turn off until the next alarm conditions are met. Set the "quiet" period as follow:

1. Press and hold SNOOZE.
2. Press REV or FWD to set the "quiet" period (the default time is 9 minutes) from 1 minute to 30 minutes. Release button, then, the "quiet" period is set.

Weekend cancel

If the weekend cancel function is activated, the alarm will be active during MON to FRI, and inactive during SAT and SUN.

Activate Weekend Cancel Function - Press and hold the WEEKEND CANCEL button until the WEEKEND CANCEL icon remains lit on the display.

Deactivate Weekend Cancel Function - Press and hold the WEEKEND CANCEL button to cancel this function (the icon "Weekend Cancel" will disappear.)

Seconds Time Display

The unit may display in seconds.

1. Press and hold REV or FWD to show seconds display.
2. Release REV or FWD to return to the hour and minute display.

Display Brightness

You can adjust the backlight of the display with the DISPLAY BRIGHTNESS button. There are three levels you may select from: Observe the change when you press DISPLAY BRIGHTNESS repeatedly.

EN

Installing Back-up Batteries

EN

Diagram of a device rear panel with internal components and a directional arrow (no text or symbols)

Battery Back-Up

The power failure protection circuit will not operate unless battery is installed.

When the battery backup functions, the digital display will not light, however, the function of wake still occurs during the power interruption if remaining battery power is adequate.

Normal operation will resume after AC power is restored so you will not have to reset the time or wake.

Installing batteries

1. Unlock the battery compartment door (located at the bottom of the radio) by sliding the tab away from the door.

1. Remove battery compartment door (located at the bottom of the radio) by applying thumb pressure to the tab on battery door and then lift the door out and off the cabinet.

1. Before inserting the batteries, observe the polarities (That is, + and -) of the battery, then relate the polarities to the engraved diagram inside the battery compartment. Connect 2 "AA" battery to the connector plug.

2. Replace the compartment door and lock the door in place by pushing the tab towards the compartment door.

NOTE:NOTE:

We recommend that you replace the batteries every 2-3 years.

Power Failure Indicator

When AC power is interrupted (disconnected) for a short period of time, both time and alarm settings will change (unless batteries are installed). After AC power is restored (reconnected), the Digital Display will blink to indicate that power was interrupted and you should readjust the time and alarm settings.

15

U.S. Warranty

What your warranty covers:

• Defects in materials or workmanship.

For how long after your purchase:

• One year from date of purchase

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

- Provide you with a new, or at our option, a refurbished unit. The exchange unit is under warranty for the remainder of the original product's warranty period.

- Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required.

How to make a warranty claim:

- Properly pack your unit. Include any cables, etc., which were originally provided with the product. We recommend using the original carton and packing materials.

- Include evidence of purchase date such as the bill of sale. Also print your name and address and a description of the defect. Send via standard UPS or its equivalent to:

Thomson Inc.

Product Exchange Center

11721 B Alameda Avenue

- Insure your shipment for of loss or damage. Thomson accepts no liability in case of damage or loss en route to Thomson.

- Pay any charges billed to you by the Exchange Center for service not covered by the warranty.

- A new or refurbished unit will be shipped to you freight prepaid.

What your warranty does not cover:

- Customer instruction. (Your Owner's Manual provides information regarding operating Instructions

and user controls. For additional information, ask your dealer.)

• Installation and set-up service adjustments.

- Batteries.

• Damage from misuse or neglect

- Products which have been modified or incorporated into other products.

- Products purchased or serviced outside the USA.

- Acts of nature, such as but not limited to lightning damage.

U.S. Warranty

EN

Limitation of Warranty:

- THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. - REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How state law relates to this warranty:

- Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

- This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your product outside the USA:

This warranty does not apply. Contact your dealer for warranty information.

Canadian Warranty

Thomson multimedia Ltd. warrants to the purchaser or gift recipient that if any manufacturing defect becomes apparent in this product within 1 year from the original date of purchase, it will be replaced free of charge, including return transportation.

This warranty does not include damage to the product resulting from accidents, misuse or leaking batteries. Should your product not perform properly during the warranty period, either:

1. Return it to the selling dealer with proof of purchase for replacement,

2. Remove the batteries (where applicable), and pack product complete with accessories in the original carton (or equivalent). Mail prepaid (with proof of purchase) and insured to: Thomson multimedia Ltd.

6200 Edwards Blvd.,

Mississauga, Ontario,

L5T 2V7

The provisions of this written warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in any applicable legislation, and to the extent that any such provisions purport to disclaim, exclude or limit any such statutory warranties and other rights and remedies, such provisions shall be deemed to be amended to the extent necessary to comply therewith.

If you are unable to find a qualified servicer for out of warranty service, you may write to: Thomson Inc.

P.O. Box 0944 Indianapolis, Indiana, U.S.A., 46206-0944

Attach your sales receipt to this booklet for future reference. This information is required if service is needed during the warranty period.

PURCHASE DATE

NAME OF STORE
