USER MANUAL 4287-220 BLACK & DECKER

154545/4287-220 5/6/02 4:27 PM Page 2

Black & Decker (U.S.) Inc. • 701 East Joppa Road, Towson, Maryland 21286 Printed in U.S.A. (MAR96-CD-1) Form No. 154545 Copyright © 1996

154545/4287-220 5/6/02 4:27 PM Page 3

Instruction Manual

4287-220

Die Grinder

Getting the most out of your tool.

Please take time to read this manual and pay particular attention to the safety rules we've provided for your protection. If you have any questions about your tool please call:

1-800-9-BD TOOL (1-800-923-8665)

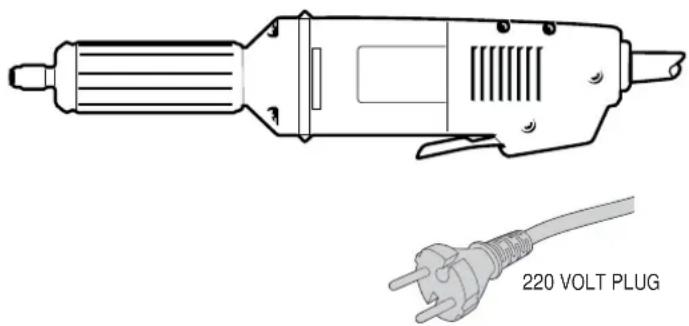

4287-220 1 1/2" (38mm) Die Grinder

Technical line drawing of a 220 VOLT plug with no text or symbols on the diagram itself

IMPORTANT SAFETY INSTRUCTIO

WARNING: When using electric tools, basic safety precaution should always be followed to reduce risk of fire, electric shock, a personal injury, including the following:

READ ALL INSTRUCTIONS

Double Insulation

Double insulated tools are constructed throughout with two separate layers of electrical insulation or one double thickness of insulation between you and the tool's electrical system. Tools built with the insulation system are not intended to be grounded. As a result, you tool is equipped with a two prong plug which permits you to use extension cords without concern for maintaining a ground connection.

NOTE: Double insulation does not take the place of normal safe precautions when operating this tool. The insulation system is added protection against injury resulting from a possible electric insulation failure within the tool.

CAUTION: WHEN SERVICING USE ONLY IDENTIC. REPLACEMENT PARTS. Repair or replace damaged cords.

Safety Instructions For All Tools

• KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
• CONSIDER WORK AREA ENVIRONMENT. Don't expose power tools to rain. Don't use power tools in damp or wet locations. Keep work area well lit. Do not use tool in presence of flammable liquids or gases.
• GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces. For example; pipes, radiators, ranges, and refrigerator enclosures.
• KEEP CHILDREN AWAY. Do not let visitors contact tool or extension cord. All visitors should be kept away from work area.
• STORE IDLE TOOLS. When not in use, tools should be stored in dry, and high or locked-up place — out of reach of children.
• DON'T FORCE TOOL. It will do the job better and safer at the rate for which it was intended.
• USE RIGHT TOOL. Don't force small tool or attachment to do the job of a heavy-duty tool. Don't use tool for purpose not intended.
• DRESS PROPERLY. Do not wear loose clothing or jewelry. They can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
• USE SAFETY GLASSES. Also use face or dust mask if operation is dusty.
• DON'T ABUSE CORD. Never carry tool by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
• SECURE WORK. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
• DON'T OVERREACH. Keep proper footing and balance at all times.
• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if dam-

aged, have repaired by authorized service facility. Inspect extends cords periodically and replace if damaged. Keep handles dry, cle, and free from oil and grease.

• DISCONNECT OR LOCK OFF TOOLS when not in use, before servicing, and when changing accessories, such as blades, b. cutters.
• REMOVE ADJUSTING KEYS AND WRENCHES. Form habit checking to see that keys and adjusting wrenches are removed from tool before turning it on.
• AVOID UNINTENTIONAL STARTING. Don't carry tool with fing on switch. Be sure switch is off when plugging in.
• EXTENSION CORDS. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one head enough to carry the current your product will draw. An undersize cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to be depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

Minimum Gage for Cord Sets
Volts Total Length of Cord in Feet

120V	0-25	26-50	51-100	101-150
240V	0-50	51-100	101-200	201-300

Ampere Rating

More Than	Not Than	more	AWG
0	-	6	18	16	16 14
6	-	10	18	16	14 12
10	-	12	16	16	14 12
12	-	16	14	12	Not Recommended

• OUTDOOR USE EXTENSION CORDS. When tool is used o doors, use only extension cords intended for use outdoors and marked.
• STAY ALERT. Watch what you are doing. Use common sense.

not operate tool when you are tired.

- CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this instruction manual. Have defective switches replaced by authorized service center. Do not use tool if switch does not turn it on and off.

SAVE THESE INSTRUCTIONS

Additional Safety Instructions for Grinders

• ALWAYS WEAR EYE PROTECTION.
- KEEP GUARDS IN PLACE.
- Use only grinding wheels having a maximum operating speed at least high as "No Load RPM" marked on the tool's nameplate.
- Before using, inspect recommended accessory for cracks or flaws. If such a crack or flaw is evident, discard the accessory. The accessory should also be inspected whenever you think the tool may have been dropped.
- When starting the tool (with a new or replacement wheel installed) hold the tool in a well protected area and let it run for one minute. If the wheel has an undetected crack or flaw, it should burst in less than one minute. Never start the tool with a person in line with the wheel. This includes the operator.
- In operation, avoid bouncing the wheel or giving it rough treatment. If this occurs, stop the tool and inspect the wheel.
- ALWAYS USE GUARDS with depressed center wheels or flaring cup grinding wheels.

• Clean your tool out periodically.
• CAUTION: Some wood contains preservatives such as copper chromium arsenate (CCA) which can be toxic. When sanding the materials extra care should be taken to avoid inhalation and minimize skin contact.

SAVE THESE INSTRUCTIONS

Motor

Your B&D tool is powered by a B&D built motor. Be sure your power supply agrees with the nameplate marking. Voltage decrease more than 10% will cause loss of power and overheating. All B&D tools are factory tested; if this tool does not operate, check the power supply.

Paddle Switch

(Figure 1) To start grinder, slide the paddle to the rear of the tool while you are depressing it at the same time. To turn the tool release the paddle. The switch can be locked on by engaging the lock button located near the rear of the tool while holding the paddle depressed. Always be sure that the tool is not locked on before plugging the tool in. To turn the tool off when it is locked on, squeeze a release the paddle once.

Operation

To install grinding wheels:

1. TURN OFF TOOLAND DISCONNECT FROM POWER SUPPL
2. Remove mounting nut by turning it counterclockwise (when failing outer side of wheel). The spindle can be held stationary

holding a wrench on the flats provided on the exposed portion of the spindle

1. Only tighten arbor nut sufficiently to drive the wheel without slippage.
2. When starting the tool (with a new or replacement wheel installed) hold the tool in a well protected area. If the wheel has an undetected crack or flaw, it should burst in less than one minute. Never start tool with a person in line with the wheel. This includes the operator.

CAUTION: Grasp tool firmly with both hands before starting tool.

Put the work in a vise or clamp it securely. Use a face mask over the nose and mouth if the operation raises dust. Treat the wheel with respect...do not jam the wheel into the work or use unnecessary pressure. Grind only on the face of the wheel (Figure 2), unless you have a special wheel specifically make to permit grinding on the side of the wheel.

Cleaning

Blowing dust and grit out of the motor housing using compressed air is a necessary regular maintenance procedure. Dust and grit containing particles from metal filing often accumulate on interior surfaces and could create an electrical shock hazard if not frequently cleaned out.

CAUTION: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. Use clean, dry rag only.

Lubrication

B&D tools are properly lubricated at the factory and are ready use. Tools should be relubricated every sixty days to six mon depending on usage. Tools constantly used on production or head duty jobs and tools exposed to heat may require more frequent lubrication. This lubrication should only be performed by B&D rep technicians.

Motor Brushes

(For tools with external brush caps)

Be sure tool is unplugged before inspecting brushes. Carbon brushes should be regularly inspected for wear. To inspect brush unscrew the plastic brush inspection caps (located in the sides the motor housing) and the spring and brush assemblies may withdrawn from the tool.

Keep brushes clean and sliding freely in their guides. Carbon brushes have varying symbols stamped into them, and if the brush is wod down to the line closest to the spring, they must be replaced. No brush assemblies are available at your local service center.

154545/4287-220 5/6/02 4:27 PM Page 4

Figure 2

Line drawing of a person using a handheld tool (no text or symbols present)

RIGHT

Accessories

Recommended accessories for use with your tool are available extra cost from your distributor or local service center.

CAUTION: The use of any non-recommended accessory may hazardous.

If you need assistance in locating any accessory call 1-800-9-I TOOL

(1-800-923-8665) or contact Black & Decker (U.S.) Inc., Consum Services Department, 626 Hanover Pike, P.O. Box 618, Hampster MD 21074.

Accessories for 5" & 6" Straight Grinders

Cotton Buffing Wheels

Grinding Wheels (Use guard supplied with tool)

Accessory for Die Grinders

Mounted Stones & Points

WARNING: To reduce the risk of injury, always use proper guar when grinding and wear eye protection.

IMPORTANT!

To assure product safety and reliability, particularly for double insulated tools, repairs, maintenance and adjustment (excluding maintenance described in this manual) should be performed by B&D service centers or authorized service centers, using identical B&D replacement parts.

Every B&D tool is of the highest quality. If you wish to contact us regarding this product, please call toll free between 8:00am and 8:00pm ET, seven day a week:

1-800-9-BD TOOL

(1-800-923-8665)

One Year Free Maintenance

All B&D tools for Industry and Construction are covered under a c year free maintenance program where B&D will inspect your tool safety and provide necessary maintenance or repairs, including n mal wear and tear parts, for one year, FREE OF CHARGE.

Full Warranty

All B&D tools for Industry and Construction are warranted to be fi of any defects in materials or workmanship. Upon thorough exa nation of tool, B&D will repair or replace, at our option, any prod that is determined to be defective.

Conditions

The service/safety check and the warranty do not apply to: repair made or attempted by anyone other than an authorized B&D serv location; misuse, abuse, neglect, improper application of the tool; mixing parts; or normal wear and tear (after first year of ownership) Please return the complete unit, transportation prepaid, to any B factory owned or B&D authorized service center location (list provide with tool or see Yellow Pages under "Tools Electric").
