CBM210B - Coffee grinder BLACK & DECKER - Free user manual and instructions

Product Type	Coffee Grinder
Brand	Black & Decker
Model	CBM210B
Power Consumption	150 W
Capacity	60 g (approx. 12 tablespoons)
Dimensions (H x W x D)	200 x 100 x 100 mm
Weight	0.5 kg
Material	Stainless steel blades, plastic housing
Operation	One-touch pulse control
Safety Features	Lid safety switch; auto shut-off
Cleaning	Wipe clean; removable grinding bowl
Dishwasher Safe Parts	Removable bowl only (check manual)
Cord Length	0.6 m
Voltage	220-240 V, 50/60 Hz
Warranty	2 years (limited)
Additional Features	Compact design; see-through lid; grinds coffee, spices, nuts

Frequently Asked Questions - CBM210B BLACK & DECKER

How do I clean the Black & Decker CBM210B coffee grinder?

Unplug the grinder. Wipe the exterior with a damp cloth. The removable grinding bowl can be washed in warm soapy water or on the top rack of the dishwasher. Dry thoroughly before reassembling. Do not immerse the base in water.

Can I grind spices or nuts in this grinder?

Yes, the CBM210B can grind coffee beans, spices, and nuts. Ensure the grinding chamber is clean and dry before switching ingredients to avoid flavor transfer.

What is the maximum capacity of the grinder?

The maximum capacity is approximately 60 grams (about 12 tablespoons) of coffee beans. Do not overfill to prevent motor strain.

Why does the grinder stop working during use?

The grinder has an auto shut-off feature to prevent overheating. If it stops, let it cool down for 10-15 minutes before using again. Also ensure the lid is properly locked.

Can I use the grinder continuously?

No, the grinder is designed for pulse operation. Hold the button for a few seconds, release, and repeat to achieve desired grind consistency. Continuous operation may damage the motor.

Is the grinding bowl dishwasher safe?

Yes, the removable grinding bowl is dishwasher safe (top rack only). The lid and base should be wiped clean with a damp cloth.

How do I achieve a fine or coarse grind?

The grind consistency depends on how long you pulse the grinder. Short pulses (2-3 seconds) give a coarse grind; longer pulses (10-15 seconds total) yield a finer grind.

What should I do if the grinder makes unusual noise?

Unplug immediately. Check for foreign objects or excessive beans. If noise persists, contact Black & Decker customer service for assistance.

Can I grind wet ingredients?

No, the grinder is designed for dry ingredients only. Grinding wet items can damage the motor and create a safety hazard.

Where can I find spare parts for the CBM210B?

Spare parts such as the grinding bowl or lid can be ordered from the Black & Decker website or authorized service centers. Check the manual for part numbers.

USER MANUAL CBM210B BLACK & DECKER

Register your product at www.prodprotect.com/applica

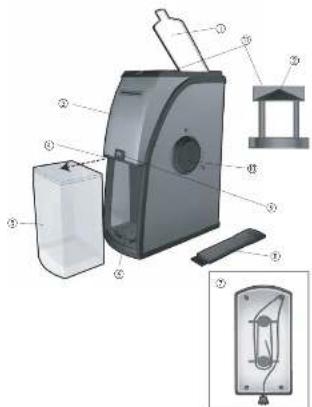

ELECTRIC COFFEE GRINDER

† 1. Cover (Part # CBM200-01)

1. Lock and release knob

2. Grinding bowl

3. Ground coffee chule

4. Ground coffee container (Part # CBM200-02)

with lid (Par1 # CBM200-03)

1. Race

2. Cord

3. Clustering method (Rear) / LCPM200-041

4. CLEAMING BRAIN (PART II: GBM205)

5. ON/OFF pulse control button (A)

6. Grind selection dial

7. Grinding assembly

Note: † indicates consumer replaceable/removable parts

MODEL CBM210B

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following: ○ Read all instructions.

To protect against risk of electric shock, do not immerse cord, plug or any non-removable parts in water or other liquid.

- Close supervision is necessary when any appliance is used by or near children.

○ Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. To unplug, grasp plug and pull from electrical outlet. Never pull cord.

(1) Avoid contacting moving parts.

To reduce the risk of severe injury to persons or damage to the appliance, keep hands and utensils out of the grinding bowl while grinding, and when the appliance is plugged in.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.

The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.

Product may vary slightly from what is illustrated.

Do not use outdoors.

Do not let cord hang over edge of table or counter.

O Blades are sharp. Handle carefully.

- Be certain cover is securely locked in place before operating appliance.

○ Do not attempt to defeat the cover interlock mechanism.

○ Check container for presence of foreign objects before using.

○ Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

b) Longer extension cords are available and may be used if care is exercised in their use.

c) If an extension cord is used.

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or triaped over.

Note: If the power supply card is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

How to Use

This product is for household use only.

GETTING STARTED

- Wash removable parts as instructed in CARE AND CLEANING.

- When in use, grinder must be placed on a level surface.

- To assure stability, thread electrical cord to one side of cord wrap, then through the channel with cord exiting out the rear of the base. Note: For your apparent appliance contains a dual safety

mechanism. Do not attempt to use appliance unless the cover is closed and ground coffee container is in place.

1. Cast morning hotel away

2. Place up to 1 cup (about 227 g) of coffee beans into grinding bowl. This yields about 16 tablespoons (277 g) of ground coffee—enough for about 12 cups (2 L.I). Do not grind a full cup of beans on the fine setting as it may cause unit to clog.

3. Turn grind selection dial to desired grind texture. Refer to GRINDING GUIDELINES. Expariment with the texture of your grind to see what works best with your coffleemaker.

4. Plug in the grinder

5. Press and hold the ON/OFF IΦpulse control button until beans are around.

GRINDING GUIDELINES

Selecting grind setting:

Brew Method Grind Selling Appearance

Percolator or Coarse Like Kosher salt

French Press

Drip or Vacuum Medium Like coarse-ground pepper

Esagresse Fine Like fine bread crumbs

The proper grind is important for the best coffee flavor. The quicker the brewing process, the finer the grind used. Coffee that is ground too fine for a particular brewing process will result in bitter, pungent tasting coffee. Coffee that is ground too coarse will result in weak, watery coffee.

Grind time and yield:

Amount of beans	Time	Yield
1⁄2 cup [57 g]	30 to 35 seconds	4 tbsp.
1⁄2 cup [113 g]	50 to 55 seconds	8 tbsp.
3⁄4 cup [170 g]	90 to 65 seconds	12 tbsp.
1 cup [227 g]	approximately 11⁄2 minutes	16 tbsp.

1. When grinding is done, remove ground coffee container from the grinder by pulling it away from unit; lift lid up and off. Scoop directly from the ground coffee container.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Always unplug the unit before cleaning.

2. Remove ground coffee container with lid and wash in warm, soopy water by hand.

3. Use clearing brush to sweep away any excess particles left in the ground coffee chute.

Important: The ground coffee chute must be kept clear, or the ground coffee container will not lock into position once it is replaced, and the grinder will not operate properly.

1. Open grinding bowl cover and turn the lock-and-release knob clockwise to unlock the grinding assembly. You will hear a series of clicks and the grind selection dial will rotate as you twist; and then a distinct pop when the assembly is unlocked.

5 Remove grinding assembly and wash in warm, soapy water. Rinse and dry thoroughly. You can use cleaning brush to sweep out any excess particles gathered under grinding assembly. Once all excess particles have been removed, wash in warm soapy water.

1. Wire the grinding bowl cover, base and other parts with a slightly

damp cloth or sponge. Dry all parts thoroughly before reassembling. B. To replace grinding assembly, set inside grinding bowl and twist

slightly to the left until it falls into place. Grasa lock-and-release knob and turn counterclockwise to lock assembly. You will hear a series of clicks as the grind selection dial rotates, and then a extinct pop once the assembly is locked in place.

Important: Do not immerse grinding bowl, base or plug in liquid or under running water.

1. Never use harsh detergents or abrasive cleansers or scouring pads to clean any part.

2. Use the built-in cord wrap on the underside of the unit to store the cord

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number in front of this sheet. Please DO NOT return

The product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the same of this manual.

TWO-YEAR LIMITED WARRANTY (Applies only in the United States

and Canada

- Any defect in material or workmanship provided; however, Apolice's liability will not exceed the purchase price of product.

For how long? • Two years from the date of original purchase with special items

purchase. What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory

How do you get service? • Save your receipt as proof of date

of 50a

- Visit the online service website at www.prodprotect.com/applica, or call to call from 1-800-731-9786, for general warranty service.

• If you need parts or accessories.

Please call 1 to 736-0245.

What does your warranty not be

- Damage from corruption use - Damage from misuse, abuse or defect

- Products that have been modified in any way.

- Products used or serviced outside the country of purchase - Class gas and plant ascertnity

where that are parallel with top

unit

• Shipping and handling costs associated with the replacement of the unit

- Consequential, or incidental damages (Please note, however.

the, some states do not allow the exclusion or limitation of

damages, so this limitation may not apply to you.)

How does state law relate to this

warranty? • This warranty gives you specific legal rights. You may also have other rights that vary from state or state or province to province.

● BLACK & DECKER is a registered trademark of The Black & Decker Corporation, Texas, Maryland, USA.

Made and Printed in People's Republic of China
