KCO255BM - Oven KITCHENAID - Free user manual and instructions
Find the device manual for free KCO255BM KITCHENAID in PDF.
| Product Type | Toaster Oven |
| Brand | KitchenAid |
| Model | KCO255BM |
| Voltage | 120 V AC |
| Frequency | 60 Hz |
| Power | 1,800 W |
| Dimensions (H x W x D) | Approx. 31.8 x 41.9 x 36.8 cm |
| Weight | Approx. 9.1 kg |
| Functions | Toast, Bagel, Pizza, Cookies, Bake, Broil, Roast, Convection Bake, Meat Probe, Keep Warm, Reheat, Proof |
| Cooking Technology | Even-Heat™ with Convection |
| Display | High Contrast LCD |
| Exterior Material | Stainless Steel |
| Interior Material | Non-Stick Coating |
| Included Accessories | Oven Rack, Broil Rack, Multi-Function Pan, Removable Crumb Tray, Meat Probe |
| Cleaning | Dishwasher-safe accessories (hand washing recommended); crumb tray washable in warm soapy water; interior and exterior surfaces wiped with a damp cloth |
| Safety | Automatic shut-off via timer; Cancel button; ventilation; do not immerse; maintain 10 cm clearance from walls |
| Warranty | 1 year, hassle-free replacement (United States, Canada, Puerto Rico) |
| Country of Origin | Not specified in the manual |
Frequently Asked Questions - KCO255BM KITCHENAID
User questions about KCO255BM KITCHENAID
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual KCO255BM - KITCHENAID and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KCO255BM by KITCHENAID.
USER MANUAL KCO255BM KITCHENAID
Countertop Oven KCO255, KCO255L


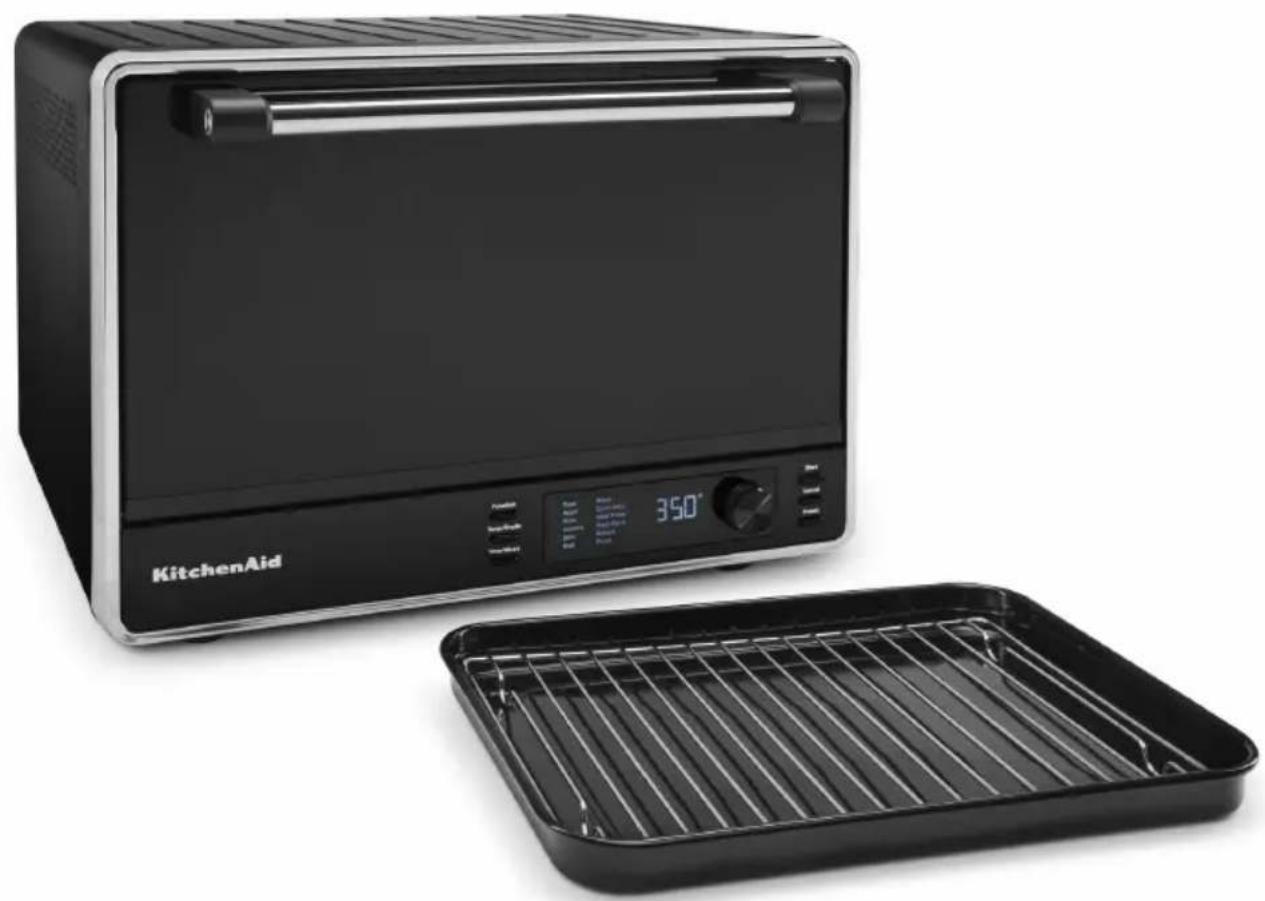

Exterior view of a KitchenAid electric stove with digital display and open grater (no text or symbols on main body)PARTS AND FEATURES

High-contrast LCD Display

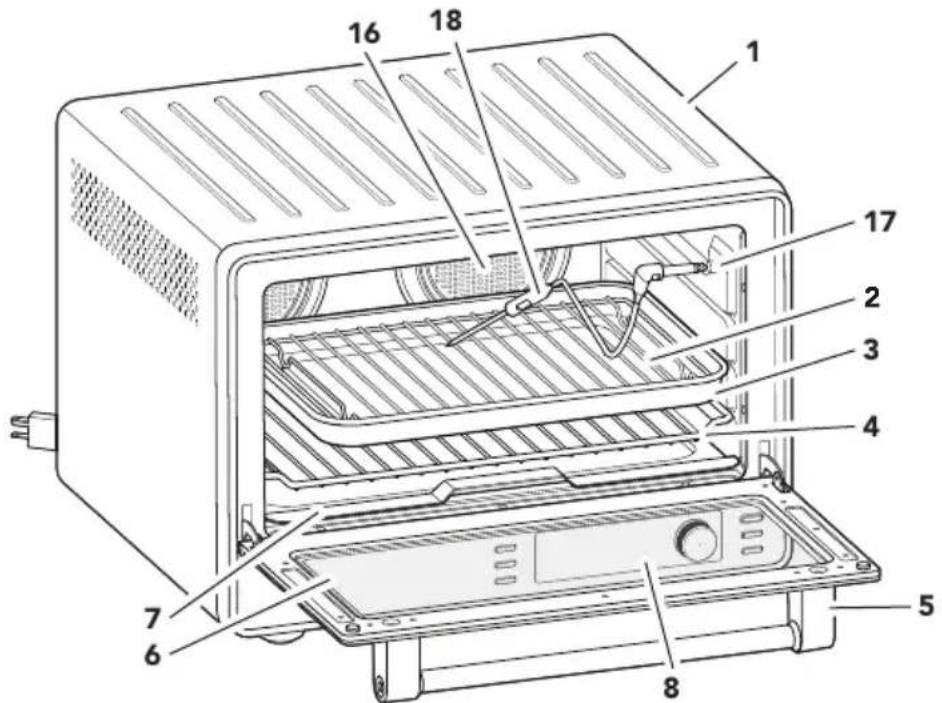

1 Cool down surface for Oven Rack
2 Chrome-plated Steel Broiling Rack
3 Enamel Multipurpose Pan
4 Chrome-plated Steel Oven Rack
5 Stainless Steel Door Handle
6 Toughened Glass Window
7 Removable Crumb Tray
8 High-contrast LCD Display
9 Start: Push to start selected function.
10 Cancel: Stops selected function.
11 Frozen: Push for frozen food items.
12 Time/Slices: Push to select time or number of slices.
13 Temp/Shade: Push to select temperature or shade.
14 Function: Push to select function.
15 Knob: Rotate and press to select function, temperature, shade, time, or number of slices*.
16 Convection Fans
17 Plug for Temperature Probe
18 Temperature Probe
* Adjust the time by 1 minute for the first hour and then by 5 minutes for the next hour. Adjust by 5 °F or 1 °C temperature, depending on the unit selected.
NOTE: Press and hold the Frozen button for 3 seconds to switch between the temperature units Fahrenheit (°F) and Celsius (°C).
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:
! DANGER
You can be killed or seriously injured if you don't immediately follow instructions.
WARNING
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or any parts of the Countertop Oven in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Use extreme caution when removing Broiling Rack, Multipurpose Pan, Oven Rack, or disposing of hot grease.
- Oversize foods or metal utensils must not be inserted in a Countertop Oven as they may create a fire or risk of electric shock.
- A fire may occur if Countertop Oven is covered or touching flammable material, including curtains, draperies, walls and the like, when in operation. Do not store any item on top of the appliance when in operation.
- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
PRODUCT SAFETY
- Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
- Do not store any materials, other than manufacturer's recommended accessories, in this Countertop Oven when not in use.
- Do not place any of the following materials in the Countertop Oven: paper, cardboard, plastic, or anything similar.
- Do not cover crumb drawer or any part of the Countertop Oven with metal foil. This will cause overheating of the oven.
- To disconnect, turn the Countertop Oven "off" by pressing Cancel button, then remove plug from wall outlet.
- Do not use outdoors.
- Do not use appliance for other than intended use.
SAVE THESE INSTRUCTIONS
This product is designed for household use only.
ELECTRICAL REQUIREMENTS
WARNING

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Voltage: 120 VAC
Frequency: 60 Hz
Wattage: 1800 Watts
NOTE: If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way. Do not use an adapter.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician to install an outlet near the appliance.
The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
GETTING STARTED
Before first use, clean all parts and accessories (see "Care and Cleaning" section). Remove all packaging materials, if present. Place the Countertop Oven on a dry and flat level surface.

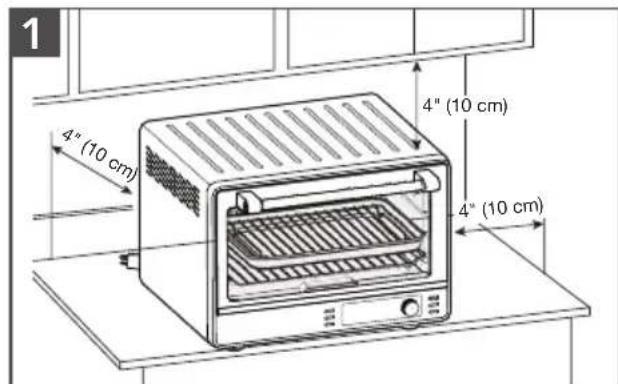

Make sure all sides are positioned with 4" (10 cm) distance.

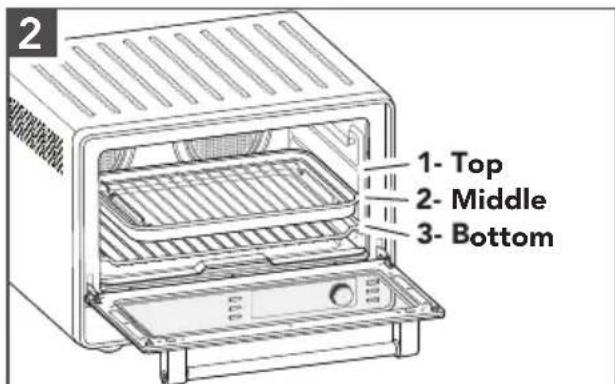

Open and align the oven rack with the grooves for desired positions.
PRODUCT FUNCTIONS
The product features 12 cooking functions for a variety of cooking tasks. Memory settings allows customizations. All your settings will be remembered for next use (until unplugged).
EVEN-HEAT™ TECHNOLOGY

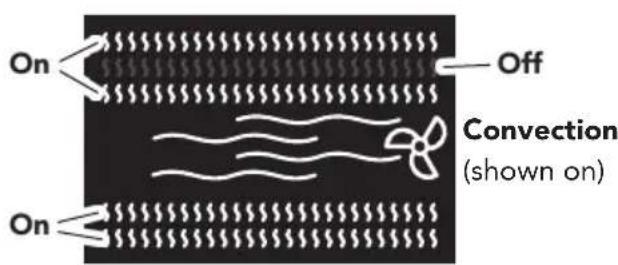

The KitchenAid ^® Even-Heat ^™ system provides consistent cooking, without cold spots or overcooking. It cycles between different heating elements On and Off, and using certain elements for only part of the cooking.
FROZEN OPTION
Allows proper thawing of frozen food items and thawing time varies depending on the selected functions.
Note: NOT available on Roast, Broil, Keep Warm, Reheat, Proof, or Meat Probe functions.
PREHEATING
Allows your oven to saturate the walls and cooking racks based on oven's set temperature to remove cold spots that draw heat away from food.
During preheating, a light ring around the start button will glow with "Preheating" displayed in the LCD. A chime will sound after reaching preheat set temperature. Now insert the food and begin cooking. To skip the Preheating and start the timer directly, push the START button again. Refer to recipes for specific Preheating details.
NOTE: NOT available on Keep Warm, Reheat, Toast, or Bagel functions.
TOASTING FUNCTIONS
Refer to the below charts for toasting and cooking functions, or see detailed explanations and tips provided further for all functions.
| Toasting functions | Rack No. | Preset Shade | Shade Range (Light to Dark) | Preset Slices | Range (# of slices) | Time added in Frozen |
| Toast | 2 4 1 | -8 2 1 -6 20 seconds | ||||
| Bagel | 2 4 1 | -8 2 1 -6 15 seconds |
Toast
- For breads, toaster pastries, frozen waffles.
- Place bread in the center of the oven rack and Bread slices do not need to be flipped.
- If reheating pastries, use the Reheat function.
CD Bagel
- Nicely brown the top of cut bagels while gently warming the outside.
- Place bagels on the oven rack with the cut sides facing up. Bagels do not need to be flipped.
COOKING FUNCTIONS
| Cooking function | Rack No. | Preset Temp. °F (°C) | Temperature Range °F (°C) | Preset Time (Mins.) | Time added in Frozen | Elements Run |
| Pizza** | 1 - 2 | 400 °F (204 °C) | 150 – 450 °F (65 – 232 °C) | 17 5 minutes | Runs 5 elements | |
| Cookies** | 1 | 375 °F (191 °C) | 150 – 450 °F (65 – 232 °C) | 10 2 minutes | ||
| Bake** | 2 - 3 | 350 °F (177 °C) | 150 – 450 °F (65 – 232 °C) | 30 2 minutes | ||
| Broil** | 1 - 2 | 450 °F (232 °C) | 350°F (177°C) 450°F (232°C) | 8 | Runs top three elements | |
| Roast** | 3 | 350 °F (177 °C) | 150 – 450°F (65 – 232°C) | 60 | Runs 4 elements and fans | |
| Convection Bake** | 3 | 325 °F (163 °C) | 150 – 450°F (65 – 232°C) | 20 2 minutes | Runs 5 elements and fans | |
| Meat Probe** | 3 | 350 °F (177 °C) | 200 – 450°F (93 – 232°C) | 160 °F* | ||
| Keep Warm | 2 - 3 | 170 °F (76 °C) | 150 – 200°F (65 – 93°C) | 60 | Runs bottom 2 elements | |
| Reheat | 2 - 3 | 300 °F (148 °C) | 150 – 450°F (65 – 232°C) | 15 | Runs 2 top and 2 bottom | |
| Proof** | 3 | 90 °F (32 °C) | 80 – 100°F (26 – 39°C) | 30 | Runs bottom 2 elements |
* In Meat Probe function, default food target temperature is 160 °F.
** The Countertop Oven will automatically preheat in these functions.
COOKING FUNCTIONS
Pizza
- It is default with the Frozen function. Or push the Frozen button to add extra time for frozen pizzas, or deselect it when cooking fresh pizzas.
- For frozen pizzas, follow time and temperature given on the food packaging.
- For thin crust pizzas, directly place it on the oven rack for crispier crust. Remember that convection can speed up cooking time by up to 30%. Therefore, check pizza often in the final minutes for optimal results. Once you determine optimal time, reset your memory setting to the new desired time.
- Thick crust, self-rising, or deep-dish pizzas will require longer cooking times. Use a 12" (30 cm) non stick pan for fresh or deep-dish pizzas to maintain shape and contained sauce.
- Pizzas may need to be rotated to ensure even results.
Cookies
- Use for Cookie Dough. Cookies will cook faster and efficiently in Convection function.
Bake
- Use for baking cakes, breads, casseroles, pastries, and muffins.
- Food may cook up to 30% faster when using Convection function. Check baked goods before the expected finish time to avoid overcooking.
Broil
- Use for Chops, fish, seafood, and browning.
- For best results, use the 9" x 13" multipurpose pan and rack. It is designed to drain juices and help avoid spatter and smoke.
- For proper draining, do not cover the rack with foil. Instead, the pan bottom lined with aluminum foil for easier cleaning.
Roast
- Use for Chicken, meat and vegetables. The oven distributes power to the top and bottom heating elements to maintain the desired oven temperature.
Conv. Bake
- Use for Cakes, breads, casseroles, muffins, proteins and others.
- Convection function can be used with thin cuts of fish, to eliminate flipping.
- Convection bake is similar to the bake function with all 5 heating elements working. In addition, dual convection fans operate to stir the air in order to distribute heat more evenly.
Meat Probe
- Use function for Steaks, Chicken & other proteins. Use to perfectly cook meats and other proteins to a set internal temperature.
Keep Warm
- Use to keep food warm before serving.
- Preset temperature is 170^ (76°C), but can be changed as per the item being warmed.
Reheat
- Use to bring the food to serving temperature.
- The preset suggested temperature is 300^ F ( 148^ C), but you may need to adjust this depending on the item being reheated to avoid overcook or dry out the food.
Proof
- Use for Dough. To speed up bread proofing. With a range of 80 – 100°F (26 – 39°C) degree temperature and lower heating elements, this setting can be used to accelerate bread proofing (rising).
PRODUCT USAGE
IMPORTANT: Maintain enough clearance between the top of the food item and the top elements. If necessary, adjust the Oven Rack position.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Plug into a grounded 3 prong outlet.

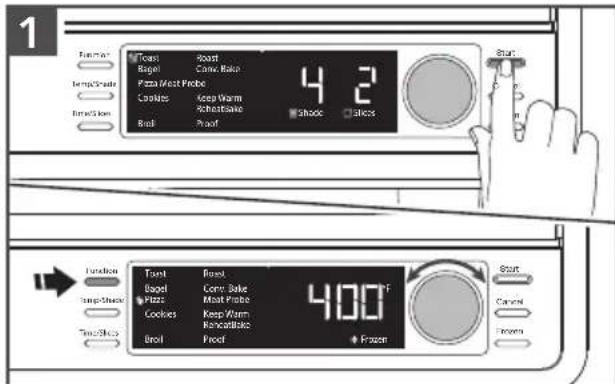

Press Function, Start or push Knob to wake up the controls. Rotate the Knob to change function.
In Toasting functions, shade and slices will be shown. In Cooking functions, preset temperature will be shown.

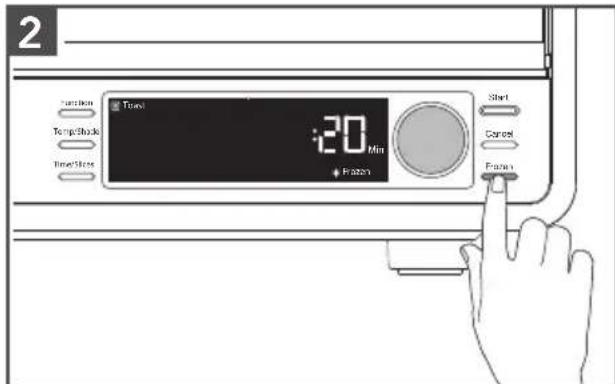

Push Frozen button, if desired to add additional cycle time.
NOTE: NOT available on Roast, Broil, Keep Warm, Reheat, Proof, or Meat Probe functions.

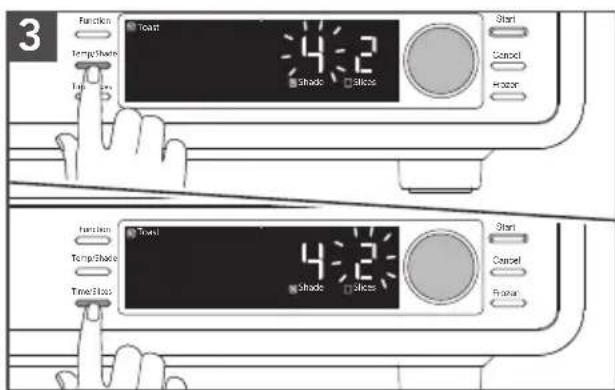

USING THE TOASTING FUNCTIONS

Press Temp/Shade button. If desired, rotate Knob to adjust preset shade.
Press Time/Slices button or Knob to select preset number of slices. If desired, rotate Knob to adjust number of slices.

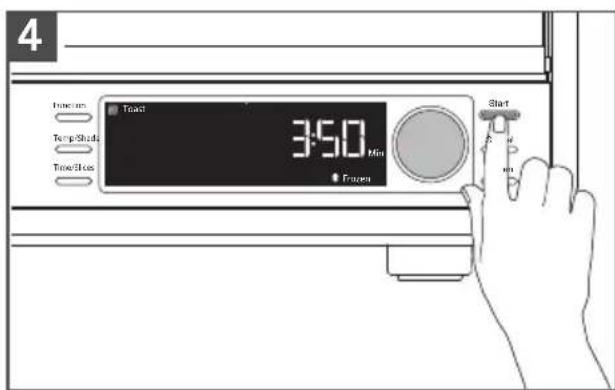

Press Start to begin cycle and timer will start countdown.
PRODUCT USAGE

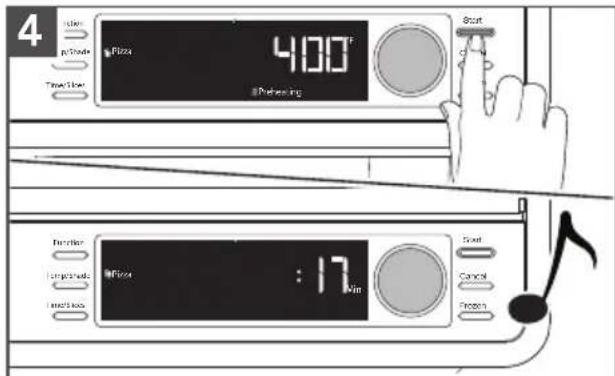

USING THE COOKING FUNCTIONS

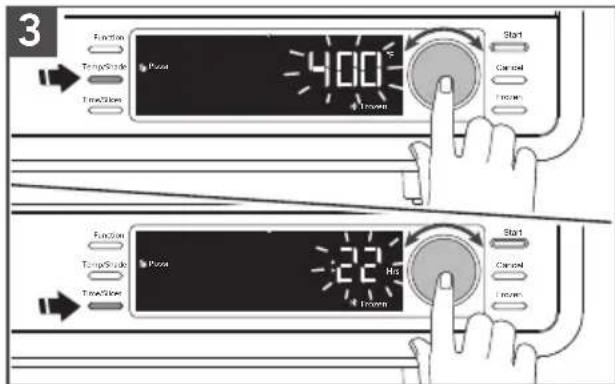

Press Temp/Slices button or Knob to select preset temperature. If desired, rotate Knob to adjust. Press Time/Slices button or Knob to show preset time. If desired, rotate Knob to adjust the cooking time.

Press Start to preheat the Oven. To skip preheat and start the timer directly, press Start button again.

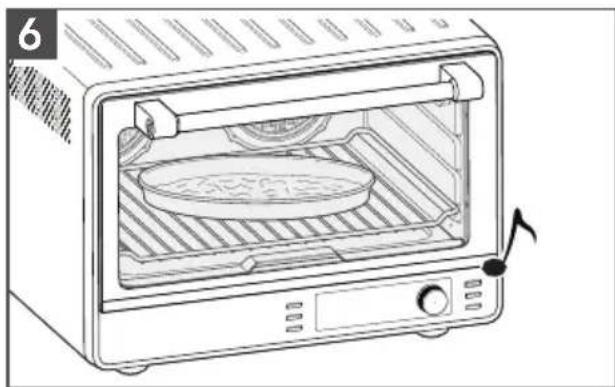

A chime sounds when preheat is complete. The display will change to show the time counting down.
(See "Cooking Functions" chart for temperature ranges.)


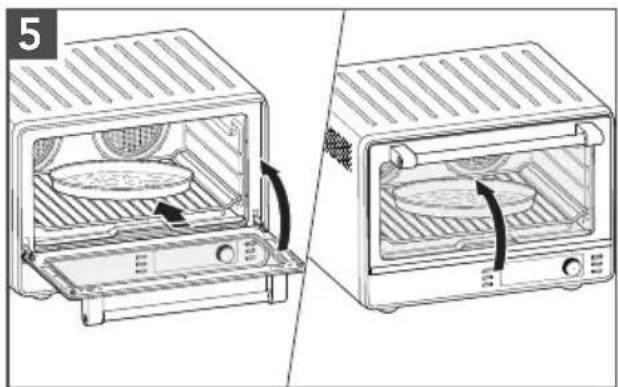

IMPORTANT: Always use oven mitts when removing pans or racks.

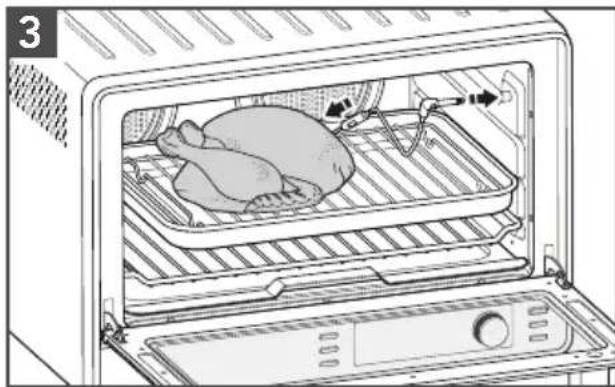

USING THE MEAT PROBE FUNCTIONS


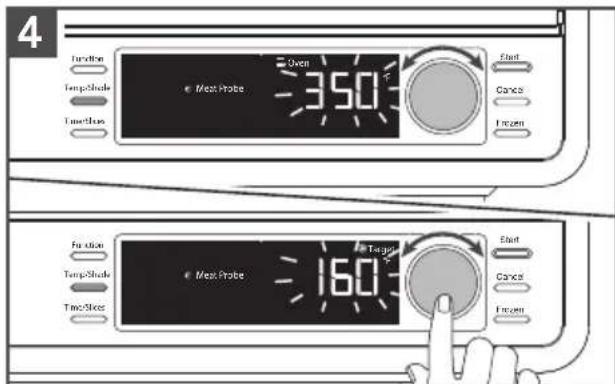

Rotate the Knob to adjust the preset oven temperature. Press Knob or press temperature button to set target temperature for food. Press Start button to begin.
CARE AND CLEANING
NOTE: Allow Countertop Oven and accessories to cool completely before cleaning.

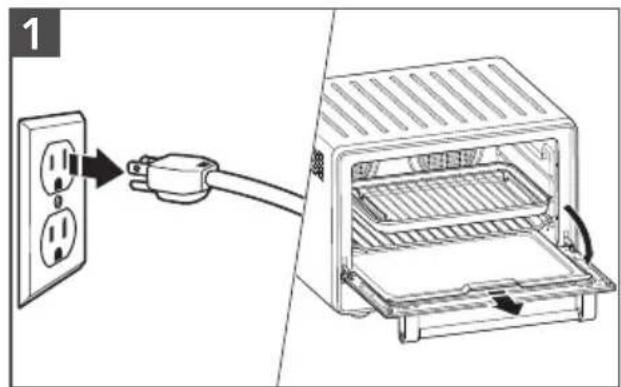

First, unplug your Countertop Oven from the outlet.
Open the door, then remove all items.

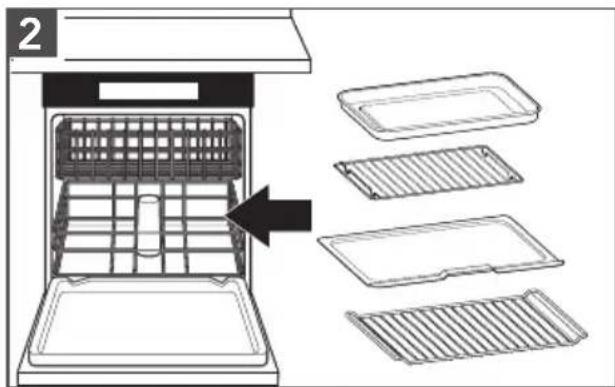

Oven rack, Multipurpose pan, and Broiling rack are dish-washer safe, but hand washing is recommended.
Crumb tray and Temperature probe can be cleaned with warm, soapy water, then rinse with clean water and dry thoroughly.
IMPORTANT: Do not use cleaning agents, abrasive cleansers, or metal scouring pads on the inner or outer surfaces of the oven. They could scratch the surface.
INTERIOR: The inside walls of the oven feature a nonstick coating. Remove heavy spatter with a nylon or polyester mesh pad, sponge, or cloth dampened with warm water. Dry thoroughly.
EXTERIOR: Wipe the outside of the Countertop Oven with a clean, damp cloth and dry thoroughly.
IMPORTANT: Ensure all parts and surfaces are completely dry before re-use.
FOR DETAILED INFORMATION ON THE COUNTERTOP OVEN
Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, cleaning tips and tips on how to use your Countertop Oven.

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
| Problem Solution | |
| If the oven fails to start: | Check to see if the oven is plugged into a grounded 3 prong outlet. |
| Check to see if the fuse in the circuit breaker box to the oven is in working order. | |
| If the problem cannot be corrected: | See the “KitchenAid Warranty and Service” sections. Do not return the Countertop Oven to the retailer – retailers do not provide service. |
| If the wrong temperature unit is displayed: | Press and hold the Frozen button for 3 seconds to switch between Fahrenheit (°F) and Celsius (°C) temperature units. |
| If “E1 or E2” flashes on the display and a chime sounds: | The NTC Sensor may not be working. This issue can not be corrected. Please see the “KitchenAid Warranty and Service” sections. |
| If “E3” flashes on the display and a chime sounds: | Make sure the temperature probe is inserted in the food and kept inside the oven while using Meat Probe functions.To reset the oven, press cancel button, or unplug and re-plug the unit. |
| If “E4” flashes on the display and a chime sounds: | The temperature probe is not correctly inserted in food. Make sure the probe is inserted in dense part of protein for accurate cooking. Please check the inside food temperature before serving, or restart cycle with desired temperature.To reset the oven, press cancel button, or unplug and re-plug the unit. |
| If “PLUg” appears on the display and the probe icon flashes and a chime sounds: | The temperature probe is not properly plugged in. Make sure the jack is fully pushed into the socket. Remove and replug the temperature probe to assure good contact. |
WARRANTY AND SERVICE
KITCHENAID COUNTERTOP OVEN WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA
This warranty extends to the purchaser and any succeeding owner for Countertop Ovens operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.
| Length of Warranty: One Year Full Warranty from date of purchase. | |
KitchenAid Will Pay for Your Choice of:![]() | Hassle-Free Replacement of your Countertop Oven. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. |
| KitchenAid Will Not Pay for: | A. Repairs when your Countertop Oven is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Countertop Oven to an Authorized Service Center.D. Replacement parts or repair labor costs for Countertop Oven attachments operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada. |
| DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. | |
WARRANTY AND SERVICE
HASSLE-FREE REPLACEMENT WARRANTY—50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO
We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Countertop Oven should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Countertop Oven returned to us. Your replacement unit will also be covered by our one year limited warranty.
If your Countertop Oven should fail within the first year of ownership, simply call our toll-free
Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).
When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.
HASSLE-FREE REPLACEMENT WARRANTY—CANADA
We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Countertop Oven should fail within the first year of ownership, we will replace your Countertop Oven with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. If your Countertop Oven should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at
1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.
When you receive your replacement Countertop Oven, use the carton, packing materials, and prepaid shipping label to pack up your original Countertop Oven and send it back to KitchenAid.
ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS
In the United States and Puerto Rico:
For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to:
Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218
Outside the United States and Puerto Rico:
Consult your local KitchenAid dealer or the store where you purchased the Countertop Oven for information on how to obtain service.
For service information in Canada:
Call toll-free 1-800-807-6777.
For service information in Mexico:
Call toll-free 01-800-0022-767.
PIÈCES ET CARACTÉRISTIQUES

FONCTIONS DU PRODUIT
Pantalla LCD de alto contraste
Line drawing of a microwave oven with a tray holding a dish, showing interior and exterior views (no text or symbols)natural_image
Line drawing of a toaster oven with a roasted chicken inside, showing internal structure and airflow direction (no text or symbols)
Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218.
www.kitchenaid.com.mx
p.m. Sábados de 8:00 a.m. a 2:00 p.m.
E-mail: kitchenaid_cam@whirlpool.com
www.kitchenaid-ca.com
Colombia
web: www.kitchenaid.com.do
DISCOVER MORE. DÉCOUVREZ PLUS. DESCUBRA MÁS. KITCHENAID.COM/QUICKSTART
QUESTIONS SUR LE PRODUIT OU LES RETOURS
PREGUNTAS SOBRE EL PRODUCTO O DEVOLUCIONES
USA: 1.800.541.6390 | KitchenAid.com
CANADA: 1.800.807.6777 | KitchenAid.ca
MEXICO: KitchenAid.com.mx
LATIN AMERICA: KitchenAid-Latam.com
®/™ ©2019 KitchenAid. All rights reserved. KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere. Used under license in Canada.
