Product type	Rechargeable electric shaver
Brand	Braun
Model	345 WET&DRY
Usage	Dry or in the shower (cordless)
Power supply	Rechargeable battery, low-voltage power cord included
Charging time	First charge: 4 hours; subsequent charges: about 1 hour; quick charge 5 min
Battery life	Up to 45 minutes of shaving
LED indicators	Charging (green), discharging (red), cassette replacement (orange)
Cutting system	Foil & Cutter shaving cassette (foil + cutter block), retractable trimmer for long hairs
Shaving	Flexible adaptive foils, recommended angle 90°
Cleaning	Under hot water, with non-abrasive liquid soap; brush provided for the interior
Maintenance	Light oil (sewing machine) once a week if rinsing frequently
Replacement part	Shaving cassette 32S/32B (replace about every 18 months)
Dimensions (approx)	Approx. 15 cm height, 5 cm width
Weight (approx)	Approx. 200 g
Operating temperature	Shaving: 15°C to 35°C; charging: 5°C to 35°C
Safety	Cordless use in bath/shower; do not shave with damaged foil; do not share
Warranty	2 years (excluding normal wear and foil/cutter block)
Included accessories	Power cord, protective cap (345s/340s), case (380s) – depending on version
Environment	Built-in rechargeable batteries, do not dispose of in household waste

Frequently Asked Questions - 345 WET&DRY BRAUN

How to charge the Braun 345 WET&DRY shaver?

Plug the included power cord into the shaver (motor off) or into the charging stand. For the first charge, leave it for 4 hours. Subsequent charges take about 1 hour. A 5-minute quick charge is enough for one shave.

Can I use the shaver in the shower or bath?

Yes, the shaver is designed for cordless use in the shower or bath. For safety, use it only on battery, not plugged into the mains.

How to clean the shaver?

After each shave, rinse the shaver head under hot water while the shaver is on (cordless). You can use non-abrasive liquid soap. Then remove the shaving cassette and let it dry. For dry cleaning, use the included brush on the inside of the head (not on the cassette).

When should I replace the shaving cassette?

Replace the shaving cassette (model 32S/32B) when the orange light indicator turns on, usually after about 18 months, or sooner if performance decreases.

How to reset the counter after changing the cassette?

Press the on/off button for at least 5 seconds. The replacement indicator flashes then turns off, indicating reset.

How long does the battery last after a full charge?

A full charge provides up to 45 minutes of shaving, depending on beard thickness and hardness.

Can I use the shaver while it is plugged in?

It is recommended to use the shaver only on battery, especially in the bathroom. Wired use is not described as safe under these conditions.

How to maintain the battery for a long life?

About every 6 months, fully discharge the shaver by using it without recharging between shaves, then fully recharge it. This maintains optimal battery capacity.

What to do if the shaver does not charge?

Check that the ambient temperature is between 5°C and 35°C. Make sure the power cord is properly connected. If the problem persists, contact a Braun authorized service center.

Can I share my shaver with someone else?

No, for hygiene reasons, it is not recommended to share this product with another person.

USER MANUAL 345 WET&DRY BRAUN

Illustration of a Series 3-branded hairbrush with blue and gray casing, labeled 'BRAUN' and '380s-4', showing blade structure and control buttons (no text beyond branding)

Braun Infolines

Deutsch 6

English 11

Français 16

Español 22

Português 27

Italiano 33

Nederlands 38

Dansk 43

Norsk 48

Svenska 53

Suomi 58

Türkçe 63

Ελληνικά 67

DE/AT

00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH

08 44 - 88 40 10

UK

0800 783 7010

IE

1 800 509 448

FR

0 800 944 802

BE

0 800 14 592

ES

901 11 61 84

PT

808 20 00 33

IT

(02) 6 67 86 23

NL

0 800-445 53 88

DK

70 15 00 13

NO

22 63 00 93

SE

020 - 21 33 21

FI

020 377 877

TR

0 800 261 63 65

HK

852-25249377

(Audio Supplies Company Ltd.)

Braun GmbH

Close-up of a black electric shaver with a blue arrow pointing to the blade (no text or symbols visible)

3D model of a gray ergonomic device with a circular top and side port, labeled with dimensions 10 and 380 (no text or symbols on the device itself)

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Read this instruction completely, it contains safety information. Keep it for future reference.

Warnings

This appliance is suitable for use in a bath or shower.

When using it in the shower, we recommend applying

shaving foam or gel. For safety reasons this appli-

ance can only be operated cordlessly.

Your shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

For hygienic reasons, do not share this appliance with other persons.

Oil bottle

Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

Description

1 Foil & Cutter cassette
2 Long hair trimmer
3 Precision setting switch 🔒 (380s only)
4 On/off switch
5 Charging lights (green)
6 Low-charge light (red)
7 Replacement light for shaving parts
8 Shaver power socket
9 Special cord set
10 Charging stand (380s only)
11 Etui (380s only)
12 Protection cap (345s/340s only)

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C .

Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set (9), connect the shaver or the charging stand (10) to an electrical outlet with the motor switched off.
• When charging for the first time or when the shaver is not used for a few months, leave the shaver to charge continuously for 4 hours.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• A full charge provides up to 45 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.
• 5-minute quick charge is sufficient for a shave.

Charging lights (5)

The green charging lights show the charge status of the batteries (345s/340s: 1 charging light). The green charging light blinks when the shaver is being charged or switched on.

When the battery is fully charged, all green charging lights (345s/340s:

1 charging light) shine permanently, provided the shaver is connected to an electrical outlet.

Low-charge light (6)

The red low-charge light flashes when the battery is running low. You should be able to finish your shave.

Shaving

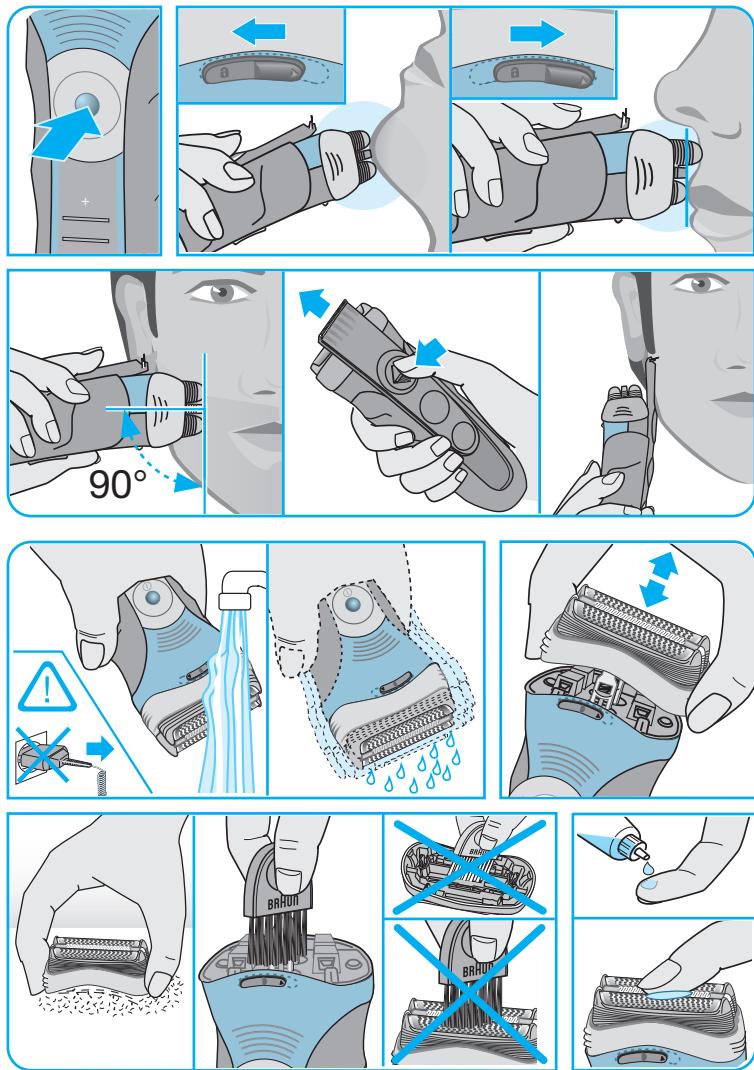

Press the on/off switch (4) to operate the shaver (picture).

The flexible shaving foils automatically adjust to every contour of your face (picture).

Long hair trimmer (2)

To trim sideburns, moustache or beard, slide the long hair trimmer upwards.

Precision setting switch 🔒 (380s only)

For precise handling in hard to shave areas (e.g. under the nose) slide the switch (3) to the right to position 🔒. The centre trimmer and one foil will be lowered.

Tips for a perfect dry shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

Regular cleaning ensures better shaving performance. Rinsing the shaver head under running water after each shave is an easy and fast way to keep it clean:

• Switch the shaver on (cordless) and rinse the shaver head under hot running water. You may use liquid soap without abrasive substances.
  Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the Foil & Cutter cassette (1) and let it dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer (2) and Foil & Cutter cassette (1) (picture).

Alternatively, you may clean the shaver using a brush:

- Switch off the shaver. Remove the Foil & Cutter cassette and tap it out on a flat surface (picture).

- Using a brush, clean the inner area of the head. However, do not clean the shaver Foil & Cutter cassette with a brush as this may damage it (picture).

Keeping your shaver in top shape

Replacement light for shaving parts/Reset

To maintain 100% shaving performance, replace the Foil & Cutter cassette (1), when the replacement light for shaving parts (7) comes on (after about 18 months) or when worn.

Foil & Cutter cassette: 32S/32B

The replacement light will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display.

After you have replaced the Foil & Cutter cassette (1), press the on/off switch (4) for at least 5 seconds to reset the counter.

While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection sites provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
