Product type	Evaporative humidifier (air cooling)
Brand	Honeywell
Model	HWM845W
Dimensions (L x D x H)	41 x 25 x 36 cm
Net weight	4.5 kg
Power supply	220-240 V, 50/60 Hz
Tank capacity	5.7 liters
Coverage area	Up to 30 m²
Humidification technology	Natural evaporation with wick
Settings	On/Off, variable flow control
Main functions	Continuous humidification, automatic shut-off, water level indicator
Safety	Automatic shut-off when tank is empty
Maintenance	Regular cleaning of tank and replacement of wick
Spare parts	Replacement wick (Honeywell HCW315 or equivalent)
Repairability	Accessible motor and components, replaceable wick
Sound indicator	No
Warranty	1 year (depending on country)

Frequently Asked Questions - HWM845W HONEYWELL

How to install the Honeywell HWM845W humidifier?

Place the unit on a flat and stable surface, at least 30 cm from walls. Fill the tank with cold tap water, close it, and snap it onto the base. Plug in the unit and set the desired flow rate.

How often to clean the humidifier?

It is recommended to clean the tank and base every week with white vinegar or a mild descaling agent. The wick should be replaced every 2 to 3 months depending on usage and water hardness.

What to do if the unit does not turn on?

Check that the humidifier is properly plugged in and that the water tank is correctly installed. If the water level indicator is red, fill the tank. Make sure the wick is in place and the cover is closed.

Why does the humidifier blow air but not produce humidity?

This may be due to a dirty or worn wick. Replace the wick. Also check that the tank is full and that water properly reaches the wick. If the problem persists, clean the water circuit.

What type of water to use in the humidifier?

Use cold tap water. Distilled or softened water can reduce limescale buildup but is not essential. Do not use hot water or additives.

The humidifier makes noise, is this normal?

A slight humming from the fan is normal. If the noise is loud or irregular, check that the unit is level and the wick is not obstructed. Cleaning may resolve the issue.

How to replace the humidifier wick?

Unplug the unit, remove the tank, and open the wick compartment. Take out the old wick, insert the new one following the markings (top/bottom). Replace the tank and plug in.

Can I use the humidifier continuously 24/7?

Yes, the humidifier can run continuously. Ensure to maintain an adequate water level and clean the unit regularly to prevent mold.

The humidifier smells like burning at startup, what to do?

Unplug the unit and check that nothing is blocking the vents. A burning smell may come from a new wick that smells new for the first few hours. If the smell persists, stop using and contact customer service.

Where to find the complete manual for the HWM845W humidifier?

The manual is available for free download on notice-facile.com or on the official Honeywell website. You can also scan the QR code on the packaging.

USER MANUAL HWM845W HONEYWELL

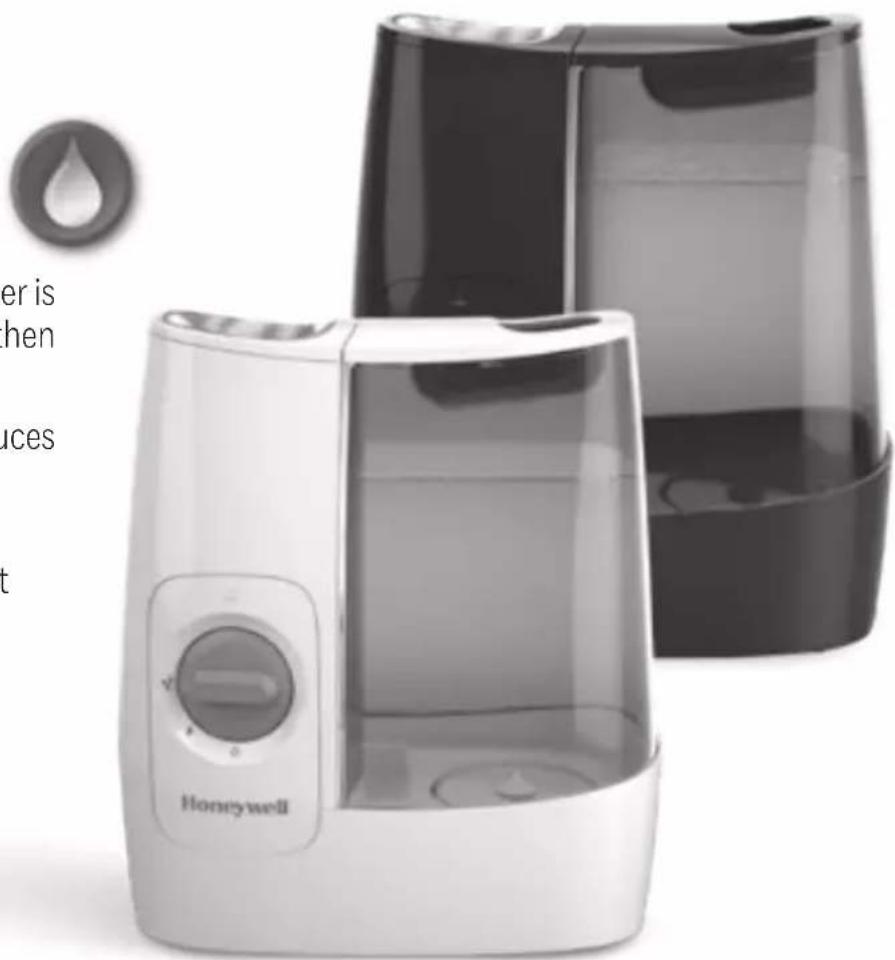

• With warm mist humidification, water is boiled in a heating chamber and is then released into the air as warm mist.
• Because the water is boiled, it produces 99.5% bacteria free mist. ¹
• Be careful not to over-humidify; if condensation forms around the unit or on walls and surfaces, turn the humidifier off or to a lower setting.

Humidity Level

• The ideal indoor humidity level is 40-60%
- Use a Honeywell humidity monitor (HHM10 or H10C) to check your indoor humidity level (not included)

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. The humidifier should ALWAYS be placed on a firm, flat, waterproof surface at least four feet (1.2m) away from bedside, 12 inches (30cm) from the wall and out of reach of children and pets.
2. Be sure the humidifier is in a stable position and the power cord is away from heated surfaces and out of the way to prevent the humidifier from being overturned.
3. The humidifier should not be left unattended, especially in a closed room since air could become saturated and leave condensation on walls and furniture. If room becomes saturated, open the door and turn the humidifier off or down.
4. Before using the humidifier, extend the cord and inspect for any signs of damage. DO NOT use the unit if the cord has been damaged. DO NOT operate with power cord coiled or with twist tie in place.
5. The humidifier has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

6. CAUTION: To avoid fire or electric shock hazard, plug the humidifier directly into a 120V AC electrical outlet. To avoid risk of fire, electric shock, or personal injury, DO NOT use an extension cord or power strip.

7. The humidifier should ALWAYS be unplugged and emptied when not in operation or while being cleaned. Shut off and unplug humidifier before moving. DO NOT move or tilt humidifier while it is in operation. Plug and unplug unit with dry hands. NEVER pull by cord.

8. DO NOT operate the humidifier without water. Turn off and unplug unit when tank is empty and the reset light is on.
9. Humidifier requires regular cleaning. Refer to and follow cleaning instructions.
10. DO NOT operate outdoors; this humidifier is intended for indoor residential use only.
11. DO NOT cover or insert objects into any openings on the unit. DO NOT block intake or output vents.
12. DO NOT attempt to repair or adjust any electrical or mechanical functions on this humidifier. Doing so will void your warranty.
13. DO NOT add any essential oils or medications (e.g. Kaz Inhalant or Vicks VapoSteam®) into Chimney, Reservoir, or Water Tank.
14. DO NOT touch the steam vapor. Steam can cause burns. DO NOT operate without the Essential Oil Cup in place on top of the Mist Chimney.
15. For Residential Use Only

SAVE THESE INSTRUCTIONS.

GETTING TO KNOW YOUR WARM MIST HUMIDIFIER

How it Works

The tank feeds water into the boiling chamber where it is heated to a steam vapor. The steam vapor mixes with dry air in the mist chimney and warm moist air is released into the room. When the humidifier runs out of water, the reset light will illuminate and the unit will shut off.

COMPONENTS

1. Essential Oil Cup
2. Mist Chimney
3. Reset Light
4. Power Knob
5. Heating Element (not visible)
6. Heating Element Cover
7. Heating Chamber
8. Water Tray

9. Water Tray Tab

10. Reservoir

11. Base
12. Locking Latch
13. Water Tank Handle
14. Water Tank
15. Tank Cap
16. Plunger

SETTING UP YOUR HUMIDIFIER

1. Remove packaging materials. Keep this Instruction Manual for reference.
2. Remove twist tie from power cord and extend power cord full length.
3. Ensure Proper Assembly. Make sure Mist Chimney, Essential Oil Cup, and Water Tray are securely in place and that Heating Element Cover is secured. See Reassembling instructions after Cleaning your Humidifier section for reference.
4. Place humidifier on a firm, level, water resistant surface a minimum of 12 inches (30 cm) from walls. Steam should be directed away from any walls, bedding, and furniture.

⚠ WARNING: KEEP OUT OF REACH OF CHILDREN. THIS PRODUCT PRODUCES HOT STEAM AND SHOULD BE PLACED IN AN AREA NOT ACCESSIBLE TO CHILDREN OR PETS, WITH THE POWER CORD OUT OF REACH.

FILLING / REFILLING

NOTE: Tank should be carried using two hands; one hand on the Tank Handle and the other supporting the bottom of the Tank.

Manufacturer will not accept responsibility for property damage caused by water spillage.

1. Remove Tank by grasping Handle and pulling up. Remove Tank Cap by turning counter clockwise (to the left).
2. Fill Water Tank with cool water. DO NOT fill with warm or hot water. DO NOT ADD ESSENTIAL OILS, MEDICATIONS, OR INHALANT LIQUIDS to the Water Tank. Doing so could cause damage to the humidifier and void the warranty.
3. Replace Tank Cap by turning clockwise (to right) to screw back in place. DO NOT over-tighten. Place Water Tank back on humidifier Base.

RESETTING YOUR HUMIDIFIER

When your humidifier is out of water, the Reset Light will illuminate. To reset:

1. Turn power OFF (○)
2. Refill and replace Tank
3. Wait 5 minutes and turn power ON (▲) NOTE: If Reset Light (●) still on, clean the Heating Element (see Cleaning Instructions section)

1. Power: With the Power Knob in the OFF position (○), plug the filled humidifier into a polarized 120V outlet.
   ⚠️ CAUTION: To avoid electric shock, DO NOT plug in humidifier with wet hands.
2. Output: Turn Power Knob to high (♦ or low (♦). A green light will indicate the humidifier is working, but it will take 3-4 minutes for visible steam to appear.
3. Humidity Level: Once a comfortable humidity level has been reached, turn to the low setting. A comfortable humidity level is between 40-60%. Consider using a humidity monitor such as Honeywell HHM10/H10C to display current room humidity and temperature. If condensation forms on walls, windows, or around unit, turn humidifier off; the humidity level is too high.

CAUTION: TURN HUMIDIFIER OFF, UNPLUG AND WAIT 20-30 MINUTES FOR UNIT TO COOL BEFORE MOVING OR CLEANING. DO NOT OPERATE YOUR HUMIDIFIER WITHOUT THE TANK IN PLACE OR IF THE UNIT IS EMPTY. DO NOT OPERATE YOUR HUMIDIFIER WITHOUT THE MIST CHIMNEY, WATER TRAY, HEATING ELEMENT COVER, AND ESSENTIAL OIL CUP PROPERLY ASSEMBLED.

NOTE: Consider using a Protec® Cleaning Ball to keep your humidifier cleaner longer.

It will continuously clean and protect against bacteria and mold. It will also help prevent the buildup of slime in the water and on humidifier surfaces. The Protec Ball will keep your humidifier cleaner longer between cleanings. However, your humidifier still needs to be cleaned regularly.

USING THE ESSENTIAL OIL CUP

This humidifier features an Essential Oil Cup that can be used with your favorite essential oil or liquid inhalant for added enjoyment. This is not a diffuser - the oil does not come in contact with water and is passively evaporated into the air. Essential oil and inhalant sold separately.

1. Add a few drops of essential oil or liquid inhalant in the Cup. ⚠ WARNING: DO NOT pour any liquids into the Mist Chimney, DO NOT ADD LIQUID INHALANTS, ESSENTIAL OILS OR ANY ADDITIVES TO THE WATER. DOING SO CAN HAVE ADVERSE EFFECTS ON THE HUMIDIFIER AND VOID THE WARRANTY.
2. To clean the Essential Oil Cup, ensure the humidifier is off, unplugged, and cooled for at least 20 minutes and gently wipe residue from the Essential Oil Cup.

CLEANING YOUR HUMIDIFIER

To keep your humidifier running efficiently, clean it regularly. Weekly cleaning is recommended. All maintenance should be done in the kitchen or bathroom on a water-resistant surface near a faucet.

To properly clean your humidifier, we recommend the separate processes of Scale Removal and Disinfecting. These two processes must be performed separately.

Before Cleaning

1. Turn off and unplug humidifier. NEVER clean the humidifier when it is running. If the humidifier has recently been in use, wait at least 20-30 minutes for unit to cool before beginning cleaning process.
2. Remove any accessories, and empty oils from the Essential Oil Cup. Then remove and empty Water Tank and set aside.
3. Pull red Locking Latch toward front of unit (a) and lift Mist Chimney up (b) to remove. Remove Water Tray from Base by pulling up from the Tab (c) and the opening in front of the Latch, then empty Water Tray.
4. Replace Water Tray and Mist Chimney. These must be in place for cleaning. See Reassembling instructions after Cleaning your Humidifier section for reference.

Scale Removal
Keeping the Heating Element free of scale will help the humidifier to run efficiently.

1. Remove Water Tank and slowly pour 2 cups (0.5 liters) of undiluted, distilled white vinegar into the Reservoir on the Water Tray. DO NOT pour vinegar over the red Locking Latch. Only pour into the deep Reservoir. NOTE: Pour slowly to give enough time for vinegar to flow from the Reservoir into the Heating Chamber. The vinegar will slowly begin to fill the Heating Chamber, located under the Mist Chimney. Let soak for 20 minutes to loosen scale on the Heating Element.

For Tank scale removal:

While Heating Element is soaking, pour additional vinegar into the Water Tank, replace Tank Cap and swish to coat inside of Water Tank. Use a cloth dampened with vinegar to wipe away any scale on the inside of the Water Tank and Tank Cap. Empty vinegar and rinse Tank until the smell of vinegar is gone.

CLEANING YOUR HUMIDIFIER (continued)

1. Remove the Mist Chimney by gently sliding red Locking Latch towards the front of the unit (a) and lifting Mist Chimney upwards (b).
2. Remove Heating Element Cover by lifting from the large round opening and pulling away from the Mist Chimney.
3. Wet the bristles of a soft brush with vinegar from the Water Tray and gently scrub the surface of the Heating Element, Heating Element Cover, Reservoir, and Heating Chamber to remove mineral deposits. DO NOT USE HARD BRUSHES, STEEL WOOL, OR OTHER HARD ABRASIVES ON THE HEATING ELEMENT. DOING SO WILL DAMAGE THE HEATING ELEMENT. DO NOT POUR VINEGAR DIRECTLY ONTO THE HEATING ELEMENT.

If scale is still visible on the Heating Element, moisten a paper towel with vinegar, and wrap it around the Heating Element. Let it sit for 30 minutes or until scale loosens. IMPORTANT: Remove paper towel from the Heating Element before proceeding to the next step.

1. Remove Water Tray by gently lifting from the Tab and the opening in front of the Latch, and empty vinegar in sink. Rinse Water Tray and Heating Element Cover with water until the smell of vinegar is gone.
2. With a soft damp cloth, wipe Heating Element to remove any excess scale. Press Heating Element Cover back on the bottom of the Mist Chimney. It will only fit one way.

CAUTION: DO NOT RINSE HEATING ELEMENT OR MIST CHIMNEY IN SINK OR UNDER RUNNING WATER AS WATER CAN GET INTO INTERNAL PARTS. DOING SO WILL DAMAGE THE HUMIDIFIER AND VOID THE WARRANTY. ONLY USE A WET CLOTH OR PAPER TOWEL TO CLEAN THIS PART.

Disinfecting

Before starting the disinfecting process, follow Steps 1-4 in Before Cleaning section.

NOTE: Bleach may stain clothes. It is recommended that you wear rubber gloves during this process to protect your hands.

1. Mix 1/2 gallon (1.9 L) of water with 1/2 teaspoon of bleach. Pour the bleach solution into the Water Tank. Replace Tank Cap and gently swish to coat the entire inside. NOTE: Using more than 1/2 teaspoon of bleach to 1/2 gallon (1.9 L) of water may result in damage to the humidifier.
2. Place Water Tank on Base. Bleach solution will drain into the Water Tray. Let soak for 20 minutes.
3. Remove Tank and slowly empty bleach solution into sink. Rinse with water until the smell of bleach is gone
4. Remove the Mist Chimney by gently sliding red Locking Latch towards the front of the unit (a) and pulling Chimney upwards (b).
5. Remove Heating Element Cover by lifting from the large round opening and pulling away from the Chimney, and rinse with Water. With a soft damp paper towel, wipe Heating Element until the smell of bleach is gone.
6. Carefully remove Water Tray by lifting from the Tab and the opening in front of the Latch, and empty bleach solution into sink. Rinse Water Tray and Heating Element Cover with water until the smell of bleach is gone. Wipe Water Tray to dry.

CLEANING YOUR HUMIDIFIER (continued)

Dishwasher Safe

The following parts are TOP RACK dishwasher safe for residential dishwashers operating at temperatures below 70°C/158°F: Essential Oil Cup, Water Tray and Heating Element Cover.

Run the dishwasher on the light duty or normal cycle. DO NOT wash with soiled articles/dishes.

DO NOT use detergents.

NOTE: DO NOT place parts on lower rack of dishwasher. Doing so could cause damage to the humidifier parts and dishwasher. The Water Tank, Mist Chimney and Base are NOT dishwasher safe. Placing these parts in the dishwasher will damage your humidifier and render it unable to operate properly.

Reassembling

1. Place Water Tray back in Base.
2. Ensure Heating Element Cover is secured back on the bottom of the Mist Chimney by snapping in place.
3. Slide red Locking Latch toward the front of the unit (a) and secure Mist Chimney to Base (b). Ensure Mist Chimney is is secured to the Base and the Locking Latch is in the closed position.
4. Press Essential Oil Cup back in place.
5. Put Tank Cap back on Water Tank and place back on unit.

END-OF-SEASON CARE AND STORAGE

Follow the cleaning instructions when the humidifier will not be used for at least one week, or at the end of the season. At the end of the season, remove any accessories from the humidifier.

Dry the humidifier completely before storing. DO NOT store with water inside the Water Tray or Water Tank. Pack unit in original carton and store in a cool, dry location.

TROUBLESHOOTING

If your Humidifier is not working properly, refer to the following:

PROBLEM POSSIBLE CAUSE SOLUTION

Power Knob is set to “On” and Power Knob light is off	Unit not plugged inNo power at outlet	Plug unit inCheck circuits, fuses, test outlet
Power is “On” and no mist appears	Water has not heated to boiling to produce steam	Wait 3-4 minutes after turning on
Little or no mist is produced • No water in TankUnit is not levelMineral deposits on Heating Element or Water Tray		Fill Water TankPlace on a level surfaceFollow Cleaning Instructions
Reset Light illuminated • Water Tank is emptyUnit not reset after refillHeating Element is covered in scale		Refill Water TankFollow Reset ProcedureSee Cleaning Instructions
Water overflows from Reservoir • Tank may be damagedTank Cap is not tightWater Tray not seated properly		Check the Tank for leaks and replace if necessaryTighten Tank CapCheck Water Tray and secure into Base
Condensation forms around humidifier or windows	Mist Intensity is set too high for room size or pre-existing humidity level	Decrease mist output to low setting or open door to the room

NOTE: Failure to keep this unit clean from mineral deposits normally contained in any water supply will affect the efficiency of operation of this unit. Customer failure to follow these instructions may void the warranty.

CONSUMER RELATIONS

We are here to help. Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.HoneywellPluggedIn.com

Please be sure to specify Model number HWM845.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

SPECIFICATIONS

Electrical rating: 120V, 60 Hz

Capacity: 1 gallons (3.7 L)

If you experience a problem, please contact Consumer Relations. Do not return this humidifier to the original place of purchase.

Do not attempt to open the motor housing or tamper with the Power Knob yourself. Doing so may void your warranty and cause personal injury or damage to the product.

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. This warranty does not cover the filters, pre-filters, UV bulbs or other accessories (if included) except for material or workmanship defects.
