Product type	Forced air space heater
Brand	Honeywell
Model	TurboForce HHF550B
Power supply	220-240 V ~ 50/60 Hz
Heating power	1500 W
Dimensions (L x W x H)	25 x 18 x 30 cm
Weight	2.1 kg
Main functions	TurboForce fan, 2 heat levels (low/high), oscillation, adjustable thermostat
Material	ABS plastic, metal grille
Color	Black and gray
Cable length	1.8 m
Protection rating	IP21
Safety	Overheat protection, automatic shut-off if tipped over
Care and cleaning	Unplug before cleaning, wipe with a damp cloth, do not immerse
Spare parts and repairability	No spare parts provided, professional repair recommended
Included accessories	User manual, warranty card
Warranty	2 years

Frequently Asked Questions - TurboForce HHF550B HONEYWELL

How to turn on the Honeywell TurboForce HHF550B heater?

Plug in the appliance, then turn the thermostat to the desired setting. Press the On/Off button to turn on the fan. Select the heat level (low or high) using the switch.

What to do if the heater does not turn on?

First check that the appliance is plugged in and the socket works. Make sure the thermostat is not in the 'Off' position (turned fully left). If the problem persists, check the fuse or contact customer service.

How to use the oscillation function?

Oscillation is usually activated by pressing the Oscillation button on the control panel. You can deactivate oscillation by pressing this button again.

The heater makes an abnormal noise: what to do?

A slight fan noise is normal. If the noise is loud or unusual, stop the appliance and check that no objects are obstructing. Clean the air inlet grille. If the noise persists, contact customer service.

How to clean the filter of the TurboForce HHF550B?

Unplug the appliance. Remove the filter (usually at the back) and wash it with warm soapy water. Dry it completely before replacing. Never use the heater without the filter.

What is the maximum heating power?

The Honeywell TurboForce HHF550B has a maximum power of 1500 watts, suitable for heating rooms up to about 20 m².

The heater turns off by itself: why?

This may be due to overheating. The appliance has a protection that turns it off automatically if it gets too hot. Make sure the grilles are not blocked and the appliance is on a stable surface. If it happens again, let it cool down before turning it back on.

Can I use this heater in a bathroom?

Yes, the HHF550B is designed for indoor use, but it must be placed at least 1 meter away from any water source. Never immerse it in water or use it directly near a bathtub or shower.

How to adjust the thermostat?

Turn the thermostat knob clockwise to increase the desired temperature. When the room reaches that temperature, the appliance stops automatically, then restarts when the temperature drops.

Where can I find the full manual?

You can download the manual in PDF format for free at notice-facile.com by searching for the model Honeywell TurboForce HHF550B. The manual is available in several languages.

USER MANUAL TurboForce HHF550B HONEYWELL

TURBOFORCE® HEATER FAN

HHF550 AND HHF565 SERIES

IMPORTANT SAFETY INSTRUCTIONS

WARNING – READ AND SAVE THESE OPERATING AND SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. IF YOU DO NOT UNDERSTAND THESE INSTRUCTIONS OR PRODUCT LABELS PLEASE CALL OUR CUSTOMER REPRESENTATIVES AT 1-800-477-0457 FOR ASSISTANCE BEFORE USING THIS PRODUCT.

Warning – Failure to follow any of these safety instructions could result in fire, injury, or death.

YOUR RESPONSIBILITIES

Electrical appliances may expose people to hazards that can cause severe injury as well as death. The use of electrical products may create hazards that include, but are not limited to, injury, fire, electric shock and electrical system damage. These instructions are intended to provide you with the information you need to use the product correctly and to avoid such hazards.

When using electrical appliances, basic precautions should always be followed to reduce risk of fire, electric shock, and injury to persons including the following:

1. Warning – Read all instructions before using this heater.

2. Warning – This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from all sides of the heater.

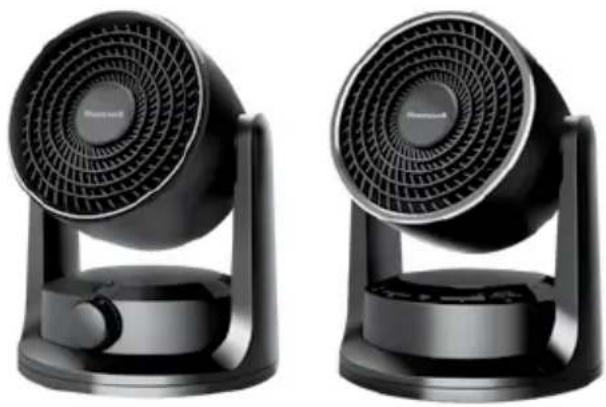

Two black office air purifiers with visible fan blades and adjustable stand (no text or symbols)

1. Warning – Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.

2. Warning – ALWAYS unplug heater when not in use.

3. Warning - DO NOT operate any heater with a damaged cord or plug, any heater that malfunctions, or any heater that has been dropped or damaged in any manner. Discard heater or return heater to authorized service facility for examination and/or repair.

4. Warning – For residential use only.

5. Warning - DO NOT use outdoors.

6. Warning – This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. DO NOT locate heater where it may fall into a bathtub or other water container.

7. Warning – DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be a tripping hazard.

8. Warning – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

9. Warning – This heater draws 12.5 amps during operation. To prevent overloading a circuit, DO NOT plug the heater into a circuit that already has other appliances working.

10. Warning – It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

11. Warning – To disconnect the heater, first turn off the product, then grip the plug body and pull it from the wall outlet. DO NOT pull by the cord.
12. Warning – DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause electric shock, fire, or damage to the heater.
13. Warning – To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, or where openings may become blocked.
14. Warning – A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.
15. Warning – Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
16. Warning – ALWAYS plug heater directly into a wall outlet/receptacle. DO NOT use with an extension cord or relocatable power tap (outlet/power strip).

17. Warning – NEVER tamper with this product or attempt to fix it. Any tampering with, or modification of this product can result in serious injury, death, or fire. DO NOT open. Risk of electric shock. There are no user serviceable parts inside.

18. Warning – DO NOT remove product labels that contain warnings or safety instruction.

19. Caution – The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
20. Caution – Before cleaning, or storage, or when not in use, turn the product's controls to the OFF position and unplug the heater from the electrical outlet and allow to cool.
21. Caution – Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any combustible materials. DO NOT use on an unstable surface such as bedding or deep carpeting. Be sure the heater is not in a position where it may be tripped over by small children or pets.
22. Caution – If your home has aluminum wiring have a licensed electrician check your receptacle's connections. When using a 1500 watt heater, aluminum wire connections can cause a safety issue.
23. SAVE THESE INSTRUCTIONS

SET UP

The Honeywell TurboForce® Heater Fan requires no assembly. Simply unpack heater and save all packaging materials for off-season storage.

Place the heater on a firm, level, open surface free from obstructions and at least 3 feet (0.9m) away from any wall or combustible material.

DO NOT use on an unstable surface such as bedding or deep carpeting.

BE SURE THE HEATER IS NOT IN A POSITION WHERE IT MAY BE TRIPPED OVER BY CHILDREN OR PETS.

MOVING THE HEATER

This heater is equipped with a recessed carrying handle for your convenience. Turn off the heater. Allow it to cool for ten minutes. Unplug heater and move.

OPERATION

NOTE: The Honeywell TurboForce® Heater requires no assembly.

NOTE: Never leave an operating unit unattended Model HHF550 Series – Manual TurboForce® Heater Operation

With the Power Knob in the OFF (○) position, plug the heater into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way.

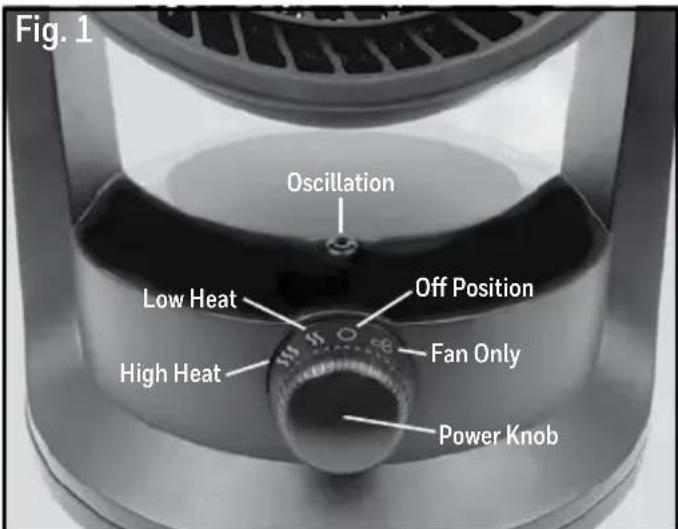

The Power Knob is equipped with three (3) settings: (Fig. 1) Fan Only (✗), Low (✗ and High ( )✗ The Low (✗) heat setting uses 750 watts of power and the High (✗) heat setting uses 1500 watts of power. The Fan only (✗) setting uses very low power and does not provide heat. You can select the proper setting to accommodate your comfort level with the Power Knob. When you choose any setting the red Power Light will come on. The Low (✗) heat setting does not require as much electricity to operate, it is more energy efficient and may be a better option if you are concerned about the amperage draw on a circuit when the heater is on the High setting. Use the Fan only setting for optimal comfort level year round.

NOTE: Controls/features will vary slightly by model

The TurboForce® Heater is also equipped with both a pivoting head and oscillation to provide heat flow how and where you want it most.

3 WAY PIVOT (Fig. 2) – the head of the heater can be adjusted up at 3 different angles - 15°, 30°, 45° - to provide more focused heat flow within the room.

• The 15^ pivot angle – allows the heat to flow more directly at a seated level.
• The 30^ pivot angle – provides heat flow at a standing level.
• The 45^ pivot angle – directs heat flow towards the ceiling. This angle is ideal to help generate whole room heat circulation.

Fig. 2 Fig. 2

Close-up of a black industrial fan or vent with ventilation grille (no visible text or symbols)

15^

Close-up of a black industrial fan or vent with visible blades and mounting base (no text or symbols)

30^45^

Black industrial fan or speaker device with ventilation grille and stand (no visible text or symbols)

OSCILLATION – the TurboForce® Heater also has an oscillation feature which distributes warmed air over a wider area for increased whole room heat circulation.

• To activate the oscillation feature, press the oscillation (○) button once. Press the oscillation button again to turn the oscillation feature off.
• Turn the Power Knob to OFF (☐) and allow it to cool for 10 minutes, then unplug the heater when you are finished using it.

OPERATION

Model HHF565 Series - Digital TurboForce® Heater Operation

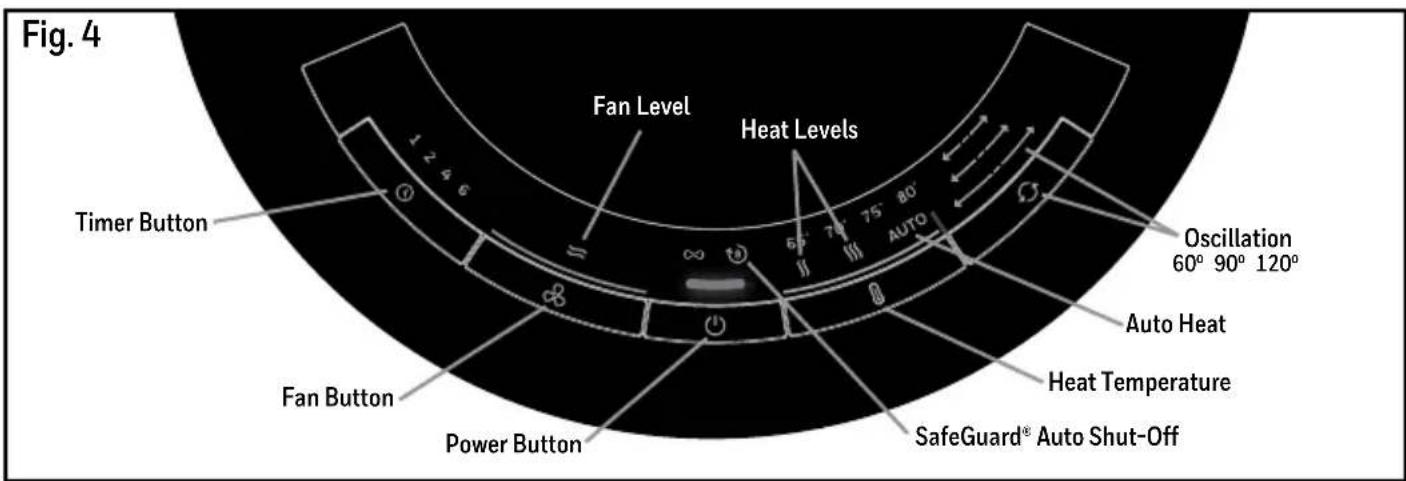

Turn heater on by pressing the Power Button (☐). The Power Indicator will illuminate and the heater will start in the Low (☐) heat level setting (Fig. 4).

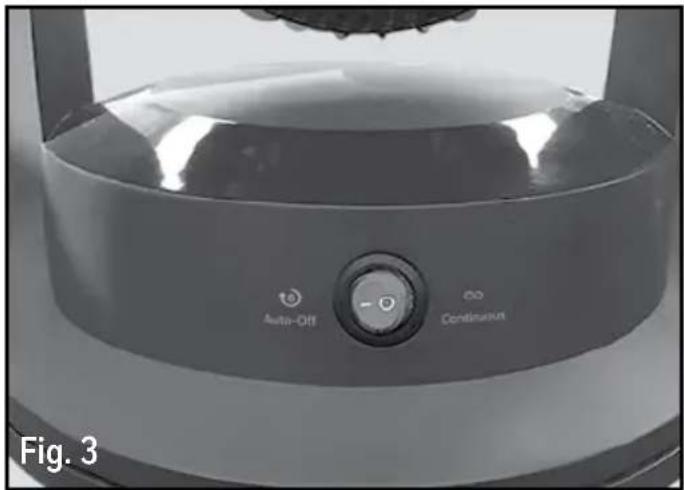

This heater has two operational modes, which can be chosen using the red switch on the back of the unit (Fig. 3):

Continuous heating (∞) – heater will run until it is manually shut off.

Auto-Off( ⬤) mode - heater will automatically shut off after 8 hours each time that you use the heater. This built-in feature helps ensure that the heater is not accidentally left on for an extended period of time.

NOTE: See the SafeGuard® Auto-Off Feature section for more information on this feature.

This heater comes pre-set from the factory with the Auto-Off mode engaged. When the unit is turned on, the Auto-Off icon (💡) will be illuminated on the top of the controls. All features are functional while operating in the Auto-Off mode.

Should you NOT want the heater to automatically shut off after 8 hours, switch to Continuous heating by simply pressing the red switch on the back of the unit. Once selected, the Continuous heat icon (∞) will illuminate on the top of the control panel.

To select a Heat Setting, press (☐):

1. For Low ( ) , this setting uses 750 watts of power
2. For High ( ) , this setting uses 1500 watts of power

NOTE: The Low (§) setting does not require as much electricity to operate. It is more energy efficient and may be a better option if you are concerned about saving energy.

To use the Fan only (no heat), press the Fan button Ⓤ.

To set the thermostat, continue to press the Heat Level button (☐) until Auto is illuminated. There are 4 pre-set comfort settings from which to choose: 65°, 70°, 75°, 80°. Continue to press the Heat Level button to select your desired room temperature setting. The heater will operate at HIGH heat in order to reach this desired temperature.

NOTE: If the Current Temperature is higher than your Desired Temperature, the heater will be off until the room temperature falls below your desired temperature.

To set the Timer, press the Ⓞ button to select 1, 2, 4, or 6 hour setting. The heater will run for that chosen period in the selected mode and automatically shut off after the desired time has passed.

OPERATION

Model HHF565 Series - Digital TurboForce® Heater Operation (Cont'd)

The TurboForce® Heater is also equipped with both a pivoting head and an innovative selectable oscillation feature to provide heat flow how and where you want it most.

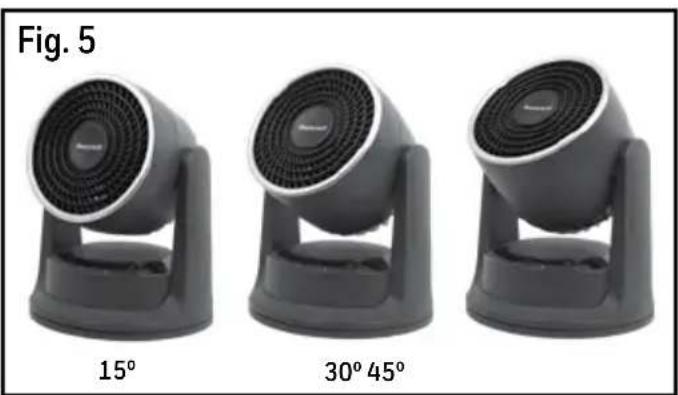

3 WAY PIVOT (Fig. 5) – the head of the heater can be adjusted up at 3 different angles - 15°, 30°, 45° to provide more focused heat flow within the room.

• The 15^ pivot angle - allows the heat to flow more directly at a seated level.
• The 30^ pivot angle - provides heat flow at a standing level.
• The 45^ pivot angle – directs heat flow towards the ceiling. This angle is ideal to help generate whole room heat circulation.

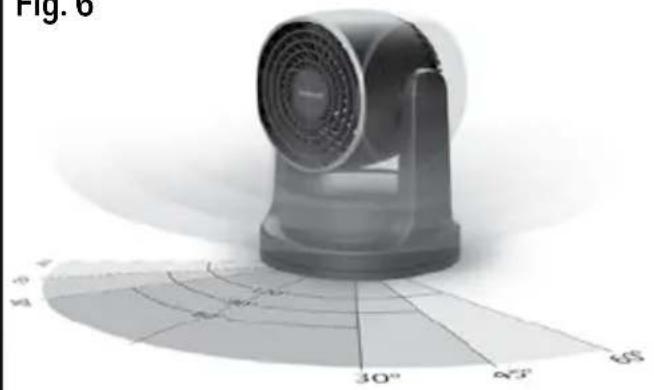

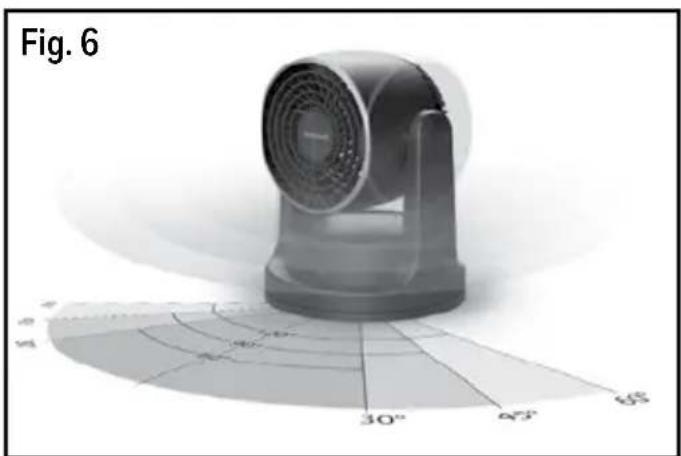

3 WAY OSCILLATION (Fig. 6) – the TurboForce® Heater has been engineered to include a unique selectable oscillation feature which allows for an even more customized approach to heat circulation.

• The 60° oscillation angle - provides heat flow within a more personal, focused area.
• The 90° oscillation angle - allows for wider area coverage.
• The 120° oscillation angle - covers more of the room, providing a whole room heat circulation experience.

Three black-framed industrial fan models with ventilation grilles, shown from 15° and 30° to 45° angles (no text or symbols on the devices themselves)

Illustration of a mechanical fan or regulator device with a grid overlay showing angular measurement (no text or symbols on the device itself)

SAFEGUARD® AUTO SHUT-OFF FEATURE (HHF565 Series Only)

The Honeywell TurboForce® Heater is enhanced with a SafeGuard® Auto Shut-Off feature. This innovative feature is designed to automatically shut the heater off after 8 hours of continuous use.

How it works: By default, the TurboForce® Heater comes with the Auto Shut-Off feature engaged. If you choose to operate the heater in the Auto Shut-Off mode ( ⬤), the heater will shut off automatically after 8 hours every time the heater is used, unless the heater is turned off prior to the 8 hour auto-off time. All features are functional while operating in the Auto Shut-Off setting. If you choose to disengage this feature, the unit will operate in the Continuous heat mode (∞).

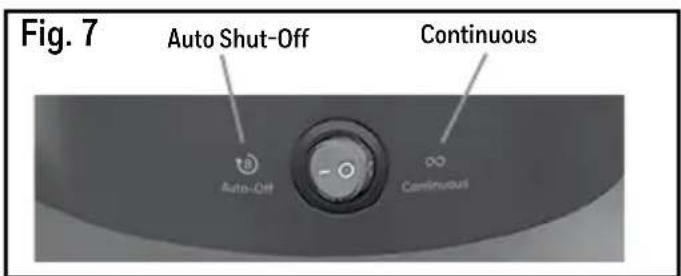

- Press the SafeGuard® Auto Shut-Off switch on the back of the unit (Fig. 7) to select either the Auto Shut-Off or Continuous heating modes. The corresponding icon will illuminate on the controls to indicate which mode you are in.

SAFETY FEATURES

The Honeywell TurboForce ^® Heater is equipped with several features for added protection:

• A 360^ tip-over switch that disables the heater if it is tipped in any direction.
• A high temperature safety sensor prevents overheating.
• This heater is also equipped with a thermal cut-off fuse that will permanently shut down the heater should it operate at a higher than normal temperature. If activated, the unit will need to be replaced.
• This heater was built using a high temperature plastic and has a cool to touch housing and handle.
• This heater is designed with thermal insulated wiring for heat resistance and reinforced wire connections to help protect against loose connections.
• The HHF565 Series models also include a SafeGuard® Auto Shut-Off feature. If selected, this feature is designed to automatically shut the heater off after 8 hours of continuous use.

CLEANING AND STORAGE

It is recommended that the Honeywell TurboForce ^® Heater be cleaned at least once a month and before off-season storage.

• Turn Off (⏻) and unplug heater. Allow unit to cool for 10 minutes.
• Use a dry cloth only to clean the external surfaces of the heater. DO NOT USE WATER, WAXES, POLISHES OR ANY CHEMICAL SOLUTION.

- Before storing, clean the TurboForce® Heater using the above-mentioned steps. Wrap the cord around the unit. Place in its original box and store it in a cool, dry place.

• This heater does not disassemble.

TROUBLESHOOTING

Problem Solution

If your Honeywell TurboForce®Heater shuts off unexpectedly or fails to operate, one of your heater safety features may have been activated to prevent overheating.

·Be sure heater is plugged in and that the electrical outlet is working.·Check for any obstructions. If you find an obstruction, turn the heater OFF (⏻) and unplug it.·Allow the heater to cool completely, then remove the obstruction. Wait at least 10 minutes, then re-plug the heater in and follow the OPERATION instructions.

PRODUCT SPECIFICATIONS

Model(s) Unit Dims Amps Unit Voltage Max Watts Max BTUs

HHF550 Series 10.1" L x 1	0.1"W x 12.6"H 12.5 120V, 60Hz 1500 5	118
HHF565 Series 10.1" L x 1	0.1"W x 12.6"H 12.5 120V, 60Hz 1500 5	118

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

CUSTOMER SERVICE

Questions or comments

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.HoneywellPluggedIn.com

Please be sure to specify the model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HEATER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

FFC COMPLIANCE (HHF565)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The user is cautioned that changes or modifications made to the equipment without the approval of manufacturer could void the user's authority to operate the equipment.

RADIATEUR-VENTILATEUR TURBOFORCE ^MD

SÉRIES HHF550 ET HHF565

⚠ CONSIGNES DE SÉCURITÉ IMPORTANTES

AVERTISSEMENT – LIRE ET CONSERVER CES MESURES DE SÉCURITÉ ET CE MODE D'EMPLOI AVANT D'UTILISER CE RADIATEUR. SI VOUS NE COMPRENEZ PAS CES INSTRUCTIONS OU LES ÉTIQUETTES SUR L'APPAREIL, VEUILLEZ APPELER NOS REPRÉSENTANTS DU SERVICE À LA CLIENTÈLE AU 1 800 477-0457 POUR OBTENIR DE L'AIDE AVANT D'UTILISER CET APPAREIL

Two black office air conditioners with fans, displayed side by side (no text or symbols visible)

Black industrial fan with ventilation grille and support bracket (no visible text or symbols)

15^

Close-up of a black industrial fan or vent device with ventilation grille (no visible text or symbols)

30^45^

Close-up of a black industrial fan or speaker device with ventilation grille (no visible text or symbols)

Black industrial fan with ventilation grille and side-mounted base (no visible text or symbols)

15^

Black industrial fan with ventilation grille and front-mounted base (no visible text or symbols)

30^45^

Black and white photo of a handheld electronic device with a speaker grille (no visible text or symbols)

Fig. 6

3D rendering of a mechanical fan or impactor device with a grid overlay showing angular measurements (no text or symbols on the device itself)

FONCTION D'ARRÊT AUTOMATIQUE SAFEGUARD ^MD (SÉRIE HHF565 SEULEMENT)

SPÉCIFICATIONS DU PRODUIT

Two black-framed desktop fans with visible blades and mounting base (no text or symbols)

Black industrial fan with ventilation grille and support bracket (no visible text or symbols)

15^

Black industrial fan with ventilation grille and support bracket (no visible text or symbols)

30^45^

Black industrial fan or fan device with ventilation grille and base mount (no visible text or symbols)

Close-up of a modern electric air conditioner unit with labeled control buttons (Auto-Off and Continuous), no readable text or symbols beyond labels.

For responsible recycling, please visit:

RECYCLE NATION

www.RecycleNation.com

© 2019 All rights reserved.

Kaz USA, Inc., a Helen of Troy Company, Marlborough, MA 01752

Distributed by Kaz Canada, Inc., a Helen of Troy Company

6700 Century Avenue, Suite 210, Mississauga, Ontario L5N 6A4

www.HoneywellPluggedIn.com/Heaters

[e-mail]

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited.

SafeGuard ^® , Turbo Force ^® and Safety Matters ^™ are trademarks of Helen of Troy Limited.

[e-mail]

commerce de Helen of Troy Limited.

En EE.UU.

Para reciclar responsablemente,

por favor visite:

RECYCLE NATION

www.RecycleNation.com

Helen of Troy Limited.
