PPR1000 - Fitness Equipment Body-Solid - Free user manual and instructions

Product Type	Power Rack
Brand	Powerline by Body-Solid
Model	PPR1000
Intended Use	Strength training and weightlifting
Dimensions (approx.)	Height: 84 in (213 cm), Width: 48 in (122 cm), Depth: 30 in (76 cm)
Weight Capacity (approx.)	Up to 800 lbs (363 kg)
Product Weight (approx.)	150 lbs (68 kg)
Material	Heavy-gauge steel frame
Included Components	Base frames, uprights, steel brackets, foot plate, chin-up bar, rear crossbar, side crossbars, J-cups, safety pipes, quick release pins, hardware
Assembly Required	Yes, two-person recommended
Tools Required	Standard/metric wrench set, adjustable wrench, Allen key set
Cable System	None (free-weight rack)
Safety Features	Adjustable J-cups, safety pipes, quick release pins, anchor holes for floor mounting
Warranty	Lifetime warranty on frame (manufacturer)
Maintenance	Daily inspection, weekly lubrication and cleaning of guide rods, linear rods, seat sleeves, etc.
Country of Manufacture	USA (Body-Solid, Forest Park, IL)
Contact for Support	1-800-556-3113 (toll-free) or [e-mail]
Manual Language	English

Frequently Asked Questions - PPR1000 Body-Solid

What is the weight capacity of the Body-Solid PPR1000 Power Rack?

The PPR1000 has a weight capacity of up to 800 lbs (363 kg), making it suitable for most heavy lifting exercises.

Do I need to assemble the PPR1000, and what tools are required?

Yes, assembly is required. You will need a standard/metric wrench set, an adjustable wrench, and an Allen key set. It is recommended to have two people for assembly.

What is the warranty on the PPR1000?

Body-Solid offers a lifetime warranty on the frame. Other components may have a shorter warranty period. Contact customer service for details.

How do I maintain the PPR1000?

Perform a daily inspection of cables (if applicable), nuts, bolts, and fasteners. Weekly, lubricate and clean guide rods, linear rods, and seat sleeves. Wipe down upholstery and chrome regularly.

Can I use standard Olympic barbells with this rack?

Yes, the PPR1000 is designed to accommodate standard Olympic barbells with a 7-foot length and 2-inch diameter sleeves.

Is the PPR1000 suitable for pull-ups?

Yes, it includes a chin-up bar that supports various grip positions for pull-ups and chin-ups.

How do I adjust the J-cups and safety pipes?

The J-cups can be repositioned by removing and inserting them into different holes on the uprights. Safety pipes are held in place with quick release pins; simply pull the pin to adjust height.

Can the rack be bolted to the floor?

Yes, the base frame has anchor holes for bolting to the floor for added stability. Consult a professional contractor for proper anchoring.

What should I do if I lose a part or need a replacement?

Contact Body-Solid customer service at 1-800-556-3113 or [e-mail] with your model number and part number from the manual. Use only Powerline by Body-Solid replacement parts.

How long does assembly take?

Assembly typically takes 2 to 3 hours with two people. Follow the step-by-step instructions in the manual and finger-tighten hardware until all parts are aligned.

USER MANUAL PPR1000 Body-Solid

Technical line drawing of a metal shelving unit with mounting brackets and structural supports (no text or symbols)

WWW.BODYSOLID.COM

V PPR1000-092018

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:

1. Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins are in place and fully tightened. Also, before use, check cables for signs of wear. Replace all worn parts immediately. Never use machine if any parts are damaged or missing. FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
2. Keep clear of the cables and all moving parts when the machine is in use.
3. Always make sure all Snap Links are closed when doing any cable/pulley/strap exercises.
4. Exercise with care. Perform your exercises at a smooth moderate pace; never perform jerky or uncoordinated movements that may cause injury.
5. It is recommended that you should workout with a training partner.
6. Do not allow children or minors to play on or around this equipment.
7. If unsure of proper use of equipment, call your local Body-Solid distributor or the Body-Solid customer service department at 1-800-556-3113.
8. WARNING: Consult your physician before starting your exercise program. For your own safety, do not begin any exercise program without proper instruction. RAL8-6-03 WC-54

WARNING

Safety and Maintenance of Cables

IMPORTANT: Cables are wear items. It is your responsibility to prevent unexpected breakage. Cable inspection should be performed daily. Inspect all cables, the nylon coating on all cables, and the area near the fitting at each end of each cable. Replace any damaged or worn cable immediately. Do not allow the machine to be used until damaged or worn cables are replaced. Using or allowing a machine to be used with a suspect cable can result in serious injury. See Owner's Manual for more information.

For Body-Solid Customer Service

Call 1-800-556-3113

MAINTENANCE SCHEDULE Check the function and integrity of the following components. As noted, Inspect equipment before each workout. Replace all damaged, broken or worn components immediately.		D A I L Y	W E K L Y
Cables:	Check tension, end fittings, and coating	√	√
	Check that locking nut at weight stack is tight
Upholstery: Wipe down and dry Clean and condition		√	√
Frame:	Wipe down and dry Polish / Wax	√	√
Chrome:	Wipe down and dry Polish / Lubricate	√	√
Nuts / Bolts / Fasteners: Tighten and / or adjust as needed			√
Guide Rods: Lubricate and clean			√
Linear Rods: Lubricate and clean			√
Seat Sleeves: Lubricate and clean			√
Adjustments / Locking Pins / Tightening Knobs			√
Weight Stack Pins			√
Warning Instruction Labels			√
Springs / Pop Pins		√
Anti Skid Surfaces			√
Hand Grips / Rollers			√

PPR1000

TABLE OF CONTENTS

• SAFETY INSTRUCTIONS...... PAGE 4
• PREPARATION...... PAGE 5
• PART/HARDWARE LIST...... PAGE 6
• HARDWARE ILLUSTRATION...... PAGE 7
  • ASSEMBLY INSTRUCTIONS...... PAGE 8

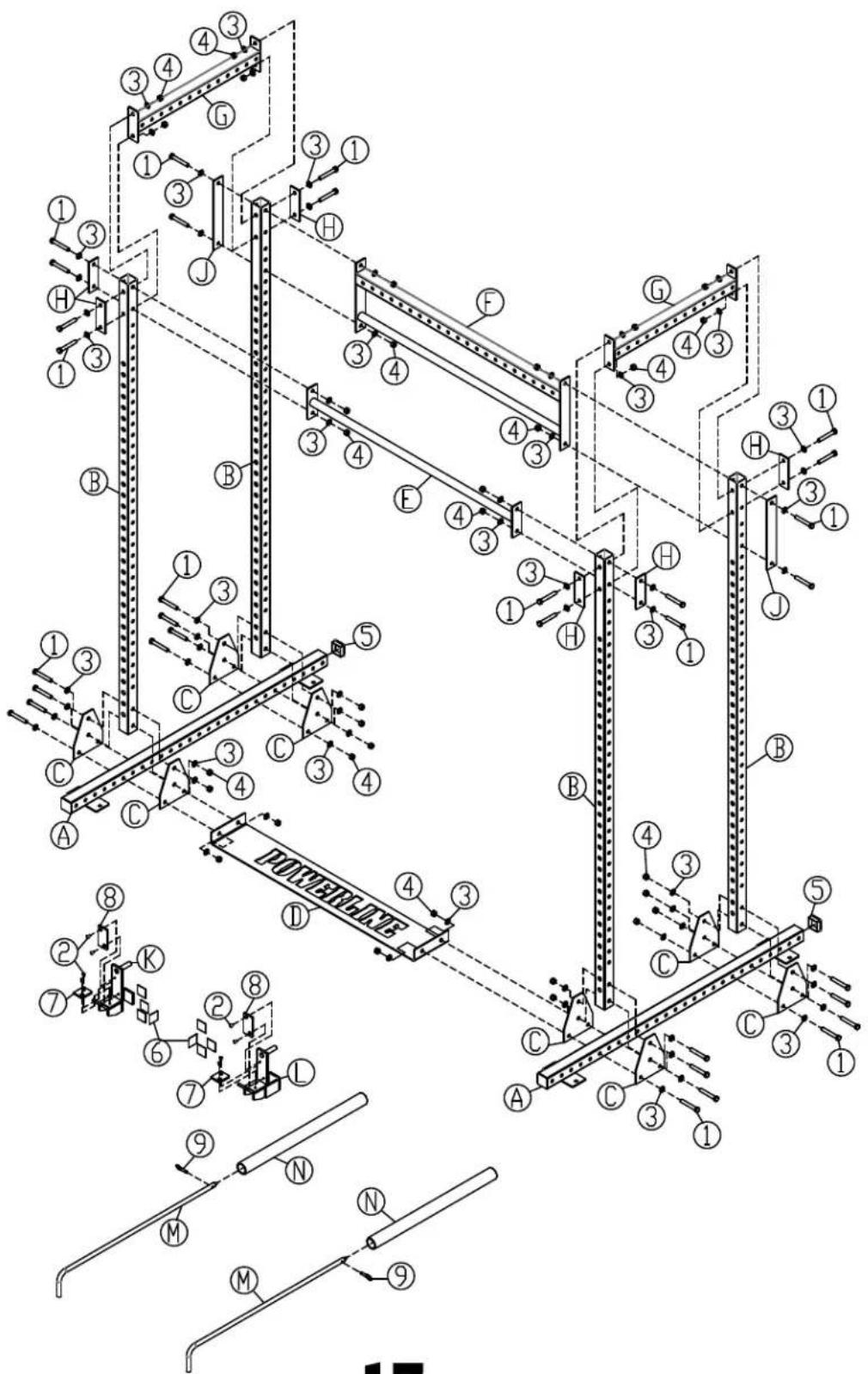

• EXPLODED VIEW...... PAGE 17
• CONTACT PAGE...... PAGE 18

PPR1000

SAFETY INSTRUCTIONS

WHEN USING EXERCISE EQUIPMENT, YOU SHOULD ALWAYS TAKE BASIC PRECAUTIONS INCLUDING THE FOLLOWING:

• Read all instructions before using the PPR1000. These instructions are written to ensure your safety and to protect the unit.
• Do not remove any safety labels from the machine.
  • Do not allow children on or near the equipment.
• Use the equipment only for its intended purpose as described in this guide. Do not use accessory attachments that are not recommended by the manufacturer. Such attachments might cause serious injuries.
• Wear proper exercise clothing and shoes for your workout, no loose clothing.
• Keep hands, limbs, loose clothing, and long hair well out of the way of all moving parts
  • Use care when getting on or off the unit.
• Do no overexert yourself or work to exhaustion.
  • If you feel any pain or abnormal symptoms, stop your workout immediately and consult your physician.
• Never operate unit when it has been dropped or damaged. Return the equipment to a service center for examination and repair.
• Never drop or insert objects into any opening in the equipment.
• Always check the unit and its cables before each use. Make sure that all fasteners and cables are secure and in good working condition.
  • Do not use the equipment outdoors or near water.

PERSONAL SAFETY DURING ASSEMBLY

• Before beginning assembly, please take the time to read the instructions thoroughly.
• Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment
• Assemble and operate the PPR1000 on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access.

The PPR1000 is designed for your enjoyment. By following these precautions and using common sense, you will have many safe and pleasurable hours of healthful exercise with your Powerline Power Rack.

After assembly, you should check all functions to ensure correct operation. If you experience problems, first recheck the assembly instructions to locate any possible errors made during assembly. If you are unable to correct the problem, call the dealer from whom you purchased the machine or call 1-800-556-3113 for the dealer nearest you.

OBTAINING SERVICE

Please use this Owner's Manual to make sure that all parts have been included in your shipment. When ordering parts, you must use the part number and description from this Owner's Manual. Use only Powerline by Body Solid replacement parts when servicing this machine. Failure to do so will void your warranty and could result in personal injury.

For information about product operation or service, check out the official Powerline website at www.bodysolid.com or contact an authorized Powerline dealer or a Powerline factory-authorized service company or contact Body-Solid customer service at one of the following:

Toll Free: 1-800-556-3113

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Or write to: Body-Solid, Inc.

Service Department

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

RETAIN THIS OWNER'S MANUAL FOR FURTURE REFERENCE. PART NUMBERS ARE REQUIRED WHEN ORDERING PARTS.

PPR1000

PREPARATION

REQUIRED TOOLS

The basic tools that you must obtain before assembling the PPR1000 include but are not limit to:

• Standard Wrench Set
• Metric Wrench Set
• Adjustable Wrench
  • Standard / Metric Allen Key Set

INSTALLATION REQUIREMENTS

Follow these installation requirements when assembling the PPR1000:

Set up the PPR1000 on a solid, flat surface. A smooth, flat surface under the machine helps keep it level.

Provide ample space around the machine. Open space around the machine allows for easier access.

For aesthetic purposes, insert all bolts in the same direction unless specified (in text or illustrations) to do otherwise.

Leave room for adjustments. Tighten fasteners such as bolts, nuts, and screws so the unit is stable, but leave room for adjustments. Do not fully tighten fasteners until instructed in the assembly steps to do so.

Fill out and mail the warranty card.

ORDERING REPLACEMENT PARTS

If you need to order replacement parts please be prepared to provide the following information when contacting us so that we can assist you better.

1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description

ASSEMBLY TIPS

Read all "Notes" on each page before beginning each step.

While you may be able to assemble the PPR1000 using the illustrations only, important safety notes and other tips may be included in the text.

Some pieces may have extra holes that you will not use. Use only those holes indicated in the instructions and illustrations.

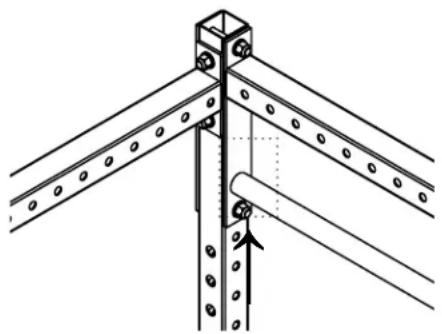

NOTE: With so many assembled parts, proper alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave room for adjustments.

NOTE: The bottles that are marked "Poison" is your touch up paint. Keep away from children.

CAUTION: Obtain assistance! If you feel like you can't assemble the PPR1000 by yourself then do not attempt to do so as this could result in injury. Review the Installation Requirements before proceeding with the following steps.

Technical line drawing of a metal bracket with bolts and a pull rod (no text or symbols)

YOUR S/N # CAN
BE FOUND HERE

PPR1000

PART LIST

PART # QTY

A	2	BASE FRAME
B	4	UPRIGHT
C	8	STEEL BRACKET
D	1	FOOT PLATE
E	1	CHIN UP BAR
F	1	REAR CROSSBAR
G	2	SIDE CROSSBAR
H	6	SHORT STEEL BRACKET
J	2	LONG STEEL BRACKET
K	1	RIGHT J CUP
L	1	LEFT J CUP
M	2	PIN
N	2	PIPE
1	32	M12X80MM HEX HEAD BOLT
2	8	M5X10MM FLAT HEAD CAP SCREW
3	64	M12 WASHER
4	32	M12 NYLON LOCKNUT
5	2	END CAP
6	8	PROTECTIVE FILM
7	2	PLASTIC PAD, 90X46MM
8	2	PLASTIC PAD, 46X46MM
9	2	QUICK RELEASE PIN

DESCRIPTION

PPR1000

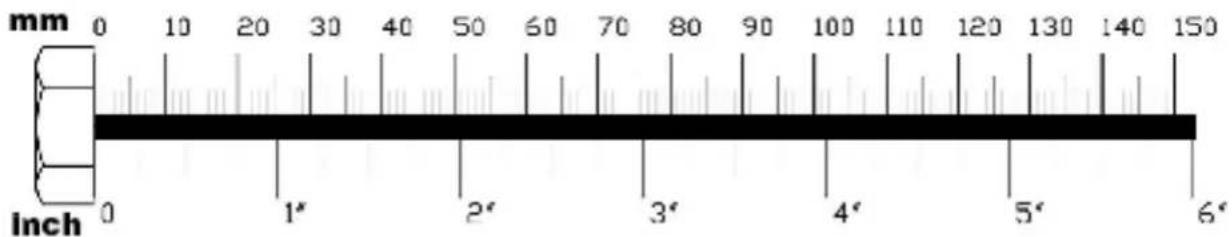

HARDWARE ILLUSTRATION

PART #1 M12X80MM HEX HEAD BOLT QTY.32

Technical line drawing of a bolt with hexagonal head and shaft (no text or symbols)

PART #2 M5X10MM FLAT HEAD CAP SCREW QTY.8

PART #3 M12 WASHER

Q7

PART #4 M12 NYLON LOCKNUT

mm 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Inch 0 1" 2" 3" 4" 5" 6"

PPR1000

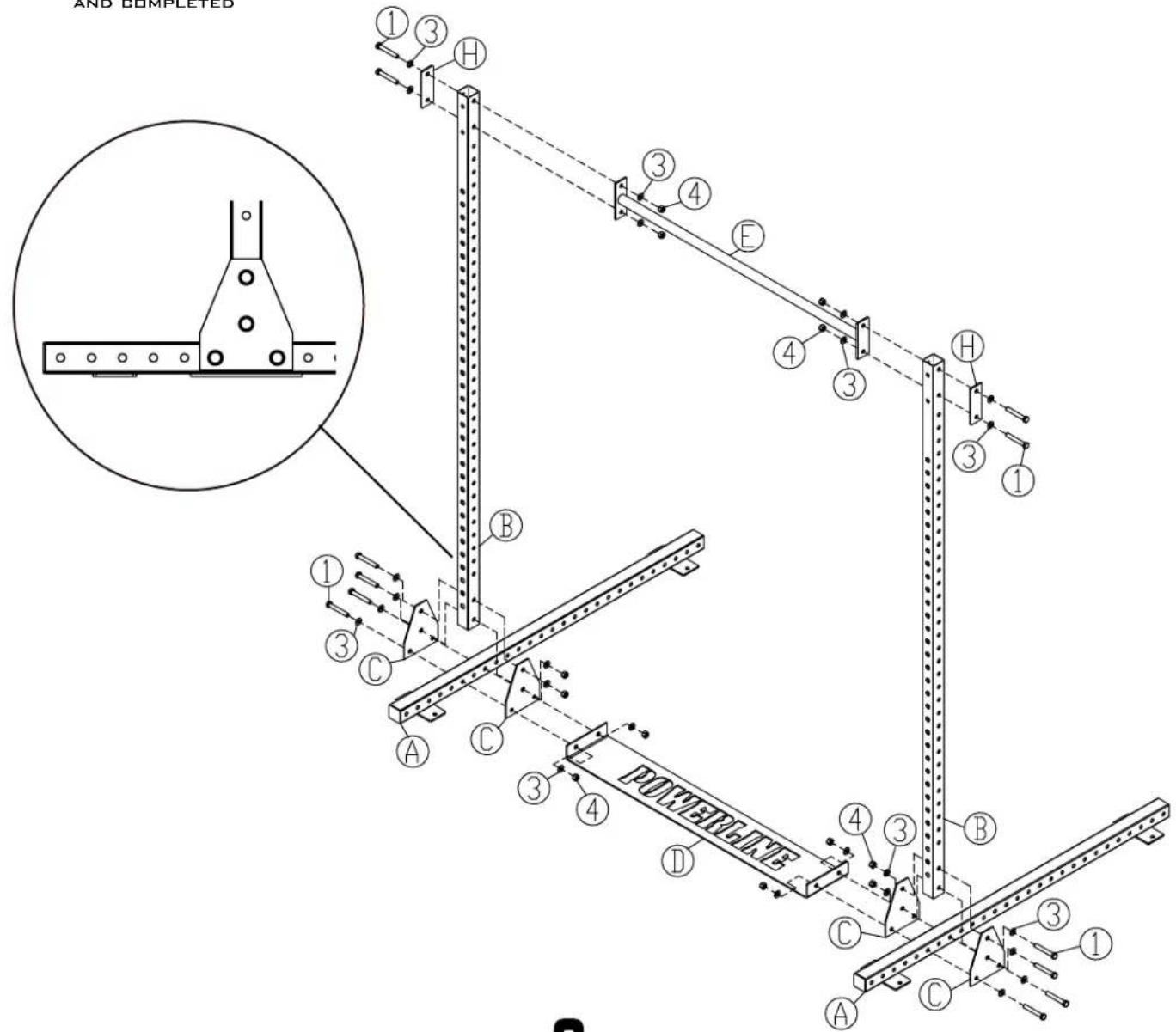

STEP 1

BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

FINGER TIGHTEN ALL HARDWARE IN THIS STEP. DO NOT WRENCH TIGHTEN UNTIL THE LAST STEP. SOME COMPONENTS MAY BE PRE-ASSEMBLED. NYLON LOCK NUTS WILL NOT FULLY SCREW ONTO BOLTS, MUST WRENCH TIGHTEN.

1A. ATTACH BASE FRAMES (A), FOOT PLATE (D) AND STEEL BRACKETS (C) TOGETHER USING:

4 - (#1) M12X80MM HEX HEAD BOLT
8 - (#3) M12 FLAT WASHER
4 - (#4) M12 NYLON LOCK NUT

NOTE #1:

PLEASE REFER TO THE DRAWING FOR CORRECT BOLT HOLE LOCATIONS. THE BOLT HOLES ARE 6TH & 8TH HOLES FROM THE CLOSED END OF THE BASE FRAME.

1 B. ATTACH UPRIGHTS (B) TO STEEL BRACKETS (C) USING:

4 - (#1) M12X80MM HEX HEAD BOLT
8 - (#3) M12 FLAT WASHER
4 - (#4) M12 NYLON LOCK NUT

1 C. ATTACH CHIN UP BAR (E) TO UPRIGHTS (B) USING:

4 - (#1) M12x80MM HEX HEAD BOLT
8 - (#3) M12 FLAT WASHER
4 - (#4) M12 NYLON LOCK NUT
2 - (H) SHORT STEEL BRACKET

NOTE #2:

IT IS RECOMMEDATED TO INSTALL THE EQUIPMENT WITH AT LEAST TWO PERSONS.

Technical line drawing of a metal frame structure with support beams and mounting holes (no text or symbols)

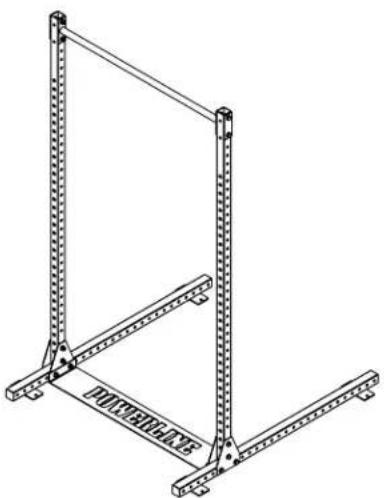

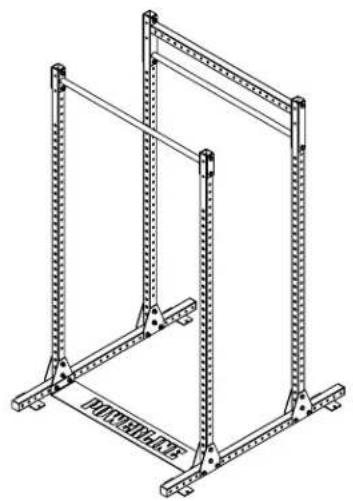

ABOVE SHOWS STEP 1 ASSEMBLED AND COMPLETED

PPR1000

STEP 1

AND COMPLETED ①③H ③④E ④③H ①① ①③C ③④ A B C D POWERLINE C B C ①① A C

9

PPR1000

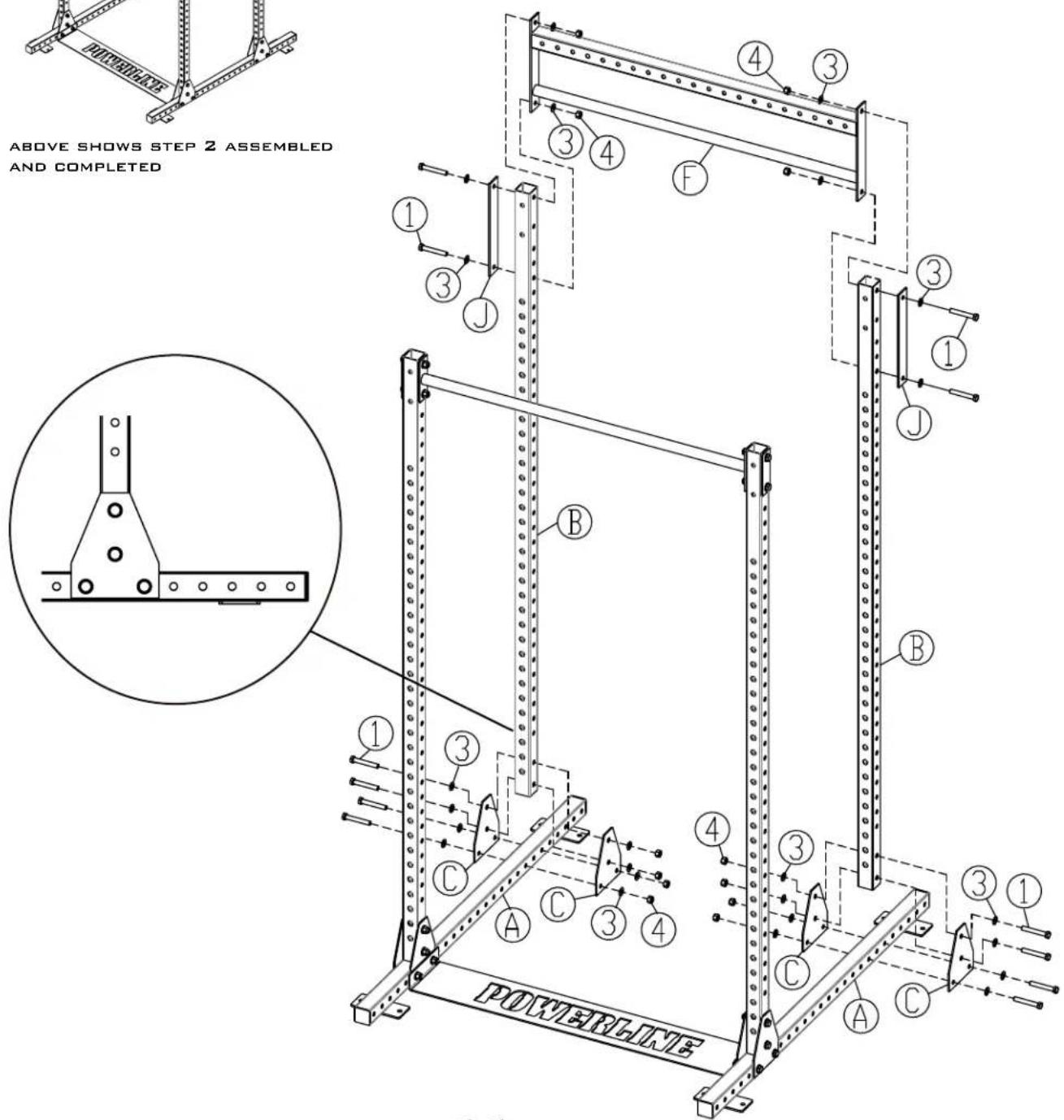

STEP 2

BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

FINGER TIGHTEN ALL HARDWARE IN THIS STEP. DO NOT WRENCH TIGHTEN UNTIL THE LAST STEP. SOME COMPONENTS MAY BE PRE-ASSEMBLED. NYLON LOCK NUTS WILL NOT FULLY SCREW ONTO BOLTS, MUST WRENCH TIGHTEN.

2A. ATTACH STEEL BRACKETS (C) TO BASE FRAMES (A) USING:

4 - (#1) M12X80MM HEX HEAD BOLT
8 - (#3) M12 FLAT WASHER
4 - (#4) M12 NYLON LOCK NUT

NOTE:

PLEASE REFER TO THE DRAWING FOR CORRECT BOLT HOLE LOCATIONS. THE BOLT HOLES ARE 6TH & 8TH HOLES FROM THE OPEN END OF THE BASE FRAME.

2B. ATTACH UPRIGHTS (B) TO STEEL BRACKETS (C) USING:

4 - (#1) M12X80MM HEX HEAD BOLT
8 - (#3) M12 FLAT WASHER
4 - (#4) M12 NYLON LOCK NUT

2C. ATTACH REAR CROSSBAR (F) TO UPRIGHTS (B) USING:

4 - (#1) M12X80MM HEX HEAD BOLT
8 - (#3) M12 FLAT WASHER
4 - (#4) M12 NYLON LOCK NUT
2 - (J) LONG STEEL BRACKET

Isometric line drawing of a multi-tiered storage rack structure with no text or symbols

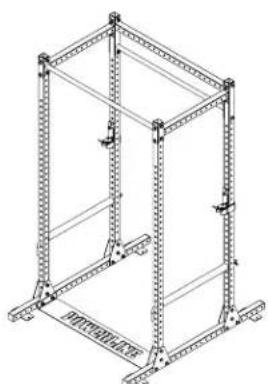

ABOVE SHOWS STEP 2 ASSEMBLED AND COMPLETED POWERLINE ① ③ ② ④ ③ ④ ③ ① ③ ② ④ ③ ① ③ ② ④ ③ ① ③ ② ④ ③ ① ③ ② ④ ③ ① ③ ② ④ ③ ① ③ ② ④

PPR1000

STEP 2

PPR1000

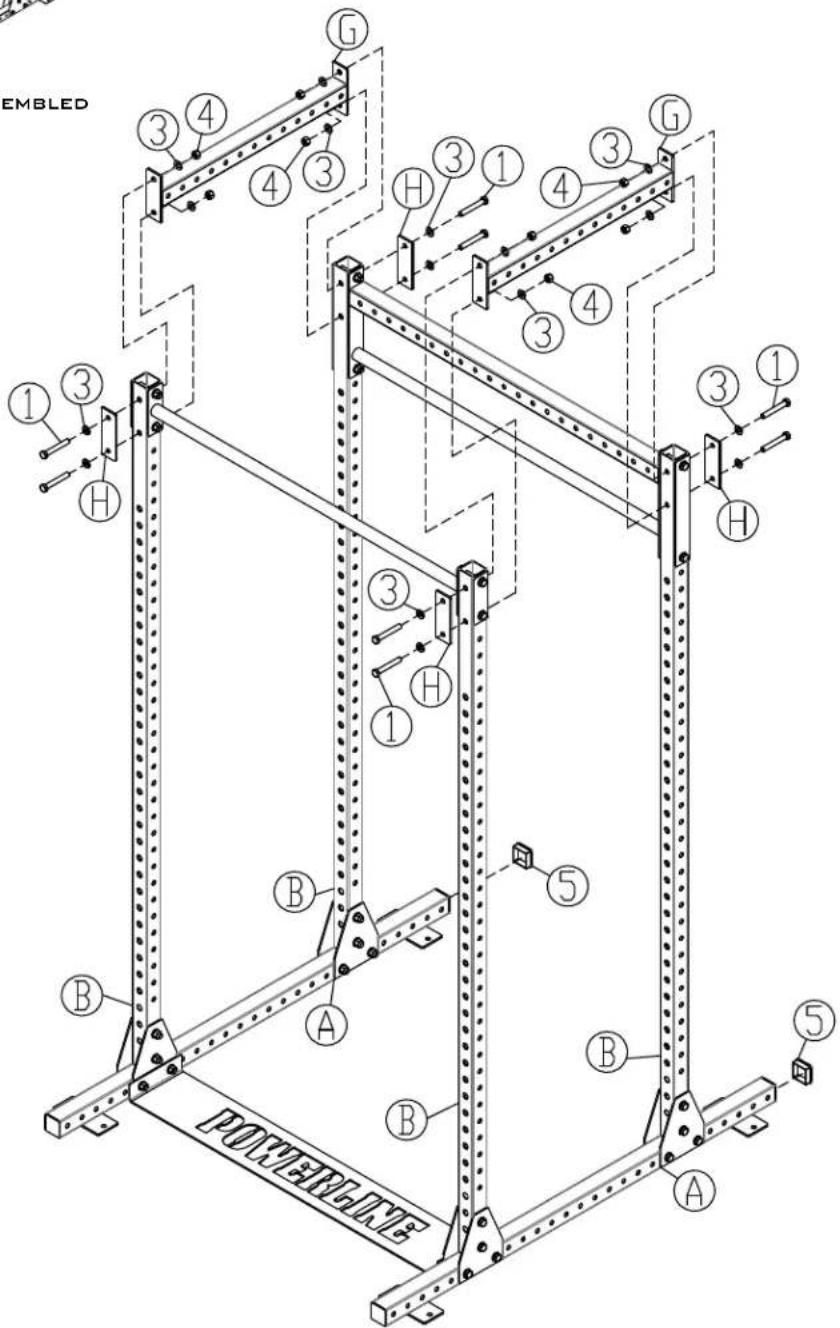

STEP 3

BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

FINGER TIGHTEN ALL HARDWARE FIRST IN THIS STEP. WRENCH TIGHTEN ALL HARDWARE AT THE END OF STEP 3A. SOME COMPONENTS MAY BE PRE-ASSEMBLED. NYLON LOCK NUTS WILL NOT FULLY SCREW ONTO BOLTS, MUST WRENCH TIGHTEN.

3A. ATTACH SIDE CROSSBARS (G) TO UPRIGHTS (B) USING:

8 - (#1) M12X80MM HEX HEAD BOLT

16 - (#3) M12 FLAT WASHER

8 - (#4) M12 NYLON LOCK NUT

4 - (H) SHORT STEEL BRACKET

3B. INSERT END CAPS (#5) ONTO THE OPEN ENDS OF BASE FRAMES (A).

Isometric line drawing of a multi-tiered storage frame structure (no text or symbols)

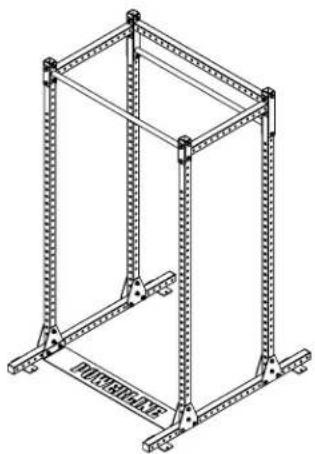

ABOVE SHOWS STEP 3 ASSEMBLED AND COMPLETED

PPR1000

STEP 3

EMBLED ①③ ③④ ④③ ③① ④③ ④③ ①③ ① ③ ① ③ ③ ⑤ ⑤ A B A B POWERGINE

PPR1000

STEP 4

BE CAREFUL TO ASSEMBLE ALL COMPONENTS

IN THE SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

SOME COMPONENTS MAY BE PRE-ASSEMBLED. NYLON LOCK NUTS WILL NOT FULLY SCREW ONTO BOLTS, MUST WRENCH TIGHTEN.

ADJUSTABLE J CUPS AND PIPE & PIN SAFETIES

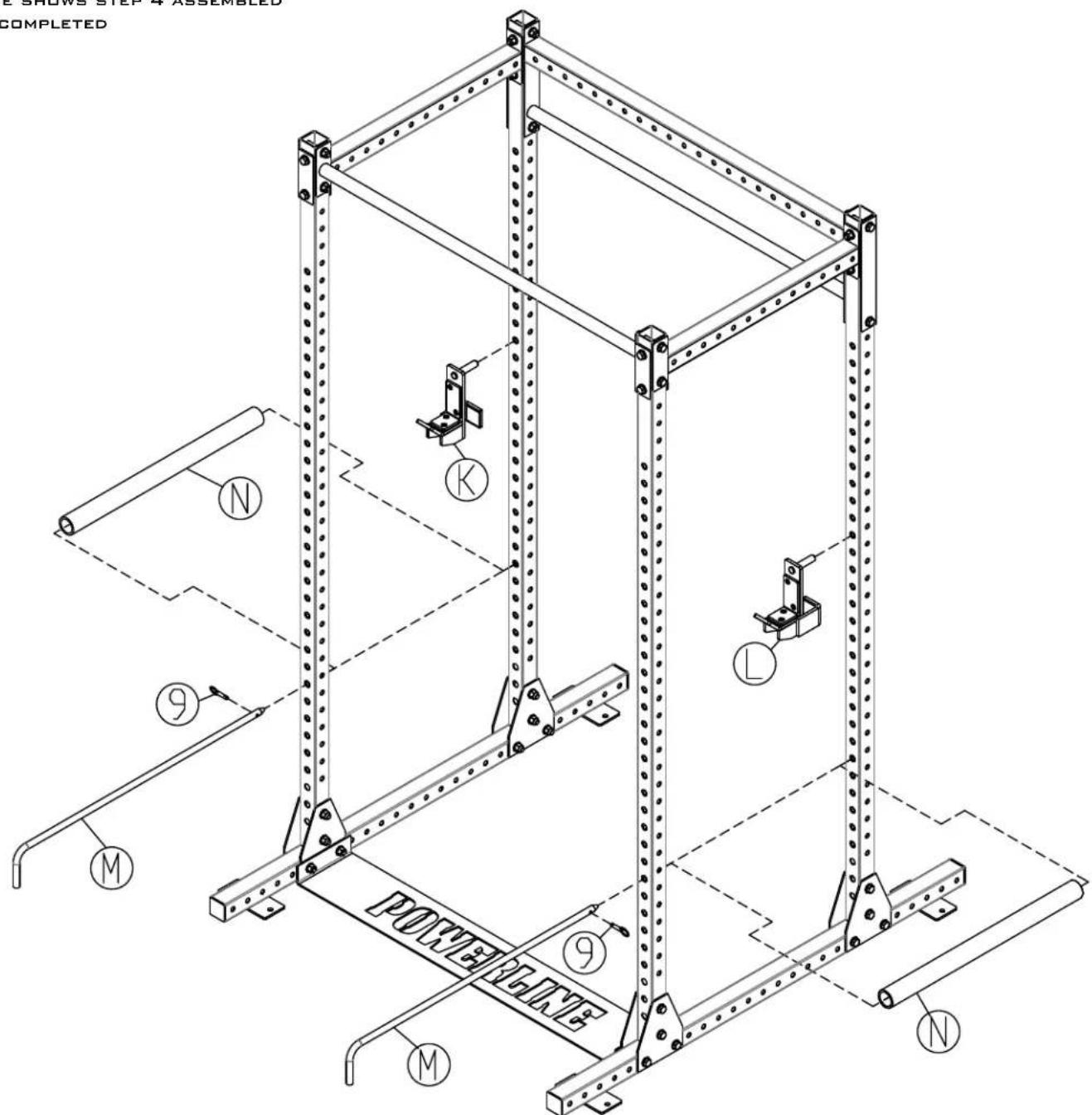

4A. ATTACH LEFT & RIGHT J CUPS (K & L) TO UPRIGHTS (B).
4B. HOLD PIPES (N) BETWEEN UPRIGHTS (B) AND INSERT PINS (M) INTO THE PIPES (N) AND UPRIGHTS (B).
4C. INSERT THE QUICK RELEASE PINS (#9) INTO THT END OF PINS (M).

NOTE:

SECURELY ANCHOR THE MACHINE TO THE FLOOR USING THE ANCHOR HOLES PROVIDED. PLEASE CONSULT A PROFESSIONAL CONTRACTOR FOR THE ACTUAL ANCHORING OF THE MACHINE.

Isometric line drawing of a metal frame structure with support beams and mounting points (no text or symbols)

ABOVE SHOWS STEP 4 ASSEMBLED AND COMPLETED

PPR1000

STEP 4

E SHOWS STEP 4 ASSEMBLED COMPLETED N K L 9 M POTTERING 9 M N

15

PPR 1000

NOTE

Technical diagram of a structural framework with numbered components and connection points, likely for engineering or architectural design.

POWERLINE®

by Body-Solid

PPR1000

PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW

S/N # 014725-□□-□□-□□□□-□□□□

1900 S. Des Plaines Ave.

Forest Park, IL 60130

Phone:[phone]

Fax:[phone]

Hours: M-F 8:30 - 5:00 CST
