Assembly

OWNER'S

Instructions

MANUAL

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use. Failure to do so may result in death or serious injury.

It is imperative that you retain this Owner's Manual and be sure all warning labels are legible and intact. Replacement Owner's Manuals and warning labels are available from your local Body-Solid dealer.

If you have any questions about the operation, set up or maintenance of this machine please call our customer service department at 1 [phone].

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:

1. Inspect equipment before each workout. Check that all nuts, bolts, screws and pop pins are in place and fully tightened. Also, before use, check cables for signs of wear. Replace all worn parts immediately. Never use machine if any parts are damaged or missing. FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
2. Keep clear of the cables and all moving parts when the machine is in use.
3. Always make sure all Snap Links are closed when doing any cable/pulley/strap exercises.
4. Exercise with care. Perform your exercises at a smooth moderate pace; never perform jerky or uncoordinated movements that may cause injury.
5. It is recommended that you should workout with a training partner.
6. Do not allow children or minors to play on or around this equipment.
7. If unsure of proper use of equipment, call your local Body-Solid distributor or the Body-Solid customer service department at 1-800-556-3113.
8. WARNING: Consult your physician before starting your exercise program. For your own safety, do not begin any exercise program without proper instruction. RAL8-6-03 WC-54

WARNING

Bolt rack to ground before use.

Table of Contents

• SAFETY INSTRUCTIONS...... PAGE 4
- PREPARATION...... PAGE 5
- HARDWARE ILLUSTRATION...... PAGE 6
• PART / HARDWARE LIST...... PAGE 8
• ASSEMBLY INSTRUCTIONS...... PAGE 9
- EXPLODED VIEW...... PAGE 15
- CONTACT PAGE...... PAGE 16

Important Safety Instructions

Before beginning any fitness program, you should obtain a complete physical examination from your physician.

When using exercise equipment, you should always take basic precautions, including the following:

Read all instructions before using the SPRJAM. These instructions are written to ensure your safety and to protect the unit.
○ Do not remove any safety labels from the machine.
- Do not allow children on or near the equipment.
Use the equipment only for its intended purpose as described in this guide. Do not use accessory attachments that are not recommended by the manufacturer. Such attachments might cause injuries.
- Wear proper exercise clothing and shoes for your workout, no loose clothing.
Keep hands, limbs, loose clothing, and long hair well out of the way of all moving parts.
○ Use care when getting on or off the unit.
Do not overexert yourself or work to exhaustion.
If you feel any pain or abnormal symptoms, stop your workout immediately and consult your physician.
Never operate unit when it has been dropped or damaged. Return the equipment to a service center for examination and repair.
Never drop or insert objects into any opening in the equipment.
○ Always check the unit and its cables before each use. Make sure that all fasteners and cables are secure and in good working condition.
- Do not use the equipment outdoors or near water.

Personal Safety During Assembly

Before beginning assembly, please take the time to read the instructions thoroughly.
Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment.
○ Assemble and operate the SPRJAM on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access.

The SPRJAM is designed for your enjoyment. By following these precautions and using common sense, you will have many safe and pleasurable hours of healthful exercise with your Body-Solid Jammer Arm. After assembly, you should check all functions to ensure correct operation. If you experience problems, first recheck the assembly instructions to locate any possible errors made during assembly. If you are unable to correct the problem, call the dealer from whom you purchased the machine or call 1-800-556-3113 for the dealer nearest you.

Obtaining Service

Please use this Owner's Manual to make sure that all parts have been included in your shipment. When ordering parts, you must use the part number and description from this Owner's Manual. Use only Body-Solid replacement parts when servicing this machine. Failure to do so will void your warranty and could result in personal injury.

For information about product operation or service, check out the official Body-Solid website at www.bodysolid.com or contact an authorized Body-Solid dealer or a Body-Solid factory-authorized service company or contact Body-Solid customer service at one of the following:

Toll Free: 1-800-556-3113

Phone: [phone]

Fax: [phone]

Hours: M-F 8:30-5:00 CST

E-Mail: [e-mail]

Or write to: Body-Solid, Inc.

Service

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

Department

Retain this Owner's Manual for future reference. If you need to order replacement parts please be prepared to provide the following information when contacting us so that we can assist you better.

1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description

Preparation

Thank you for purchasing the SPRJAM. This Product is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner's thoroughly

Required Tools

The basic tools that you must obtain before assembling the SPRJAM include but are not limited to:

○ Standard Wrench Set
Metric Wrench Set
○ Adjustable Wrench

Installation Requirements

Follow these installation requirements when assembling the SPRJAM:

Provide ample space around the machine. Open space around the machine allows for easier access.

Insert all bolts in the same direction. For aesthetic purposes, insert all bolts in the same direction unless specified (in text or illustrations) to do otherwise.

Power Rack must be bolted to the floor before adding the Jammer Arms to the Rack.

Leave room for adjustments. Tighten fasteners such as bolts, nuts, and screws so the unit is stable, but leave room for adjustments. Do not fully tighten fasteners until instructed in the assembly steps to do so.

Fill out and mail the warranty card.

Assembly Tips

Read all "Notes" on each page before beginning each step.

While you may be able to assemble the SPRJAM using the illustrations only, important safety notes and other tips are included in the text.

Some pieces may have extra holes that you will not use. Use only those holes indicated in the instructions and illustrations.

NOTE: With so many assembled parts, proper alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave room for adjustments.

CAUTION: Obtain assistance! If you feel like you can't assemble the SPRJAM by yourself then do not attempt to do so as this could result in injury. Review the installation requirements before proceeding with the following steps.

Technical line drawing of a mechanical device with no visible text or symbols

Your S/N# can

be found here

Body-Solid continually seeks ways to improve the performance, specifications and product manuals in order to ensure that only superior products are released from our factories. Please take the time to carefully read through this manual thoroughly. Instructions contained in this document are not intended to cover all details or variations possible with Body-Solid equipment, or to cover every contingency that may be met in conjunction with installation, operation, maintenance or troubleshooting of the equipment. Even though we have prepared this manual with extreme care, neither the publisher nor the author can accept responsibility for any errors in, or omission from, the information given. Should additional information be required, or should situations arise that are not covered by this manual, the matter should be directed to your local Body-Solid representative, or the Service Department at Body-Solid Inc. in Forest Park, Illinois.

SPRJAM Hardware Illustration

Part #1
HEX HEAD BOLT M16x130mm
QTY. 2

Simple line drawing of a cylindrical object with a flanged top and side profile (no text or symbols)

Part #2
HEX HEAD BOLT M16x115mm
QTY. 4

Simple line drawing of a bolt with a flanged head and central shaft (no text or symbols)

Geometric diagram showing a circle inscribed in a regular hexagon (no text or labels)

QTY. 8

Part #3
SOCKET HEAD CAP SCREW M10x40mm

Simple line drawing of a rectangular object with a rounded corner and a horizontal bar (no text or symbols)

QTY. 12

Part #4
FLAT WASHER M16

Two concentric circles diagram with no text or symbols

mm 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Inch 0 1° 2° 3° 4° 5° 6°

SPRJAM Hardware Illustration

Part #5

FLAT WASHER M10

QTY. 8

Part #6

NYLON LOCK NUT M16

QTY. 6

Geometric diagram of a hexagon with concentric circles, no text or symbols present

mm 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Inch 0 1" 2" 3" 4" 5" 6"

SPRJAM Parts & Hardware List

Part#	Qty	Description
A	2	MAIN FRAME
B	2	HANDLE
C	2	WEIGHT HORN
D	1	LEFT BRACKET
E	1	RIGHT BRRACKET
1	2	M16x130mm HEX HEAD BOLT
2	4	M16x115mm HEX HEAD BOLT
3	8	M10x40mm SOCKET HEAD CAP SCREW
4	12	M16 FLAT WASHER
5	8	M10 FLAT WASHER
6	6	M16 NYLON LOCK NUT
7	4	BUSHING
8	2	RUBBER RING
9	2	QUICK RELEASE PIN
10	4	RUBBER BUMPER
11	6	PROTECTIVE FILM

STEP

1

Be careful to assemble all components in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of STEP 1C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.

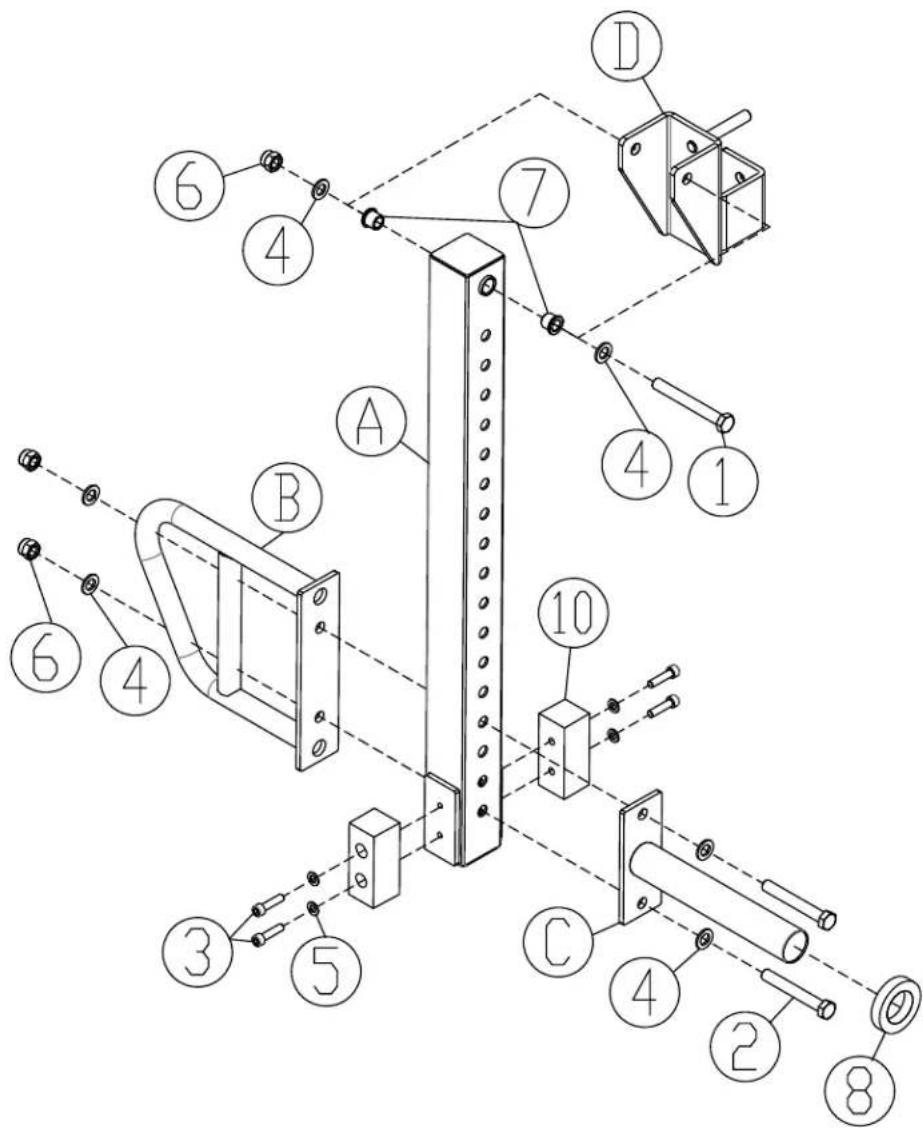

1A. Attach Main Frame (A) to Left Bracket (D) using:

1 - (#1) M16x130mm Hex Head Bolt
2 - (#4) M16 Flat Washer
1 - (#6) M16 Nylon Lock Nut
2 - (#7) Bushing

1B. Attach Handle (B) & Weight Horn (C) to Main Frame (A) using:

2 - (#1) M16x115mm Hex Head Bolt
4 - (#4) M16 Flat Washer
2 - (#6) M16 Nylon Lock Nut

1C. Attach two Rubber Bumper (#10) to Base Frame (A) using:

4 - (#3) M10x40mm Socket Head Cap Screw
4 - (#5) M10 Flat Washer

Technical line drawing of a mechanical lever assembly (no text or symbols)

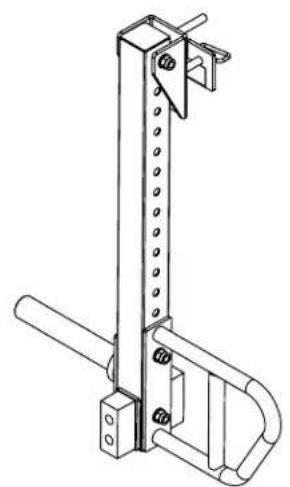

Above shows Step 1 assembled and completed.

Technical diagram of a mechanical assembly with numbered components and labeled parts A through 10.

Be careful to assemble all components in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of STEP 2C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.

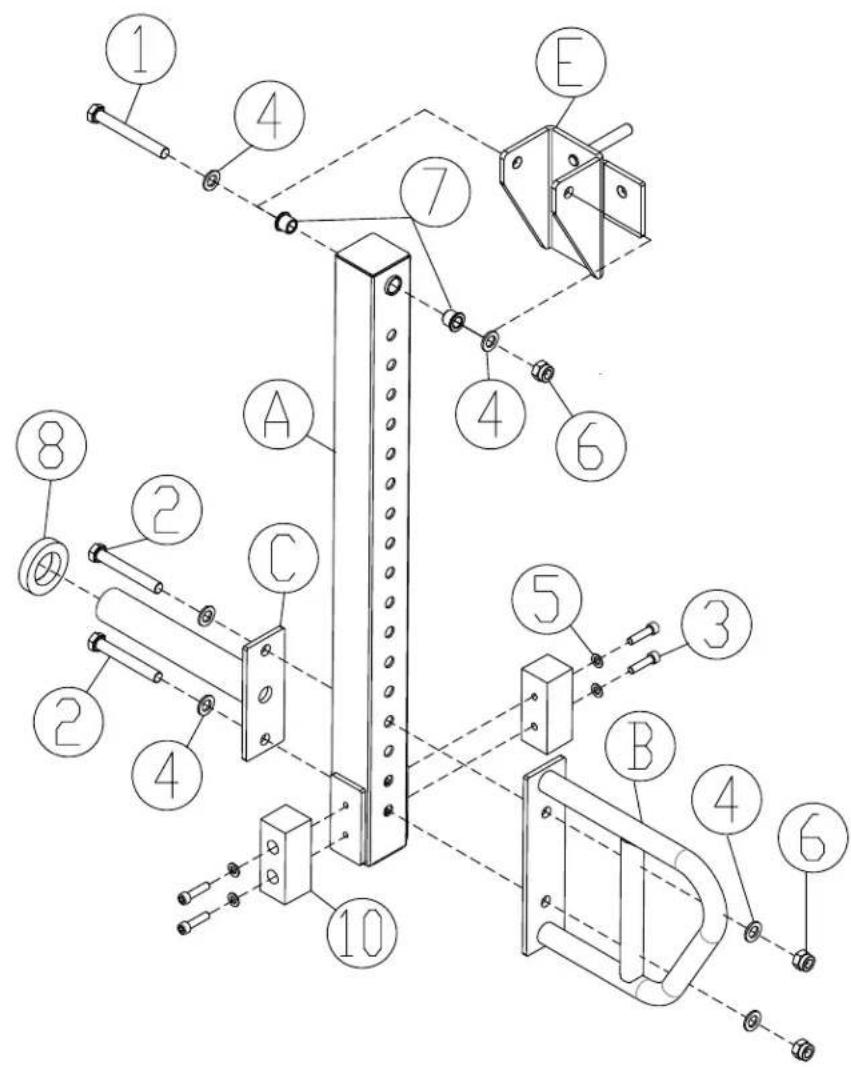

2A. Attach Main Frame (A) to Right Bracket (E) using:

1 - (#1) M16x130mm Hex Head Bolt
2 - (#4) M16 Flat Washer
1 - (#6) M16 Nylon Lock Nut
2 - (#7) Bushing

2B. Attach Handle (B) & Weight Horn (C) to Main Frame (A) using:

2 - (#1) M16x115mm Hex Head Bolt
4 - (#4) M16 Flat Washer
2 - (#6) M16 Nylon Lock Nut

2C. Attach two Rubber Bumper (#10) to Base Frame (A) using:

4 - (#3) M10x40mm Socket Head Cap Screw
4 - (#5) M10 Flat Washer

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

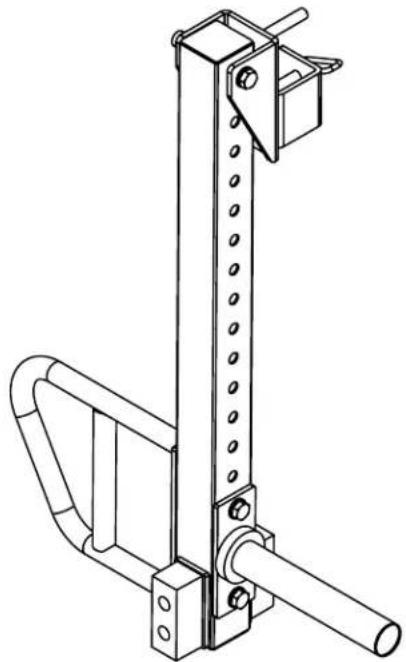

Above shows Step 2 assembled and completed.

STEP

2

Technical diagram of a mechanical assembly with numbered components and labeled parts A through 10.

Be careful to assemble all components in the sequence they are presented.

NOTE:

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.

Adjustable Jammer Arms

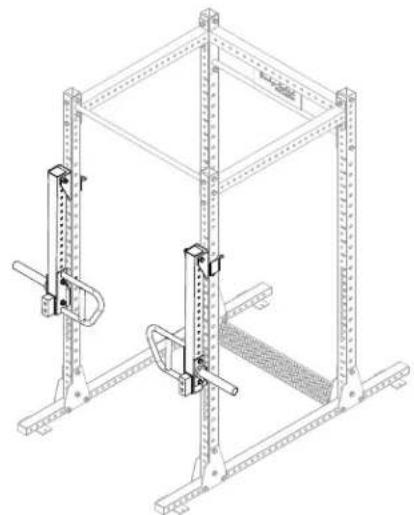

3A. Attach Left (D) & Right (E) Brackets of Jammer Arms to the Uprights (F) of the Rack.

3B. Insert Quick Release Pins (#9) to the Left (D) & Right (E) Brackets of Jammer Arms.

Note: Please make sure the rack is securely anchored to the ground before use.

Technical line drawing of a mechanical lifting device with vertical supports and a central horizontal beam (no text or symbols)

STEP

3

WARNING

Bolt rack to ground before use.

above shows Step 3 assembled and completed. E 9 F D 9

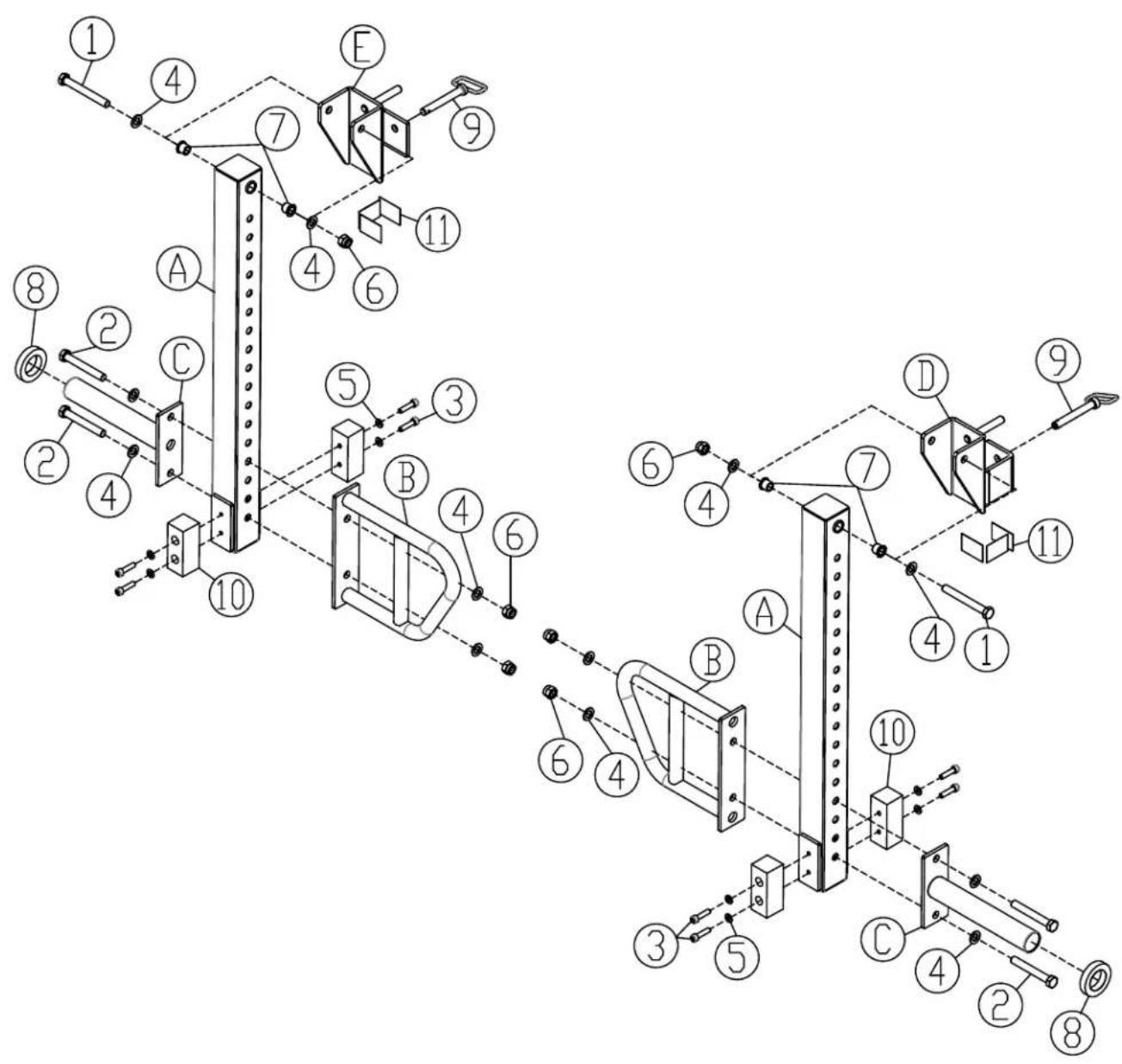

SPRJAM Exploded View
