DV3100 - Radio Furrion - Free user manual and instructions

Product Type	2-Zone Entertainment System with DVD
Brand	Furrion
Model	DV3100

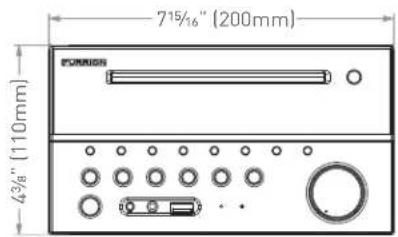

Dimensions (W x H x D)	7 7/8 x 4 3/8 x 7 1/2 in (200 x 110.5 x 190 mm)
Net Weight	3.6 lbs (1.6 kg)
Power Supply	DC 12V (negative ground)
Maximum Power Output	4 x 24W RMS
Supported Disc Formats	DVD, VCD, CD, CD-R/RW, DVD-R/RW
Supported Media Formats	MP3, WMA, MP4, JPEG
Tuner	AM/FM with 30 presets (FM1, FM2, FM3, AM1, AM2)
Bluetooth	Yes (with NFC for quick pairing)
USB Input	Yes, with charging function
Auxiliary Inputs	Front AUX (audio/video), rear AV IN
Audio/Video Outputs	2 RCA outputs (Zone 1 and Zone 2), 1 subwoofer output
Zone Audio	2 zones (Zone 1 and Zone 2) with independent speaker selection
Display	4-inch LCD
Remote Control	Included (CR2025 battery)
Mounting Angle	0 to +/-30 degrees
Equalizer Presets	FLAT, ROCK, CLASSIC, CINEMA
Warranty	1 year (with registration)

Frequently Asked Questions - DV3100 Furrion

How do I set the clock on the Furrion DV3100?

Press and hold the CLOCK button on the remote control. The hour will flash; rotate the VOLUME knob to adjust, then press the knob briefly to switch to minutes and adjust. The setting will save automatically after a few seconds.

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone and search for devices. Select 'DV3100-X' (X varies). Enter the password '0000' when prompted. For NFC, touch your phone's NFC area to the NFC detection area on the stereo.

Why is there no picture on my TV?

Ensure the TV is set to the correct AV input (not TV channel). Check that the yellow RCA video cable is securely connected from the stereo's AV output to the TV's video input.

How do I switch between radio bands?

Press and hold the INPUT MODE button on the front panel or briefly press the AM/FM button on the remote to cycle through FM1, FM2, FM3, AM1, and AM2.

Can I play music from a USB drive?

Yes. Insert a USB drive with MP3/WMA/MP4 files into the USB socket. The stereo will automatically switch to USB mode and display the file menu. Use the controls to navigate and play.

How do I adjust the bass and treble?

Press the VOLUME knob (or SEL on remote) repeatedly to cycle through VOL, BAS (bass), TRE (treble), BAL (balance), and BEEP. Rotate the knob to adjust the selected setting.

What should I do if the disc won't play?

Check that the disc is inserted label side up and is not scratched or dirty. Also ensure the disc format is compatible (DVD, VCD, CD, etc.). If the display says 'NO DISC', try another disc.

How do I reset the stereo to factory defaults?

Use a pointed object (like a pen) to press the RESET button located in a recessed hole on the front panel. This will restore all settings to factory defaults.

Can I connect a subwoofer?

Yes. Connect a powered subwoofer to the SUBWOOFER OUTPUT (RCA jack) on the rear panel. The subwoofer output is a mono signal.

How do I program preset radio stations?

Tune to the desired station, then press and hold any of the preset buttons (1-6) until the display confirms. To automatically store the six strongest stations, press and hold the APS button on the remote.

USER MANUAL DV3100 Furrion

Before operating your new appliance, please read these instructions carefully.

This instruction manual contains information for safe use, installation and maintenance of the appliance.

Please keep this instruction manual in a safe place for future reference.

This will ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new owners of this appliance.

The manufacturer does not accept responsibility for any damages due to not observing these instructions. If you have any further questions regarding our products, please contact us at [e-mail]

PRECAUTION

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

Laser product symbol: located on the rear panel of the unit, indicate this player is a class laser product, only use weak laser and no hazardous radiation outside of the unit.

1. Read through this instruction manual before installation and use.
   2.Do not touch the power plug with wet hand.
2. Switch off the main power when the unit is not in use. (Disconnect the power plug from the power outlet when you do not intend to use the unit for a prolonged period of time.) Before moving the unit, remove the disc from the unit/ tray first.
3. Do not open the cover or touch any of the components inside of the unit. Only a qualified technician should service the unit.
4. Do not expose the unit under direct sunlight or nearby objects that radiate heat to avoid damaging the unit.
5. Do not place the unit in moist or humid conditions. Moisture will affect normal operation and damage the unit.
6. Place the unit on a flat surface and ventilative condition. Please ensure the ventilation holes are not covered to avoid overheating and malfunction.
7. Clear the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol or sprays.
8. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING

1. Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with).
2. This product contains a coin/button cell battery.
3. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
4. Keep new and used batteries away from children.
5. If the battery compartment does not close securely, stop using the produce and keep it away from children.
6. If you think batteries might have been swallowed or placed inside any part of the body, seek, immediate medical attention.

CAUTION

1. Danger of explosion if battery is incorrectly replaced.
2. Replace only with the same or equivalent type.
3. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Contents

1. Before Operation....3

1.1 Feature....3

1.2 Precautions....3

1.3 Maintenance and Cleaning of Discs 4

1.4 Battery Information of the Remote Control....4

1.5 The Remote Control Description....5

1.6 Locations and Names of the Controls....6

1.7 Wiring Diagram....11

1.8 Mounting Installation....14

1. Common Operation....15

2. Radio Operation....17

3. Basic Disc, USB Operation....18

4.1 Begin Playback....18

4.2 Pause Playback....19

4.3 Stop Playback 19

4.4 Select Chapter/Track with the the >>|/|<< Buttons....19

4.5 Select Chapter/Track with the Number Buttons....19

4.6 Select Chapter/Track with the Root/PBC Menu....19

4.7 Terminate the Playback....20

1. Advanced Disc, USB Operation....20

5.1 Playback with Speed....20

5.2 Playback with Slow Speed....20

5.3 Playback with Still Frame 21

5.4 Playback Repeatedly....21

5.4.1 One/All Repeat....21

5.4.2 A-B Repeat....21

5.5 Playback from a specified Chapter/Track or a Specified Time....22

5.6 Playback in Random....22

5.7 Playback in Different Angle....22

5.8 Playback in Zoom Mode....22

5.9 Change the Caption Language....23

5.10 Change the Audio Language....23

5.11 Look over the Playback Status....23

5.12 Program Playback....24

5.13 Playback the Picture CD in JPEG Format....24

5.14 MP4 Operation....25

5.15 ESP and ID3 Function....25

5.16 USB Operation 25

5.17 The DVD System Menu Setup Operation....25

5.18 The Parental Control....29

5.19 The Region Code....30

1. Bluetooth Handsfree System....31

2. Trouble Shooting....33

3. Specification....34

1. Before Operation

Thank you for purchasing a Furrion Product, we hope you will enjoy using our product. For maximum enjoyment please look through the following manual to learn about all the features of your Furrion Stereo.

1.1 Features:

Digital AM / FM Tuner

DVD/CD-R/RW/MP3/MP4/WMA Compatible

Bluetooth with NFC function

Auxiliary inputs on front and rear

USB input with charging function

2 zone multi room audio output

2 x RCA audio/video outputs for connecting 2 additional TVs

1 x subwoofer output

Clock

1.2 Precautions

Connect this product to a 12V DC negative ground battery system which is standard in North America and European Vehicles.

Ensure when installing the stereo, all wire ends which are not being used are terminated with a insulated end to avoid wires shorting or earthing which can lead to the risk of fire or electrical shock.

Avoid inserting foreign objects into the disk loading slot of the stereo as this will cause malfunction.

Do not expose this product to moisture or wet environments, if condensation is present in the screen, wait for 1 hour or more for the moisture to evaporate.

If the interior of the vehicle is extremely hot, do not use the player until the vehicle internal temperature has cooled down.

Do not use cleaning products on the front face of the product, only use a slightly damp cloth for cleaning.

Do Not attempt to disassemble or adjust this product, contact a service center for assistance.

1.3 Maintenance and Cleaning of Discs

Disc Maintenance

1. To keep the disc clean, handle the disc by its edge, do not touch the disc surface of the play side.
2. Do not stick paper or tape on the disc. If there is glue on the disc surface, wipe it off before using.
3. Do not expose the disc to direct sunlight, or nearby heat sources such as caliduct, or leave it in a car parked in direct sunlight where there can be a considerable rise in temperature.
4. Put the disc inside disc case to keep temperature after finishing playback.

Disc Cleaning

1. Before playing, wipe the disc with a clean lint. wipe the disc outwards from the disc center.
2. Do not use petrol, thinners, commercially available cleaners or anti-static sprays for plastic LP's to wipe discs.

correct

wrong

Fig.1

Fig.2

Fig.3

correct

wrong

1.4 Battery Information of the Remote Control

Replace Battery in the Remote Control:

1. Before using the remote control for the first time, pull the insulating sheet out of the remote control as the direction indicated by the arrow. (see fig. 1)
2. Press the movable block hold as the direction indicated by the A arrow (See fig.2), then pull the battery holder out of the remote control as the direction indicated by the B arrow (see fig.2).
3. Replace the old battery with a new battery with (+) polarity side upward. (See fig.3).
4. Insert the battery holder to the original position in remote control. (See fig.3).

Note about the Battery of the Remote Control:

1. Improper use of a battery may cause overheating or an explosion that could result in injury or fire.
2. Battery leakage may cause damage to the remote control (Battery Life: 6 months with normal use in normal room temperature).
3. Do not short the battery.
   4.Do not throw the battery into the fire.
4. To avoid the risk of accident, keep the battery out of reach of children.

1.5 The Remote Control Description

1. SEARCH BUTTON
2. RANDOM BUTTON
3. REPEAT BUTTON
4. SUBTITLE/REDIAL BUTTON
5. TITLE/PBC BUTTON
   21.ST/ANGEL/# BUTTON
6. ZOOM BUTTON
7. AUDIO BUTTON
8. CLOCK BUTTON
9. A-B BUTTON
10. EQ BUTTON
11. EJECT BUTTON

12. LOC/SLOW-FWD/* BUTTON

13. AV IN MODE BUTTON

14. BACK BUTTON
15. POWER BUTTON
16. UP BUTTON
17. NEXT BUTTON
18. RIGHT BUTTON
19. PREVIOUS BUTTON/CLEAR BUTTON
20. DOWN BUTTON
21. SEL BUTTON
22. PLAY/PAUSE BUTTON
23. NUMBER(0\~9,+10 -10) BUTTONS
24. 10+ BUTTON
25. SETUP BUTTON
26. AM/FM RADIO MODE BUTTON
27. APS/HAND UP BUTTON
28. DVD/USB MODE BUTTON
29. STOP BUTTON
30. VOLUME-BUTTON
31. LEFT BUTTON
32. OK BUTTON
33. VOLUME+ BUTTON
34. AUX MODE BUTTON
35. PROGRAM BUTTON
36. OSD BUTTON
37. MUTE/LOUD BUTTON
38. STEP/TEL BUTTON

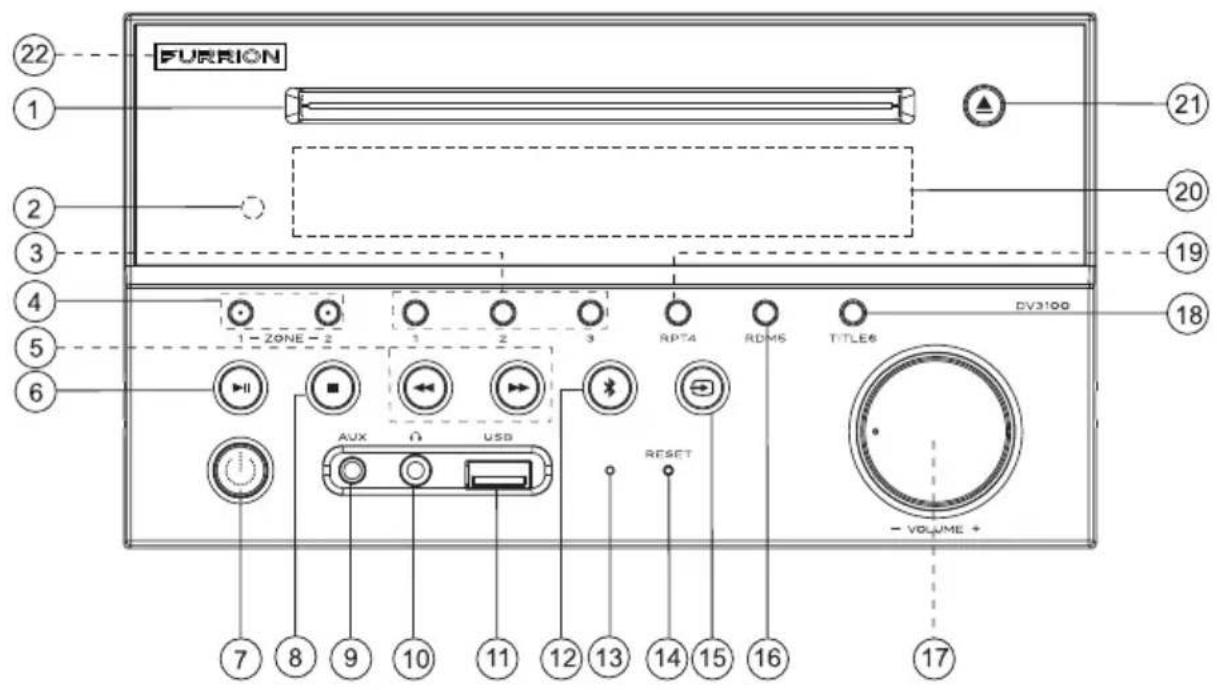

1.6 Locations and Names of the Controls

1. DISC SLOT
2. IR REMOTE CONTROL SENSOR
3. 1/2/3 BUTTON

1 TEL/REDIAL BUTTON

2 HANG UP BUTTON

4.ZONE 1/2 BUTTON
5. ◀/▶ BUTTON
6.PLAY/PAUSE BUTTON

RADIO REGION SELECT BUTTON

1. POWER BUTTON
   8.STOP BUTTON

AS/PS BUTTON

9.AUX IN SOCKET

1. HEADPHONE SOCKET
2. USB SOCKET
   12.BT MODE BUTTON/EQ BUTTON
3. MICROPHONE IN
4. RESET BUTTON
5. INPUT MODE BUTTON/BAND BUTTON
   16.5/RANDOM BUTTON
   17.VOL KNOB/SEL BUTTON
   18.6/TITLE BUTTON
   19.4/REPEAT BUTTON
   20.LCD DISPLAY
   21.EJECT BUTTON
   22.NFC DETECTION AREA

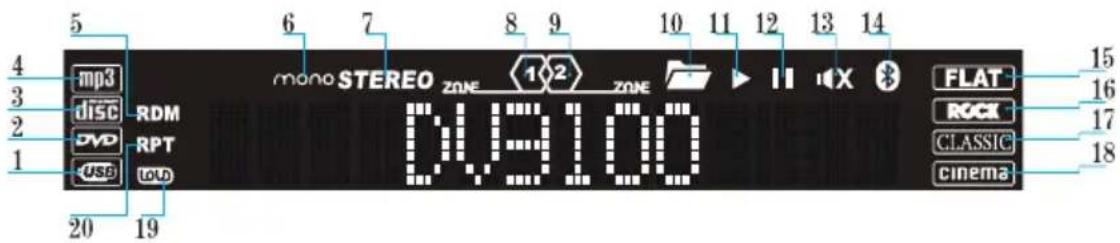

Description of icons on the LCD display

1. USB icon

After inserting a USB storage, USB icon is lit.

1. DVD icon

After inserting a DVD disc, DVD icon is lit.

3.DISC icon

After inserting a disc(DVD, VCD, CD), DISC icon is lit.

4.MP3 icon

If a disc or a USB storage contains MP3 format files, MP3 icon is lit.

5.RDM icon

In random playback mode, RDM icon is lit.

6.MONO icon

In mono audio mode, MONO icon is lit.

7.STEREO

In stereo audio mode, STEREO icon is lit.

1. ZONE <1> icon

When selecting the ZONE 1 speakers, ZONE <1> icon is lit.

9.ZONE <2> icon

When selecting the ZONE 2 speakers, ZONE <2> icon is lit.

1. FOLDER icon

If a USB storage contains more than 2 folders(contains playback file),

FOLDER icon is lit.

11.PLAYBACK icon

During disc or USB playback state, PLAYBACK icon is lit.

12.PAUSE icon

During disc or USB pause playback state, PAUSE icon is lit.

13.MUTE icon

When the Stereo is on mute state, MUTE icon is lit.

1. BLUETOOTH icon

When the Stereo is paired and connected successfully, BLUETOOTH icon is lit.

15.FLAT icon

When selecting flat audio mode playback, FLAT icon is lit.

1. ROCK icon

When selecting rock audio mode playback, ROCK icon is lit.

17.CLASSIC icon

When selecting classic audio mode playback, CLASSIC icon is lit.

18.CINEMA icon

When selecting cinema audio mode playback, CINEMA icon is lit.

19.LOUD icon

When selecting loud audio mode playback, LOUD icon is lit.

20.RPT icon

In repeat playback mode, RPT icon is lit.

QUICK REFERENCE GUIDE

General Operation

Power On/Off STANDBY	Press POWER to turn the unit on or enter standby mode.Long press POWER to turn the unit off.
Mute	Press MUTE button on the remote control to mute the audio, "MUTE" will flash in the display. Press MUTE again to cancel.
Selecting a Source	Press INPUT MODE button repeatedly to select Tuner,Disc(After inserting a disc),USB(After inserting a USB storage), BT, AV IN and AUX mode.
Volume Adjust	Rotating VOL KNOB to adjust volume.
Audio Adjustment	Press VOL KNOB to select between VOL,BAS(without EQ preset),TRE(without EQ preset),BAL and BEEP. Rotate it to select audio feature.
Preset EQ Curves	Press EQ button to select between CINEMA,ROCK CLASSIC, FLAT.
CLOCK SET	Press and hold CLOCK button on the remote control to enter CLOCK Setup, rotate VOL KNOB to adjust hour. Press it briefly to minute setting and rotate it to adjust. Once time is set,the unit will automatically set after a few seconds.
LOUD ON/OFF	Press and hold LOUD button on the remote control to turn on or off LOUD mode.
SPEAKER SELECTION	Press ZONE 1 or 2 button to select speaker output, "ZONE <1>" or "ZONE <2>" will display on the LCD once it is selected.
RESET	Press RESET with a cuspidal object to make the unit be reset to factory default and re-instate the correct functions.

Radio Operation

Area frequency selection	Press and hold PLAY/PAUSE ▶II button for 5 seconds to set AM/FM radio region(Europe/USA1/USA2/AUST-RALIA)
Manual Tuning	Press ◀◀ or ▶▶ button to move radio frequency down or up one step at a time.
Seek Tuning	Press and hold ◀◀ or ▶▶ button to search the next strongest station automatically.
Band	Press and hold INPUT MODE button on the front panel or briefly press AM/FM button on the remote control to select between FM1,FM2.FM3,AM1,AM2.
Storing and recalling Station Presets	Press and hold any one of the six preset buttons(1-6) to store the current frequency. Press the corresponding preset button to recall the frequency stored.
Automatically Store Stations	Press and hold APS button on the remote control or press and hold ■ button on the front panel to automatically store the six strongest stations in the current band.(Up to18 FM stations and 12 AM stations can be stored)
Scan Tuning	Briefly Press APS button on the remote control or press ■ button on the front panel to scan presets 1-6 in the current band.
LOC	Press LOC button on the remote control to turn on/off LOC.
Stereo/Mono	In FM mode,press ST button on the remote control to select the Stereo or Mono sound mode.

Disc USB Opreation

Insert Disc	With the label facing up, insert a disc into the disc slot. The disc will automatically begin playback.
Eject Disc	Press EJECT to eject the disc.
Track Select	Press ◀◀ or ▶▶ button to move to previous or next track/chapter.
Fast Forward and Backward	Press and hold ◀◀ or ▶▶ button to fast backwards or forward.
Pause Playback	Press ▶∥ to temporarily stop the playback. Press ▶∥ again to resume playback.
Stop Playback	Press ■ once to pause the playback, press ▶∥ to resume; press ■ twice to stop playback, then press ▶∥ to start playback from the beginning of the first chapter/track.
Repeat	Press RPT to repeat current playing track/chapter. Press RPT to resume.
Random	Press RDM to play each track in random order. Press RDM again to resume.
Title	In DVD/VCD mode, press TITLE on the remote control to display the title list.

BLUETOOTH OPERATION

Dial orAccept Call	Press the 1 button on the front panel to accept, dial or redial a call.Press ↙ to accept, dial or redial a call.
Reject orEnd Call	Press the 2 button on the front panel to reject or end a call.Press ↙ to reject or end a call.

1.7 Wiring Diagram

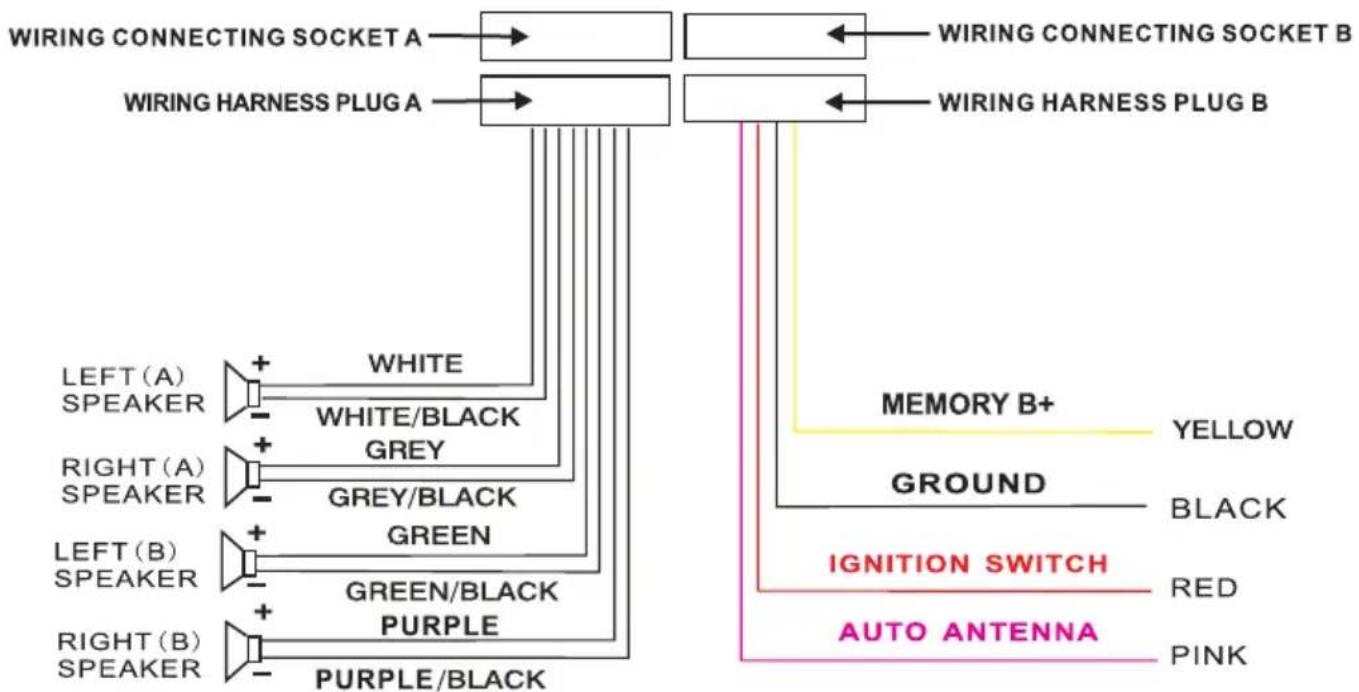

The Description of the Wiring Diagram for Socket A and Socket B

WIRING CONNECTING SOCKET A VIEW

PIN NO	COLOR	FUNCTION
1	PURPLE	RIGHT (B) SPEAKER (+)
2	PURPLE/BLACK	RIGHT (B) SPEAKER (-)
3	GREY	RIGHT (A) SPEAKER (+)
4	GREY/BLACK	RIGHT (A) SPEAKER (-)
5	WHITE	LEFT (A) SPEAKER (+)
6	WHITE/BLACK	LEFT (A) SPEAKER (-)
7	GREEN	LEFT (B) SPEAKER (+)
8	GREEN/BLACK	LEFT (B) SPEAKER (-)

WIRING CONNECTING SOCKET B VIEW

PIN NO	COLOR	FUNCTION
1	YELLOW	+12V DC MEMORY B+
2	PINK	AUTO ANTENNA
3	RED	+12V DC IGNITION SWITCH
4	BLACK	POWER GROUND(-12DC)


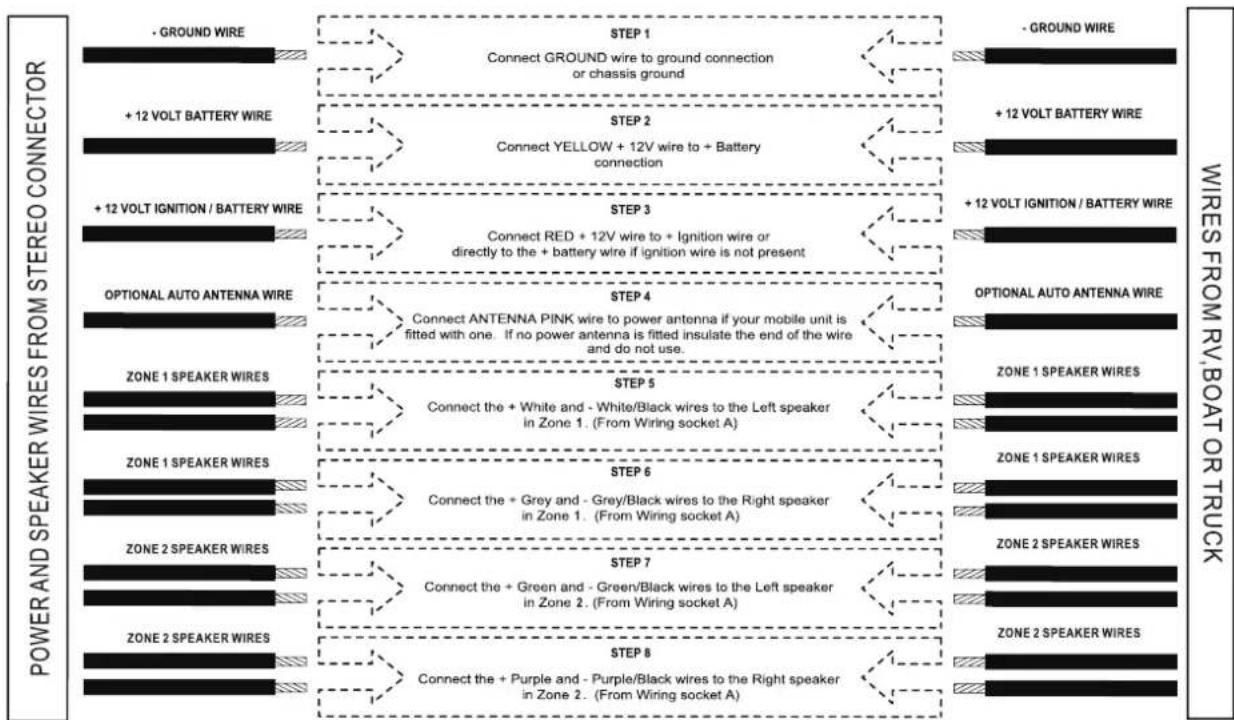

    A["POWER AND SPEAKER WIRES FROM STEREO CONNECTOR"] --> B["- GROUND WIRE"]
    B --> C["+ 12 VOLT BATTERY WIRE"]
    C --> D["+ 12 VOLT IGNITION / BATTERY WIRE"]
    D --> E["OPTIONAL AUTO ANTENNA WIRE"]
    E --> F["ZONE 1 SPEAKER WIRES"]
    F --> G["ZONE 1 SPEAKER WIRES"]
    G --> H["ZONE 2 SPEAKER WIRES"]
    H --> I["ZONE 2 SPEAKER WIRES"]

    B --> J["STEP 1: Connect GROUND wire to ground connection or chassis ground"]
    C --> K["STEP 2: Connect YELLOW + 12V wire to + Battery connection"]
    D --> L["STEP 3: Connect RED + 12V wire to + Ignition wire or directly to the + battery wire if ignition wire is not present"]
    E --> M["STEP 4: Connect ANTENNA PINK wire to power antenna if your mobile unit is fitted with one. If no power antenna is fitted insulate the end of the wire and do not use."]
    F --> N["STEP 5: Connect the + White and - White/Black wires to the Left speaker in Zone 1. (From Wiring socket A)"]
    G --> O["STEP 6: Connect the + Grey and - Grey/Black wires to the Right speaker in Zone 1. (From Wiring socket A)"]
    H --> P["STEP 7: Connect the + Green and - Green/Black wires to the Left speaker in Zone 2. (From Wiring socket A)"]
    I --> Q["STEP 8: Connect the + Purple and - Purple/Black wires to the Right speaker in Zone 2. (From Wiring socket A)"]

    J --> R["- GROUND WIRE"]
    K --> S["+ 12 VOLT BATTERY WIRE"]
    L --> T["+ 12 VOLT IGNITION / BATTERY WIRE"]
    M --> U["OPTIONAL AUTO ANTENNA WIRE"]
    N --> V["ZONE 1 SPEAKER WIRES"]
    O --> W["ZONE 1 SPEAKER WIRES"]
    P --> X["ZONE 2 SPEAKER WIRES"]
    Q --> Y["ZONE 2 SPEAKER WIRES"]

    R --> Z["WIRES FROM RV/BOAT OR TRUCK"]

1.8 Mounting Installation

Location

* Choose a mounting location away from humid areas, water sources, appliances or any equipment that can radiate heat.
* Select an area on a wall or cabinet which is free from cable, fuel or brake lines and ensure the area behind the wall mount stereo has a vent hole or if it is an enclosed box and has adequate room around the rear of the unit for cooling.
* Ensure when the stereo is mounted in the cut out that the wires at the rear of the unit are not pressed against the heat sink.

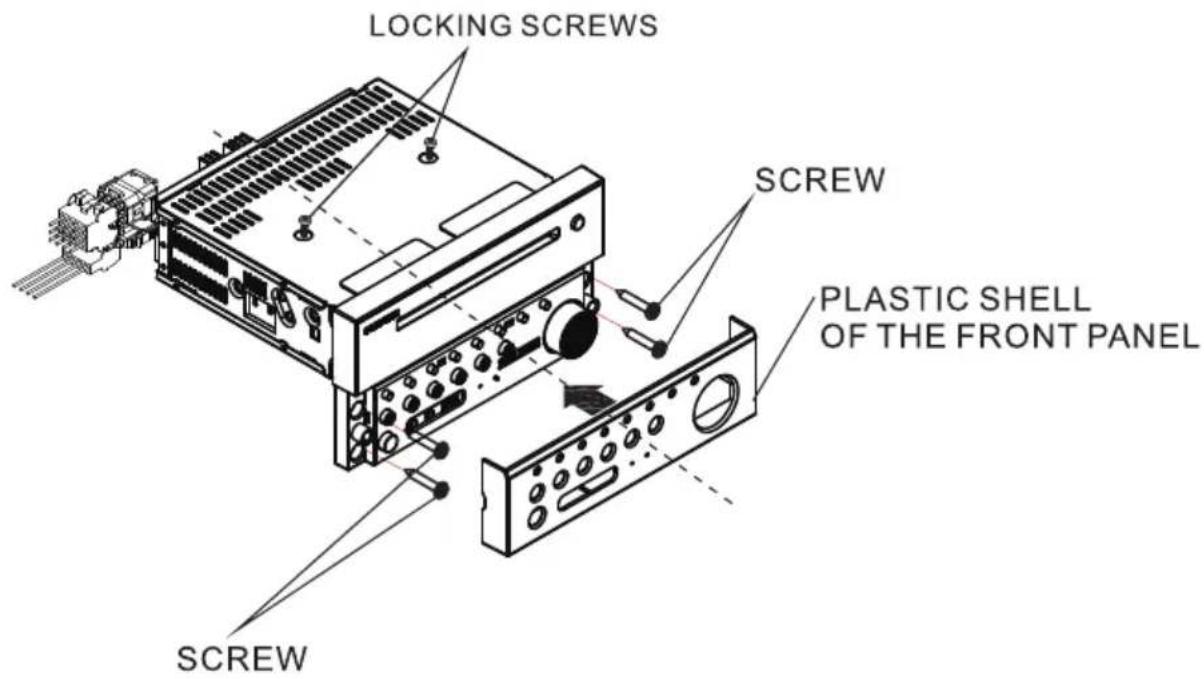

Installing the unit.

* Before finally installing the unit, connect the wiring temporarily and make sure the unit and the system work properly.
* Unscrew the locking screws and fix the unit with screws according to following diagram.

1. Please unscrew the locking screws only by screw driver before installation.
2. Remove plastic shell of the front panels from the unit.
3. Fix the unit with 4 pieces #8 pan head self tapping screws.
4. Put back plastic shell of the front panel to the unit.

2. Common Operation

1. Turning On and Off the unit

Pressing the power button will turn on or enter standby mode.

1. Selecting a Source:

1) Use INPUT MODE button on the front panel.

Press INPUT MODE button repeatedly to select Tuner, Disc(After inserting a disc), USB(After inserting a USB storage), BT, AV IN and AUX mode.

Note: Pressing BT button to enter into the Bluetooth mode directly. Press again to back to current playback mode.

2) Use the corresponding buttons on the remote control.

DVD / USB - once a DVD or USB is inserted into the unit, the unit will automatically switch to display this source menu. Press this function button on the remote control to select DVD if a disk is already inserted and the unit is playing from another source.

AM/FM - Pressing this button on the remote control will scroll through the FM1 FM2, FM3, AM1, AM2. To switch this units AM/FM receiver between USA and Europe frequencies, press and hold PLAY/PAUSE ▶ button on the front panel for 5 seconds until the region is displayed on the screen.

AUX/AV IN-these buttons on the remote control allow you to scroll through the AUX /AV IN inputs fitted to the stereo.

AUX - connection on the front of the unit (Audio and Video input function) AV IN - connection on the rear of the unit to connect an external audio source

3.Volume Adjust

Rotate VOLUME KNOB clockwise to increase volume, rotate anticlockwise to decrease volume.

1. Mute

Press MUTE button to mute what ever source is playing and display mute on the screen.

Press MUTE button again to resume.

1. Clock Set

1) To display the clock on the LCD display, press CLOCK button on the remote control.
2) To adjust or set the clock, press and hold CLOCK button on the remote control until the clock set feature is displayed on the LCD display of the stereo then use

VOLUME KNOB on the unit or + and - on the remote control to adjust the time, push in the volume knob on the stereo or press SEL button on the remote control to change from setting hours to minutes. Once time is set the stereo will automatically set after a few seconds without any operating.

1. To select a preset EQ mode Press and hold BT button on the front panel or briefly press EQ button on the remote control to select the preset music equalizer curves: CINEMA, ROCK, CLASSIC, FLAT. The sound effect will be changed.

2. To turn on/off LOUD mode Press and hold LOUD button on the remote control to turn on/off LOUD mode.

3. To adjust the sound equalizer curves To adjust the sound equalizer curves, briefly and repeatedly press SEL button on the remote control to select the sound equalizer curves of VOL, BAS(without preset EQ), TRE (without preset EQ), BAL,BEEP(ON/OFF), then rotate the VOL KNOB on the front panel or press the + and - on the remote control to adjust level.

9.ZONE 1/2 BUTTON Pressing ZONE 1 or 2 button will turn on or off the audio source in each of the different areas which your speakers are connected. "ZONE <1>" or "ZONE <2>" will display on the LCD once it is selected.

1. Press the ➕ button or TITLE button to return to the previous menu.

2. To reset the unit When the display is incorrect, or the function buttons are not effective or sound is distorted, then use a sharp point to press RESET button, that will make the unit be reset to factory default and re-instate the correct functions.

3. Radio Operation

1. FREQUENCY SELECT

In RADIO mode. Press and hold PLAY/PAUSE ▶ button for about 5 seconds to select your desired frequency EUROPE, USA1, USA2 or AUSTRALIA.

2. AM/FM BUTTON

In RADIO mode, press and hold INPUT MODE button on the front panel or briefly press AM/FM button on the remote control to select your desired radio band of FM1, FM2, FM3, AM1, AM2, and the selected band will be displayed on the LCD of the front panel.

3. TUNE/SEEK UP/DOWN In RADIO mode:

1) Press and hold ◀◀ or ▶▶ button on the front panel or press and hold

|◀◀ / ▶▶▶ button on the remote control to automatically search down/up for a available station from the current frequency.

2) Press ◀◀ or ▶▶ button on the front panel or press ◀◀◀ / ▶▶▶ button on the remote control to manually search up or down with step by step for your desired station from the current frequency.

4. APS BUTTON

In RADIO mode:

1) When pressing and holding APS button on the remote control or press and hold ■ button on the front panel, the radio searches from the lowest frequency and checks the signal strength level until 1 cycle search is finished. And then the 6 strongest stations are preset to the corresponding preset number memory bank. The AS operation is implemented in each bank of the selected band. When the AS operation is finished, it will resume broadcasting on the M1.(It can store 3x6 stations for FM and 2x6 stations for AM in all)

2) When briefly pressing APS button on the remote control or press ■ button on the front panel, the radio searches for each preset station from the M1. When the field strength level is more than the threshold level of the stop level, the radio holds at that preset number for a few seconds with releasing mute, and then searches again.

After finishing a circle of searching, it will stop searching on the M1.

NOTE: In FM band, FM1, FM2, FM3 is checked once at a time.

In AM band, AM1, AM2 is checked once at a time.

5. PRESET STATION [1-6] BUTTONS

In RADIO mode:

1) To memorize the current frequency on the current band, press and hold any one of the six preset buttons (1-6).

2) To recall the preset memory on the current band, press one of the preset buttons [1-6].

6. STEREO/MONO BUTTON

Press ST button on the remote control to select the STEREO or MONO sound mode for FM band.

7. LOC BUTTON

1) In RADIO mode, when the signals of the distance radio stations are very weak and the receiving effect is bad during tuning, press LOC button on the remote control to turn off the LOC function, then tune again for the distance radio station;

2) In RADIO mode, when the signals from the local radio stations are too strong, this could lead to interference. Press LOC button on the remote control to turn on the LOC function, Re-tune for the local station required.

4 Basic Disc, USB Operation

4.1 Begin playback

1. Press POWER button briefly to turn on the DVD player.

After turning on the DVD player, please turn on the monitor, and ensure that the video output of the monitor is the video input from the DVD player connected with the monitor.

? Common Question

Q: No displays on TV screen when the DVD player is turned on. How to solve the problem?

A: Ensure that the TV was set to right video input(not TV channel); for example, if you make VIDEO1 INPUT of TV and DVD player connected with each other, then you need set TV to VIDEO1.

1. Insert a disc into the DISC SLOT(with labelled side facing up).

! NOTE

1. For some discs that are seriously scratched or poor manufacturing or recording quality, it may not play.

2. If the player can not read disc under normal condition, please try to eject and reload the disc again.

3. Remark:

1) In addition to normal CD and DVD, this unit supports to play CD-R, CD-R/W, DVD-R and DVD-R/W as well; however, depending on the conditions of the recording equipment, recording program or the disc itself, some CD-R, CD-R/W, DVD-R or DVD-R/W may not play.

2) When dealing with CD-R, CD-R/W, DVD-R or DVD-R/W recording, too high recording speed may result in poor signal quality and therefore, it is recommendable to select as lower as possible recording speed.

4.2 Pause Playback

When playing DVD/VCD/CD/MP4/MP3/WMA discs, press PLAY/PAUSE button on the front panel or remote control to pause the playback, press PLAY/PAUSE button again to resume normal playback.

4.3 Stop Playback

When playing DVD/VCD/MP3/WMA/CD discs, press STOP button once to pause the playback, then press the PLAY button to resume the normal playback; press STOP button twice to stop the playback, then press PLAY/PAUSE ▶ button to start playback from the beginning of the first chapter/track.

4.4 Select Chapter/Track with the ◀ or ▶ button or ◀◀ / ▶▶ Button

Press ◀◀ or ▶▶ button on the front panel or ◀◀◀ / ▶▶◀ Button on the remote control during playback to select the previous or next chapter/track to playback.

Note: Press ◀◀ or ▶▶ button or press ◀◀◀ / ▶▶▶ Button multiple times to advance multiple chapters/tracks backward or forward.

4.5 Select Chapter/Track with the Number Buttons

When playing DVD/VCD(PBC OFF)/MP3/WMA/CD discs, press one of the 1\~9 and the 0 number buttons to directly select and play the 1st to 9th track / chapter.

If you want to play the track/chapter with serial number bigger than 9, use the 10+, 1\~9 and 0 button. For example 1, to play the 13th track/chapter, firstly press the 10+ button once, then press the 3 button. For example 2, to play the 34th track/chapter, firstly press the 10+ button for 3 times, then press the 4 button.

Note: pressing and holding the +10 or -10 buttons will allow you to move up or down 10 tracks at a time(only for MP3/WMA).

4.6 Select Chapter/Track with the Root/PBC Menu (If the disc includes the root/PBC menu)

When playing DVD discs:

1. Press TITLE button on the remote control to display the title list.
2. Press the direction buttons to select your desired title, and then press OK or PLAY/PAUSE ▶ button to open the root menu of the selected title.
3. Press the direction buttons to select your desired chapter, finally press the OK or PLAY/PAUSE ▶ button to play the selected chapter.
   During playback, pressing TITLE button on front panel or long pressing TITLE button on the remote can directly display the root menu of the title that is playing.

In VCD mode

1. When starting to turn on the PBC function, it will play from the beginning of the disc till it display the PBC menu on TV screen if the disc include the PBC menu.

2. Press the number buttons to select your desired track to play.

In MP3/WMA mode

1. The root menu is displayed on the monitor screen all the time (and the TITLE/PBC button is not available).

2. Press the direction buttons to select your desired FOLDER, then press OK or PLAY/PAUSE▶|| button to open the FOLDER, and then press the direction buttons to select your desired file, finally press OK button to play the selected file.

In CD mode, the TITLE/PBC button is disabled.

4.7 Terminate the Playback

1. Press EJECT button to eject disc.

2. Press and hold POWER button on the front panel or briefly press POWER button on the remote control to turn off the Stereo.

3. Advanced Disc, USB Operation

5.1 Playback with Speed

During normal playback, Press and hold ◀◀ or ▶▶ button on the front panel repeatedly or press and hold ◀◀◀ / ▶▶▶ button on the remote control repeatedly to fast backwards or forwards at the following speeds: x2, x4, x8,x16, x20, normal.

During speed playback, press PLAY/PAUSE ▶ button to resume normal playback.

5.2 Playback with Slow Speed

During playback, press SLOW_FWD button on the remote control to execute the Slow Forward function.

With each consecutive pressing of SLOW_FWD button, the playback speed decreases. The speed levels in Slow Forward as follows: x1/2,,x1/3,x1/4,x1/5,x1/6,1/7,normal.

During slow forward, press PLAY/PAUSE ▶ button to resume normal playback.

The function is only for video.

5.3. Playback with still frame

If the unit is currently running DVD.VCD disc, press STEP button on the remote control consecutively to display the still frame forward with step by step.

Press PLAY/PAUSE ▶ button to resume normal playback.

5.4 Playback Repeatedly

5.4.1 ONE/ALL Repeat

1. In the mode of DVD disc playback: Press RPT button to select REP CHAPTER, REP TITLE, REP ALL or REP OFF.

2. In the mode of VCD(PBC OFF)/CD disc playback: press RPT button to select REP ONE, REP ALL or OFF.

When it is in the state of PBC ON, during VCD disc playing, the RPT button is not available.

1. In the mode of MP3/WMA disc playback: Press RPT button to select REP ONE, REP DIR, REP ALL or OFF.

5.4.2 A-B Repeat

Press A-B button on the remote control if you want to repeat a specific segment on a disc that you define:

1. Press A-B button at a point (A) where you want it to be the start point of the repeat segment. Press A-B button again at a point (B) where you want it to be the terminal point of the repeat segment. Then it will play the segment repeatedly.

2. To cancel A-B repeat mode and resume normal playback, press A-B button for the third time.

Note:

During DVD/VCD/MP3/WMA/CD playback, points A and B must be within the same track.

5.5 Playback from a specified chapter/track or a specified time

1. When playing DVD discs, press SEARCH button on the remote control to display an interface and highlight the title item, then use the number buttons to input the serial number of the title; use the direction buttons to highlight the chapter item, then use the number buttons to input the serial number of the chapter; finally press OK or PLAY/PAUSE ▶■ button to play the selected chapter.

2. When playing VCD/MP3/WMA/CD discs, press SEARCH button on the remote control to display an interface and highlight the track item, then use the number buttons to input the serial number of the track; finally press OK or PLAY/PAUSE ▶ button to play the selected track.

5.6 Playback in Random

When playing DVD/VCD(PBC OFF)/MP3/WMA/CD discs, press RDM button to switch between RANDOM ON /RANDOM OFF. When in RANDOM ON mode, it will play in random.

5.7 Playback in Different Angle

1. When playing VCD/MP3/WMA/CD discs, ANGLE button on the remote control is not available.

2. When playing DVD discs, press ANGLE button on the remote control repeatedly to view in different angle.(This function is only for the DVD discs with ANGLE function)

5.8 Playback in Zoom Mode

In DVD/VCD mode, during playback, press ZOOM button on the remote control repeatedly to enlarge a certain area of the images on the screen with these multiples:

ZOOMx2,ZOOMx3,ZOOMx4,ZOOMx1/2,ZOOMx1/3,ZOOMx1/4,ZOOM OFF. Press one of the direction buttons to select the area you want to enlarge.

5.9 Change the Caption Language

When playing DVD discs, press SUBT button on the remote control repeatedly to select the language of the caption or turn off the caption (depending on the disc to be used).

When playing VCD/MP3/WMA/CD discs, the button is not available.

5.10 Change the Audio Language

1. When playing DVD discs, press AUDIO button on the remote control repeatedly to select the desired language type (depending on the disc to be used).
2. When playing VCD discs, press AUDIO button on the remote control repeatedly to select the sound mode of the MONO L, MONO R, and Stereo, no language function.
3. When playing CD/WMA/MP3 discs, AUDIO on the remote control button is invalid.

5.11 Look over the Playback Status

1. When playing DVD discs, press OSD button on the remote control repeatedly to turn on/off the playback status. When it is on, it will display the information such as: the serial number of the playing title, the serial number of the playing chapter, the elapsed time of the playing chapter, the remaining time of the playing chapter, the elapsed time of the playing title, the remaining time of the playing title, etc.

2. When playing VCD/CD discs, press OSD button on the remote control repeatedly to turn on/off the playback status. When it is on, it will display the information such as: the serial number of the playing track, the elapsed time of the playing track, the remaining time of the playing track, the elapsed time of the disc, the remaining time of the disc.

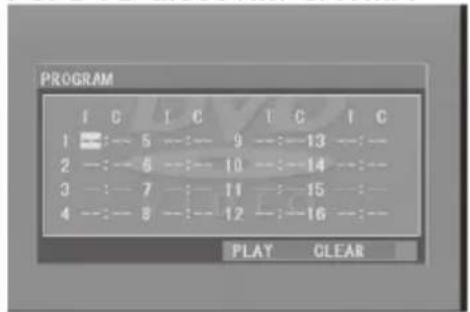

5.12 Program Playback

It allows you to enter the order in which you want some chapters/tracks in DVD/VCD/MP3/WMA/CD disc to play.

1 During playback, press PROG button on the remote control to enter a program interface as follows:

For DVD discs /MP3/WMA

2 Use the direction buttons to move cursor onto the desired place for inputting the sequence number.
3 Use the number button to input desired sequence number of title/chapter/track with desired sequence.
4 Use the direction button to move cursor onto PLAY, then press OK button on the remote control to play the programmed titles/chapters/tracks in programmed order; only pressing PLAY/PAUSE ▶ button also can play the programmed titles/chapters/tracks in programmed order.

* To exit program playback, firstly press STOP button, then press PLAY/PAUSE ▶▶■ button to enter sequence playback; or press PROG button twice again.
* To remove the all programmed sequence numbers, move the cursor onto CLEAR, then press OK button on the remote control.
* To change the programmed sequence, move the cursor onto the item you want to change, input the desired sequence number.
* During VCD playback, if it is in PBC ON mode, at the same time of entering the state of program playback, it turns off PBC mode.

5.13 Playback the Picture CD in JPEG Format

1. The root menu is displayed on the monitor when beginning to switch on DISC mode. At the time, it plays MP3/WMA file.(TITLE or PBC button is not available).

In the root menu, the left file sort icon is for MP3/WMA file; the middle file sort icon is for VIDEO file; the right file sort icon is for JPEG file. If one of these 3 file sort does not exist, you can not move cursor onto the file sort icon.

1. When displaying the root menu, press the direction buttons to select your desired FOLDER, file or file sort icon, then press OK or PLAY /PAUSE ▶ II button to open the FOLDER, or play the selected file, or play only this sort of file. When displaying the root menu, you can also use the number buttons to select the serial number of the file and play the file.

When you select a JPEG file sort icon, press one of the direction buttons to select the first JPEG file, then press the v button to select the desired JPEG file, finally press OK or PLAY/PAUSE button to display the JPEG picture in full screen from the selected JPEG picture.

1. During JPEG playback, press one of the direction buttons to change the angle of viewing picture that is displaying as follows:

: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT

During JPEG playback, press PROG button on the remote control to change the mode of refresh picture. During JPEG playback, press STOP button to stop playing and return to the root menu.

* During JPEG playback, the following buttons are not available: SLOW-FWD, SUBT, TITLE/PBC, ANGLE, STEP, AUDIO, RDM and A-B.

* In JPEG mode, the other operations are same as ones in MP3/WMA mode.

5.14 MP4 Operation

1. The root menu is displayed on TV when beginning to switch on DISC mode, then it will automatically play the first file.

During playback, press STOP button to stop playing and return to the root menu.

1. When displaying the root menu, press the direction buttons to select your desired FOLDER or file, then press OK or PLAY/PAUSE ▶ button to open the FOLDER, or play the selected file.

When displaying the root menu, you can also use the number buttons to select the serial number of the file and play the file.

* ANGLE, PROG, RDM, and TITLE/PBC buttons are not valid.

* The other functions are same as ones in DVD disc; but the "Repeat" function is same as one in MP3/WMA.

5.15 ESP and ID3 Function

There is ESP function for all formats of discs.

In MP3/WMA mode, during playback, the information of the file name, folder name, songs title, artist and album will be scrolling on the LCD display. As long as the current playing MP3 music contains relevant ID3 tag information in version 1.0/2.0 format, the 3 items underlined above will be scrolling on the LCD display; otherwise, they will not.

5.16 USB Operation

Power on the DVD player, then insert the USB storage, the monitor will display the root menu of the USB storage.

This device support picture(JPG format),audio(MP3 or WMA format) and Video (MP4 format), all the operations are same as ones of the corresponding format.

NOTE: 1. Playback file format is not guaranteed.

1. The USB input with charging function (not all products can be charged from the unit)

5.17 The DVD System Menu Setup Operation

1. Press SETUP button on the remote control to access the DVD System Menu on the monitor.

2. There are 6 setup pages in all for the System Menu. Press the > or < button to select a desired setup page.

3. Press the ^ or v button to select a setup item in the selected setup page.

4. Press the > button to enter the setup item. Then press the v or ^ button to select a desired mode of the setup item, finally press OK button to confirm it.

* Press the < button to return to the upper level.

* Press SETUP button on the remote control again or use the direction buttons to highlight the item of the EXIT SETUP and then press OK button to exit the System Menu.

For the DVD System Menu, there are 6 setup pages in all. They display as follows:

5.17.1 SYSTEM SETUP

TV SYSTEM

The Stereo supports output of various TV system.

If your TV has only NTSC or PAL system, the screen will blink and become colorless when a wrong TV system is selected. In this case go to TV SYSTEM and select NTSC, PAL or AUTO to match the system of your TV.

TV TYPE

The setup item is for matching TV screen size.

4:3 PS: Choose the item when connecting a TV set with 4:3 screen. When playing the pictures with 16:9 size, the left and right parts of the video will be cut out, and display in full screen.

4:3 LB: Choose the item when connecting a TV set with 4:3 screen. When playing the pictures with 16:9 size, the top and bottom parts of the TV screen will be turned into a black square respectively.

16:9: Choose the item when connecting a TV set with 16:9 wide screen.

PASSWORD

This setup item is for locking or unlocking the rating level of the Parental Control. The defaulted state is locked. The defaulted password is 0000.

You can set a new password that you like: Select the PASSWORD item and then press the > button to enter it, then input the original password 0000, and then press the OK button to unlock it. Press the > button to enter it again, then input a new password that you like and then press the OK button to make it effective. Before the other persons see the Manual, you should get the password in mind and cut out the part of PASSWORD in the Manual.

RATING

The item is for setting a new rating level of the Parental Control.

1. Select the PASSWORD item and then press the > button to enter it, then input the password mentioned above, and then press the OK button to unlock the setting of the rating level of the Parental Control.

2. Select the RATING item and then press the > button to enter it, then use the direction buttons to select your desired rating level, then press the OK button to confirm.

3. Select the PASSWORD item again and then press the > button to enter it, then input the password, and then press the OK button to lock the new setting of the rating level of the Parental Control.

DEFAULT

This item is for making all setup items change back to original status.

5.17.2 LANGUAGE SETUP

OSD LANGUAGE

This item is for selecting the language of the SYSTEM MENU and all operating prompt interface displayed during playback.

AUDIO LANG

This item is for selecting an audio language.

SUBTITLE LANG

This item is for selecting a subtitle language.

MENU LANG

This item is for selecting a disc menu language.

5.17.3 AUDIO SETUP

KEY

It is for selecting your desired basic music tone(from low to high).

5.17.4 VIDEO SETUP

BRIGHTNESS

It is for adjusting the brightness of the video output.

CONTRAST

It is for adjusting the contrast of the video output

HUE

It is for adjusting the hue of the video output.

SATURATION

It is for adjusting the saturation of the video output.

SHARPNESS

It is for adjusting the sharpness of the video output.

5.17.5 SPEAKER SETUP

DOWNMIX

It is for selecting your desired sound effect when there is no center speaker and subwoofer. There are 3 modes: LT/RT, STEREO, VSS.

LT/RT: When playing a disc with PRO LOGIC Dolby stereo effect, choose the item, so it will output audio signal with vivid theatre effect.

STEREO: If you choose the item, when outputting audio signal with 5.1 channels, it will output the left and right channels of signal; when outputting audio signal with 2 channels, it will output the common 2 channels of stereo signal.

VSS: If you choose the item, when playing a disc recorded with 5.1 channels, the main channel speakers can output audio signal with VSS effect.

5.17.6 DIGITAL SETUP

DYNAMIC RANGE

After selecting the compression mode of LINE OUT, set the item, so you can adjust the linear compression ratio. If you set it to be FULL, the Peak-to-Peak value of the audio signal is the minimum; if you set it to be OFF, the Peak-to-Peak value is the maximum.

DUAL MONO

It is for selecting a desired audio output mode for the left and right ways of signal.

It is mainly for Karaoke of Ac3. There are 4 modes in all as follows:

STEREO, MONO L, MONO R, MIX MONO.

5.18 The Parental Control

Q: After inserting DVD disc into disc compartment, a dialogue window will appear asking for a password of 4 digits. Why?

A: This is because that the disc movie you are playing was rated with the Parental Control, and the current rating level of DVD player is lower than one of current disc. You must input right password and enter it to Parental Control setup menu and then set a equal or higher rating level than one of current disc.

! NOTE

* If you have not changed the password, the factory preset password for the DVD player will be empty. You will need to input a desired password and input it again to verify it to enter the Parental Control setup menu.

* For the rating level setup of Parental Control of the DVD player, please refer to the relative content of SYSTEM SETUP menu for details.

Accessories: Parental Control

The Parental Control function of a DVD player can control the playback of movie rated level in a disc. You can set the DVD player (including software player in PC) to be a certain rating level with SETUP MENU on TV screen. If the rating level set in the disc is higher than one set in the DVD player, the DVD player can not playback the disc. Sometimes the Parental Control sequences in some discs are different from each other. The rating level setup can be protected by the password. Therein, if you select Unlock item, the Parental Control function will be invalid, the content of disc will be played totally.

The disc movie can be designed as that the DVD player will playback the different version of content of a same movie according to the different rating level set by Parental Control. Depending on the DVD feature of seamless switching described above, the scenes that are not fitting for children will be cleared or replaced by the other fitting scene automatically.

All rating levels of Parental Control are as follows:

	Unlock
1	Kid Safe
2	G
3	PG
4	PG 13
5	PGR
6	R
7	NC 17
8	Adult

5.19 The Region Code

Q: No DVD playback. Screen displays REGION ERROR after inserting disc into disc compartment. Why?

A: Because the DVD player and disc have different region codes. If they do not match, the DVD player cannot play the disc.

Appendix: The region code of DVD:

The Motion Picture Association of Amereca (MPAA) divided the world into 6 regions, and named every region a code, namely region code. The region codes and the countries or areas represented by the region codes are as follows:

Region 1: America, Canada, East-Pacific Inlands;

Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;

Region 3: South-east Asian countries include Taiwan, Hong Kong, South Korea, Thailand, Indonesia, etc.;

Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;

Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North Korea, North Africa, North-west Asia etc.;

Region 6: China mainland.

Supported Video Format
File Extension	Container	Video Codec	Audio Codec	Resolution	Remark
.avi.divx	AVI	MPEG-4 VisualDivX4.xx/5.xx/6.xx/3ivXXviDMPEG-1	Dolby Digital (AC3)WMA/PCM/LPCMAAC-LC (2ch)MPEG-Audio(MP1/MP2/MP3)	720 x 480 (30fps)720 x 576 (30fps)
.mpg	MPG	MPEG-1/MPEG-2	Dolby Digital (AC3)LPCM MPEG-Audio(MP1/MP2/MP3)	720 x 480 (30fps)720 x 576 (30fps)
.dat	DAT	MPEG-1/MPEG-2	Dolby Digital (AC3)LPCM MPEG-Audio(MP1/MP2/MP3)	720 x 480 (30fps)720 x 576 (30fps)
.vob	VOB	MPEG-1/MPEG-2	Dolby Digital (AC3)	720 x 480 (30fps)720 x 576 (30fps)
.mp4	MP4	MPEG-4 Visual	Dolby Digital (AC3)WMA/LPCMAAC-LC (2ch)MPEG-Audio(MP1/MP2/MP3)	720 x 480 (30fps)720 x 576 (30fps)
Supported Audio Format
File Extension		Audio Codec	Bit Rate	Sampling Rate	Remark
.mp3		MP3	16kbps - 320kbps	8k - 48kHz
.wma		WMA	16kbps - 320kbps	8k - 48kHz	WMA only support WMA7/WMA8/WMA9 (CBR/VBR)(only support 353 format)

Note: Reading the above file formats is not guaranteed.

6. BLUETOOTH HANDSFREE SYSTEM

1. Pairing and connection

1) Turn on the Bluetooth mode of the mobile phone;

2) Select the item of Finding the Bluetooth Device and enter it. After finishing the finding, it will show the name of the Bluetooth Device DV3100-X (where X can be any number from 0-9999999). Select it and enter it, then it will show an interface that asks you to input a password, input the password 0000 and enter it. Then it will tell you pair OK.

3) For some mobile phones, they can automatically connect with the BT device of the car audio system after pairing is ok; for some mobile phones, they need to select the paired BT device and press the CONNECTION button. When connection is ok, the LCD of the car audio system will show LINK OK.

1. Use the mobile phone to do connection or disconnection

In the connection status, find the paired and connected Bluetooth Device, then press the disconnection button to do disconnection.

In the disconnection status, find the paired and disconnected Bluetooth Device, then press the connection button to do connection.

1. In the connection status: Mobile phone transfers to the car audio whenever dialing takes place; Mobile phone transfers to the car audio whenever receiving a call.

Note: Press BT MODE button on the front panel to switch between Unit and Phone during BT phone conversation.

1. Dialing when in connection status

4.1 Dial with the mobile phone directly.

4.2 Dial with remote control with the following procedures:

(1) Input telephone number with number buttons 0-9
* Short press CLEAR button to cancel the wrongly input number if necessary
(2) Short press TEL to execute the dialing.

4.3 To redial the last phone number dialed

(1) Short press TEL button on the remote control or 1 button on the front panel, it will show last phone number on the LCD, then it will execute the dialing.

(2) Short press REDIAL button on the remote control, it will dial the last phone number.

1. Accept/Reject/End Call

5.1 Incoming call ringing, short press TEL button on the remote control or 1 button on the front panel to accept the call.

5.2 To reject Incoming call ringing, short press HANG UP button on the remote control or 2 button on the front panel to REJECT the call.

5.3 During a phone call, short press HANG UP button on the remote control or 2 button on the front panel to end the call.

Note: When an incoming call is present the caller's phone number will be displayed on the screen.

1. To play an audio file from an external Bluetooth device(mobile phone) on the wall mount Stereo

After the device has been paired successfully and Wall mount Stereo screen displays LINK OK

If your mobile device supports A2DP you will then be able to stream music from your Bluetooth device so it can be played by stereo speaker.

You must select on your mobile Bluetooth device to play the audio through Bluetooth.

If your mobile device supports AVRCP then you will be able to control the basic phone audio output functions by the Wall mount Stereo controls. Eg.Play Pause.

Note: During other modes(except Bluetooth conversation), press BT MODE button on the front panel to switch the mode with others.

1. To setup your Stereo using NFC(only support mobile phone with NFC function)

(1) Turn on the NFC function of your mobile phone and make sure the screen is active and unlocked.

(2) With the NFC detection area of your phone touch with the NFC detection area of the Stereo, you can connect or disconnect your mobile phone with the Stereo conveniently.

Note: For the first time pair and connect, it will ask you to input a password. The password is "0000".

7. Trouble Shooting

Please read the user manual carefully before using the DVD player. If you have any problems with this product please refer to the below trouble shooting guide to help you resolve the issue.

NO PICTURE, SOUND AND INDICATION

* Ensure that the power switch is on.
* Ensure that the wall inlet is ok.
* Ensure that the power cord is not damaged or the fuse is not blown.
* Ensure that the power plug is connected to the inlet tightly.

NO SOUND BUT PICTURE OK

* Ensure that the player's audio output has a good connection with TV's audio input.
* Check whether the audio connector is damaged.
* Check whether you have turned down the volume.
* Ensure that you have set the right AUDIO setup of the player.
* Ensure that the audio is not under mute.

NO PICTURE BUT SOUND OK

* Ensure that the player's video output has a good connection with TV's video input.
* Ensure that you have turned your TV to the AV input channel connecting to your player.
* Check whether the video connector is damaged.
* Ensure that you have set the right VIDEO settings of the player.

BLACK AND WHITE PICTURE OR SCREEN ROLLING

* Ensure that you have set the right TV SYSTEM (e.g. PAL, NTSC) setting.

FLAWS OF PICTURE OR SOUND

* Check whether the setting of AUDIO is right.
* Check whether the disc is scratched or stained.
* Check whether the AV connector and the output terminal is stained.
* Check whether there is condensation inside the Lens. If so, leave the player off for an hour or so, then try again.
* Check whether the installation angle is less than 30.

DISPLAY NO DISC OR BAD DISC

* Ensure that you have put the disc on the tray.
* Check whether the disc is put in the reverse side.
* Check whether the disc is distorted.
* Check whether the disc is stained or scratched badly.
* Ensure that the disc format is compatible to the player.
* Ensure that the temperature inside the car is not too high. If so, cool off until the ambient temperature returns to normal.
* Replace another disc to insert it into the disc compartment.

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK

* Check the batteries of remote control and make sure that they are not flat.
* Direct the remote control to the IR sensor of the player.
* Check whether there are some obstacles between the remote control and IR sensor.

SOME FUNCTION BUTTONS DO NOT WORK

* Turn off the power, then turn on again.
* Reset the unit to zero, then turn on again.
* Remove the front panel from the unit, then install it again and then turn on again.

THE RADIO DOES NOT WORK

* Check whether the antenna cable is connected firmly. Or manually tune for a station.

STEREO FUNCTIONS LOCK UP or BLUE TOOTH FUNCTION IS NOT RESPONDING TO DEVICE

* Use a metal pin to press the software reset button in the recess hole on the front of the stereo.

8. Specification

General Specification

Power Supply Requirement....DC 12V

Maximum Power Output.... 4x24W RMS

Dimensions(w x h x d).... 7 ^7/8 x4 ^3/8 x7 ^1/2 " / 200x110.5x190mm

DVD Deck Specification

Format......DVD/VCD/JPEG/MP4/MP3/WMA/CD

Video System....NTSC/PAL/AUTO(optional)

Audio System....24 bit/96KHz

Loading System.... Auto Loading

Mounting Angle....0 to +/-30

Video Specification

Video Type....16:9 and 4:3

Video Output Level......Composite:1.0±0.2Vp-p

Load impedance: 75 ohms

Horizontal Resolution....600

Audio Specification

Audio Output(Analog audio)....2.0 ^+0 -1.0Vrms

Frequency Response....20Hz \~ 20KHz(at 1KHz 0 dB)

S/N Ratio(Audio)≥60dB(at 1KHz 0 dB)

Separation....50dB

Speaker Output....4Ω Min Load (connect 4 - 8Ω speakers)

Radio Specification

FM Section

Frequency range....87.5MHz - 107.9MHz(US)

87.5MHz -108.0MHz(EU)

87.5MHz - 108.0MHz(AUS)

Usable sensitivity....3uV

I.F Frequency....10.7MHz

AM Section

Frequency....530KHz - 1710KHz(US)

522KHz - 1620KHz(EU)

522KHz - 1710KHz(AUS)

FURRION

Furrion Innovation Center & Institute of Technology

● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792

Email: [e-mail]

©2007-2018 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries.

FURRION.COM

160W 2-Zone

Entertainment System with DVD

Bluetooth®

Main Features

VIBRATIONSMART™CLIMATESMART™ SIGNAL&MART&MP3 IN

USB INTERFACE
HEADPHONE JACK
SUBWOOFER OUT
MUSIC

Specifications

Din Type	1 (Main Chassis)
Front Panel Type	Fixed
Supported Disc Format	CD & DVD
Supported Media Format	MP3/WMA/MP4
Tuner Type	AM & FM
Number of Preset Stations	30
RDS	•
USB	√
Card Reader	•
Memory Card Support	•
AUX-IN	√
AUX-IN Video Support	√
Bluetooth	√
NFC	√
GPS	•
Display Type	LCD
Display Size (inch)	4"
Power Output (Watt)	4 x 40W (MAX)
Power Connector Type	Built-in ISO
Key Illumination Color	White
Rotary Volume Control	√
Remote Control Included	√

Inputs & Outputs

# of RCA (Audio LR) Inputs, Rear Panel	1
# of RCA (Audio LR) Outputs, Rear Panel	2
# of Video Inputs, Rear Panel	•
# of Video Outputs, Rear Panel	2
# of Subwoofer Outputs, Rear Panel	1
# of HDMI Outputs, Rear Panel	•
# of Optical Audio Inputs, Rear Panel	•
# of Coaxial Audio Inputs, Rear Panel	•
# of Camera Inputs, Rear Panel	•
# of Zone Audio Outputs	2
IR Control Jack	1

Dimensions & Weight

Individual Packaging Dimensions(W x H x D)	9.96 x 5.67 x 9.96"(238 x142 x 153mm)
Net Weight (lbs/kg)	3.6/1.6
Gross Weight (lbs/kg)	4/1.8

Master Carton

Quantity Per Box (pcs)	4
Master Carton Dimensions(W x H x D)	20.63 x 10.43 x 12.05"(524 x 265 x 306mm)
Master Carton Gross Weight (lbs/kg)	18.5/8.4

FURRION

DV3100

Integrating residential design with recreational vehicle functionality, the new DV3100 entertainment system offers next generation two-zone audiovisual technology with bluetooth connectivity and NFC quick-touch communication. Instantly pair your device and stream music wirelessly or experience DVD entertainment with amazing clarity.

BLUETOOTH CONNECTIVITY

NFC

NEAR FIELD COMMUNICATION

DVD PLAYBACK

AUXILIARY IN

USB INTERFACE

Quick-touch Wireless Streaming

NFC communication allows the user to hold their NFC compatible device over the DV3100 entertainment system and stream music without needing to go through multiple steps setting up a connection.

Connect your device in 3 simple steps:

1. Enable NFC on your handheld device.
2. Hold your handheld device over the Furrion logo until a message appears prompting you to pair devices. (A password may be required, please enter '0000').
3. The devices are now paired, press play on your handheld device to enjoy streaming high definition audio through your bluetooth connection.

Copyright © 2017 Furrion Ltd. All rights reserved. Furrion® is a trademark licensed by Furrion Ltd, registered in the U.S., which may be pending or registered in other countries.

-WARRANTY CARD

FURRION

Congratulations on purchasing your new Furrion product. All Furrion products are made to strict quality standards. If used properly for its intended purpose, your product should provide many years of use.

We are pleased to provide you with a 1 year warranty on all Furrion products. The details of this warranty are set out in the terms and conditions (see reverse) which supplement the authorised dealer's Terms and Conditions of Sale.

This warranty is given in addition to your other rights under the laws of the country where you purchase Furrion products.

Please visit www.furrion.com/productregistration to register your product

.WARRANTY TERMS AND CONDITIONS.

1. The warranty guarantees that Furrion products will be free from faults or defects in workmanship and materials for a period of 1 year commencing on the date of delivery to you. If a valid claim is made under warranty then you will only be entitled to claim in accordance with paragraph 6 below. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be acceptable quality and the failure does not amount to a major failure.

2. The warranty only applies:

a. to Furrion products with a valid serial number;
b. to the person who purchased the Furrion product. It is not transferrable to any other person;
c. to individuals who purchased the Furrion products as a consumer for private use, not to businesses, companies, partnerships or sole traders;
d. to Furrion products used solely within a domestic environment for personal use, not to Furrion products put into and used within business premises, place of work, rental properties, student properties or similar;
e. to Furrion products used within the environment intended by their design;
f. to Furrion products used and installed in accordance with the instructions supplied with the product;
g. where the purchaser of the Furrion product has validated the warranty in accordance with paragraph 4 below.

1. The warranty does not cover:

a. items where the serial number has been defaced and/or rendered unidentifiable;
b. damage caused or contributed to by poor, faulty or incorrect use, installation or maintenance;
c. damage caused or contributed to by events outside Furrion's control including but not limited to Acts of God, fire, explosion, contact with corrosive matter; extreme weather conditions, flood, vandalism, soiling, misuse, abrasion, improper storage following delivery, rot and/or infestation following delivery, leaks (or similar incidents), damage due to non-domestic use;
d. damage or deterioration caused or contributed to as a result of normal wear and tear;
e. damage caused or contributed to by maintenance or repairs other than those carried out by an authorised dealer;
f. damage caused or contributed to by wilful damage, abuse, mistreatment, negligence, abnormal storage or environmental conditions;
g. damage caused or contributed to by household animals and misuse by children.

1. To validate the warranty you must:

a. fill in the registration card provided with the Furrion product; and
b. register the warranty covering the Furrion product within 6 months of delivery of the Furrion product by following the instructions on the registration card;
c. have a copy of your receipt to validate warranty of the Furrion product.

1. To make a claim under your warranty please cease using the goods when a fault arises and contact the supplier or manufacturer and point to the defect. Please contact Furrion's customer service at:

2. For US customers: [e-mail] or Furrion, 52567 Independence Court Elkhart, IN 46514

3. For Australia customers: Furrion Ltd, Unit 614-615 Level 6, Core D, Cyberport 3, 100 cyberport road, Hong Kong, at [e-mail] or 1.(800).985.957.

4. Following the filing of a claim, Furrion will investigate the claim and if we believe there is a defect or fault covered by the warranty, we will at our option either repair the defective Furrion product (or part) or replace the defective Furrion product (or part).

5. Please note in the event that no fault can be found, it is your responsibility to pay for the re-delivery of the replacement items. If a defect is found, Furrion will pay for the re-delivery of the replacement items.

6. Installation of any repaired or replaced Furrion product will not be Furrion's responsibility.

7. If you do not allow the authorised dealers representative to view the Furrion product which is the subject of the warranty claim, you will invalidate the warranty in respect of that claim.

8. Any repaired or replaced Furrion product parts shall be guaranteed on the terms of this warranty for the unexpired portion of the warranty period only.

9. This warranty is non-transferrable and is personal to the original purchaser as shown on the invoice.

10. This warranty is subject to the jurisdiction of the courts of the country where you purchase Furrion products, and any dispute or claim arising out of, or in connection with it or its subject matter, shall be governed by, and construed in accordance with the laws of the country where you purchase Furrion products.
