| Product Type | Automatic Upper Arm Blood Pressure Monitor |
| Brand | Walgreens |
| Model | WGNBPW-920 |
| Category | Blood Pressure Monitor |
| Measurement Method | Oscillometric |
| Arm Circumference Range | 22 - 42 cm (8.7 - 16.5 inches) |
| Display Type | LCD Digital Display |
| Cuff Type | Standard Adult Cuff (22-42 cm) |
| Memory Function | Up to 120 readings for 2 users |
| Users | 2 users with separate memory |
| Power Source | 4 AA batteries (not included) or AC adapter (optional) |
| Battery Life | Approximately 300 measurements |
| Dimensions (Monitor) | Approximately 14 x 10 x 5 cm (5.5 x 3.9 x 2.0 inches) |
| Weight (Monitor only) | Approximately 0.3 kg (0.66 lbs) |
| Auto Shut-Off | After 1 minute of inactivity |
| Irregular Heartbeat Detection | Yes |
| Blood Pressure Classification Indicator | Yes (WHO classification) |

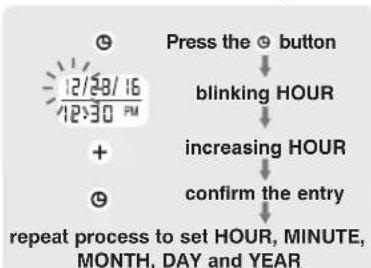

| Date/Time Display | Yes, with automatic date and time stamp |
| Warranty | 2 years limited warranty |
| Cleaning Instructions | Wipe with a soft, dry cloth. Do not use abrasive cleaners or immerse in water. |
| Storage Conditions | Store in a cool, dry place away from direct sunlight and extreme temperatures (-20°C to 60°C). |
| Included Accessories | Blood pressure monitor, standard cuff, instruction manual, 4 AA batteries (may vary by region) |
Frequently Asked Questions - WGNBPW-920 Walgreens
How do I correctly use the WGNBPW-920 blood pressure monitor?

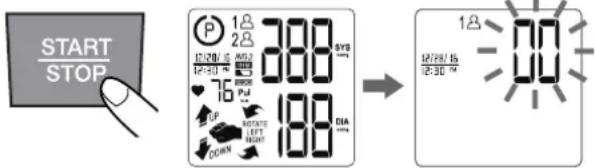

Sit comfortably with your feet flat on the floor and back supported. Wrap the cuff around your bare upper arm, about 2-3 cm above the elbow. Press the start button and remain still until the measurement is complete.
What does the irregular heartbeat indicator mean?
The irregular heartbeat indicator alerts you if an irregular heartbeat (e.g., atrial fibrillation) is detected during measurement. This is for reference only and does not replace professional medical advice.
How should I clean and maintain the monitor?
Clean the monitor with a soft, dry cloth. Do not use harsh chemicals or immerse it in water. The cuff can be cleaned with a slightly damp cloth and mild soap if needed.
How do I replace the batteries?
Open the battery compartment on the back of the monitor. Remove old batteries and insert 4 new AA batteries, ensuring correct polarity. Close the compartment securely.
What should I do if an error message appears?
Common error codes: E1 (cuff not connected), E2 (movement during measurement), E3 (low battery). Refer to the manual for specific error code meanings. If the issue persists, contact Walgreens customer support.
Is this monitor clinically validated?
The WGNBPW-920 is designed to meet international standards for accuracy (e.g., ANSI/AAMI/ISO 81060-2). It is suitable for home monitoring but not a substitute for professional medical devices.
How do I interpret the blood pressure readings?

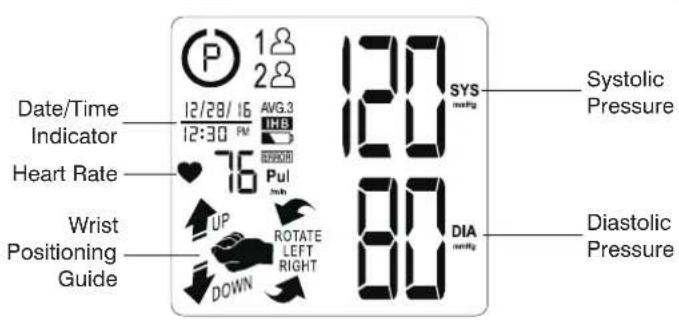

The display shows systolic (top) and diastolic (bottom) pressure in mmHg, plus pulse rate. A color-coded indicator (green/yellow/red/red) shows your category per WHO guidelines. Consult your doctor for interpretation.
Can I use the monitor on my left or right arm?
Yes, you can use either arm, but it is recommended to consistently use the same arm for measurements. The cuff fits arms with circumference between 22 and 42 cm.
How should I store the monitor when not in use?
Store the monitor and cuff in a cool, dry place away from direct sunlight, extreme temperatures, and humidity. Avoid storing with sharp objects to prevent cuff damage.
Can I transfer data from the monitor to my computer or phone?
The WGNBPW-920 does not have Bluetooth or data transfer capabilities. Readings are stored in the monitor's memory for up to 2 users (120 total readings). You must manually record them.
