USER MANUAL DDR040EBWDB DANBY

Owner's Manual....1 - 8

DÉSHUMIDIFICATEUR

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: ____

Serial Number: ____

Date of Purchase: ____

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

To avoid risk of electric shock, do not operate this dehumidifier in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water.

Do not store or use combustible materials such as gasoline or other fl ammable vapors or liquids in the vicinity of this or any other appliance.

Do not insert fingers or other objects into grills or openings in the appliance.

Do not cover or block the intake and exhaust openings.

Do not operate the appliance without the filter installed.

Do not operate the appliance near heat sources.

This appliance is intended for indoor, residential applications only. Do not use this dehumidifi er outdoors. Do not use this dehumidifi er for commercial or industrial applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet.

Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

OPERATING INSTRUCTIONS

CASTER INSTALLATION

The casters and power cord can be found inside the water bucket.

1. Remove the bucket from the appliance and remove the bucket cover.

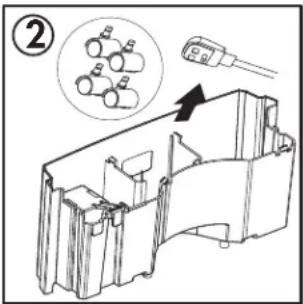

2. Remove the casters and power cord from the water bucket.
3. Replace the bucket cover and replace the bucket inside the appliance.

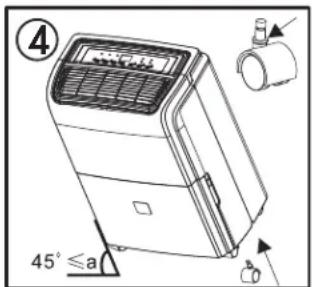

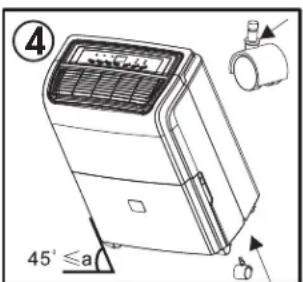

4. Tilt the appliance to a 45^ angle. Push the casters into the bottom of the appliance until they click. Ensure the ring around the caster is flush against the bottom of the appliance.

Technical line drawing of a mechanical housing or enclosure with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical housing component with an arrow indicating a specific part (no text or symbols present)

OPERATION

• Place the dehumidifier on a smooth, level floor that is strong enough to support the appliance with a full bucket of water.
• Do not place the dehumidifi er on carpeting as this can block air flow around the appliance.
• Do not force casters to move over carpeting as the appliance can become unbalanced and spill water.
• To maintain efficiency, operate the appliance in an enclosed area. Keep nearby doors and windows closed.
• Any time the appliance is placed on its back or side, it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components.
• Maintain a minimum clearance of 45 cm (18 inches) on all sides of the appliance to allow for proper air circulation.
• The recommended ambient operating temperature is between 5°C (41°F) and 32°C (90°F).
• The recommended ambient operating humidity is between 30 - 90%.
• The default humidity setting is 50% and low fan speed. Depending on humidity conditions the dehumidifi er may not start automatically under the default setting. This means the humidity in the surrounding air is less than 50%. Press the down button to lower the set humidity until the set humidity is lower than the ambient humidity.
• For optimal performance, ensure that the humidity setting is 10% lower than the ambient humidity. It is normal for the ambient humidity to vary up to 5% above or below the set humidity.
• It is recommended in normal conditions to set the humidity between 40-45%.
• It is normal for the dehumidifi er to exhaust warm air from the top.

OPERATING INSTRUCTIONS

CONTROL PANEL TIMER FUNCTION

1. Filter Button and Indicator Light: The fi Iter light will illuminate when the fi Iter needs to be cleaned, approximately every 250 hours of operation. Press the fi Iter button once the fi Iter has been cleaned to return to regular functioning.
2. Fan Button and Indicator Light: Press to set the fan speed to low or high. The light will illuminate on high fan speed and will turn off on low fan speed.
3. Display: Shows the actual room humidity to a ± 5% accuracy in a range of 35% to 80% relative humidity. Displays selection when programming humidity or timer.
4. Up and Down Buttons: The humidity level can be set within a range of 35% to 80% relative humidity in 5% increments using these buttons. For drier air, press the down button and set to a lower percentage value. For more damp air, press the up button and set a higher percentage value.
5. Timer Button and Indicator Lights: Press to initiate the auto-start and auto-stop feature. Set a start or stop time from 0.0 to 24 hours using the up and down buttons.
6. Continuous Mode: To reach continuous mode, press the down button until CO shows on the display. This setting will disregard the ambient humidity and will run the compressor continuously to reach the driest conditions possible.
7. Full Bucket Indicator Light: When the bucket is full or incorrectly positioned the full bucket light will turn on and remain on until the bucket is emptied or correctly re-positioned. The compressor and fan motor operation will stop. When the bucket is emptied or correctly repositioned the dehumidifi er will resume operation automatically. It may take 2-3 minutes before operating conditions resume.
8. Power Button: Use this button to turn the appliance on or off.

Auto Off Function

1. When the appliance is turned on, press the timer button to activate the auto-stop timer. The auto-stop light will illuminate.
2. Press the up and down buttons to change the set time in 0.5 hour increments up to 10 hours and then in 1 hour increments up to 24 hours.
3. Press the timer button to confirm programming.

Auto On Function

1. When the appliance is turned off, press the timer button to activate the auto-start timer. Set the time as per the instructions above. Press the timer button again to confirm programming.

Turning the appliance on or off at any time or changing the timer setting to 0.0 will cancel the timer settings.

MEMORY AND AUTO RESTART SETTINGS

Each time the appliance is disconnected or reconnected or in the event of a power failure, the appliance will default to the last program setting that was used.

If the appliance shuts off unexpectedly due to a power failure, it will restart with the previous settings automatically once power resumes.

AUTOMATIC DEFROST

If the appliance is operating in an environment where the ambient temperature is very cold, frost may form on the evaporator coils. The compressor will cycle off but the fan will continue to run until the frost melts. An error code may show on the control panel display.

When the frost has melted, the compressor function will resume and the appliance will return to regular operation.

To ensure frost does not form on the evaporator coils, ensure the ambient temperature around the appliance is at a comfortable level. Higher ambient temperature will also help to remove humidity from the air.

OPERATING INSTRUCTIONS

WATER REMOVAL

There are two ways to remove collected water from the appliance.

1. Water Bucket

The dehumidifi er will automatically collect condensed water in the water bucket. When the bucket is full or displaced inside the unit, the fl oat actuator inside the bucket breaks contact with the safety switch. The compressor will shut down, preventing moisture from being condensed. The fan will continue to run for approximately 2-3 minutes. Water may drip onto the base of the appliance and onto the floor. Make sure to protect flooring when emptying the water bucket.

Never tamper with or attempt to defeat the water level fl oat system. Proper installation of the water bucket is crucial in maintaining reliable operation.

To empty the bucket, gently remove it from the appliance by gripping both sides and pulling outward. Be cautious when removing the bucket, it will be full and can be heavy.

Do not place the water bucket directly on the floor. The bottom of the bucket is uneven and it will fall over and spill water.

Empty the bucket and replace it in the appliance. The dehumidifi er will not function without the bucket installed.

The bucket should be cleaned every few weeks to prevent mold growth. Only use mild detergent to clean the bucket; do not use harsh chemicals or bleach.

2. Continuous Drain

Water can be removed from the appliance using the continuous drain and the provided drain hose.

Before using any automatic drain functions, check that all drain ports are clean and free of debris. There are either one or two drain ports inside the bucket compartment of the appliance, remove the bucket to see them. There are one or two drain ports on the back of the appliance where the drain hoses attach. All drain ports should be cleaned with a pipe cleaner prior to use.

Note: Do not clean the drain ports with anything more rigid than a pipe cleaner as this can damage the appliance.

Note: If the drain ports are clogged or dirty it can cause water to leak from the bottom of the appliance.

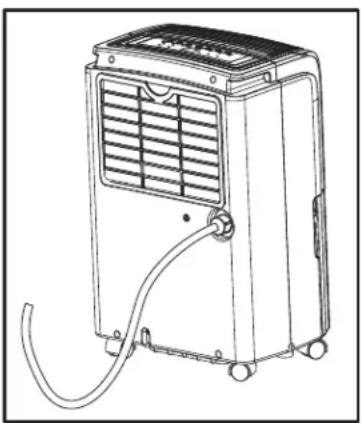

Remove the cover from the continuous drain outlet and attach the provided continuous drain connector and the provided drain hose. Direct the other end of the hose to a bucket or floor drain.

Ensure that the hose is not bent and goes straight down from the back of the appliance. The continuous drain is only activated by gravity so any bends or upward motion in the hose will stop the water from draining.

Note: A garden hose can also be used as a continuous drain hose. The garden hose should be cut so that it is no more than 1.8 m (6 feet) long. If the drain hose is too long water may not drain completely which can lead to stagnant water and mildew build up inside the hose.

Line drawing of a portable air conditioner unit with ventilation grilles and wheels (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grille and coiled cable (no text or symbols)

CARE & MAINTENANCE

AIR FILTER

The fi Iter indicator will illuminate after 250 hours of use, indicating that the fi Iter should be cleaned.

Remove the fi lter from the back of the appliance. Use a vacuum to remove dust from the fi lter or wash with warm water and mild detergent. Ensure the fi lter is completely dry before replacing it in the appliance. Press the fi lter button to reset the fi lter indicator.

Note: Do not operate the appliance without the air filter installed.

Line drawing of a portable air conditioner unit with cooling fins and wheels (no text or symbols)

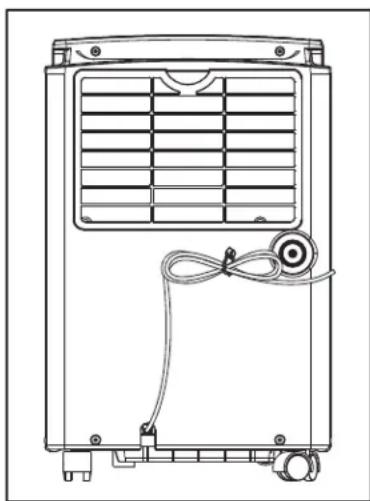

LONG TERM STORAGE

Ensure that the inside of the appliance is dry before storing for the off season to help avoid the growth of mold or mildew. Ensure the filter is clean and dry. Secure the power cord with the power cord strap as per the image below. Store the appliance upright and covered in a dry location.

Diagram showing two interlocked loops with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical clamp or tool with circular components and connecting rods (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and coiled cable (no text or symbols)

CLEANING

To avoid possible electric shock, ensure that the appliance is unplugged before performing any cleaning or maintenance.

The outside of the appliance can be wiped clean with a soft cloth or with a lukewarm, damp cloth if necessary.

Do not use gasoline, benzene, thinner or any other chemicals to clean this appliance as these substances can cause damage to the fi nish and deformation of plastic parts.

Never pour water directly onto the appliance as this will cause deterioration of electrical components and wiring insulation.

Ensure that the drain ports on the interior of the appliance and the drain ports on the back of the appliance are free of dirt and calcium build up.

ERROR CODES

EH - humidity sensor fault

E1 or E2 - temperature sensor fault

P1 - water bucket is full or not installed correctly

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. Check for local regulatory compliance regarding approved and safe disposal of this appliance.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

Appliance will not operate • Plug is not fully inserted into the wall outletBlown fuse or circuit breakerAmbient humidity is lower than the set humidityBucket is full or is not in the proper position
Insufficient dehumidifying	• Air filter is dirty• Blocked air flow• Appliance size is too small for application• Ambient humidity is lower than the set humidity
Noise • Air filter is dirty	• Bucket is not in proper position• Floor surface is not level
Odors • Formation of mold or mildew on internal wet surfacesPlace an algaecide tablet in the water bucket
Water on floor • Hose connection is looseDrain cover has been removed
Frost build up	• When ambient temperature is below 5°C (41°F) frost may form• Switch the appliance to fan only mode until the frost melts

LIMITED "CARRY IN" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 24 months

During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

Carry In

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: |519| 837-0920 FAX: |519| 837-0449

1-800-263-2629

04/17

Danby Products Inc

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

Technical line drawing of a mechanical housing or enclosure with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical housing component with an arrow indicating a feature (no text or symbols present)

OPÉRATION

Line drawing of a portable air conditioner unit with ventilation grilles and wheels (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grille and coiled tubing (no text or symbols)

SOINS ET MAINTENANCE

FILTRE À AIR

Line drawing of a portable air conditioner unit with ventilation grilles and wheels (no text or symbols)

NETTOYAGE

PROBLÈME CAUSE POSSIBLE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26-Danby (1-800-263-2629)

Technical line drawing of a mechanical housing component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical housing component with an arrow indicating a feature (no text or symbols present)

OPERACIÓN

Line drawing of an air conditioner unit with ventilation grilles and a directional arrow (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grille and coiled tubing (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and wheels (no text or symbols)

ALMACENAMIENTO A LARGO PLAZO

LIMPIEZA

PROBLEMA CAUSA POSIBLE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

NOTES / REMARQUES / NOTAS :

NOTES / REMARQUES / NOTAS :

MODEL • MODÈLE • MODELO

DDR030EBWDB

DDR040EBWDB

DDR050EBWDB
