FGMV176NTF - Microwaves FRIGIDAIRE - Free user manual and instructions

Product Type	Over-the-Range Microwave Oven
Brand	Frigidaire
Model	FGMV176NTF
Dimensions (W x H x D)	76.2 cm x 43 cm x 41.9 cm (approx.)
Net Weight	Approximately 33 kg
Power Supply	120 V AC, 60 Hz, 15 A, 1.6 kW
Venting Types	Outside exhaust via top (vertical), rear (horizontal) or recirculation
Main Functions	Microwave, exhaust fan, cooktop light, multiple power levels, glass turntable
Power Levels	10 levels (per user manual)
Turntable Capacity	Glass plate 30 cm diameter (approx.)
Included Filters	2 grease filters, 1 charcoal filter (for recirculation), PureAir filter (some models)
Maintenance and Cleaning	Clean grease filters regularly, replace charcoal filter every 6-12 months, clean interior with damp cloth
Safety	Grounding required, installation by two people, do not use extension cord, keep metal objects away
Replacement Parts and Repairability	Glass plate, plate ring, filters, vent adapter, light bulb (part numbers in manual)
General Information	Under-cabinet installation, requires wall stud for support, manufacturer's warranty (see document)

Frequently Asked Questions - FGMV176NTF FRIGIDAIRE

How to install the Frigidaire FGMV176NTF microwave?

Installation must be done by two people. Follow the instructions for attaching the mounting plate to the wall (using at least one screw into a stud), then hang the oven on the tabs and secure it with the self-aligning screws into the upper cabinet. Refer to the Step-by-Step Installation Guide section of the manual.

What are the possible venting types?

This model supports three types: outside exhaust through the top (vertical duct), outside exhaust through the rear (horizontal duct), or air recirculation (ductless). The vent adapter and fan setting depend on the choice.

How to clean the grease filters?

Grease filters should be cleaned monthly. Wash them in hot soapy water or in the dishwasher. Dry them completely before reinstalling.

How to replace the charcoal filter?

For models with a charcoal filter, open the microwave door, remove the screws from the vent duct, then push the top of the filter inward to remove it. Insert the new filter by sliding the top into the cavity and pressing down on the bottom. Reinstall the duct and screws.

What are the electrical safety precautions?

The oven must be plugged into a grounded 15-20 A, 120 V outlet. Do not cut the ground prong. Do not use an extension cord. Before any service, unplug the appliance or turn off the circuit breaker.

How to set the clock?

Refer to the user manual. Generally, press the 'Clock' button, set the hours and minutes using the numeric keypad, then confirm.

What is the turntable capacity?

The glass plate has a diameter of approximately 30 cm (12 inches) and can support dishes up to 4.5 kg (10 lb).

Can the microwave operate without the vent?

Yes, in recirculation mode, air is filtered through a charcoal filter and then recirculated into the room. Make sure to install the charcoal filter correctly.

How to use the vent function?

The vent extracts cooking vapors and smoke. Use the fan controls to select the speed (high, medium, low). The built-in light can be turned on separately.

Where to find replacement part numbers?

Part numbers for items like the glass plate, plate ring, filters, and light bulb are listed in the user manual. Contact Frigidaire customer service at 1-800-944-9044 (US) or 1-800-265-8352 (Canada).

USER MANUAL FGMV176NTF FRIGIDAIRE

Installation Over the Range Instructions Microwave Oven

Questions? Call 1-800-944-9044(US) or 1-800-265-8352(Canada)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

Line drawing of a microwave oven mounted on a shelf, no text or symbols present

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

CONTENTS

General information

Important Safety Instructions .... 3

Electrical Requirements .... 3

Damage – Shipment/ Installation.... 4

Parts Included.... 4

Tools You Will Need 5

Mounting Space 5

Step-by-step installation guide

Placement of The Mounting Plate 6-8

Removing the Mounting Plate 6

Finding the Wall Studs...... 6

Determining Wall Plate Location....7

Aligning the Wall Plate 8

Installation Types.... 9-22

Hood Exhaust 10-11

A Outside Top Exhaust 12–15

Attach Mounting Plate to Wall......12

Preparation of Top Cabinet......13

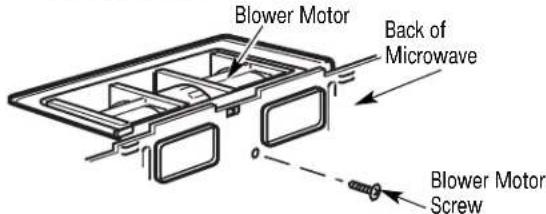

Adapting Microwave Blower for

Outside top Exhaust 13–14....

Checking for Proper Damper

Operation....14

Mount the Microwave Oven .....14-15

Adjust the Exhaust Adaptor ....15

Connecting Ductwork....15

B Outside Back Exhaust.... 16–19

Preparing Rear Wall for

Outside Back Exhaust....16

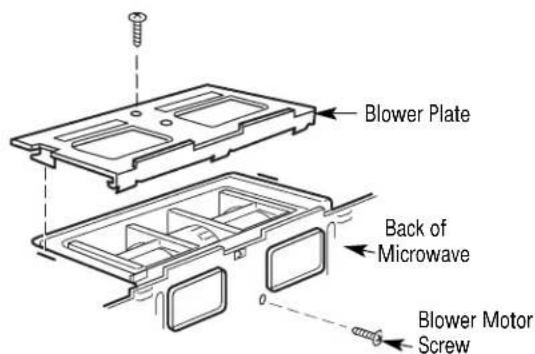

Remove Blower Plate 16.....

Attach Mounting Plate to Wall .....17

Preparation of Top Cabinet ......17

Adapting Microwave Blower

for Outside Back Exhaust....17–18

Mount the Microwave Oven ....19

C Recirculating 20–22

Attach Mounting Plate to Wall ......20

Preparation of Top Cabinet ......21

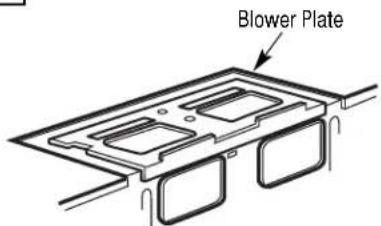

Check Blower Plate 21

Mount the Microwave Oven .....21–22

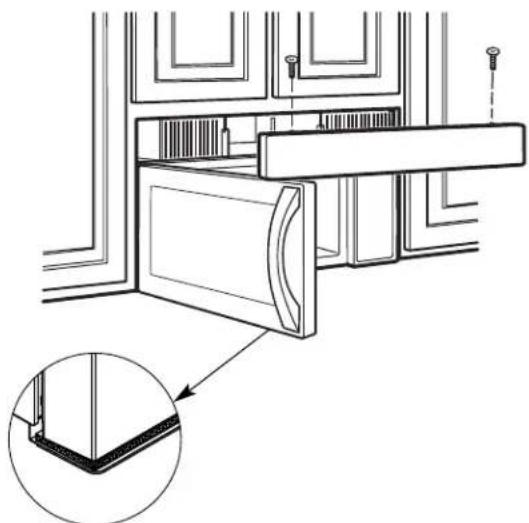

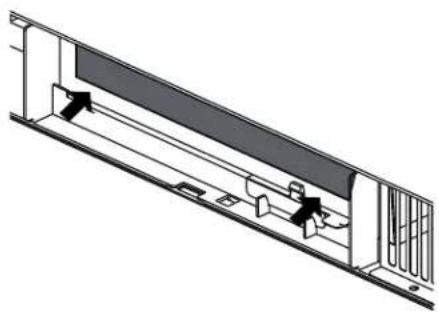

Installing or Change the

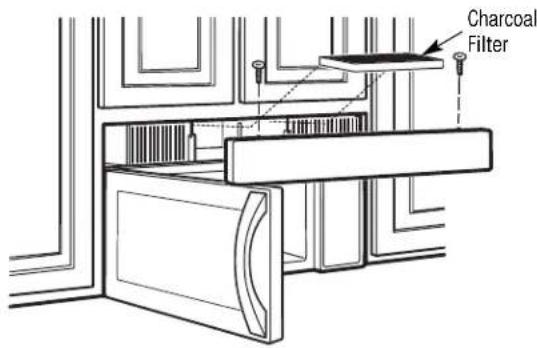

Charcoal Filter 22

Before You Use Your Microwave 25

Template Information...... 26

IMPORTANT SAFETY INSTRUCTIONS

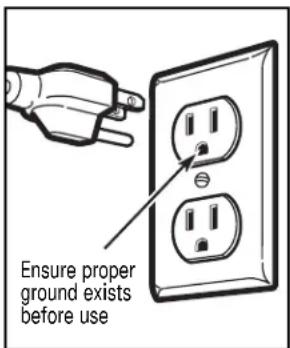

This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

Illustration of a hand interacting with an electrical outlet panel (no text or symbols visible)

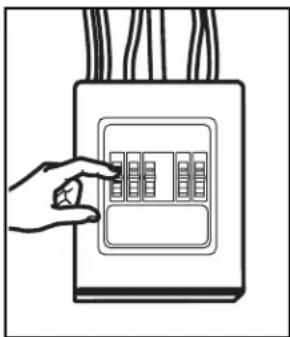

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63–85 pound (28.5–38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of 113–135 pounds (51.3–61.2 kg).

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal safety, it is recommended that two people install this product.

IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

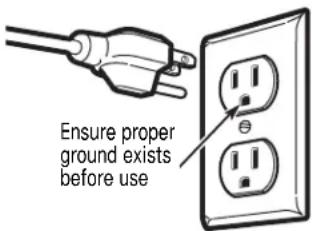

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and 1.6 kilowatts. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 15- to 20- ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlier box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

DAMAGE—SHIPMENT/ INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

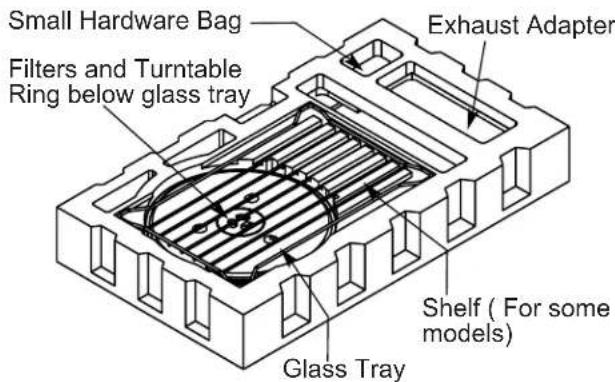

PARTS INCLUDED

HARDWARE PACKET

PART QUANTITY
	Wood Screws 2 ( ^1/4" × 2'')
	Toggle Bolts (and wing nuts) ( ^3/16" × 3'')	2
	Self-Aligning Machine 3 Screws ( ^1/4" - 28 × 3^1/4'')
	Nylon Grommet(for metal cabinets)	1

You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts.

NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.) ADDITIONAL PARTS

PART		QUANTITY
	CabinetTop Template	1
	Rear Wall Template	1
	Installation Instructions	1
	Use & Care Manual	1
	Separately Packed Grease Filters	2
	Exhaust adaptor	1
	Glass Tray	1
	Tru ntable Ring	1
For some models	Convection wire rack	1
For some models	Shelf	1
For some models	PureAir® Microwave Filter	1

TOOLS YOU WILL NEED

1 Phillips screwdriver

Pencil

Tin snips (for cutting damper, if required)

Scissors (to cut template, if necessary)

Electric drill with 316 ", 12 " and 58 " drill bits

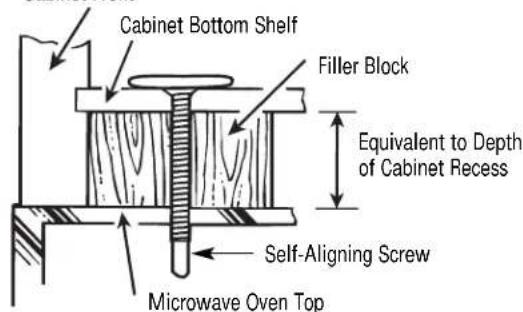

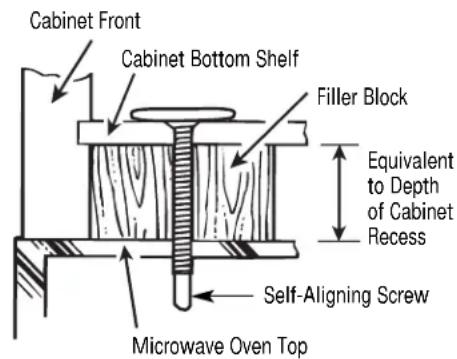

Filler blocks or scrap wood pieces, if needed for top cabinet spacing (used on recessed bottom cabinet installations only)

Gloves

Three technical line drawings of electrical components: a motor, a plug, and a hook (no text or symbols)

Saw (saber, hole or keyhole)

Stud finder

Hammer (optional)

Safety goggles

Level

Duct and masking tape

MOUNTING SPACE

NOTES:

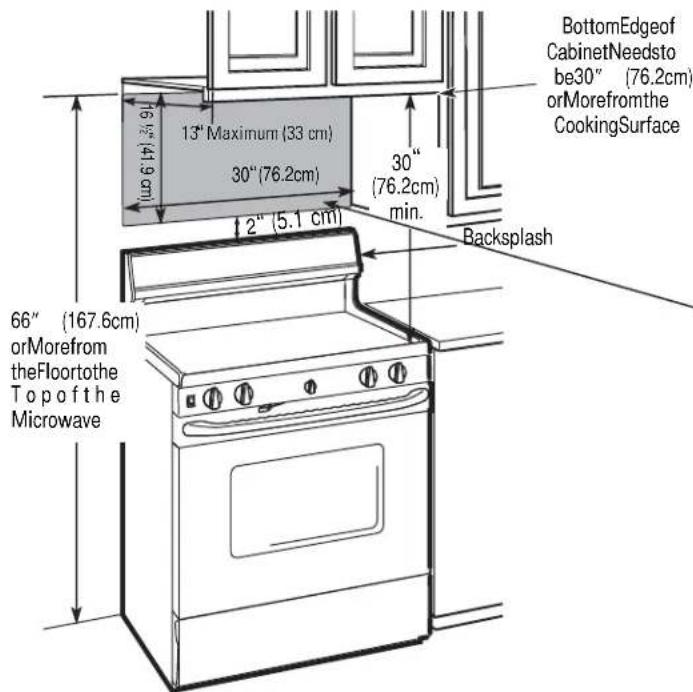

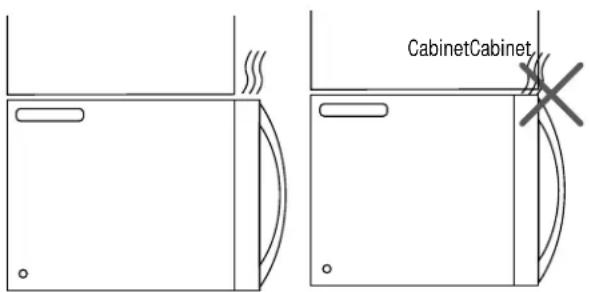

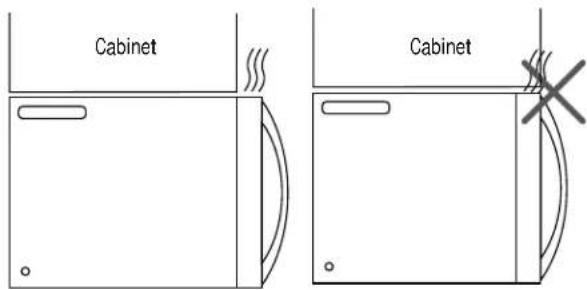

• Thespacebetweenthecabinetsmustbe 30"(76.2cm) wideandfreeofobstructions.
• If you are going to every your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation.
• Wheninstallingthemicrowaveovenbeneath smooth,flatcabinets,becarefultofollowthe instructionsonthetopcabinettemplate or powercordclearance.

• As a guide to installation, see page 24 for Mounting Template Information.

• If the cabinet depth including the cabinet doors is more than 13' then the unit must be spaced
  → out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

1 PLACEMENT OF THE MOUNTING PLATE

A. REMOVINGTHEMICROWAVE OVENFROM THECARTON/ REMOVINGTHEMOUNTING PLATE

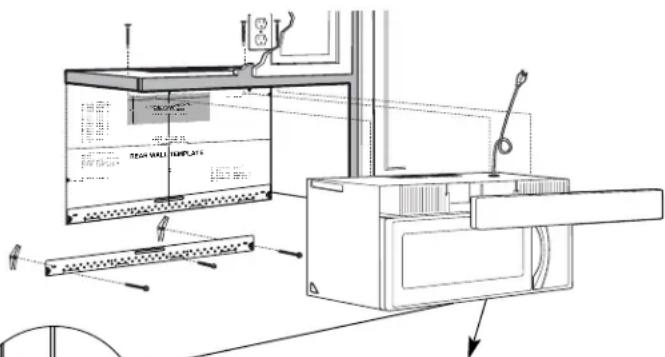

1 Remove the installation instructions, use and care, exhaust adapter, turntable ring, shelf, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven.

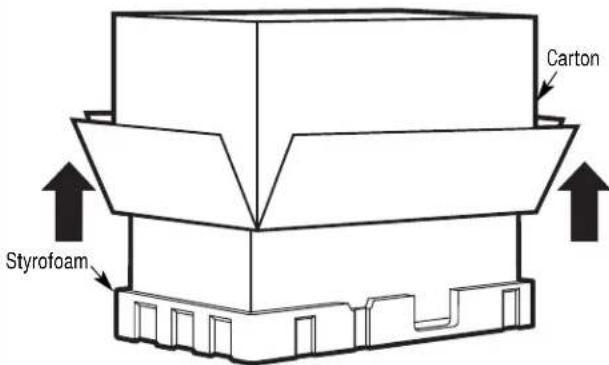

2 Foldbackall4cartonflapsfullyagainstcarton sides. Thencarefullyrolltheovenandcartonover ontothetopside. Theovenshouldberesting in theStyrofoam.

3 Pullthecartonupandofftheoven.

4 Cutthemiddleoftheouterprotectiveplasticbagto remove the mountinglate

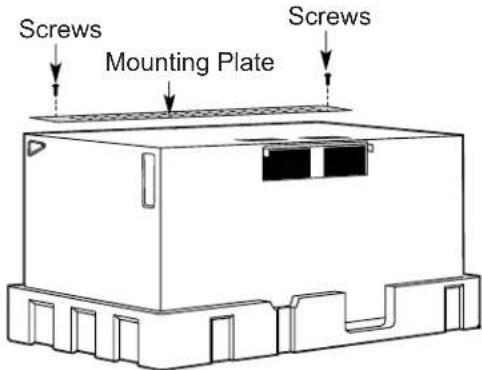

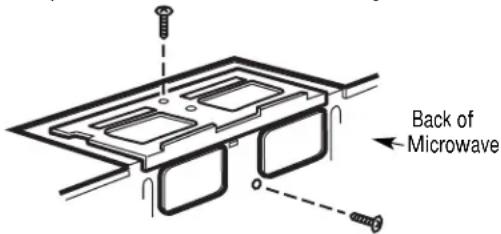

5 Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting. Reinstall the screws into the holes where they were removed.

B. FINDINGTHEWALLSTUDS

1 Findthestuds, using one of the following methods:

A. Studfinder—amagnetic device which locatesnails.

B. Useahammertotaplightlyacrossthe mountingsurfacetofindasolidsound. Thiswillindicateastudlocation.

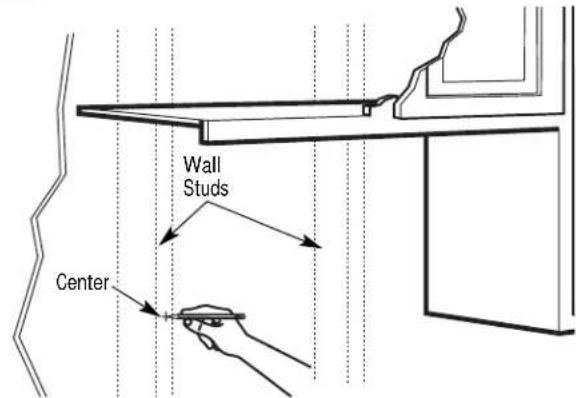

2 Afterlocatingthestud(s), find the center by probing the wall with a small nail to find the edges of the stud. Then place a mark halfway between the edges. The center of any adjacent stud should be 16" (40.6cm) or 24" (61cm) from this mark.

3 Drawalinedownthecenterofthestuds. THEMICROWAVEMUSTBECONNECTEDTO ATLEASTONEWALLSTUD.

C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate position-beneath flat bottom cabinet

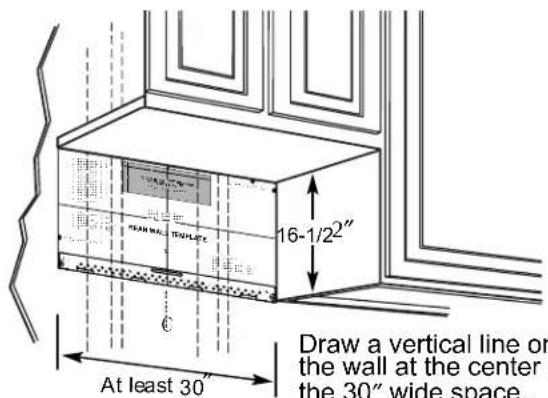

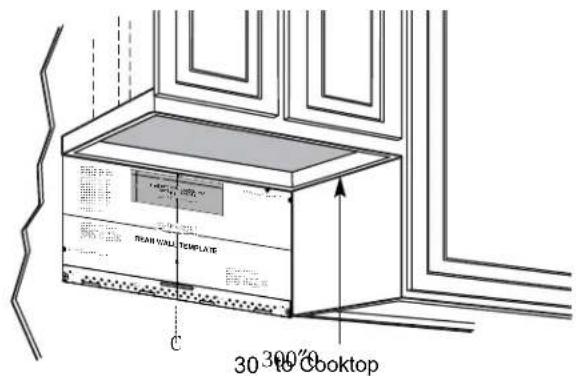

Draw a vertical line on the wall at the center of the 30" wide space. Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet.

Plate position-beneath framed recessed cabinet bottom

Draw a vertical line on the wall at the center of the 30" space.

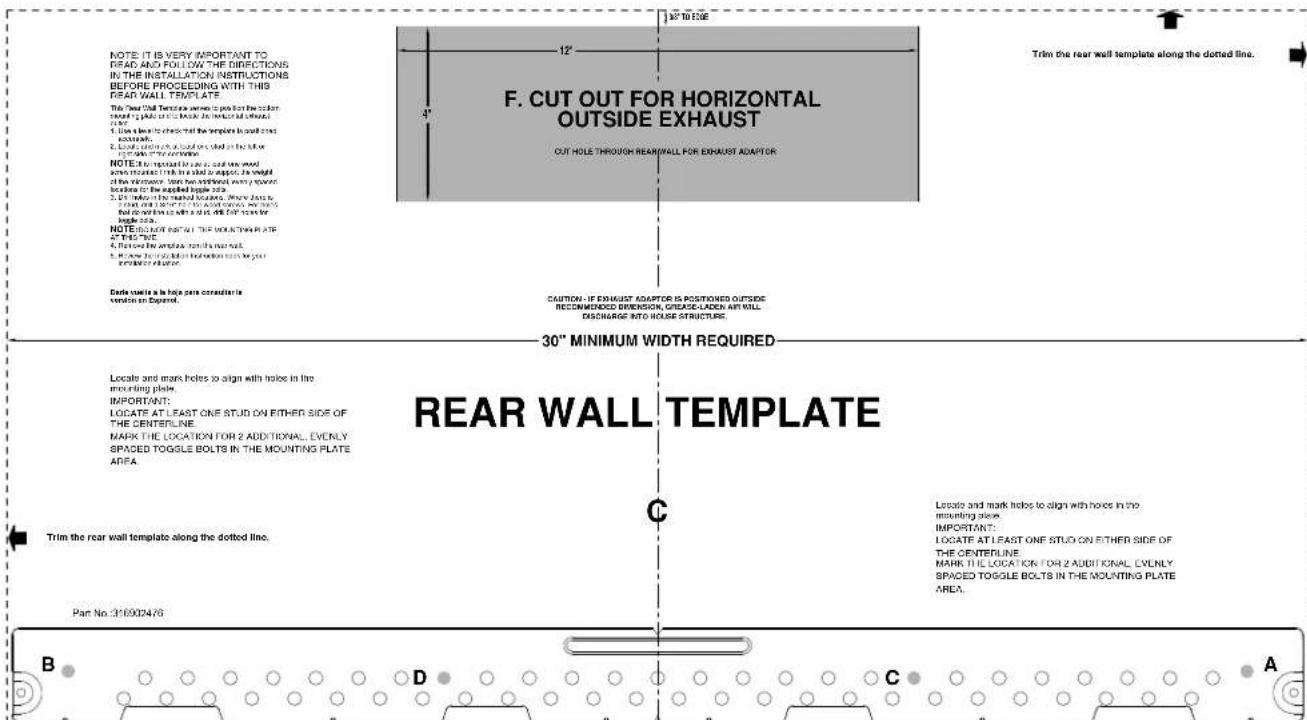

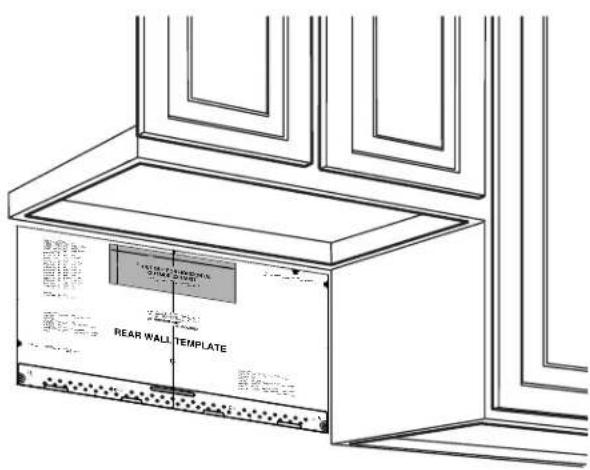

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom cabinet frame.

Plate position-beneath recessed bottomcabinetwith front overhang

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

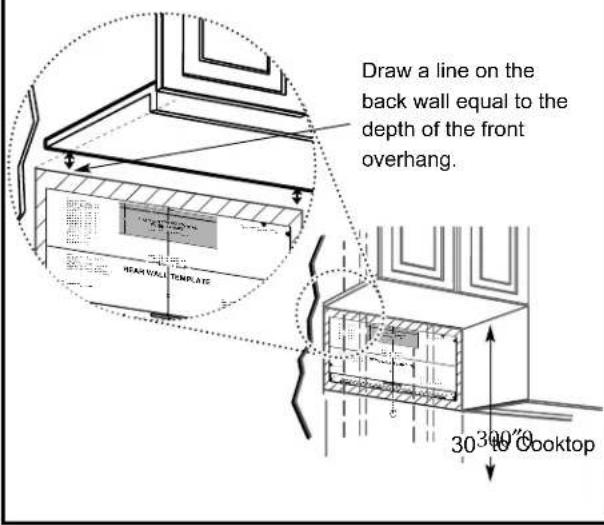

1 Measure the inside depth of the front overhang.
2 Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3 For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D.

D. ALIGNING THE WALL PLATE

CAUTION: Weargloves to avoid cutting fingerson sharpedges.

1 Draw a vertical line on the wall at the center of the 30" wide space.

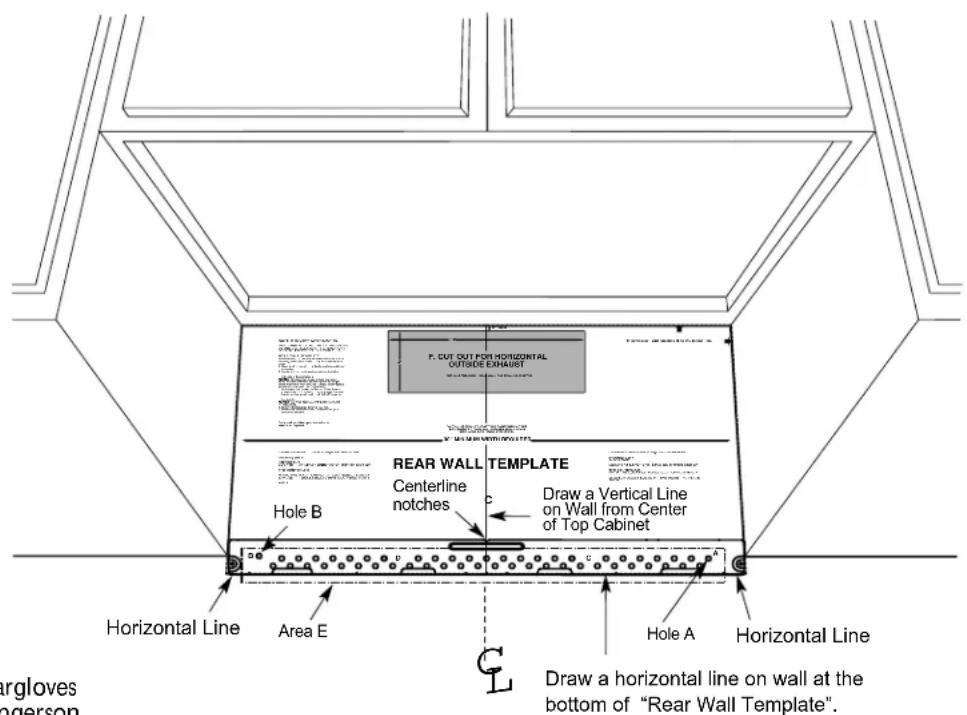

2 Draw a horizontal line on the wall at the bottom of "Rear Wall Template".

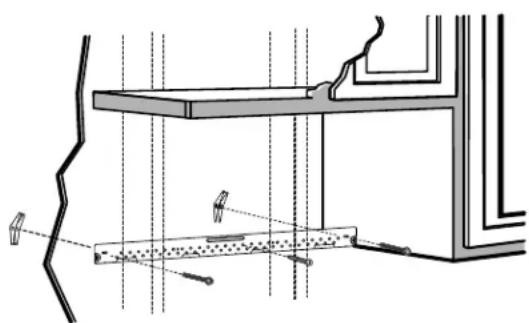

3 Find a wall stud in area "E" of mounting plate Refer to section 1B. Finding the wall studs.
4 For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 1 other location (Hole A or Hole B) NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: Holes A and B are inside area E. If neither of Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

2 | INSTALLATION TYPES (Choose A, B or C)

This microwaveoven is designed for adaptation to the following three types of ventilation:

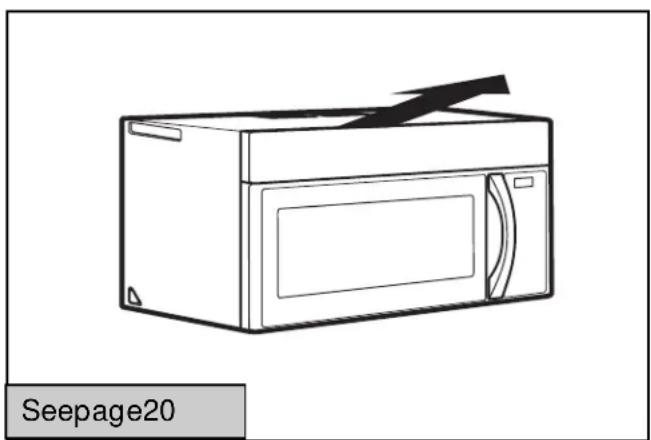

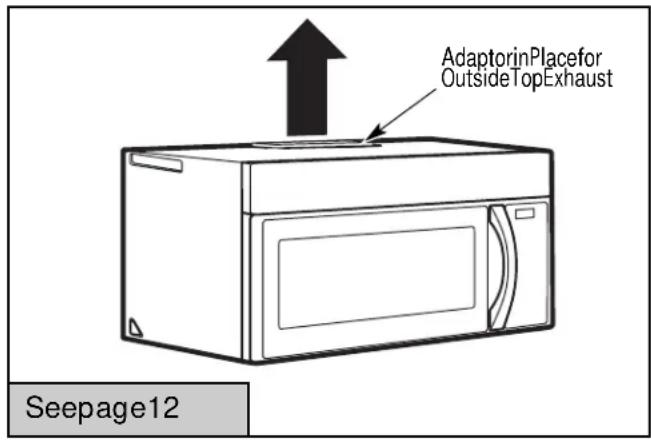

A. Outside Top Exhaust (Vertical Duct)

B. OutsideBack Exhaust (Horizontal Duct)

C. Recirculating (Non-Vented Ductless)

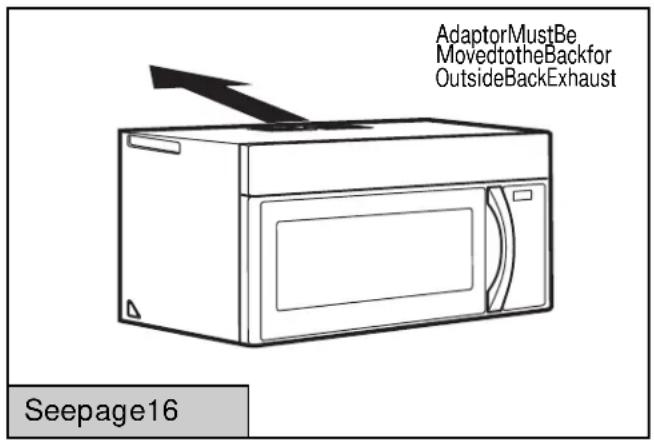

NOTE: This microwave is shipped assembled for Recirculating. Select the typeof ventilation required for your installation and proceed to that section.

A OUTSIDE TOP EXHAUST (VERTICAL DUCT)

B OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

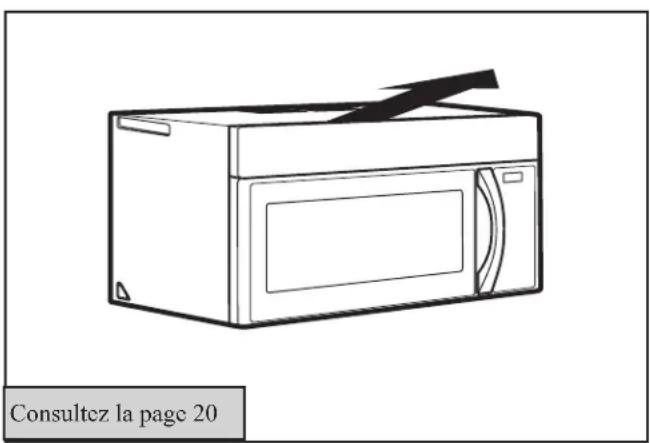

C RECIRCULATING (NON-VENTED DUCTLESS)

Line drawing of a microwave oven with a black triangular lid, labeled 'Seepage20' at the bottom (no other text or symbols)

Modelsareshippedfor recirculatingexhaust. Somemodelshavea disposablecharcoalfilter installedtohelpremove smokeandodors.

NOTE: Read the next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 20.

Installation Instructions

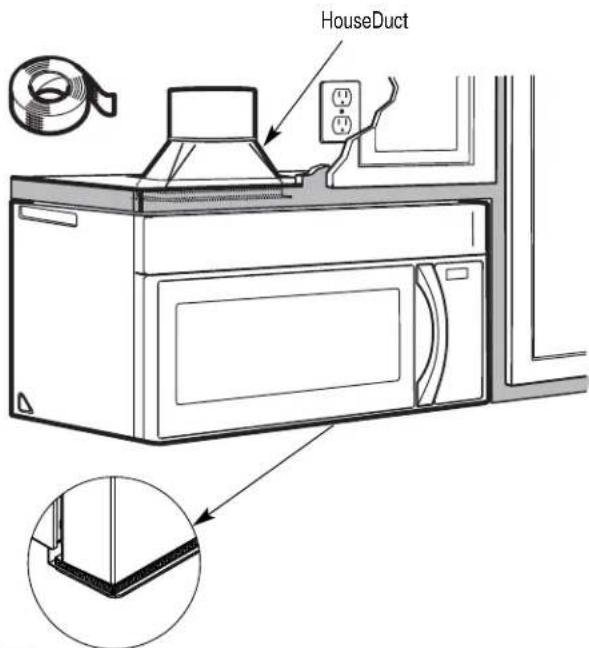

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

NOTE: If you need to install ducts, note that the total duct length of 3 14 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 120 equivalent feet (36.5 m). Outside ventilation requires an EXTERNAL EXHAUST DUCT.Read the following carefully.

NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with eq a standard 3 14 " x 10" (8.2 x 25.4 cm) rectangular duct. of If a round duct is required, a rectangular-to-round transition adaptor must be used. A 5"……(12.7cm)/6" (15.2cm) diameter duct is acceptable to use.

Maximum duct length:

For satisfactory air movement, the total duct length of 314 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6"(15.2 cm) diameter round duct should not exceed 120 equivalent feet (36.5 m).

Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

	EQUIVALENT	NUMBER	EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH

Rectangular-to-Round 5 Ft. (1.5 m) x ( ) = Ft. or m Transition Adaptor*

Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m

90^ Elbow 10 Ft. (3 m) x ( ) = Ft. or m

45^ Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m

90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m

45^ Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m

Roof Cap 24 Ft. (7.3 m) x() = Ft. or m

Straight Duct 6" (15.2 cm) 1 Ft. (0.3 m) x ( ) = Ft. or m Round or 3 ^1/4 " x 10" (8.2 x 25.4 cm Rectangular)

Total Ductwork = Ft. or m

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

EXTERNAL EXHAUST DUCTING

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m)
	12 Ft. (3.6 m) Straight Duct (6"/15.2 cm Round)	12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)
	Rectangular-to-Round 5 Ft. ( Transition Adaptor*	.5 m) x (1) = 5 Ft. (1.5 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =			41 Ft. (12.5 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES		EQUIVALENT LENGTH* NUMBER x USED = LENGTH	EQUIVALENT
	Wall Cap	40 Ft. (12.2 m) x (1) = 40 Ft. (12.2 m)
(ZAX6)	3 Ft. Straight Duct (3'/4" x 10"/8.2 x 25.4 cm Rectangular)	3 Ft. (0.9 m) x (1) = 3 Ft. (0.9 m)
	90° Elbow	10 Ft. (3 m) x (2) = 20 Ft. (3 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =			63 Ft. (19.2 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

A | OUTSIDE TOP EXHAUST (Vertical Duct)

INSTALLATION OVERVIEW

A1. Attach Mounting Plate to Wall

A2. Prepare Top Cabinet

A3. Adapting Microwave Blower for Outside Top Exhaust

A4. Check Damper Operation

A5. Mount Microwave Oven

A6. Adjust Exhaust Adaptor

A7. Connect Ductwork

IMPORTANT NOTES:

- Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

- Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

A1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Attach the plate to the wall using toggle bolts.

At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.

2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

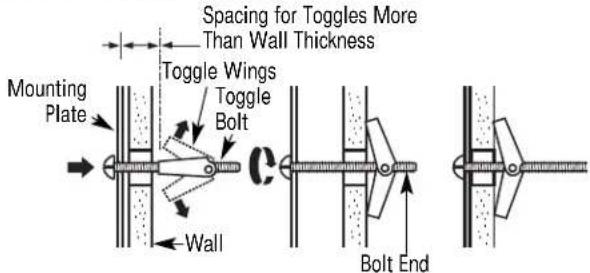

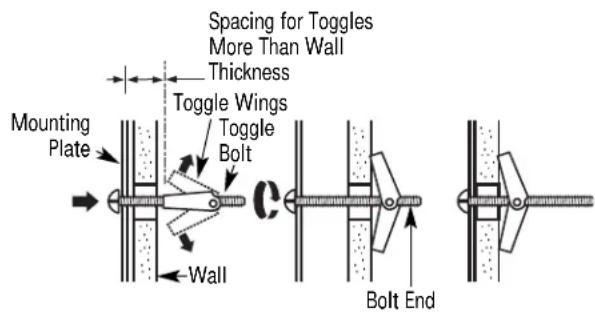

To use toggle bolts:

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

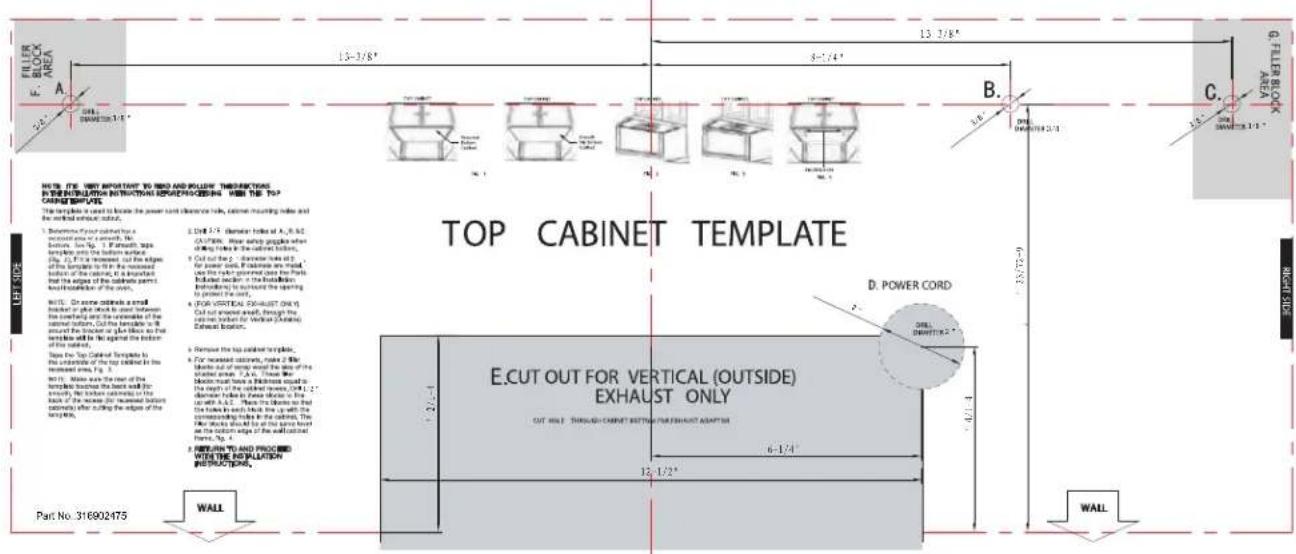

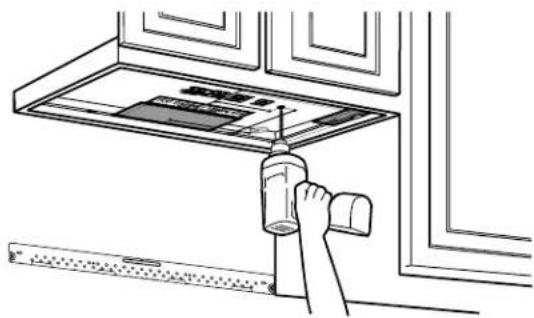

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

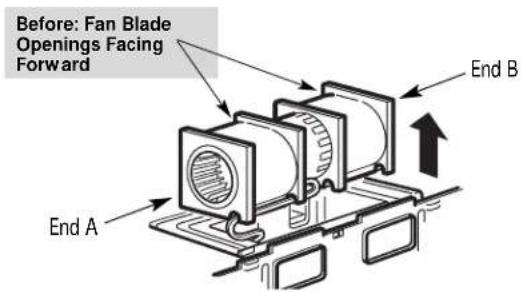

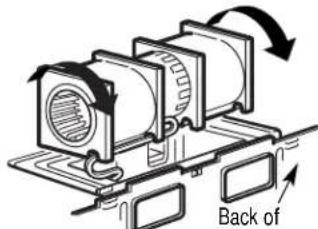

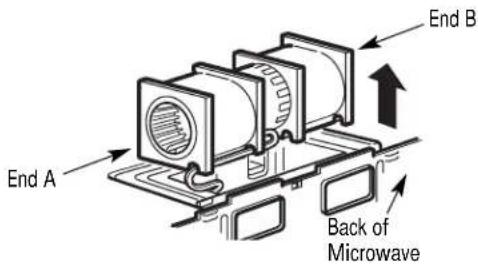

3 Roll the blower unit 90° so that fan blade openings are facing out the top of the microwave.

Before Rotation After Rotation

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

A3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

1 Place the microwave in its upright position, with the top of the unit facing up.

Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave.

4 Place the blower unit back into the opening.

AFTER: Fan Blade Openings Facing Top

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

A3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

5 Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight.
6 Replace blower plate with the screw removed in Step 1. Make sure the screw is tight.

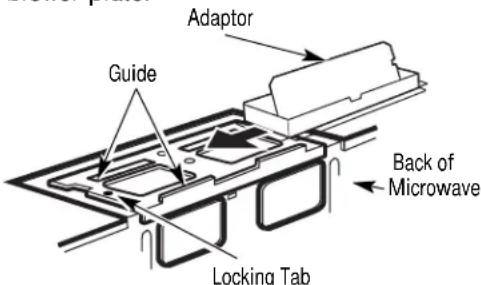

7 Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate.

Push in securely until it is in the locking tabs. Take care to assure that the damper hinge is installed so that the damper swings freely.

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.
• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

Three-panel line drawing showing a person crossed out of another's chest, and another person holding a tablet (no text or symbols)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

4 Attach the microwave oven to the top cabinet.

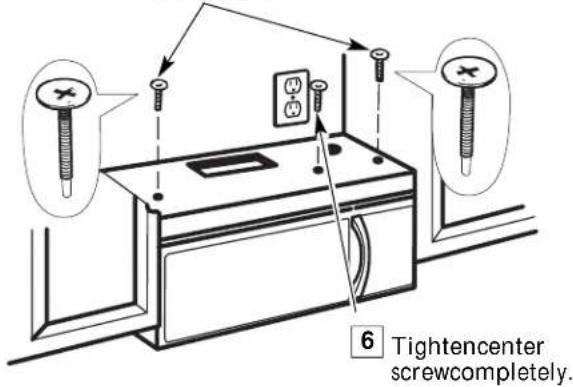

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns o each screw.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a textured rectangular object (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

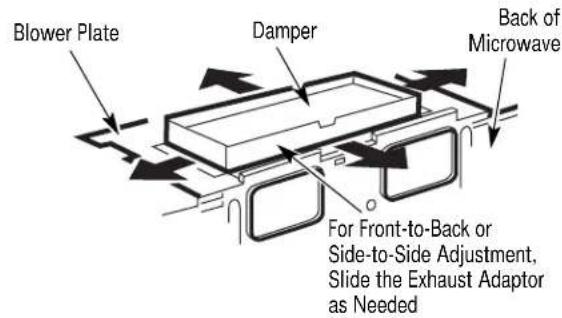

A6. ADJUST THE EXHAUST ADAPTOR

Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.

A7. CONNECTING DUCTWORK

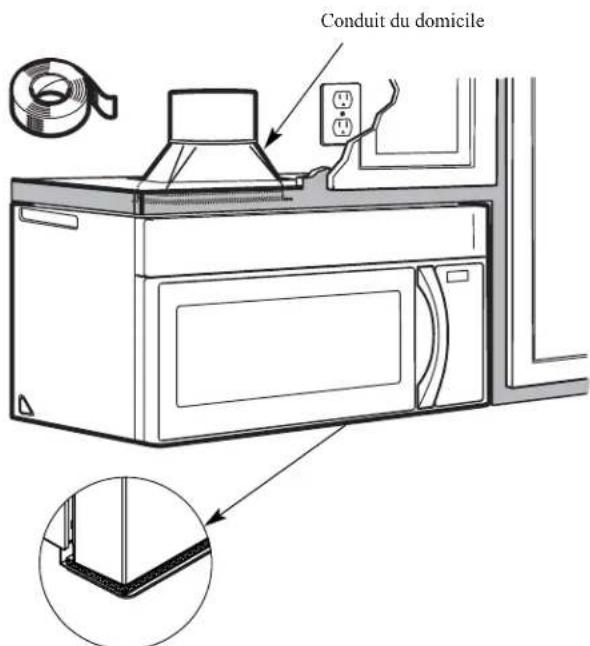

1 Extend the house duct down to connect to the exhaust adaptor.
2 Seal exhaust duct joints using foldable tape for high temperature applications.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

B | OUTSIDE BACK EXHAUST (Horizontal Duct)

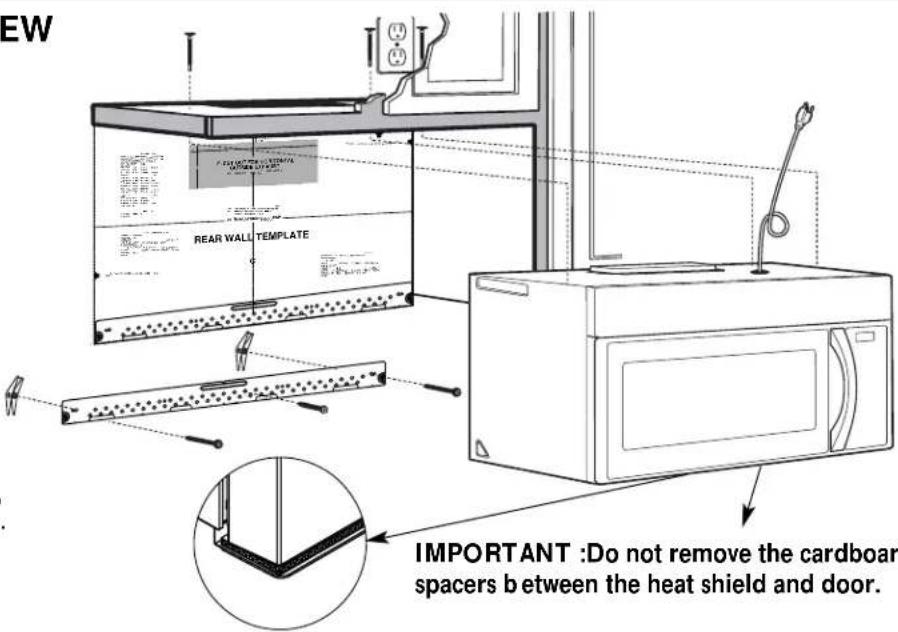

INSTALLATION OVERVIEW

B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
  • Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

IMPORTANT : Do not remove the cardboard spacers between the heat shield and door.

B1. PREPARING THE REAR WALL FOR OUTSIDE BACK EXHAUST

You need to cut an opening in the rear wall for outside exhaust.

• Read the instructions on the REAR WALL TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the REAR WALL TEMPLATE.

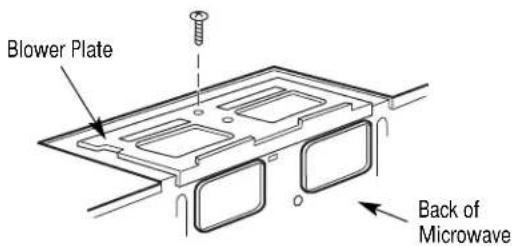

B2. REMOVE BLOWER PLATE

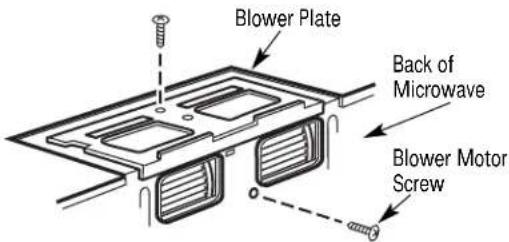

Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate.

B3. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

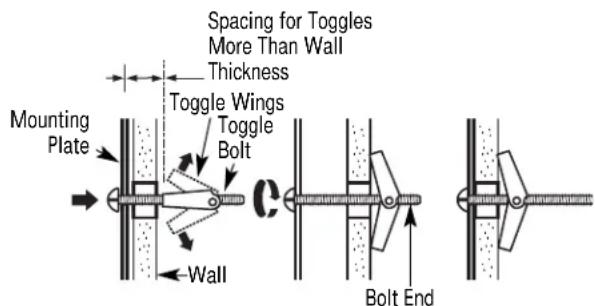

To use toggle bolts:

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

B4. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

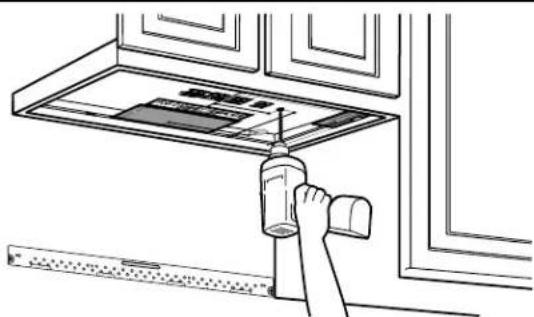

Line drawing of a hand using a tool to press or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

B5. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST

1 Remove and save screw that holds blower motor to microwave.

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

3 Roll the blower unit 90°

Before Rotation

Back of Microwave

Back of Microwave

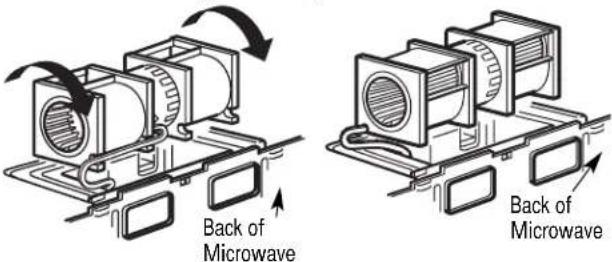

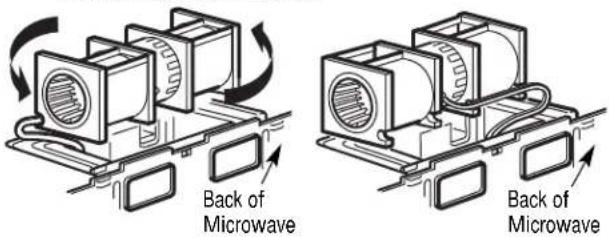

Before Rotation After Rotation

5 Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit.

Before Rerouting After Rerouting

Technical line drawing of two rectangular electronic components with internal circuitry and mounting brackets (no text or symbols)

Wires Routed Through Right Side

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Wires Routed Through Left Side

6 Roll the blower unit 90° so that fan blade openings are facing out the back of the microwave.

Before Rolling After Rolling

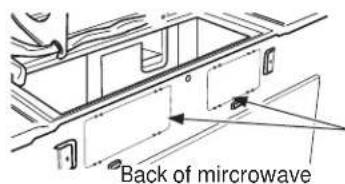

7 Remove the knockout plates in the back of the unit with snips. (For some models) Knockout Plates:

Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

8 Place the blower unit back into the opening.

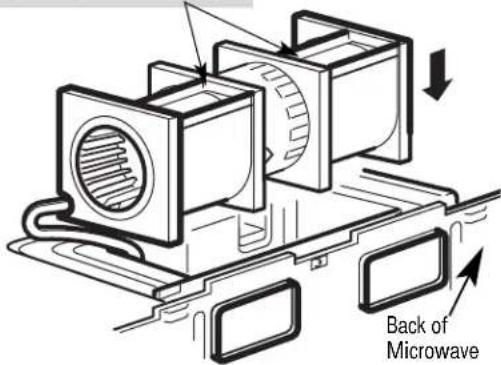

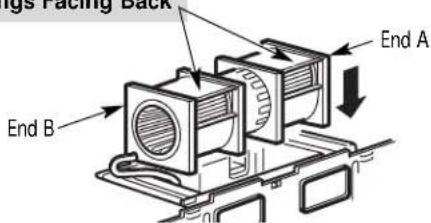

AFTER: Fan Blade Openings Facing Back

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

NOTE: The blower unit exhaust openings should match exhaust openings on rear of microwave oven.

9 Secure the blower unit to the microwave with the original screw.

10 Replace the blower plate in the same position as before with the screw. Make sure the screw is tight.

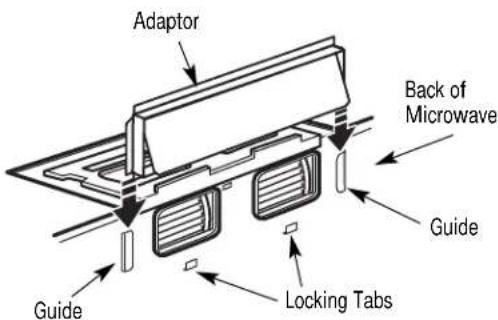

11 Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven.

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

B6. MOUNT THE MICROWAVE OVEN

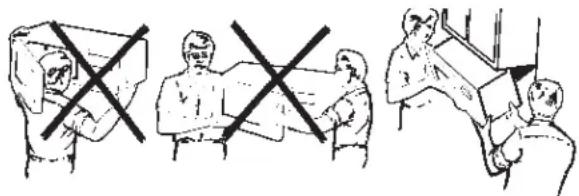

Three-panel line drawing showing a person carrying a box and another holding a box, with no visible text or symbols.

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

4 Attach the microwave oven to the top cabinet.

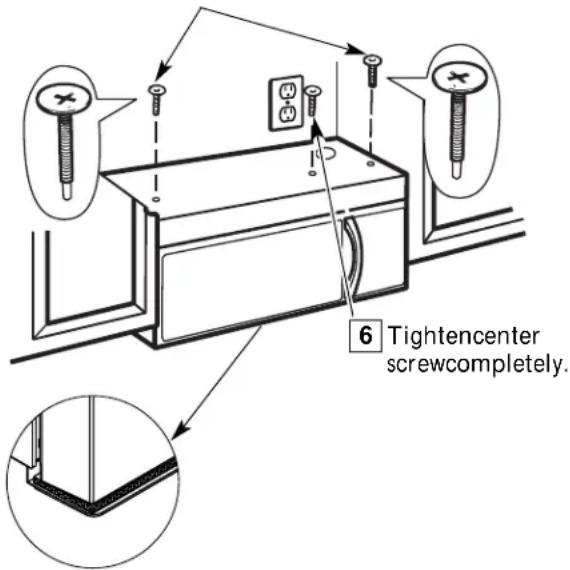

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned rectangular object (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

C | RECIRCULATING (Non-Vented Ductless)

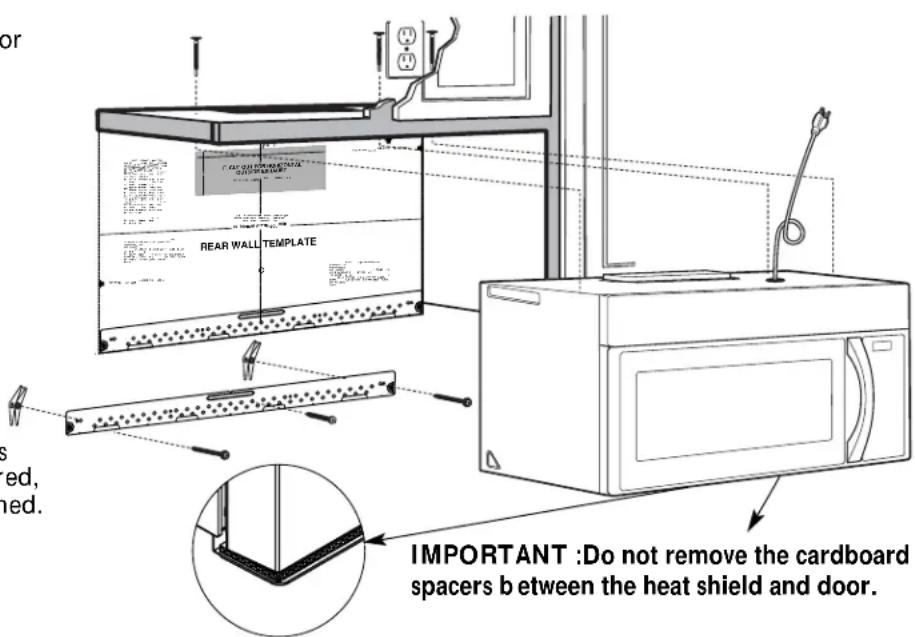

INSTALLATION OVERVIEW

C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Blower Plate
C4. Mount the Microwave Oven
C5. Install or change Charcoal Filter

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

IMPORTANT : Do not remove the cardboard between the heat shield and door. spacers b

C1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

NOTE: If the cabinet depth including the cabinet doors is more than 13" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

Installation Instructions

C2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.

NOTE: Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more than 13".

- Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

C3. CHECK BLOWER PLATE

• Place the microwave in its upright position, with the top of the unit facing up.
• Check to see that the blower plate is correctly installed on the unit.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1-3. Do not pinch cord or lift oven by pulling cord.

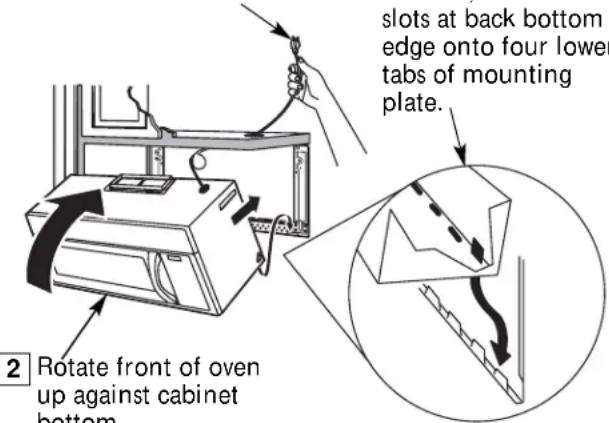

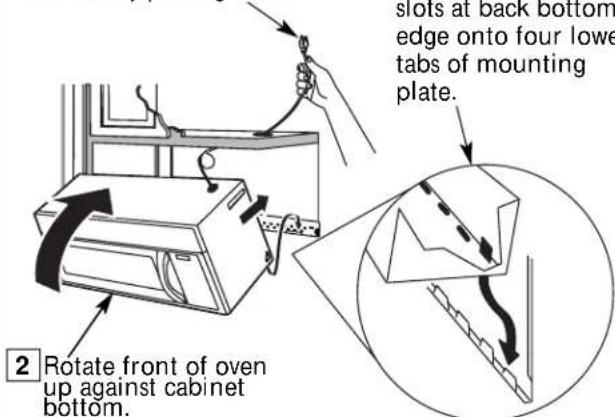

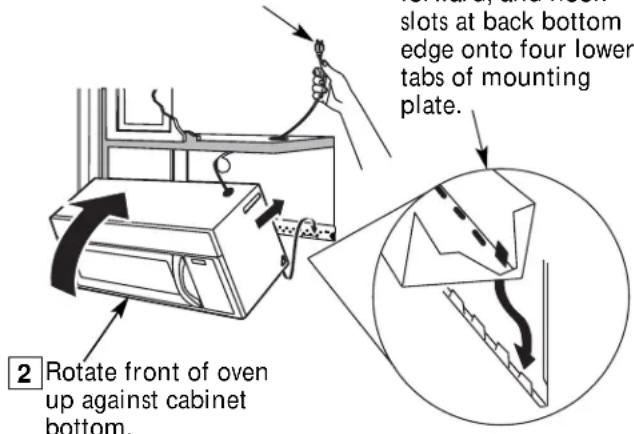

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet. Cabinet Front

4 Attach the microwave oven to the top cabinet.

7 Tightentheoutertwoscrewstothetopofthe microwaveoven.(Whiletighteningscrews,hold themicrowaveoveninplaceagainstthewalland thetopcabinet.)

Simple line drawing of a hand holding a textured rectangular object (no text or symbols)

8 Install grease filters. See the Use and Care packedwiththemicrowave.

C5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models)

NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information.

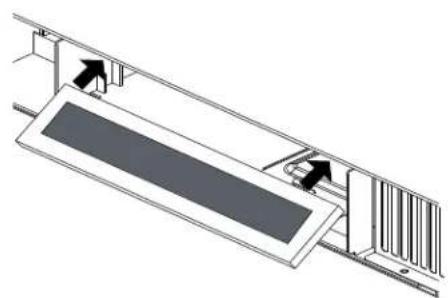

For models without the recirculation filter access door, follow these steps to replace or install a charcoal filter.

1 Unplug microwave oven or disconnect power.

2 Open the microwave door and remove the two vent mounting screws located on top of the microwave using a #1 Phillips screwdriver.

3 Remove the charcoal filter by pushing the top of the filter inwards, then pull it forward out from the unit.

Technical diagram showing two views of a mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols)

4 Slide the top of the new charcoal filter into the top of the filter cavity.

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

5 Press the bottom of charcoal filter to place it into the correct position.

Technical line drawing of a mechanical assembly with no visible text or symbols

6 Reinstall the vent by sliding the bottom of the vent into place. Push the vent top into position and slide right into place. Replace the two vent mounting screws located on top of the microwave using a #1 Phillips screwdriver.

Technical line drawing of a door frame assembly with an inset showing a close-up detail (no text or symbols)

7 Close the microwave door. Plug in microwave oven or reconnect power.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

For models with the recirculation filter access door, follow these steps to replace or install a PureAir® Microwave Filter.

1 Remove the PureAir® Filter from the packaging and shake filter to remove excess carbon.

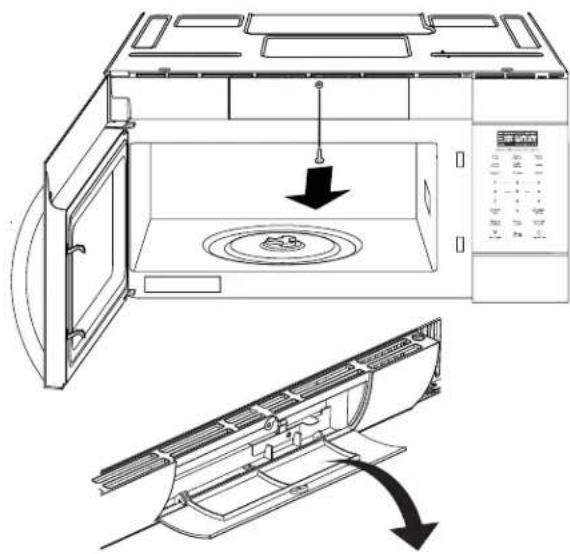

2 Use a Phillips head screwdriver to unscrew the PureAir® Filter access door.
3 Open the filter access door.

4 Remove the existing PureAir® Filter(if installed) by pulling forward out from the unit.

3D diagram of a mechanical component with a black arrow indicating direction, no text or symbols present

5 Place the new PureAir® Filter into the slot behind the door at an angle until it's upright and securely placed in the duct.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved panel and arrow indicating rotation (no text or symbols)

6 Make sure the PureAir® Filter is nested vertically in the slot. Close access door, tighten screw and the PureAir® Filter is ready to use.

1. Make sure the microwave oven has been installed according to instructions.

1. Replace house fuse or turn breaker back on.

Hand placing a button into an electrical outlet panel (no text or symbols visible)

1. Remove all packing material from the microwave oven.

2. Read the VSE CARE

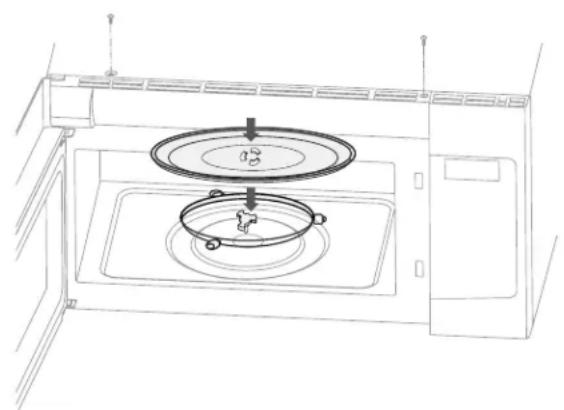

3. Install turntable ring and glas s tray in cavity.

Line drawing of a microwave oven with a circular lid and internal pan (no text or symbols)

USE & CARE MANUAL

1. Plug power cord into a separate and dedicated 15- to 20-amp electrical outlet.

1. KEEP INSTALLATION INSTRUCTIONS FOR THE LOCAL INSPECTOR'S USE.

2. FILL OUT PRODUCT REGISTRATION CARD AN SEND IN.

DDDDDDD DDDDDDD

Line drawing of a microwave oven with lid and front panel, no text or symbols present

VEUILLEZ LIRE ATTENTIVEMENT.

CONSERVEZ CES INSTRUCTIONS.

INDEX:

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

défaut.

C RECYCLAGE D'AIR (ÉVACUATION SANS CONDUIT)

Line drawing of a microwave oven with a label indicating page 20 (no other text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand holding a tool near a window with a door, no text or symbols present

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Simple line drawing of a hand holding a rectangular object with a textured fill (no text or symbols)

A7. CONNEXION AU CONDUIT

Architectural cross-section diagram of a window or shelf assembly with structural elements and lighting fixtures (no text or labels)

Line drawing of a hand using a tool to clean or install a window (no text or symbols)

Illustration showing three scenes: a person carrying a box crossed with a 'X' symbol, another person lying down with a cross symbol, and a third person sitting on the floor with a book (no text or symbols present)

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Simple line drawing of a hand holding a rectangular object with a textured fill (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Line drawing of a hand using a tool to clean or store items on a shelf (no text or symbols visible)

Illustration of three scenes showing people handling boxes and a person assembling a large box, with no visible text or symbols.

POUR VOTRE SÉCURITÉ ET POUR FACILITER / L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Line drawing of a hand holding a grid-patterned rectangular object (no text or symbols)

Technical diagram showing two views of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door frame assembly with an inset showing a close-up detail (no text or symbols)

3D diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand placing an electrical outlet into a grid (no text or symbols)

2.

Line drawing of a microwave oven with a circular lid and fan (no text or symbols)

1. CONSERVEZ LES INSTRUCTIONS D'INSTALLATION POUR VOTRE INSPECTEUR LOCAL.


Line drawing of a microwave oven mounted on a shelf, no text or symbols present

LEA CUIDADOSAMENTE.

CONSERVE ESTAS INSTRUCCIONES.

CONTENIDO

Información general

Illustration of a hand holding a control panel with wires, no text or symbols present

Three technical line drawings of electrical components: a motor, a plug, and a hook (no text or symbols)

Line drawing of a microwave oven with a paper airplane, no text or symbols present

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Line drawing of a hand using a tool to clean or install a window (no text or symbols present)

Three-panel line drawing showing a person carrying a box and another holding a document, with no visible text or symbols.

Line drawing of a hand holding a rectangular device with a textured screen (no text or symbols)

Technical diagram of a structural assembly with beams and supports, showing no text or symbols

Technical line drawing of two rectangular electronic components with internal circuitry and mounting brackets (no text or symbols)

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Three-panel line drawing showing a person carrying a box, another person holding a tablet, and a third person reading a book (no text or symbols present)

Simple line drawing of a hand holding a rectangular object with a textured fill (no text or symbols)

Architectural cross-section diagram showing structural layers and floor connections (no text or labels)

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

Illustration showing three scenes of a person handling a box, another with crossed-out arms, and a third holding a box (no text or symbols present)

Line drawing of a hand holding a grid-patterned device (no text or symbols)

Technical diagram showing two views of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door frame assembly with an inset showing a close-up detail (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Technical line drawing of a mechanical component with ribbed and housing (no text or symbols)

Technical line drawing of a mechanical component with a curved base and internal structure (no text or symbols)

Hand placing a button into an electrical outlet box (no text or symbols visible)

Line drawing of a microwave oven with a circular lid and internal pan (no text or symbols)
