Product Type	Solo Microwave with Grill and Convection
Brand	Grunkel
Model	MWGC-30SS
Capacity	30 liters (approximate)
Power Supply	230V ~ 50Hz
Microwave Power	900 W
Grill Power	1100 W (typical for this class)
Convection Power	1400 W (typical)
Display	LED digital display
Control Type	Touch buttons and rotary knob
Door Opening	Side opening with safety interlock
Turntable	Glass turntable with rotating ring
Functions	Microwave, Grill, Convection, Combination (Microwave+Grill, Microwave+Convection), Weight Defrost, Auto Cook, Quick Start, Multi-stage Cooking, Preset Timer, Child Lock
Power Levels	6 levels (100%, 80%, 60%, 40%, 20%, 0%)
Clock	12 or 24 hour format
Cleaning & Maintenance	Wipe interior with damp cloth; mild detergent for stubborn stains; clean turntable and roller ring in warm soapy water; do not use abrasive cleaners or steam cleaner
Safety Features	Child lock, door interlocks, overheat protection, automatic shut-off
Spare Parts	Glass turntable, roller ring, mica plate (waveguide cover), oven light (bulb replaced by service)
Repairability	All repairs and adjustments to be done by qualified personnel; do not attempt self-repair
Installation	Freestanding only; do not install over a range or other heat source; minimum clearances: 10 cm rear, 5 cm sides, 20 cm above
Dimensions (approx.)	51 x 42 x 31 cm (WxDxH) typical for 30L
Weight (approx.)	15 kg
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - MWGC-30SS Grunkel

How do I set the clock on my Grunkel MWGC-30SS?

In standby mode, press PROGRAM/CLOCK once for 12-hour or twice for 24-hour format. Then turn the MENU/TIME knob to set the hour, press PROGRAM/CLOCK, then set the minute and press again to confirm.

Can I use metal containers in the microwave?

No, never use metal containers or aluminum foil in microwave-only or combination modes as they can cause sparks. Metal is only safe for the grill function (e.g., metal tray or grid).

How do I use the Quick Start function?

Press START/QUICK START repeatedly to set cooking time at 100% power. Each press adds 30 seconds up to 10 minutes. The microwave starts immediately.

What does the 'E01' error code mean?

E01 indicates overheating. The oven may have been operated empty or ventilation is blocked. Allow it to cool, then press PAUSE/CANCEL to clear. Ensure proper airflow.

How do I activate the child lock?

In standby mode, press and hold PAUSE/CANCEL for 3 seconds until you hear a beep and the padlock icon appears. To unlock, repeat the same process.

Can I defrost food by weight?

Yes. Turn the MENU/TIME knob counterclockwise to select AUTO mode (display shows 'AUTO' and 'A-9'). Press START/QUICK START, then set the weight (100g to 1800g) and press start. The oven will pause to remind you to turn food.

How do I clean the microwave interior?

Unplug the microwave. Wipe interior with a damp cloth. For stubborn stains, use mild detergent. Avoid harsh cleaners. Remove odors by heating water with lemon juice for 5 minutes. Clean the turntable and roller ring regularly.

What is the difference between Co-1 and Co-2 combination modes?

Co-1 uses 30% microwave and 70% grill – ideal for fish, potatoes, gratin. Co-2 uses 55% microwave and 45% grill – good for puddings, omelettes, chicken.

Why does the fan run after cooking?

The fan runs automatically for 3 minutes after any cooking cycle longer than 2 minutes to cool the cavity and prolong the oven's life. This is normal.

How do I preheat for convection cooking?

Press CONVECTION repeatedly to select temperature, then press START/QUICK START. The oven will beep when preheated (default 30 minutes). Open the door, place food, set cooking time, and press start.

USER MANUAL MWGC-30SS Grunkel

Exterior view of a modern microwave oven with control panel and digital display (no visible text or symbols on main body)

A couple smiling while looking at a document together, with cardboard boxes in the background (no visible text or symbols)

Modern flat-screen TV displaying multiple glossy blue circular objects against a white background, set against a red and white background (no text or symbols visible)

Modern kitchen blender with black handle and blue control knob against purple background (no text or symbols)

White microwave oven with control knobs and a screen, set against an orange background (no text or symbols visible)

White portable electric heater with mesh insulation and wheels, shown against a solid brown background (no text or symbols visible)

Black octop oven with control knobs and a clear glass interior, set against an orange background (no text or symbols visible)

Exterior view of a gray vacuum cleaner with orange internal components (no text or symbols visible)

White portable toaster with a black handle and control knob, set against a solid purple background (no text or symbols visible)

Close-up of a white and black blender with green juice being placed, against a solid purple background (no text or symbols visible)

Metallic coffee maker with black handle against a solid yellow background (no text or symbols visible)

Exterior view of a modern office floor fan with black and white blades against a blue background (no text or symbols visible)

Digital kitchen scale with a digital display showing 650, set against a solid pink background (no text or symbols on the scale itself)

Blue and white steam iron on a green background (no text or symbols visible)

White kitchen grater with black handles and handle, set against a solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

This instruction manual is an accurate reproduction of the specifications, operation and look of the product you have just bought, except for typographical, print or translation errors. The specifications, operation and features of this product are subject to change without further notice.

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:
   a. Door (bent).
   b. Hinges and latches (broken or loosened).
   c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Important safety instructions

When using electrical appliance basic safety precautions should be followed, including the following: WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance and keep for future reference.
2. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

2. To reduce the risk of fire in the oven cavity:

3. When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.

4. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
6. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
7. The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

grunkel

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

1. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. The microwave oven is only used in freestanding.

1. WARNING: Do not install oven over a range cook top or other heat-producing appliance. If installed could be damaged and the warranty would be avoid.

2. The microwave oven shall not be placed in a cabinet.

3. The door or the outer surface may get hot when the appliance is operating.

1. Warning: Accessible parts may become hot during use. Young children should be kept away.

2. During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the oven, for cooking ranged and ovens.

3. The temperature of accessible surfaces may be high when the appliance is operating.
4. The appliance shall be placed against a wall.
5. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

1. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

2. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

3. The microwave oven is for household use only and not for commercial use.

4. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.

5. Please secure the turn table before you move the appliance to avoid damages.

6. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

7. The microwave oven is intended for defrosting, cooking and steaming of food only.

8. Use gloves if you remove any heated food.

9. Caution! Steam will escape, when opening lids or wrapping foil.

10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

11. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

CAUTION

Hot surface

Installation

Remove all packaging. If there is a security film on the microwave, remove it before use. Carefully check that the appliance is in mint condition. Otherwise please contact your distributor or send it to the Official Technical Service.

The microwave must be placed in dry environments far from humidity and heat.

To ensure proper ventilation, a distance of at least 10cm must be kept between the back side of the microwave and the wall; at least 5cm between each side and the nearest wall; and and at least 20cm above. It must be installed at least 85cm above the floor.

Do not put the microwave near other electrical appliances, such as TV or radios, since it could affect the normal operation of the microwave.

You should take care of keeping the power cord and the electrical outlet accessible when installing the microwave, so it is easier to plug or unplug it.

The microwave must always be used with the door closed.

The microwave should not be installed inside a wardrobe or embedded in any way.

The back side of the microwave must be placed against the wall.

During its first use, there is a chance the microwave releases some odour or even smoke, since manufacturing residues or oily particles could have accumulated inside. This is normal. It is recommended to heat a cup of water at high power until it disappears. Once each cycle is finished, keep the door open for a few minutes to enable proper ventilation inside. Never use the microwave if it is empty.

Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING! Improper use of the grounding plug can result in a risk of electric shock.

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

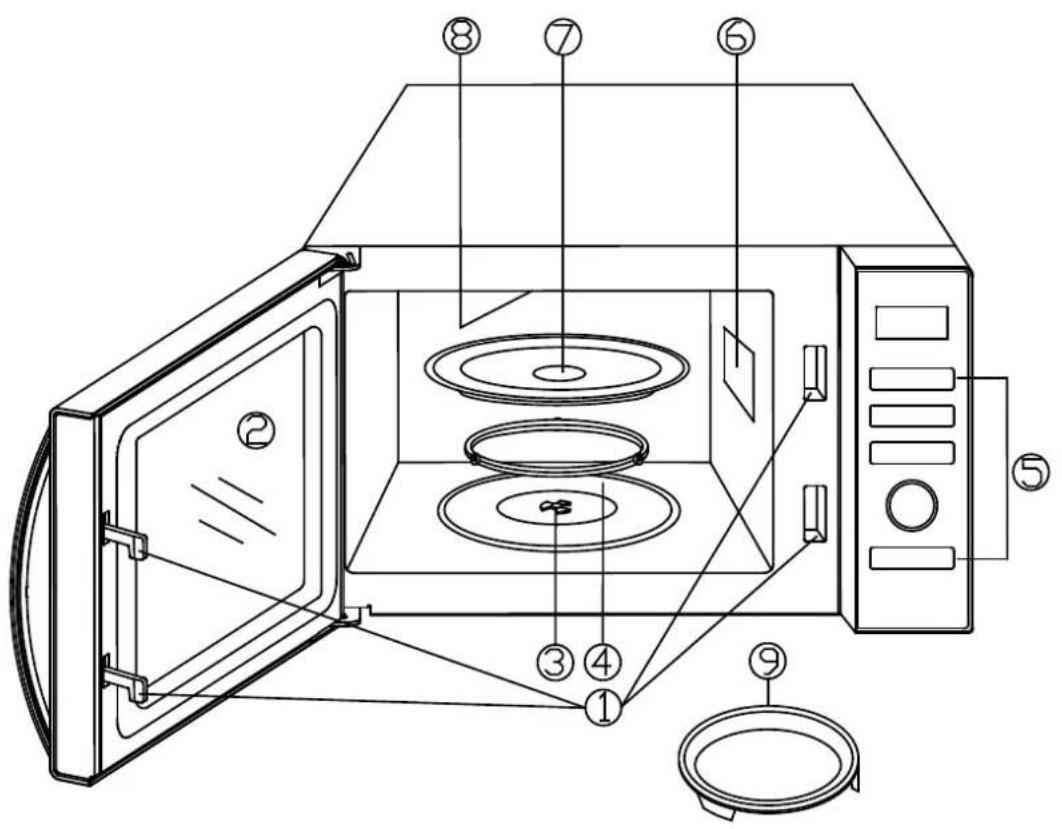

Part identification

1. Door security locking system
2. Microwave window
3. Shaft
4. Rotating ring
5. Control panel
6. Waveguide (please do not remove the mica plate covering the waveguide).
7. Glass base
8. Grill
9. Bandeja

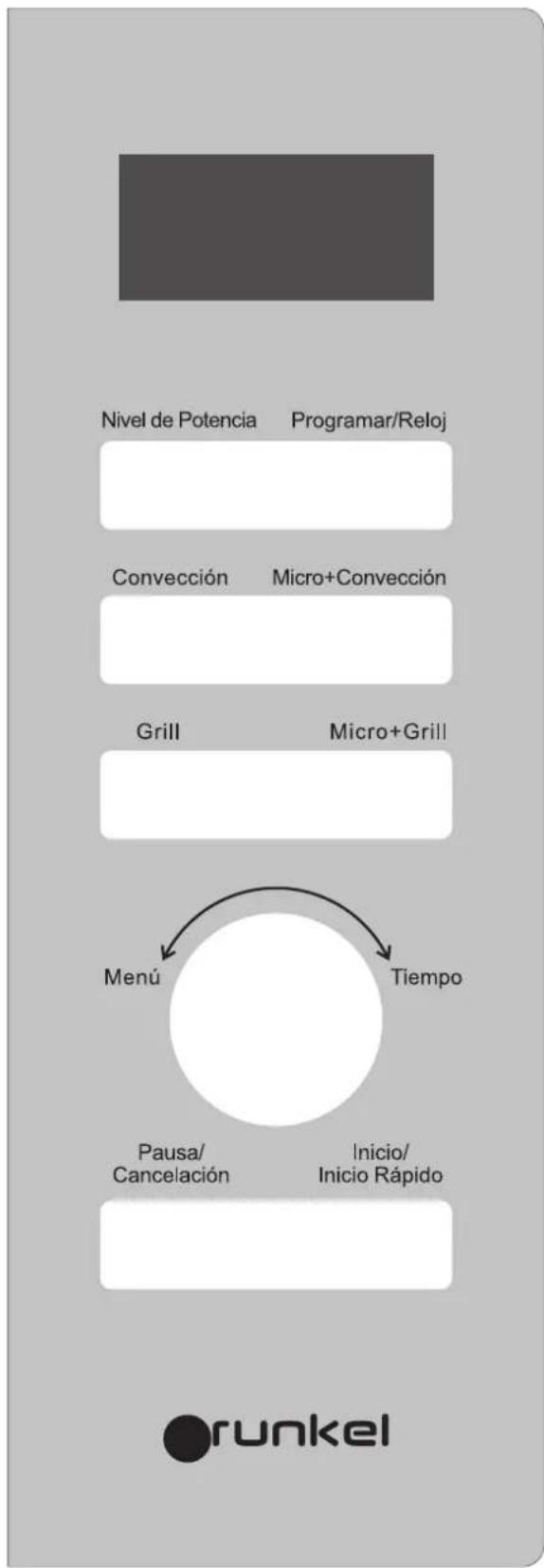

Control panel

MENU DISPLAY

Displays cooking time, power, food weight and other indicators.

POTENCIA

Use this button to set the cooking power level.

PROGRAMAR / RELOJ

Use this button to set the microwave clock and to set the programmed start.

CONVECCIÓN

Press to activate convection.

MICRO + CONVECCIÓN

Press to activate the combined microwave + convection mode.

GRILL

Press to set the grill cooking mode.

GRILL + MICRO

Press this button to set the combined microwave + grill cooking mode.

TIEMPO / MENÚ

Turn the knob to set the time, food weight or cooking programme.

Press to start a cooking programme. Press repeatedly to set the cooking time at maximum power.

PAUSA / CANCELACIÓN

Press once to temporarily pause cooking, or twice to cancel cooking.

It is also used to set the parental control.

Operation

When the microwave is connected to the mains for the first time, it beeps and shows "1:00" on the display.

During the setting process, the microwave will go to standby mode after 20 seconds inactive.

During cooking, press PAUSE / CANCEL to pause the programme, then press START / QUICK START to resume the programme. Pressing PAUSE / CANCEL twice will cancel the programme.

Once cooking is complete, the display will show the text "END" and will beep every two minutes until you press any button or open the microwave door.

The microwave fan will automatically run for 3 minutes after each cooking time longer than 2 minutes. This will cool the microwave cavity to prolong the life of the microwave.

SETTING THE TIME

The display can show the time in 12 or 24 hour format by pressing the MENU / TIME button.

1. In standby mode, press PROGRAM / CLOCK once or twice to set the time format to 12 or 24 hours. 2.
   Turn the MENU/TIME knob to set the hour digit.
2. Press PROGRAM / CLOCK once.
   Turn the MENU / TIME knob to set the minute digit. 5.
3. Press PROGRAM / CLOCK to confirm.

You can check the time during cooking by pressing the PROGRAM / CLOCK button.

QUICK START

Use this function to program cooking at 100% power. In standby mode, press START / QUICK START several times to set the cooking time (each press increases the time by 30 seconds up to a maximum of 10 minutes). The microwave will start to operate at full power.

QUICK START

Press the POWER LEVEL button several times to set the power level. 2.

1. Turn the MENU / TIME knob to set the cooking time. The maximum time is 95 minutes.
2. Press START / QUICK START to confirm.

NOTE: During cooking you can check the power level by pressing the POWER LEVEL button.

Press Power Description
Once 100%	High
Twice 80%	Medium - High
3 times 60%	Medium
4 times 40%	Medium - Low
5 times 20%	Defrost
6 times 0%	Low

WEIGHT DEFROST

The defrosting time and power are automatically set once the weight of the food is indicated. The supported weight range is from 100g to 1800g.

1. In standby mode, turn the MENU / TIME knob counterclockwise until the display shows "AUTO" and "A-9".
2. Turn the START / QUICK START knob once.
3. Turn the MENU / TIME knob to set the weight of the food.
4. Press START / QUICK START to confirm

NOTE: During defrosting, operation will stop to remind you to turn the food over. Once the food has been turned, press START / QUICK START to continue.

GRILL

The grill function is useful for thinly sliced meat, kebabs, sausages or cut-up chicken. It can also be used for sandwiches or grilled dishes.

1. In standby mode, press the GRILL button once.
2. Turn the MENU / TIME knob to set the cooking time. The maximum time is 95 minutes.
3. Press the START / QUICK START button to confirm.

COMBINATION

Combination 1: 30% of cooking time in microwave mode, 70% of cooking time in grill mode. Useful for fish, potatoes or gratin dishes.

Combination 2: 55% of the cooking time in microwave mode, 45% of the cooking time in grill mode. Useful for puddings, omelettes, boiled potatoes or chicken.

1. In standby mode press MICRO+GRILL once or twice to select "Co-1" or "Co-2". 2.
2. Turn the MENU / TIME knob to set the cooking time. The maximum time is 95 minutes.
3. Press the START / QUICK START button to confirm.

CONVECTION

With convection mode, hot air circulates inside the cavity to brown and crisp food quickly and evenly. Ten different temperature levels can be set:

200°C | 190°C | 180°C | 170°C | 160°C | 150°C | 140°C | 130°C | 120°C | 110°C

Convection cooking

1. In standby mode, press CONVECTION several times to select the temperature.
2. Turn the MENU / TIME knob to set the cooking time. The maximum time is 95 minutes.
3. Press the START / QUICK START button to confirm.

NOTE: During cooking you can check the convection temperature by pressing the CON-VECTION button.

Preheat and convection cooking

You can program the microwave to combine the preheating and convection cooking functions.

1. In standby mode, press CONVECTION several times to select the temperature.
2. Press the START / QUICK START button to confirm. The microwave will beep to indicate that the desired temperature has been reached.
3. Open the door and insert the container with the food into the centre of the cavity.
4. Turn the MENU / TIME knob to set the cooking time. The maximum time is 95 minutes.
5. Press the START / QUICK START button to confirm.

NOTE: The default preheating time is 30 minutes. When the microwave reaches the preheating temperature, it will beep every 5 minutes. If you do not open the door within 30 minutes the programme will end automatically.

MICROWAVE + CONVECTION

The microwave has four predefined settings to facilitate microwave and convection cooking automatically. Press the MICRO+CONVECTION button several times to display the temperature (200°C | 170°C | 140°C | 110°C).

1. In standby mode, press MICRO+CONVECTION several times to select the temperature
2. Turn the MENU / TIME knob to set the cooking time. The maximum time is 95 minutes
3. Press the START / QUICK START button to confirm.

NOTE: During cooking, you can check the power level by pressing the MICRO + CON-VECTION button.

MULTISTAGE COOKING

You can program the microwave to perform up to 3 cooking sequences. Suppose you want to carry out the following sequence: Microwave cooking > Grill cooking.

1. Enter the microwave cooking programme. Do not press the START / QUICK START button.
2. Enter the grill cooking programme.
3. Press START / QUICK START to start.

NOTE: The defrost by weight, quick start and automatic menus functions cannot be used in multi-sequence cooking.

PREADJUST

The preset function allows the microwave to be programmed to start at a later date.

1. In standby mode, enter a cooking programme (except quick start or defrost by weight).
2. Press PROGRAM / CLOCK once.
3. Turn the MENU / TIME knob to set the hour digit.
4. Press PROGRAM / CLOCK once.
5. Turn the MENU/TIME knob to set the minute digit.
6. Press PROGRAM / CLOCK to confirm.

NOTE: Once you have set the function, you can check the preset time by pressing the PROGRAM / CLOCK button. If you press PAUSE / CANCEL when the display shows the time, the function will be cancelled.

CHILD LOCK

The child lock function prevents unsupervised use by children.

In standby mode, press and hold the PAUSE / CANCEL button for three seconds until the microwave emits a sound. The child lock function will be activated and the padlock icon will light up. In this mode all microwave controls are disabled.

To cancel, press and hold the PAUSE / CANCEL button for three seconds until the microwave beeps. The lock icon will turn off.

ERROR MESSAGES

Overheating. The display shows "E01" and sound is emitted. When the problem is resolved, press PAUSE / CANCEL to return to standby mode.

Low temperature. The display shows "E02" and sound is emitted. When the problem is resolved, press PAUSE / CANCEL to return to standby mode.

Sensor malfunction. The display shows "E03" and sound is emitted. When the problem is resolved, press PAUSE / CANCEL to return to standby mode.

AUTOCOOKING

For the following modes it is not necessary to set the power or cooking time. It is sufficient to indicate the type of food you wish to cook as well as the weight or portions.

1. In standby mode, turn the MENU/TIME knob anticlockwise to select the corresponding code.
2. Press START / QUICK START once.
3. Turn the MENU/TIME knob to select the weight or servings.
4. Press the START / QUICK START button to begin.

Cod.	Program Description
A-1	Beverage (200ml/cup, 1-3 cups) For Grilled Chicken, during cooking, the oven will pause to remind you to turn food over, after that, press START/QUICK START to resume. The result of auto cook depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
A-2	Spaghetti (100g, 200g, 300g)
A-3	Rice (150-600g)
A-4	Reheat (200-800g)
A-5	Potato (230g/serving, 1-3 servings)
A-6	Pizza (150g, 300g, 450g)
A-7	Ple (475g)
A-8	Roast chicken (800-1400g)

Utensils guide

It is strongly recommended to use containers that are suitable and suitable for microwave cooking. As a general rule, containers made of heat-resistant ceramic, glass and plastic are suitable for microwave cooking. Never use metal containers for microwave cooking or in combination programmes, as sparks are likely to occur. You can use the table below as a reference.

Material	Micro.	Grill	Combi
Heat-resistant glass	Yes	Yes	Yes
Non-heat resistant glass No	No	No
Heat-resistant ceramic	Yes	Yes	Yes
Microwave-safe plastic plate	Yes	No	No
Cooking paper	Yes	No	No
Metal tray	No	Yes	No
Metal grid	No	Yes	No
Aluminium foil	No	Yes	No

Microwave cooking principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Cleaning and care

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. A steam cleaner is not be used.

6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.

8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

11. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

12. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.

13. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

Before calling for service

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

230V \~50Hz / 900W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
