USER MANUAL Century 1500 ALPHASON

Technical line drawing of a mechanical assembly with mounting feet and a curved base (no text or symbols)

PLACE LABEL

Q14175-SK

HERE

0845 130 6686

[e-mail]

www.armourhome.co.uk

Armour Home Electronics, Units 7 & 8, Stortford Hall Industrial Park, Dunmow Road, Bishops Stortford, Hertfordshire, UK, CM23 5GZ

Thank you for purchasing this Century TV Cabinet. Please inspect all parts prior to assembly and contact us if there are any damaged or missing components. This must be done before attempting assembly.

Pre-assembly preparation

Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product.

This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.

This product takes approximately 40 MINUTES to assemble with 1 PERSON.

The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.

Read this leaflet in full before commencing assembly to ensure safe and satisfactory operation of this product.

Safety Instructions

Never drag furniture when moving it, always lift it.

Periodically check all fixings to ensure none have come loose and re-tighten where necessary.

Please take care when handling or moving the furniture as careless handling may cause damage or injury.

Furniture can be dangerous if incorrectly installed. Assembly should be carried out by a competent person. No liability will be accepted for damage or injury caused by incorrectly installed or assembled furniture.

It is recommended that before moving heavy objects to a new location they are completely dis-assembled to avoid personal injury or damage to the furniture. Please be careful to retain all fittings when doing this.

Care Instructions

Do not place hot or cold items against or in close proximity to any surface on this product

When cleaning glass or high gloss panels use a damp cloth or leather with washing up liquid or soft soap if necessary; do not use washing powders or other substances containing abrasives as these may scratch the glass. Dry with a soft cloth.

In order to maintain a high quality finish, when cleaning metal, painted or wooden parts please use a soft cloth with a suitable furniture polish if required.

WARNING :

Do not sit or stand on this product.

Do not attempt to move this product whilst loaded with equipment.

DO NOT OVERTIGHTEN ANY PART OF THIS ASSEMBLY

Please Note: Total maximum load for unit should not exceed 100Kg. This product must be assembled in accordance with these assembly instructions. Maximum load for top shelf is 50kg.

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

ARMOUR HOME ACCEPTS NO LIABILITY FOR ANY DAMAGE CAUSED THROUGH INCORRECT OR INAPPROPRIATE USE OF THIS PRODUCT.

M8 x 22mm M8 x 370mm

Technical line drawing of a cylindrical mechanical part with a flange and central hole (no text or symbols)

A
x6

Simple line drawing of a long, straight rod with black ends (no text or symbols)

B
x6

Simple line drawing of a right-angle pipe fitting (no text or symbols)

C

1

Isometric line drawing of a rectangular electronic component with a central hole and mounting holes (no text or symbols)

4
x2

2

Isometric line drawing of a rectangular electronic component with two circular holes (no text or symbols)

5

Simple line drawing of a curved rectangular object with four corner holes (no text or symbols)

3
x2

Isometric line drawing of a rectangular prism with two circular holes at the base (no text or symbols)

6

Simple line drawing of a curved rectangular shape with two small dots on its sides (no text or symbols)

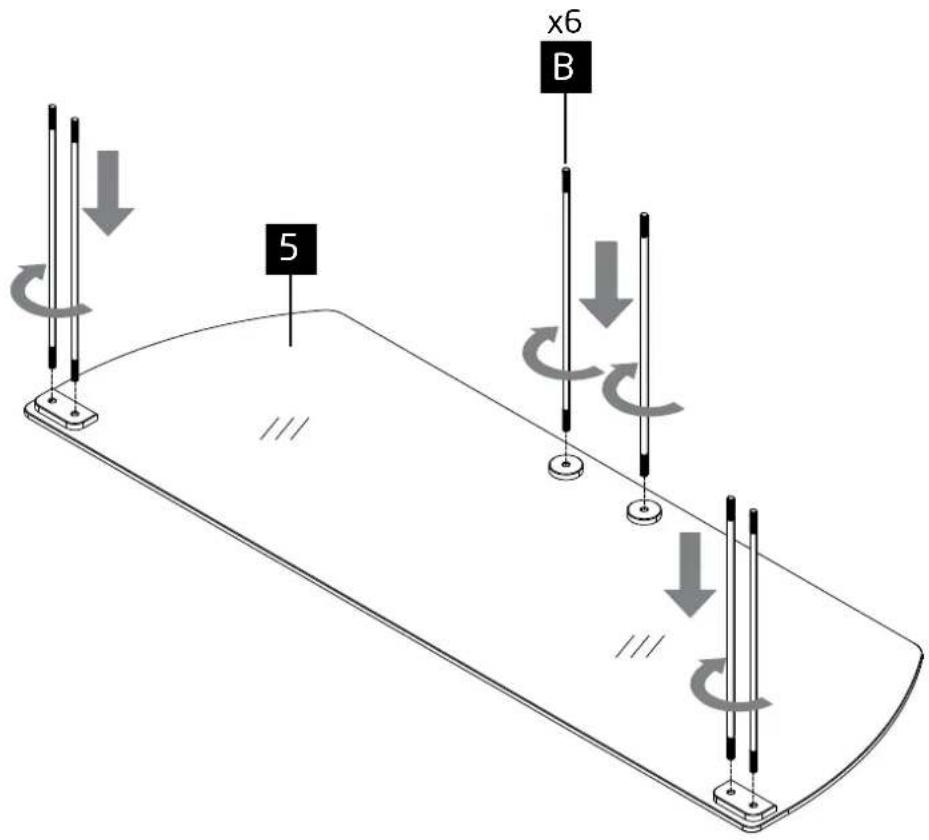

1

x6 B 5

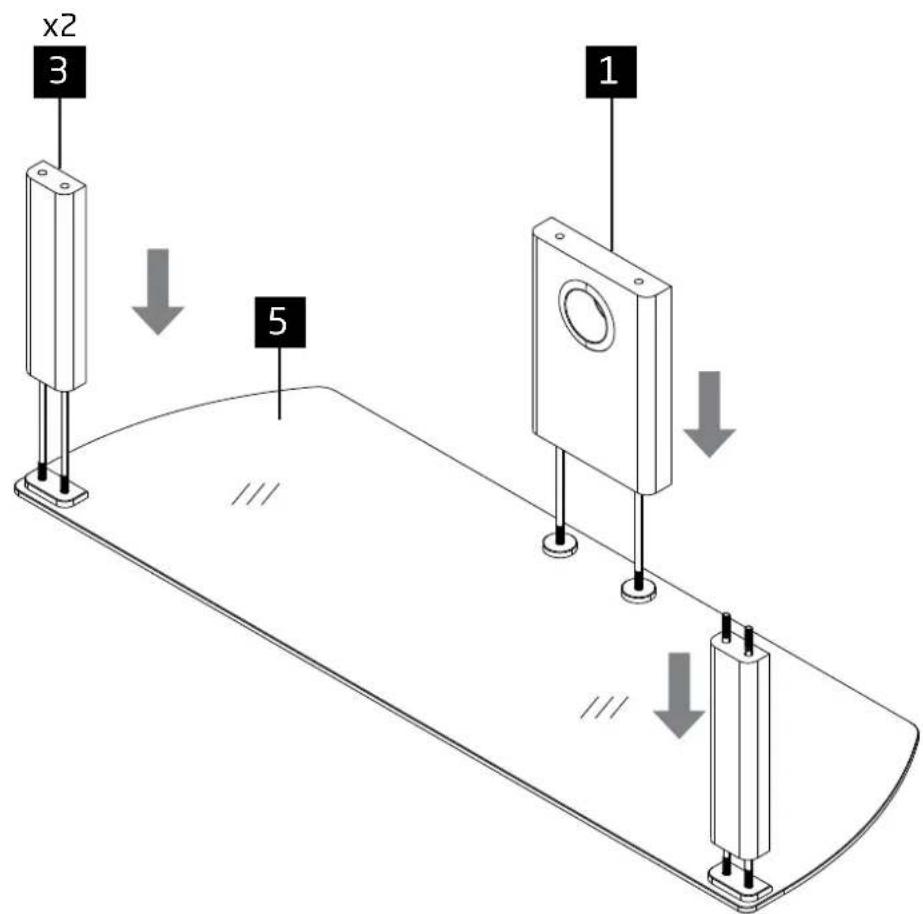

2

x2 3 5 1

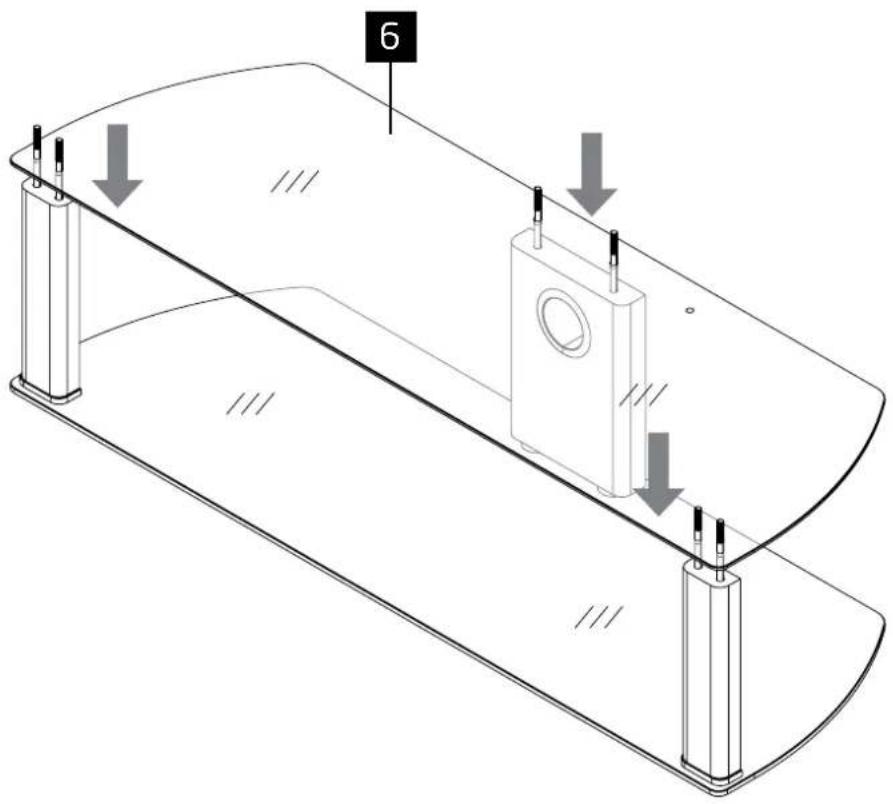

3

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

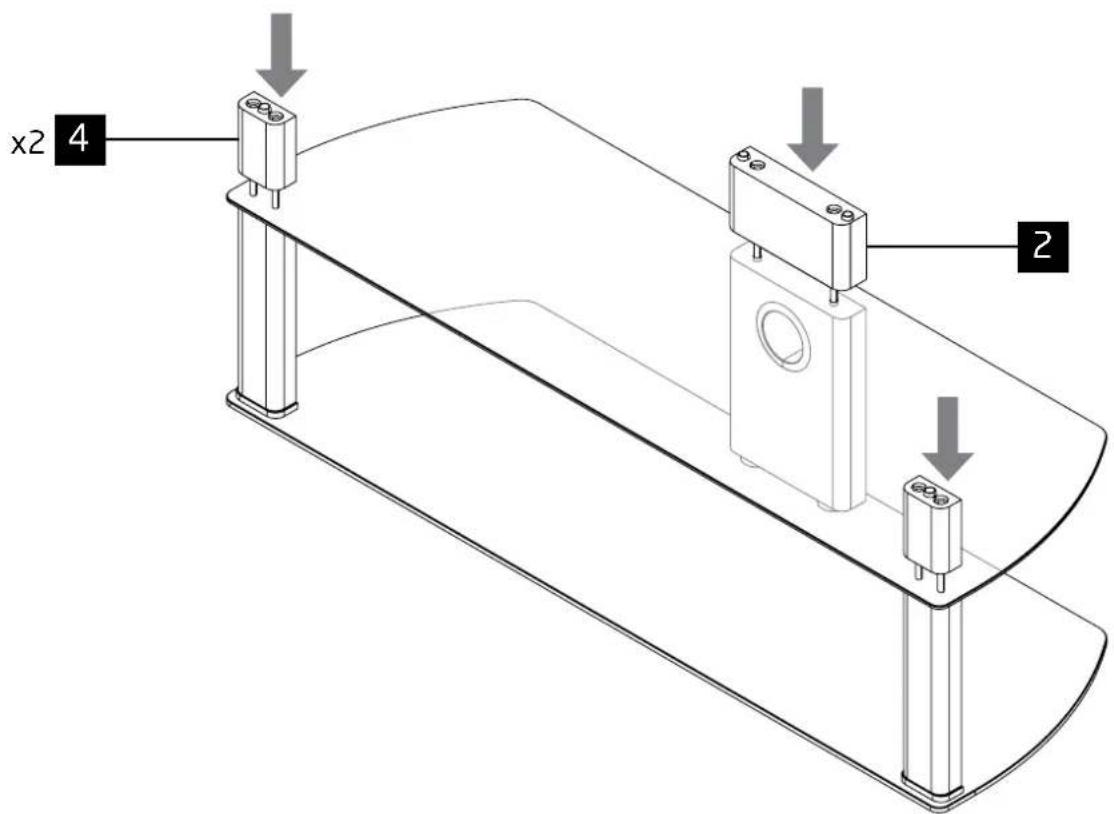

4

x2 4 2

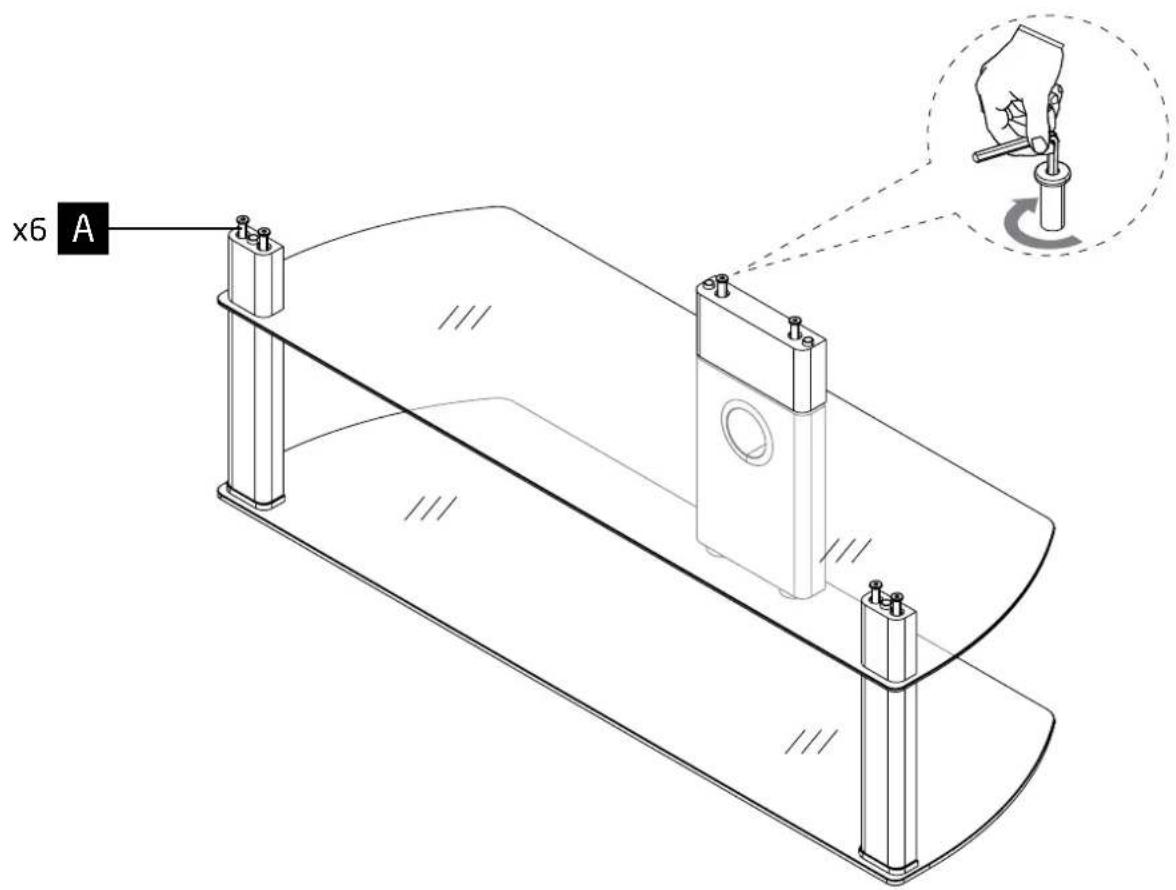

5

x6 A

alphason
