USER MANUAL Osmium ALPHASON

IMPORTANT INFORMATION!

1) Before starting assembly please take time to familiarise yourself with the instructions and the components listed in this manual, as this product could be unstable if incorrectly assembled.
2) Do not place hot or cold items against or in close proximity to any surface on this product
3) Do not strike any glass with hard or pointed items.
4) When cleaning glass or high gloss panels use a damp cloth or leather with washing up liquid or soft soap if necessary; do not use washing powders or other substances containing abrasives as these may scratch the glass. Dry with a soft cloth.
5) In order to maintain a high quality finish, when cleaning metal, painted or wooden parts please use a soft cloth with a suitable furniture polish if required.

6) Do not sit or stand on this product.
7) Do not attempt to move this product whilst loaded with equipment.
8) DO NOT OVERLIGHTEN ANY PART OF THIS ASSEMBLY

Please Note: Total maximum load for this product should not exceed 80Kg. This product must be assembled in accordance with these assembly instructions. Maximum load for top shelf is 15Kg. Maximum load for other shelf/shelves is 25Kg. Maximum load for the bracket 40Kg

Armour Home accepts no liability for any damage caused through incorrect or inappropriate use of this product.

FR

INFORMATIONS IMPORTANTES!

INFORMAÇÉS IMPORTANTES!

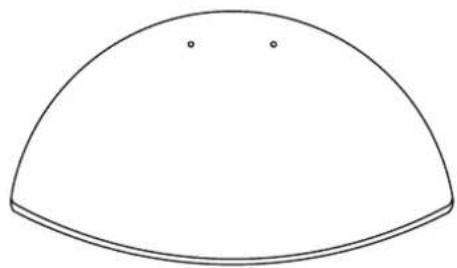

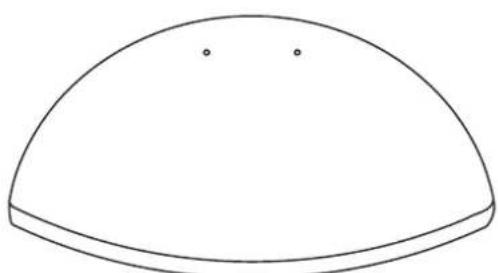

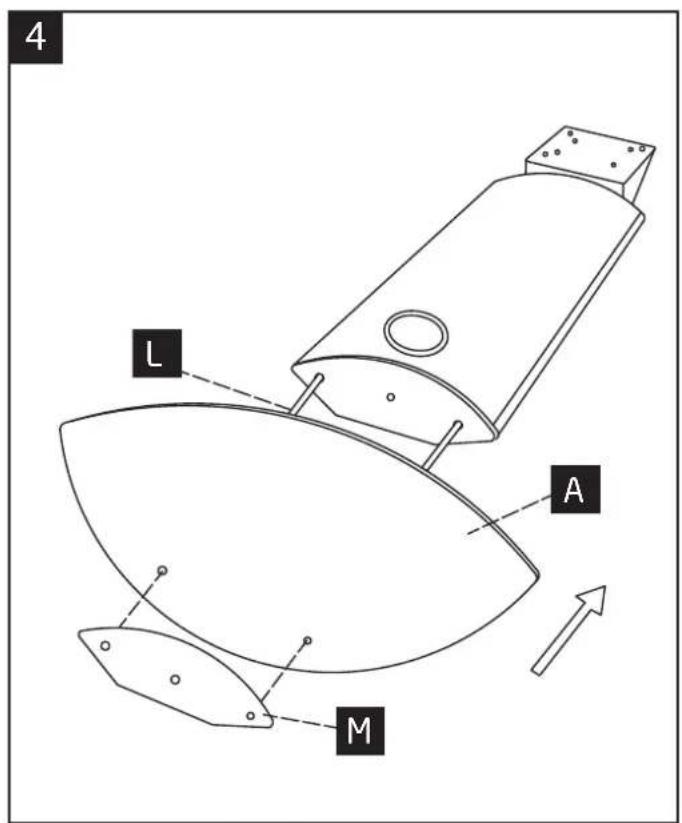

Top shelf Base glass shelf

C

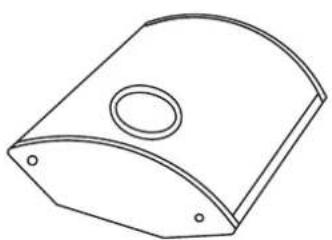

Base panel Swivel Assembly

E

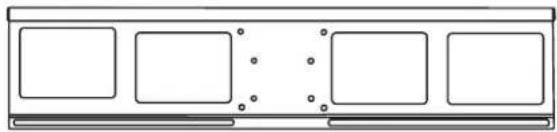

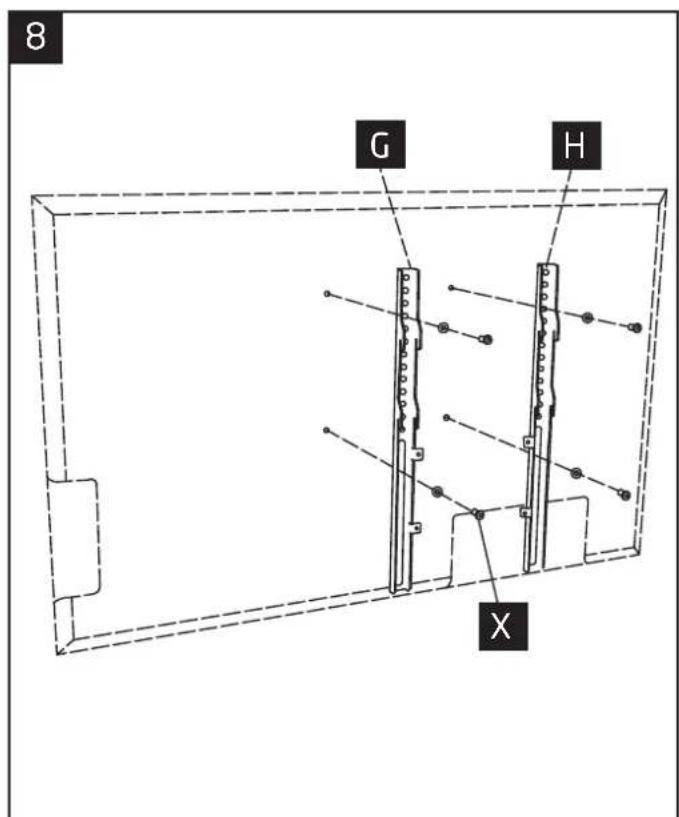

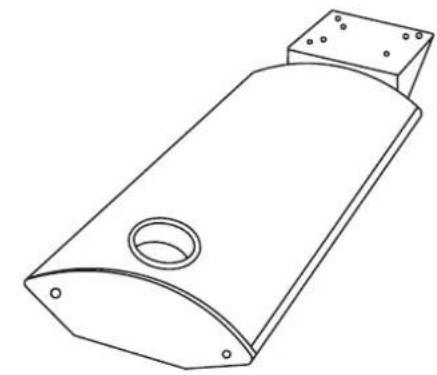

Bottom part Bracket plate

G

Right bracket arm

B

D

F

H

Left bracket arm

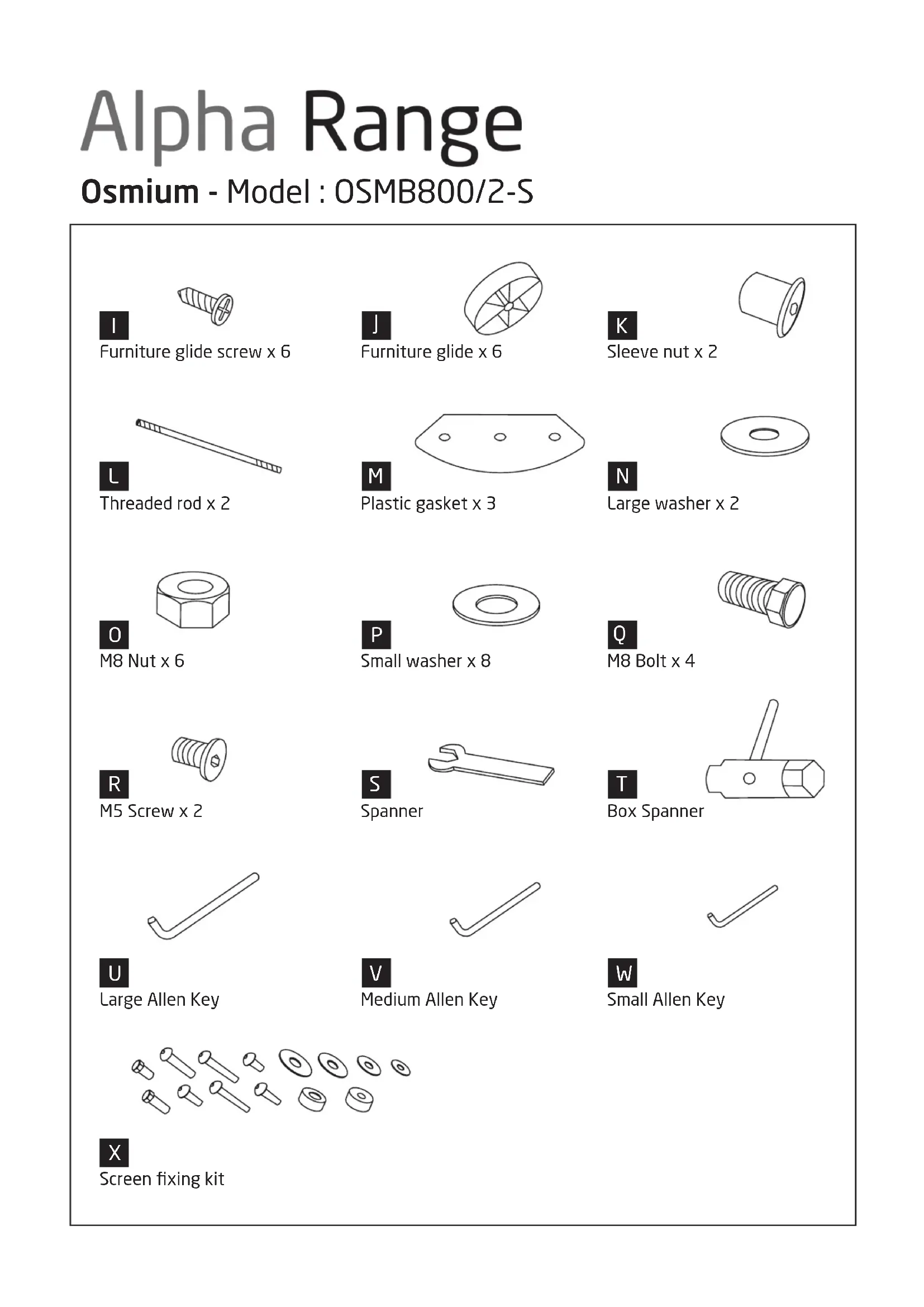

Alpha Range

Osmium - Model : OSMB800/2-S

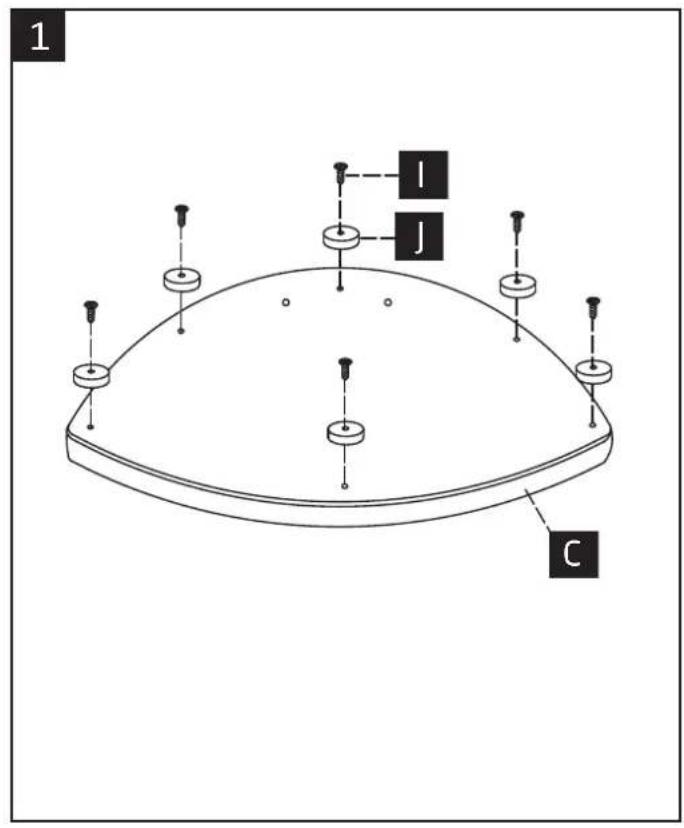

Furniture glide screw x 6

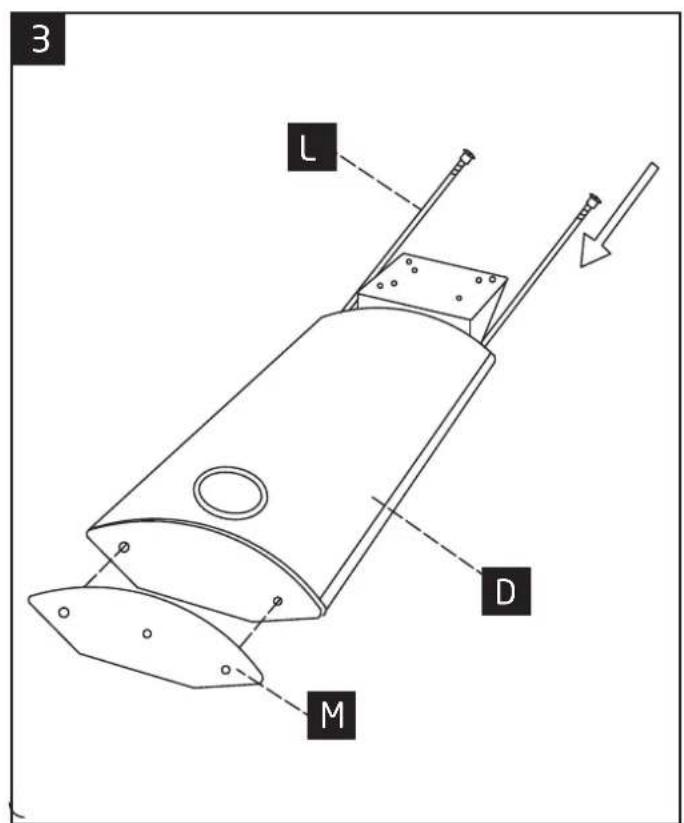

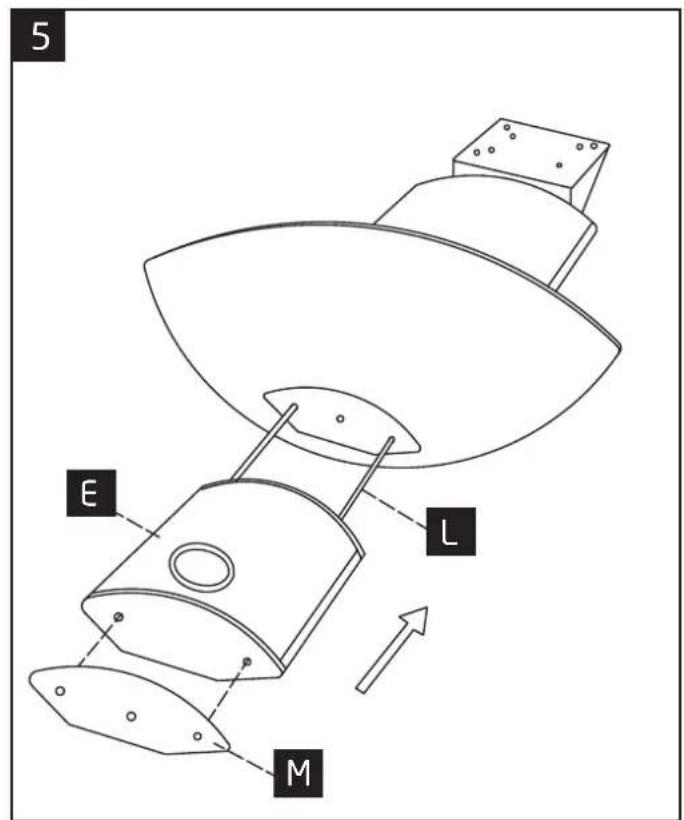

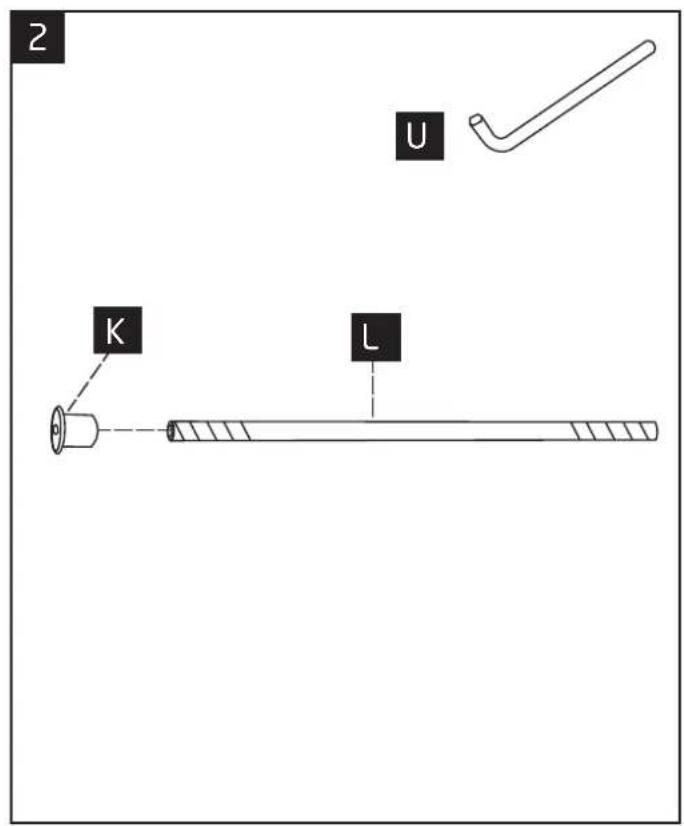

Threaded rod x 2

M8 Nutx6

M5 Screw x 2

Large Allen Key

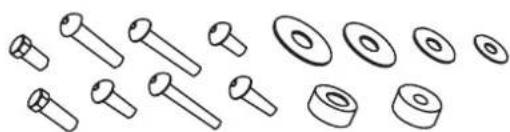

Screen fixing kit

Furniture glide x 6

Plastic gasket x 3

Small washer x 8

Spanner

Medium Allen Key

Sleeve nut x 2

Large washer x 2

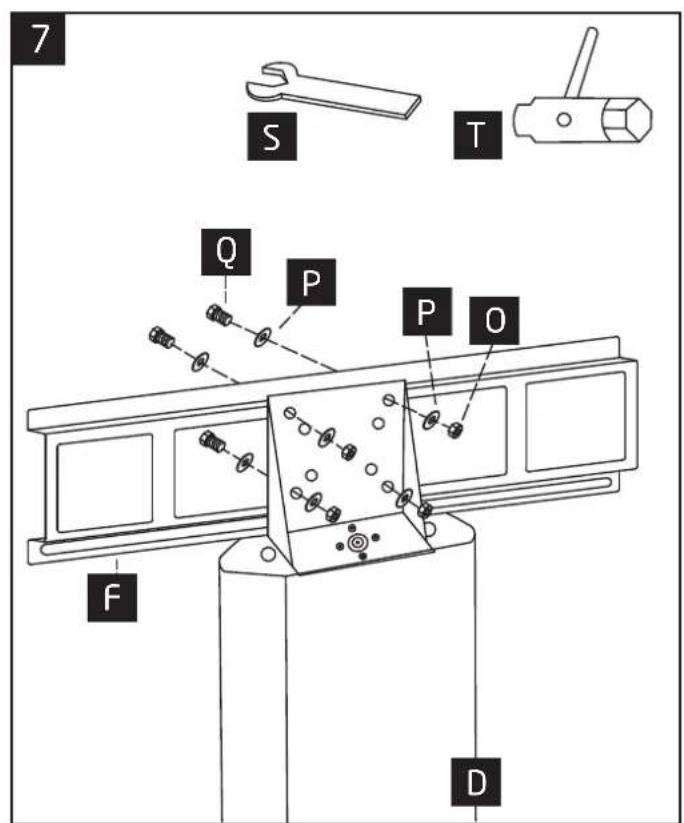

M8 Bolt x 4

Box Spanner

Small Allen Key

Alpha Range

Osmium - Model : OSMB800/2-S

Alpha Range

Osmium - Model : OSMB800/2-S

Alpha Range

Osmium - Model : OSMB800/2-S
