Chromium 2 1200 - TV Stand ALPHASON - Free user manual and instructions

Product Type	TV Stand
Brand	Alphason
Model	Chromium 2 1200
Overall Width	1200 mm (47.2 inches)
Overall Depth	400 mm (15.7 inches)
Overall Height	450 mm (17.7 inches)
Weight	Approximately 15 kg (33 lbs)
Material	Tempered glass shelves, chrome-plated steel frame
Maximum TV Weight Capacity	30 kg (66 lbs)
Number of Shelves	2
Color	Chrome / Clear glass
Assembly Required	Yes, with included instructions
Recommended TV Size	Up to 65 inches
Cleaning Instructions	Wipe with a soft, damp cloth. Do not use abrasive cleaners.
Safety Features	Anti-tip straps included
Ventilation	Open design allows airflow for electronic devices
Warranty	1 year limited warranty
Spare Parts Availability	Contact Alphason customer service for spare glass shelves or brackets

Frequently Asked Questions - Chromium 2 1200 ALPHASON

What are the dimensions of the Alphason Chromium 2 1200 TV stand?

The stand measures 1200 mm wide, 400 mm deep, and 450 mm high (47.2 x 15.7 x 17.7 inches).

What is the maximum weight capacity for the TV shelf?

The top shelf can hold up to 30 kg (66 lbs), suitable for most large flat-screen TVs.

Does the stand require assembly?

Yes, assembly is required. The package includes a detailed manual and all necessary tools. Estimated assembly time is 30 minutes.

How do I clean the glass shelves?

Use a soft, damp cloth with mild glass cleaner. Avoid abrasive sponges or harsh chemicals to prevent scratching the tempered glass.

Is the Chromium 2 1200 compatible with my 75-inch TV?

The stand is designed for TVs up to 65 inches. A larger TV may exceed the weight capacity or overhang, causing instability.

What materials is the stand made of?

It features tempered glass shelves and a chrome-plated steel frame, offering durability and a modern look.

Does the stand include anti-tip safety features?

Yes, it comes with anti-tip straps to secure the stand to the wall for added stability, especially important in homes with children or pets.

Can I purchase replacement glass shelves?

Yes, contact Alphason customer service for spare parts availability. Refer to your manual for the specific part number.

What is the weight of the stand itself?

The stand weighs approximately 15 kg (33 lbs).

How should I dispose of the packaging?

Recycle the cardboard, foam, and plastic packaging according to your local regulations. Keep the manual for future reference.

USER MANUAL Chromium 2 1200 ALPHASON

Chromium 2: CR02-1000CB/CR02-1200CB

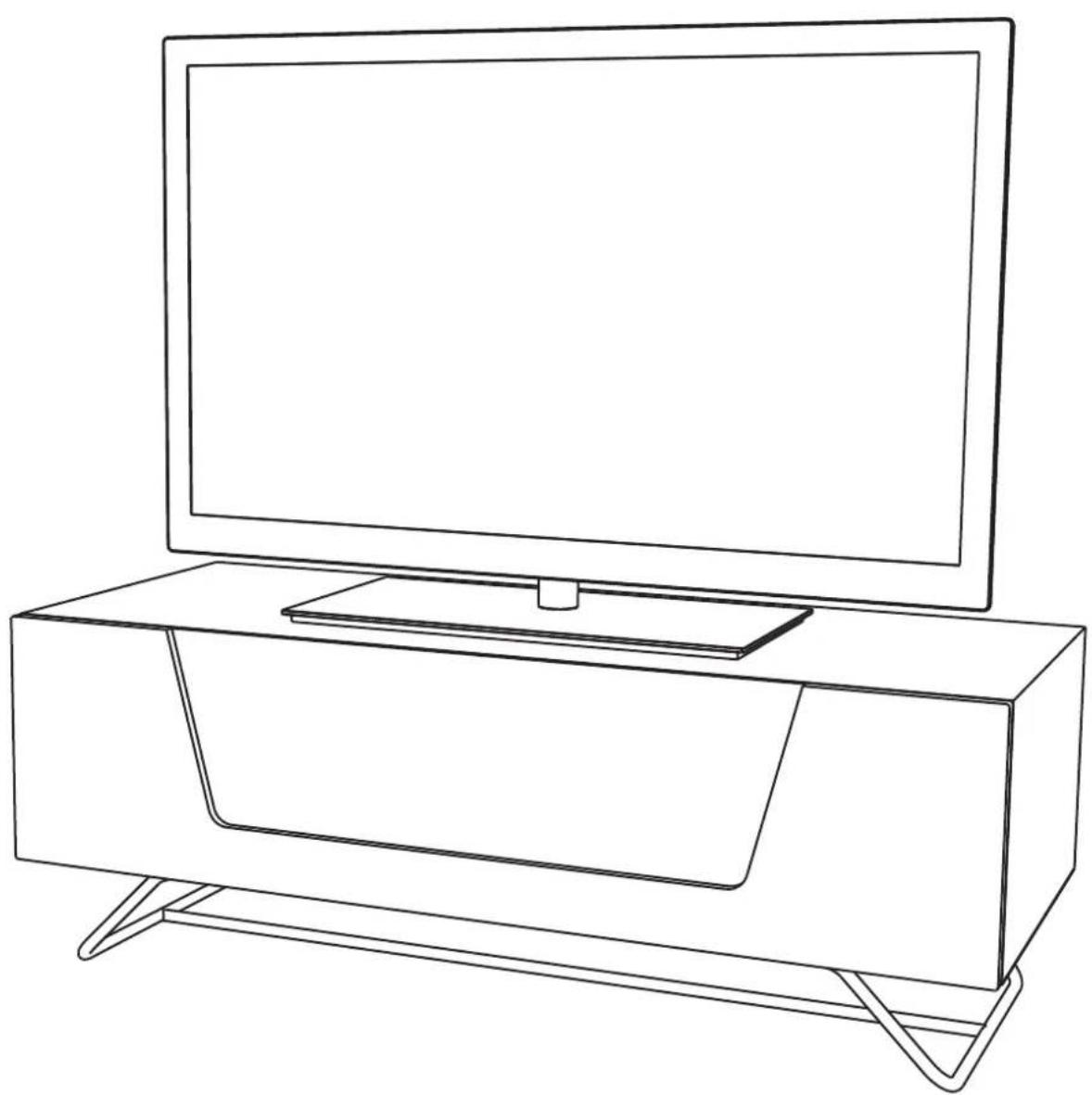

Line drawing of a modern flat-screen TV set with a flat-screen monitor and stand (no text or symbols)

Customer services:

0845 130 6686

[e-mail]

www.armourhome.co.uk

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

IMPORTANT INFORMATION!

1) Before starting assembly please take time to familiarise yourself with the instructions and the components listed in this manual, as this product could be unstable if incorrectly assembled.
2) Do not place hot or cold items against or in close proximity to any surface on this product
3) Do not strike any glass with hard or pointed items.
4) When cleaning glass or high gloss panels use a damp cloth or leather with washing up liquid or soft soap if necessary; do not use washing powders or other substances containing abrasives as these may scratch the glass. Dry with a soft cloth.
5) In order to maintain a high quality finish, when cleaning metal, painted or wooden parts please use a soft cloth with a suitable furniture polish if required.

6) Do not sit or stand on this product.
7) Do not attempt to move this product whilst loaded with equipment.
8) DO NOT OVERTIGHTEN ANY PART OF THIS ASSEMBLY

Please Note: Total maximum load for this product should not exceed 50Kg. This product must be assembled in accordance with these assembly instructions. Maximum load for top shelf is 15Kg.

Armour Home accepts no liability for any damage caused through incorrect or inappropriate use of this product.

FR

INFORMATIONS IMPORTANTES!

Chromium 2: CR02-1000CB/CR02-1200CB

EL

Armour Home Electronics Units 7 & 8, Stortford Hall Industrial Park, Dunmow Road, Bishops Stortford, Hertfordshire, UK, CM23 5GZ

www.armourhome.co.uk

0845 130 6686

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

Simple 3D rectangular shape with no text, numbers, or symbols

A x1

Simple 3D rectangular outline with dashed top edge, no text or symbols present

B x1

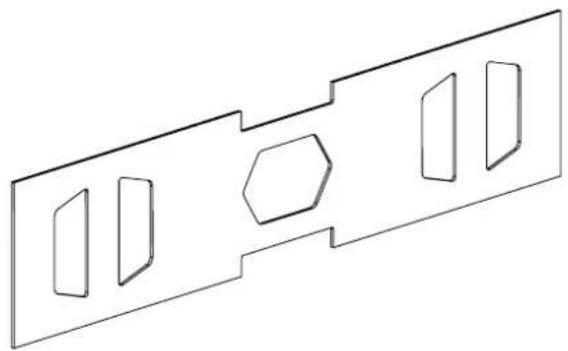

Pure technical line drawing of a mechanical component with no text or symbols

C x1

Isometric line drawing of a rectangular metal plate with internal parallel slots and mounting feet (no text or symbols)

D x1

Technical line drawing of a rectangular mechanical component with mounting holes and internal channels (no text or symbols)

E x1

Line drawing of a mechanical bracket or support frame (no text or symbols)

F x1

Simple line drawing of a rectangular panel or enclosure with no text, numbers, or symbols.

G x1

Simple line drawing of a rectangular panel with mounting holes and three small dots on the side (no text or symbols)

H x1

Simple line drawing of a rectangular panel with two circular holes on both sides (no text or symbols)

I ×1

Simple line drawing of a rectangular panel with two side edges and a central hole (no text or symbols)

J x1

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

K x1

L x1

Technical line drawing of a mechanical lever or actuator component (no text or symbols)

M x1

Technical line drawing of a mechanical bracket component (no text or symbols)

N x1

O x1

P x6 (3.4 x 14mm)

Technical line drawing of a rectangular mechanical component with two side slots (no text or symbols)

Q x1

R x2 (3.0 x 16mm)

Simple line drawing of a cylindrical object with no text or symbols

S x8

Technical line drawing of a mechanical component with threaded end and central hub (no text or symbols)

T x8

U x8

V x8

Line drawing of a screw with threaded shaft and mounting hole (no text or symbols)

W x10

Technical line drawing of a threaded mechanical component (no text or symbols)

X x4

Line drawing of a hexagonal bolt with threaded shaft (no text or symbols)

Y x4

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

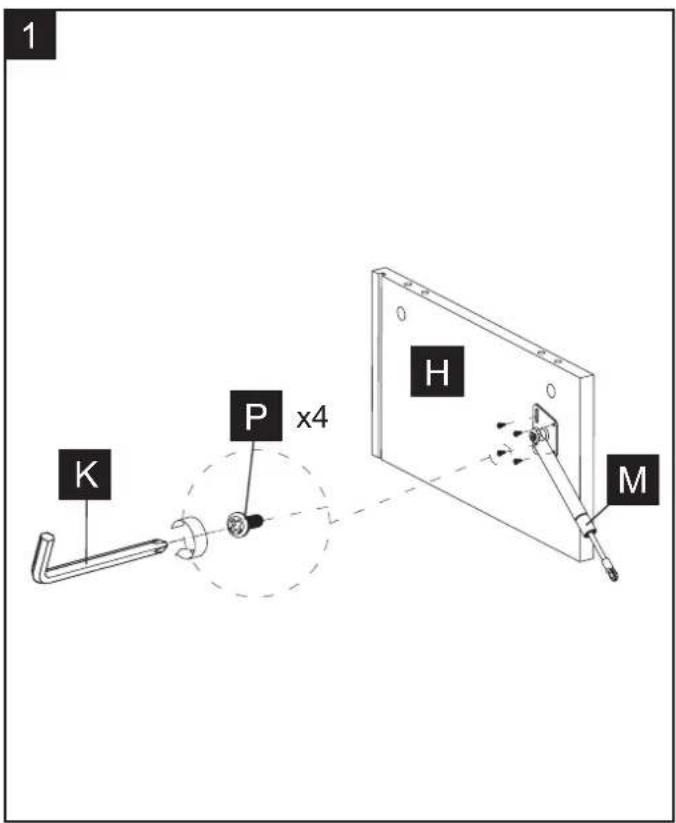

1 K P x4 H M

2 K T x8 S x8 A K R x2 Q

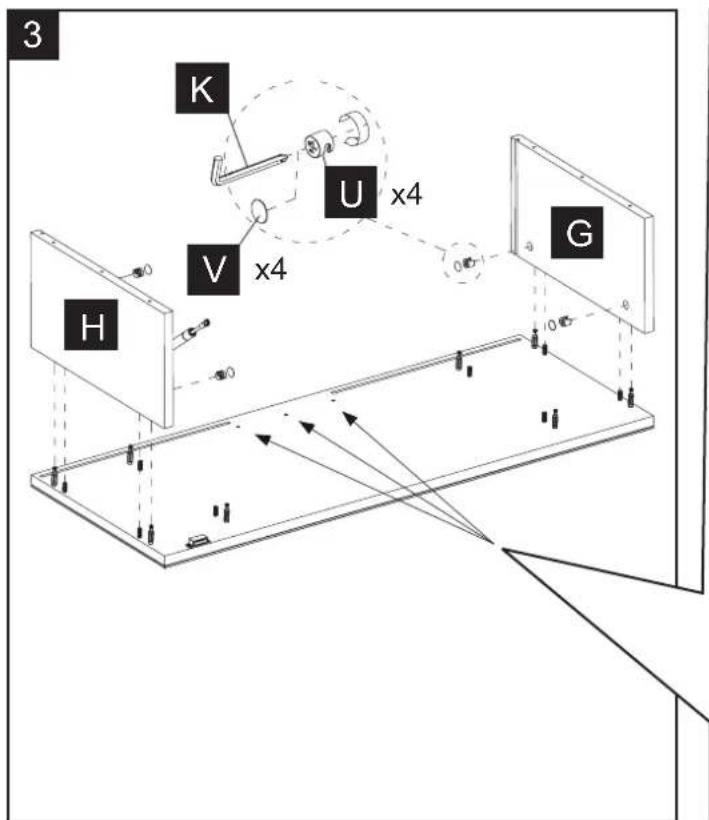

3 K U x4 V x4 H G

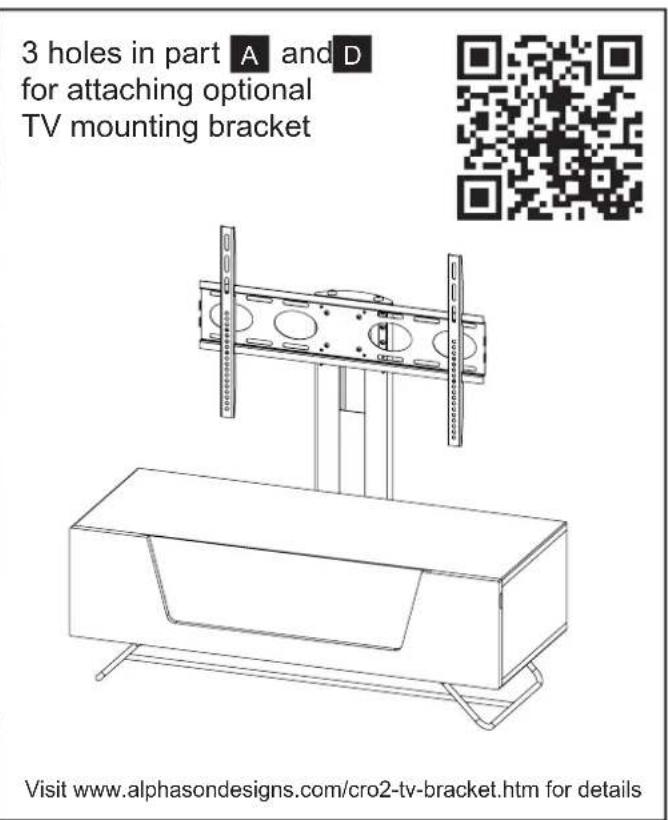

3 holes in part A and D for attaching optional TV mounting bracket Visit www.alphasondesigns.com/cro2-tv-bracket.htm for details

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

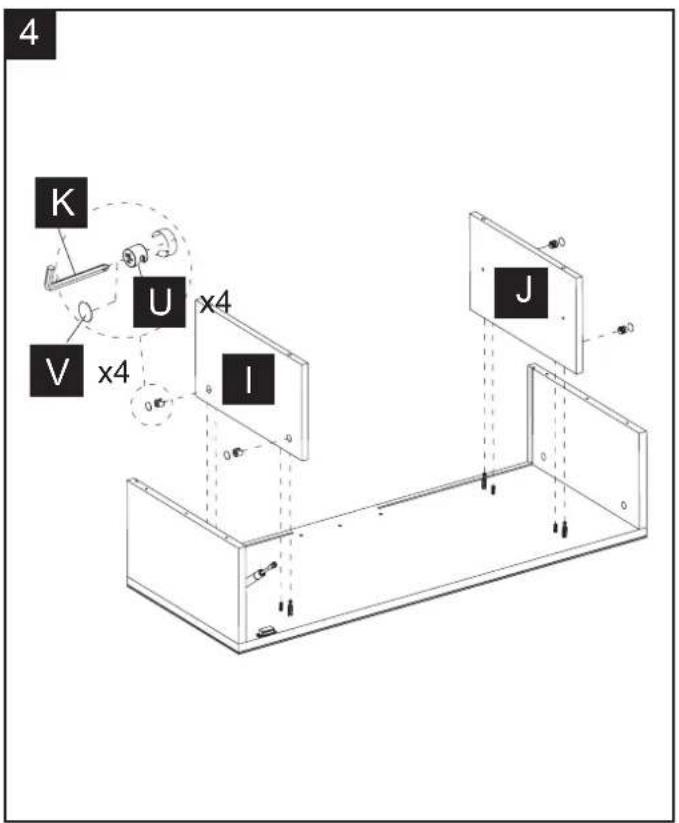

4 K U x4 V x4 I J

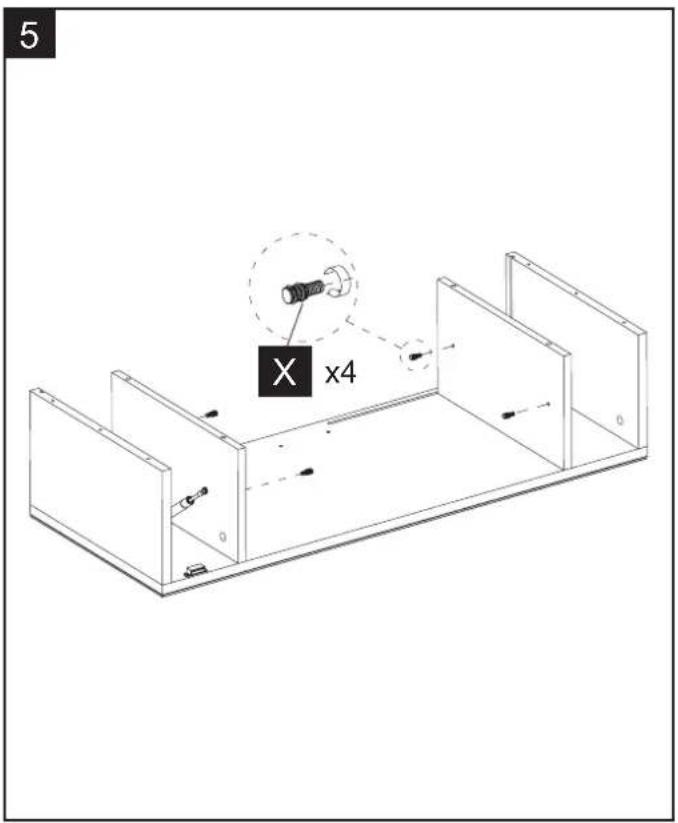

5 X x4

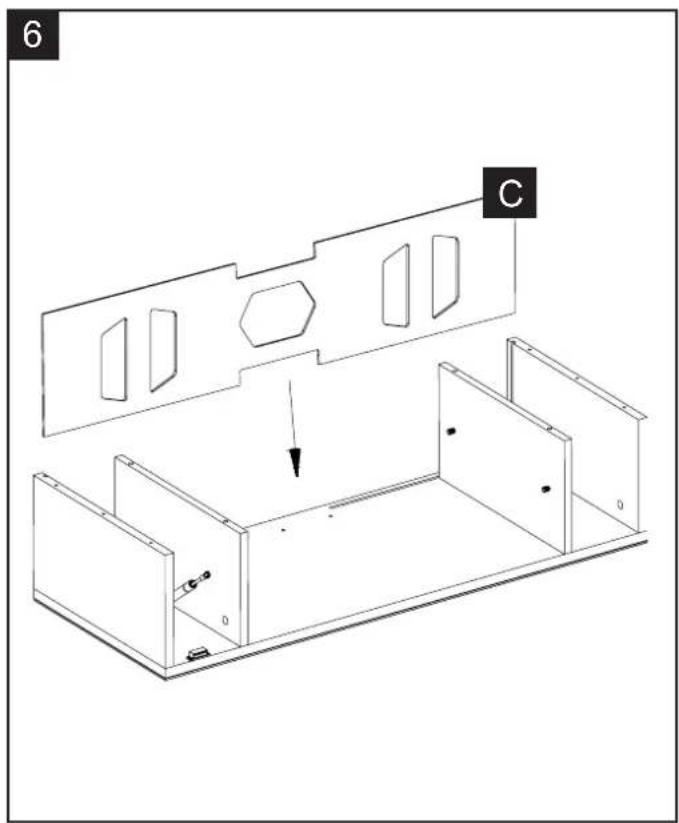

Isometric line drawing of a two-panel storage unit with labeled components (no text or symbols beyond labels)

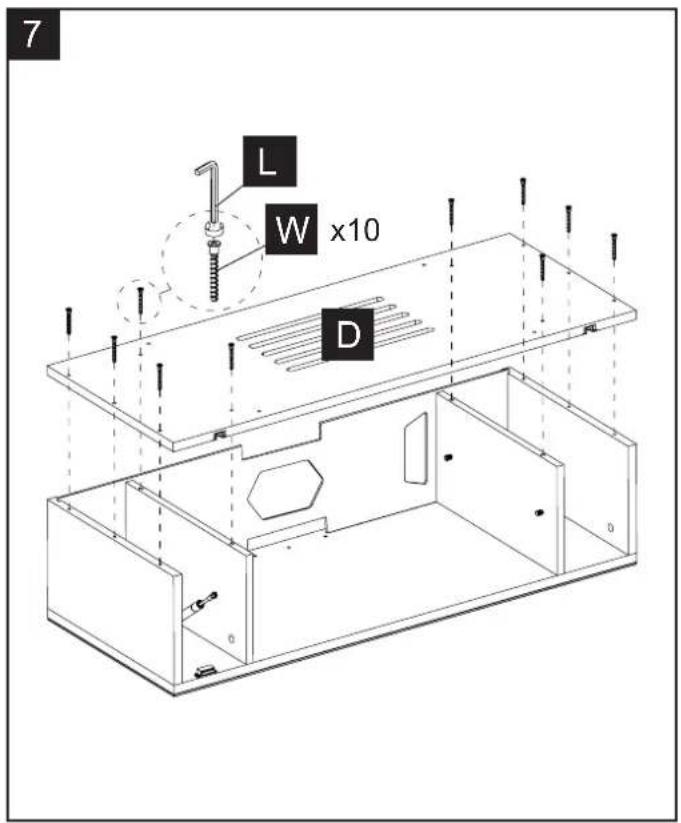

7 L W x10 D

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

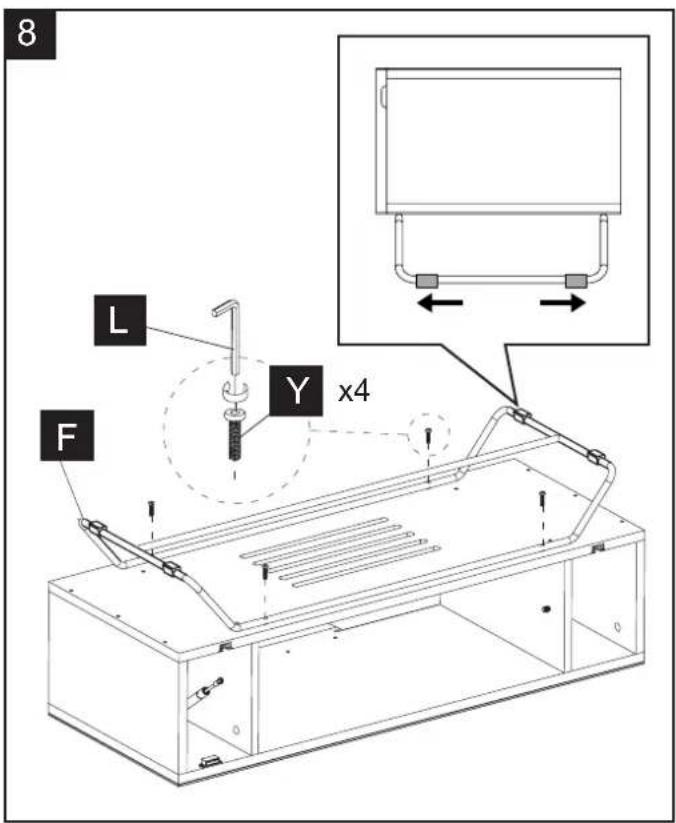

8 L F Y x4

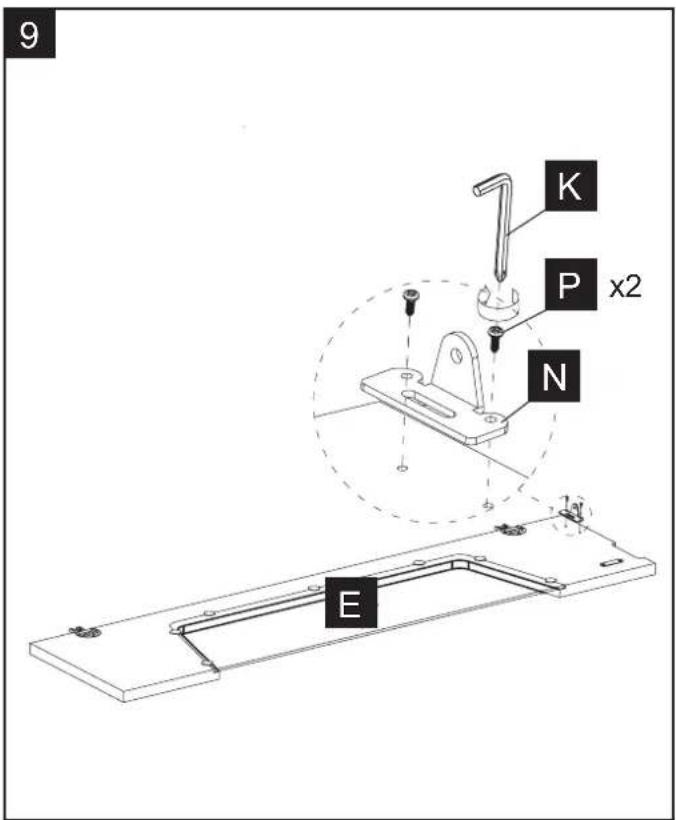

9 K P x2 N E

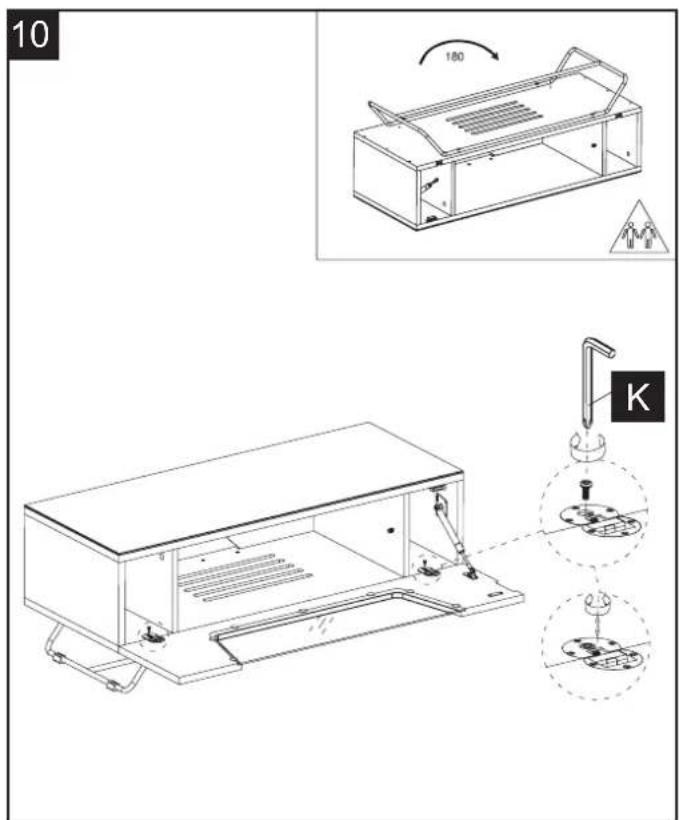

10 180 K

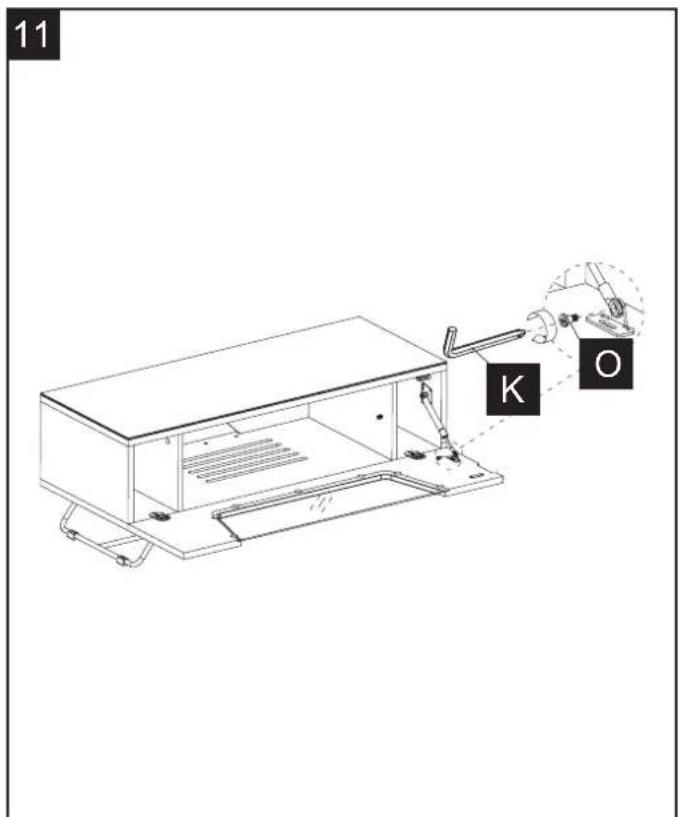

11 K O

Alpha Range

alphason

Chromium 2: CR02-1000CB/CR02-1200CB

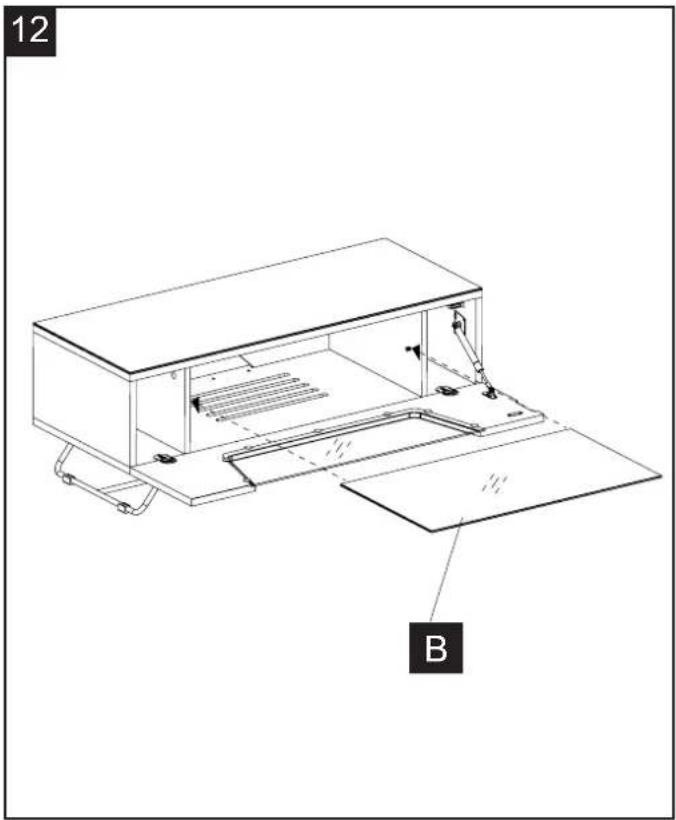

12 B

13

White model and black model only CRO2-1000CB-WHT & CRO2-1000CB-BLK CRO2-1200CB-WHT & CRO2-1200CB-BLK

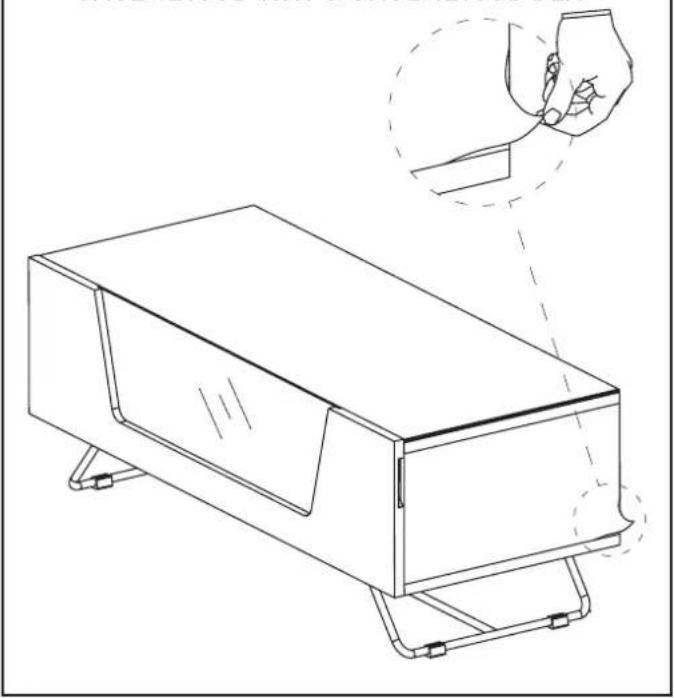

Line drawing of a rectangular electronic device with a handle and base, connected to a hand holding a small object (no text or symbols present)

14

Line drawing of a rectangular electronic device with mounting base and side panel (no text or symbols)
