PTL 6105 - Washing machine Philco - Free user manual and instructions

Product Type	Washing Machine
Brand	Philco
Model	PTL 6105
Capacity	6 kg
Dimensions (H x W x D)	89 cm x 60 cm x 40 cm
Weight	Approx. 60 kg
Power Supply	220-230 V, 50 Hz
Max Power Input	1500 W
Fuse Rating	10 A
Water Pressure	0.05-0.8 MPa
Maximum Spin Speed	1000 rpm
Energy Consumption (EN60456)	0.732 kWh
Water Consumption (EN60456)	49 L
Programmes	Cottons, Synthetics, Delicates, Wool, Hand Wash, Rinse, Spin, Drain, Eco 20°, Rapid 44', Rapid 30'
Special Features	Fuzzy Logic, Aqua+ Sensitive, Cold Wash, Delay Start (up to 24h), Door Lock Indicator, Digital Display
Safety Features	Earth connection, child supervision warning, do not touch with wet hands
Maintenance	Clean filter, clean detergent dispenser, dry rubber seal
Filter Location	Behind front plinth panel
Detergent Dispenser	3 compartments (pre-wash, main wash, fabric softener) with recommended and max marks
Installation Requirements	Leveling feet, remove transport screws, connect water inlet and outlet

Frequently Asked Questions - PTL 6105 Philco

How do I clean the filter?

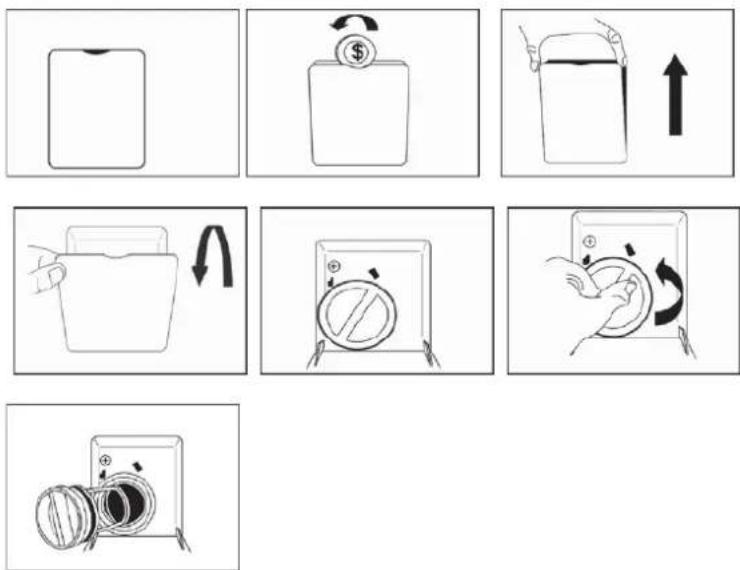

Turn off the machine and unplug it. Open the plinth panel at the front bottom. Place a basin under the filter to catch water. Turn the filter counterclockwise and pull it out. Clean it under running water. Reinsert and turn clockwise to lock.

What do the error codes mean?

Error codes 0,1,5,6,7,8,9,12,13,15,16 indicate a technical fault—contact service. Code 2 means no water fill—check tap. Code 3 means water not draining—check filter and hose. Code 4 means too much water—turn off tap and call service.

Can I open the door during a cycle?

Yes, but only after a pause. Press and hold the Start/Pause key until the option lamps flash. Wait for the door lock lamp to go out (about 2 minutes), then open. After adding laundry, close and press Start/Pause again.

How do I use the delay start?

Select your programme. Press the Time Delay button once to activate (h00 appears), then press repeatedly to set delay in 1-hour increments up to h24. Press Start/Pause to confirm. The countdown begins and the programme starts automatically at the set time.

What is the Aqua+ function?

Aqua+ is a sensitive key that adds extra water for washing and rinsing to remove all detergent residues. It is ideal for people with sensitive skin, children's clothes, and delicate fabrics. Not available for the wool programme.

How much detergent should I use?

Refer to the detergent dispenser marks. The lower mark is 'recommended' and the upper mark is 'Max'. Do not exceed the Max level. Use less detergent for soft water or lightly soiled loads. For pre-wash, fill compartment I; for main wash, compartment II; fabric softener in the ✿ compartment.

How do I level the machine?

Adjust the front feet: turn the nut clockwise to loosen, rotate the foot up or down to raise/lower, then lock by turning the nut anticlockwise against the machine base. Check level by trying to rock the machine diagonally.

Can I wash wool and hand wash items?

Yes, the machine has dedicated programmes: Wool (30°C, max 1 kg) and Hand Wash (40°C, max 1 kg). Use a gentle spin for these programmes. Always check garment labels for 'machine washable' or 'Pure New Wool' symbols.

What is the maximum load for different programmes?

Cottons: 6 kg. Synthetics: 3 kg. Delicates (Wool/Hand Wash): 1 kg. Rapid 44’: 3.5 kg. Rapid 30’: 2 kg. Eco 20°: 6 kg. Do not overload, as it affects washing performance and may cause wrinkles.

How do I cancel a programme?

Turn the programme selector to the OFF position. This cancels the current programme. You can then select a new programme and press Start/Pause to begin. You can also cancel a delay start by holding the Time Delay button for 5 seconds.

USER MANUAL PTL 6105 Philco

Instruction and installation manual

使用說明書

型號：

PTL6105

Line drawing of a washing machine with open lid and front panel (no text or symbols)

Please read and save these instruction

請仔細閱讀並妥善保存此說明書

Read this manual carefully as it offers practical advice to help you get the most from your washing machine.

This «Instruction and Installation Manual» contains everything you need to know about the everyday running of your machine.

Please refer to this manual for installation and maintenance instructions. The manual also contains information about possible working problems, advice about sorting clothes for washing, an explanation of label symbols and hints about how to remove stubborn stains.

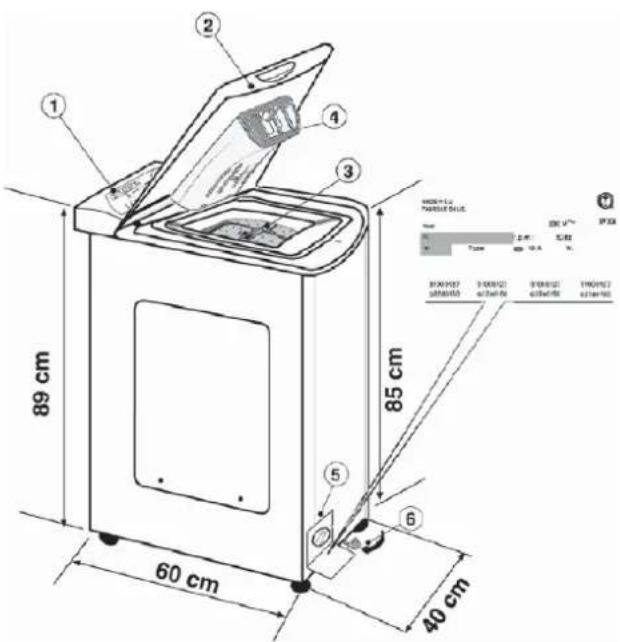

1.-CONTROL PANEL 2.-LID 3.-DRUM
4.- DETERGENT DISPENSER 5.- PLINTH PANEL
6.- FILTER

Table of contents

		page
Safety	measures	3
Setting	up - Installation
Preparing the wash. Opening/ closing the drum		7
Detergent	load	8
Electronically-controlled variable load- Fuzzy Logic		8
Description of controls		9
Special programmes		13
General recommendations		14
Troubleshooting		16
Washing hints		17

Safety measures

Hand holding a small electrical socket with an arrow indicating insertion (no text or symbols present)

Simple line drawing of a mechanical valve or fitting with no text or symbols

CE This appliance meets the European Directives 2004/108/EC, 2006/95/EC which have been substituted respectively by 89/336/EEC, 73/23/EEC and subsequent modifications thereof.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

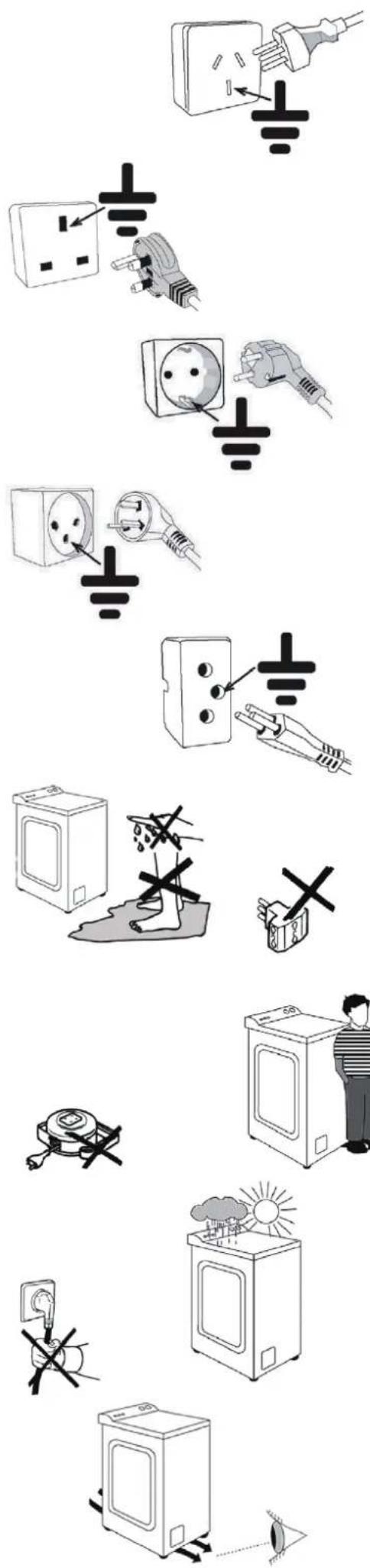

ATTENTION: FOR ALL CLEANING AND MAINTENANCE WORK

• Remove the plug.
• Turn off the water inlet tap after each wash.

- The manufacturer fits all the machines with an earth connection.

Ensure that the electrical installation has an earth connection and that it is connected; if not, call a qualified Service Center.

The earth connection is essential for user safety as it eliminates the risk of electrical discharge.

- Power sockets should be in easily accessible places so that the washing machine can be unplugged in case of any problems.

- If the electric cable is damaged replace with an original set (cable and plug) supplied by the manufacturer or official after-sales service.

note:

In the event that it is necessary to replace the power cable, make sure that you comply with the following colour-code chart during the wiring:

blue neutral

brown phase

Yellow-green earth

The manufacturer accepts no responsibility for any damage to people or things resulting from the failure to comply with the appliance's installation and safety regulations.

- Do not touch the appliance with wet hands or feet.

- Do not use the appliance when bare-footed.

- Use extension cords only with extreme care.

- Do not use adapters or multiple plugs.

- Do not allow the appliance to be used by children or the infirm without due supervision.

- Do not pull on the power cord or the appliance itself to remove the plug from the socket.

- Do not leave the appliance outdoors or exposed to the atmospheric elements (rain, sun, etc.).

- Do not cover the appliance with cloth or plastic while it is working.

- Do not install the appliance in damp places or anywhere where it could be sprayed by the shower.

- Do not install the appliance on a surface which obstructs the space between the floor and the base of the machine.

- Keep all packaging out of the reach of children as it could constitute a health hazard.

ATTENTION:

DURING A WASH CYCLE THE WATER CAN REACH TEMPERATURES OF 90°C.

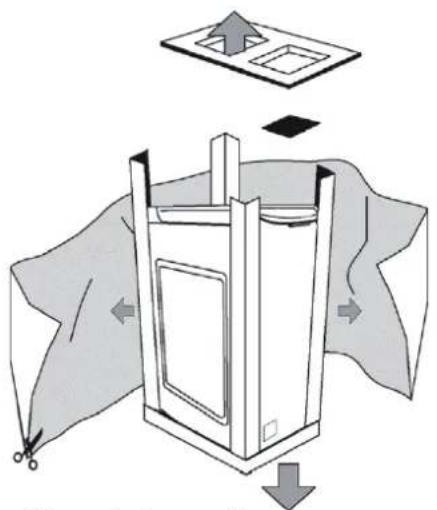

• Unpack the appliance.

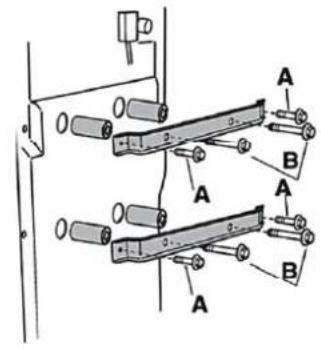

• Remove the 4 screws (A) from both clamps and the 4 screws (B).

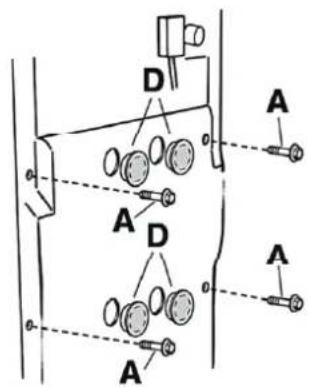

• Replace the 4 screws (A) and fit the trims provided (D).

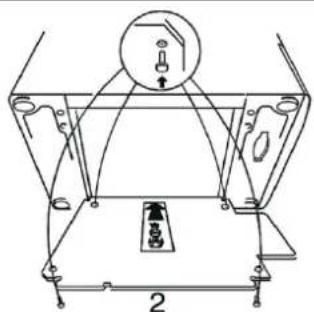

If your model offers this function:

Position the protection sheet as shown in the diagram.

1.- Washing machine with wheel trolley.
2.- Washing machine without wheel trolley.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand holding a small mechanical component (no text or symbols visible)

Illustration showing a person using a device to clean or install a floor plan, with no visible text or symbols.

ATTENTION: DO NOT TURN THE TAP ON

• The washing machine should be connected to the water mains via the new tube supplied with the appliance (inside the drum). Do not use the old tube for this purpose.
• Connect one end of the water inlet pipe with the elbow bend to the electrovalve (top rear part of the machine) and the other end to a tap or a plumbed-in 3/4" gas threaded connection.
• Place the washing machine close to the wall, ensuring that there are no bends or kinks anywhere in the tube. Hook the outlet pipe to the edge of the sink or preferably to a fixed drainage outlet of a diameter greater than that of the outlet pipe and at a height of min. 50 cm. and a maximum of 75 cm. from the floor.

If necessary, use the curved accessory to attach and support the outlet pipe more securely.

If your model offers this function:

• To move the washing machine easily, turn the trolley lever to the right. Once you have finished moving the machine, return the lever to its original position.

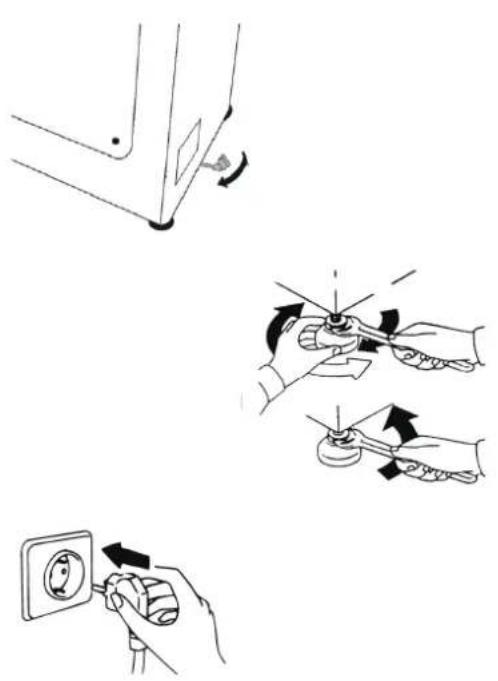

- Level the machine by adjusting the front feet.

a) Turn the nut clockwise to release the screw on the foot.

b) Raise or lower the foot by rotating it until it stands firmly on the floor.

c) Lock the foot in position by turning the nut anticlockwise until it comes up against the bottom of the washing machine.

Check that the appliance is properly levelled.

Check that the washing machine does not rock by trying to move two diagonally opposite top corners at the same time.

- If you move the washing machine from one place to another, you must level the feet again afterwards.

- Connect the machine.

Close-up of a hand pressing down on a white plastic component (no visible text or symbols)

Close-up of hands placing a small object into a white basin (no visible text or symbols)

Close-up of hands installing or adjusting a mechanical component in a storage or inspection setting (no visible text or symbols)

Close-up of a transparent cylindrical device with a mesh grille and central circular component (no visible text or symbols)

Interior view of a microwave oven with a labeled component 'A' (no text or symbols beyond label)

ATTENTION:

IT IS IMPORTANT TO MAKE SURE THAT THE DRUM IS CAREFULLY OPENED AND CLOSED, OTHERWISE THE MACHINE OR LAUNDRY COULD GET DAMAGED.

ENSURE THAT THE DOORS FIT TOGETHER PERFECTLY AND ARE PROPERLY CLOSED.

Loading

1.

Open the washing machine lid.

2.

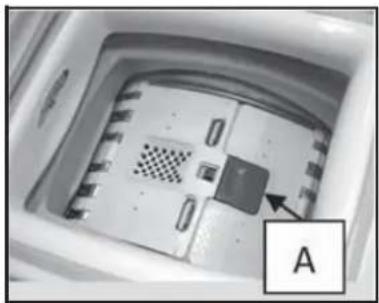

Open the drum by pressing the (A) button with one hand while pressing down on the opposite door with the other.

3.

Place clothes in the drum one item at a time, and without squashing. Do not exceed the load limits recommended in the “programme table”. An overloaded washing machine will not wash properly, and will leave clothing wrinkled.

4.

To close the drum, place the doors so that the one with the (A) button is below the other and they fit together perfectly.

Detergent load

The detergent dispenser is divided into 3 compartments:

.- Compartment I is for the pre-wash detergent.

.- Compartment II is for the main wash detergent.

- The compartment ✿ is for fabric conditioners, scenting agents and special additives such as starch, blueing, etc.

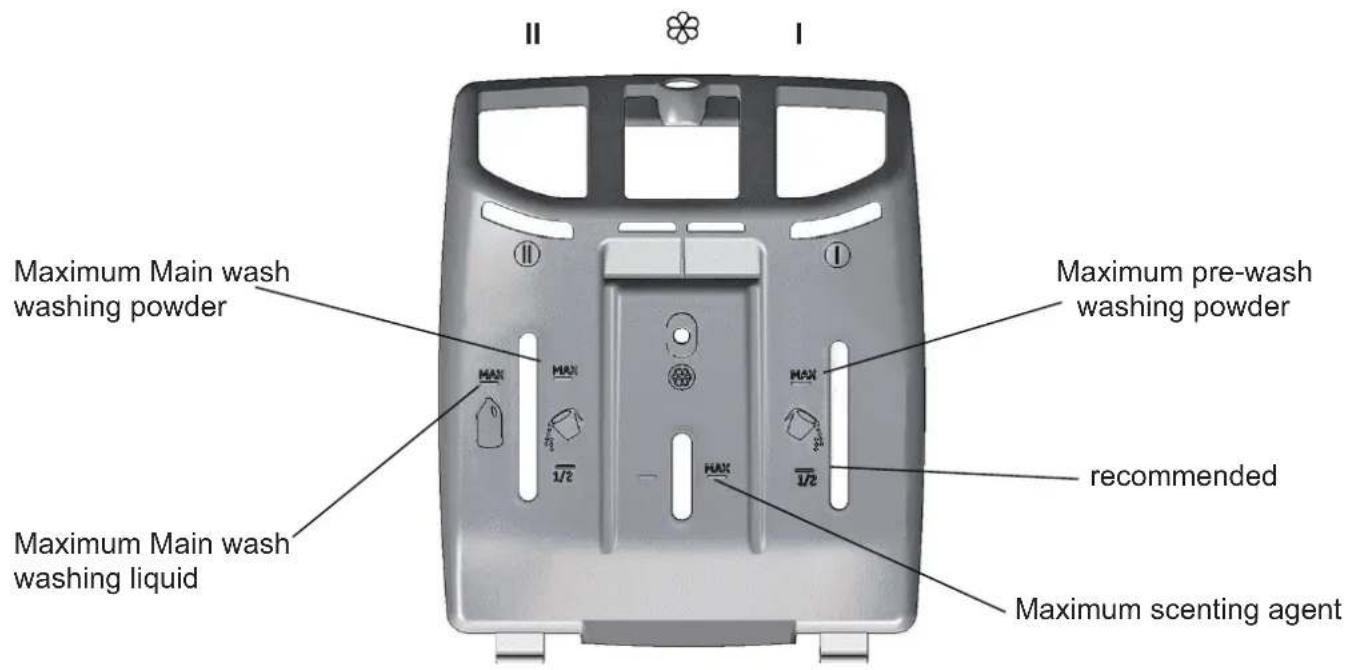

The detergent dispenser has two reference marks:

.- Recommended (lower reference mark). This indicates the recommended level for the pre-wash and main wash compartments.

.- Max. This indicates the maximum level, which should never be exceeded.

Important:

- Do not use liquid detergent for programs with a prewash cycle and/or timed start.

- When the clothes present stains that need treatment with bleaches liquids products, you can proceed to their preliminary cleaning in the washing machine. For that: Introduce the bleach product in the "compartment II", and set the rinse program 📋. Once finished set the programmer to the OFF position, add the rest of the laundry, and proceed with a normal was program.

Electronically-controlled Variable Load – Fuzzy Logic

This machine has electronics that automatically process all stages of the wash to ensure exceptional results and at the same time save you time and money.

Once a programme has been selected, the machine optimises the following elements depending on the wash load and type of fabric:

- quantity of water and power consumption

- wash time

- rinse efficiency

The washing machine also:

- detects suds and increases the amount of rinse water if necessary

- adjusts spin speed according to load distribution, thus forestalling any imbalance in the mechanism.

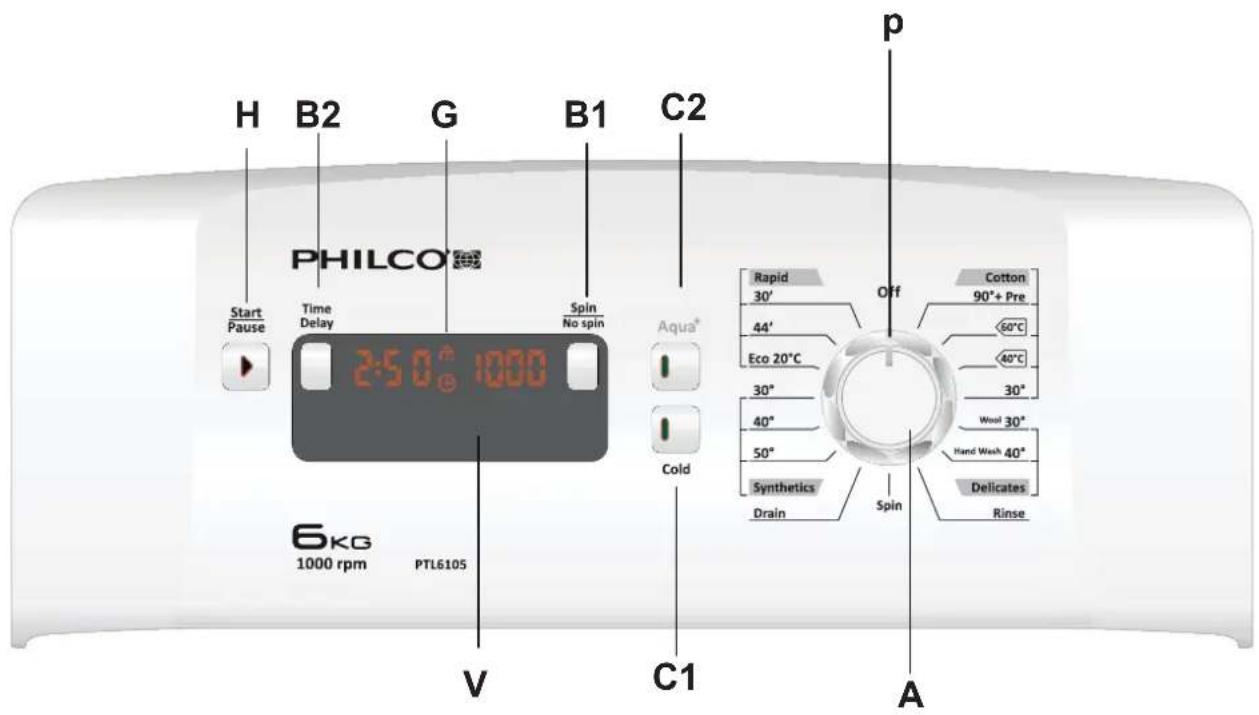

A PROGRAMME SELECTOR

Use this control to select the desired wash programme. Turn the selector (it can be turned in both directions) so that the programme is opposite the reference indicator (p). The temperature selected will depend on the programme. (See the Programme Table).

B1 SPIN/NO SPIN SELECTOR

B2 DELAYED START KEY

C1 COLD WASH

C2 AQUA ^+ (SENSITIVE KEY)

G DOOR LOCK LAMP

H START/PAUSE KEY

V "DIGITAL" Display

The display's indicator system allows you to be constantly informed about the status of the machine

p CONTROL POSITION INDICATOR

Programme table mod PTL 6105

programme	programme	aprox. time for min.	max. temp. setting °C	spin speed rpm/min	max. load Kg.	washing powder load			option keys C
						I	II		Cold	+ Aqua
COTTONS	Fast coloureds with prewash	display	90°	1000 6		•	•	•	•	•
	* Fast coloureds	display	60°	1000	6		•	•	•	•
	* Fast coloureds	display	40°	1000	6		•	•	•	•
	Delicate coloureds	display	30°	1000	6		•	•	•	•
MIXED SYNTHETICS	Fast coloureds	display	50°	800 3			•	•	•	•
	Delicate coloureds	display	40°	800	3		•	•	•	•
	Delicate coloureds	display	30°	800	3		•	•	•	•
DELICATES	Wool	display	30°	600	1		•	•	•
	Hand wash	display	40°	600	1		•	•	•
SPECIAL	Rinse	display	-	800	-			•		•
	Spin	display	-	1000	-
	Drain	display	-	-	-
	Eco 20°	display	20°	800	6		•	•	•	•
	Rapid 44 display		40°	800	3		•	•	•
	Rapid 30 display		30°	800	2		•	•	•

* Programme as per EN 60456

Technical data mod. PTL 6105

Mains voltage	Wash power rating	Spin Power rating	Pump Motor Power rating	Heating element power rating	Max. Power input	Mains Fuse Amp. rating	Water pressure	Water consumption *prog. EN60456	Energy consumption *prog. EN60456
220-230V. 50Hz.	175 W.	340 W. 30	W. 1300	W. 1500 W.	10 A.		0,05-0,8 Mpa	49 L.	0,732 Kw.

IMPORTANT: Do not use liquid detergent for programs with a prewash cycle and/or time delay.

PREPARING THE WASH CYCLE

1.- Once the washing is loaded, ensure that the drum doors are properly closed..
2.- Add detergent and additives, not exceeding the maximum level indicator.

.- detergent for pre-wash I
.- detergent for wash programme II
.- fabric conditioner

SELECTING THE DESIRED PROGRAMMES AND OPTIONS

3.- Turn the programme selector (A) to the desired programme.

4.- Press the key or keys for any options desired (C1, C2).

.- It is advisable to select the required options before pressing the Programme Start key (H).

- Remember that if the programme has already passed the stage at which an option is activated, that option will not be implemented.

C1 Cold wash key

By pressing this button it is possible to transform every programme into a cold washing one, without modify other characteristics (water level, times, rythmes, etc..).

Curtains, small carpets, man made delicate fabrics, non coulor fast garments can be safely washed thanks to this new device.

C2 Aqua (sensitive key)

Thanks to the new SENSOR ACTIVA SYSTEM, by pressing the key it is possible to run a special washing cycle applicable to all programs and types of fabric, caring for their fibres and the delicate skin of the users who use them.

Taking on much more water, together with the new combined action of drum rotation cycles and taking on and discharging water allow you to obtain perfectly clean, rinsed clothes. More water is used in the wash to dissolve the detergent completely, ensuring an effective washing action. The water in the rinses has also been increased to eliminate all trace of detergent in the fibres.

This function has been specifically studied for people with delicate, sensitive skin, who can suffer irritation or allergy from the slightest detergent residue.

It is also advisable to use this function for children's clothes and delicate fabrics in general, especially for washing bathrobes, whose fibres tend to retain detergent.

This option is not available for the wool program.

5.- Select spin speed if required (B1)

B1 spin speed

Once the programme has been selected, the maximum spin speed allowed for that programme appears on the display. Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is possible to omit the spin by pressing the spin button repeatedly.

6.- To start the programme, once options have been chosen, press the key H. The washing machine will begin to operate. If you wish to cancel the option you have selected, press the key again. (The pilot light will go off).

B2 Time delay button

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours.

To delay the start use the following procedure:

Set the required programme.

Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.

Confirm by pressing the “START/PAUSE” button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.

It is possible to cancel the delay start by taking the following action:

Press and hold the button for 5 seconds until the display will show the settings for the programme selected.

At this stage it is possible to start the programme previously selected by pressing the "START/PAUSE" button or to cancel the process by setting the selector to the OFF position and then selecting another programme.

Cycle duration (V)

When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.

Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash.

Door lock light (G)

Once the START/PAUSE button has been pressed the light first flashes then stops flashing and remains on until the end of the wash.

2 minutes after the end of the wash the light goes off to show that the door can now be opened.

Cancel-change programs

Once you have started a program, and wish to change or cancel it, you should proceed in the following manner,

• Put the program selector in the OFF position. At that instant, you have cancelled the program and can if you wish to do so, select a new one.
• Select the new program.
• Click the key (H) again.

The washing machine will perform the new selected program.

Programme pause

It is possible to momentarily stop the wash programme so that more washing can be added, and to do so, proceed as follows:

• Hold down the (H) key until the option key lamps begin to flash and the time remaining indicator display, and pilot lamp lights up.
• When the Door Lock lamp goes out (after approx. 2 minutes), open the door and add the desired washing.
• Correctly close the doors of the drum and the outer cover.
• Press the key H, and the washing machine will continue with the programme.

When the programme has been completed, the message "END" will appear in the indicator display, Wait until the Door Lock lamp (G) goes out (after approx. 2 minutes)

"To remove the washing, set the programme selector to the OFF position", before opening the washing-machine lid and the drum doors.

RINSE	SPECIAL RINSE PROGRAMMEProgramme rinse runs 3 rinses with spins at 1000 rpm (this speed may be reduced or spin cancelled using the appropriate button). It works for all fabrics and can be used, e.g. after garments are hand washed.
SPIN	SPECIAL HIGH-SPEED SPIN PROGRAMMEProgramme spin runs a spin at the speed indicated in the programme table.
DRAIN	DRAINProgramme drain empties the water from the machine.
HAND WASH	HAND WASH: The programme runs a complete wash cycle for garments intended to be hand washed. It washes at no more than 30 °C and finishes with three rinses and a delicate spin.
Eco 20°	Eco 20°:This innovative programme, allows you to wash different fabrics and colours together,such as cottons,synthetics and mixed fabrics at only 20°C and provides an excellent cleaning performance.Consumption on this program is about 40% of a conventional 40°C cottons wash.
RAPID PROGRAMMES44' MINUTE RAPID PROGRAMME30' MINUTE RAPID PROGRAMMETHese programmes run a complete wash cycle at 40/50 °C for up to 3.5 kg of washing in 44 or 30 minutes.

REMARKS

1. For heavily soiled washing we recommend loads of no more than 4 kg.
2. The machine is designed to apply fabric softener automatically in the last rinse of all wash cycles.

CLEANING AND MAINTENANCE OF THE MACHINE

Do not use abrasives, spirits or solvents when cleaning the exterior of the washing machine. It is sufficient to use a damp cloth.

The washing machine requires very little maintenance.

• Drying the rubber seal of the drum.
- Cleaning the dispenser and its compartments.
- Cleaning the filter.
- Cleaning prior to removals or when the machine is to stand idle for long periods.

To help conserve the washing machine, dry the rubber seal and leave the door open when the cycle ends.

CLEANING THE FILTER

The washing machine comes with a special filter, located behind the machine's front plinth panel, that collects larger objects (coins, buttons, etc.) which could even block the pump.

It is advisable to clean the filter whenever the machine fails to rinse the clothes as well as it should or when it fails to drain properly.

When it is necessary to clean the filter, proceed as follows:

Line drawing of a washing machine with a downward arrow indicating airflow or direction (no text or symbols)

• Use a basin to collect the water coming out.
• Remove the filter and clean it.
• Once the filter is clean, replace it by following the above-mentioned pro in reverse.

CLEANING THE DETERGENT DISPENSER AND ITS COMPARTMENTS

Close-up of a white electrical outlet with ventilation slots and a small cable (no visible text or symbols)

A

Close-up of a hand placing a small object into a white plastic container (no visible text or symbols)

- It is advisable to clean the three compartments of the detergent dispenser (pre-wash, wash, and fabric conditioner) from time to time. To do this, remove the detergent dispenser and after cleaning it, fit it back in place.

To remove and fit the detergent dispenser, follow the steps indicated in the images.

removing

.- Press button A

Close-up of a white plastic appliance with internal compartments and a black cable (no visible text or symbols)

.-Hold down the button and pull the detergent dispenser outwards

Front view of a gray appliance front panel with control buttons and a flower symbol on top (no text or labels visible)

.- Remove the dispenser and clean it

.- In the case of the pre-wash (I) and wash (II) compartments, it is advisable to remove any dried-in remains of detergent which obstruct the flow of the detergent to the drum.

Close-up of a hand holding a pen tip over a white plastic container with a black dot, labeled 'S' (no text or symbols on the object itself)

.- In the fabric conditioner compartment, the trap (S) located at the rear part of the dispenser should be removed by pulling them out.

Remove any solid residue which could block the holes in the compartments.

Close-up of a mechanical component with a pipe fitting and a black arrow pointing to a section (no visible text or symbols)

B

Close-up of a white plastic door or vent with a small inset component and an arrow pointing to it (no visible text or symbols)

C

fitting

.- Fit in the tabs as shown

.- Push the detergent dispenser towards the housing (C) in the door until the tab clicks into place.

FAULT	CAUSE	SOLUTION
1.- No programme works • The	appliance is not plugged in.• The general switch is disconnected.• There is no electricity.• The fuses in the electric installation are damaged.• The door is open.	• Plug it in.• Activate the general switch.• Check.• Check.• Close the door.
2.- The appliance does not load water	• See causes for 1.• The tap is turned off.	• Check.• Turn on the tap.
3.- The water does not drain •	The filter is clogged.• The outlet pipe is bent.	• Check the filter.• Straighten the outlet pipe.
4.- The spin function does not work	• The washing machine has not yet drained the water.• The “Spin Exclusion” option is activated.	• Wait a few minutes for the washing machine to drain.• Enable the spin option.
5.- Strong vibrations during spin cycle	• The washing machine is not correctly levelled.• The anchoring device for transport has not been removed.• The wash load is not evenly distributed.	• Adjust the feet.• Remove the transport support.• Distribute it evenly.
6.- The high-speed spin does not work	• The wash load is not evenly distributed within the drum.	• Distribute the wash load evenly in the drum.
7.- Display will show error n°0,1,5,6,7,8,9,12,13,15,16	• Contact technical service.
8.- Display will show error n° 2	• Machine does not fill with water •	Check that water inlet tap is open.
9.- Display will show error n° 3	• Water does not empty from machine	• Check that outlet is not clogged• Check for kinks in outlet tube.
10.-Display will show error n° 4	• Too much water in machine. • Shut off water tap.• Contact technical service

If the problem or malfunctioning persists, disconnect the machine, turn off the tap and do not try to repair.

For all repairs contact an Official Technical Assistance centre (consult the European guarantee sheet) and always insist on the use of original parts. Failure to do so may compromise the safety of your machine.

When contacting a Technical Assistance Centre always refer to the model (see also control panel) and the registration and serial numbers indicated on the plate at the bottom front of the machine behind the plinth panel or on the guarantee certificate. That is to say, everything that appears in the box.

Providing this information will ensure a faster and more efficient service.

Hints on the most economical, most environmentally friendly way to use your washing machine.

HINTS ON USING YOUR WASHING MACHINE

Wait until you have a full load before using the machine: this will avoid the use of more water and power than necessary.

We recommend using the full load capacity: this could save you up to 50% in power consumption. Wash a single full load rather than two light loads.

WHEN IS PRE-WASHING NECESSARY?

Only when washing heavily soiled clothes.

With clothes that are not especially dirty, you can save between 5 and 15% by not using this option.

WHAT WASH TEMPERATURE SHOULD I USE?

Applying a stain remover before placing clothes in the machine will eliminate the need for wash temperatures of more than 60 °C .

When loading a wash into the drum, we recommend that you:

• For specially delicate garments we recommend the use of a protective net.
• Empty all pockets and ensure that they do not contain metal objects (paperclips, safety pins, pins, coins, etc.).
• Fasten pillow slips, close all zips and fastenings, and tie any loose ribbons or belts from dresses.
• Remove all runners (metal and plastic) from curtains and net curtains. We recommend that the ribbon be gathered into a ball and tied with its own cord.
• Unfold all items to be washed.
• Be careful not to exceed the recommended load for each programme.
• When washing rugs, bedspreads and other highly absorbent items, cancel the spin option.
• In order to be able to wash woollens in the washing machine they must carry the “Pure New Wool” symbol as well as the information “does not become matted” or “machine washable”.
• If possible, do not wash only towels. Mix them with your regular washing.
• Ensure that no item becomes trapped between the drum doors.

LABEL SYMBOLS

Labels are usually sown into the collar or side seams. The symbols which appear on them indicate the following:

• Maximum WASH temperature.
- Appropriate and inappropriate washing methods.
- Appropriate and inappropriate washing products.

The symbols are as follows:

WASH

Washing instructions always appear as a basin with different indications:

• Do not wash.
• Can be washed both by hand or in the washing machine. The figures in the basin indicate the maximum wash temperature. 60
• Hand wash only.
  When the hand is half submerged in the water, this means that the item should be tumbled only gently during washing. If it is fully submerged in the water, this means that the garment should only be washed by hand.
  • The line under the basin means that the item should be washed on a gentle cycle.
• Do not spin.

BLEACH

Bleach is widely used to whiten fabrics, although in some cases it can cause irreparable damage. There are various symbols which refer to its use.

- Bleach can be used.

- Do not use bleach.

Please record the following information:

• Model
• Serial No.
  Name of distributor
  Date of purchase

The manufacturer reserves the right to make any technical modifications due to product improvement. No prior notice will be given. If you have any enquiry, please contact our after-sales department and forgive for any inconvenient.

All information is subjected to English version.

Gilman Home Appliances

太平家庭電器

香港仔大道232都工業大廈二樓

維修安裝：8210 8210

2/F, Shing Dao Industrial Building, 232 Aberdeen Main Road, Hong Kong

2/F, Shing Dao Industrial Building,

232 Aberdeen Main Road,Hong Kong

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

EN

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

簡介

Hand holding a small electrical socket with an arrow pointing to it (no text or symbols visible)

Diagram of a garment rental machine with fabric cutting process, showing front panel and side panels (no text or symbols)

·除去包裝

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a person opening a door with hand gestures, showing no text or symbols

重要：在這時不要開啟水龍頭。

Simple line drawing of a corner joint with a small inset detail (no text or symbols)

Illustration of two hands performing a manual task with tools and a tool (no text or symbols present)

如你的型號提供此功能：

Close-up of a hand pressing down on a white plastic surface (no text or symbols visible)

注意：

Close-up of hands cleaning a basin with visible surface debris and a small object (no text or symbols)

- 放入衣物

1.

打開機蓋

Close-up of hands installing or adjusting a product box (no visible text or symbols)

Close-up of a transparent plastic container with internal mesh structure (no visible text or symbols)

Interior view of a device with a labeled component 'A' (no readable text or symbols beyond label)

* Programme as per EN 60456

技術資料 型號PTL 6105

Line drawing of a washing machine with a downward arrow indicating airflow or discharge (no text or symbols)

Close-up of a white wall-mounted air conditioner unit with ventilation slots (no visible text or symbols)

Close-up of a hand inserting a small object into a white appliance panel (no visible text or symbols)

A

移除

一按按鈕 A。

Close-up of a white plastic appliance with a curved line indicating a measurement or assembly (no visible text or symbols)

—按著按鈕把洗衣劑抽屜向外拉。

|| ⊕ 1

Exterior view of a modern office building (no signage)

一移走抽屉和清潔。

Close-up of a hand holding a pen next to a white electrical socket with a labeled arrow pointing to the socket (no text or symbols on the socket itself)

s

Close-up of a toilet sink with a pipe fitting and an arrow pointing to the outlet (no text or symbols visible)

B

Close-up of a white mechanical component with a small inset detail and an arrow pointing to it (no visible text or symbols)

C

装置

一如圖裝入凸塊。

a Gilman Group Company

2/F, Shing Dao Industrial Building, 232 Aberdeen Main Road, Hong Kong 香港香港仔大道 232 號城都工業大廈 2 樓
