40CGL107016 - Television Kunft - Free user manual and instructions

Product Type	LED Television
Screen Size	40 inches (diagonal)
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Power Supply	100-240V~50/60Hz
Audio Output	2 built-in speakers
Connectivity	RF, AV, Component (YPbPr), VGA, HDMI, SCART, Digital Audio (SPDIF), USB
USB Playback	MP3, JPEG, MPEG, AVI, MKV, etc.
PVR Recording	Yes, via USB in DTV mode
Teletext	Yes
Electronic Programme Guide (EPG)	Yes
Sleep Timer	Yes
Child Lock	Yes (Channel Locks, Parental Rating)
Hotel Mode	Yes
OSD Language	Multiple languages selectable
Remote Control	Included (requires 2x AAA batteries, not included)
Stand	Included (2 pcs)
Operating Temperature	5°C to 35°C
Operating Humidity	≤80%
Certification	CE, Class II double insulated

Frequently Asked Questions - 40CGL107016 Kunft

How do I set up channels for the first time?

When you first power on the TV, a setup wizard appears. Use the ◀/▶ buttons to select language, mode (Home Mode recommended), country, tuner type (Antenna or Cable), and then start Auto Scan to search for channels.

Why is my remote control not working?

Ensure there are no obstacles between the remote and the TV sensor. Check that the batteries are inserted correctly with +/- matching the diagram. If weak, replace both batteries with new ones of the same type.

I have a picture but no sound. What should I do?

Press the MUTE button to check if sound is muted. Increase the volume. Try a different channel to see if the issue is broadcast-related. Verify audio cabling if using external devices.

How can I play media from a USB drive?

Insert a USB drive, press SOURCE and select MEDIA. Then choose Photo, Music, Movie, or Text. Navigate folders using arrow buttons and select a file to play. Supported formats include JPEG, MP3, AVI, MKV, etc.

How do I record a TV program using PVR?

Insert a USB drive (minimum 512 MB, formatted). In DTV mode, press the ● button to start recording the current programme. Press again to stop. You can also use EPG to schedule recordings.

How do I reset the TV to factory settings?

Go to Menu > Setup > Reset. This restores all settings to default. You will need to run the first-time setup again.

How to lock certain channels or use parental controls?

Enter Menu > Lock System. Default password is 0000. Set Enable to On, then use Channel Locks to select channels to lock. You can also set Parental Rating for age restrictions.

What should I do if the picture appears slow or no picture after power on?

It is normal for the image to be muted during startup. If no picture appears after five minutes, contact service. Check Contrast and Brightness settings in the Picture menu.

How to clean the TV screen and cabinet?

Turn off and unplug the TV. Use a soft, dry cloth for the cabinet. For the screen, dampen a soft cloth with a mixture of lukewarm water and mild detergent, wring until almost dry, then wipe gently. Allow to dry before use.

Can I mount the TV on a wall?

The TV does not include a wall mount, but it is likely VESA compatible (size not specified in manual). Please refer to a compatible wall mount kit and ensure proper installation to maintain ventilation.

USER MANUAL 40CGL107016 Kunft

Black-and-white photo of multiple flat-screen TVs displaying a scenic view of the Palace of England at night, with no visible text or symbols on screens.

led tvs

20" | 28" | 32" | 40"

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS ...... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water ...... 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

..... 102. O PER,

2.1. Product Description.... 10
2.2. Using the Product ...... 12
2.3. Maintenance .... 31
2.4. Troubleshooting ...... 32

1. POST-SALE SERVICE 34

2. ENVIRONMENTAL PROTECTION .... 34

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sen-sorial or mental capabilities and/or lack of experience and know - ledge if they have been given ins- tructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cle - aning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- Do not use this apparatus near water.

- Clean with a dry cloth only.

- Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or earth type plug. A polarized plug has two blades, where one is wider than the other. An earth type plug has two blades and a third earth prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked upon or pinched particularly near the plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use the attachments/ accessories specified by the manufacturer.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV.

- Some minute dot defects may be visible on the screen, appearing as tiny red, gre-

en, or blue spots. However, they have no adverse effect on the monitor's performance.

- Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effect on the screen.

2. OPERATING INSTRUCTIONS

2.1. Product Description

ACCESSORIES:

1. LED TV 1 pc
2. Remote Control 1 pc
3. Stand 2 pcs
4. User Manual 1 pc
5. Screw 4 pcs

6. Energy label 1 pc

7. Stand assembly instructions 1 pc

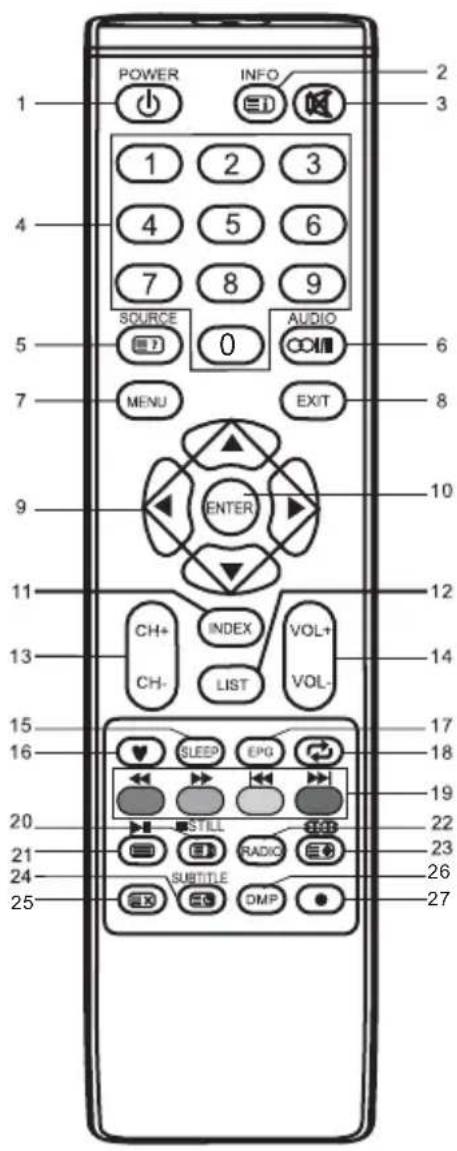

REMOTE CONTROL

The buttons on the original remote control are as follows:

1. Power, switch the TV set on or off.

2. INFO: Press to display current programme information on the screen. ☐Go to the index page.

3. Press to mute or restore sound.

4. NUMBER BUTTONS: Choose channels or input password.

5. SOURCE: Press to select signal source. ☐Reveal the hidden information of some teletext pages.

6. AUDIO (OOI/II): This button can be used to switch between Dual I/Dual II/Dual I+ II/Stereo/Mono and switch Audio language in DTV mode.

7. MENU: Press to enter the menu screen for various optional adjustable settings.

8. EXIT: Exit OSD Menu.

9. ▲/▼/◄/►: To select the direction.

10. ENTER: Press to execute the selected item in the menu screen.

11. INDEX: Press to enter the quick menu (In media mode). Press to enter the PVR Settings (In DTV mode).

12. LIST: Press to call up the list of channels. Press again to exit.

13. CH+/CH-: Press to select channels in ascending or descending order.

14. VOL+/VOL-: Press to adjust the volume level up or down.

1. SLEEP: Press to set the sleep timer. When the preset length of time has passed, the TV set enters standby mode.
2. ♥: Switch favourite programmes list on/off.
3. EPG: Electronic Programme Guide, use in DTV mode.
4. ↗: Return to last viewed programme.
5. COLOUR BUTTONS: Red/green/yellow/blue key navigation link.

▶▶: Fast reverse (in media mode).
◀◀: Fast forward (in media mode).
◀◀: Previous (in media mode).
▶▶: Next (in media mode).

1. STILL: Press to hold the picture.

☐: Hold the teletext page on display, press again to release.
■: Stop (in media /PVR mode).

1. ☐: Enter the Teletext, press again for MIX mode, press this button again to exit.

▶: Play/Pause (in media mode).

1. RADIO: Press to interchange Radio and DTV programmes when there a Radio programme exists (In DTV mode).
2. ☐: Press to select different image size.

Change size of teletext screen in display mode.

1. ☐: Enter subtitle mode or subpage.
2. ☒: Cancel teletext but does not exit teletext, press again to exit.
3. DMP: Press to switch to media mode.
4. ●: Press button ● to start recording. (In DTV mode).

NOTE:

• All pictures in this manual are examples used for reference only. The actual product may differ from the pictures.
• Any buttons not mentioned are not used.

2.2. Using the Product

REGULATORY INFORMATION

This equipment generates usage radiation and can radiate radio frequency energy waves. If not installed properly and used in accordance with the instructions, it may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference through one of the following measures:

• Relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit that is different to the one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications made and which are not expressly approved by the party responsible for compliance may void the user's authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way without the written consent of the supplier. Unauthorised modifications may void the user's authority to operate this product.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

Figures and illustrations in this User Manual are provided for future reference only and may differ from the actual product appearance. Product design and specifications may be changed without prior notice.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

Ventilation should remain uncovered. Please do not cove the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

The Apparatus must not be exposed to drips or splashes, nor should any objects filled with liquid, such as vases, be placed on top of the apparatus.

Attention should be drawn to the environmental aspects concerning battery disposal. Don't throw used batteries into a dustbin. Please contact your retailer in order to protect the environment.

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failure to maintain suitable ventilation may result in fire or a problem with the product caused by increased internal temperature.

No naked flame sources, such as lighted candles, should be placed on top of the apparatus.

To prevent the spread of fire, keep candles or any other naked flames away from this product at all times.

The device may malfunction when under electrostatic discharge. This can be manually resumed by powering off and then powering on again.

CAUTION connecting the Power Cord

Most appliance manufacturers recommend that appliance be placed on a dedicated circuit; that is, a single outlet circuit that only powers that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets. Overloaded, lose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue the use of the appliance until the cord has been replaced with an exact replacement part from an authorised service provider. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point at which the cord exits the appliance.

The MAINS plug is used as the disconnect device, and the disconnect device shall remain readily operable.

Operating Temperature: 5°C to 35°C Operating Humidity: ≤80%

Storage Temperature: -15°C to 45°C Storage Humidity: ≤90%

☐ This equipment is a Class or double insulated electrical appliance. It has been designed in such a way that it does not require an electrical safety connection to earth.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

CE

GETTING STARTED

Using the remote control

When using the remote control, aim it at the remote sensor located on the television. If there is an object between the remote control and the unit's remote sensor, it may not operate.

- Point the remote control at the REMOTE SENSOR located on the television.

• When using this television in a brightly lit area, the infrared REMOTE CONTROL SENSOR may not work properly.
• The recommended effective distance for using the remote control is about 7 metres.

Installing Batteries in the Remote Control

1. Open the cover at the back of the remote control.

2. Install two AAA size batteries. Ensure that the “+” and “-” ends of the batteries match the diagram inside the compartment.

3. Replace the cover.

Battery replacement

You will need to install the batteries into the remote control to make it operate following the instruction below.

When the batteries become weak, the operating distance of the remote control will be greatly reduced and you will need to replace the batteries.

Notes on Using Batteries:

Using the wrong type of batteries may cause chemical leakage and/or explosion. Please note the following:

• Always ensure that the batteries are inserted with the + and - terminals in the correct direction as shown in the battery compartment.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and may cause chemical leakage.
• Replace batteries as soon as they stop working.
• Chemicals leaked from batteries may cause skin irritation. If any chemical matter seeps out of the batteries, wipe it clean immediately with a dry cloth.
• The batteries may have a shorter life expectancy due to storage conditions. Remove the batteries whenever you anticipate that the remote control will not be used for an extended period.
• The batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunlight, fire or the like.

CAUTION:

• Batteries that are incorrectly replaced, may result in explosion.
• Only replace batteries with others of the same or equivalent type.

CONNECTION AND SETUP

Cable Installation

Please carefully read the relevant content under “Warning and Safety instructions” prior to installation and use.

1. Remove the TV from the package and put it in an aerated and flat place.

NOTE:

- When you plug or unplug the TV, computer or other equipment, you must ensure that the AC power has already been shut down; when unplugging the power cable or signal cable, please hold the insulated part of the plug. Do not pull at the body of the cable.

1. The RF output terminal can be connected with the RF input terminal of the TV.
2. The AV output terminal of the DVD can be connected with the AV input terminal of the TV through an AV cable.

NOTE:

• The component and AV cannot be used at the same time, as they only share one audio channel.

• If the COMPONENT (YPbPr) and AV work as a mini terminal, and share the same audio, please use a one-to-three audio video cable.

• The output COMPONENT(YPbPr) terminal of the DVD can be connected to the COMPONENT(YPbPr) input terminal of the TV through an AV cable.

• Connect one end of the VGA cable to the VGA port on the computer, connect the other end of the VGA cable to the VGA terminal of the TV, and tighten the bolts clockwise on each end of the VGA cable.

NOTE:

• While connecting the 15-pin VGA, please do not insert the plug with overexerted force, for fear that the pin might be broken.
• Connect one end of the HDMI cable with HDMI output terminal, connect the other end of the HDMI cable with the HDMI port on the TV.

NOTE:

- While connecting the HDMI, please aim at carefully, do not insert with overexerted force, for fear that the pin might be broken.

1. Connect SCART socket input or output from an external device to these jacks.
2. Sending the TV's audio signal to external audio equipment via the Digital Audio Output terminal.
3. Check and make sure that all AV cables are connected with the corresponding ports correctly.
4. Connect the AC power cable to the 100-240V\~ power supply.

NOTE:

• The range of power input for the TV is 100-240V\~50/60Hz, do not connect the TV power input terminal to the AC power if out of the above range.
• Please hold the insulated part of the plug when you are unplugging the power cable, do not directly touch the metallic part of the cable.

BASIC OPERATION

QUICK START GUIDE

- Connection

1. Connecting the mains and antenna.
2. If TV has a power switch, turn it on first. Then press Power button on the remote to turn on the TV.

- First Time Setup

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings.

OSD Language

Press the ◀/▶ button to select the desired OSD (On Screen Display) language.

Mode Setting

Press the ◀/▶ button to select Home Mode or Store Mode.

Country

Press the ◀/▶ button to select the country you want to.

Tuner Type

Press the ◀/▶ button to select Antenna or Cable.

Auto Scan

Press the ◀/▶ button to select mode: DTV+ATV, DTV, ATV.

LCN

Press the ◀/▶ button to select On or Off.

Auto Channel Update

Press the ◀/▶ button to select On or Off.

When selecting Cable: A step appears allowing you to set parameters for the channels. For more information, please refer to Channel (Auto Scan).

Turning the TV on and off

- Turning the TV on

Connect the AC input cable. If TV has a power switch, turn it on first. Press the ⏻ button on the remote control to turn on the TV from standby mode.

- Turning the TV off

Press the button ⏻ on the remote control to enter standby mode.

Do not leave your set in standby mode for long periods of time. It is best to unplug the set from the mains and aerial.

- No signal

A No Signal menu will appear on screen when there is no input signal. In ATV/DTV mode, if there is no signal for 15 minutes, the TV

will turn off automatically. In PC mode, the TV set will automatically turn off in 1 minute if no input signal is found. When VGA cable is connected, the TV turns on automatically.

Programme Selection

- Using the CH+/CH- on the TV panel or on the remote control.

Press CH+ to increase channel number.

Press CH- to decrease channel number.

• Using 0-9 digital buttons.

You can select the channel number by pressing 0 to 9. (In ATV, DTV mode)

- Example

To select - channel (e.g. Channel 5): Press 5.

To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.

Volume adjustment

- Press the VOL+/- button to adjust the volume.

- If you want to switch the sound OFF, press the ☒.

- You can release mute by pressing the ☒ or increase the volume.

Changing the Input Source

You can select the input source by pressing the SOURCE button on the remote control.

Press the ▲/▼ button to search through the input source, and press the ENTER button to confirm your choice.

How to Navigate Menus

Before using the TV follow the steps below to learn how to navigate the menu in order to select and adjust different functions. The access step may differ depending on the selected menu.

1. Press the MENU button to display the main menu.

2. Press the ◀/▶ button to search through the main menu.

3. Press the ▲/▼ button to select the desired sub item.

4. Press the ENTER button to access the submenu.

5. Press the ▲/▼/◄/► button to select the desired value. The adjustment in the OSD may differ depending on the selected menu.

6. Press the MENU button to return to the previous menu.

7. Press the EXIT button to exit the menu.

NOTE:

- When an item in MENU is greyed-out, this means that the item is not available or cannot be adjusted.

• Buttons on the TV have the same function as corresponding buttons on the remote control. If your remote control is lost or not working, you may use the buttons on the TV to select menus. This instructions manual focuses on operations using the remote control.
• Some items in the menus may be hidden depending on modes or signal sources used.

MENU OPERATION

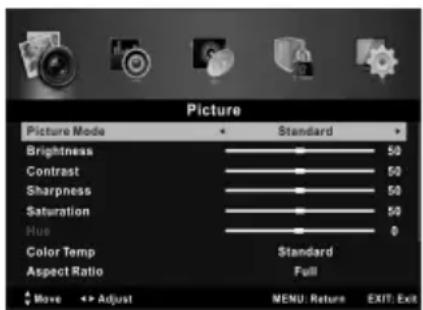

Configuring the Picture Menu

- Picture Mode

You can select the type of picture which best corresponds to your viewing requirements.

The manufacture's recommendation mode is Standard.

- Brightness

Adjusts the base level of the signal in the picture.

- Contrast

Adjusts the signal level between black and white in the picture.

- Sharpness

Adjusts the level of crispness in the edges between the light and dark areas of the picture.

- Saturation

Adjusts intensity of all colours.

• Hue (Only in NTSC mode)

Adjusts the balance between red and green levels.

- Color Temp

Select the colour temperature of the picture.

- Aspect Ratio

You can select the picture size which best corresponds to your viewing requirements.

• PC Setup (In PC mode)

Auto Adjust: Adjust the image automatically.

H Position: Centre the image by moving it left or right.

V Position: Centre the image by moving it up or down.

Phase: Minimise any horizontal distortion.

Clock: Minimise vertical stripes in the screen image.

- Screen Mode (In HDMI mode)

Press the ▲/▼ button to select Screen Mode, then press the ◀/▶ button to select Auto, Video or PC.

- Advanced Settings

NR: Set options to reduce video noise.

Dynamic Contrast: Automatically adjust picture detail and brightness.

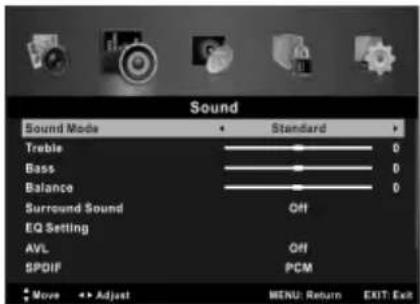

Configuring the Sound Menu

- Sound Mode

You can select a sound mode to suit your personal preferences.

- Treble

Adjust the treble effect. Increases or decreases high-pitched sounds.

• Bass

Adjust the bass effect. Increases or decreases lower-pitched sounds.

• Balance

You can adjust the sound balance of the speakers to preferred levels.

- Surround Sound

You can select a desired Surround Sound mode.

• EQ Setting

Adjust the curve of 7 bands equaliser.

EQ Mode: Only in User mode, the following can be manually adjusted.

120Hz/300Hz/500Hz/1.2KHz/3.0KHz/7.5KHz/10KHz: Adjusts the level of specific bandwidth frequencies.

Based on your favourite frequency band, these may need to be adjusted, make small adjustment to certain frequency bands one at a time. We suggest that you do NOT make very big changes.

• AVL

AVL automatically remains on the same volume level if you switch between programmes. Because each broadcasting station has its own signal conditions, volume adjustment may be needed each time the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments to each program.

- SPDIF

You can select a desired SPDIF Output mode.

• Audio Description (In DTV mode)

Press the ▲/▼ button to select Audio Description, then press the ▶ button to enter sub-menu.

Press the ▲/▼ button to select Mode, then press the ◀/▶ button to select On, Off. When the mode is On, Volume can be adjusted by users.

• Sound Type (In DTV mode)

Press the ▲/▼ button to select Sound Type, then press the ◀/▶ button to select.

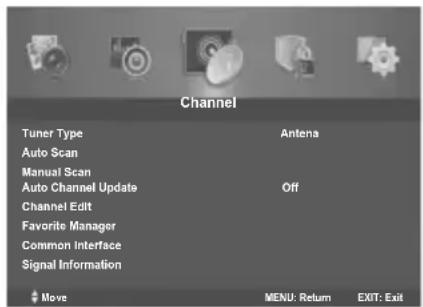

Configuring the Channel Menu

- Tuner Type

Before your TV can begin memorising the available channels, you must specify the type of signal source that is connected to the TV (i.e. Antenna or Cable). Wrong setting of signal type may result in no channels being found. Numbers found do not include encrypted programmes.

- Auto Scan

Press the ENTER button to enter the sub-menu.

Tuner Type is Antenna:

Country: Press the ◀/▶ button to select country.

Mode: Press the ◀/▶ button to select Mode: DTV+ATV, DTV, ATV.

Start: Press the ENTER button to start the auto searching.

Tuner Type is Cable:

Country: Press the ◀/▶ button to select country.

Mode: Press the ◀/▶ button to select Mode: DTV+ATV, DTV, ATV.

Scan Type: Press the ◀/▶ button to select Scan Type: Advanced, Quick, Full.

Network ID: Press the ◀/▶ button to select Network ID: Auto or enter digital numbers.

Frequency: Press the ◀/▶ button to select Frequency: Auto or enter digital numbers.

Symbol Rate: Press the ◀/▶ button to select Symbol Rate: Auto or enter digital numbers.

Start: Press the ENTER button to start the auto searching.

- Manual Scan

Press the ENTER button to enter sub-menu.

- Digital Manual Scan: Press the ▲/▼ button to select the Digital Manual Scan, then press the ENTER button to enter sub-menu.

Tuner Type is Antenna:

Digital Scan: Press the ◀/▶ button to select the channel number.

Start: Press the ENTER button to start the channel searching.

Frequency: Display the frequency of current TV signal.

Strength: Display the quality of current TV signal.

Tuner Type is Cable:

Network ID: Press the ◀/▶ button to select Network ID: Auto or enter digital numbers.

Frequency: Enter a user-defined frequency.

Symbol Rate: Press the ◀/▶ button to select Symbol Rate: Auto or enter digital numbers.

Modulation: Press the ◀/▶ button to select Modulation: Auto, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.

Start: Press the ENTER button to start channel searching.

Strength: Display the quality of current TV signal.

- Analog Manual Scan: Press the ▲/▼ button to select the Analog Manual Scan, then press the ENTER button to enter sub-menu.

Analog Scan: Press the ◀/▶ button to select Analog Scan.

Channel to Save: Press the ◀/▶ button to select channel.

Colour System: Press the ◀/▶ button to select Colour System: Auto, PAL or SECAM.

Sound System: Press the ◀/▶ button to select Sound System: Auto, DK, BG, I or L.

AFC: Press the ◀/▶ button to select On or Off.

Start: Press the ENTER button to start the channel searching.

• Auto Channel Update

Press the ◀/▶ button to select auto channel update On or Off.

- Channel Edit

First press the ▲/▼ button to highlight the channel you want to delete, skip, rename or swap, then: Press the red button to delete the channel.

Press the green button to skip the select channel. (Your TV set will skip the channel automatically when using CH+/- to view the channels.)

Press the yellow button to rename the channel. (In ATV mode)

Press the blue button to set the channel to moving state, then press the ▲/▼ button to move it to the position you want to put.

• Favourite Manager

Press the ▲/▼ button to select the items.

Press the ◀/▶ button to page up or down the Favourite list.

Press red, green, yellow, blue button to select the desired favourite group.

• Common Interface (In DTV mode)

This function enables you to watch some encrypted services (paid services).

Please insert CI card into the PCMCIA slot according to the arrow on the CI card.

NOTE:

- The function can only be obtained when the CI slot is available.

- Please do not insert or pull out the CI card when the power is on.

- Do not insert or pull out the CI card frequently so as to avoid any damage to the TV and CI card.

• During initialisation of the CI card, please do not operate the TV.
  • Signal Information (In DTV mode)

Display current Signal Information.

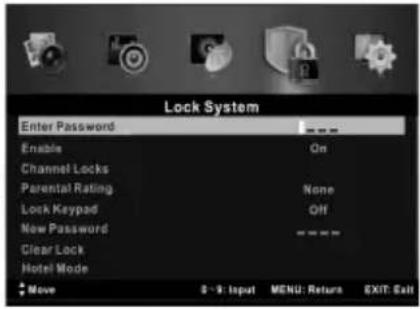

Configuring the Lock System Menu

- Enter Password

The following items are only available if the password input is correct.

Default password is 0000., Should you forget your password, please call the service centre.

- Enable

Channel Locks, Parental Rating and Lock Keypad are available when Enable is On.

- Channel Locks

Press ▲/▼ to select the channel you want to lock, then press ENTER to set it to lock.

• Parental Rating (In DTV mode)

Press the ▲/▼ button to select Parental Rating, then press ◀/▶ button to select.

- Lock Keypad

Set to prevent it from being used by young children, or other unexpected usage.

- New Password

Press the ▲/▼ button to select New Password, then enter a 4-digital number you want to set twice.

- Clear Lock

Restore the Lock System settings to factory default.

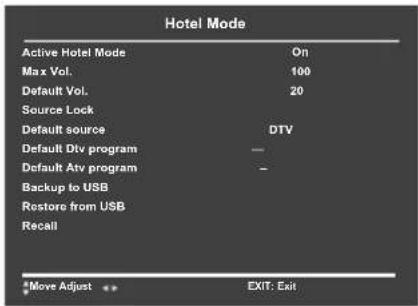

- Hotel Mode

Press the button to select Hotel Model, then press ENTER button to enter Hotel Model.

- Active Hotel Mode

Set hotel mode On or Off.

NOTE: The following settings work only when Active Hotel Mode is set to be ON.

- Max Vol.

Set the max volume that you can adjust.

- Default Vol.

Set the Default volume for every time you switch on the TV, the default volume is 20.

- Source Lock

To lock the input sources that you want.

- Default source

Set the default input source when turning on your TV.

- Default Dtv programme

Only available when the Default Source is set to DTV.

- Default Atv programme

Only available when the Default Source is set to ATV.

- Backup to USB

Backup data to USB.

- Restore from USB

Restore data from USB.

- Recall

Recall Hotel mode default settings.

Configuring the Setup Menu

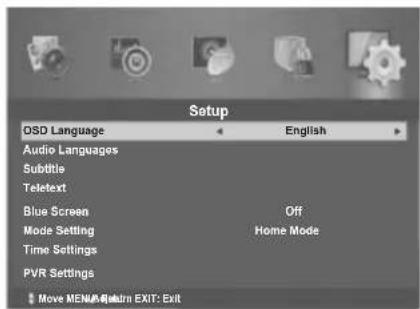

- OSD Language

Select your preferred On Screen Display language.

• Audio Languages (In DTV mode)

Select your preferred audio language. (Available for digital channels if multiple audio languages are broadcasted.)

Press the ▲/▼ button to select Audio Languages, then press ENTER button to enter sub-menu.

Press the arrow button to select the Audio Primary Language and Audio Secondary Language.

- Subtitle (In DTV mode)

Press the ▲/▼ button to select Subtitle, then press ENTER button to enter sub-menu.

Press the ▲/▼ button to select Mode, then press ◀/▶ button to select On or Off.

Press the arrow button to select the Subtitle Primary Language and Subtitle Secondary Language.

Press the ▲/▼ button to select Hearing Impaired, then press ◀/▶ button to select On or Off.

- Teletext

Adjust Teletext settings. Only available under DTV and ATV source. Press the ▲/▼ button to select Teletext, then press ENTER button to enter sub-menu.

Under DTV source, press ◀/▶ button to select Digital Teletext Language.

Under ATV source, press ◀/▶ button to select Decoding Page Language.

- Blue Screen

Press ◀/▶ button to select blue screen On or Off.

- Mode Setting

Press ◀/▶ button to select Store mode or Home Mode.

The manufacture's recommendation mode is Home (Standard).

- Time Settings

Press the ▲/▼ button to select Time Settings, then press ENTER button to enter sub-menu.

OSD Timer: Select On-Screen Menu displaying time.

Sleep Timer: Select the time to turn the TV to standby mode automatically.

Auto Sleep: Select the Auto Sleep time you want.

Time Zone: Select your time zone.

Time: Press the ▲/▼ button to select Time, then press ENTER button to enter sub-menu. Set Auto Sync to Off, then you can set the time manually.

NOTE: In the event of loss of power, the clock settings will be lost.

• PVR Settings (In DTV mode)

Press the▲/▼button to select PVR Settings, then press ENTER button to enter sub-menu.

It will check the USB.

File Manager: To display the Recorded list.

Replay: Press the red button to replay video.

Delete One: Press the green button to delete a video.

Delete All: Press the yellow button to delete all videos.

Full: Press the blue button to zoom in the video.

Device List: When multiple recording devices are connected, the recording devices are listed. Select one of the recording devices from the Device List.

Format: Press the red button to format the USB disk.

Scheduled Recording: To set the parameters for scheduled recording.

Press the ENTER button to set the parameters for recording.

Delete One: Press the green button to delete a video.

Delete All: Press the yellow button to delete all videos.

Digital programme recording

1. Insert a U disk, press ● button to record the current programme During the recording, press ● button to zoom in/out of the record menu.

2. Press button● to stop recording. This will return the set to normal broadcast television.

NOTE:

- USB disk must have a minimum available capacity of 512MB.

- Please format the inserted USB disk when it cannot be recorded to.

- During Device formatting. Do not disconnect the device while formatting is in progress. If you format the device, all files will be deleted. Before formatting your device to the TV, please back up your files to prevent them from being lost or damaged. If the USB disk contains a virus, formatting will return a failure.

- When a USB device has several partitions, the PVR system can help to choose any of these in order to carry out the recording.

- If the PVR recording system is used all the time, it will exit the PVR system automatically.

- USB memory must support USB2.0 high-speed specification.

- Some non-standard USB devices may not be supported.

- First Time Setup

This is a guide to help you setup the TV.

- Reset

Restores the system to default factory settings.

Using MEDIA mode

• To Access/Quit MEDIA mode

1. Connect a USB device.

2. Press the SOURCE button to display the main menu. Use the ▲/▼ to highlight MEDIA, and the ENTER button to access the MEDIA mode.

3. You may also use the signal source selection menu to exit from the MEDIA mode.

NOTE:

- Special USB device may not be supported or may not work properly.

- USB max. Load: DC5V 500mA

• Formats supported

Multimedia Categories	File Extension Decoder Notes
	Video Decode	Audio Decode
Movie *.avi MPEG-1		MPEG-1	MPGE1/MPEG2/
	MPEG-2 MP	Layer 2	MPEG4:
	MPEG-4 SP	MPEG-1	Up to 1080p @ 30F
	MPEG-4 ASP	Layer 3	H.264: Up to 1080p @ 25F
	MPEG-4 XVID	MPEG-2	AAC: AAC-LC (type 2),
	H.264(AVC)	Layer 3	HE-AAC v1(type 5, SBR),
	MP@Level 4	AC3	HE-AAC v2(type 29, SBR+PS)
	H.264(AVC)	AAC-LC
	HP@Level 4	HE-AAC V1
		HE-AAC V2
MPEG (*.mpeg, *.mpg, *.dat, *vob)	MPEG-1 MP
	MPEG-2 MP
MPEG-4(*.mp4)	MPEG-4 SP
	MPEG-4 ASP
	MPEG-4 XVID
	H.264(AVC)
	MP@Level 4
	H.264(AVC)
	HP@Level 4
TS (*.ts, *.trp, *tp)	MPEG-1
	MPEG-2 MP
	H.264(AVC)
	MP@Level 4
	H.264(AVC)
	HP@Level 4
MKV (*.mkv)	MPEG-1
	MPEG-2 MP
	MPEG-4 SP
	MPEG-4 ASP
	MPEG-4 XVID
	H.264(AVC) MP
	@ Level 4
	H.264(AVC) HP
	@ Level 4
Movie *.flv H.264(AVC) MP
	@ Level 4H.264(AVC) HP@ Level 4
Music *.mp3 MPEG-1
		Layer 3	Bit Rate: up to 320Kbps
		MPEG-2Layer 3	Sample Rate: 32KHz, 44.1KHz, 48KHz
	AAC (*.aac, *m4a)	AACHE-AAC V1HE-AAC V2
	*.wav LPCM	ADPCM
Photo *.jpg	*jpeg	Baseline Mode 72x72 < Baseline resolution < 7680x4320
		Progressive Mode	Progressive Mode Size <=1280x1024File Size <=10MB
Text *.txt UTF-8			File Size <=1MB
		UNICODEASCII

Note: Max 500 files supported each folder.

NOTE:

• Special algorithm documents may not be supported by or may not work properly with the USB.
• The USB supports the format mentioned above, if the file format is not supported, change it to the given format.

Main Operating Interface

Use the ◀/▶ button to select Photo, Music, Movie or Text. Press ENTER button enter into sub-menu.


Press the ◀/▶ button to select Photo in the main menu, then press ENTER button to enter.

Press the ◀/▶ button to select disk you want to watch, then press ENTER button to enter.

Press the CH+/- button to change page.

Press the INDEX button to access to the quick menu.

Use the arrow buttons to highlight the folder, and then press the ENTER button.

Use the arrow buttons to highlight a file, and then press the button to play.

Press the ■ to stop the playing files.

Press the EXIT button to back to the previous menu.

Music

Press the ◀/▶ button to select Music from the main menu, then press ENTER button to enter.

Press the ▲/▼ button to select the disk you want to watch, then press ENTER button to enter.

Press the ◀/▶ button to change page.

Press the INDEX button to access to the quick menu.

Use the ▲/▼ button to highlight the folder, and then press the ENTER button.

Use the ▲/▼ button to highlight a file, and then press the button to play.

Press the to stop the playing files.

Press the EXIT button to back to the previous menu.

Movie

Press the ◀/▶ button to select Movie in the main menu, then press ENTER button to enter.

Press the ▲/▼ button to select the disk you want to watch, then press ENTER button to enter.

Press the ◀/▶ button to change page.

Press the INDEX button to access to the quick menu.

Use the ▲/▼ button to highlight the folder, and then press the ENTER button.

Use the ▲/▼ button to highlight a file, and then press the button to play.

Press the ■ to stop the playing files.

Press the EXIT button to back to the previous menu.

Text

Press the ◀/▶ button to select Text in the main menu, then press ENTER button to enter.

Press the ▲/▼ button to select disk you want to watch, then press ENTER button to enter.

Press the ◀/▶ button to change page.

Press the INDEX button to access to the quick menu.

Use the ▲/▼ button to highlight the folder, and then press the ENTER button.

Use the ▲/▼ button to highlight a file, and then press the button to play.

Press the EXIT button to back to the previous menu.

IMPORTANT UNIQUE BUTTONS

PROGRAMME GUIDE (In DTV mode)

Press the EPG button to enter PROGRAMME GUIDE menu.

Press the ● button to set the parameters for recording. You can choose the time of the programme that you want to record. The unit is able to schedule a recording when the TV is switched on or in standby mode. When recording starts in standby mode, there will be no picture or sound from the unit.

Press the red button to view the previous date's guide.

Press the green button to view the next date's guide.

Press the yellow button to display the EPG Schedule List.

Press the blue button to book program.

Press the EXIT button to exit.

Channel List

Press LIST button to display the Channel List.

Press ▲/▼ to select the items. Press ENTER button to enter the channel.

Press ◀ / ▶ button to page up or down the Channel list.

Press EXIT button to exit.

Favorite List

Press ♥ button to display the favorite list.

Press ▲/▼ to select the items. Press ENTER button to enter the channel.

Press ◀/▶ button to select Favourites 1,2,3,4.

Press CH+/CH- button to page up or down the Favourites list.

Press EXIT button to exit.

TELETEXT

Using the teletext feature

- Display teletext

1. Select a TV station with a teletext signal.

2. Press the ☐ button to enter teletext mode.

3. Press the 2nd button to enter Mix mode. This function enables you to superimpose the teletext page over the TV program.

4. Press the 3rd button to return or exit to normal ATV/DTV mode.

- Page selection

1. Enter the page number (three digits) using the number buttons. If you press a wrong number during input, you must complete the three-digit number and then re-enter the correct page number.

2. The CH+/CH- button can be used to select the preceding or following page.

- Hold

You can press the button ☐ to hold a page, and press it again to release the page.

- Index

Press the Ⓞ button to enter the main index page directly.

- Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press the Ⓤ button to enlarge the top half of the page.

2. Press the ⏚ button again to enlarge the bottom half of the page.

3. Press the ⏻ button once more to return to the normal display.

- Reveal mode

You can display concealed teletext information (e.g. Answer to puzzles or riddles etc.) by pressing ☐? button. Press Button again to remove the information from the display.

- Subpage

Some teletext may contain several sub-pages which are automatically paged in a certain cycle by the TV station.

1. You can enter into a certain subpage by pressing the button directly and select the page number using the number buttons. Enter the subpage number (e.g. 0003) for the third subpage.

2. Press the button again to exit subpage mode.

• Colour buttons (Red, Green, Yellow and blue)

Press these buttons to access directly to the corresponding colour pages displayed at the lower part of the teletext screen.

2.3. Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the lifetime of your new TV. Be sure to switch off the power and unplug the power cord before you begin any cleaning.

Cleaning the screen

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then used it to wipe the screen.
2. Make sure the excess water is off the screen, and allow to dry before you turn on your TV.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as during a holiday period), it's a good idea to unplug the power cord to protect against any possible damage from lightning or power surges.

☐ This equipment is a Class or double insulated electrical appliance. It has been designed in such a way that it does not require an electrical safety connection to earth.

2.4. Troubleshooting

Before contacting the service technician, carry out the following simple checks. If a problem still persists, unplug the TV and call for service.

PROBLEM POSSIBLE SOLUTION

No sound and picture -	Check whether the main plug has been connected to a wall let.- Check whether you have pressed the POWER button on the front of TV set.- Check the picture contrast and brightness settings.
Normal picture but no sound	- Check the volume.- Sound muted? Press the MUTE button.- Try another channel, the problem may be related to the broadcast.- Are the audio cables installed properly?
The remote control does not work	- Check to see if there any object between the product and remote control, which may cause obstruction.- Are the batteries correctly placed as regards polarity (+ to +, - to -)?- Correct remote operating mode set: TV, VCR etc.?- Insert new batteries.
Power is suddenly turned off	- Has sleep mode been enabled?- Check the power control settings. Power interrupted.- No broadcast on station tuned with auto activated.
Picture appears slowly after switching on	- This is normal; the image is muted during the product start-up process. Please contact your service centre, if the picture has not appeared after five minutes.
No colour, poor colour or picture	- Adjust the colour in the menu option. - Keep a sufficient distance between the product and the VCR. - Try another channel, the problem may be related to the broadcast. - Are the VIDEO cables installed properly? - Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	- Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	- Station or cable product experiencing problems. Tune to another station. - Station signal is weak, reposition antenna to receive a better station. - Check for sources of possible interference.
Lines or streaks in pictures	- Check the antenna (Change the direction of the antenna).
No output from one of the speakers	- Adjust balance in menu option.
The signal is out of range	- Adjust resolution, horizontal frequency, or vertical frequency. - Check whether the signal cable is connected or loose. - Check the input source.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	- Work the auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or single colour	- Check the signal cable. - Reinstall the PC video card.

NOTE: There is a problem in VGA mode (Only VGA mode applied).

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Foto

Three schematic diagrams of a battery with directional arrows indicating flow or movement (no text or symbols)

Foto

Imported, produced and distributed by:
