805-042 - Lawn mower Marquant - Free user manual and instructions

Product Type	Hair clipper/trimmer
Brand	Marquant
Model	805-042
Rated Input Voltage	220–240 V, 50 Hz
Output Voltage	2.4 VDC
Output Current	90 mA
Charging Time	8 hours
Battery Type	Rechargeable, double battery
Cutting Length Range	3–15 mm with spacer comb
Water Resistance	Waterproof design for shower use
Blade Material	Steel scissors
Removable Blade	Yes, for cleaning
Power Switch	Yes, push down
Charging Status Lamp	Yes
Mains Adapter Included	Yes
Accessories	Spacer comb, charger
Operation Temperature	-10°C to +40°C
Safety Features	Child safety, electrical safety, automatic shut-off
Cleaning Method	Rinse scissor part under running water; wipe main body
Lubrication	Regularly oil scissors with light oil (e.g., sewing machine oil)
Replacement Parts	Original scissor parts, adapters, combs available from dealer

Frequently Asked Questions - 805-042 Marquant

How long does it take to fully charge the battery?

The charging time is approximately 8 hours. Charge the battery fully before first use for optimal performance.

Can I use the hair clipper while it's charging?

Yes, the appliance can be used directly from the mains via the adapter. Simply connect as per the charging instructions.

How do I clean the hair clipper?

Remove the scissor part and rinse it under running water. Do not immerse the main body. Brush the scissors clean and wipe off excess moisture.

How often should I lubricate the scissors?

Lubricate the scissors after a few cuttings. Use a light oil like sewing machine oil. Apply 1-2 drops between the teeth, then run the clipper briefly to spread the oil.

What length settings are available?

The spacer comb allows cutting lengths from 3 to 15 mm. Adjust the length by pressing the selector and moving it up or down.

Can I use the hair clipper in the shower?

Yes, the design is waterproof for use in the shower. However, do not immerse the appliance or allow the charger to get wet.

What should I do if the battery runs out quickly?

First, charge the battery fully. If the problem persists, try using the appliance with the power cord. Also, clean and lubricate the scissors or replace them if worn.

Are replacement parts available?

Yes, original accessories such as scissor parts, mains adapters, and comb attachments are available from your dealer. Do not use non-original parts.

Is it safe to use around children?

Children should not use the appliance due to sharp scissors. Keep the appliance and its cord out of reach of children under 8 years. Children aged 8+ may use it under adult supervision.

How do I replace the scissors?

Switch off the appliance. Remove the comb attachment, press the scissor part backwards, and remove it. Insert the new scissor part into the slot and push until it clicks into place.

USER MANUAL 805-042 Marquant

Black and silver hair curler with toothed head and black base (no visible text or symbols)

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

Safety instructions 16

Child safety 16
Electrical safety.... 16
Other risks....16

Technical data 17

Description.... 17
Use 17

Charging 17
Information on rechargeable battery 17
Spacer comb....18

Maintenance 18

Lubricating the scissors 19

SÄKERHETSANVISNINGAR

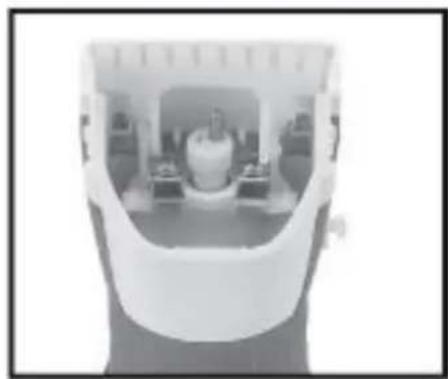

Close-up of a white and gray object resembling a funnel or vent, with no visible text or symbols.

Close-up of a hand holding a white handheld tool (no visible text or symbols)

Close-up of a hand holding a cylindrical object, possibly a pen or tool, with no visible text or symbols.

Interior view of a modern office or retail space with symmetrical furniture and signage (no readable text or symbols)

Smörjning av sax

Close-up of a hand holding a connector or connector with visible traces and connectors (no text or symbols)

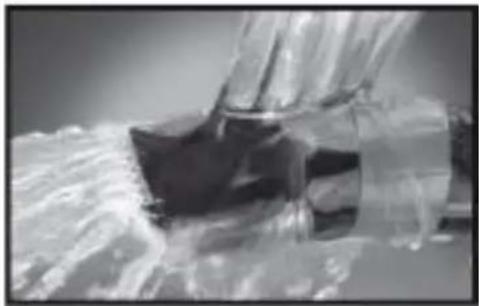

Close-up of a mechanical component with fluid flow, no visible text or symbols

Batteriet tar slut efter en kort stund

Close-up of a metallic object with a curved, hollow top and a flat base (no visible text or symbols)

Close-up of a hand holding a white handheld tool (no visible text or symbols)

Close-up of a hand holding a cylindrical object (no visible text or symbols)

Interior view of a modern office or service center with curved furniture and seating (no visible text or signage)

Smøring av saks

Close-up of a hand holding a flexible electronic component (no visible text or symbols)

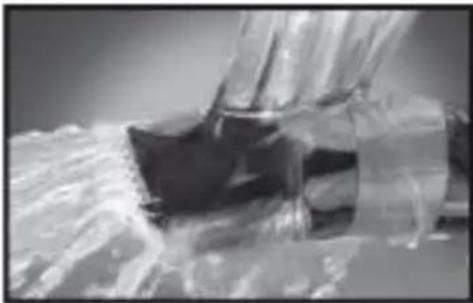

Close-up of a mechanical component with reflective surfaces and a dark central part (no visible text or symbols)

Batteriet tar slutt etter en kort stund

1. Lad batteriet.
2. Bruk apparatet med ledning om nødvendig.
3. Rengjør og smør saksen eller bytt den ut.

ZASADY BEZPIECZEŃSTWA

Close-up of a white funnel-shaped object with a curved base, possibly a container or vent (no visible text or symbols)

Close-up of a hand holding a white handheld electric toothbrush (no text or symbols visible)

Close-up of a hand holding a cylindrical object, possibly a spray can or tool, with no visible text or symbols.

Interior view of a modern office or service center with multiple workstations and a central monitor (no visible text or symbols)

Smarowanie nożyków

Close-up of a hand holding a flexible electronic component (no visible text or symbols)

Close-up of a metallic mechanical component with fluid flowing, no visible text or symbols

Read the User Instructions carefully before use

The hair clipper is intended to be used to cut and trim hair and beards. Do not use it to cut artificial materials.

Child safety

Children cannot be expected to understand the risks involved in using electrical appliances and should therefore not be allowed to use the product. There is serious risk cutting yourself on the sharp scissors.

Small parts can be very dangerous if swallowed. For this reason, store the appliance and its accessories out of the reach of children.

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

Electrical safety

• Clean the scissor part by rinsing in running water. Do not immerse the actual hair clipper in water.
• To avoid electric shock, do not allow the power cord or mains adapter to come into contact with water or any other liquids. Do not use the hair clipper, for example, at a sink full of water or in the bath. Unplug the power cord immediately if the hair clipper or charger comes into contact with water.
• Unplug the power cord if you are not thinking of using the hair clipper for a long time, if there are any problems with the hair clipper when using it, during thunder storms, and when cleaning.
• Never use the appliance if the clipper unit, power cord or mains adapter are damaged.
• Never try to open the appliance. The appliance, power cord and mains adapter must only be repaired by an authorised service centre. Repairs that are not carried out correctly can lead to a risk of serious personal injury and/or death.
• Only use the supplied mains adapter, or an adapter with the same technical properties. Otherwise the appliance can be damaged.
• The mains adapter must only be connected to a 220–240 V, 50 Hz power outlet, installed by an authorised electrician.

Other risks

• The appliance contains a double, rechargeable battery. The battery must not be taken apart, exposed to fire, or short circuited.
• Do not use the appliance with an accessory that is damaged. The scissors are very sharp. Always be very careful when using the appliance without an attachment.

Risk of personal injury. NOTE: Risk of damaging the hair clipper.

• Only use original accessories.
• Never try to sharpen the scissors yourself.
• Do not cut artificial materials with the appliance.

- The appliance must not be exposed to temperatures below -10^ or over +40^ for long periods.

TECHNICAL DATA

Rated data, in	220 V, 50 Hz
Rated data, out	2.4 VDC, 90 mA
Charging time	8 hours

DESCRIPTION

USE

Charging

The hair clipper battery should be charged to full capacity before using the appliance for the first time.

1. Push down the power switch.
2. Plug mains adapter cord into the outlet on the appliance.
3. Plug the mains adapter into a suitable power outlet.

The status lamp goes on when the battery is charging.

Close-up of a metallic object with a curved, hollow top and a flat base (no visible text or symbols)

Information on rechargeable battery

The battery does not have its fully capacity initially. Do as follows to obtain optimum charging capacity:

1. Charge the battery to full capacity before using the appliance for the first time, and then use the hair clipper until the battery is completely discharged.
2. Charge the battery to full capacity again. The useful life of batteries will increase if this charging and discharging process in repeated a few times a year.

Using the appliance if the batteries are not charged.

The appliance can also be supplied with power directly from the mains (via the mains adapter).

1. Connect the appliance in accordance with the instruction in the "Charging" section.
2. Unplug the mains adapter after use.

Tips

This function ensures even cutting for hair that is not equally thick.

Spacer comb

With the help of a spacer comb you can cut hair to an even length of 3–15 mm. Set the required length by pressing down the selector on the spacer comb and moving it either up or down.

The scale on the appliance shows which length has been set.

Close-up of a hand holding a white handheld electric brush (no visible text or symbols)

Triming beards and cutting hair on the neck should be done with attachments.

1. Remove the attachment.
2. Stroke the scissor part along the skin without pressing.

MAINTENANCE

1. Remove the comb attachment.
2. Press the scissor part backwards and remove.
3. Brush clean the scissors.
4. Fit the scissor part in the slot on the casing and replace the scissors.
5. Press the scissor part in the casing until it snaps in place with a click.
6. Waterproof design for use in the shower and simple cleaning.

Close-up of a hand holding a cylindrical object, possibly a pen or tool, against a plain background (no text or symbols visible)

Interior view of a modern office or service center with curved ceiling and central seating (no visible text or symbols)

Lubricating the scissors

The scissor head should be regularly lubricated, after a few cuttings. Use a light oil, such as sewing machine oil.

1. Remove the comb attachment.
2. Drip one to two drops of oil between the teeth on the scissors.
3. Switch on the hair clipper for a short while to spread the oil and then switch off again.
4. Wipe off surplus oil with a cloth.
5. Changing the scissors.
6. Only use original accessories. All accessories, such as scissor parts, mains adapters and comb attachments are available from your dealer. Never try to sharpen the scissors yourself. Switch off the appliance.
7. Replace the scissors according to the instructions in the Cleaning section.

Close-up of a hand holding a flexible electronic component (no visible text or symbols)

Close-up of a mechanical component with reflective surfaces and a dark central part (no visible text or symbols)

The battery goes flat after a short while

1. Charge the battery.
2. Use the appliance with the power cord if necessary.
3. Clean and lubricate the scissors, or replace.
