Name: DX-DRTVM102
Brand: Dynex
Rating: 5 (189 reviews)

Find the device manual for free DX-DRTVM102 Dynex in PDF.

📄 16 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product Type	Wall Mount
Brand	Dynex
Model	DX-DRTVM102
Maximum TV Weight	50 lbs (22.6 kg)
Screen Size Compatibility	22 to 37 inches diagonal
Overall Dimensions (H x W)	9.8 x 13.9 inches (25 x 35.3 cm)
Mount Weight	3 lbs (1.36 kg)
Mounting Types	Wood stud, solid concrete, concrete block
Tilt Adjustment	Optional 5° forward tilt
Material	Steel (typical)
TV Screw Holes Compatible	M4, M5, M6
Maximum Horizontal VESA Distance	13.8 inches (35 cm)
Maximum Vertical VESA Distance	9.1 inches (23 cm)
Included in Box	Wall plate, left/right TV brackets, wall plate template, hardware kit
Use with Metal Stud Walls	Not designed for metal stud walls
Safety Compliance	Designed to support five times the combined weight of TV and mount

Frequently Asked Questions - DX-DRTVM102 Dynex

What is the maximum TV weight this mount can hold?

The maximum TV weight is 50 lbs (22.6 kg). Do not exceed this limit.

What screen sizes are compatible?

This mount fits TVs with a diagonal screen size from 22 to 37 inches.

Can I install this mount on a metal stud wall?

No, this product is not designed for metal stud walls. Use only on wood stud, solid concrete, or concrete block walls.

How do I determine the correct screw length for my TV?

Hand-thread screws into the TV's mounting holes. The screw should fit snugly without sticking out too far. If the back is irregular, use spacers provided. Refer to the Step 4 of the manual for details.

What tools are needed for installation?

You will need a stud finder, tape, pencil, drill, socket wrench (1/2 inch), Phillips screwdriver, level, and appropriate drill bits: 7/32 inch for wood studs or 3/8 inch masonry bit for concrete.

Can I tilt the TV after mounting?

Yes, the mount allows an optional 5° forward tilt. Adjust the tilt brackets on the TV brackets before mounting the TV on the wall plate.

How do I install on a concrete block wall?

Use the wall plate template to mark holes, drill with a 3/8 inch masonry bit, insert concrete anchors, then attach the wall plate with lag bolts and washers. Never drill into mortar.

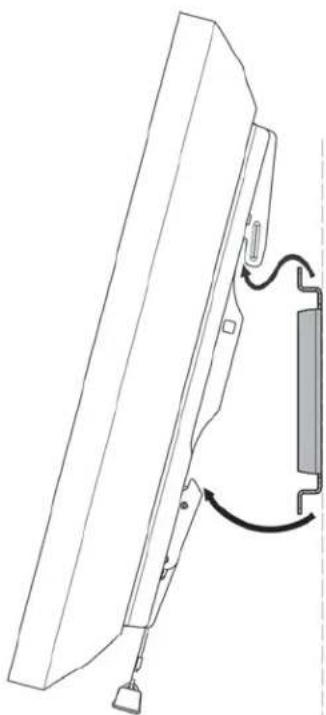

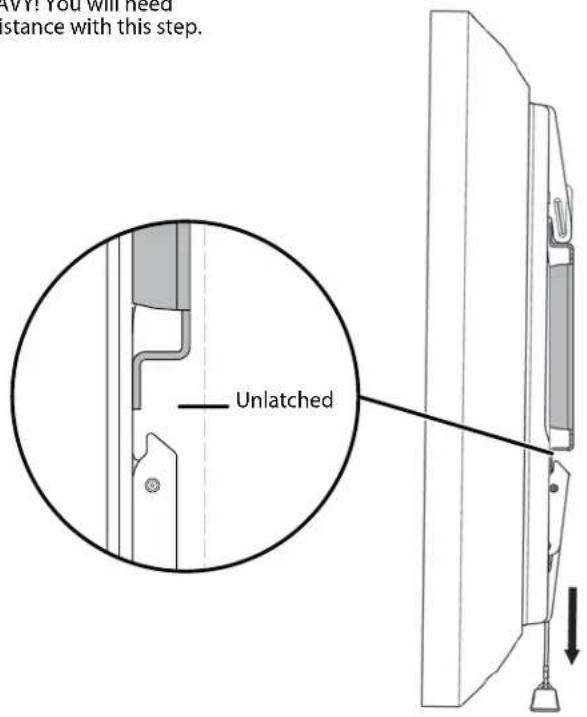

How do I remove the TV from the mount?

First, pull down on the locking cords at the bottom of the TV, then tilt the bottom of the TV away from the wall. Release the cords and lift the TV up and off the wall plate. Get assistance as the TV is heavy.

What is the maximum horizontal VESA distance?

The maximum horizontal distance between screw holes on the TV is 13.8 inches (35 cm).

Is a wall plate template included?

Yes, a wall plate template (R) is included to help you mark the drilling positions accurately.

User questions about DX-DRTVM102 Dynex

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Wall mount in PDF format for free! Find your manual DX-DRTVM102 - Dynex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DX-DRTVM102 by Dynex.

USER MANUAL DX-DRTVM102 Dynex

Medium Low Profile Wall Mount with Optional 5° Tilt

Dynex DX-DRTVM102 - 1

Dynex DX-DRTVM102 - 2

Dynex DX-DRTVM102 - 3
For wood-stud, solid concrete, or concrete block installation

Safety information and specifications ...... 2

TVs the wall mount fits.... 3

Tools needed....4

Parts 4

Hardware....5

Assembly instructions 6

Safety information and specifications

Dynex DX-DRTVM102 - Safety information and specifications - 1

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly specified by Dynex. Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts

about the safety of the installation, contact Customer Service or call a qualified contractor. Dynex is not responsible for damage or injury caused by incorrect installation or use.

The weight of your TV must not exceed 50 lbs. (22.6 kg).

The wall must be capable of supporting five times the weight of the TV and wall mount combined.

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

This product is not designed for use on metal stud walls.

Model #: DX-DRTVM102

Distributed by Best Buy Purchasing, LLC

Manufacturer: Milestone/Secura

Maximum weight: 50 lbs. (22.6 kg)

Screen size: 22 in. to 37 in. diagonal

Overall dimensions (H × W): 9.8 × 13.9 in. (25 × 35.2 cm)

Wall-mount weight: 3 lbs. (1.36 kg)

We're here for you

www.dynexproducts.com

For customer service, call:

800-305-2204 (U.S./Canada markets)

13.9" (35.3 cm) 9.8" (25 cm)

Need help? Call 800-305-2204

TVs the wall mount fits

The wall mount fits TVs with M4, M5, or M6 screw holes that are the following distances apart:

13.8" (35 cm) maximum horizontal distance 9.1" (23 cm) vertical distance

Tools needed

You will need the following tools to assemble your new wall mount:

Dynex DX-DRTVM102 - Tools needed - 1

Package contents

Make sure you have all the parts necessary to assemble your new TV wall mount:

A Wall Plate (1)

B Left TV Bracket (1)

C Right TV Bracket (1)

R Wall Plate Template (1)

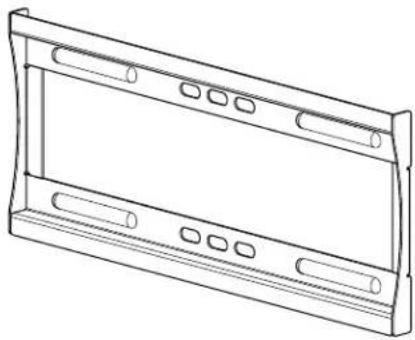

A Wall plate (1)
Dynex DX-DRTVM102 - Package contents - 1

B Left TV bracket (1)
Dynex DX-DRTVM102 - Package contents - 2

C Right TV bracket (1)
Dynex DX-DRTVM102 - Package contents - 3

R Wall plate template (1)
$C:\LAB\LAB\LAB Full-Box Setup - Select the Top Panel to select the Bottom Panel Setup Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Select Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Set to: Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100% Sulphedron 100%$

TV Hardware Bag

Note: Not all hardware will be used.

Make sure you have all the hardware necessary to assemble your new wall mount:

Label	Hardware Qty.
D	5/16" × 2 3/4" lag bolt	2
E	5/16" lag bolt washer	2
F	Concrete anchor	2
G	M4 × 12 mm screw	4
H	M4 × 30 mm screw	4
I	M5 × 12 mm screw	4
J	M5 × 30 mm screw	4

Concrete anchor

Label Hardware Qty.
K	M6 × 12 mm screw	4
L	M6 × 20 mm screw	4
M	M6 × 35 mm screw	4
N	M4/M5 washer	8
O	M6 washer	4
P	M4/M5 spacer	4
Q	M6 spacer	4

1 2 3 4in 10 20 30 40 50 60 70 80 90 100mm

Need help? Call 800-305-2204

Step 1: Determine the wall-mount location.

Note: For help with determining where you need to drill screw holes, use the HeightFinder™ Installation Assistant at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder

The center of your TV will match the center of the wall plate (A). Before you drill holes in the wall:

1 Measure the distance between the middle of one of the TV brackets and the bottom of your TV. This measurement is a.
2 If you plan to place furniture (such as an entertainment center or TV stand) under your TV, measure the height of the furniture and any items on top of the furniture. This measurement is b.
3 Measure the distance between the top of the furniture and where you want the bottom of your TV. This measurement is c.
4 Add a + b + c . The total measurement is the height where you want the center of the wall plate (A) to be on the wall.

5Use a pencil to mark this spot on the wall.

a c b

You'll need: Measuring tape Pencil

Need help? Call 800-305-2204

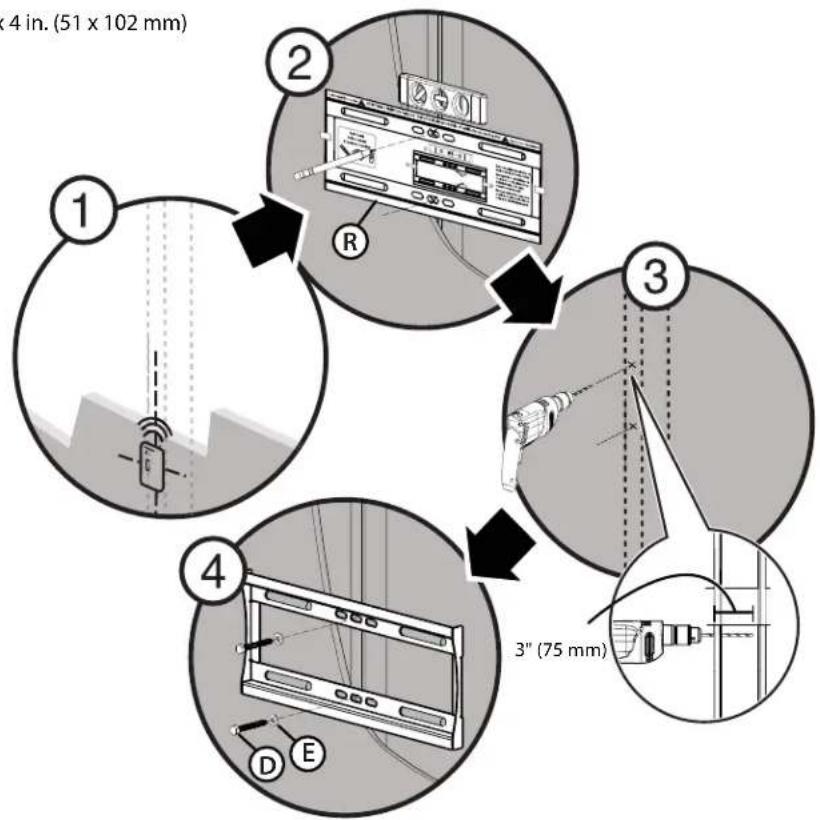

Step 2 - Option 1: Installing on a wood stud wall

Note: Any drywall covering the wall must not exceed 5/8" (16 mm).

1 Locate the studs. Verify the center of the stud* with an edge-to-edge stud finder.
2 At the wall height you determined in the previous step, align the wall plate template (R) against the wall, make sure that it is level, then tape it to the wall. Use a pencil to mark the lag bolt locations (2), then remove the wall plate template.
3 Drill pilot holes to a depth of 3" (75 mm) using a 7/32" (5.5 mm) diameter drill bit.
4 Align the wall plate with the pilot holes, then place the washers (E) over the holes in the wall plate. Insert the lag bolts (D) through the washers, then tighten the lag bolts only until the washers are pulled firmly against the wall plate.

Dynex DX-DRTVM102 - Step 2 - Option 1: Installing on a wood stud wall - 1

CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag bolts (D).

* Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1 1/2 x 3 1/2 in. (38 x 89 mm).

Dynex DX-DRTVM102 - Step 2 - Option 1: Installing on a wood stud wall - 2

You'll need:

Dynex DX-DRTVM102 - You'll need: - 1
E(2)

Dynex DX-DRTVM102 - You'll need: - 2
D(2)

Dynex DX-DRTVM102 - You'll need: - 3
Stud finder

Dynex DX-DRTVM102 - You'll need: - 4
Tape

Dynex DX-DRTVM102 - You'll need: - 5
R Wall plate template

Dynex DX-DRTVM102 - You'll need: - 6
Drill

Dynex DX-DRTVM102 - You'll need: - 7
7/32" (5.5 mm) wood drill

Dynex DX-DRTVM102 - You'll need: - 8
Socket wrench with 1/2" (13 mm) socket or adjustable wrench

Dynex DX-DRTVM102 - You'll need: - 9
Pencil

Dynex DX-DRTVM102 - You'll need: - 10

Dynex DX-DRTVM102 - You'll need: - 11
A Wall plate

Step 2 - Option 2: Installing on a solid concrete or concrete block wall\*

Note: Mount the wall plate directly onto the concrete surface.

1 At the wall height you determined in the previous step, align the wall plate template (R) against the wall, make sure that it is level, then tape it to the wall. Use a pencil to mark the lag bolt locations (2), then remove the wall plate template.
2 Drill pilot holes to a depth of 3" (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.
3 Insert concrete wall anchors (F) into the pilot holes and use a hammer to make sure that the anchors are seated flush with the concrete surface.
4 Align the wall plate with the anchors. Place washers (E) over the screw holes in the wall plate, insert lag bolts (D) through the washers, then tighten the lag bolts only until the washers are pulled firmly against the wall plate.

$Dynex DX-DRTVM102 - Step 2 - Option 2: Installing on a solid concrete or concrete block wall\* - 1$

CAUTION: Avoid potential injuries or property damage. DO NOT over-tighten the lag bolts (D).

* Minimum solid concrete thickness: 8 in. (203mm). * Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm).

ete thickness: 8 in. (203mm). lock size: 8 x 8 x 16 in. (203 x ① ② ③ Never drill into the mortar between blocks. ④ ⑤ F D E

You'll need:

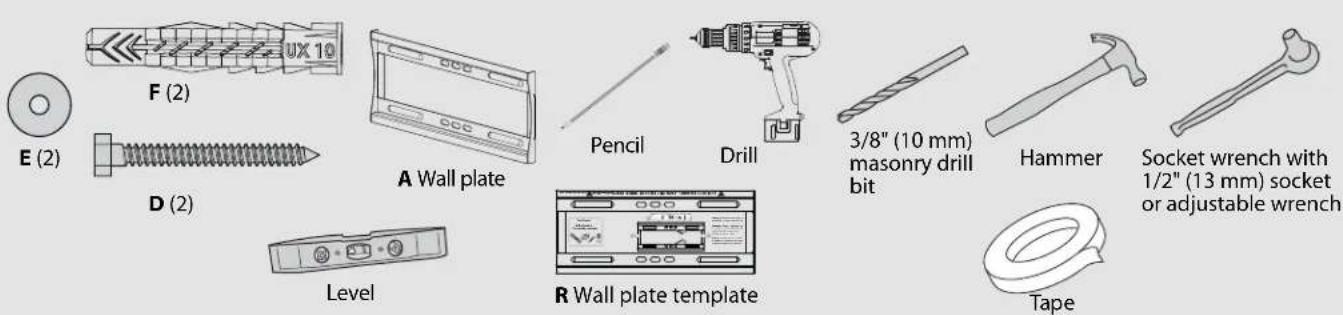

E (2) F (2) UX 10 A Wall plate Pencil Drill 3/8" (10 mm) masonry drill bit Hammer Socket wrench with 1/2" (13 mm) socket or adjustable wrench D (2) Level R Wall plate template Tape

Step 3: Determine whether your TV has a flat back or an irregular or obstructed back

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
3 Temporarily lay the TV brackets (B and C) on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.

5Identify which type of back your TV may have:

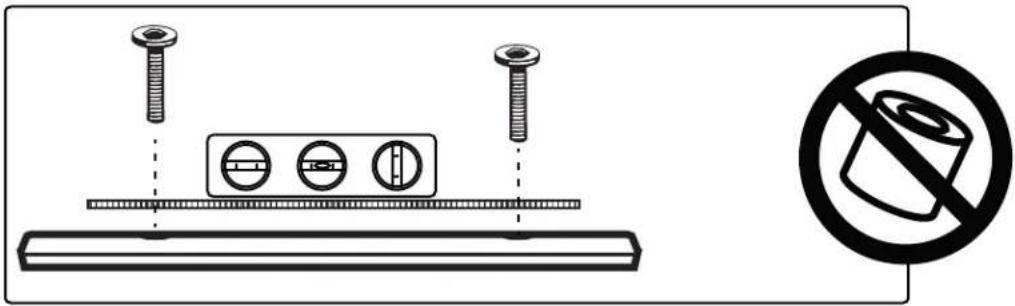

- Flat back: The bracket lays flush against the back of your TV and does not block any jacks. You do not need spacers when assembling the wall mount.

Diagram illustrating a mechanical setup with bolts, a plate, and a prohibition symbol for no tool.

- Obstructed back: The bracket blocks one or more of the jacks on the back of your TV. You will need spacers when assembling the wall mount.

Technical diagram showing assembly of screw and nut components with a magnified view of a cylindrical component.

- Irregularly-shaped back: There is a gap between the bracket and some part of the back of your TV. You will need spacers when assembling the wall mount.

Technical diagram showing screw installation with three circular components and a magnified view of a cylindrical component.

6Remove the TV brackets.

Step 4: Select screws and spacers

1 Select the hardware for your TV (screws, washers, and spacers). See the documentation that came with your TV for screw length and diameter. A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of your TV.)

Select one of the following types of screws:

M4 × 12 mm screws (G)	M6 × 12 mm screws (K)
M4 × 30 mm screws (H)	M6 × 20 mm screws (L)
M5 × 12 mm screws (I)	M6 × 35 mm screws (M)
M5 × 30 mm screws (J)

Select one of the following types of washers:

M4/M5 washers (N) M6 washers (O)

For an irregular or obstructed TV back, select one of the following types of spacers:

M4/M5 spacers (P) M6 spacers (Q)

2 Hand thread screws into the threaded screw holes on the back of your TV to determine the correct screw diameter and length. If your TV has an irregular or obstructed back, place a spacer between your TV back and the screw to make sure you have the correct length.

Screw is too long Screw fits correctly Screw is too short

CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV. Using hardware that is too long may damage your TV. However, using a screw that is too short may cause your TV to fall from the mount.

3Remove the screws.

4For a flat back TV, go to "Step 6 - Option 1: Installing on a TV with a flat back.

For an irregular or obstructed back, go to "Step 6- Option 2: Installing on a TV with an irregular or obstructed back" on page 13.

Step 5: Adjusting the tilt

Note: The tilt on the left TV bracket (B) and right TV bracket (C) must be the same.

1 Use a Phillips screwdriver to remove the two tilt screws (S) from the outside edges of each TV bracket (B and C).
2 To tilt the TV forward by 5°, push the tilt brackets on the left TV bracket (B) and right TV bracket (C) down.

To keep the TV completely vertical, push tilt brackets on the left TV bracket (B) and right TV bracket (C) up.

3 Re-insert two tilt screws (S) into each TV brackets (B and C), then tighten the screws.

Dynex DX-DRTVM102 - Step 5: Adjusting the tilt - 1

CAUTION: Do not over tighten the screws.

Option 1: Mount tilted -5°
Dynex DX-DRTVM102 - Step 5: Adjusting the tilt - 2

You'll need: Phillips screwdriver

Need help? Call 800-305-2204

Step 6 - Option 1: Installing on a TV with a flat back

1 Align the holes you noted on the left TV bracket (B) and right TV bracket (C) with the screw holes on the back of your TV. The brackets are marked "R" for the right bracket and "L" for the left bracket. Make sure that the brackets are level.
2 Place the washers (N or O) over the holes in the TV brackets that align with the screw holes on the back of your TV, then insert the screws (G, I, K or L).
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.

Technical diagram showing exploded view of a door panel assembly with labeled parts and component annotations

You'll need:

Screws
Dynex DX-DRTVM102 - You'll need: - 1
G (4) I (4)

Dynex DX-DRTVM102 - You'll need: - 2

Dynex DX-DRTVM102 - You'll need: - 3

or
Dynex DX-DRTVM102 - You'll need: - 4
L(4)

Dynex DX-DRTVM102 - You'll need: - 5
K (4)

Washers
Dynex DX-DRTVM102 - You'll need: - 6
or

Dynex DX-DRTVM102 - You'll need: - 7
N (4) O (4)

Dynex DX-DRTVM102 - You'll need: - 8
Phillips screwdriver

Dynex DX-DRTVM102 - You'll need: - 9
Level

Dynex DX-DRTVM102 - You'll need: - 10
B and C - TV Brackets

Step 6- Option 2: Installing on a TV with an irregular or obstructed back

1 Place the spacers (P or Q) over the mounting holes in the back of your TV.
2 If you are using M4 or M5 screws, place M4/M5 washers (N) over the spacers.
1 Align the holes you noted on the left TV bracket (B) and right TV bracket (C) with the spacers. The brackets are marked "R" for the right bracket and "L" for the left bracket. Make sure that the brackets are level.
2 Place the washers (N or O) over the holes in the TV brackets, then insert the screws (H, J, or M).
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.

R UP C UP L B P or Q N N or O H J or M B & C

You'll need:

Screws H (4) or J (4) or M (4) Phillips screwdriver Level Washers Spacers N (8) or O (4) P (4) or Q (4) B and C - TV Brackets

Step 7: Mount the TV on the wall plate

Lower the TV onto the wall plate (A) making sure that the hooks on the top of the left and right TV brackets (B and C) slide over the top of the wall plate (A) and the hooks on the bottom of the TV brackets slide under the bottom of the wall plate. Make sure that the TV is securely attached to the wall plate.

Diagram illustrating a device assembly process with labeled parts and a magnified view showing two steps.

The TV is heavy. You will need assistance with this step.

Removing the TV from the wall plate

1 Grasp the TV by the bottom edge, then pull down on the locking cords and pull the bottom of the TV out from the wall. 2 Release the locking cords and lift the top of the TV from the wall bracket.

Dynex DX-DRTVM102 - Removing the TV from the wall plate - 1
HEAVY! You will need assistance with this step.

AVT: You will need stance with this step. Unlatched

Pull down to unlatch.

Dynex DX-DRTVM102 - Removing the TV from the wall plate - 3

Pull bottom away from wall, then lift off the wall bracket.

For customer service, call: 800-305-2204 (U.S./Canada markets)

Need help? Call 800-305-2204

DYNEX™

www.dynexproducts.com (800) 305-2204

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and

brand names are trademarks of their respective owners.

6907-002033 <02>

V3 ENGLISH 12-1058
