DX-TVM112 - Wall mount Dynex - Free user manual and instructions

Product Type	Wall Mount
Model	DX-TVM112
Brand	Dynex
Compatible Screen Sizes	32" to 70"
VESA Compatibility	75x75 mm to 400x400 mm
Maximum Weight Capacity	50 kg (110 lbs)
Material	Steel
Color	Black
Tilt Range	+5° / -15°
Swivel Range	±90°
Leveling Rotation	±3°
Distance from Wall	50 to 100 mm
Wall Plate Dimensions	500 x 150 mm
TV Plate Dimensions	600 x 300 mm
Installation Hardware Included	VESA screws, spacers, washers, anchors, level
Installation Type	Drilling required (stud or concrete wall)
Maintenance	Wipe with dry cloth; avoid solvents
Safety	Use load-rated anchors; do not exceed weight limit
Spare Parts Availability	Contact Dynex Customer Support
Warranty	5 years

Frequently Asked Questions - DX-TVM112 Dynex

What is the maximum VESA pattern supported?

The DX-TVM112 supports VESA patterns from 75x75 mm up to 400x400 mm.

What is the weight limit of this mount?

It holds TVs weighing up to 50 kg (110 lbs).

Does this mount tilt and swivel?

Yes, it offers +5° / -15° tilt and ±90° swivel for optimal viewing angles.

What tools are needed for installation?

You'll need a drill, socket wrench, and level. All mounting hardware is included.

Can I install this mount on a drywall?

For drywall, you must anchor into wood studs or use appropriate toggle bolts (not included).

How do I adjust the tension on the tilt?

Use the provided Allen key to tighten or loosen the tilt bolts behind the TV plate.

Is the mount compatible with curved TVs?

Yes, as long as the TV's VESA pattern and weight are within specifications, it will fit.

Can I install it on a concrete wall?

Yes, use the included concrete anchors and drill into solid concrete or brick.

What should I do if screws are missing?

Contact Dynex customer support for a replacement kit. You can also use standard VESA hardware.

How do I ensure my TV is level?

Use the built-in bubble level on the wall plate, or adjust the leveling screws after mounting.

USER MANUAL DX-TVM112 Dynex

Technical line drawing of a mechanical support frame with mounting feet and internal compartments (no text or symbols)

Two circular frames showing wood grain and brick wall texture (no text or symbols)

For either wood-stud or concrete wall installations

Safety information and specifications ..... 2

Tools needed 2

Package contents. 3

Installation instructions 4

Safety information and specifications

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly specified by Dynex. Improper installation may cause property damage or personal injury. If you do not understand these directions, or have

doubts about the safety of the installation, contact

Customer Service or call a qualified contractor. Dynex is not responsible for damage or injury caused by incorrect installation or use.

The weight of your TV must not exceed 50 lbs. (22.7 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

Maximum TV weight: 50 lbs. (22.7 kg)

Screen size: 26 in. to 40 in. diagonal

Overall dimensions (H × W):

12.6 × 15.5 in. (32 × 39.4 cm)

Wall-mount weight: 3 lbs.

We're here for you

www.dynexproducts.com

For customer service, call:

800-305-2204 (U.S./Canada markets)

Tools needed

You will need the following tools to assemble your new TV wall mount:

Simple line drawing of a remote control device with no text or symbols

Edge-to-edge stud finder

Simple line drawing of a pencil with no text or symbols

Pencil

Level

Line drawing of a handheld electric drill (no text or symbols)

Drill

Phillips screwdriver

Illustration of a bone with a fulcrum and crown (no text or symbols)

Socket wrench with 1/2" (13 mm) socket or adjustable wrench

7/32" (5.5 mm) wood drill bit for wood stud wall

OR

1/2" (13 mm) masonry drill bit (concrete only)

Illustration of a measuring tape (no text or symbols visible)

Measuring tape

Tape

Hammer

Package contents

Make sure that you have all the hardware necessary to assemble your new TV wall mount:

A Wall Plate (1)
B Left TV Bracket (1)
C Right TV Bracket (1)
P Wall plate template (1)

A

Line drawing of a rectangular electronic device with a recessed panel and mounting holes (no text or symbols)

B

C

P

TV Hardware Bag

Label	Hardware Qty.
D		M4×12 mmscrew	4
E		M4×30 mmscrew	4
F		M4 washer	8
G		M6 washer	4
H		M4 spacers	4
I		M6×12 mmscrew	4
J		M6×20 mmscrew	4
K		M6×35 mmscrew	4

Label	Hardware Qty.
L	M6 spacers	4
M	Lag bolt washer	3
N		3
O	Concrete anchor	3

Installation instructions

STEP 1 - Determine wall-mount location

Notes:

• For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder
• Your TV should be high enough so your eyes are level with the middle of the screen. Normally, 40 to 60 inches from the ground.

The center of your TV will match the center of the wall plate (A). Before you drill holes in the wall:

1 Measure the distance from the bottom of your TV to the middle (half of the height of the TV). This is measurement a.
2 Measure the distance from the floor to where you want the bottom of the TV to be placed on the wall. Keep in mind that the bottom of the TV should be placed above any furniture (such as entertainment centers or TV stands). The TV should also be above items placed on top of the furniture (like a Blu-ray player or cable box). This measurement is b.
3 Add a + b. The total measurement is the height where you want the center of the wall plate to be on the wall. 4 Use a pencil to mark this spot on the wall.

STEP 2 - Option 1: Installing on a wood stud wall

Note: Any drywall covering the wall must not exceed 5/8" (16 mm).

1Locate the stud. Verify the center of the stud* with an edge-to-edge stud finder.

2 Align the wall plate template (P) at the height you determined in the previous step, make sure that it is level, then tape it to the wall. Use a pencil to mark the lag bolt hole locations (2) on the stud centers. Remove the wall plate template.
3 Drill pilot holes to a depth of 2 1/2 in. (63.5 mm) using a 7/32 in. (5.5 mm) diameter drill bit.
4 Align the wall plate (A) with the pilot holes, insert the lag bolts (N) through the lag bolt washers (M), then through the holes in the wall plate. Tighten the lag bolts only until they are firm against the wall plate.

CAUTION: Avoid potential injuries or property damage!

DO NOT over-tighten the lag bolts (N).

* Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (11/2 x 31/2 in.).

You'll need

N(2)

M (2)

Wall plate (A)

Wall plate template (P)

Edge-to edge stud finder

Pencil

Drill

7/32" wood drill bit

1/2" socket wrench

Tape

Level

STEP 2 - Option 2: Installing on a solid concrete or concrete block wall\*

CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount wall plate directly onto the concrete surface.

1 Align the wall plate template (P) at the height you determined in the previous step, make sure that it is level, then tape it to the wall. Use a pencil to mark the lag bolt hole locations (3). Remove the template.
2 Drill pilot holes to a depth of 2 1/2 in. (63.5 mm) using a 1/2 in. (13 mm) diameter masonry drill bit.
3 Insert the concrete wall anchors (O) into the pilot holes and use a hammer to make sure the anchors are flush with the concrete surface.
4 Align the wall plate (A) with the anchors, insert the lag bolts (N) through the lag bolt washers (M), then through the holes in the wall plate. Tighten the lag bolts only until they are firm against the wall plate.

CAUTION: Avoid potential injuries or property damage!

DO NOT over-tighten the lag bolts (N).

* Minimum solid concrete thickness: 8 in. (203mm).
* Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm).
The minimum distance between the top two fasteners cannot be less than 2.865 in. (72.8 mm)

You'll need

N (3)

O (3)

M (3)

Wall plate (A)

Level

Pencil

Drill

1/2" masonry drill bit

1/2" socket wrench

Wall plate template (P)

Tape

STEP 3 - Determine whether your TV has a flat back or an irregular or obstructed back

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
3 Temporarily lay the TV brackets (B and C) on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.

5Identify which type of back your TV may have:

- Flat back: The brackets lay flush against the back of your TV and do not block any jacks. You do not need spacers when assembling the wall mount.

- Obstructed back: The brackets block one or more of the jacks on the back of your TV. You will need spacers when assembling the wall mount.

- Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You will need spacers when assembling the wall mount.

6Remove the TV brackets.

STEP 4 - Select screws, washers, and spacers

1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.

Select one of the following types of screws:

M4 × 12 mm screws (D) for a TV with a flat back

M4 × 30 mm screws (E) for a TV with an irregular or obstructed back

M6 × 12 mm screws (I) for a TV with a flat back

M6 × 20 mm screws (J) for a TV with a flat back

M6 × 35 mm screws (K) for a TV with an irregular or obstructed back

Select from the following washers:

M4 washer (F)

M6 washer (G)

For an irregular or obstructed TV back, use the following spacers:

M4 spacer (H)

M6 spacer (L)

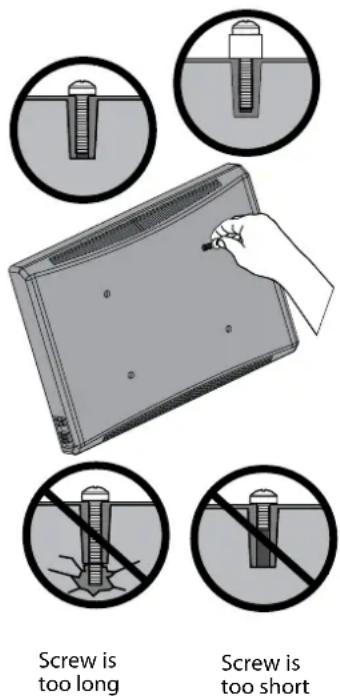

Screw fits correctly

CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV. Using hardware that is too long may damage your TV. However, using a screw that is too short may cause your TV to fall from the mount.

2Remove the screws.

3 For a flat back TV, go to "STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back" on page 9.

-OR-

For an irregular or obstructed back, go to "STEP 5 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs" on page 10.

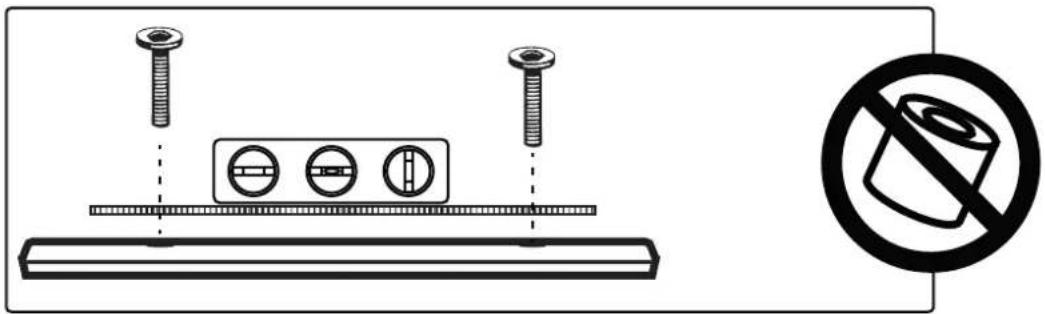

STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back

1 Align the left and right TV brackets (B and C) with the screw holes on the back of the TV. Make sure that the brackets are level.
2 Install washers (F or G), and screws (D, I, or J) into the holes in the back of the TV.
3 Tighten the screws until they are snug against the TV brackets. Do not over tighten.

You'll need

Two vertical TV bracket diagrams labeled B and C, showing different frame layouts (no text or symbols on the brackets themselves)

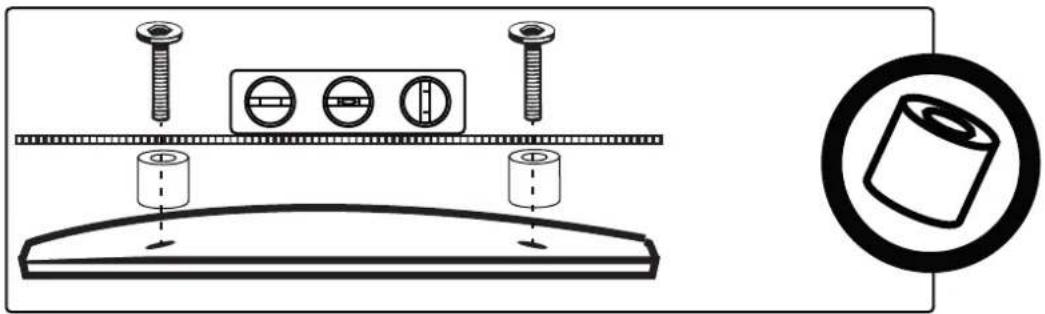

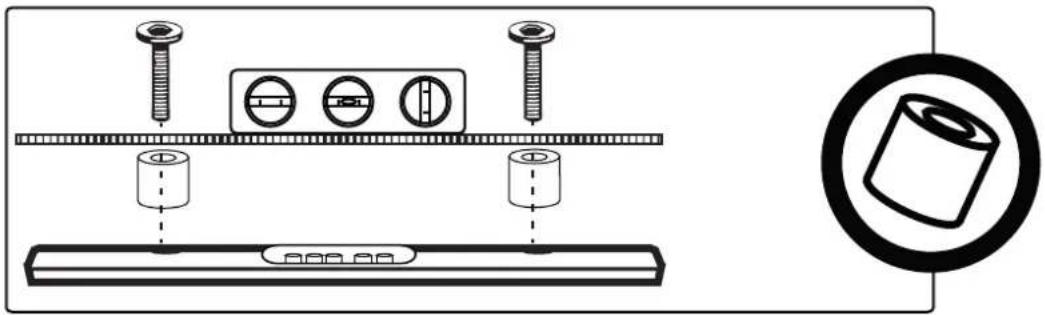

STEP 5 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs

1 Align the left and right TV brackets (B and C) with the screw holes on the back of the TV. Make sure that the brackets are level.
2 Place spacers (H or L) behind the TV brackets. If you are using M4 washers (F), place them between the spacers and TV brackets and over the holes in the TV brackets. If you are using M6 washers (G), place them over the holes in the TV brackets. Insert screws (E or K) through the washers, TV brackets, and spacers.
3 Tighten the screws until they are snug against the TV brackets. Do not over tighten.

You'll need

Two vertical metal TV brackets labeled B and C, showing different sizes and mounting feet (no text or symbols on the boxes themselves)

STEP 6 - Mounting the TV to the wall plate

1 Place the TV brackets (B and C) into the slotted flanges of the wall plate (A).
2 Push the bottom of the TV toward the wall until the latch mechanism clicks into place.

HEAVY! You will need assistance with this step.

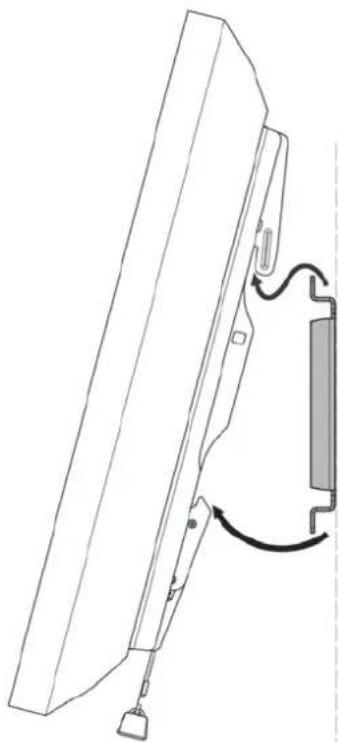

Removing the TV from the wall plate

1 Grasp the TV by the bottom edge, then pull down on the locking cords and pull the bottom of the TV out from the wall.

2Release the locking cords and lift the top of the TV from the wall bracket.

HEAVY! You will need assistance with this step.

Pull down to unlatch.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Pull bottom away from wall, then lift off the wall bracket.

DYNEX™

www.dynexproducts.com [phone]

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

© 2013 BBY Solutions, Inc. All rights reserved.

DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and

brand names are trademarks of their respective owners.

6907-002010 <03>
