USER MANUAL DX-DRTVL103 Dynex

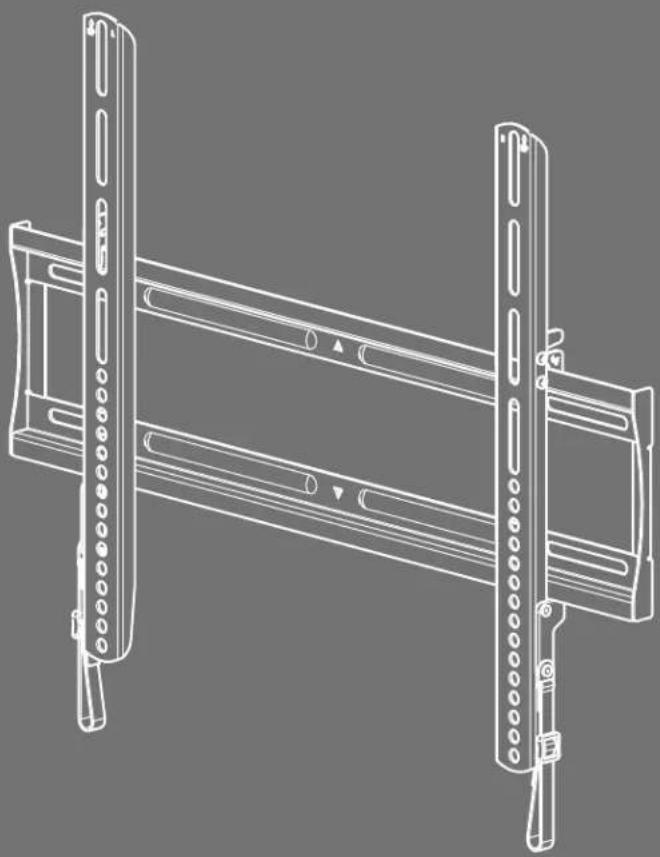

Large Low Profile Wall Mount with Optional 5° Tilt

Technical line drawing of a mechanical support bracket assembly (no text or symbols)

Two circular frames showing wood grain and brick wall texture (no text or symbols)

For wood-stud, solid concrete, or concrete block installation

Safety information and specifications .... 2

TVs the wall mount fits.... 3

Tools needed....3

Parts....4

Hardware....4

Assembly instructions 6

Safety information and specifications

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly specified by Dynex. Improper installation may cause property damage or personal injury. If you do not understand these directions, or have

doubts about the safety of the installation, contact Customer Service or call a qualified contractor. Dynex is not responsible for damage or injury caused by incorrect installation or use.

The weight of your TV must not exceed 70 lbs. (31.7 kg).

The wall must be capable of supporting five times the weight of the TV and wall mount combined.

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

This product is not designed for use on metal stud walls.

Model #: DX-DRTVL103

Distributed by Best Buy Purchasing, LLC

Manufacturer: Milestone/Secura

Maximum weight: 70 lbs. (31.7 kg)

Screen size: 26 in. to 52 in. diagonal

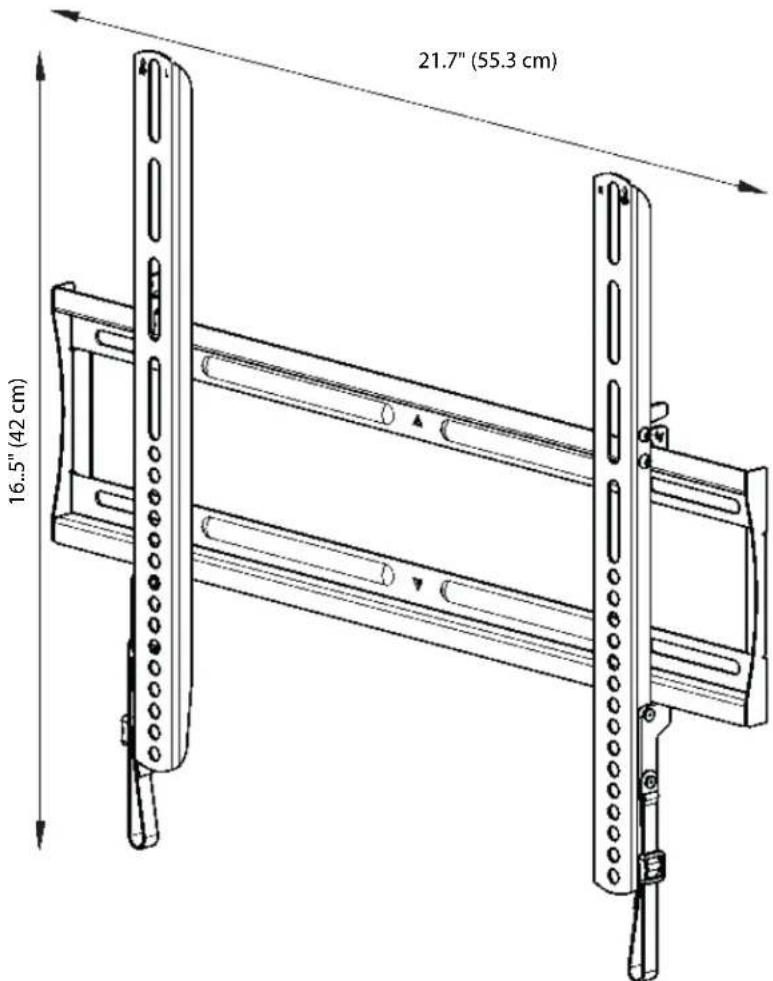

Overall dimensions (H × W): 16.5 × 21.7 in. (42 × 55.3 cm)

Wall-mount weight: 5 lb (2.26 kg)

We're here for you

www.dynexproducts.com

For customer service, call:

800-305-2204 (U.S./Canada markets)

21.7" (55.3 cm) 16..5" (42 cm)

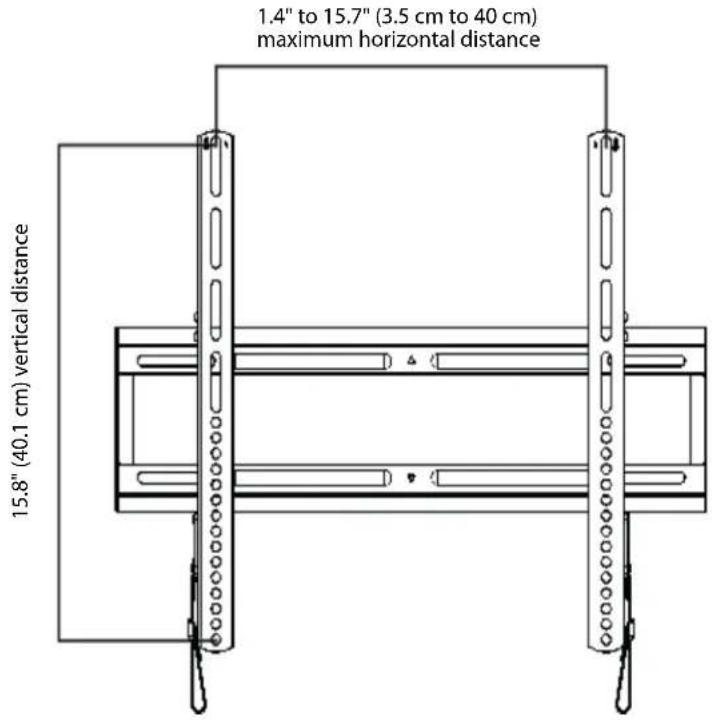

TVs the wall mount fits

The wall mount fits TVs with M4, M5, M6, or M8 screw holes that are the following distances apart:

1.4" to 15.7" (3.5 cm to 40 cm) maximum horizontal distance 15.8" (40.1 cm) vertical distance

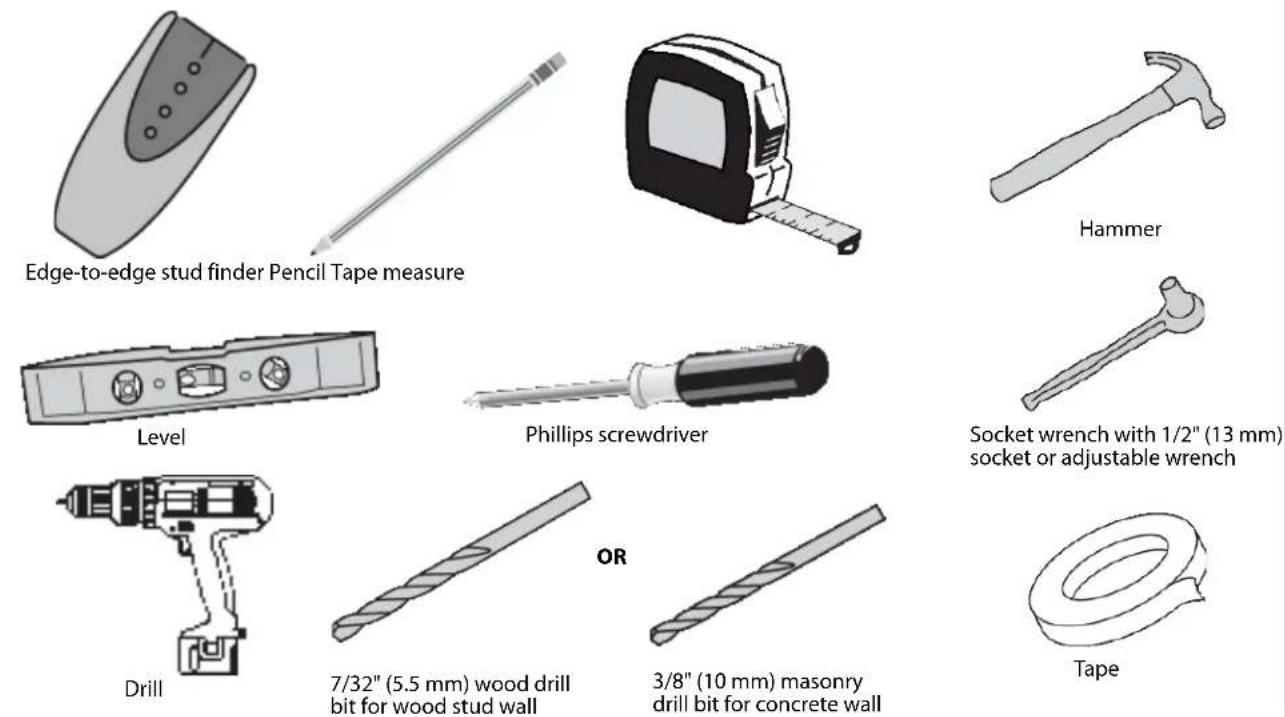

Tools needed

You will need the following tools to assemble your new wall mount:

Package contents

Make sure you have all the parts necessary to assemble your new TV wall mount:

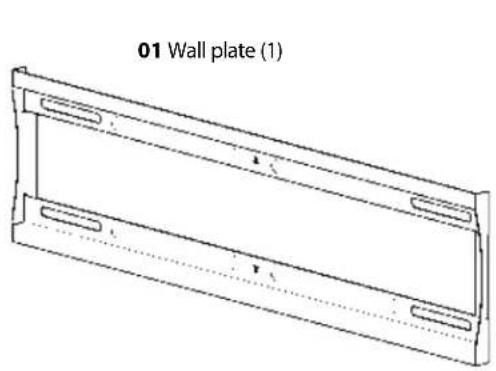

01 Wall Plate (1)
02 Left TV Bracket (1)
03 Right TV Bracket (1)
21 Wall Plate Template (1)

01 Wall plate (1)

02 Left TV bracket (1)

03 Right TV bracket (1)

21 Wall plate template (1)

D-2-PVC1 Wall Force Tungsten - Gallent-Equilibrium Units - Panel E-Equilibrium Component V

TV Hardware Bag

Note: Not all hardware will be used.

Make sure you have all the hardware necessary to assemble your new wall mount:

Label	Hardware Qty.
04		4
05	5/16" lag bolt washer	4
06		4
07	M4 × 12 mm screw	4
08	M4 × 30 mm screw	4
09	M5 × 12 mm screw	4
10	M5 × 30 mm screw	4
11	M6 × 12 mm screw	4
12	M6 × 20 mm screw	4

Label Hardware Qty.
13	M6 × 35 mm screw	4
14	M8 × 16 mm screw	4
15	M8 × 40 mm screw	4
16	m8 × 60 mm screw	4
17	M4/M5 washer	8
18	M6/M8 washer	4
19	M4/M5 spacer	4
20	M6/M8 spacer	4

1 2 3 4in 10 20 30 40 50 60 70 80 90 100mm

Need help? Call 800-305-2204

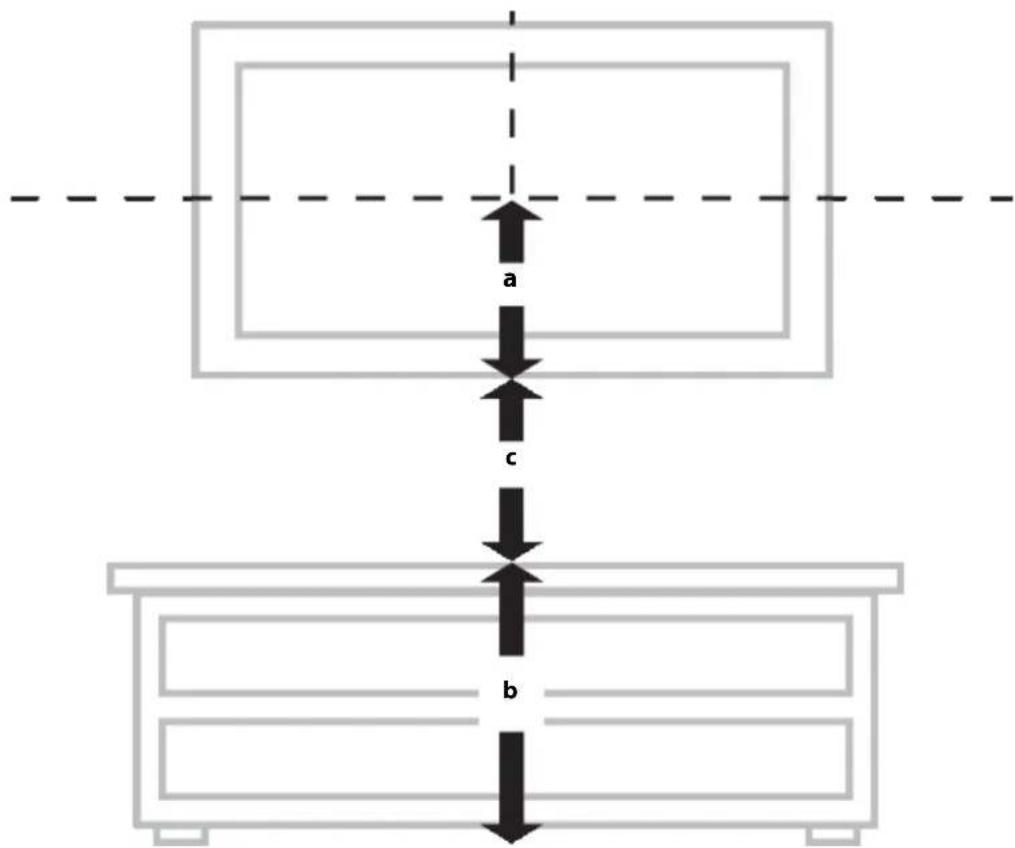

Step 1: Determining the wall-mount location.

Note: For help with determining where you need to drill screw holes, use the HeightFinder™ Installation Assistant at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder

The center of your TV will match the center of the wall plate (01). Before you drill holes in the wall:

1 Measure the distance between the middle of one of the TV brackets and the bottom of your TV. This measurement is a.
2 If you plan to place furniture (such as an entertainment center or TV stand) under your TV, measure the height of the furniture and any items on top of the furniture. This measurement is b.
3 Measure the distance between the top of the furniture and where you want the bottom of your TV. This measurement is c.
4 Add a + b + c . The total measurement is the height where you want the center of the wall plate (01) to be on the wall.

5Use a pencil to mark this spot on the wall.

a c b

You'll need: Measuring tape Pencil

Need help? Call 800-305-2204

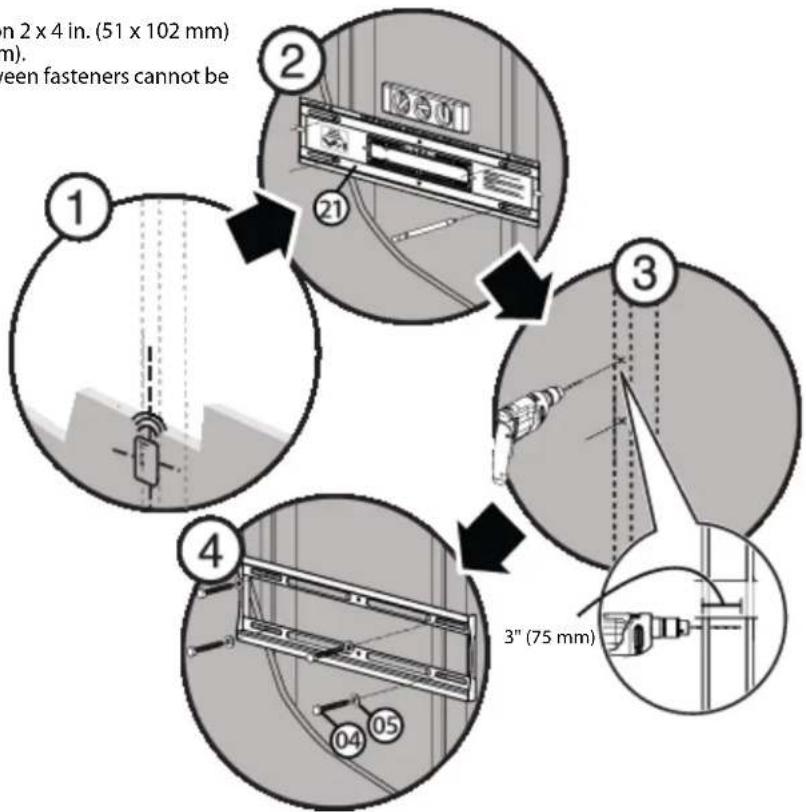

Step 2 - Option 1: Mounting on a wood-stud\* wall

Note: Any drywall covering the wall must not exceed 5/8" (16 mm).

1 Locate the studs. Verify the center of the stud with an edge-to-edge stud finder.
2 At the wall height you determined in the previous step, align the wall plate template (21) against the wall, make sure that it is level, then tape it to the wall. Use a pencil to mark the lag bolt locations, then remove the wall plate template.
3 Drill pilot holes to a depth of 3" (75 mm) using a 7/32" (5.5 mm) diameter drill bit.
4 Align the wall plate with the pilot holes, then place the washers (05) over the holes in the wall plate. Insert the lag bolts (04) through the washers, then tighten the lag bolts only until the washers are pulled firmly against the wall plate.

CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag bolts (04).

* Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1 1/2 x 3 1/2 in. (38 x 89 mm).
* Minimum horizontal spacing between fasteners cannot be less than 16" (406 mm).

in 2 x 4 in. (51 x 102 mm) m). been fasteners cannot be ① ② ③ ④ 3" (75 mm)

You'll need:

04 (4)

05 (4)

Tape

Stud finder

Pencil

01 Wall plate (1)

21 Wall plate template (1)

Drill Socket wrench (3.2ft (6.5 mm) wood drill

1/2" (13 mm) socket or adjustable wrench
Level

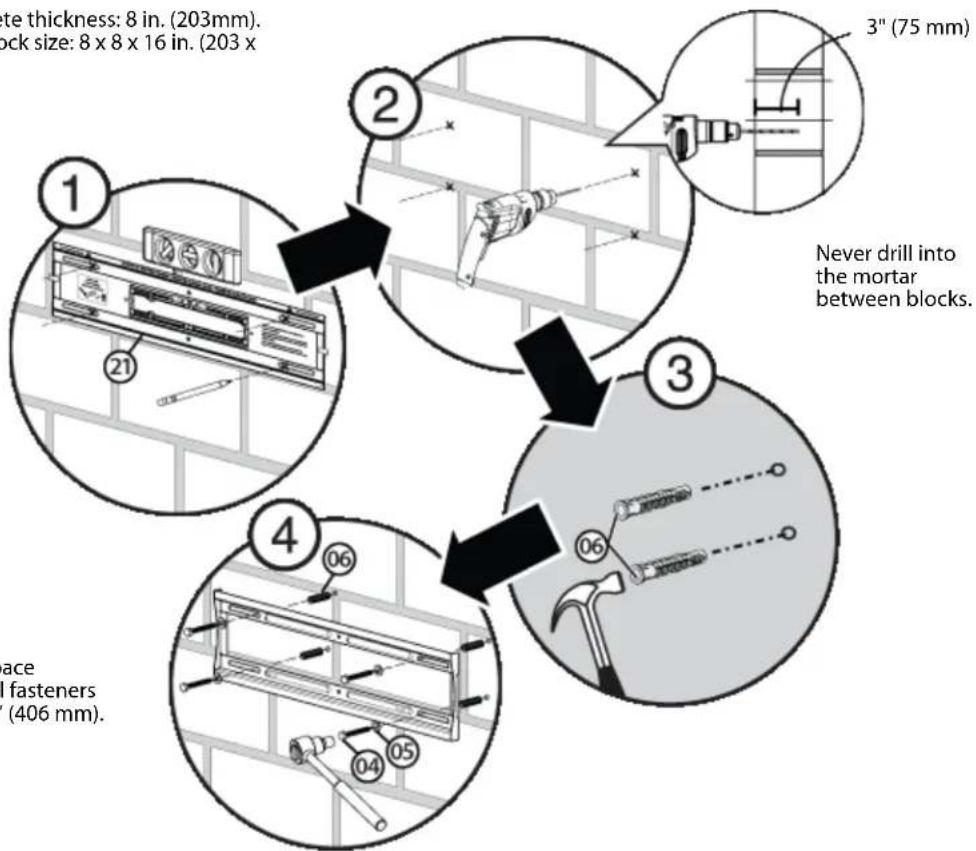

Step 2 - Option 2: Mounting on a solid concrete\* or concrete block wall

Note: Mount the wall plate directly onto the concrete surface.

1 At the wall height you determined in the previous step, align the wall plate template (21) against the wall, make sure that it is level, then tape to the wall. Use a pencil to mark the screw hole locations, then remove the wall plate template.
2 Drill pilot holes to a depth of 3" (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.
3 Insert concrete wall anchors (06) into the pilot holes and use a hammer to make sure that the anchors are seated flush with the concrete surface.
4 Align the wall plate with the anchors. Place washers (05) over the screw holes in the wall plate, insert lag bolts (04) through the washers, then tighten the lag bolts only until the washers are pulled firmly against the wall plate.

CAUTION: Avoid potential injuries or property damage. DO NOT over-tighten the lag bolts (04).

* Minimum solid concrete thickness: 8 in. (203mm). * Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm).

te thickness: 8 in. (203mm). lock size: 8 x 8 x 16 in. (203 x ① ② ③ Never drill into the mortar between blocks. ④ ace fasteners (406 mm).

Note: The minimum space between the horizontal fasteners cannot be less than 16" (406 mm).

You'll need:

06 (4)

04 (4)

05 (4)

Level

01 Wall plate (1)

21 Wall plate template (1)

Drill

Tape

Hammer

Pencil

Socket wrench with 1/2" (13 mm) socket or adjustable wrench

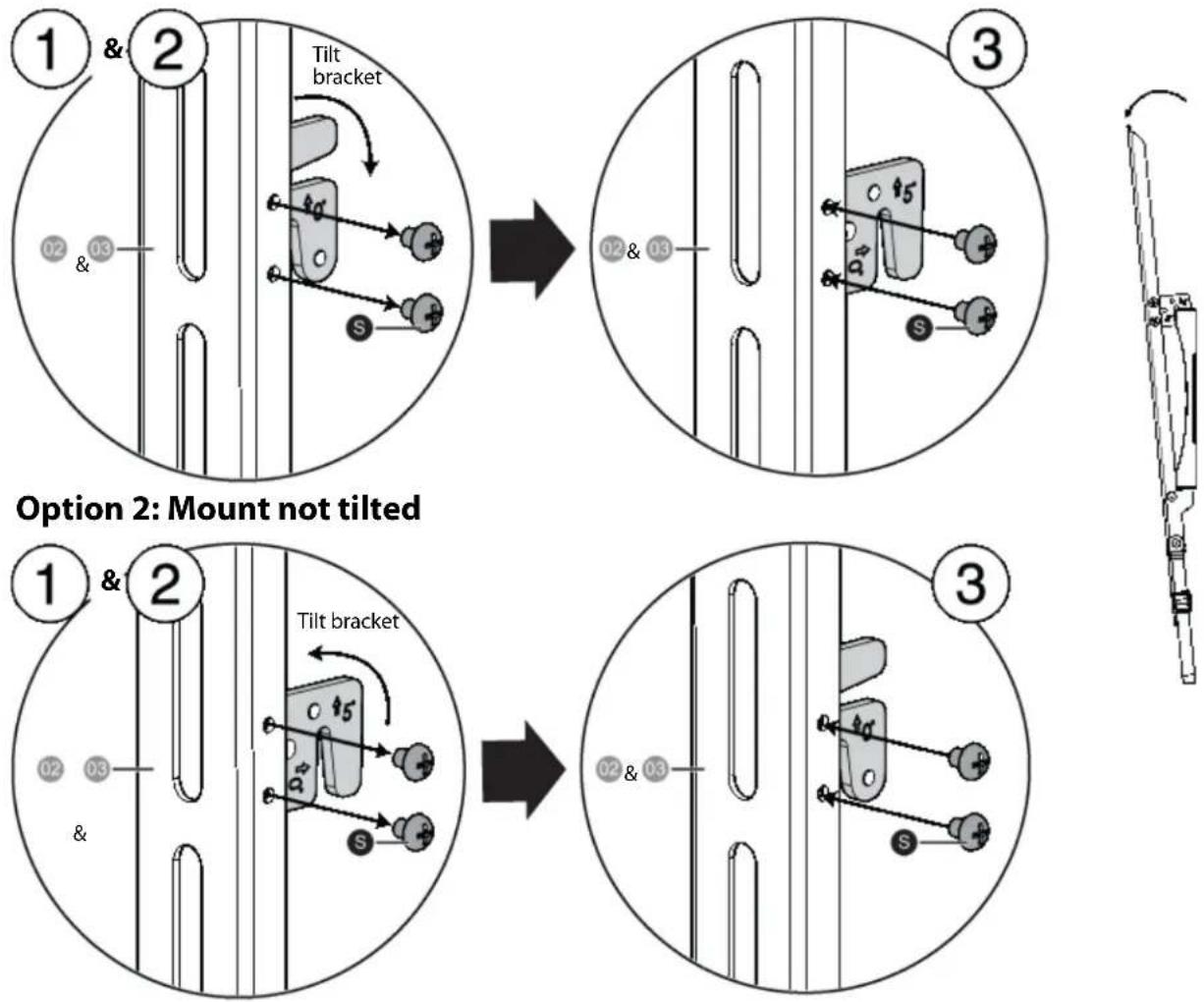

Step 3: Adjusting the tilt

Note: The tilt on the left TV bracket (02) and right TV bracket (03) must be the same.

5 Use a Phillips screwdriver to remove the two screws (S) from the outside edges of each TV bracket (02 and 03).
6 To tilt the TV forward by 5°, push the tilt brackets on the left TV bracket (02) and right TV bracket (03) down.

OR

To keep the TV completely vertical, push tilt brackets on the left TV bracket (02) and right TV bracket (03) up.

7 Re-insert the two tilt screws (S) into each TV bracket (02 and 03), then tighten the screws.

CAUTION: Do not over tighten the screws.

Option 1: Mount tilted -5°

You'll need: Phillips screwdriver

Need help? Call 800-305-2204

Step 4: Determine whether your TV has a flat back or an irregular or obstructed back

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. 2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.

3 Temporarily lay the TV brackets (02 and 03) on the back of your TV.

4Align the screw holes in the TV brackets with the mounting screw holes on your TV.

5Identify which type of back your TV may have:

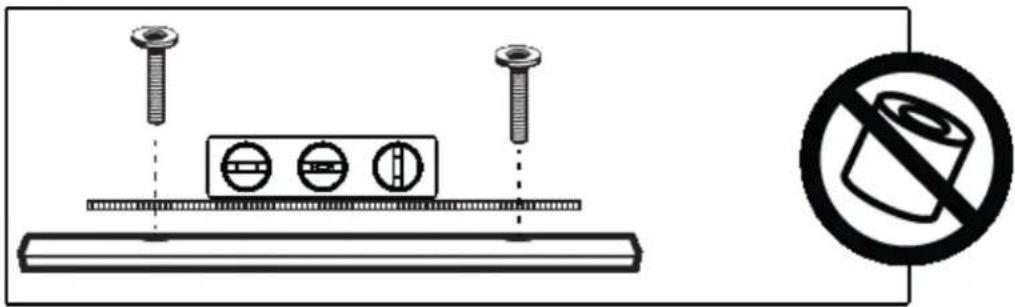

- Flat back: The brackets lay flush against the back of your TV and does not block any jacks. You do not need spacers when assembling the wall mount.

Diagram showing screw installation with three circular components and a prohibition symbol for no tool

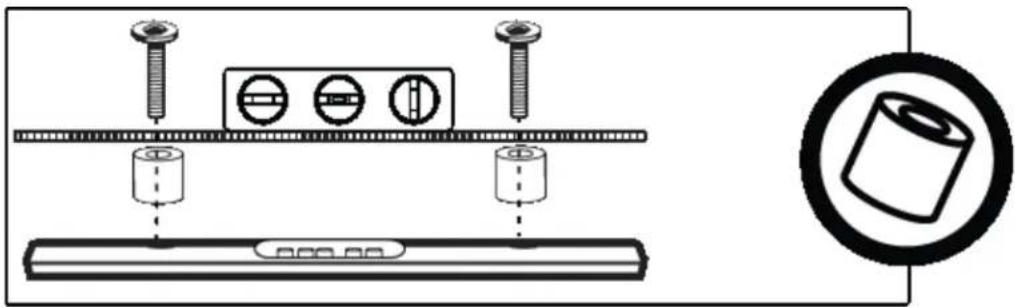

- Obstructed back: The brackets block one or more of the jacks on the back of your TV. You will need spacers when assembling the wall mount.

Technical diagram showing mechanical assembly with bolts, rollers, and a cylindrical component labeled '200.00'

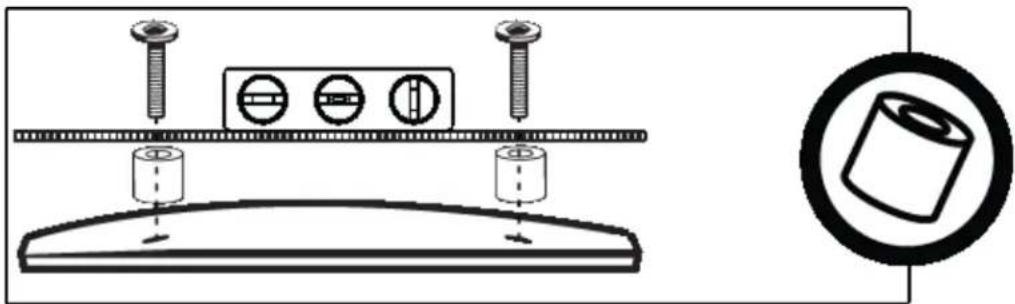

- Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You will need spacers when assembling the wall mount.

Technical diagram showing a mechanical assembly with screws, three circular components, and a separate circular component (no text or symbols)

6Remove the TV brackets.

Step 5: Selecting the screws and spacers

1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are typically installed in the holes on the back of the TV.)

Select one of the following types of screws:

M4 × 12 mm screws (07)	M6 × 20 mm screws (12)
M4 × 30 mm screws (08)	M6 × 35 mm screws (13)
M5 × 12 mm screws (09)	M8 × 16 mm screws (14)
M5 × 30 mm screws (10)	M8 × 40 mm screws (15)
M6 × 12 mm screws (11)	M8 × 60 mm screws (16)

Select one of the following types of washers:

M4/M5 washers (17) M6/M8 washers (18)

For an irregular or obstructed TV back, select one of the following types of spacers:

M4/M5 spacers (19) M6/M8 spacers (20)

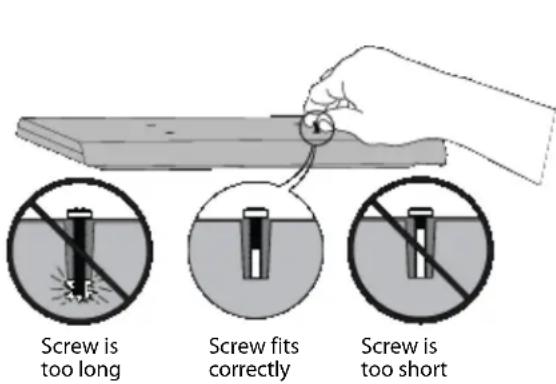

2 Hand thread screws into the threaded screw holes on the back of your TV to determine the correct screw diameter and length. If your TV has an irregular or obstructed back, place a spacer between your TV back and the screw to make sure you have the correct length.

Screw is too long Screw fits correctly Screw is too short

CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV. Using hardware that is too long may damage your TV. However, using a screw that is too short may cause your TV to fall from the mount.

3Remove the screws.

4 For a flat back TV, go to "Step 6 - Option 1: Installing on a TV with a flat back" on page 12.

For an irregular or obstructed back, go to "Step 6 - Option 2: Installing for a TV with an irregular or obstructed back" on page 13.

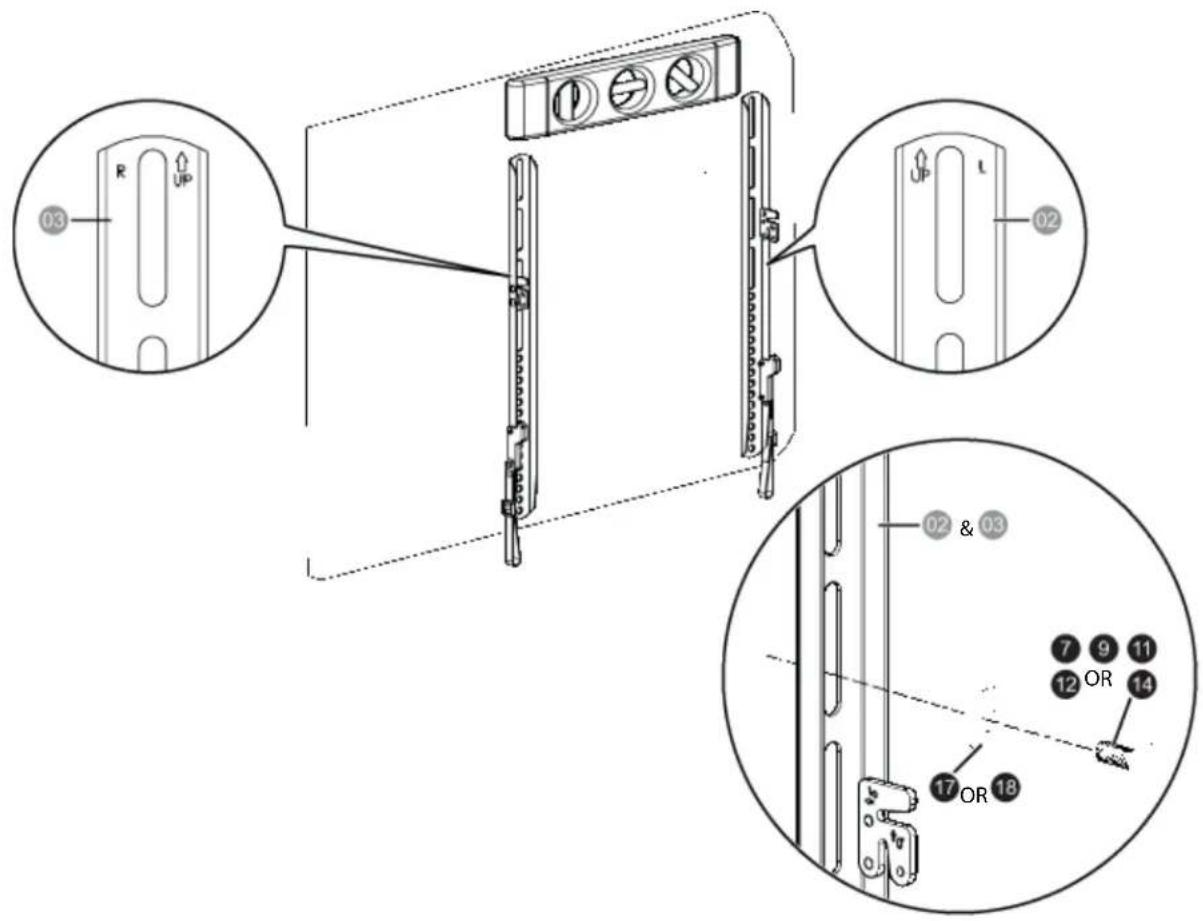

Step 6 - Option 1: Installing on a TV with a flat back

1 Align the holes you noted on the left TV bracket (02) and right TV bracket (03) with the screw holes on the back of your TV and make sure that the brackets are level.
1. The brackets are marked "R" for the right bracket and "L" for the left bracket.
2 Place the washers (17 or 18) over the holes in the TV brackets that align with the screw holes on the back of your TV, then insert the screws (07, 09, 11, 12, or 14).

3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.

03 R UP 02 02 & 03 7 9 11 12 OR 14 17 OR 18

You'll need:

Screws

07 (4) 09 (4)

11 (4)
OR
OR

14 (4)

Washers

OR

17 (4) 18 (4)

Phillips screwdriver

Level

12 (4)

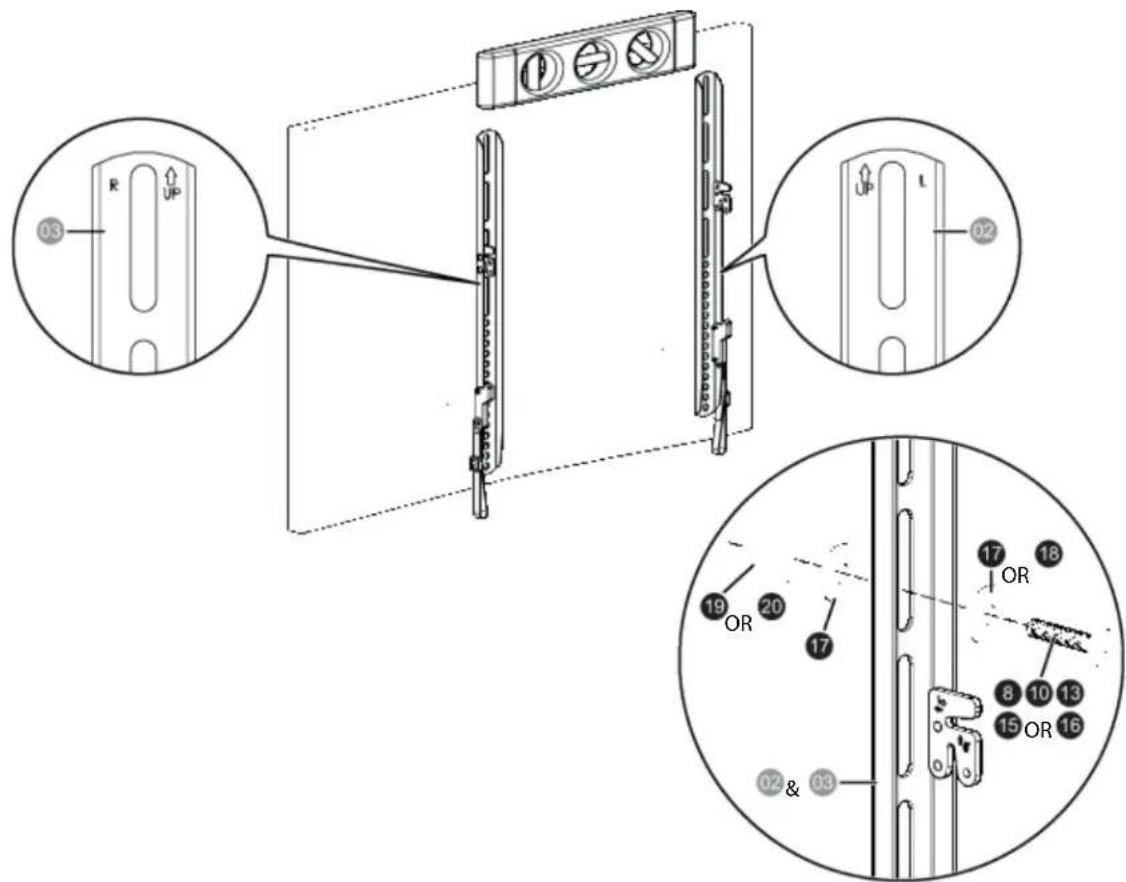

Step 6 - Option 2: Installing for a TV with an irregular or obstructed back

1 Place the spacers (19 or 20) over the mounting holes in the back of your TV.
2 If you are using M4 or M5 screws, place M4/M5 washers (17) over the spacers.
3 Align the holes you noted on the left TV bracket (02) and right TV bracket (03) with the spacers and make sure the brackets are level.
4. The brackets are marked "R" for the right bracket and "L" for the left bracket. Place the washers (17 or 18) over the holes in the TV brackets, then insert the screws (08, 10, 13, 15, or 16).

5Tighten the screws until they are snug against the TV bracket. Do not overtighten.

Technical diagram showing exploded view and close-up of a device with labeled parts and numbered annotations

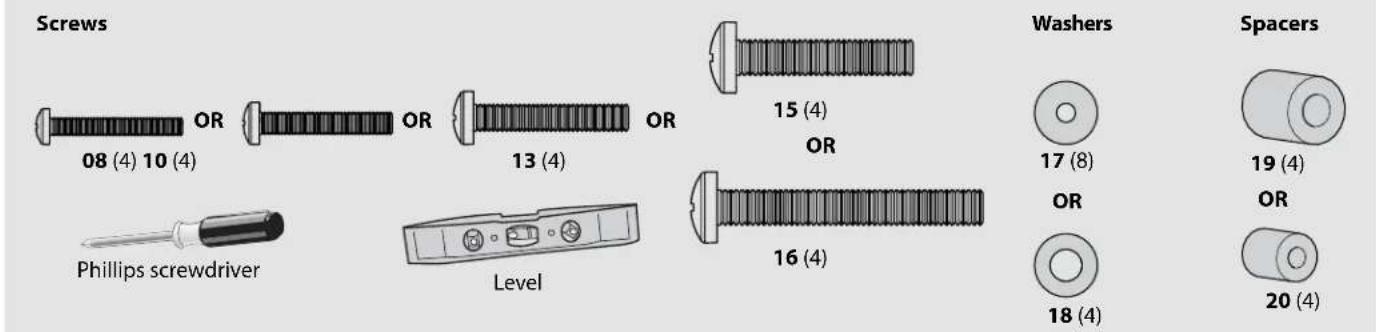

You'll need:

Screws OR 08 (4) 10 (4) OR 13 (4) OR 15 (4) OR Phillips screwdriver Level 16 (4) Washers 17 (8) OR 18 (4) Spacers OR 20 (4)

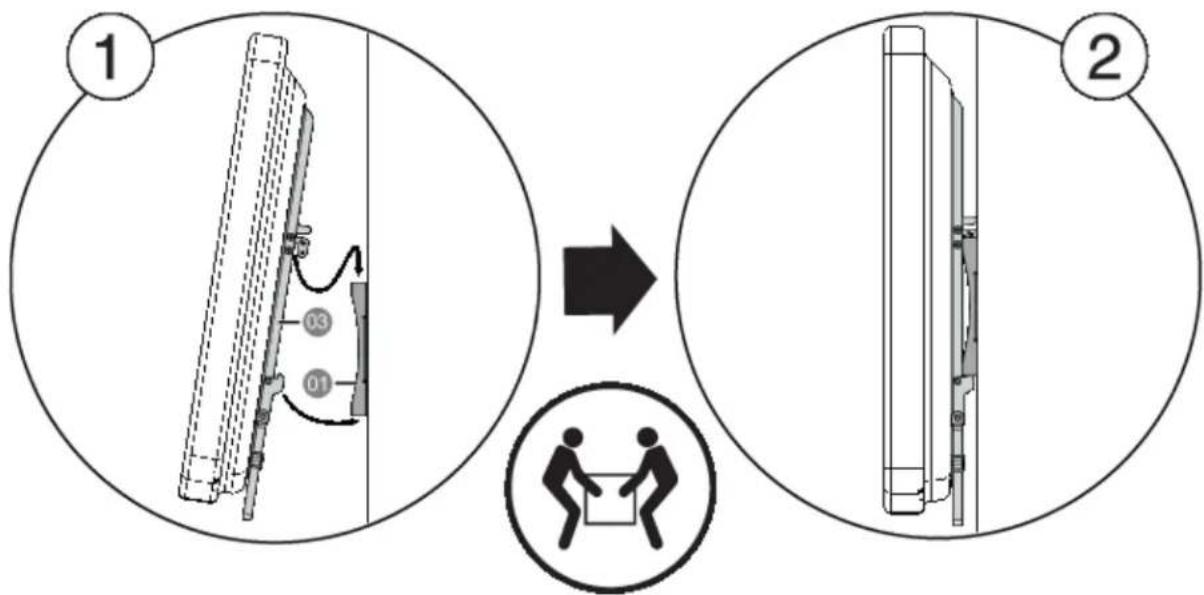

Step 7: Mounting the TV on the wall plate

Lower the TV onto the wall plate (01) making sure that the hooks on the top of the left and right TV brackets (02 and 03) slide over the top of the wall plate and the hooks on the bottom of the TV brackets slide under the bottom of the wall plate. Make sure that the TV is securely attached to the wall plate.

Diagram illustrating a mechanical assembly process with labeled steps and a magnified view of a person handling a box.

The TV is heavy. You will need assistance with this step.

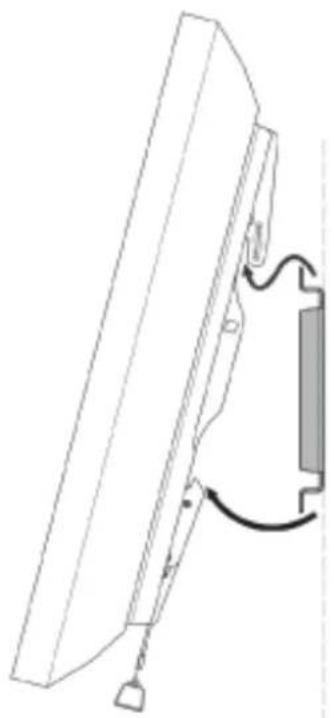

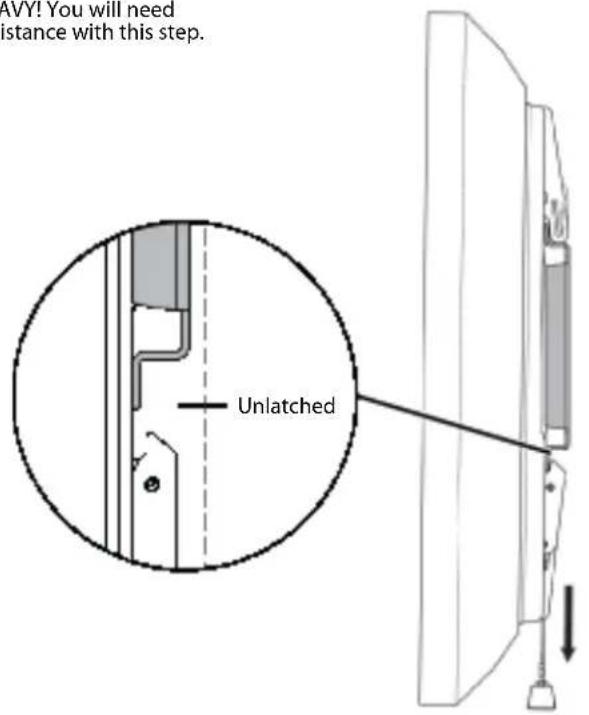

Removing the TV from the wall plate

Simultaneously pull down on the two release cords on the TV brackets (02 and 03), then lift the TV up and away from the wall plate.

HEAVY! You will need assistance with this step.

AVY! You will need distance with this step. Unlatched

Pull down to unlatch.

Diagram of a mechanical device with a curved arrow indicating rotation or force (no text or symbols present)

Pull bottom away from wall, then lift off the wall bracket.

For customer service, call: 800-305-2204 (U.S./Canada markets)

Need help? Call 800-305-2204

DYNEX™

www.dynexproducts.com [phone]

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

© 2013 BBY Solutions, Inc.

All rights reserved.

DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and

brand names are trademarks of their respective owners.

6907-002034 <02>

V4 ENGLISH12-1059
