Product Type	Gas Chainsaw
Model	P4018AV
Bar Length	18 in (45.7 cm)
Engine Displacement	40 cc
Weight (without bar and chain)	12.5 lb (5.7 kg)
Fuel Tank Capacity	13.5 fl oz (400 ml)
Chain Oil Capacity	9.5 fl oz (280 ml)
Anti-Vibration System	Yes (AV)
Chain Brake	Yes, inertia-activated
Automatic Oiler	Yes, adjustable flow
Primer Bulb	Yes, for easy starting
Air Filter	Replacement recommended annually
Spark Plug	Replace every season
Chain Pitch	0.325 in (8.3 mm)
Chain Gauge	0.050 in (1.27 mm)
Drive Links	62
Warranty	2 years limited

Frequently Asked Questions - P4018AV POULAN

How do I start the Poulan P4018AV chainsaw?

Ensure the chain brake is engaged. Set the switch to 'ON', press the primer bulb 6-8 times, pull the choke, and pull the starter rope until the engine fires. Then push the choke in and pull again to start.

What type of fuel should I use?

Use a 50:1 mix of unleaded gasoline (87 octane) and 2-cycle engine oil. Do not use ethanol blends above E10.

How do I adjust the chain tension?

Loosen the bar nuts slightly. Turn the tensioning screw clockwise to tighten the chain until it fits snugly against the bar with no sag. Retighten the bar nuts.

What chain oil should I use?

Use a high-quality bar and chain oil. For cold weather, use a winter-grade oil. Do not use used or recycled oil.

How often should I sharpen the chain?

Sharpen the chain when it produces sawdust instead of chips, or when you need extra force to cut. Check the cutting teeth for dullness.

The chain does not move when I press the throttle, what should I do?

Check if the chain brake is engaged. Disengage it by pulling the brake lever toward the front handle. Also ensure the chain tension is correct and the chain is not seized.

How do I clean the air filter?

Remove the air filter cover, take out the filter, and tap it gently to remove debris. Wash with warm soapy water if necessary, dry thoroughly, and reinstall.

What is the anti-vibration system?

The AV (Anti-Vibration) system uses rubber mounts to reduce vibrations transmitted to the handles, improving comfort and reducing fatigue during use.

Why does my chainsaw leak oil?

Some oil seepage is normal from the bar and chain. If leaking excessively, check the oil tank cap, oil line, and oiler adjustment. Tighten or replace parts as needed.

Can I use the saw without the chain brake?

No, the chain brake is a critical safety feature. Always use it and ensure it functions properly before each use.

USER MANUAL P4018AV POULAN

545186804Rev.53/15/10BRW

IDENTIFICATIONOFSYMBOLS

WARNING! This chain saw can be dangerous! Care- lessor improper use can cause serious or even fatal injury.

Readandunderstandthe instructionmanualbefore usingthechainsaw.

Alwayswearappropriateearprotection, eyeprotection and head protection.

Alwaysusetwohandswhenoperatingthechainsaw.

WARNING! Contacting the guide bartip with any object should be avoided; tip contact may cause the guide barto moves suddenly upward and backward, which may cause serious injury.

Measured maximum kickback value without chainbrake for the bar and chain combination on the label.

StartingReminder

MoveON/STOPswitchto theONposition.

Pullthestarterrope sharply5timeswithyour righthand.

Slowlypressprimerbulb 6 times.

Pushthechoke/fastidle leverintotheHALF CHOKEposition.

Pullchoke/fastidlelever outtothefulleextent(to theFULLCHOKEposition).

Pullthestarterropesharply withyourighthanduntil theenginestarts.

SAFETYRULES

WARNING:Alwaysdisconnect

sparkplugwireandplacewirewhereitcannotcontactsparkplugtopreventaccidental startingwhensettingup,transporting,adjustingormakingrepairsexceptcarburetor adjustments.

Becauseachainsawisahigh-speedwood-cuttingtool, specialsafetyprecautionsmust beobservedtoreducetheriskofaccidents. Carelessorimproperuseofthistoolcan causeseriousinjury.

PLANAHEAD

• Readthismanualcarefullyuntilyoucompletelyunderstandandcanfollowwallsafety rules, precautions,andoperatinginstructionsbeforeattemptingtousetheunit.
• Restricttheuseofyoursawtoadultusers whounderstandcanfollowsafety rules, precautions,andoperatinginstructionsfoundinthismanual.
• Wearprotectivegear. Alwaysusesteel-toed safety footwear with non-slip soles; snug-fittingclothing; safetychaps; heavy-

duty, non-slip gloves; eyeprotections such as non-fogging, vented goggles or face screen; an approved safety hard hat; and sound barriers (ear plugs or mufflers) to protect your hearing. Regular users should have hearing checked regularly as chains a noisec and damage hearing. Secure hair aboves houlder length.

• Keepallpartsofyourbodyawayfromthe chainwhentheengineisrunning.
• Keepchildren, bystanders, and animalsa minimum of 30 feet (10 meters) away from the work area. Donotallow other people or animalstobenear the chainsaw when starting or operating the chainsaw.
• Donothandleoroperateachainsawwhen youarefatigued,ill,orupset,orifyouhave takenalcohol,drugs,ormedication.You mustbeingoodphysicalconditionandmentallyalert.Chainsawworkisstrenuous.If youhaveanyconditionthatmightbeaggravatedbystrenouswork,checkwithyour doctorbeforeoperatingachainsaw.
• Carefullyplanyoursawingoperationinadvance.Donotstartcuttinguntilyouhavea clearworkarea,securefooting,and,ifyou arefellingtrees,aplannedretreatpath.

OPERATE YOURSAWSAFELY

• Donotoperateachainsawwithonehand. Seriousinjurytotheoperator, helpers, bystandersoranycombinationofthesepersonsmayresultfromone-handedoperation.Achainsawisintendedfor two-handeduse.
• Operatethechainsawonlyinawell-ventilatedoutdoorarea.
• Donotoperatesawfromaladderorinatree.
• Makesurethechainwillnotmakecontact withanyobjectwhilestartingtheengine. Nevertrytostartthesawwhentheguide barisinacut.
• Donotputpressureonthesawattheendof thecut. Applyingpressurecancauseyouto losecontrolwhenthecutiscompleted.
• Stoptheenginebeforesettingthesaw down.
• Donotoperateachainsawthatisdamaged, improperlyadjusted,ornotcompletelyandsecurelyassembled. Always replacebar,chain,handguard,orchain brakeimmediatelyifitbecomesdamaged, brokenorisotherwiseremoved.

- Withtheenginestopped, handcarry the chainsawwiththemufflerawayfrom your body, and the guide bar and chainto the rear, preferably covered with ascabbard.

• Haveallchainsawserviceperformedbya qualifiedservicedealerwiththeexception oftheitemlistedinthemaintenancesectionofthismanual. Forexample,ifimpropertoolsareusedtoremoveorholdtheflywheelwhenservicingtheclutch,structural damagetothe flywheelcan occur and causetheflywheeloburst.
• Make certain the saw chain stops moving when the throttle trigger is released. For correction, refer to CARBURETORADJUSTMENT.
• Nevermodifyoursawinanyway.
• Keep the handles dry, clean, and free of oil or fuel mixture.
• Keepfuelandoilcaps, screws, and fasteners securely tightened.
• Use only Poulan accessories and replacement parts as recommended.

HANDLEFUELWITHCAUTION

• Donotsmokewhilehandlingfuelorwhile operatingthesaw.
• Eliminate all sources of sparks or flame in the areas where fuel is mixed or poured. There should be no smoking, open flames, or work that could cause sparks. Allow green to cool before refueling.
• Always have fire extinguishing tools available if you should need them.
• Mixandpourfuelinanoutdoorareaon bareground;storefuelinacool,dry,well ventilatedplace;and use an approved, marked container for allfuelpurposes. Wipeupallfuelspillsbeforestartingsaw.
• Moveatleast10feet(3meters)fromfuelingsitebeforestartingengine.
• Turntheengineoffandletsawcoolina non-combustiblearea, notondryleaves, straw, paper, etc. Slowlyremovefuelcap andrefuelunit.
• Storetheunitandfuelinanareawherefuel vaporscannotreachsparks or open flamesfromwaterheaters,electricmotors orswitches,furnaces,etc.

KICKBACK

WARNING: Avoidkickbackwhich

canresultinserious injury. Kickbackisthe backward, upwardorsuddenforward motion of the guidebar occurring whenthesaw chainneartheuppertipof the guidebar contactsanyobjects such asalogorbranch, or whentewoodclosesinandpinchesthe sawchaininthecut. Contactingaforeignobjectinthewoodcanalsoresultinlossof chainsawcontrol.

- Rotational Kickback can occur when the movingchaincontactsanobjectattheupper tipoftheguidebar. Thiscontactcancause thechaintodigintotheobject,whichstops thechainforaninstant. Theresultisalightningfast,reversereactionwhichkicks the guidebarupandbacktowardtheoperator.

- Pinch-Kickback can occur when the wood closes in and pinchesthemoving sawchain in the cut along the top of the guide bar and the sawchain is suddenly stopped. This sudden stopping of the chain results in are reversal of the chain force used to cut wood and cause the sawtomove in the opposite direction of the chain rotation. Thesawis driven straight back toward the operator.

- Pull-Incanoccurwhenthemovingchain contactsaforeignobjectinthewoodinthe cutalongthebottomoftheguidebarandthe sawchainissuddenlystopped. This sudden stoppingpullsthesawforwardandaway fromtheoperatorandcouldeasilycausethe operatortolosecontrolofthesaw.

AvoidPinch--Kickback:

- Beextremelyawareofsituationsorobstructionsthatcancausematerialtopinch thetopoforotherwisestopthechain.

- Donotcutmorethanonelogatatime.

- Donottwistthesawasthebariswith-drawnfromanundercutwhenbucking.

AvoidPull--In:

•Alwaysbegincuttingwiththeengineatfull speedandthesawhousingagainstwood.
- Use wedges made of plastic or wood. Never use metal to hold the cut open.

KickbackPath

ClearThe WorkingArea

REDUCETHECHANCEOF KICKBACK

• Recognizethatkickbackcanhappen. Withabasicunderstandingofkickback, youcanreducetheelementofsurprise whichcontributestoaccidents.
• Neverletthemovingchaincontactanyobjectatthetipoftheguidebar.
• Keeptheworkingareafreefromobstructionssuchasothertrees,branches,rocks, fences,stumps,etc.Eliminateoravoid anyobstructionthatyoursawchaincould hitwhileyouarecutting.Whencuttinga branch,donotlettheguidebarcontact branchorotherobjectsarounddit.

• Keepyoursawchainsharpandproperly tensioned.Alooseordullchaincanincreasethechanceofkickbackoccurring. Followmanufacturer'schainsharpening andmaintenanceinstructions.Checktensionatregularintervalswiththeengine stopped,neverwiththeengine running. Makesurethebarnutsaresecurelytightenedaftertensioningthechain.

• Beginandcontinuecuttingatfullspeed.If thechainismovingataslowerspeed, thereisgreaterchanceofkickbackoccurring.
  • Cutonelogatatime.

• Useextremec cautionwhenre-enteringa previouscut.
• Donotattemptcutsstartingwiththetipof thebar(plungecuts).
• Watchforshiftinglogsorotherforcethat couldcloseacutandpinchorfallintochain.
• Use the Reduced-Kickback Guide Bar and Low-Kickback Chain specified for yoursaw.

MAINTAINCONTROL
Standtothe leftofthesaw

Thumbon undersideof handlebar
Neverreverse handpositions

• Keepagood, firmgriponthesawwith both handswhentheengineisrunninganddon't letgo. Afirmgripwillhelpyoureducekickbackandmaintaincontrolofthesaw. Keep thefingersofyourlefthandencircling and yourlefthumbunderthefronthandlebar. Keepyourrighthandcompletelyaroundthe rearhandlewhetheryourarerighthandedor lefthanded. Keepyourleftarmstraightwith theelbowlocked.

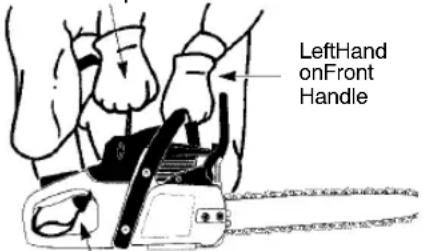

• Positionyourlefthandonthefronthandlebarsoitisinastraightlinewithyourright handontherearhandlewhenmaking buckingcuts. Neverreverserightandlef handpositionsforanytypeofcutting.
• Standwithyourweightevenlybalancedon bothfeet.
• Standslightlytotheleftsideofthesawto keepyourbodyfrombeinginadirectline withthecuttingchain.
• Donotoverreach.Youcouldbedrawnor thrownoffbalanceandlosecontrolofthe saw.
• Donotcutaboveshoulderheight.Itisdifficult to maintain control of saw above shoulderheight.

KICKBACKSAFETYFEATURES

WARNING:Thefollowingfeatures cludedonyoursawtohelpreducethe rdofkickback;however,suchfeatures ottotallyeliminatethsdanger.Asa sawuser,donotrelyonlyonsafetyde-Youmustfollowwallsafetyprecau-instructions,andmaintenanceinthis ualtohelpavoidkickbackandother swhichcanresultinseriousinjury.

- Reduced--KickbackGuideBar, designed withasmallradiustipwhichreduce the sizeofthekickbackdangerzoneonthe bartip. AReduced--KickbackGuideBar hasbeendemonstratedtosignificantlyreducethenumberandseriousnessofkick-backswhentestedinaccordancewith safetyrequirementsforgasolinepowered chainsawsassetbyANSIB175.1.

ReducedKickback Symmetrical Guide Bar

SymmetricalGuideBar

LargeRadiusTip

- Low--Kickback Chain, designed with a contoureddepthgauge and guardlink which deflect kickback force and allow woodtogradually ride into the cutter. Low--Kickback Chain has met kickback performance requirements when tested on representatives sample of chainsaws below 3.8 cubic inch displacements specified in ANSIB175.1.

ContouredDepthGauge

ElongatedGuardLink

Low-Kickback Chain

Deflects kickbackforce andallowswood tograduallyride intocutter

CanObstructMaterial

NotaLow– KickbackChain

- FrontHandGuard, designed to reduce the chance of your left hand contacting the chain if your hand slips off the front handle bar.

- Positionoffrontandrearhandlebars, designedwithdistancebetweenhandlesand "in-line" witheachother. Thespreadand"inline"positionofthehandsprovidedbythis designworktogethertogivebalanceandresistanceincontrollingthepivotofthesaw backtowardtheoperatorifikbackoccurs.

CHAINBRAKEANDCKAANGLE

- ChainBrake, designed to stop the chain in the event of kickback.

WARNING: WEDONOTREP-

RESENT AND YOU SHOULD NOT ASSUME THAT THE CHAIN BRAKE WILL PROTECTYOUINTHEEVENTOFAKICKBACK. Kickback is a lightning fast action whichthrowsthebarandrotatingchainback anduptowardtheoperator.Kickbackcanbe causedbyallowingcontactofthebartipinthe dangerzonewithanyhardobject. Kickback can also be caused by pinching the saw chain alongthetopoftheguidebar.Thisactionmay pushtheguidebarrapidlybacktowardtheoperator.Eitheroftheseeventsmaycauseyou tolosecontrolofthesawwhichcouldresultin seriousinjuryorevendeath. DONOTRELY UPONANYOFTHEDEVICESBUILTINTO YOURSAW.YOUSHOULDUSETHESAW PROPERLY AND CAREFULLY TO AVOID KICKBACK.Reduced--kickbackguidebars and low-kickback saw chains reduce the chanceandmagnitudeofkickbackandare recommended.Yoursawhasalowkickback chainandbarasoriginalequipment. Repairs onachainbrakeshouldbemadebyanauthorizedservicingdealer. Takeyourunittothe placeofpurchaseifpurchasedfromaservicingdealer,ortothenearestauthorizedmaster servicedealer.

• TipcontactinsomecasesmaycausealightningfastreverseREACTION,kickingguide barupandbacktowardoperator.
• Pinchingthesawchainalongthetopofthe guidebarmaypushtheguidebarrapidly backtowardtheoperator.
• Eitherofthesereactionsmaycauseyouto losecontrolofthesawwhichcouldresultin seriousinjury.Donotrelyexclusivelyupon devicesbuiltintoyoursaw.

WARNING:

Computed kickback

angle(CKA)listedonyoursawandlistedinthe CKAtablebelowrepresentsangleofkickback your barandchaincombinationswillhave whentestedinaccordancewithCSA(CanadianStandardsAssociation)andANSIstandards.Whenpurchasingreplacementbarand chain,considerationsshouldbegiventothe lowerCKAvalues.LowerCKAvaluesrepresentsaferanglestotheuser,highervaluesindicatemoreangleandhigherkickenergies. Computedanglesrepresentedindicatetotal energyandangleassociatedwithoutactivation ofthechainbrakeduringkickback.Activated anglerepresentschainstoppingtimerelativeto activationangleofchainbreakandresulting kickangleofsaw.InallcaseslowerCKAvaluesrepresentasaferoperatingenvironment fortheuser.

The following guide bar and chain combinations meet kickback requirements of CSA Standards Z62.1, Z62.3, & ANSIB175.1 when used on saws listed in this manual. Use of bar and chain combinations other than those listed is not recommended and may not meet the CKA requirements per standard.

Computedkickbackangle(CKA)Table

MODEL	BAR		P/N	CKAwithoutchainbrake
	P/NLength	CHAIN
P3314/P3314WS	9520443681	4"	952051209	33°
P3314WSA
P3416/P3516PR	952044370	16"	952051211	33°
P4018WM/P4018WT	952044418	18"	33952051338
P3818AV/P4018AV
P4018AVBH

NOTE: If this sawistobe used for commerciallogging,achainbrakeisrequired and shall not be removed or otherwise is- abled to comply with Federal OSHA Regulations for Commercial Logging.

WARNING: Theengineexhaust in thisproduct containschemicalsknown eStateofCaliforniatocausecancer, defectsorotherreproductiveharm.

SAFETY NOTICE: Exposure to vibrations through prolonged use of gasoline powered handtools could cause blood vessel over damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swellings. Prolonged use in cold weather has been linked to blood vessel damage in otherwise healthpeople. If symptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek medical attention. An anti-vibration system does not guarantee the avoidance of these problems. Users who operate powertoolson a continual and regular basis must monitor closely the physical condition and the condition of this tool.

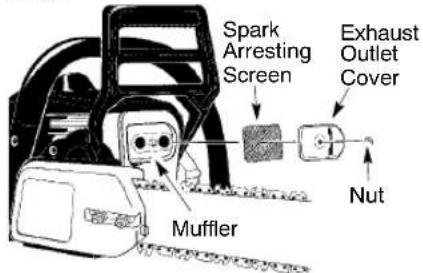

nSPECIAL NOTICE: Your saw is equipped with atemperature limiting muffler and spark arresting screen which meets the requirements of California Codes 4442 and 4443. All U.S. forestland and the states of California, Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that many internal combustion engines to be equipped with aspark arrestingscreen. If you operate each chainsawinastate or locale where such regulation sexist, you are legally responsible for maintaining the operating condition of these parts. Failure todos oisa violation of the law. Referto the SERVICE section formaintenance of the sparkarresting screen.

Failure to follow all Safety Rules and Precautionscanresultinserious injury. If situations occur which are not covered in this manual, use care and good judgement. If you need assistance, contact your authorized serviced dealer or call 1-800-554-6723.

STANDARDS: This saw is listed by Underwriter's Laboratories, Inc., in accordance with:

ANSIB175.1--2000AmericanNational Standards for Gasoline-Powered Chain Saws-SafetyRequirements

CSAZ62.1-03ChainSaws-Occupational HealthandSafety

CSAZ62.3-96ChainSawKickbackOccupationalHealthandSafety

ASSEMBLY

Protective gloves (not provided) should be wornduring assembly.

ATTACHING THE BAR & CHAIN (If not alreadyattached)

WARNING: If received assembled,

repeatallstepstoensureyoursawisproperly assembledandallfastenersaresecure. Alwaysweargloveswhenhandlingthechain. The chain is sharp and can cut you even when itisnotmoving!

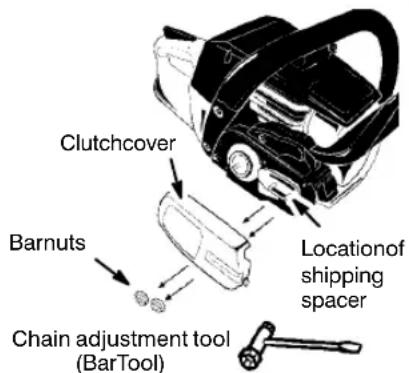

1. Loosen and remove the bar nuts and the clutch cover from the saw.
2. Removetheplasticshippingspacer(if present).

1. Anadjustingpinandscrewisusedtoadjustthetensionofthechain.Itisveryimportantwhenassemblingthebar,thatthe pinlocatedontheadjustingscrewalligns into a hole in the bar. Turning the screw will

movetheadjustmentpinupanddownthe screw.Locatethisadjustmentbeforeyou beginmountingthebarontothesaw.See followingillustration.

Inside viewof clutch cover

Adjustmentlocatedonclutchcover

1. Turntheadjustingscrewbyhandcounterclockwiseuntiltheadadjustingpinjust touchesthestop. This should allow the pintobenearthecorrect position.

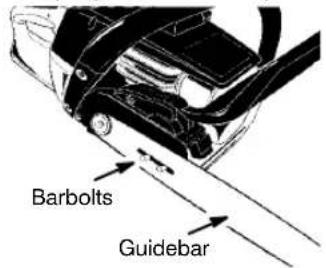

5.Slideguidebaronbarboltsuntilguide barstopsagainstclutchdrumsprocket.

1. Carefully remove the chain from the package. Hold chain with the drivelinks as shown.

1. Placechainoverandbehindclutchretainer, fittingthedrivelinksintheclutch drumsprocket.

2. Fitbottomofdrivelinksbetween the teethinthesprocketinthenoseofthe guidebar.

9.Fitchaindrivelinksintobargroove.

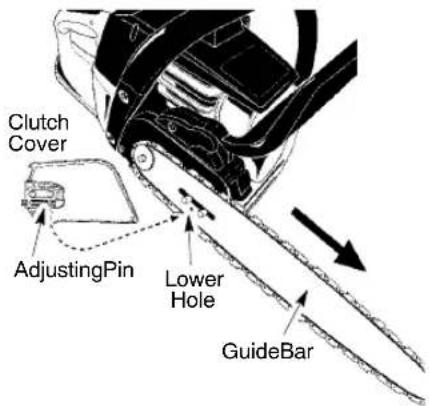

1. Pullguidebarforwarduntilchainissnug inguidebargroove.Ensurealdrive linksareinthebargroove.

2. Now, install clutch covermakingsure the adjusting pin is positioned in the lower hole in the guide bar. Remember this pin moves the bar forward and backward asthescrewisturned.

1. Installbarnutsandfingertightenonly. Oncethechainistensioned, you will needtotightenbarnuts.

CHAINTENSION

(Including units with chain already installed)

WARNING: Wearprotective gloves when handling chain. The chain is sharp and can cut you even when it is not moving.

NOTE: When adjusting chain tension, makesurethebarnutsarefingertightonly. Attemptingtotensionthechainwhenthe bar nutsaretightcancausedamage.

Checkingthetension:

Usethescrewdriverendofthechainadjust-menttool(bartool)tomovechainaround guide bar. If the chain does not rotate, it is too tight. If the chain is too loose, it will sag below thebar.

Adjustingthetension:

Chain tension is very important. Chains stretch during use. This is especially true during the first few times you use yoursaw. Always check chaintension each time before you start the chainsaw.

1. Loosen bar nuts until they are finger tight against the clutch cover.

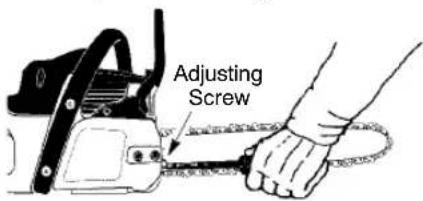

2. Turnadjustingscrewclockwise until chain solidly contacts bottom of guide barrail.

1. Usingbartool, rollchainaroundguidebar to ensure all links are in bargroove.

2. Liftuptipofguidebartocheckforsag. Releasetipofguidebar, thenturnadjustingscrew 1/4 turnclockwise. Repeat untilsagdoesnotexist.

AdjustingScrew-- 1/4 Turn

1. While lifting tip of guide bar, tighten bar nuts securely with the bartool.

1. Use the crew driver end of the bartool to move chain around guide bar.
2. If chain does not rotate, it is too tight. Slightly loosen barn nuts and loosen chain by turning the adjustment screw 1/4 turn counterclockwise. Retighten bar nuts.
3. If chainistooloose, it willsag below the guidebar. DONOToperatethesawif the chainisloose.

NOTE: Thechainistensioned correctly whentheweightofthechaindoesnotcauseit tosagbelowtheguidebar(withthechainsaw sittinginanuprightposition),butthechainstill movesfreelyaroundtheguidebar.

WARNING: Ifthesawisoperated withaloosechain,thechaincouldjumpoffthe guidebarandresultinseriousinjurytotheoperatorand/ordamagethechainmakingitunusable.Ifthechainjumpsofftheguidebar,inspecteachdrivelinkfordamage.Damaged chainmustberepairedorreplaced.

OPERATION

KNOWYOURCHAINSAW

READTHISINSTRUCTIONMANUALANDSAFETYRULESBEFOREOPERATINGYOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of thevariouscontrolsandadjustments.Savethismanualforfuturereference.

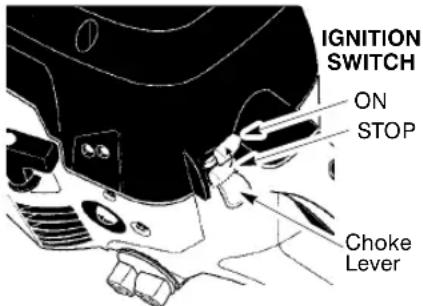

ON/STOPSWITCH

TheON/STOPSWITCHisusedtostopthe engine.

THROTTLETRIGGER

The THROTTLE TRIGGER controls engine speed.

THROTTLELOCK--OUT

TheTHROTTLELOCK--OUTmustbe pressedbeforeyoucansqueezethethrottle trigger. Thisfeaturepreventsyoufromaccidentallysqueezingthetrigger.

CHOKE/FASTIDLELEVER

Thechokeandfastidlearesetbypullingthe CHOKE/FASTIDLELEVERouttothefullextentforcoldstartingorafterrefueling.The chokeprovidesadditionalfueltotheengine duringcoldstarting.

PRIMERBULB

ThePRIMERBULBcirculatesfueltothecar-buretortoprovidequickerstarting.

CHAINBRAKE

The chainbrakeisadevicedesignedtostop the chain if kickback occurs. The chain brake

activatesautomaticallyintheeventofkickback. Thechainbrakeactivatesmanuallyifthe fronthandguarddispushedforward. Thechain brakeisdisengagedbypullingthefronthand guardbacktowardthefronthandleasfaras possible.

CHAINTENSION

Itisnormalforanewchaintostretchduringthe first15minutesofoperation.Youshouldcheck yourchaintensioneachtimebeforeyoustart thechainsaw.SeeCHAINTENSIONunder theASSEMBLYsection.

WARNING: Ifthesawisoperated

withaloosechain,thechaincouldjumpoff theguidebarandresultinseriousinjuryto theoperatorand/ordamagethechainmakingitunusable.

BEFORESTARTINGENGINE

WARNING: Mufflerisveryhotdur-ndafteruse.Donottouchthemuffleror w combustible material such as dry sorfueltodoso.

WARNING: Besuretoreadthefuel dinginformationinthesafetyrulessec- of this manual before you begin. If you do understandthefuelhandlinginformation otattempttofuelyourunit. Seekhelp someonethatdoesunderstandthein- nationorcallithecustomerassistance lineat1-800-554-6723.

FUELINGENGINE

WARNING: Remove fuel cap slow- enrefueling.

HELPFULTIP

To obtain the correctoilmix ratio, pour 3.2 ounces of 2--cyclesyntheticoil into one gallon off fresh gas.

Thisengineiscertifiedtooperateonunleaded gasoline. Beforeoperation, gasolinemustbe mixed with agoodqualitysynthetic2-cyclear-cooledengineoidesignedtobemixedatara-tioof40:1.Poulan/WEEDEATERbrandsyn-theticoilisrecommended.A40:1 ratio is obtained by mixing 3.2 fluid ounces (95ml) of oil with 1 gallon (4 liters) of unleaded gasoline. Included with this sawisa 3.2 ounce (95ml) container of Poulan/WEEDEATERbrandsyn-theticoil. Pour the entire contents of this con-tainer into 1 gallon (4 liters) of gasolineto achieve the proper fuel mixture. DONOTUSE automotive or marine oil. These oil will cause engined damage. When mixing fuel follow the instructions printed on the container. Always read and follow the safety rules listed under HANDLE FUEL WITH CAUTION.

CAUTION: Never use straight gasoline in your unit. This will cause permanent engine damage and void the limited warranty.

FUELREQUIREMENTS

Thisenginerequirestheuseofminimum87 octane[R+M]/2cleangasoline.

IMPORTANT

Useofalcoholblendedfuels(calledgasoholor usingethanolomethanol)cancausemajor engineperformanceanddurabilityproblems.

WARNING: Alternativefuels(not

gasoline)suchasE-15(15%alcohol),E-20 (20%alcohol),E--85(85%alcohol)areNOT classifiedasgasolineandareNOTapproved forusein2--strokegasolineengines.Useofalternativefuelswillcauseproblemssuchas: improperclutchengagements,overheating,vaporlock,powerloss,lubricationdeficiency, deteriorationoffuellines,gasketsandinternal carburetorcomponents,etc.Alternativefuels causehighmoistureabsorptionintothefuel/oil mixtureleadingtooilandfuelseparation.

BARANDCHAINLUBRICATION

Thebarandchainrequirecontinuouslubrication. Lubricationisprovidedbytheautomaticoilersystemwhentheoiltankiskept filled.Lackofoilwillquicklyruinthebarand chain. Toolittleoilwillcauseoverheating shown by smoke coming from the chain and/ordiscolorationofthebar.

Infreezingweatheroilwillthicken, making it necessary to thin bar and chain oil with a small amount (5 to 10%) of #1 Diesel Fuel or kerosene. Bar and chain oil must be free flowing for the oil system to pump enough oil for adequate lubrication.

GenuinePoulanbarandchainoilisrecommendedtoprotectyourunitagainstexcessivewearfromheatandfriction.Poulan oil resistshightemperaturethinning.

If Poulan barandchainoil is not available, use a good grade SAE30 oil.

- Never use waste oil for bar and chain lubrication.

•Alwaysstoptheenginebeforeeremoving theoilcap.

CHAINBRAKE

Ensurechainbrakeisdisengagedbypulling thefronthandguardbacktowardthefront handleasfaraspossible.Thechain brakemustbe disengagedbeforecuttingwiththesaw.

WARNING:Thechainmustnot

movewhentheengine runersatidlespeed. If thechainmovesatidlespeedrefertoCAR-BURETORADJUSTMENTwithin this manual. Avoidcontactwiththemuffler.Ahot mufflercancauseseriousburns. Tostoptheengine movetheON/STOP switchtotheSTOPposition.

Tostarttheengineholdthesawfirmlyonthe groundasillustrated.Makesurethechainis freetoturnwithoutcontactinganyobject.

Use only 15" - 18" (40 - 45 cm) of ropeperpull.

Holdsawfirmlywhilepullingstarterrope.

StarterRopeHandle

RightFootThroughRearHandle

WARNING: Donotattemptthrow

ordrop--startthechainsaw.Doingsowillput theoperatoratriskofseriousinjurydueto lossofcontrolofthechainsaw.

IMPORTANTPOINTSTOREMEMBER

Whenpullingthestarterrope,donotusethe fullextentoftheropeasthiscancausethe ropetobreak.Donotletstarterropesnap back.Holdthehandleandlettheropere-windslowly.

Forcoldweatherstarting,starttheunitat FULLCHOKE;allowtheenginetowarmup beforesqueezingthethrottletrigger.

NOTE: Donotattempttocutmaterialwith thechoke/fastidleleverintheFULLCHOKE position.

HELPFULTIP

If you'renginestilldoesnot startafter followingthese instructions, please call 1-800-554-6723.

STARTINGACOLDENGINE(orwarm engineafterrunningoutoffuel)

NOTE: Inthefollowingsteps,whenthe choke/fastidleleverispulledouttothefull extent,thecorrectthrottlesettingforstarting issetautomatically.

1. Move ON/STOP switch to the ON position.
2. Slowlypressprimerbulb6times.
3. Pullchoke/fastidleleverouttothefull extent(totheFULLCHOKEposition)
4. Pullthestarterropesharply5timeswith yourrighthand.Then,proceedtothe nextstep.

NOTE: If the engines sounds as if it is trying to start before the 5th pull, stop pulling and immediately proceed to then next step.

1. Pushthechoke/fastidleleverintothe HALFCHOKEposition.

CHOKE/FASTIDLELEVER

1. Pullthestarterropesharplywithyour righthanduntiltheenginestarts.
2. Allowtheenginetorunforapproximately 30 seconds. Then, squeeze and release the thethrottle triggerto allow engine to return to idlespeed.

STARTINGAWARMENGINE

1. MoveON/STOPswitchtotheONposition.
2. Slowlypressprimerbulb6times.
3. Tosetthefastidle, pullthechoke/fast ideleverouttothefulextent(tothefull chokeposition); thenpushthelever backintotheHALFCHOKEposition.
4. Pullthestarterropesharplywithyour righthanduntiltheenginestarts.
5. Squeezeandreleasethrottletriggerto allowenginetoreturntoidlespeed.

DIFFICULTSTARTING(orstartinga floodedengine)

Theenginemaybefloodedwithtoomuch fuelifithasnotstartedafter10pulls.Flooded enginescanbeclearedofexcessfuelby pushingthe choke/fastidle leverincompletely(totheOFFCHOKEposition)and thenfollowingthewarmenginestartingprocedurelistedabove.EnsuretheON/STOP switchisintheONposition.

Startingcouldrequirepullingthestarterrope handlemanytimesdependingonhowbadly the unit is flooded. If engine fails to start, refer totheTROUBLESHOOTINGTABLEorcall 1-800-554-6723.

CHAINBRAKE

WARNING: If the brake band is

worntoothinitmaybreakwhenthechain brakeistriggered.Withabrokenbrakeband, thechainbrakewillnotstopthechain.The chainbrakeshouldbereplacedbyanaauthorizedservicedealerifanypartisworntoless than0.020" (0.5mm)thick.Repairsona chainbrakeshouldbemadebyanaauthorizedservicedealer.Takeyourunittothe placeofpurchaseifpurchasedfromaservicingdealer,ortothenearestauthorized masterservicedealer.

• Thiswise equipped with a chain brake. The brake is designed to stop the chain if kickback occurs.
  •Theinertia--activatedchainbrakeis activatedifthefronthandguard dispushed forward, either manually (by hand) or automatically(bysuddenmovement).
• If the brake is already activated, it is disengaged by pulling the fronthand guard back toward the fronthandle as faras possible.
• Whencuttingwiththesaw, thechainbrake mustbedisengaged.

Brakingfunctioncontrol

CAUTION: The chain brake must be checked several times daily. The engine mustberunningwhenperformingthisprocedure. Thisistheonlyinstancewhenthesaw shouldbeplacedonthegroundwiththeengine running.

Placethesawonfirmground.Griptherear handlewithyourrighthandandthefronthandlewithyourlefthand.Applyfullthrottleby fullydepressingthethrottletrigger.Activate thechainbrakebyturningyourleftwrist against the hand guard without releasing yourgriparoundthefronthandle.Thechain shouldstopimmediately.

Inertiaactivatingfunctioncontrol

WARNING: Whenperformingthe

following procedure, the engine must be turnedoff.

Gripthearhandlewithyourighthand thefronthandlewithyourlefthand. Holdthe chainsawapproximately14" (35cm)abovea stumporotherwoodensurface.Releaseyour griponthefronhandleandusetheweightof thesawtoletthetipoftheguidebarfallforward andcontactthestump.Whenthetipofthebar hitsthestump,thebrakeshouldactivate.

OPERATINGTIPS

• Checkchaintensionbeforefirstuse,after 1 minute of operation, and each time before you start the chainsaw. See CHAIN TENSION in the ASSEMBLY section.
  • Cutwoodonly.Donotcutmetal,plastics, masonry,non-woodbuildingmaterials,etc.
• Stopthesawifthechainstrikesaforeign object. Inspectthesawandrepairorreplace parts as necessary. If the chain jumpsofftheguidebar, inspectthechain fordamageddrivelinksbeforereinstalling. Burrsondrivelinks, whichpreventthem fromenteringthegrooveoftheguidebar, canberemovedwithaflatfile.
• Keepthechainoutofdirtandsand.Evena smallamountofdirtwilldullachain,increase thepossibilityofkickback,andrequirechain sharpeningorreplacement.

• Practicecuttingafewsmallogsusingthe followingtechniquestogetthe"feel"ofusingyoursawbeforeyoubeginamajor sawingoperation.

• Squeezethethrottleriggerandallowthe enginetoreachfullspeedbeforecutting.

• Begincuttingwith thesawframe againstthelog.
• Keeptheengineatfullspeedtheentire timeyouarecutting.
• Allowthechaintocutforyou.Exertonly lightdownwardpressure. Ifyouforce thecut,damagetothebar,chain,orenginecanresult.
• Releasethethrottletriggerassoonas thecutiscompleted,allowingtheenginetoidle. Ifyourunthesawatfull throttlewithouttacuttingload,unnecessarywearcanoccurtothechain,bar, andengine. Itisrecommendedthat theenginenotbeoperatedforlongerthan30secondsatfullthrottle.
• To avoid losing control when cut is complete, donotput pressure on sawatend of cut.

- Stoptheenginebeforesettingthesaw downaftercutting.

TREEFELLINGTECHNIQUES

WARNING:

Checkforbrokenor

dead branches which can fall while cutting causingseriousinjury. Donotcutnearbuildingsorelectricalwiresifyoudonotknowthe directionoftreefall,norcutatnightsinceyou will not be ale to see well, nor during bad weathersuchasrain,snow,orstrongwinds, etc. Ifthetreemakescontactwithanyutility line,theutilitycompanyshouldbenotifiedimmediately.

• Carefullyplanyoursawingoperationinadvance.
• Cleartheworkarea.Youneedacleararea allaroundthetreesoyoucanhavesecure footing.
• Thechainsawoperatorshouldkeepon theuphillsideoftheterrainasthetreeis likelytorollorslidedownhillafteritisfelled.
  • Studythenaturalconditionsthatcancause thetreetofallinaparticulardirection.

Naturalconditionsthatcancauseatreeto fallinaparticulardirectioninclude:

• Thewinddirectionandspeed.
•Theleanofthetree.Theleanofatree mightnotbeapparentduetounevenor slopingterrain.Useaplumborleveltodeterminethedirectionoftreelean.
•Weightandbranchesononeside.
- Surroundingtreesandobstacles. Lookfordecayandrot.Ifthetrunkisrotted, itcansnapandfalltowardtheoperator. Checkforbrokenordeadbrancheswhich canfallonyouwhilecutting.
Makesurethereisenoughroomforthetreeto fall.Maintainadistanceof 2-1/2treelengths fromthenarestpersonorotherobjects.Enginenoisecandrownoutawarningcall.
Removedirt,stones,loosebark,nails,staples,andwirefromthetreewherecutsareto bemade.Planaclearretreatpathtotherear anddiagonaltothelineoffall.

FELLINGLARGETREES

(6inches(15cm)indiameterorlarger) Thenotchmethodisusedtofellargetrees. Anotchiscutonthesideofthetreeinthede- sireddirectionoffall.Afterafellingcutis madeontheoppositesideoftree,thetree willtendtofallintothenotch.

NOTE: If the tree has large buttress roots, removethem before making then notch. If using sawtoremove buttress roots, keepsaw chain from contacting ground to prevent dulling of the chain.

NOTCHCUTANDFELLINGTHE TREE

- Makenotchcutbycuttingthetopofthe notchfirst.Cutthrough 1/3ofthediameter ofthetree.Nextcompletethenotchbycuttingthebottomofthenotch.Seeillustration.Oncethenotchiscutremovethe notchofwoodfromthetree.

Final(felling)cuthere,2inches (5cm)abovecenterofnotch.

- Afterremovingthewoodfromthenotch, makethefellingcutontheoppositesideof thenotch. Thisisdonebymakingacutabout twoinches(5cm)higherthanthecenterof

thenotch. This will leave enough huncut wood between the felling cut and then not to form ahinge. This hing will help prevent the tree from falling in the wrong direction.

Hingeholdstreeonstumpandhelps controlfall

NOTE: Beforefellingcutiscomplete, use wedgestoopenthecutifnecessary to controlthedirectionoffall. To avoidkickback andchaindamage, use woodorplastic wedges, but never steel or iron wedges.

• Bealerttosignsthatthetreeisready to fall:crackingsounds,wideningofthefelling cut, or movement in the upper branches.
• Astreestartstofall, stopsaw, putitdown, andgetawayquicklyonyourplannedretreatpath.
• DONOTcutdownapartiallyfallentree withyoursaw.Beextremelycautiouswith partiallyfallentreesthatmaybepoorly supported.Whenatreedoesn'tfallcompletely,setthesawasideandpulldownthe treewithacablewinch,blockandtackle, ortractor.

CUTTINGAFALLENTREE (BUCKING)

Buckingisthetermusedforcuttingafallen treetothedesiredlogsize.

WARNING: Donotstandonthelog beingcut. Any portion can roll causing loss offooting and control. Donotstanddownhill of the log being cut.

IMPORTANTPOINTS

• Cutonlyonelogatatime.
- Cutshatteredwoodverycarefully; sharp piecesofwoodcouldbeflungtowardoperator.
- Useasawhorsetocutsmallogs. Never allowanotherpersontholdthelogwhile cuttingandneverholdthelogwithyourleg orfoot.
- Donotcutinanareawherelogs, limbs, androotsaretangledsuchasinablown downarea.Dragthelogsintoacleararea beforecuttingbypullingoutexposedand clearedlogsfirst.

TYPESOFCUTTINGUSEDFOR BUCKING

WARNING: Ifsawbecomes pinchedorhunginalog, don'ttrytoforceit out. Youcanlosecontrolofthesawresulting ininjury and ordamagetothesaw. Stop the saw, driveawedgeofplasticorwoodintothe cut until the saw can be removed easily. Re-

startthesawandcarefullyreenterthecut.To avoidkickbackandchaindamage,donot useametalwedge.Donotattempttorestart yoursawwhenitispinchedorhunginalog.

Useawedgetoremovepinchedsaw

TurnsawOFFanduseaplasticor woodenwedgetoforcecutopen.

Overcutting begins on the top side of the log with the bottom of the was again sthe log. When overcutting uselight downwardward pressure.

Undercuttinginvolvescuttingontheunder- sideofthelogwithtopofsawagainstthelog. Whenundercuttinguselightupwardpres- sure.Holdsawfirmlyandmaintaincontrol. Thesawwilltendtopushbacktowardyou.

WARNING: Neverturnsawupside downtoundecut. Thesawcannotbecontrolledinthisposition.

Alwaysmakeyourfirstcutonthecompressionsideofthelog. Thecompressionsideof thelogiswherethepressureofthelog's weightisconcentrated.

Firstcutoncompressionsideoflog

Secondcut

Secondcut

Firstcutoncompressionsideoflog

BUCKINGWITHOUTASUPPORT

• Overcut through 1/3 of the diameter of the log.
• Rollthelogoverandfinishwithasecond overcut.
• Watchforlogswithacompressionsideto preventthesawfrompinching.Seeillustrationsforcuttinglogswithacompres-sionside.

BUCKINGUSINGALOGOR SUPPORTSTAND

• Remember your first cut is always on the compressionside of the log. (Referto the illustrations below for your first and second cut)
• Yourfirstcutshouldextend 1/3ofthe diameterofthelog.
  •Finishwithyoursecondcut.

UsingalogforsuppandtCut

LIMBINGANDPRUNING

WARNING: Bealertforandguard againstkickback.Donotallowthemoving chaintocontactanyotherbranchesorobjects atthenoseoftheguidebarwhenlimbingor pruning. Allowingsuchcontactcanresultin seriousinjury.
WARNING: Neverclimbintoatreto limborprune. Donotstandonladders, platforms, alog, orinanyposition which can cause youtolose your balance or control of the saw.

IMPORTANTPOINTS

• Work slowly, keeping both hands firmly grippedonthesaw. Maintain secure footing and balance.
- Watchoutforspringpoles. Springpolesare smallsizelimbswhichcancatchthesaw chainandwhiptowardyouorpullyouoffbalance.Useextremecautionwhencutting smallsizelimbsorslendermaterial.
- Bealertforspringback.Watchoutfor branchesthatarebentorunderpressure. Avoidbeingstruckbythebranchorthe sawwhenthetensioninthewoodfibersis released.
- Keepclearworkarea.Frequentlyclear branchesoutofthewaytoavoidtripping overthem.

LIMBING

• Alwaysslimbatreeafteritiscutdown. Only thencanlimbingbedonesafelyandproperly.
  -Leavethelargerlimbsunderneaththefelled treetosupportthetreeasyouwork.
• Startatthebaseofthefelledtreeandwork towardthetop,cuttingbranchesandlimbs. Removesmalllimbswithonecut.
• Keep the tree between you and the chain. Cut from the side of the tree opposite the branch you are cutting.
• Removelarger, supporting branches with the cutting techniques described in BUCKING WITHOUT SUPPORT.
  •Alwaysuseanovercuttocutsmallandfree-lyhanginglimbs.Undercuttingcouldcause limbstofallandpinchthesaw.

PRUNING

WARNING: Limitpruningtolimbs

shoulderheightorbelow.Donotcutoff branchesarehigherthanyourshoulder.Geta professionaltodothejob.

• Makeyourfirstcut 1/3ofthewaythroughthe bottomofthelimb.
- Nextmakea2ndcutallthewaythrough thelimb. Thencutathirdovercutleavinga 1to2inch(2.5to5cm)collarfromthetruck ofthetree.

SERVICE

WARNING:

Disconnectthespark

plugbeforeperformingmaintenanceexcept forcarburetoradjustments.

Werecommendallserviceandadjustments notlistedinthismanualbeperformedbyan authorizedorMasterServiceDealer.

HELPFULTIP

IMPORTANT: Have all repairsotherthantherecommended maintenance describedintheinstruction manual performed byan authorizedservicedealer.

Ifanydealerotherthananauthorized servicedealerperformsworkonthe product,Poulanmaynotpayforrepairs underwarranty.Itisyourresponsibility tomaintainandperformgeneralmaintenance.

MAINTENANCESCHEDULE

Check:

Fuelmixturelevel... Beforeeachuse

Barlubrication ..... Beforeeachuse

Chaintension..... Beforeeachuse Chainsharpness.... Beforeeachuse

Fordamagedparts .. Beforeeachuse

Forloosecaps..... Beforeeachuse

Forloosefasteners... Beforeeachuse

Forlooseparts..... Beforeeachuse

InspectandClean:

Bar...... Beforeeachuse

Completesaw..... Aftereachuse

Airfilter.... Every5hours*

Chainbrake...... Every5hours*

Sparkarrestingscreen

andmuffler.... Every25hours*

Replace spark plug . Yearly

Replace fuel filter ... Yearly

*HoursofOperation--

Eachhourofoperationisapproximately 2tanksoffuel.

GENERALRECOMMENDATIONS

Thewarranty on this unit does not cover item sthathave beens subjected to operator abuse or negligence. Toreceive full value from the warranty, the operator must maintain unit as instructed in this manual. Various adjustments will need to be made periodically to properly maintain your unit.

- Once a year, replace the spark plug, air filter, and check guide bar and chain for wear. A new spark plug and air filter assures proper air-fuel mixture and helps you reinger un better and last longer.

CHECKFORDAMAGEDOR WORNPARTS

Contactanauthorizedservicedealerforreplacementofdamagedorwornparts.

NOTE: It is normal for a small amount of oil to appear under the saw after engine stops. Donot confusethis with aleaking oil tank.

- ON/STOPSwitch--EnsureON/STOP switchfunctionsproperlybymovingthe switchtotheSTOPposition.Makesureenginestops;thenrestartengineandcontinue.

- FuelTank--Donotusesawiffueltank showssignsofdamageorleaks. - OilTank--Donotusesawifoiltankshows signsofdamageorleaks.

CHECKFORLOOSE FASTENERSANDPARTS

•BarNuts

-Chain

•Muffler

•CylinderShield

•AirFilter

- HandleScrews

•VibrationMounts

•StarterHousing

- FrontHandGuard

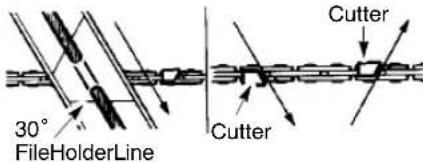

CHECKCHAINSHARPNESS

Asharpchainmakeswoodchips. Adull chainmakesasawdustpowderandcuts slowly. See CHAINSHARPENING.

CHECKGUIDEBAR

Conditions which require guide bar maintenance:

• Sawcutstoonesideoratanangle.
• Sawhastobeforcedthroughthecut.
• Inadequatesupplyofoilitobar/chain. Checktheconditionofguidebareachtime chainissharpened.Aworn guidebar will damagethechainandmakecuttingdifficult. Aftereachuse,ensureON/STOPswitchis intheSTOPposition,thencleanallsawdust fromtheguidebarandsprockethole.
  Tomaintainguidebar:
• Move ON/STOP switch to STOP.
• Loosen and remove bar nuts and clutch cover. Remove bar and chain from saw.
• Clean the oil holes and bar groove after each5hoursofoperation.

RemoveSawdustFrom GuideBarGroove

OilHoles

• Burringofguidebarrailsisanormal processofrailwear.Removetheseburrs withaflatfile.
• Whenrailtopisuneven, useaflatfiletore-storesquareedgesandsides.

WornGroove
CorrectGroove

Replace guide bar when the groove is worn, the guide bar is bent or cracked, or when excessheatingburringoftherailsoccurs,Ifireplacementisnecessary,useonlytheguidebar specifiedforyoursawintherepairpartslistor onthedecallocatedonthechainsaw.

CHECKFUELMIXTURELEVEL

- SeeFUELINGENGINEundertheOPERATIONsection.

LUBRICATION

• SeeGUIDEBARANDCHAINOILunder the OPERATIONsection.

INSPECTANDCLEANUNITAND DECALS

• Aftereachuse, inspectcompleteunitfor looseordamagedparts.Cleantheunitand decalsusingadampclothwithamilldetergent.
  •Wipeoffunitwithacleandrycloth.

CHECKCHAINBRAKE

SeeCHAINBRAKEintheOPERATION section.

CLEANAIRFILTER

CAUTION: Donotcleanfilteringasolineor otherflammablesolventtoavoidcreatinga firehazardorproducingharmfulevaporative emissions.

Cleaningtheairfilter:

Adirtyairfilterdecreasesthelifeandperformanceoftheengineandincreasesfuelconsumptionandharmfulemissions.Always cleanyourairfilterafter10tanksoffuelor5 hours of operation, whichever comes first. Cleanmorefrequentlyindustyconditions.A usedairfiltercanneverbecompletely cleaned.Itisadvisabletoreplaceyourairfilterwithanewoneafterevery50hoursofoperation,orannually,whichevercomesfirst.

1. Loosen3screwsoncylindercover.
2. Removecylindercover.
3. Remove airfilter cover and airfilter.
4. Cleantheairfilterusinghotsoapywater. Rinsewithcleancoolwater.Airdrycom-pletelybeforereinstalling.
5. Reinstallairfilterandairfiltercover.
6. Reinstall cylinder cover and 3 screws. Tightense securely.

INSPECTMUFFLERANDSPARK ARRESTINGSCREEN

Astheunitisused, carbondepositsbuildup onthemufflerandsparkarrestingscreen, andmustberemovedtoavoidcreatingafire hazardoraffectingengineperformance. Replacethsparkarrestingscreenifbreaks occur.

CLEANINGTHESPARKARREST- INGSCREEN

Cleaningisrequiredevery25hoursofoperationorannually,whichevercomesfirst.

1. Loosenandremovethenutfromtheex-haustoutletcover.
2. Removetheexhaustouletcover.
3. Removesparkarrestingscreen.Handle screencarefullytopreventdamage.
4. Cleanthesparkarrestingscreengently withawirebrush. Replacescreenif breaksarefound.
5. Replaceanybrokenorcrackedmuffler parts.
6. Reinstallsparkarrestingscreen, exhaust outletcover, and nut. Tightennut securely.

REPLACESPARKPLUG

Thesparkplugshouldbereplacedeach yeartoensuretheenginestartseasierand runsbetter. Ignitiontimingisfixedandnon-adjustable.

NOTE: This sparkignition system complies with the Canadian standard CES-002.

1. Loosen3screwsoncylindercover.
2. Removethecylindercover.
   3.Pulloffthesparkplugboot.
3. Removesparkplug from cylinder and discard.
4. Replace with Champion RCJ-7Y spark plug and tightense securely with a 3/4 inch

(19mm)socketwrench.Sparkpluggap shouldbe0.025inch(0,6mm).

6.Reinstallthesparkplugboot.

1. Reinstall the cylinder cover and 3 screws. Tightense securely.

REPLACEFUELFILTER

Toreplacefuelfilter,drainyourunitbyrun- ningitdryoffuel.Removefuelcapandits connectedretainerfromtank.Pullfilterfrom tankandremovefromline.Replaceandre- assemble.

CHAINADJUSTMENT

See CHAINTENSIONinASSEMBLYsection.

CHAINSHARPENING

WARNING: Improperchainsharpeningtechniquesand/ordepthgaugemaintenancewillincreasethechanceofkickback whichcanresultinserious injury.

WARNING: Wearprotective gloves when handling chain. The chain is sharp and can cut you even when it is not moving. Conditions which indicate the need for chain sharpening:

- Reductioninsizeofwoodchips. Thesize ofthewoodchipwilldecreaseasthechain getsdulleruntil itbecomesmorelikea powderthanachip. Notethatdeador rottedwoodwillnotproduceagoodchip.

• Sawcutstoonesideoratanangle

• Sawhastobeforcedthroughthecut.

Toolsrequired:

- 5/32inch(4mm)diameterroundfileand fileholder

- Flatfile

- Depthgaugetool

TOSHARPENCHAIN:

1. MoveON/STOPswitchtotheSTOP position.
2. Checkchainforpropertension. Adjust chaintension if necessary. See CHAIN TENSION section.

3.Sharpencutters.

- To sharpen the cutters, position the fileholderlevel(90°)sothatitrests on the top edges of the cutter and depthgauge. NOTE: Thechainhasbothleftand righthandcutters.

- Align the 30° file holder marks parallelwiththebarandtothecenterofthe chain.

• Sharpencuttersononesideofthe chainfirst.Filefromtheinsideofeach cuttertotheoutside.Then,turmthe chainsawaroundandrepeatheprocessfortheothersideofthechain.
• Fileontheforwardstrokeonly.Use2 or3strokespercuttingedge.
• Keepallcuttersthesamelength whenfiling.
• Fileenoughtoremoveanydamage tocuttingedges(sideplateandtop plateofcutter).

AllCutters
SameLength
RemoveDamage

- Filechaintomeetthespecifications asshown.

HookAngle

Right

TooMuchHook Angle SquaredO ff

Wrong

WARNING: Maintain the proper hook angle according to the manufacturer's specifications for the chain you are using. Improper hook angle will increase the chance of kickback which can result in serious injury. 4. Check and lower depth gauges.

• Placegaugetooloncutter.
• If the depth gauge is higher than the depthgaugetool, fileitleveltothetopof the depthgaugetool.
• Maintain rounded front corner of depthgaugewithaflatfile. NOTE: The very top of the depth gauge should be flat with the front halfrounded off with a flat file.

If you require further assistance or are unsure about performing this procedure, contact your authorized service dealer or callour customer assistance help line at 1-800-554-6723.

CARBURETORADJUSTMENT

WARNING:Thechainwillbemov-

ingduringmostofthisprocedure.Wearyour protectiveequipmentandobserveallsafety precautions.Thechainmustnotmoveatidle speed.

Thecarburetorhasbeencarefullysetatthe factory. Adjustmentsmay benecessaryif younoticeanyofthefollowingconditions:

• Chain moves at idle. See IDLE SPEED-T adjusting procedure.
• Sawwillnotidle.SeeIDLESPEED-Tad-justingprocedure.

IdleSpeed-T

Allowenginetoidle.lfthechainmoves,idleis toofast.lftheenginestalls,idleistooslow.AdjustspeeduntilengineRuns withoutchain movement (idle too fast) or stalling (idle too slow).Theidlespeedscrewslocatedinthe areaabovetheprimerbulbandislabeledT.

• Turnidlescrew(T)clockwisetoincrease enginespeed.
• Turn idle screw (T) counterclockwise to decrease enginespeed.

If you require further assistance or are unsure about performing this procedure, contact your authorized service dealer or call our customer assistance help line at 1-800-554-6723.

COOLINGSYSTEM

Tokeeptheworkingtemperatureaslowas possiblethemachineisequippedwitha coolingsystem.

Thecoolingsystemconsistsof:
•Airintakeonthestarter
•Airguideplate
•Finsontheflywheel
•Coolingfinsonthecylinder
- Cylinder cover (directs cold air over the cylinder)

Cleanthecoolingsystemwithabrushafter eachuse, more often indemanding conditions. Adirtyor blocked coolingsystem results in the machine overheating which causes damagetopiston and cylinder.

STORAGE

WARNING: Perform the following

stepsaftereachuse:

• Allowtheenginetocool, and secure the unit before storing or transporting.
• Storechainsawandfuelinawellventilatedareawherefuelvaporscannotreach sparksoropenflamesfromwaterheaters, electricmotorsorswitches,furnaces,etc.
• Storechainsawwithallguardsinplace andpositionchainsawsothatanysharp objectcannotaccidentallycauseinjury.
• Storechainsawwelloutofthereachof children.

SEASONALSTORAGE

Prepareyourunitforstorageattheendofthe seasonorifitwillnotbeusedfor30daysor more.

If your chainsawistobestoredforaperiod of time:

•Cleansawthoroughlybeforestorage.
•Storeinacleandryarea.
- Lightlyoilexternalmetalsurfacesand guidebar.
- Oilthechainandwrapitinheavypaperor cloth.

FUELSYSTEM

UnderFUELINGENGINEintheOPERATIONsectionofthismanual,seemessage labeledIMPORTANTregardingtheuseof gasoholinyourchainsaw.

Fuelstabilizerisanacceptablealternative in minimizing the formation of fuel gum deposits during storage. Add stabilizertothegasoline in the fuel tank for fuel storage container.

Followthemixinstructionsfoundonstabilizer containers. Runengineatleast5minutes afteraddingstabilizer.

Poulan/WEEDEATER40:1,2-cycleengine oil(aircooled)isblendedwithfuelstabilizer. If you donotusethisoil, you can add a fuel stabilizertoy our fueltank.

HELPFULTIP

Duringstorageofyourgas/oilmixture,theoilwillseparatefromthegas. Werecommendthatyou shakethegascanweekly toinsureproperblendingof thegasandoil.

ENGINE

• Removesparkplugandpour1teaspoon of40:1,2-cycleengineoil(aircooled) throughthesparkplugopening.Slowly pullthestarterrope8to10timestodistributeoil.
• Replacesparkplugwithnewoneofrecommendedtypeandheatrange.
• Cleanairfilter.
• Checkentireunitforloosescrews, nuts, andbolts. Replaceanydamaged, broken, orwornparts.
• Atthebeginningofthenextseason,use onlyfreshfuelhavingthepropergasoline tooilratio.

OTHER

• Donotstoregasolinefromoneseasonto another.
• Replace your gasoline can if it start to rust.

TROUBLESHOOTINGTABLE

WARNING:Alwaysstopunitanddisconnectsparkplugbeforeperformingalloftherecommendedremediesbelowexceptremediesthatrequireoperationoftheunit.

TROUBLECAUSEREMEDY
Enginewillnotstartorwillrunonlyafewsecondsafterstarting.	Ignitionswitchoff.Engineflooded.Fueltankempty.Sparkplugnotfiring.Fuelnotreachingcarburetor.	MoveignitionswitchtoON.See“DifficultStarting”inOperationSection.Filltankwithcorrectfuelmixture.Installnewsparkplug.Checkfordirtyfuelfilter;replace.Checkforkinkedorsplitfuelline;repairorreplace.
Enginewillnotidleproperly.	Idlespeedrequiresadjustment.Carburetorrequiresadjustment.	See“CarburetorAdjustment”intheServiceandAdjustmentsSection.Contactanaauthorizedservicedealer.
Enginewillnotaccelerate,lackspower,ordiesunderaload.	Airfilterdirty.Sparkplugfouled.Chainbrakeengaged.Carburetorrequiresadjustment.	Cleanorreplaceairfilter.Cleanorreplaceplugandregap.Disengagechainbrake.Contactanaauthorizedservicedealer.
Enginesmokesexcessively.	Toomuchoilmixedwithgasoline.	Emptyfueltankandrefillwithcorrectfuelmixture.
Chainmovesatidlespeed.	Idlespeedrequiresadjustment.Clutchrequiresrepair.	See“CarburetorAdjustment”intheServiceandAdjustmentsSection.Contactanaauthorizedservicedealer.

LIMITEDWARRANTY

Poulan, a division of Husqvarna Consumer Outdoor Products N.A., Inc., warrant to the original consumer purchaser that each new Poulan brand gasoline chains saw is free from defects in material and workmanship and agreestorepair or replace under this warranty any defective gasoline chains saw as follows from the original date of purchase. 1YEAR--Parts and Labor, when used for household purposes.

60DAYS--PartsandLabor, when used for commercial, professional, or income-producing purposes.

30DAYS--PartsandLabor,ifusedforrental purposes.

Thiswarrantyisnottransferableanddoesnot coverdamageorliabilitycausedbyimproper handling,impropermaintenanceoralteration, ortheuseofaccessoriesand/orattachments notspecificallyrecommendedbyPoulanfor thischainsaw. Thiswarrantydoesnotcover tune--up,sparkplugs,filters,starterropes, chainsharpening,bars,chains,andotherparts whichwearandrequirereplacementwithreasonableuseduringthewarrantyperiod.This warranty does not cover predelivery setup, installationofguidebarandchain,andnormal adjustmentsexplainedintheinstructionmanual such as chain tension adjustments. This warrantydoesnotcovertransportationcosts. Intheeventyouhaveaclaimunderthiswarranty,youmustreturntheproducttoanauthorizedservicedealer. Shouldyouhaveanyunansweredquestions concerningthiswarranty,pleasecontact:

Poulan, adivisionofHusqvarna ConsumerOutdoorProductsN.A., Inc. 7349StatesvilleRoad Charlotte, NC28269 1--800--554--6723 InCanada, contact: Poulan 850MathesonBlvd.West Mississauga, OntarioL5V0B4 Givingthemodelnumber, serialnumber and date of purchase of your product and the name and address of the authorized dealer from whomit was purchased. THISWARRANTYGIVESYOUSPECIFIC LEGALRIGHTS, ANDYOUMAY HAVE OTHER RIGHTS WHICH VARY FROM STATETOSTATE. NOCLAIMSFORCONSEQUENTIALOR OTHERDAMAGES WILL BE ALLOWED, ANDTHERE ARE NOOTHER EXPRESS WARRANTIES EXCEPT THOSE EXPRESSLYSTIPULATED HEREIN. SOMESTATESDONOTALLOWLIMITATIONSONHOWLONGANIMPLIEDWARRANTYLASTSORTHEEXCLUSIONOR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. This is limited warranty within the meaning of that term as defined in the Magnuson--MossActof1975. The policy of Poulanistocontinuously improve its products. Therefore, Poulanreserve weather change, modify, or discontinue models, designs, specifications, and accessories of all products at any time without notice or obligation to any purchaser.

U.S.EPA/CALIFORNIA/ENVIRONMENTCANADA EMISSIONCONTROLWARRANTYSTATEMENT

YOURWARRANTY RIGHTSANDOBLIGATIONS: The U.S. Environmental ProtectionAgency, CaliforniaAirResources Board, EnvironmentCanadaandPoulanare pleasedtoexplaintheemissionscontrolsystemwarrantyonyouryear2010andlatersmall off--roadengine.InCalifornia,allsmalloff--road enginesmustbedesigned,built,andequipped to meet the State's stringent anti-smog standards.Poulanmustwarranttheemission controlsystemonyoursmalloff--roadengine fortheperiodsoftimelistedbelowprovided therehasbeennoabuse,neglect,orimprop-ermaintenanceofyoursmalloff--roadengine. Your emission control system includes partssuchasthecarburetor,theignitionsystemandthefueltank.Whereawarrantable conditionexists,Poulanwillrepairyoursmall off--roadengineatnocosttoyou.Expenses coveredunderwarrantyincludediagnosis, partsandlabor.MANUFACTURER'SWARRANTYCOVERAGE:Ifanyemissionsrelatedpartonyourengine(aslistedunder EmissionsControlWarrantyPartsList)isde-

fectiveoradefectinthematerialsorworkmanshipoftheenginecausesthestfailureofsuchan emissionrelatedpart,thepartwillberepaired orreplaced by Poulan.OWNER'SWARRANTYRESPONSIBILITIES:Asthesmall off--roadengineowner,youareresponsible fortheperformanceoftherequiredmaintenancelistedinyourinstructionmanual.Poulanrecommendsthatyouretainallreceipts coveringmaintenanceonyoursmalloff--roadengine,butPoulancannotdenywarrantysolelyforthelackofreceiptsorforyour failure to ensure the performance of all scheduledmaintenance.Asthesmalloff--roadengineowner,youshouldbeawarethat Poulanmaydenyyouwarrantycoverageif yoursmalloff--roadengineorapartofithas failedduetoabuse,neglect,impropermaintenance,unapprovedmodifications,orthe useofpartsnotmadeorapprovedbythe originalequipmentmanufacturer.Youareresponsibleforpresentingyoursmalloff-road enginetoanPoulanauthorizedrepaircenter assoonasaproblemexists.Warrantyrepairs

shouldbecompletedinareasonableamount oftime,nottoexceed30days.Ifyouhaveany questionsregardingyourwarrantyrights andresponsibilities,youshouldcontactyour nearestauthorizedservicecenter,callPoulan at1--800--554--6723,orsende-mailcorrespondenceto [e-mail]:Thewarrantyperiodbegins onthedatethesmalloff--roadengineispurchased.LENGTHOFCOVERAGE:This warrantyshallbeforaperiodoftwoyears fromtheinitialdateofpurchase,oruntilthe endoftheproductwarranty(whicheveris longer).WHATISCOVERED:REPAIROR REPLACEMENTOFPARTS.RepairorreplacementofanywarrantedpartwillbeperformedatnochargetotheowneratanapprovedPoulanservicingcenter.Ifyouhave anyquestionsregardingyourwarrantyrights andresponsibilities,youshouldcontactyour nearestauthorizedservicecenter,callPoulan at1--800--554--6723,orsende-mailcorrespondenceto [e-mail]:Any warranted part which is not scheduled for replacement as required maintenance, or whichisscheduledonlyforregularinspection to theeffectof"repairorreplaceasnecessary"shallbewarrantedfor2years.Any warrantedpartwhichisscheduledforreplacement as required maintenance shall be warranted for the period of time up to the first scheduledreplacementpointforthatpart. DIAGNOSIS:Theownershallnot be chargedfordiagnosticlaborwhichleadsto the determination that a warranted part is defectiveifthediagnosticworkisperformedat anapprovedPoulanservicingcenter.

CONSEQUENTIAL DAMAGES: Poulan maybeliablefordamagestootherengine componentscausedbythefailureofawarrantedpartstillunderwarranty.WHATIS NOTCOVERED: All failurescaused by abuse, neglect, orimpropermaintenance are not covered. ADD--ONORMODIFIED PARTS: The use of add-on or modified parts can begrounds for disallowing warranty claim. Poulan is not liable to cover failures of warranted parts caused by the use of add-on or modified parts. HOW TO FILE A CLAIM: If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center, call Poulan at 1--800--554--6723, or send e-mail correspondenceto emission warranty @HCOP--emission.com. WHERE TO GETWARRANTYSERVICE: Warranty services or repairs shall be provided at all Poulan service centers. Call: 1--800-554--6723 or sende-mail correspondence to emission warranty @HCOP-emission.com. MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION RELATEDPARTS: Any Poulan approved replacement part used in the performance of any warranty maintenance or repair on emission related parts will be provided without charge to the owner if the part is under warranty. EMISSION CONTROL WARRANTY PARTS LIST: Carburetor, air filter (covered up tomaintenances schedule), ignition system: spark plug (covered up tomaintenances schedule), ignition module, muffler including catalyst (ifequipped), fuel tank. MAINTENANCE STATEMENT: The owner is responsible for the performance of all required maintenance as defined in the instruction manual.

The information on the product label indicates which standard you are engine is certified. Example: (Year) EPA and/or CALIFORNIA.

Thisengine is certified to be emissions compliant for the following use:

Moderate(50hours)

Intermediate(125hours)

Extended(300hours)
