Product Type	Kick Scooter
Brand	RAZOR
Model	A3
Frame Material	Aluminum
Deck Dimensions	14 x 4.5 inches (35.6 x 11.4 cm)
Handlebar Height (Adjustable)	23.5 to 30.5 inches (59.7 to 77.5 cm)
Handlebar Height Positions	3
Wheel Size	98 mm (3.9 inches) Polyurethane
Wheel Hardness	78A
Brake Type	Rear Fender Brake
Folding Mechanism	Patented Push-Button Fold
Weight	6.4 lbs (2.9 kg)
Maximum Rider Weight	143 lbs (65 kg)
Recommended Age	5 years and up
Assembly Required	Minimal (attach handlebars and T-bar)
Cleaning Instructions	Wipe with a damp cloth; do not use abrasive cleaners
Storage	Store indoors, dry place, away from extreme temperatures
Safety Gear	Helmet, elbow pads, knee pads recommended
Spare Parts Availability	Wheels, grips, brake, bearings, handlebars
Repairability	User-replaceable parts; service manual available
Warranty	Limited 6 months on frame and fork

Frequently Asked Questions - A3 RAZOR

How do I fold the RAZOR A3 scooter?

Push the folding button located at the base of the handlebar stem while sliding the stem down into the deck. The scooter will lock into a compact position for transport.

What is the weight limit for the RAZOR A3?

The maximum rider weight is 143 lbs (65 kg). Exceeding this may damage the scooter or cause injury.

What age is the RAZOR A3 suitable for?

It is recommended for children 5 years and up. Younger children should use a smaller scooter.

How do I adjust the handlebar height?

Unlock the quick-release clamp on the handlebar tube, adjust to one of three positions, and retighten the clamp securely.

How do I replace the wheels?

Use a screwdriver to remove the axle nuts, replace the wheel (98mm PU), and retighten the nuts. Ensure bearings are properly seated.

How often should I maintain the scooter?

Inspect brakes, wheels, and folding mechanism monthly. Tighten any loose screws and lubricate the folding hinge with silicone spray if needed.

Can the RAZOR A3 be used in wet conditions?

No, riding on wet or slippery surfaces increases the risk of accidents. The scooter is not water-resistant; avoid puddles and rain.

What tools are needed for assembly?

Assembly requires a 5 mm Allen wrench (included) to attach the handlebars and T-bar. The deck comes pre-assembled.

How do I clean the scooter?

Wipe the frame and deck with a damp cloth. Do not use solvents, abrasives, or submerge in water.

Where can I purchase replacement parts?

Official RAZOR parts are available at razor.com or through authorized dealers. Common parts include wheels, grips, and brake pads.

USER MANUAL A3 RAZOR

Four identical electric scooters (BZ50, BZ70, BZ90, BZ100) arranged in a row, each with black wheels and metal frame, shown against a white background.

OWNER'S MANUAL

Read and understand this entire manual before allowing child to use this product! For assistance contact Razor. DO NOT RETURN TO STORE.

NOTE: Manual illustrations are for demonstration purposes only.

Illustrations may not reflect exact appearance of actual product.

Specifi cations subject to change without notice.

Please have your product along with the 22 character product I.D. code with you before contacting Razor for warranty assistance and/or replacement parts.

Product I.D. Code: ____ - ____ - ____

CONTENTS

Safety Warnings .... 1

Before You Begin....2

Assembly and Set-up....3-4

Pre-Ride Checklist and Usage 5

Repair and Maintenance....6

Warranty and Contact Information 7

SAFETY WARNINGS

AN IMPORTANT MESSAGE TO PARENTS: This manual contains important information. For your child's safety, it is your responsibility to review this information with your child and make sure that your child understands all warnings, cautions, instructions and safety topics. All children and preteens should ride with adult guidance at all times. Razor USA recommends that you periodically review and reinforce the information in this manual with younger riders, and that you are required to inspect and maintain your child's scooter to ensure their safety.

GENERAL WARNING: Scooter riding can be a hazardous activity. Scooters can, and are intended to move and it is therefore possible to get into dangerous situations and/or lose control and/or fall. If such things occur you can be seriously injured or die. LIKE ANY OTHER MOVING PRODUCT, USING A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT YOUR OWN RISK AND USE COMMON SENSE.

• Always wear safety equipment, such as helmet, knee pads and elbow pads. Always wear a helmet when riding your scooter and keep the chinstrap securely buckled.
  • Always wear shoes.
• Ride on smooth, paved surfaces away from motor vehicles.
• Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.
• Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
• Do not ride at night.
• Brake will get hot from continuous use. Do not touch after braking.
• Avoid excessive speed associated with downhill rides.
• Adults must assist children in the initial assembly and/or adjustment procedures to unfold scooter, adjust handlebar and steering to height, and finally to fold scooter.
• Obey all local traffic and scootering laws and regulations.
• Watch out for pedestrians.
• Do not exceed weight limit indicated on the scooter package.

S Kick Scooter 110 lb (50 kg)

A Kick Scooter 143 lb (65 kg)

A2 Kick Scooter 143 lb (65 kg)

A3 Kick Scooter 143 lb (65 kg)

A4 Kick Scooter 220 lb (100 kg)

Cruiser Scooter 143 lb (65 kg)

Malibu Beach Scooter 174 lb (79 kg)

• A parent's decision to allow his or her child to ride this product should be based on the child's maturity, skill and ability to follow rules.
• Kick scooters are generally not recommended for children under age five (5). A4 scooters are for children ages six (6) and above. Children under age eight (8) should ride with adult supervision at all times.
• Rider weight does not necessarily mean a child's size is appropriate to fit or maintain control of the scooter.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

Direct parental supervision is required. Scooters are meant to be used only in controlled environments free of potential traffic hazards and not on public streets. Do not allow your child to ride a scooter in any areas where vehicle traffic is present. Child must maintain a hold on the handlebars at all times. Never allow more than one child at a time to ride a scooter. Never use near steps, sloped driveways, hills, roadways, alleys or swimming pool areas. Keep fingers and other body parts away from the product when folding or unfolding. Adults must not allow children to assist in assembling and/or folding or unfolding the scooter.

Do not ride a scooter in wet weather. Scooters are intended for use on solid, flat, clean and dry surfaces, such as pavement or level ground without loose debris, such as rocks or gravel. Wet, slick or uneven and rough surfaces may impair traction and contribute to possible accidents. Do not ride a scooter in mud, ice, puddles or water. Avoid excessive speeds that can be associated with downhill rides. Never risk damaging surfaces, such as carpet or flooring, by use of a scooter indoors. Do not ride at night or when visibility is impaired.

PROPER RIDING ATTIRE

Always ensure child is wearing proper protective equipment, such as an approved safety helmet. A helmet may be legally required by local law or regulation in your area. A child should always wear shoes and keep shoelaces tied and out of the way of the wheels. Never ride barefooted or in sandals. Knee pads and elbow pads are recommended.

FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION.

WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Properly inspecting and maintaining your scooter can reduce the risk of injury. Always inspect your scooter before riding and regularly maintain it. Check and secure all fasteners before every ride. Replace worn or broken parts immediately.

WARNING: CHECK LOCAL LAWS REGARDING SCOOTER USE.

Check local laws and regulations to see where and how you may use your Razor scooter legally. In many states and local areas scooter riders are required BY LAW to wear a helmet. Check local laws and regulations regarding laws governing helmet use and scooter operation in your area.

BEFORE YOU BEGIN

Remove contents from box. Inspect the contents of the box for scratches and/or dents that may have occurred during shipping. Because your scooter was partially or fully assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.

Required Tools

5 mm
Allen wrench
(select models)

WARNING:

DO NOT USE NON-RAZOR PRODUCTS WITH YOUR SCOOTER. Razor scooters have been built to certain Razor design specifications. The original equipment supplied at the time of sale was selected on the basis of its compatibility with the frame, fork and all other parts. Certain aftermarket products may not be compatible and will void the warranty.

Product ID Locations:

1. Side of deck plate

2. Box - side of UPC (not shown)

Box Contents:

- Scooter

- Allen wrench (select models)

- Owner's manual

Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service contact information is listed at the back of this manual.

ASSEMBLY AND SET-UP

□ Attaching the Handlebars

(Select models)

1 Loosen the collar clamp and slide it upward. Insert T-bar into the fork until it bottoms out on the headset locknut.

Note: If necessary, carefully twist the T-bar clock-wise while pushing downward until T-bar bottoms out on the headset locknut.

Diagram of a mechanical clamp or bracket with a rotating arrow indicating rotation (no text or symbols present)

2 With the front wheel pointed straight ahead and the handlebars square to the front wheel and the Razor logo facing the front, tighten the clamp as shown. Tighten securely. On the A4, alternately tighten each bolt until securely tightened.

WARNING: Failure to properly install and tighten the collar clamp may cause the rider to lose control and fall. If you are having difficulty understanding these instructions, please contact Razor Customer Service for assistance.

WARNING: Do not attempt to thread the handle bar into the front fork thread. Tighten clamp securely.

□ Unfolding the Scooter for First Time Use

(Select models)

Mechanical diagram showing a wheel being adjusted to a car's wheel (no text or symbols present)

Illustration of a hand operating a bicycle with a wheel and lever mechanism (no text or symbols)

1 To release the folding mechanism, place the scooter on the ground, put one foot on the deck plate and push joint release lever down. Raise T-bar up until it is securely locked in the upright position.

Note: The joint release lever is spring-loaded and will automatically lock in the upright position when fully upright.

WARNING: Keep fingers clear of the pivoting mechanism when folding or unfolding the scooter. Make sure others are standing clear.

Illustration of a hand holding a tool with directional arrows indicating movement (no text or symbols)

Pure electrical circuit lines without any symbols

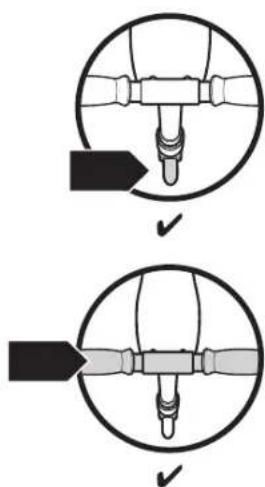

2 Insert and secure the left and right handlebars by pressing the spring-loaded buttons and inserting them into the T-bar.

3 Make certain BOTH handlebars are properly locked onto the T-bar.

×

×

WARNING: Failure to properly engage the spring-loaded buttons may cause the handlebars to dislodge while riding and may cause you to lose control and fall. When correctly engaged the handlebars will not rotate nor will they move sideways. Note that when properly engaged, the spring-loaded buttons are clearly visible in the holes on the T-bar.

ASSEMBLY AND SET-UP

□ Adjusting the Handlebar Height

(Select models)

Mechanical clamp mechanism diagram showing rotational motion (no text or symbols)

1 To adjust the height of the handlebars, open the quick-release lever and slide the T-bar to the desired position and resecure the quick release lever to lock into place. When the T-bar is raised to the maximum height, depress the push button located directly below the quick release lever to unlock the T-bar.

Mechanical diagram showing a rotating clamp or bracket with rotational arrows indicating motion (no text or symbols)

Note: The tension of the quick-release lever can be adjusted by manually tightening or loosening the Allen bolt. Be careful not to over-tighten. You should always be able to open and close the quick-release lever by hand and the T-bar should slide freely when the quick-release is open.

Collar Clamp

Technical line drawing of a mechanical assembly with bolted joint (no text or symbols)

Mechanical linkage diagram showing a lever and curved arrow (no text or symbols)

Using a 5 mm Allen wrench, check that the collar clamp bolt(s) are tightened securely. This item is tightened and quality inspected at the factory, but there is a slight chance that the effects of shipping or handling may have caused the bolt(s) to loosen.

WARNING: Failure to

properly secure the quick-release lever may cause the T-bar to telescope up or down while riding and may cause you to lose control and fall.

WARNING:

Failure to properly install and/or tighten the collar clamp may cause the rider to lose control and fall. If you are having diffi culty understanding these instructions, please contact Razor Customer Service for assistance.

PRE-RIDE CHECKLIST

Loose Parts

Check and secure all fasteners before every ride. Make sure the collar clamp, quick release lever, and handlebar spring buttons are locked properly in place before riding.

Replacement Parts

Replace worn or broken parts immediately. Call 1-866-467-2967 for parts or visit www.razor.com.

Safety Gear

Always wear proper protective equipment, such as an approved safety helmet, elbow pads and kneepads. Always wear shoes (lace-up with rubber soles) and keep shoelaces tied and out of the way of the wheels. Never ride barefooted or in sandals.

Be Careful!

You will see people on TV and maybe even people you know doing tricks and stunts. These are people who have been practicing on scooters for a very long time. Don't try something until you are ready. Avoid steep inclines and don't ride too fast — you can lose control and fall. Skateboard parks are not designed for scooters. Never ride in traffic or on the street and watch your surroundings for pedestrians, bikers, boarders and skaters.

Maintain a hold on the handlebars at all times.

USAGE

How to Ride

Place one foot on the baseboard, push forward with the other foot. Steer with both hands on the handlebars. For enhanced cornering, lean slightly into the direction of the turn. For controlled stops, apply the brake by stepping on the rear brake. Razor recommends that you practice applying the brake at various speeds and in an open area free from obstructions before riding your scooter around others.

Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service contact information is listed at the back of this manual.

REPAIR AND MAINTENANCE

☐ Baseboard/Steering Column Adjusting Screw (A4 ONLY)

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Using a 3 mm Allen wrench and with the scooter in the upright and locked position, adjust the set screw at the baseboard until there is no free-play between the baseboard and the steering column. Be careful not to over-tighten this screw as it need only be snug against the steering column. Verify the adjustment by releasing the steering column from the locked position and folding the scooter. The joint lever should not bind and the folding movement should be smooth. The spring-loaded mechanism should automatically lock and be fully seated in the upright position.

□ Wheels and Bearings

Under normal circumstances and conditions, Razor wheels and wheel bearings are maintenance free. Nonetheless, it is the responsibility of the owner or guardian to periodically inspect the wheels for wear and tear, the axle for proper tightness, and bearings for side-to-side play, and loose parts. When a wheel or wheel bearing develops play, this is an indication of excess wear and replacement is necessary. Replace immediately with only genuine Razor wheels. Worn wheels/bearings are considered normal wear-and-tear and are not covered by the Razor Warranty. Wheels other than genuine Razor wheels may not be compatible with your Razor scooter. The use of anything other than genuine Razor replacement parts may affect your safety and will void your warranty.

□ Cleaning Your Scooter

Wipe with a damp cloth to remove dirt and dust. Do not use industrial cleaners or solvents as they may damage the surfaces. Do not use alcohol, alcohol-based or ammonia-based cleaners as they may damage or dissolve the plastic components or soften the decals or decal adhesive.

WARNING:

Keep fingers clear of the pivoting mechanism when folding or unfolding the scooter.

WARNING: Wheelies and other stunt-type riding reduces your ability to maneuver and control your scooter. Take the necessary precautions, such as wearing appropriate protective gear and practice in a area safe for stunt riding and free from obstructions.

WARRANTY

Razor Limited Warranty

The manufacturer warranties this product to be free of manufacturing defects for a period of 6 months from date of purchase. This Limited Warranty does not cover normal wear and tear, or any damage, failure or loss caused by improper assembly, maintenance, or storage.

This Limited Warranty will be void if the product is ever:

• used in a manner other than for recreation;
- modified in any way;
- rented.

The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.

Razor does not offer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which it was purchased.

For your records, save your original sales receipt with this manual.

CUSTOMER SERVICE CONTACT INFORMATION

Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service contact information is listed below:

UNITED STATES

Razor USA LLC

P.O. Box 3610

Cerritos, CA 90703

USA

[phone]

Monday - Friday

8:00 AM - 5:00 PM Pacific Time

EUROPE

Razor USA (Europe)

Handelsweg 2

2742 RD Waddinxveen

Netherlands

[phone]

ASIA

Razor USA (Asia)

P.O. Box 3610

Cerritos, CA 90703

USA

[phone]

[e-mail]

DISTRIBUTED IN THE UK BY:

Re:creation Limited

2 Meadows Business Park

Station Approach, Blackwater

Camberley, Surrey GU17 9AB

United Kingdom

[phone] Tel

[phone] Fax

[e-mail]

DISTRIBUTED IN AUSTRALIA BY:

Funtastic Limited

Level 2, Tower 2, Chadstone Place

1341 Dandenong Road

Chadstone VIC 3148

Australia

[phone]

Printed in China for:

Razor USA LLC RC Box 2610

FC Box 3610

Centros, CA 90703

Copyright © 2003-2014 Razor USA, LLC. All rights reserved. RAZOR and the Razor logo design are among the registered trademarks of Razor USA LLC in the United States and/or select foreign countries.
