A5 Prime - Scooter RAZOR - Free user manual and instructions

Product Type	Scooter
Brand	Razor
Model	A5 Prime
Maximum Rider Weight	220 lb (100 kg)
Recommended Age	8 years and up
Brake Type	Rear foot brake
Handlebar Adjustment	Quick-release lever, telescoping T-bar with push-button at max height
Folding Mechanism	Yes, with anti-rattle knob
Wheel Material	Urethane (typical)
Frame Material	Aluminum (typical)
Safety Gear Required	Helmet, knee pads, elbow pads, lace-up shoes
Assembly Required	Yes
Tools Included	5 mm Allen wrench
Warranty	6 months limited
Country of Origin	China
Customer Service	Razor USA LLC, [phone]

Frequently Asked Questions - A5 Prime RAZOR

How do I unfold the scooter for first use?

Place the scooter on the ground, put one foot on the deck plate, and pull the anti-rattle knob up. Raise the T-bar until it locks upright. The knob will automatically lock when fully upright.

How do I adjust the handlebar height?

Open the quick-release lever, slide the T-bar to the desired height, then close the lever to lock. If the T-bar is at maximum height, press the push button below the lever to unlock.

How do I fold the scooter?

First, loosen the anti-rattle knob by twisting left one full turn. Then pull it up to release the folding mechanism. Lower the T-bar to fold. Keep fingers clear of pivoting parts.

How do I stop the scooter?

Apply the rear foot brake by stepping on the rear fender. Practice braking at various speeds in an open area before riding around others.

What safety gear should my child wear?

Always wear a helmet with chin strap buckled, plus knee pads, elbow pads, and lace-up shoes. Never ride barefoot or in sandals.

What is the maximum weight limit for the A5 Prime?

The maximum rider weight is 220 lb (100 kg). Do not exceed this limit.

Can I ride the scooter at night?

No, do not ride at night or when visibility is impaired. The scooter is not equipped with reflectors or lights for night use.

How do I clean the scooter?

Wipe with a damp cloth to remove dirt. Do not use industrial cleaners, alcohol, or ammonia-based products as they may damage plastic components or decals.

Where can I get replacement parts?

Visit shop.razor.com or call 1-866-467-2967. Use only genuine Razor parts to maintain safety and warranty.

What does the warranty cover?

Razor offers a 6-month limited warranty against manufacturing defects. It does not cover normal wear and tear, improper assembly, or modifications.

USER MANUAL A5 Prime RAZOR

Razor scooter with silver body and black wheels, no visible text or symbols on the scooter body

OWNER'S MANUAL

Read and understand this entire manual before allowing child to use this product! For assistance contact Razor. DO NOT RETURN TO STORE.

NOTE: Manual illustrations are for demonstration purposes only. Illustrations may not reflect exact appearance of actual product. Specifications subject to change without notice.

Please have your product along with the 22 character product I.D. code with you before contacting Razor for warranty assistance and/or replacement parts.

Product I.D. Code: ____ - ____ - ____

CONTENTS

Safety Warnings .... 1

Before You Begin....2

Assembly and Set-up 3-6

Pre-Ride Checklist....7

Usage 7-8

Repair and Maintenance....9

Warranty and Contact Information 10

SAFETY WARNINGS

AN IMPORTANT MESSAGE TO PARENTS: This manual contains important information. For your child's safety, it is your responsibility to review this information with your child and make sure that your child understands all warnings, cautions, instructions and safety topics. All children and preteens should ride with adult guidance at all times. Razor USA recommends that you periodically review and reinforce the information in this manual with younger riders, and that you inspect and maintain your child's scooter to ensure their safety.

GENERAL WARNING: Scooter riding can be a hazardous activity. Scooters can, and are intended to move and it is therefore possible to get into dangerous situations and/or lose control and/or fall. If such things occur you can be seriously injured or die. LIKE ANY OTHER MOVING PRODUCT, USING A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT YOUR OWN RISK AND USE COMMON SENSE.

• Always wear safety equipment, such as helmet, knee pads and elbow pads. Always wear a helmet when riding your scooter and keep the chinstrap securely buckled.
  • Always wear shoes.
• Ride on smooth, paved surfaces away from motor vehicles.
• Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.
• Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
• Do not ride at night.
• Brake will get hot from continuous use. Do not touch after braking.
• Avoid excessive speed associated with downhill rides.
• Adults must assist children in the initial assembly and/or adjustment procedures to fold/unfold scooter, and adjust handlebar and steering to height.
• Obey all local traffic and scootering laws and regulations.
• Watch out for pedestrians.
• Do not exceed 220 lb (100 kg) total weight on the A5 Prime scooter.
• A parent's decision to allow his or her child to ride this product should be based on the child's maturity, skill and ability to follow rules.
• Do not allow children under age eight (8) to use the scooter. All children and preteens should ride with adult supervision at all times.
• Rider weight does not necessarily mean a child's size is appropriate to fit or maintain control of the scooter.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

Direct parental supervision is required. Scooters are meant to be used only in controlled environments free of potential traffic hazards and not on public streets. Do not allow your child to ride a scooter in any areas where vehicle traffic is present. Child must maintain a hold on the handlebars at all times. Never allow more than one child at a time to ride a scooter. Never use near steps, sloped driveways, hills, roadways, alleys or swimming pool areas. Keep fingers and other body parts away from the product when folding or unfolding. Adults must not allow children to assist in assembling and/or folding or unfolding the scooter.

Do not ride a scooter in wet weather. Scooters are intended for use on solid, flat, clean and dry surfaces, such as pavement or level ground without loose debris, such as rocks or gravel. Wet, slick or uneven and rough surfaces may impair traction and contribute to possible accidents. Do not ride a scooter in mud, ice, puddles or water. Avoid excessive speeds that can be associated with downhill rides. Never risk damaging surfaces, such as carpet or flooring, by use of a scooter indoors. Do not ride at night or when visibility is impaired.

PROPER RIDING ATTIRE

Always ensure child is wearing proper protective equipment, such as an approved safety helmet. A helmet may be legally required by local law or regulation in your area. A child should always wear shoes and keep shoelaces tied and out of the way of the wheels. Never ride barefooted or in sandals. Knee pads and elbow pads are recommended.

WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Properly inspecting and maintaining your scooter can reduce the risk of injury. Always inspect your scooter before riding and regularly maintain it. Check and secure all fasteners before every ride. Replace worn or broken parts immediately.

WARNING: CHECK LOCAL LAWS REGARDING SCOOTER USE.

Check local laws and regulations to see where and how you may use your Razor scooter legally. In many states and local areas scooter riders are required BY LAW to wear a helmet. Check local laws and regulations regarding laws governing helmet use and scooter operation in your area.

FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION.

BEFORE YOU BEGIN

Remove contents from box. Remove the separators that protect the components from damage during shipping. Inspect the contents of the box for scratches in the paint, dents that may have occurred during shipping. Because your scooter was 95% assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.

Required Tools

5 mm Allen Wrench

WARNING: DO NOT USE NON-RAZOR PRODUCTS WITH YOUR SCOOTER.

Razor scooters have been built to certain Razor design specifications. The original equipment supplied at the time of sale was selected on the basis of its compatibility with the frame, fork and all other parts. Certain aftermarket products may not be compatible and will void the warranty.

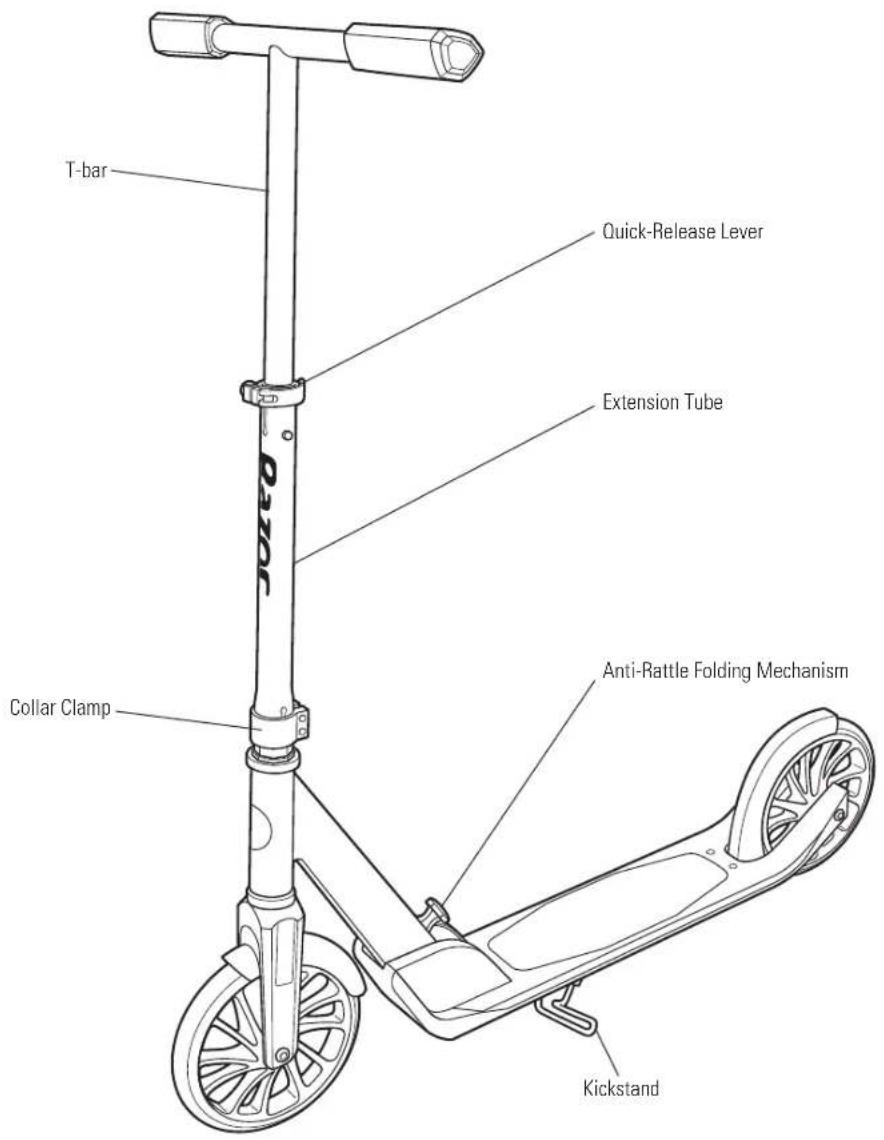

Product ID Locations:

1. Side of Deck Plate
2. Box - side of UPC (not shown)

Box Contents:

• Scooter
• Owner's Manual
• 5 mm Allen Wrench

ASSEMBLY AND SET-UP

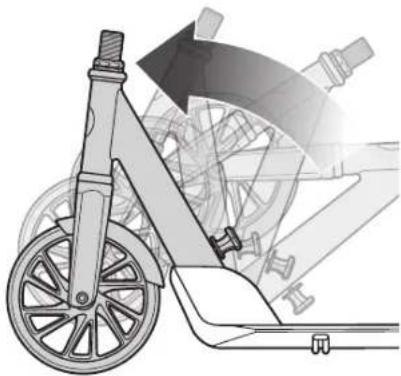

□ Unfolding the Scooter for First Time Use

Diagram of a bicycle steering wheel with an inset showing the lever mechanism (no text or symbols)

Technical illustration of a bicycle with wheel rim and attached suspension components (no text or symbols)

1 To release the folding mechanism, place the scooter on the ground, put one foot on the deck plate and pull the Anti-Rattle knob up. Raise T-bar up until it is securely locked in the upright position.
Note: The Anti-Rattle knob is spring-loaded and will automatically lock in the upright position when fully upright.

Diagram showing three circular insets with mechanical components and a hand holding a tool, illustrating safety or repair (no text or symbols present)

Note: To activate the anti-rattle feature twist the knob to the right to tighten. Please note there is no need to over tighten.

WARNING:

Keep fingers clear of the pivoting mechanism when folding or unfolding the scooter. Make sure others are standing clear.

ASSEMBLY AND SET-UP

□ Adjusting the Handlebar Height

1 The tension of the quick-release lever can be adjusted by manually tightening or loosening the Allen bolt. Be careful not to over-tighten. You should always be able to open and close the quick-release lever by hand and the T-bar should slide freely when the quick-release is open.

2 To adjust the height of the handlebars, open the quick-release lever and slide the T-bar to the desired position and resecure the quick-release lever to lock into place.

Note: When the T-bar is raised to the maximum height, depress the push button located directly below the quick-release lever to unlock the T-bar.

WARNING: Failure to

properly secure the quick-release lever may cause the T-bar to telescope up or down while riding and may cause you to lose control and fall.

ASSEMBLY AND SET-UP

□ Attaching the Handlebars

1 Raise handlebars to desired height. (See page 4 for instructions.)

Line drawing of a scooter with wheels and a ramp, no text or symbols present

2 Loosen the collar clamp and slide it upward.

3 Insert T-bar into the fork until it bottoms out on the headset locknut. Note: If necessary, carefully twist the T-bar side to side while pushing downward until T-bar bottoms out on the headset locknut.

Illustration of a scooter with two zoomed-in views showing the seat and grip details (no text or symbols)

Line drawing of a mechanical joint or bracket assembly (no text or symbols)

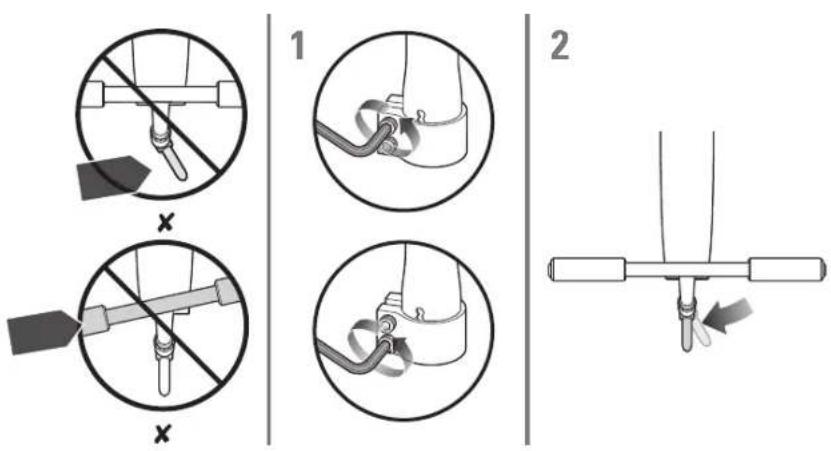

4 With the front wheel pointed straight ahead and the handlebars square to the front wheel and the Razor logo facing the front, tighten the clamp as shown. Tighten securely.

WARNING: Do not attempt to thread the handle bar into the front fork thread. Tighten clamp securely.

WARNING: Failure to properly install and tighten the collar clamp may cause the rider to lose control and fall. If you are having difficulty understanding these instructions, please contact Razor Customer Service for assistance.

ASSEMBLY AND SET-UP

Collar Clamp

Technical illustration showing three mechanical assembly steps with arrows indicating motion (no text or symbols)

Using a 5 mm Allen wrench, check that the collar clamp bolts are tightened securely. This item is tightened and quality inspected at the factory, but there is a slight chance that the effects of shipping or handling may have caused the bolts to loosen.

WARNING: Failure to properly install and tighten the collar clamp may cause the rider to lose control and fall. If you are having difficulty understanding these instructions, please contact Razor Customer Service for assistance.

Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service contact information is listed at the back of this manual.

PRE-RIDE CHECKLIST

Loose Parts

Check and secure all fasteners before every ride. Make sure the collar clamp, quick-release lever and anti-rattle knob are locked properly in place before riding.

Replacement Parts

Replace worn or broken parts immediately.

Call 1-866-467-2967 for parts or visit www.razor.com.

Safety Gear

Always wear proper protective equipment, such as an approved safety helmet, elbow pads and kneepads. Always wear shoes (lace-up with rubber soles) and keep shoelaces tied and out of the way of the wheels. Never ride barefooted or in sandals.

Be Careful!

You will see people on TV and maybe even people you know doing tricks and stunts. These are people who have been practicing on scooters for a very long time. Don't try something until you are ready. Avoid steep inclines and don't ride too fast — you can lose control and fall. Skateboard parks are not designed for scooters. Never ride in traffic or on the street and watch your surroundings for pedestrians, bikers, boarders and skaters.

Maintain a hold on the handlebars at all times.

USAGE

□ How to Ride

Place one foot on the baseboard, push forward with the other foot. Steer with both hands on the handlebars.

For enhanced cornering, lean slightly into the direction of the turn.

□ How to Stop

For controlled stops, apply the brake by stepping on the rear brake. Razor recommends that you practice applying the brake at various speeds and in an open area free from obstructions before riding your scooter around others.

Line drawing of a person's foot and legs on a scooter, showing the wheel and foot (no text or symbols)

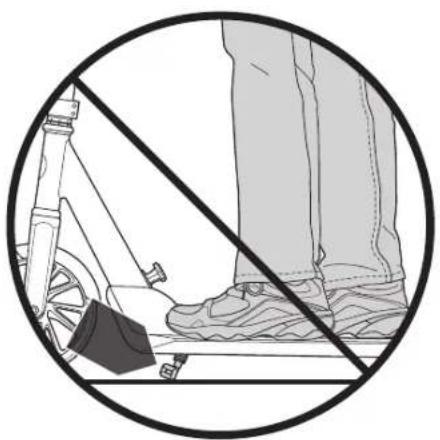

□ How to Use Kickstand

Press down on kickstand with foot, pull scooter back and up onto kickstand. Do not stand or ride on scooter when kickstand is deployed. Move scooter forward to retract kickstand.

Illustration of a person using a scooter with a foot and seatbelt, showing motion direction (no text or symbols)

Cross-sectional diagram of a person using a bicycle to avoid foot, no text or symbols present

USAGE

□ Folding Scooter

Line drawing of a hand holding a tool or device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a scooter with a close-up inset showing the wheel assembly detail (no text or symbols)

1 To fold scooter you must first deactivate the anti-rattle feature. Twist the knob left until loose. No need to loosen knob more than one full turn.
2 Pull the anti-rattle knob up.

Diagram of a scooter with wheels and suspension rods, showing motion direction (no text or symbols)

Line drawing of a two-wheeled scooter with wheels and a mounted handle (no text or symbols)

3 Lower T-bar to fold.

WARNING:

Keep fingers clear of the pivoting mechanism when folding or unfolding the scooter. Make sure others are standing clear.

REPAIR AND MAINTENANCE

□ Cleaning Your Scooter

Wipe with a damp cloth to remove dirt and dust. Do not use industrial cleaners or solvents as they may damage the surfaces. Do not use alcohol, alcohol-based or ammonia-based cleaners as they may damage or dissolve the plastic components or soften the decals or decal adhesive.

□ Wheels and Bearings

Under normal circumstances and conditions, Razor wheels and wheel bearings are maintenance free. Nonetheless, it is the responsibility of the owner or guardian to periodically inspect the wheels for wear and tear, the axle for proper tightness, and bearings for side-to-side play, and loose parts. When a wheel or wheel bearing develops play, this is an indication of excess wear and replacement is necessary. Replace immediately with only genuine Razor wheels. Worn wheels/bearings are considered normal wear-and-tear and are not covered by the Razor Warranty. Wheels other than genuine Razor wheels may not be compatible with your Razor scooter. The use of anything other than genuine Razor replacement parts may affect your safety and will void your warranty.

□ Replacement Parts

The most frequently requested replacement parts are available for purchase at some Razor retail partners. For the complete selection of replacement parts visit shop.razor.com.

Repair Centers

For a list of authorized Razor repair centers:

• Check online at www.razor.com.
  • Additional Customer Service contact information is listed at the back of this manual.

WARNING: Wheelies and other stunt-type riding reduces your ability to maneuver and control your scooter. Take the necessary precautions, such as wearing appropriate protective gear and practice in a area safe for stunt riding and free from obstructions.

WARRANTY

Razor Limited Warranty

The manufacturer warranties this product to be free of manufacturing defects for a period of 6 months from date of purchase. This Limited Warranty does not cover normal wear and tear, or any damage, failure or loss caused by improper assembly, maintenance, or storage.

This Limited Warranty will be void if the product is ever:

• used in a manner other than for recreation;
- modified in any way;
- rented.

The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.

Razor does not offer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which it was purchased.

For your records, save your original sales receipt with this manual and write the serial number below.

CUSTOMER SERVICE CONTACT INFORMATION

Need Help? Visit our web site for replacement parts, product support, a list of authorized service centers in the US and customer service contact information at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer Service contact information is listed below:

AMERICAS

Razor USA LLC

P.O. Box 3610

Cerritos, CA 90703

USA

[phone]

Monday - Friday

8:00 AM - 5:00 PM Pacific Time

[e-mail]

DISTRIBUTED IN THE UK BY:

Re:creation Limited

2 Meadows Business Park

Station Approach, Blackwater

Camberley, Surrey GU17 9AB

United Kingdom

[phone] Tel

[phone] Fax

[e-mail]

EUROPE

Razor USA LLC (Europe)

Handelsweg 2

2742 RD Waddinxveen

Netherlands

[phone]

[e-mail]

DISTRIBUTED IN AUSTRALIA BY:

Funtastic Limited

Level 2, Tower 2, Chadstone Place

1341 Dandenong Road

Chadstone VIC 3148

Australia

[phone]

[e-mail]

ASIA

Razor USA LLC (Asia)

P.O. Box 3610

Cerritos, CA 90703

USA

[phone]

[e-mail]

Printed in China for:

Razor USA LLC RC Box 2610

FC Box 3610

Centros, CA 90703

Copyright © 2003-2016 Razor USA LLC. All rights reserved. Razor, the Razor logo design, and A logo design are among the registered trademarks of Razor USA LLC in the United States and/or select foreign countries. A5 Prime logo is a trademark of Razor USA LLC.
