Product Type	Electric Scooter
Brand	Razor
Model	Carbon Lux
Dimensions (folded)	33.5 x 16.5 x 37 inches
Weight	21 lbs (9.5 kg)
Max Speed	15 mph (24 km/h)
Range	Up to 10 miles (16 km)
Motor	200W brushless hub motor
Battery	36V lithium-ion, 2.6 Ah
Charging Time	4 hours
Weight Capacity	220 lbs (100 kg)
Brake	Rear fender brake
Tires	8-inch pneumatic tires
Frame Material	Carbon fiber composite
Foldable	Yes, quick release
Recommended Age	8 years and up
Maintenance	Regularly check tire pressure, tighten bolts, clean with damp cloth
Safety	Wear helmet and protective gear; ride on smooth surfaces
Repair Parts	Available via Razor authorized dealers

Frequently Asked Questions - Carbon Lux RAZOR

How fast does the Razor Carbon Lux scooter go?

The maximum speed is 15 mph (24 km/h).

How far can it travel on a full charge?

The range is up to 10 miles (16 km) depending on rider weight, terrain, and riding style.

How long does it take to charge the battery?

Full charging takes approximately 4 hours. Do not charge longer than 8 hours.

What is the weight limit for the scooter?

The maximum rider weight is 220 lbs (100 kg).

Is the Razor Carbon Lux scooter foldable?

Yes, it features a quick-release folding mechanism for easy storage and transport.

What type of tires does it have?

It has 8-inch pneumatic tires that require inflation to the recommended pressure.

Can I ride the scooter in wet conditions?

No, avoid riding in wet or slippery conditions to prevent damage and accidents.

How do I maintain the battery?

Charge the battery fully before first use; do not store with a dead battery; charge every 2-3 months during storage.

What safety gear is recommended?

Always wear a helmet and knee/elbow pads. Follow local traffic regulations.

Where can I find replacement parts?

replacement parts are available through Razor authorized dealers or the official Razor website.

USER MANUAL Carbon Lux RAZOR

Black and white photo of a two-wheeled scooter with wheels and a metal handle (no visible text or symbols)

OWNER'S MANUAL

Read and understand this entire manual before allowing child to use this product! For assistance contact Razor. DO NOT RETURN TO STORE.

NOTE: Manual illustrations are for demonstration purposes only. Illustrations may not reflect exact appearance of actual product. Specifications subject to change without notice.

Please have your 22 character product I.D. code ready before contacting Razor for warranty assistance and/or replacement parts.

Product I.D. Code: ____ - ____ - ____

CONTENTS

Safety Warnings .... 1

Before You Begin....2

Assembly Instructions....3

Check Before Riding....4-5

Carbon Lux Scooter Parts....6

Safety Reminders....7

Warranty 7

SAFETY WARNINGS

AN IMPORTANT MESSAGE TO PARENTS:

This manual contains important information. For your child's safety, initial setup and T-bar installation require adult assistance for young riders. It is your responsibility to review this information with your child and make sure that your child understands all warnings, cautions, instructions and safety topics. Razor USA recommends that you periodically review and reinforce the information in this manual with younger riders, and you are required to inspect and maintain your child's scooter to insure their safety.

GENERAL WARNING: Scooter riding can be a hazardous activity. Scooters can and are intended to move, and it is therefore possible to get into dangerous situations and/or lose control and/or fall. If such things occur you can be seriously injured or die. LIKE ANY OTHER MOVING PRODUCT, USING A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT YOUR OWN RISK AND USE COMMON SENSE.

• Always wear safety equipment, such as helmet, knee pads and elbow pads. Always wear a helmet when riding your scooter and keep the chinstrap securely buckled.
  • Always wear closed toe shoes.
• Ride on smooth, paved surfaces away from motor vehicles.
• Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.
• Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
• Do not ride at night.
• Brake will get hot from continuous use. Do not touch after braking.
• Avoid excessive speed associated with downhill rides.
• Obey all local traffic and scootering laws and regulations.
• Watch out for pedestrians.
• Do not exceed 220 lb (100 kg) total weight on the Carbon Lux scooter.
• Do not allow children under age eight (8) to use the Carbon Lux scooter. Carbon Lux scooters are for children ages eight (8) and above. All children and preteens should ride with adult guidance at all times.
• Rider weight does not necessarily mean a child's size is appropriate to fit or maintain control of the scooter.
• A parent's decision to allow his or her child to ride this product should be based on the child's maturity, skill and ability to follow rules.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

Direct parental supervision is required. Scooters are meant to be used only in controlled environments free of potential traffic hazards and not on public streets. Do not allow your child to ride a scooter in any areas where vehicle traffic is present. Child must maintain a hold on the handlebars at all times. Never allow more than one child at a time to ride a scooter. Never use near steps, sloped driveways, hills, roadways, alleys or swimming pool areas.

Do not ride a scooter in wet weather. Scooters are intended for use on solid, flat, clean and dry surfaces, such as pavement or level ground, without loose debris, such as rocks or gravel. Wet, slick or uneven and rough surfaces may impair traction and contribute to possible accidents. Do not ride a scooter in mud, ice, puddles or water. Avoid excessive speeds that can be associated with downhill rides. Never risk damaging surfaces, such as carpet or flooring, by use of a scooter indoors. Do not ride at night or when visibility is impaired.

PROPER RIDING ATTIRE

Always ensure child is wearing proper protective equipment, such as an approved safety helmet. A helmet may be legally required by local law or regulation in your area. A child should always wear shoes and keep shoelaces tied and out of the way of the wheels. Never ride barefooted or in sandals. Knee pads and elbow pads are recommended.

FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION.

WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Properly inspecting and maintaining your scooter can reduce the risk of injury. Always inspect your scooter before riding and regularly maintain it.

WARNING: CHECK LOCAL LAWS REGARDING SCOOTER USE.

Check local laws and regulations to see where and how you may use your Razor scooter legally. In many states and local areas, scooter riders are required BY LAW to wear a helmet. Check local laws and regulations regarding laws governing helmet use and scooter operation in your area.

BEFORE YOU BEGIN

Remove contents from box. Inspect the contents of the box for scratches in the paint and/or dents that may have occurred during shipping. Because your scooter was partially assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.

Required Tools

WARNING: DO NOT USE NON-RAZOR PRODUCTS WITH YOUR SCOOTER.

Razor scooters have been built to certain Razor design specifications. The original equipment supplied at the time of sale was selected on the basis of its compatibility with the frame, fork and all other parts. Certain aftermarket products may not be compatible and will void the warranty.

PRODUCT I.D. CODE

1. Underneath Deck

2. UPC Side of Box (not shown)

Need Help? Visit our website for replacement parts and product support at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time. Please have the product I.D. code (located on the white label on your product) available for better assistance.

handlebar

Diagram of a mechanical device with three arms and directional arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a mechanical component enclosed in a circle (no text or symbols)

√

×

X

T-bar

Diagram of a mechanical component with a downward arrow indicating process (no text or symbols present)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical lever assembly with a curved blade and fulcrum (no text or symbols)

Diagram of a mechanical component with a circular outline and internal structure (no text or symbols)

√

Diagram of a mechanical device with two vertical rods and directional arrows indicating movement or force (no text or symbols)

WARNING: Failure to rly engage the spring-loaded ns may cause the handlebars lodge while riding and may you to lose control and When correctly engaged, the ebars will not rotate nor will move sideways. Note that properly engaged, the spring- d buttons are clearly visible in poles on the handlebars.

WARNING: Failure to rly install and tighten the clamp may cause the rider e control and fall. If you do understand these instructions, e contact Razor customer care sistance.

CHECK BEFORE RIDING

Collar Clamp

Using a 5 mm Allen wrench, check that Carbon Lux scooter collar clamp bolts are tightened securely.

□ Wheels and Bearings

Under normal circumstances and conditions, Razor wheels and wheel bearings are maintenance free. Nonetheless, it is the responsibility of the owner or guardian to periodically inspect the wheels for wear and tear, the axle for proper tightness, bearings for side-to-side play, and loose parts. When a wheel or wheel bearing develops play, this is an indication of excess wear and replacement is necessary. Replace immediately with only genuine Razor wheels. Worn wheels/bearings are considered normal wear-and-tear and are not covered by the Razor Warranty. Wheels other than genuine Razor wheels may not be compatible with your Razor scooter. The use of anything other than genuine Razor replacement parts may affect your safety and will void your warranty.

WARNING: Wheelies

and other stunt-type riding reduces your ability to maneuver and control your scooter. Take the necessary precautions, such as wearing appropriate protective gear, and practice in an area safe for stunt riding and free from obstructions.

CHECK BEFORE RIDING

□ Cleaning Your Scooter

Wipe with a damp cloth to remove dirt and dust.

Do not use industrial cleaners or solvents, as they may damage the surfaces. Do not use alcohol, alcohol-based or ammonia-based cleaners, as they may damage or dissolve the plastic components or soften the decals or decal adhesive.

How to Ride

Place one foot on the baseboard, push forward with the other foot. Steer with both hands on the handlebars. For enhanced cornering, lean slightly into the direction of the turn. For controlled stops, apply the brake by stepping on the rear fender/brake. Razor recommends that you practice applying the brake at various speeds and in an open area free from obstructions before riding your Razor scooter around others.

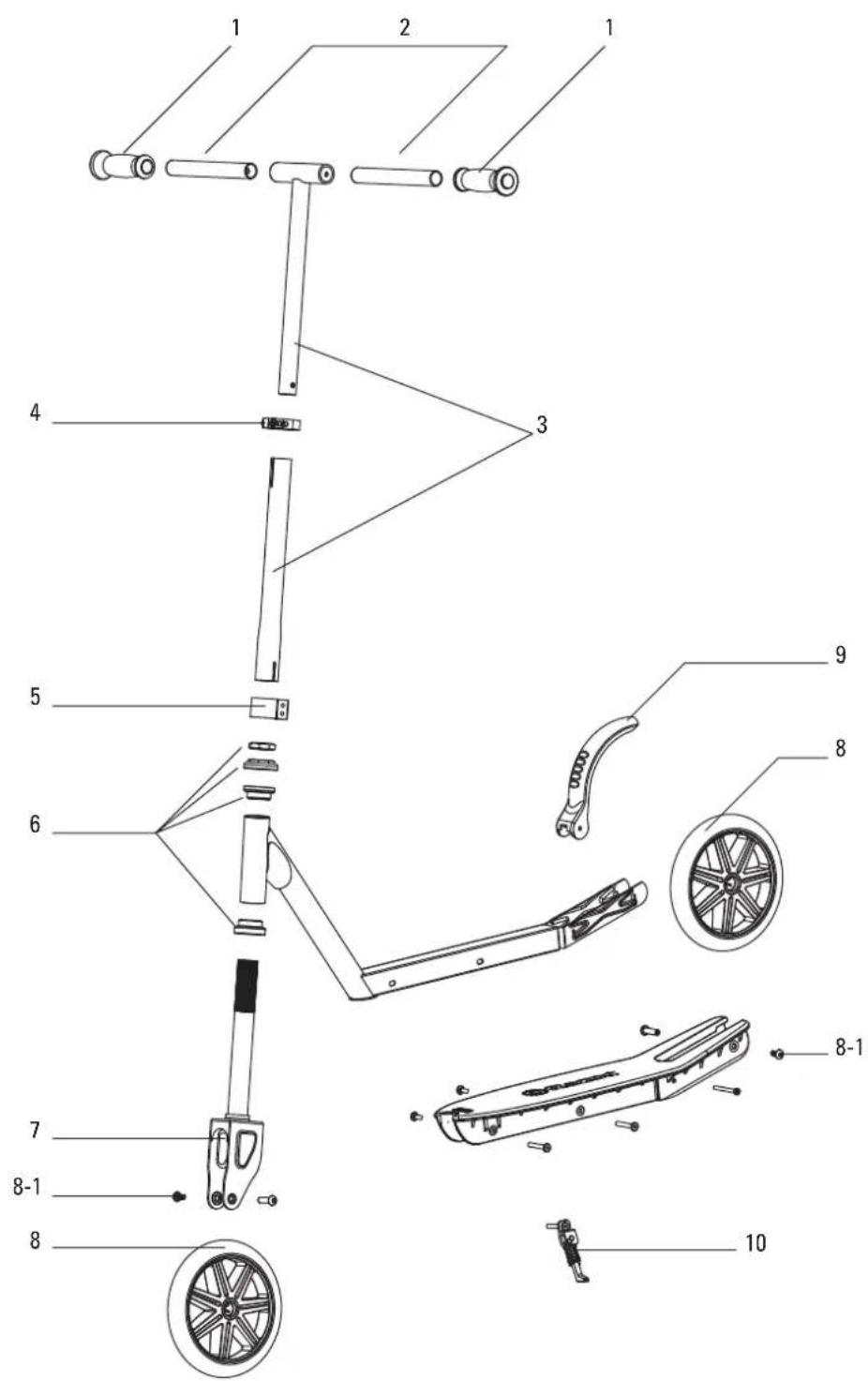

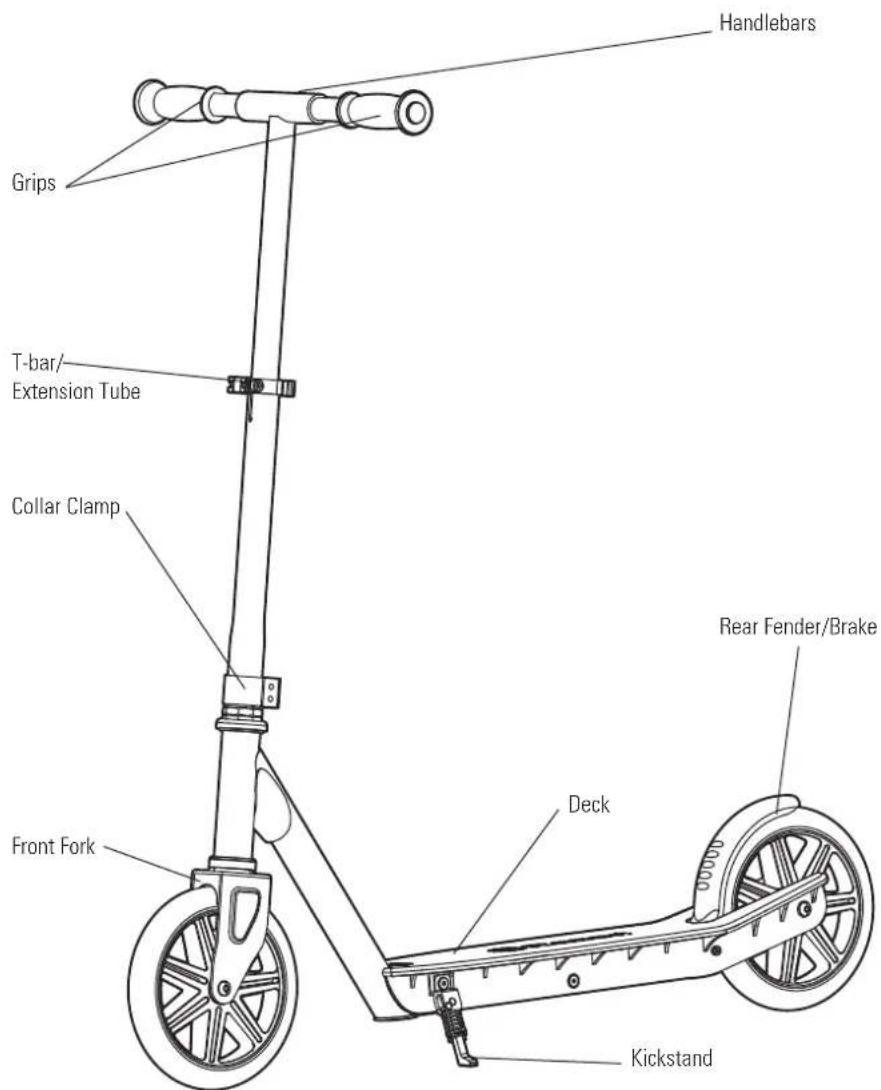

1. Handlebar Grips (x2)
2. Handlebars
3. T-bar/Extension Tube
4. Quick Release
5. Collar Clamp
6. Headset (Upper/Lower)
7. Fork
8. Wheels
   8-1. Axle Bolts
9. Fender/Brake
10. Kickstand

PRE-RIDE CHECKLIST

Loose Parts

Check and secure all fasteners before every ride. Make sure the collar clamp is locked properly into place before riding.

Replacement Parts

Replace worn or broken parts immediately. Visit www.razor.com for replacement parts.

Safety Gear

Always wear proper protective equipment, such as an approved safety helmet, elbow pads and kneepads. Always wear closed toe shoes (lace-up with rubber soles). Never ride barefooted or in sandals and keep shoelaces tied and out of the way of the wheels.

Be Careful!

You will see people on TV and maybe even people you know doing tricks and stunts. These are people who have been practicing on scooters for a very long time. Don't try something until you are ready. Avoid steep inclines and don't ride too fast — you can lose control and fall. Skateboard parks are not designed for scooters. Never ride in traffic or on the street and watch your surroundings for pedestrians, bikers, boarders and skaters.

Maintain a hold on the handlebars at all times.

DO NOT RETURN TO STORE

Failure to follow these instructions may damage your product and void your warranty.

WARRANTY

Razor Limited Warranty

The manufacturer warranties this product to be free of manufacturing defects for a period of 6 months from date of purchase. This Limited Warranty does not cover normal wear and tear, or any damage, failure or loss caused by improper assembly, maintenance, or storage.

This Limited Warranty will be void if the product is ever:

• used in a manner other than for recreation;
- modified in any way;
- rented.

The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.

Razor does not offer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which it was purchased.

For your records, save your original sales receipt with this manual.

Need Help? Visit our website for replacement parts and product support at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time. Please have the product I.D. code (located on the white label on your product) available for better assistance.

Printed in China for: Razor USA LLC

Copyright © 2003-2013 Razor USA, LLC. All rights reserved. RAZOR and the Razor Logo Design are among the registered trademarks of Razor USA LLC in the United States and/or select foreign countries. Carbon Lux™ is a trademark of Razor USA LLC.
