USER MANUAL CV-SU21V HITACHI

After washing, let the cyclone cylinder filter dry up in the shade before use.

HEPA clean filter is not washable.

- Remove HEPA filter from the unit. Then, remove dust by brushing off or pasting it gently.

Line drawing of a vacuum cleaner with attached cylindrical device (no text or symbols)

Warning		This box illustrates actions which may cause serious injury or death
###	###	This box illustrates actions which may cause injury or damage to property

denotes a warning of prediction

At least 30 days, the cable is torn or damaged. Do not operate when the cable is torn or damaged.

Use with 220V AC, 10A upwards

Always remove the plug from the socket prior to coating and cleaning, and retain from removing the plug with wet

Do not disassemble repair or modify the vacuum cleaner unless you are a professional technician, so this may result in damage to the unit and personal injury.

Do not use the unit to vacuum kerosene, benzene, flammable gas or cigarette butix.

consolidation Always remove the plug prior to carrying out repairs

Only use Hitachi carbon brushes.

Always remove the plug after use.

We should be able to use the plug, pull the plug, not the cable.

We are doing the table up, hold the plug as it may pick up causing

Do not use the unit to vacuum water or damp areas as this may damage the unit.

We have been a large number of people who are doing so that there is no need to be able to do.

Do not cover the ventilation outlets, as this may result in the unit become deformed and may cause fire due to excessive heat. Airflow from the ventilation duct may result in personal injury if contact is made with the body for long periods.

Do not plug the vacuum cleaner in the loose circle as it may melt your plug

Do not use in close proximity to fammable materials (benzene, trima), as this may result in fire.

In particular, there are two of the following items: (1) a large amount of dollars, and (2) a large amount of dollars, which is not possible to be used in the space.

- Children or persons without sufficient strength should not be allowed to use this electrical appliance without supervisor - Children should be supervised to ensure that they do not play with this electrical appliance

complies with standards according to the safety regulations of EC60335-1 and EC60335-2-2

This vacuum cleaner is equipped with a thermal protection device which automatically turns off the unit when the motor is overheating. When thermal protection device works, disconnect the power plug and check whether the dust compartment and filters are full of dust or clogged with dust. Check that no obstacle is in the nose or pipe. After removing the obstacle, leave the unit to cool down until the thermal protection device resets about 60 minutes.

- Put the dust case into large-sized plastic bag and push the open button of the dust case to release dust into provided plastic bag.

- Remove dust on the net filter with brush.

- Fix the dust case cover to the body. Check that the rubber packing is attached to dust case firmly.

- Move the dust removal lever several times.

Open button of the dust case

- Put the dust case into a large-sized plastic bag and push the open button of the dust case. Then, remove the net filter from paper filter and shake it to let dust drop.

How to remove the paper filter from net filter.

- Fix the dust case cover to the body. Check that the rubber packing is attached to the dust case firmly.

After washing, let the filters dry up in the shade before use.

While cleaning, you can keep the nozzle temporarily by inserting it at the back of the unit as shown in the figure

When it is not in use, the nozzle should be kept as shown in the figure in order to save more space.

- It is helpful for cleaning under the bed.

When filter indicator lights on, do not use the vacuum cleaner without dust removal. Doing so may decrease suction power and cause overheating. The motor may be burned out.

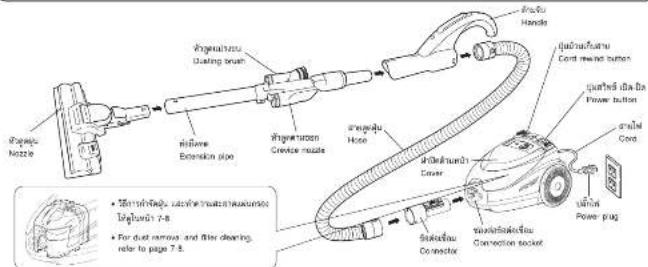

Accessories and preparation before use

How to remove accessories

How to assemble nozzle

How to assemble connector

How to assemble handle

- Align the claw of hose with the handle and push until the "click" sound is heard

- Insert the hose into the connection socket of the unit until the "click" sound is heard

• To remove press the lock button and pull out.

- For blower function, insert the nose into

the back of unit until the "click" sound is

Heard

• To remove, press the lock button and pull

out

card rewind button of the unit.

If the cord is not reinvinded completely, pull the cord

signlay. Than press the button once

- Hold the handle and grasp the extension pipe with another hand, move it up and down to adjust the length.

Do not touch this area while adjusting the length of extension pipe

The image is too blurry to recognize any text content.

- Cleaning the edge

of wall corners

To clean the wood surface, do not use excessive force. Doing so may scratch the wood

How to control suction power

with handle

- Move up the knob to decrease

suction power.

When setting it to "Flat surface" position, do not use the vacuum cleaner to clean carpets (It requires more force)
