USER MANUAL 520CX Baumr-AG

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
• Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well-ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• Keep packaging away from children and pets, potential risk of suffocation or choking.
• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

HAZARDOUS COMPONENTS!

• BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING PARTS.
• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.
• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT. FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.
• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

Specified Conditions of Use

• The cordless lawn mower is designed to cut small to medium-sized grass areas in private gardens by the house or in hobby gardens. Due to the physical danger to the user and others, the lawn mower may not be used for other purposes.
• WARNING! RISK OF INJURY! THE MOWER MUST NOT BE USED FOR CUTTING BUSHES, HEDGES, AND THICKETS, FOR CUTTING AND MULCHING CREEPERS OR LAWNS ON ROOFS OR IN BALCONY BOXES. THE MOWER MUST ALSO NOT BE USED AS A CRUSHER FOR MULCHING TREE CUTTINGS AND HEDGES OR FOR LEVELLING ANY TERRAIN ROUGHNESS.
• Do not use this product in any way other than stated for normal use. Failing to observe general regulations and instructions from this manual does not make the manufacturer liable for damages.
• Please note that permissible uses for the tool could be limited by national regulations. It is necessary to comply with the regulations applicable in the country where the tool is used.
• Do not use the device near flammable liquids or gases. There is a risk of fire and explosion in the event of a short circuit.

General Power Tool Safety Warnings

• Before using the appliance, familiarise yourself with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly towards third parties.
• The operator is responsible for accidents or risks to third parties.
• In case of any doubts about connection and operation, please refer to our customer centre.
• WARNING: READ ALL SAFETY WARNINGS, INSTRUCTIONS, ILLUSTRATIONS, AND SPECIFICATIONS PROVIDED WITH THIS POWER TOOL. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/OR SERIOUS INJURY.
• Save all warnings and instructions for future reference.
• The term "power tool" in the warnings refers to both your mains-operated (corded) power tool and battery-operated (cordless) power tool.

Work Area Safety

• Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off position before connecting to the power source and/or battery pack, picking up, or carrying the tool. Carrying power tools with your finger on the switch or energising power tools with the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use and Care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories, and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean, and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use and Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If the liquid contacts eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperatures above 130^ may cause an explosion.

- Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.

Other Safety Reminders

• The device must not be used by children. This device can be used by persons with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the resulting dangers. Children are not allowed to play with the device. Cleaning and user maintenance must not be carried out by children.
• Read and understand the operating instructions before using the appliance. Familiarise yourself with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual.
• Act responsibly towards third parties. Remember that the machine operator or user is responsible for accidents involving other people or their property.
• Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations may stipulate the minimum age of the user.
• Keep children and other persons, including animals, at a safe distance when using the appliance.
• Persons over 16 years of age can only operate the appliance. An exception includes youngsters trained to gain knowledge under the supervision of a trainer during occupational education.
• DANGERI WARNING: THIS POWER TOOL GENERATES AN ELECTROMAGNETIC FIELD DURING OPERATION. UNDER CERTAIN CIRCUMSTANCES, THIS FIELD MAY AFFECT ACTIVE OR PASSIVE MEDICAL IMPLANTS. TO REDUCE THE RISK OF SERIOUS OR FATAL INJURY, WE RECOMMEND THAT INDIVIDUALS WITH MEDICAL IMPLANTS CONSULT THEIR PHYSICIAN AND THE MANUFACTURER OF THE MEDICAL IMPLANT BEFORE OPERATING THE MACHINE.

- WARNING: WEAR PERSONAL PROTECTIVE EQUIPMENT.

• ALWAYS WEAR GOGGLES WHEN USING THE MACHINE.
- WEAR EAR PROTECTORS!
- WEAR SOLID SHOES AND LONG TROUSERS.
- AVOID WEARING LOOSE CLOTHING OR CLOTHING WITH HANGING STRINGS OR BELTS. HAIR, CLOTHING, AND GLOVES MUST BE KEPT AWAY FROM MOVING PARTS, AS THEY COULD GET CAUGHT BY THE ROTATING PARTS. DO NOT USE THE APPLIANCE WHEN BAREFOOT OR WEARING OPEN SANDALS.
• USE PROTECTIVE GLOVES WHEN HANDLING THE BLADES.

• Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown by the appliance, such as stones, branches, wires, or animals.
• Before using, always visually inspect the blades, blade bolts, and cutter assembly to ensure they are not blunt, worn, or damaged. Replace worn or damaged blades and bolts in sets to maintain balance. Worn or damaged cutting blades and fastening bolts must only be replaced in sets to avoid imbalance.
• Do not use the appliance if you are tired, ill, or under the influence of drugs, alcohol, or medication.
• Do not overreach. Maintain proper footing and balance at all times. Be careful when going backwards—risk of tripping!
• Ensure adequate lighting or good lighting conditions when working with the machine, as poor lighting presents a significant safety risk.
• Avoid operating the equipment on wet grass where possible.

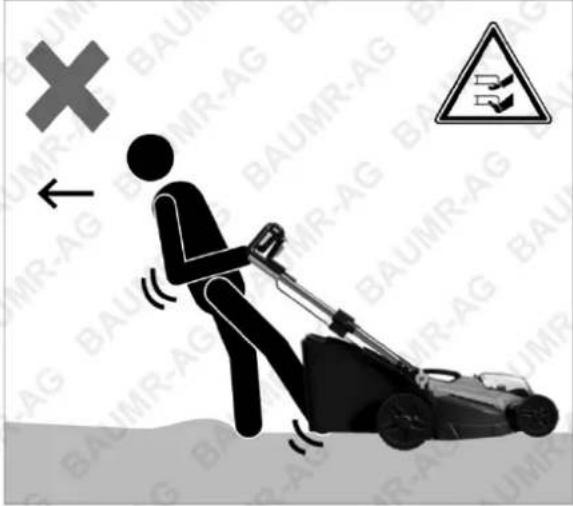

• Walk, never run! Only operate the machine at a walking pace.

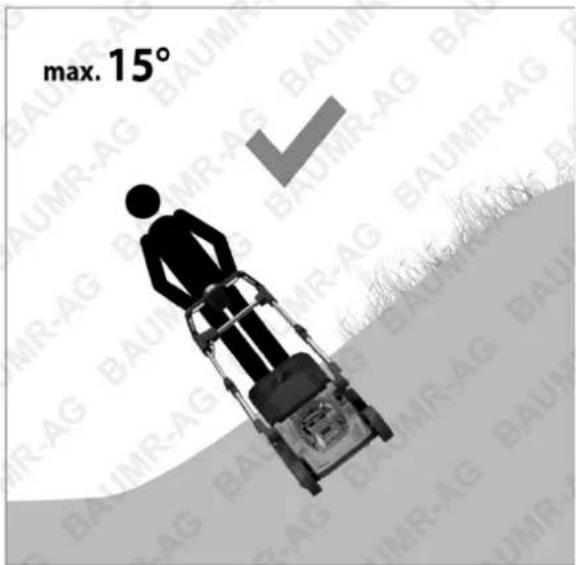

• Make sure your posture is stable, especially on slopes. Do not mow on overly steep slopes. Be particularly careful when changing direction on slopes.
• Mow across the slope, never up or down.
• Pay maximum attention when turning around and pulling the appliance towards you.
• Be especially cautious when changing the direction of travel on a slope.
• Do not mow on excessively steep slopes.
• Stop the cutting blade(s) if the lawn mower needs to be tilted for transport over surfaces other than grass, and when the lawn mower is being moved to and from the area to be mowed.
• Never use the lawn mower with damaged protective devices or grids, or without attached protective devices, such as baffles and/or grass catchers.
• Start or operate the starter switch carefully according to the manufacturer's instructions. Ensure there is sufficient distance between your feet and the cutting blade(s).
• The lawn mower must not be tilted when starting or operating the engine unless the lawn mower must be raised during the process. In this case, tilt it only as far as is absolutely necessary and lift only the side away from the user.
• Never put your hands or feet on or under rotating parts. Always stay clear of the discharge opening.
• Never lift or carry a lawn mower while the engine is running.
• WARNING! RISK OF INJURY! ROTATING BLADES CAN CAUSE SERIOUS INJURIES, INCLUDING CUTTING OR AMPUTATING PARTS OF THE BODY.

- SWITCH THE MOWER OFF WHENEVER CARRYING OR INCLINING IT, OR WHEN OUTSIDE A GRASS AREA. WAIT UNTIL ALL ROTATING PARTS HAVE STOPPED.

- ALL PROTECTIVE COVERS AND SAFETY DEVICES MUST BE CORRECTLY ATTACHED TO OPERATE THE DEVICE.

• NEVER REMOVE THE COLLECTION BAG WHILE THE MACHINE IS IN OPERATION.
• DO NOT START THE ENGINE UNTIL YOUR FEET ARE AT A SAFE DISTANCE FROM THE CUTTING TOOLS.
  • DO NOT INCLINE THE APPLIANCE WHEN STARTING.
• DO NOT START THE APPLIANCE WHILE STANDING IN FRONT OF THE EJECTION OPENING.
• NEVER TOUCH BENEATH THE HOUSING BODY WHILE THE ENGINE IS RUNNING. ALWAYS KEEP A SAFE DISTANCE FROM THE EJECTION OPENING.
• ANY WORK OR ADJUSTMENTS ON THE MACHINE MUST ONLY BE PERFORMED WITH THE ENGINE SWITCHED OFF, THE CONTACT KEY REMOVED, AND THE MOWING BLADE STATIONARY.

- WARNING! RISK OF INJURY! THROWN STONES OR SOIL MAY CAUSE INJURIES.

- BEFORE MOWING, CHECK THE AREA TO BE MOWED FOR ANY UNDESIRABLE OBJECTS.

- ENSURE THE COLLECTION BAG IS PROPERLY SECURED.

- WEAR SAFETY GOGGLES WHILE WORKING.

- Stop the machine and remove the contact key. Wait until all rotating parts have stopped and the unit has cooled down. Always remove the key whenever you leave the lawnmower or before loosening or clearing blockages in the discharge channel.

- Release a blocked blade.

- Clean the mower or perform any other tasks before inspecting the mower.

- Check the machine to ensure it is working properly after hitting an undesirable object. Repairs must be made before putting the machine back into operation.

- If the appliance begins vibrating abnormally, switch the engine off immediately and investigate the cause. Generally, vibrations signal an operational failure.

- The appliance must not be used if damaged or if safety equipment is defective. Replace any worn or damaged parts. If the lawnmower begins to vibrate abnormally, it is crucial to inspect it immediately by following these steps:

• Look for damage.
• Make the necessary repairs to damaged parts.
• Ensure that all nuts, bolts, and screws are firmly tightened.

- The ON/OFF switch and safety switch must not be locked.

- When working with this machine, do not use spare parts other than those recommended by the manufacturer. Using non-recommended spare parts can result in serious injuries or damage to the machine.

- Despite following the operating instructions, some hidden residual risks may remain:

• Ensure that all nuts, bolts, and screws are tight, and that the device is in a safe working condition.
• Regularly check the grass catcher for wear or loss of functionality.
• For safety reasons, replace worn or damaged parts.
• On machines with multiple cutting blades, the movement of one cutting blade can cause the others to rotate.
• When setting the machine, ensure no fingers are trapped between moving cutting blades and stationary parts.
• Allow the engine to cool down before switching off the machine.
• When servicing the cutting blades, be aware that the blades may move even when the power source is switched off.
• For safety reasons, replace worn or damaged parts and use only original spare parts and accessories.

- The appliance must be stored in a dry place, protected from frost.

- Lock the device in a secure place to protect it from unauthorised use.

- Allow the engine to cool down before storing the device in a closed room.

- CAUTION! DAMAGE TO HEALTH CAN ARISE FROM VIBRATIONS TO THE HANDS AND ARMS IF THE DEVICE IS USED FOR AN EXTENDED PERIOD OR IF THE DEVICE IS NOT PROPERLY GUIDED AND EVALUATED.

• Vibration damping systems are not a guaranteed protection against white finger disease or carpal tunnel syndrome. Therefore, it is important to carefully monitor the condition of your fingers and wrists if you regularly use the appliance for long periods. If any symptoms of the above-mentioned conditions appear, seek medical advice immediately.
• To reduce the risk of white finger disease, keep your hands warm and take regular breaks during your work.

- CAUTION! HEARING DAMAGE! EXTENDED EXPOSURE TO THE IMMEDIATE VICINITY OF THE RUNNING UNIT MAY CAUSE HEARING DAMAGE. WEAR EAR PROTECTORS!

• When working with the device, a certain level of noise is unavoidable. Noisy work should be scheduled for times allowed by statute or other local regulations. Adhere to any applicable rest periods and limit your working time to the necessary minimum.
• For your personal protection and the protection of those nearby, suitable hearing protection must be worn.
• Noise emission information in accordance with the German Product Safety Act (ProdSG) and the EC Machine Directive: the noise pressure level at the place of work can exceed 80 dB(A). In such cases, the operator will require noise protection (e.g. wearing ear protectors).
• Please also consider any local regulations concerning noise protection.

Declared Vibration Emissions

• WARNING: THE DECLARED VIBRATION EMISSION LEVEL REPRESENTS THE MAIN APPLICATIONS OF THE TOOL. HOWEVER, IF THE TOOL IS USED FOR DIFFERENT APPLICATIONS, WITH DIFFERENT ACCESSORIES, OR POORLY MAINTAINED, THE VIBRATION EMISSION MAY DIFFER. THIS MAY SIGNIFICANTLY INCREASE THE EXPOSURE LEVEL OVER THE TOTAL WORKING PERIOD.

• The vibration emission level will vary depending on how the power tool is used and may increase above the level provided in this information sheet.

• The vibration emission level may be used to compare one tool with another and can serve as a preliminary assessment of exposure.

• An accurate estimate of the vibratory load should also consider the times when the tool is shut down or running but not in use. This can significantly reduce the vibratory load over the total working period.
• Identify additional safety measures to protect the operator from the effects of vibration, such as maintaining the tool and its accessories, keeping hands warm, and organising work patterns.

Proper Disposal

• Do not dispose of electric tools, batteries, or rechargeable batteries with household waste. Electric tools and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection points.
• If your device becomes unusable in the future or you no longer need it, do not dispose of it with your household rubbish. Instead, dispose of it in an environmentally friendly manner.
• Please take the device to an appropriate collection or recycling point. This allows plastic and metal parts to be separated and recycled. Information regarding the disposal of materials and devices is available from your local administration.
• Batteries must not be disposed of in general rubbish. As a consumer, you are legally obliged to return used batteries and accumulators. At the end of the lifespan of your device, the batteries or accumulators must be removed from the device and disposed of separately. You can take your old batteries and accumulators to local collection points in your municipality, your dealer, or distribution centres.
• Dispose of the batteries when they are discharged. We recommend applying adhesive tape to the poles to protect them from short-circuiting. Never open the battery.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....8

Assembly 11

Unpacking....11

Handles and Catcher....12

Mulch Plug 14

Inserting and Removing the Battery ....14

Operation 16

Height Adjustment 16

Operating the Mower 17

Operational Safety....19

Application Tips 20

Walking with Your Mower 20

Emptying the Grass Catcher 21

Lithium Battery Care and Maintenance.... 22

Top 3 Battery Care Requirements....22

Maintenance....24

Troubleshooting 26

Specifications 27

Assembly

Unpacking

Video Tutorial:

Catcher Assembly

1

Mechanical linkage device with black components and metallic joints, no visible text or symbols

3

Exterior view of a black plastic enclosure with open lid and internal compartments (no text or symbols visible)

2

3D rendered image of a small robotic car with transparent casing and exposed wheels (no text or symbols visible)

4

Black plastic object with grid pattern, no visible text or symbols

Handles and Catcher

Mulch Plug

Inserting and Removing the Battery

Close-up of a mechanical device with a white arrow pointing to a component, no visible text or symbols on the device itself.

Close-up of a mechanical assembly with visible components and wiring (no text or symbols)

Operation

Height Adjustment

Operating the Mower

To start the mower, ensure both the battery and safety key are installed. Then press and hold the safety button (1). While holding this button, use your other hand to grip any of the triggers (2) underneath the handlebars.

To stop the mower, simply release the trigger mechanism.

Operational Safety

Silhouette of a person pulling a car with a puller, symbolizing speed or speed (no text or symbols present)

Application Tips

• A medium cutting height is recommended for most lawns. Cutting too low can deteriorate the quality of the lawn.
• If the engine is working hard, the engine speed will drop, and the engine noise will change. Increase the cutting height to reduce the engine load.
• When mowing tall grass, reduce the speed at which the device is pushed.
• Use the mulching wedge when you want the grass to remain on the lawn.
  • An overlapping working method is recommended when mowing.
• Mow 1-2 times a week during the main growing season.
• If the grass has grown longer than 10 cm, only reduce the grass height by half. The optimal cut length is 4 cm. Make several passes to achieve the desired result.

Walking with Your Mower

WARNING: Always observe the strictest safety procedures when using the lawnmower. Carefully read the safety instructions in this manual before using the lawnmower.

WARNING: Never open the ejector flap when the grass bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries!

1. Select your required setting.
2. Start the engine and allow it to run and set it to required speed.
3. Keep a firm grip on the upper handle with engine stop/start lever and drive lever (clutch lever) dosed and walk along with its self-propelling to start mowing.

When Mowing:

• Walk. never run with the mower. be very careful when mowing uneven or rough ground.
• Mow across slopes. never up and down.
• Be careful when changing the direction of the mower on a slope.
• Do not mow excessively steep slopes.

Note: Grass clippings can clog underneath the mower deck, preventing the blades from turning. This can overheat the engine, causing excessive wear to engine components, reducing the lawn mower's overall lifespan or catastrophic failure of engine bearings and pistons.

Clogging occurs if you mow wet, long, or lush grass. For the best result, mow when the grass is dry and use a whipper snipper to reduce the height of grass longer than 15cm (6") before mowing on the highest cutting setting.

• Grass grows at different rates at different time of the year. Never use the lowest cutting height for the first cut of the season or in drought conditions.
• Only about one thirds of the grass height should be cut.
• When mowing with the mulching function, do not cut high or wet grass to ensure that the cut grass can be scattered efficiently. When you have been cutting for several minutes, please stop the mower, and clean the blade and the deck.
• Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead, use suitable tools such as a brush or broom.

Emptying the Grass Catcher

A lawn mower generates significant airflow when it moves the grass into the catcher. The catcher is fitted with a full indicator flap, which stays up if there is space inside. When the space inside the catcher is filled with grass, the airflow is no longer enough to raise the flap. The flap will drop at this point, indicating it is time to empty the catcher.

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass catcher.

NOTE· Before taking off the grass catcher, switch off the engine and wait until the blade has come to a stop.

1. To take off the grass catcher, use one hand to lift up the ejector flap and the other to grab onto the carry handle. The ejector flap automatically falls down after removing the grass catcher and closes off the rear chute opening.
2. Empty the grass catcher of grass debris and then refit grass catcher.

NOTE: If any grass residue is caught in the discharge chute, clean it using a brush. Do not remove grass debris in the mower casing or on the blade with your hand or feet. Instead, use suitable tools such as a brush or broom. To ensure that the cut grass can be collected into the grass catcher, the discharge opening, and interior of the mower casing must be cleared of any blockage.

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged for 2 hours on the initial charge and 2 hours for each subsequent charge.
2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.
3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10°C and 30°C
- When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
- If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a new battery.
• Use only with the battery charger specified by the manufacturer.
- Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.
- Do not use the charger in wet areas or expose it to rain or water.
- The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
- Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.
- Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.
- Do not open the battery – danger of short-circuiting and/or explosion.
- Do not attempt to destroy or disassemble the battery pack or remove any of its components.
- Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.
- Explosion hazard – do not open and/or short-circuit the battery.
- Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.
- Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating, or fire may result.

DANGER - BATTERY CHARGING, USE AND STORAGE

Like mobile phones, laptops, cordless vacuum cleaners etc, this product may contain or be related to a lithium ion battery pack (lithium ion batteries and lithium ion battery related items only). Lithium ion batteries allow fast charging and high capacities, however care must be taken to reduce chances of a fault, and increase safety in case a fault occurs. Catastrophic incidents involving lithium ion batteries have a tendency to result in large amounts of smoke and fire. Be sure to follow the points below to reduce the likelihood of danger whenever you use, charge or store any lithium ion battery.

• Never charge a battery that has been damaged or subjected to a forceful impact.
• Never charge a battery that has been exposed to moisture or water.
• Never charge a battery with a charger that wasn't supplied with the battery.
• Never use a battery in a device that it wasn't specifically designed for.
• Never use a battery with a modified or damaged device.
• Never modify the battery, product, charger, circuitry or wiring.
• Never charge a battery in an exit path that may be used by people to leave a room or building in case of an emergency, for example, the hallway or foyer of a residence.
• Never charge a battery in an area or building that doesn't have the recommended number of working smoke detectors that have been tested in accordance with local guidelines.
• Never charge a battery when the battery or charger is displaying a problem or charging incorrectly.
• Always charge batteries on a non-combustible surface, for example, on a concrete floor.
• Always charge batteries at least 3m away from anything combustible, such as floors, wall surfaces, furniture, storage shelves etc.
• Always charge batteries in an open area (outside if possible) ensuring the battery and charger are away from moisture and water.
• Always disconnect batteries from the charger after charging.
• Always remove or disconnect batteries from the device/product when not in use.
• Always ensure batteries are charged under adult supervision. Do not charge unattended. Do not charge batteries while no one is home or while people are sleeping.
• Keep batteries away from heat and moisture.
• Damaged batteries should be disposed of through your local e-waste collection service.
• Avoid mixing and matching chargers. Unplug products when fully charged, and charge batteries in a cool, dry place away from combustible materials like beds, lounges, or carpet.
• During charging and use, check your lithium-ion batteries for overheating, signs of swelling, leaking, or venting gas. Immediately stop using your product if these signs are present.
• Allow batteries to cool after use and before charging.

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied periodically, it will prevent rust from forming.

DANGER! Switch the appliance off and remove the contact key before performing any adjustments, cleaning, or servicing. Wait until all rotating parts have stopped and the appliance has cooled down. Keep hands away from all cutting edges and moving parts. Fingers can be pulled into the cutting carriage and can be cut or crushed.

• After each use, thoroughly clean the machine to remove all dust and debris, and repair or replace any faulty parts.
• Check the collection bag regularly for wear and ageing.
• Clean the ejection opening and cover at regular intervals.
• Keep the device, especially the air vents, clean at all times. Never spray water on the device body!
• Never clean the machine and its components with solvents, flammable, or toxic liquids. Only use a damp cloth for cleaning.
• Keep all nuts, bolts, and screws tight to ensure the equipment is in safe working condition.
• Only a regularly maintained and properly treated appliance will serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
  • Repairs and work specified in these instructions should only be performed by qualified authorised staff.
• Use only original accessories and spare parts. Using non-original parts can result in accidents or injuries to the user. The manufacturer will not be liable for any such damage.
• Please contact the manufacturer if you need accessories or spare parts.

Troubleshooting

Defect	Cause	Removal
The motor does not start	Battery is empty Charge the battery
	Battery is defective Contact customer service
	Contact key is not inserted	Refer to the instructions in these operating instructions
	Main switch or safety arch is not controlled	Refer to the instructions in these operating instructions
Unsteady running, strong vibrations	Blade is damaged	Replace the blade* Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
	Blade is loose Check and tighten the blade clamping
Poor mowing/catching performance	Blade is blunt Have the blade sharpened or replaced
	Battery is defective	Contact authorised service centre or a qualified technician.
	Collection bag is blocked Empty the collection bag
	Mowing height adjustment not regulated	Adjust the mowing height
Grass is not collected	Blocked channel Clean the ejection channel
	Full collection bag	Empty the collection bag
	Too wet grass Cut in dry weather

Specifications

Range 40V Sync

Colour Black with Red

Type Push Lawn Mowers

Power Type Battery

Motor Type Brushless

Noise Level 96dB

Starting System Button / Switch

Battery Type Lithium Ion

Battery Capacity 4.0Ah

Battery Voltage 40V

Charging Voltage 240V

Charge Time 2 Hours

Runtime 20 mins

Cutting Width 17"

Height Adjustment 5 Stage Central Height Adjustment

Cutting Height 30 - 75mm

Grass Catcher Volume 52L

Note: Requires assembly

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

© Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
