360RX - Lawn mower Baumr-AG - Free user manual and instructions

Product Type	Lawn Mower
Brand	Baumr-AG
Model	360RX
Engine Type	4-Stroke, OHV
Engine Displacement	140 cc
Fuel Type	Unleaded Petrol
Start Type	Recoil Start
Cutting Width	46 cm (18 inches)
Cutting Height Range	25 - 75 mm (7 positions)
Grass Bag Capacity	60 L
Self-Propelled	Yes
Drive System	Rear-Wheel Drive
Weight	32 kg (70.5 lbs)
Dimensions (L x W x H)	1200 x 460 x 900 mm
Safety Features	Blade Brake, Operator Presence Control
Maintenance	Oil Change Every 25 Hours, Blade Sharpening, Air Filter Cleaning
Warranty	2 Years (Parts & Labor)

Frequently Asked Questions - 360RX Baumr-AG

How do I start the Baumr-AG 360RX lawn mower?

To start, ensure the fuel tank has fresh unleaded petrol and the oil level is correct. Press the primer bulb 3-5 times, set the choke to 'ON', pull the recoil starter rope firmly, then adjust choke to 'OFF' once warm.

What type of oil should I use?

Use SAE 30 or 10W-30 engine oil (API service SF or higher). The oil capacity is approximately 0.6 L. Check the dipstick regularly.

How do I adjust the cutting height?

Move the single-lever height adjuster on the rear axle to one of 7 positions, ranging from 25 mm (lowest) to 75 mm (highest). Adjust only when the engine is off.

How do I clean the mower deck and underbody?

After each use, disconnect the spark plug and tilt the mower so the spark plug side is up. Use a hose or scraper to remove grass clippings. Avoid directing water at the engine.

Why won't the engine start?

Common causes include: old fuel, clogged air filter, dirty spark plug, or incorrect choke operation. Check fuel freshness, clean/replace air filter, and inspect the spark plug for wear.

How do I replace the mower blade?

Disconnect the spark plug and drain the fuel. Tilt the mower on its side. Use a wrench to remove the blade bolt (usually clockwise). Replace with a sharpened or new blade, ensuring it is mounted correctly with the bent ends up.

What is the recommended fuel?

Use clean, fresh unleaded petrol with an octane rating of 87 (R+M/2) or higher. Do not use ethanol blends above E10. Do not mix oil with petrol (4-stroke engine).

How often should I change the engine oil?

Change the oil after the first 5 hours of use, then every 25 hours or once a season. Use the specified oil and dispose of used oil properly.

What is the cutting width of the mower?

The 360RX has a cutting width of 46 cm (18 inches), suitable for small to medium lawns.

Is the mower self-propelled?

Yes, the Baumr-AG 360RX features a rear-wheel self-propelled drive system. The speed is controlled by a lever on the handlebar.

USER MANUAL 360RX Baumr-AG

[Revision 3.0 September 2022]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Intended Use

The ride-on mower is intended for outdoor use only. The product is designed for domestic lawn moving. The cutting blade should rotate approximately parallel to the ground over which it is being wheeled. All four wheels should touch the ground while mowing. The product is to be used only in domestic application by adults who have received adequate training on the hazards and preventive measures, or actions taken while using it. Do not use the product for any other purpose.

General Safety Warnings

WARNING: READ ALL SAFETY WARNINGS, INSTRUCTIONS, ILLUSTRATIONS, AND SPECIFICATIONS PROVIDED WITH THIS MACHINE. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/ OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTION FOR FUTURE REFERENCE.

The term "machine" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate machine in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

Electrical Safety

• Machine plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machine. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose machine to rain or wet conditions. Water entering a machine will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a machine in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating machine may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the OFF position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying machine with your finger on the switch or energising machine that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
• Do not overreach. Always keep proper footing and balance. This enables better control of the power in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Machine Use and Care

• Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
• Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machine. Such preventive safety measures reduce the risk of starting the machine accidentally.
• Store idle machine out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained users.
• Maintain machine and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machine.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the machine, accessories, and tool bits, etc. in accordance with these instructions, considering the working conditions and the work to be performed. Use of the machine for operations different from that intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean, and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use and Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use machine only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury. Do not expose a battery pack or tool to fire of excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

• Have your machine serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the machine is maintained.
• Never service damaged battery packs. Service of the battery packs should only be performed by the manufacturer or authorised service providers.

Training

• When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use.
• Allow only responsible adults, who are familiar with and understand the instructions, to use the product.
• Be familiar with the controls and the correct use of the product.
• Always use safety protective devices. Do not use the product without the side discharge chute in place and working properly. The mulch cover should be correctly installed and working properly during mulching operation.
• Be aware of possible hazards when not using the product or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
• Never carry passengers or children, even when the blades have stopped. They may fall off and be seriously injured of interfere with the safe operation of the product. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the product
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
• Never allow children or people with reduced physical, sensory, or mental capabilities or persons not familiar with these instructions to operate, clean, or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure they do not play with the product.
• Follow the manufacturer's instructions for proper operation and installation of accessories. Use only accessories approved by the manufacturer. The use of other accessories may increase the risk of injury.
• Never interfere with the intended function of a safety device or reduce the protection provided by a safety device. Check the proper operation of the safety devices regularly.
• Never tamper with safety devices. Check the proper operation of the safety devices regularly. Never use the product while people, especially children, or pets are within 15m because of the danger of objects being thrown by contact with the blade.
• Do not use the product when there is a risk of lightning.
• Do not operate the product in poor lighting. The operator requires a clear view of the work area to identify potential hazards.
• Keep hands and feet away from the cutting area, which is located under the mower deck and inside the side discharge chute. Keep clear of the side discharge chute opening at all times. Do not reach under the mower deck.
• Follow instructions for changing accessories.

Preparation

• Wear heavy, long trousers, long sleeves, and sturdy anti-slip footwear. Do not wear short trousers, sandals, or go barefoot. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
• Always wear safety glasses with side shields. Use a face mask if operation is dusty. Objects struck by the blade can cause severe injuries to persons. Thoroughly inspect the area where the product is to be used, and remove all rocks, sticks, metal, wire, bones, toys, or other foreign objects. Remember, string or wire may entangle with the blades.
• Before use, always visually inspect the product to ensure that blades, blade nuts, and the cutter assembly are not worn or damaged
• Replace worn or damaged blades and nuts in sets to preserve balance.
• Replace worn or damaged parts before operating the product.
• Never direct discharged material toward anyone. Plan the mowing pattern to avoid discharge of material toward bystanders, roads, sidewalks, windows, and cars. Also, avoid discharging material against a wall or obstruction, which may cause the material to ricochet back toward the operator.

Operation

- The product must be started with the user properly seated and behind the steering wheel. Never start the product if:

• not all four wheels are on the ground
- the side discharge chute is exposed and is not protected by the bagging kit or mulch cover
- hands and feet of all persons are not clear of the cutting enclosure

- Disengage the blades when the product is not in use.

- Stop the blade when crossing gravelly surfaces to avoid discharging gravel and rocks. Drive the product slowly and carefully to avoid loss of control.

- Turn on the motor carefully according to instructions and keep hands and feet away from blades. Do not put hands or feet near or under rotating parts.

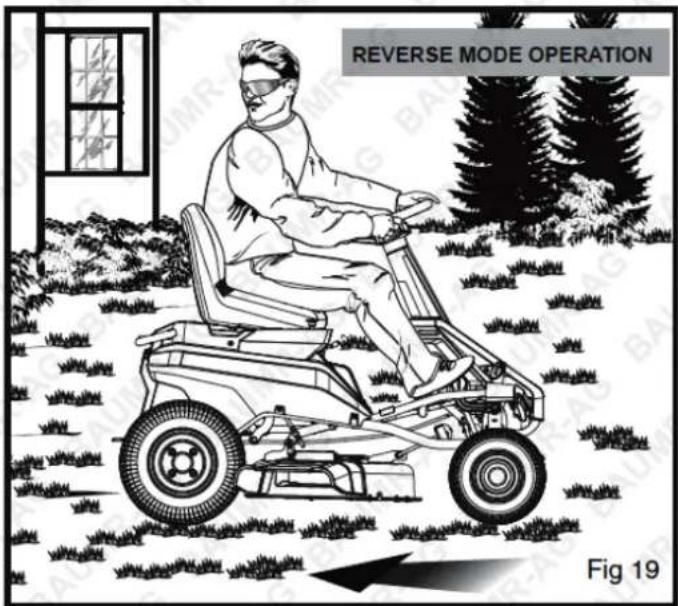

- Do not mow in reverse unless necessary. Always look down and behind before and while reversing.

- Before and while reversing, look behind and down for small children, bystanders, and pets.

- Use extra care when approaching blind corners, shrubs, trees, or other objects including overhanging shrubs, which may block your view.

- Slow down before turning.

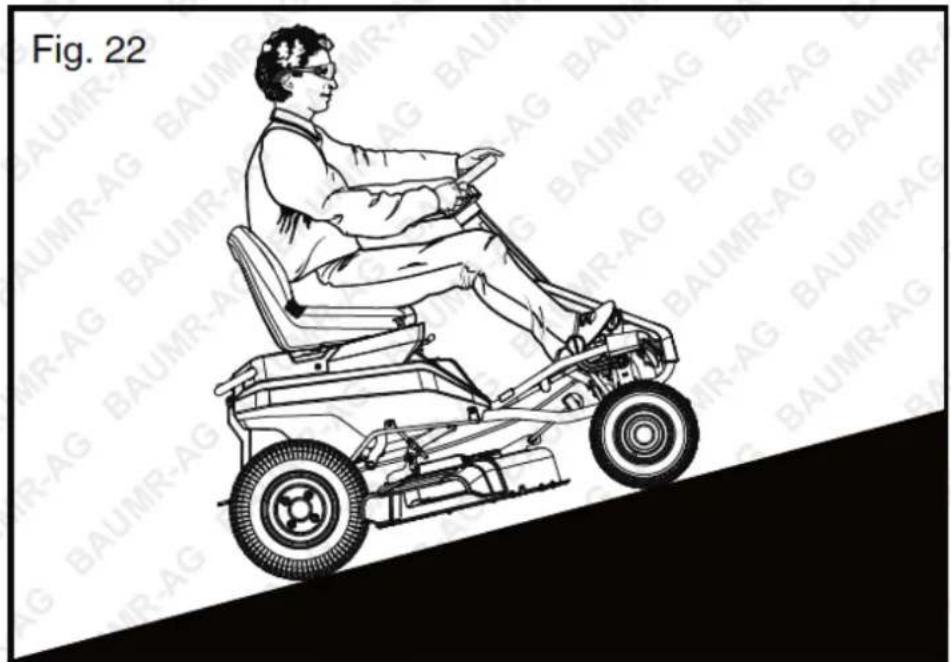

- Slopes are a major factor related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it. Never use the product on steep slopes greater than 15^ . Make a copy or cut out the "Slope Guide" at the back of this manual and use it to determine if your slope is too steep for safe operation.

• Never attempt to ride on a steep slope or mow a slope that is greater than 15^ .
• Mow up and down, not across the face of slopes.
• Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could overturn the product. Tall grass can hide obstacles.

- Use a slow speed so you will not have to stop suddenly or accidentally accelerate while on a slope.

- Do not mow on wet grass when on a slope. Tyres may lose traction and you may lose control.

- Always keep the direction control switch in the forward position when going down slopes. Do not shift to neutral and coast downhill, which may cause you to lose control of the product.

- Avoid starting, stopping, or turning on a slope. If the tyres lose traction, disengage the blades and proceed slowly straight down the slope.

- Keep all movement on slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the product to roll over.

- Use extra care while using the product with attachments; they can affect the stability of the product. Do not use on steep slopes greater than 15^ .

- Do not try to stabilize the product by putting your foot on the ground.

- Do not use the product near drop-offs, ditches, excessively steep slopes, or embankments. The product could suddenly roll over if a wheel goes over the edge or if the edges caves in and result in death or serious personal injury.

- Never leave a running product unattended. Always turn off the blades, engage the parking brake, stop the motor, and remove the start key before dismounting. Watch for traffic when operating near roadways. Do not operate the mower on roadways.

Additional Charger Safety Warnings

• The charger is for indoor use only.
- Do not recharge primary cells (non-rechargeable).
- Before every use, examine the supply cord for damage. If there are signs of damage, it must be replaced by a qualified person at an authorised service centre to avoid a hazard.
- Charge the product indoors, in a well-ventilated area. Do not charge the product in a confined space.
- The charger is equipped with a plug featuring a grounding pin and must be plugged into a matching outlet that has been properly installed and grounded in accordance with all local codes and ordinances. Do not use adaptors or modify the plug provided. If it does not fit the outlet, have the proper outlet installed by a qualified electrician.

Additional Battery Safety Warnings

- WARNING: TO REDUCE THE RISK OF FIRE, PERSONAL INJURY, AND PRODUCT DAMAGE DUE TO SHORT CIRCUIT, NEVER IMMERSE YOUR TOOL, BATTERY PACK, OR CHARGER IN FLUID OR ALLOW A FLUID TO FLOW INSIDE THEM. CORROSIVE OF CONDUCTIVE FLUIDS, SUCH AS SEAWATER, CERTAIN INDUSTRIAL CHEMICALS, AND BLEACH OR BLEACH-CONTAINING PRODUCTS, ETC., CAN CAUSE A SHORT CIRCUIT.

• WARNING: RISK OF FIRE, EXPLOSION, OR BURNS. DO NOT DISASSEMBLE, EXPOSE TO HEAT ABOVE 60°C, OR INCINERATE THE BATTERY PACK.
• The battery pack contains acid. If acid comes in contact with skin or clothing, flush immediately with water for 10 minutes. If liquid comes in contact with eyes, seek medical help immediately.
• Do not charge battery packs that show signs of leaks. Dispose of them properly.

Battery Pack Removal and Preparation for Recycling

• To preserve natural resources, recycle or dispose of batteries properly.
• The product contains lead-acid batteries. Local regulations may prohibit disposal of lead-acid batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and /or disposal options.
• WARNING: UPON REMOVAL, COVER THE BATTERY PACK TERMINALS WITH HEAVY-DUTY ADHESIVE TAPE. DO NOT ATTEMPT TO DESTROY OR DISASSEMBLE BATTERY PACK OR REMOVE ANY OF ITS COMPONENTS. LEAD-ACID BATTERIES MUST BE RECYCLED OR DISPOSED OF PROPERLY. NEVER TOUCH BOTH TERMINALS WITH METAL OBJECTS AND BODY PARTS AS SHORT CIRCUIT MAY RESULT. KEEP AWAY FROM CHILDREN. FAILURE TO COMPLY WITH THESE WARNINGS COULD RESULT IN FIRE AND/OR SERIOUS INJURY.
• Turn off the product, engage the parking brake, and remove the start key. Make sure that all moving parts have come to a complete stop. Allow the product to cool down before storing or transporting.
• Clean all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. The start key should also be removed and stored in a separate location out of the reach of children.
• Keep the product away from corrosive agents such as garden chemicals and de-icing salts. Do not store the product outdoors.
• Use extra care when loading or unloading the product onto a trailer or truck. Step on the brake pedal as needed to control the speed. The product will freely roll if it is moved on an inclined surface without stepping on the brake pedal or engaging the parking brake. When loading or unloading the product, do not exceed the maximum recommended operation angle of 15°.
• WARNING: THE PRODUCT FOR MAINTENANCE, CLEANING, STORAGE, OR TRANSPORTATION. THE BLADE IS SHARP. KEEP ALL BODY PARTS AWAY FROM THE BLADE WHILE IT IS EXPOSED.

Transporting Lead-Acid Batteries

• Transport the battery in accordance with local and national provisions and regulations.
• Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking.
• Check with the forwarding company for further advice.

Towing Safety Warnings

WARNING: USE EXTREME CAUTION WHEN TOWING THE PRODUCT. THE BLADE IS SHARP. KEEP ALL BODY PARTS AWAY FROM THE BLADE WHILE IT IS EXPOSED.

• Use common sense when towing. Too heavy of a load while on a slope is dangerous. Tyres can lose traction with the ground and cause you to lose control of the product.
• Follow the manufacturer's recommendations for wheel weights or counterweights.
• Total towed weight must not exceed the maximum towing load of 226.8 kg (500lbs.).
• Attach tow equipment only at the hitch plate.
• Never allow children or others on the towed equipment.
• Stopping distance increases with speed and weight of load being towed. Travel slowly and allow extra time and distance to stop.
• Do not turn sharply when towing. Use additional caution when turning or operating under adverse surface conditions. Use care when reversing.

Maintenance

• WARNING: USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, ACCESSORIES, AND ATTACHMENTS. FAILURE TO DO SO CAN CAUSE POSSIBLE INJURY, CAN CONTRIBUTE TO POOR PERFORMANCE, AND MAY VOID YOUR WARRANTY.
• WARNING: SERVICING REQUIRES EXTREME CARE AND KNOWLEDGE AND SHOULD BE PERFORMED ONLY BY A QUALIFIED SERVICE TECHNICIAN. HAVE THE SERVICED BY AN AUTHORISED SERVICE CENTRE ONLY. WHEN SERVICING, USE ONLY ORIGINAL REPLACEMENT PARTS.
• Maintain the product with care and in good working condition. Keep blades sharp and guards in place and in working order. To prevent serious personal injury, prevent damage to the product, and to maintain best performance, replace damaged, bent, cracked, or unevenly worn-out blades. An unbalanced blade causes vibration that could damage the motor drive unit or could cause personal injury.
• Never make any adjustments or repairs while the motor is running, and the blades are moving.
• Remove the start key from the product before storing, servicing, or changing accessories. Such preventive safety measures reduce the risk of starting the product accidentally.
• Turn off the product, engage the parking brake, and remove the start key. Make sure that all moving parts have come to a complete stop

- before leaving the product unattended (including disposal of grass clippings).

• before clearing blockages or unclogging discharge chute

- before checking, cleaning, or working on the product

• before removing the mulch cover

• before opening the grass discharge chute cover

• after striking a foreign object

• thoroughly inspect the product for any damage

• replace the blade if it is damaged in any way
• repair any damage before restarting and continuing to operate the product.
• whenever the product starts to vibrate abnormally (check immediately)
• inspect for damage, particularly the blades
• replace the blade if it is damaged in any way
• replace or repair any damaged parts
• check for and tighten any loose parts

- You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only

- Contact an authorised service centre to replace damaged or unreadable labels.

- Service on the product and the charger must be performed by qualified repair personnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.

- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition.

- The blade bolts must be tightened to the recommended torque. Check the brakes before each use and frequently during use. Adjust and service as required.

- The side discharge chute is a spring-loaded guard that covers the side discharge opening on the cutting deck and deflects grass clippings and debris away from the operator. Always ensure that the motor is off, and the blades have stopped moving before inspecting, moving, cleaning, or performing maintenance on the side discharge chute.

- Replace worn or damaged parts for safety.

- Replace damaged blades and bolts in sets to preserve balance. Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.

- The cutting blades continue to rotate for a few seconds after the motor is shut off. When servicing the blades, be aware that even though the power source is switched off, the blades can still be moved. Never place any part of the body in the blade area until you are sure the blades have stopped rotating.

- The blade on the product is sharp. Use extreme caution and wear heavy-duty gloves when fitting, replacing,

• cleaning or checking bolt security.

- After each use, clean the product with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

- Keep the product free of grass, leaves, or other debris build up.

- Do not use water to clean the product. Use an air moving device, such as a compressor or leaf blower to clean the product.

Clearing Blockages

• Turn off the product, engage the parking brake, and remove the start key. Set the cutting deck to the maximum height. Make sure that all moving parts have come to a complete stop.
• Always wear heavy-duty gloves when checking or clearing a blockage. The blades are sharp and the blockage itself could be a sharp object.
• Check and carefully clear the side discharge chute for blockages.
• If any blockages are found, remove carefully. Remember the blade may move during cleaning.

Residual Risks

Even when the product is used as prescribed, it is still impossible to eliminate certain residual risk factors. The following hazards may arise during use, and the operator should pay special attention to avoid the following:

• Injury caused by vibration
• Always use the right tool for the job. Use designated handles and restrict working time and exposure.
- Injury caused by exposure to noise
- Wear ear protection and limit exposure.
- Injury form contact with the blades
• Always keep unprotected body parts away from the blades.
- Injury caused by thrown objects
• Always wear full eye protection.

Risk Reduction

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.

• After each period of operation, exercise to increase blood circulation.
• Take frequent work breaks. Limit the amount of exposure per day.
- If you experience any of the symptoms of this condition, immediately discontinue use and see your physician.

WARNING: INJURIES MAY BE CAUSED, OR AGGRAVATED, BY PROLONGED USE OF A TOOL. WHEN USING ANY TOOL FOR PROLONGED PERIODS, ENSURE YOU TAKE REGULAR BREAKS.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhaust FumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety 2

Safety Symbols....8

Table of Contents ......10

Assembly....12

Unpacking....12

Loose Parts List....14

Connecting the Battery....15

Installing the Seat....16

Installing the Steering Column....17

Charging the Product....18

Charging LED Indicators 19

Features......20

Know your Mower....20

Pre-Operation Checks....22

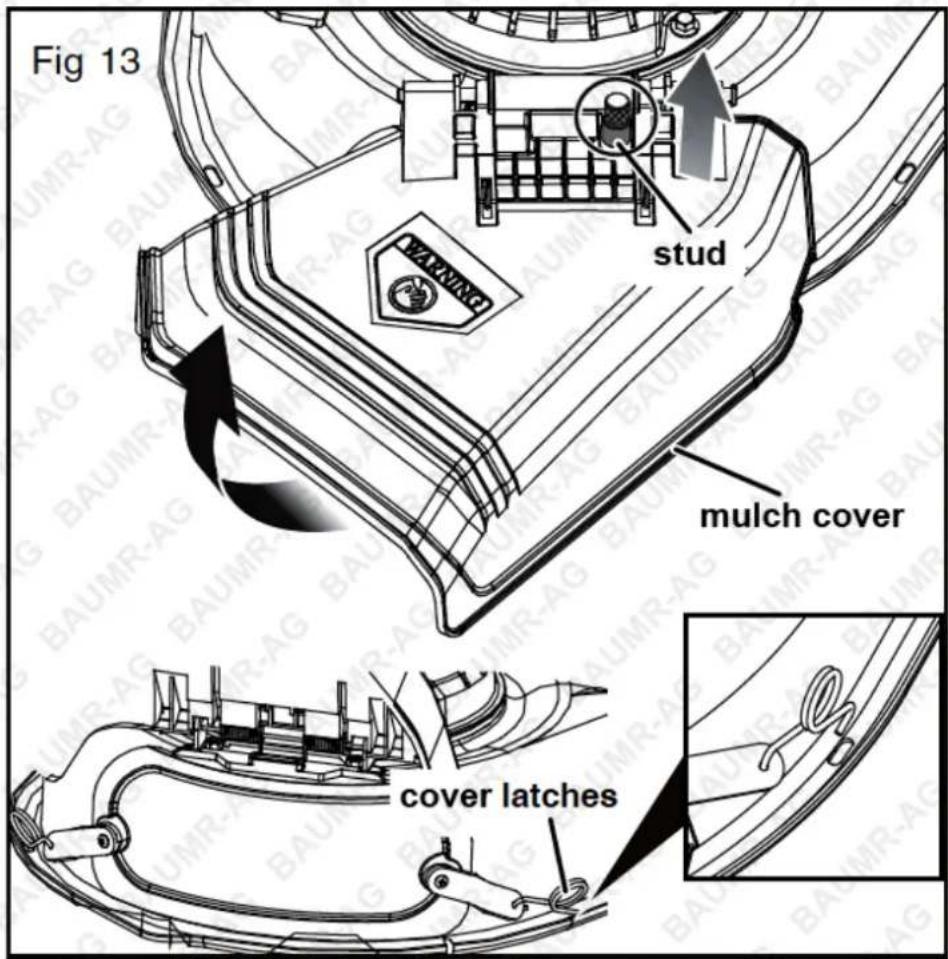

Installing the Mulch cover....23

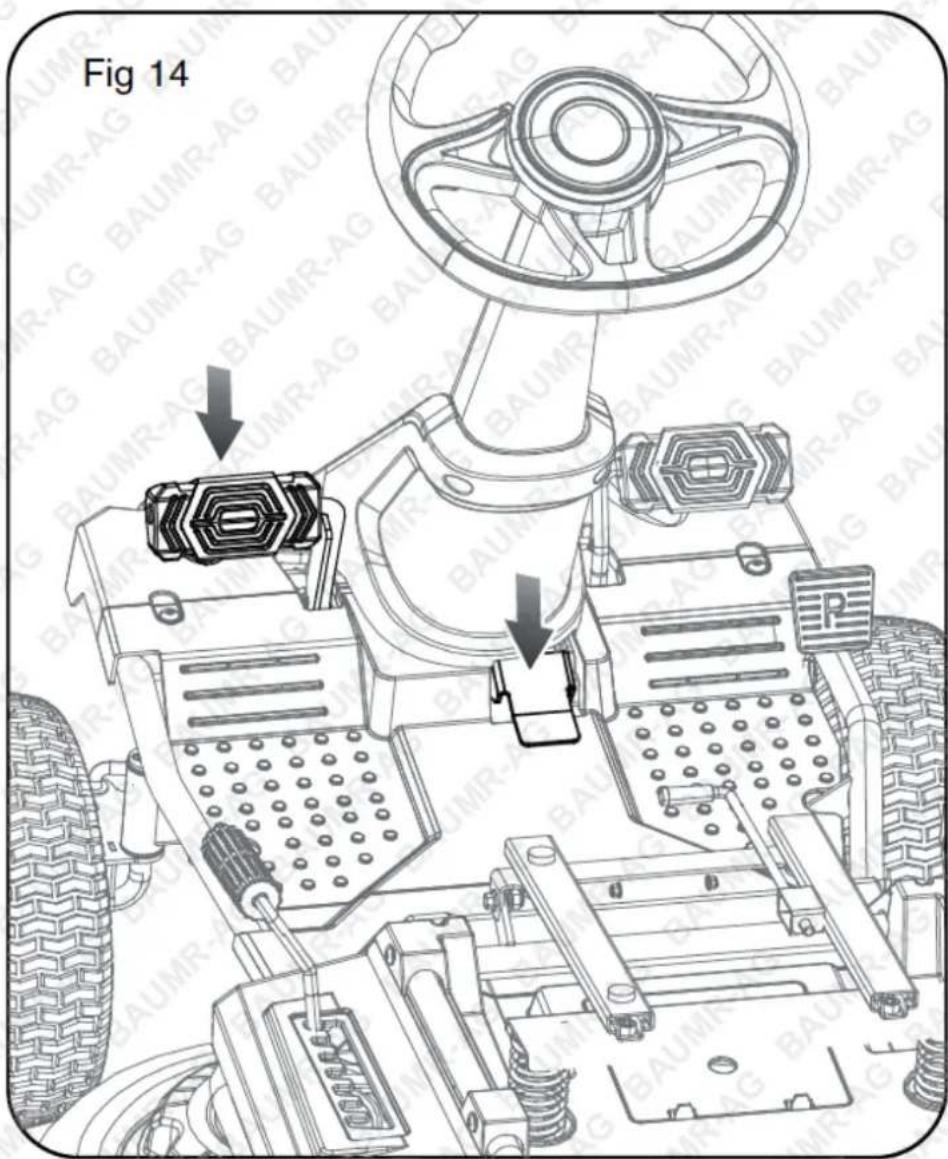

Engaging the Parking Brake....24

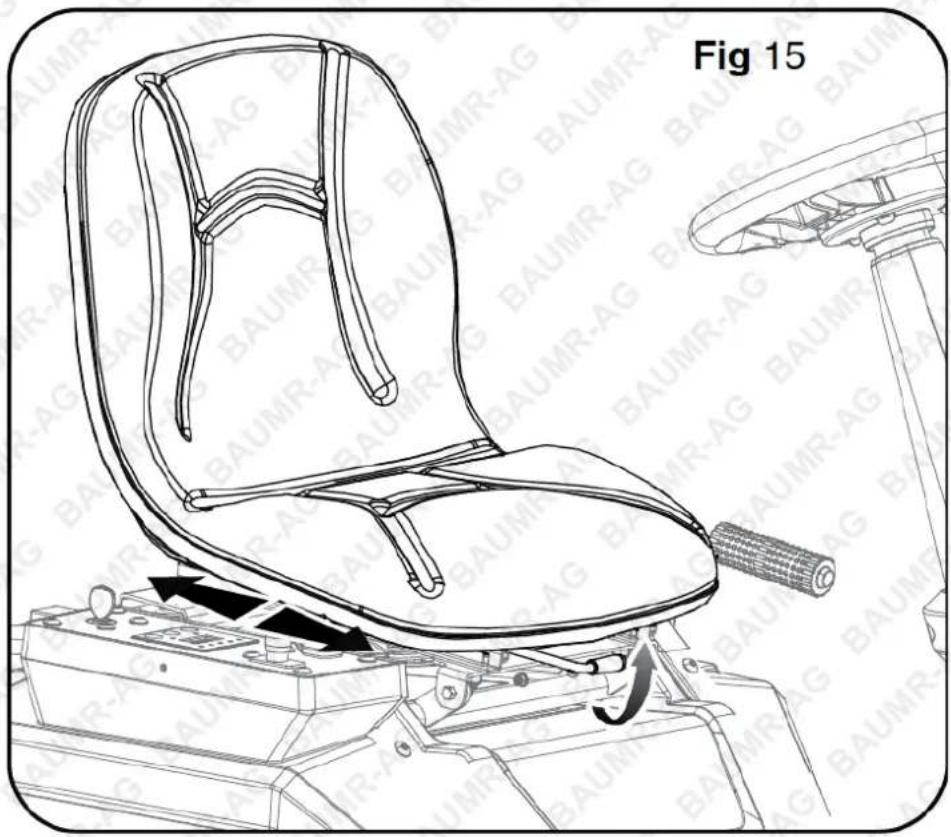

Adjusting the Seat....25

Setting the Cutting Deck Height ....26

Setting the Cruise Control ......27

Operation....28

Before Starting the Mower....28

Mowing 29

Reverse Mode Operation 29

Mowing Tips....30

Slope Operation....31

Lead-Acid Battery Care and Maintenance....33

Top 3 Battery Care Requirements....33

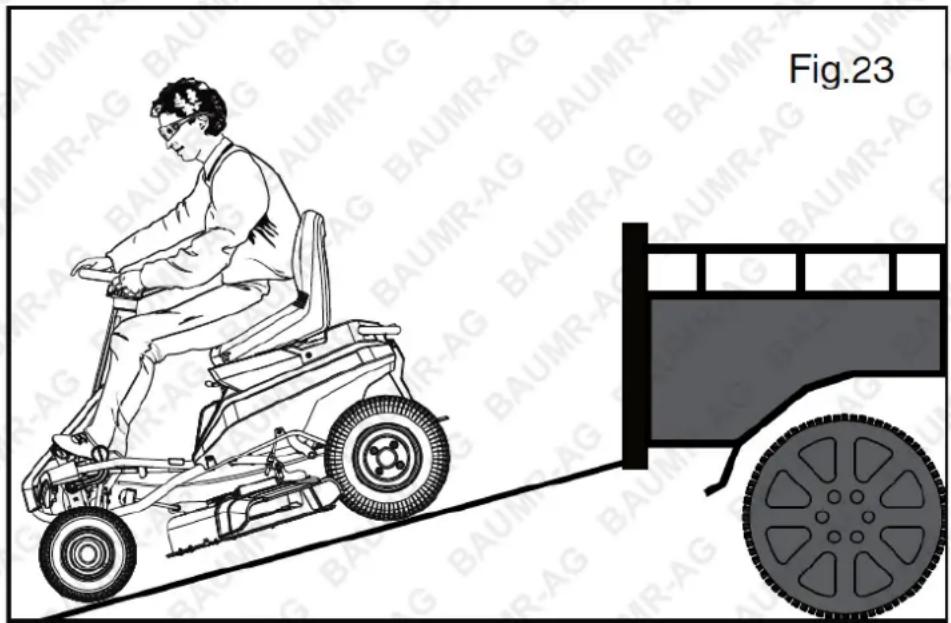

Transporting the Mower....34

Maintenance 35

General Maintenance ....35

Removing the Cutting Deck....36

Replacing the Cutting Blades ....37

Tyre Maintenance....38

Tyre Repair 38

Replacing Tyres....38

Adjusting the Brakes....39

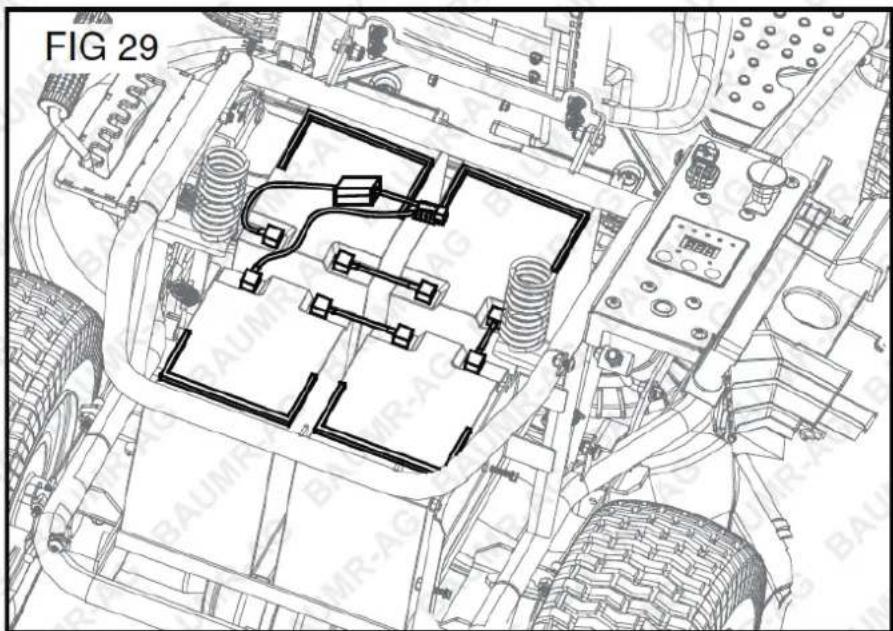

Replacing the Batteries 40

Maintenance Schedule....42

Storing the Mower 43

Preparations Before Storage 43

Preparing For Use After Storage 43

Battery Removal and Preparation for Recycling 44

Troubleshooting 45

Error Codes....47

Specifications 48

Assembly

WARNING: Strictly adhere to all torque wrench tightening specifications. Failure to do so could cause serious personal injury. All information, illustrations, photographs, and specifications contained in this manual are based on the latest product information available at the time of publication. Due to improvements or other changes, there may be some discrepancies in this manual. We reserve the right to make product changes at any time, without notice and without incurring any obligation to make the same or similar changes to any products previously built or sold. Any person attempting to assemble the product must have proper training and experience. Read this manual carefully and follow all assembly procedures in this manual. All assembly must be completed with the product on a level surface.

Required Tools (not provided):

• Torque wrench
• Tyre pressure gauge
• Socket wrench

Unpacking

1. Remove the bolts securing the corner and side braces to the frame bottom, then lift the braces to remove.
2. Cut the nylon straps securing the front and rear wheel axles to the frame.
3. Remove the boxes containing loose parts, assembly hardware, and documentation.
4. Remove and set aside all accessible packaging and wrap from the unit and parts. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.

WARNING: If any parts on the Loose Parts List section are already assembled to the product when you unpack it, verify that the part is assembled correctly, is properly tightened, and is torqued correctly (where applicable) before proceeding to the next assembly step. Use of a product that may have been improperly assembled could result in serious personal injury.

1. Inspect the product carefully to ensure that no breakage or damage occurred during shipping.
2. If any parts are damaged or missing, contact an authorised service centre.

NOTE: The product should be assembled while positioned on the frame bottom. Once assembly is complete, set the cutting deck to its maximum height, then position a ramp next to the frame bottom, and slowly and carefully drive the product off the frame.

WARNING: Use care when driving the product off or the frame, and step on the brake pedal as needed to control the speed. The product freely rolls if it is moved on an inclined surface without stepping on the brake pedal or engaging the parking brake. Failure to follow these instructions can result in loss of control and result in death, serious personal injury, or property damage.

WARNING: If no ramp is available, slowly, and carefully drive the product off the frame in reverse while looking down and behind. Driving the product off the frame in the forward direction without a ramp can cause damage to the cutting deck.

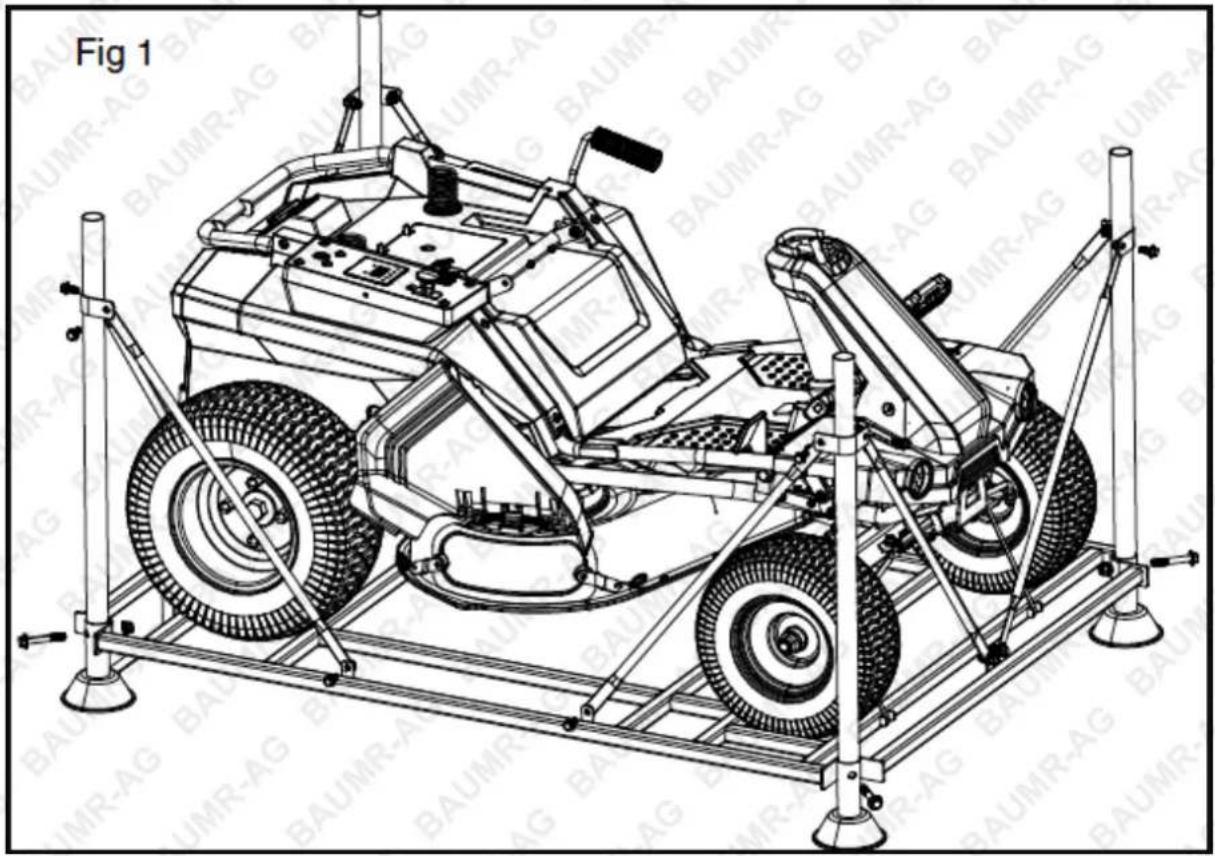

Technical line drawing of a robotic vehicle chassis mounted on a platform, with no visible text or symbols.

Loose Parts List

WARNING: If any parts are damaged or missing do not assemble the product until the parts are replaced with new original manufacturer's parts. Assembling the product with damaged,

missing, or incorrect parts could result in serious personal injury.

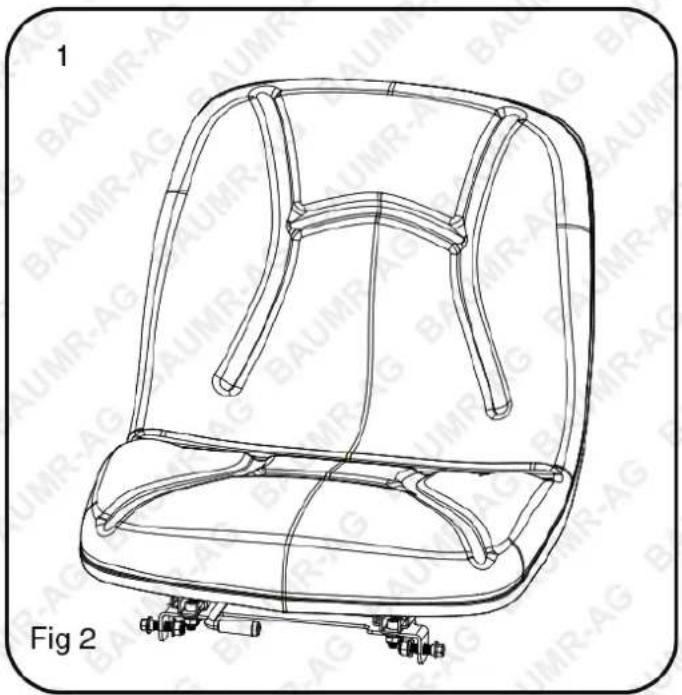

Line drawing of a car seat assembly with no text or symbols

Diagram of an electronic device with a flashlight and cable, labeled Fig 4 (no text or symbols on the diagram itself)

No.	Name	Qty.
1	Seat assembly	1
2	Steering column assembly	1

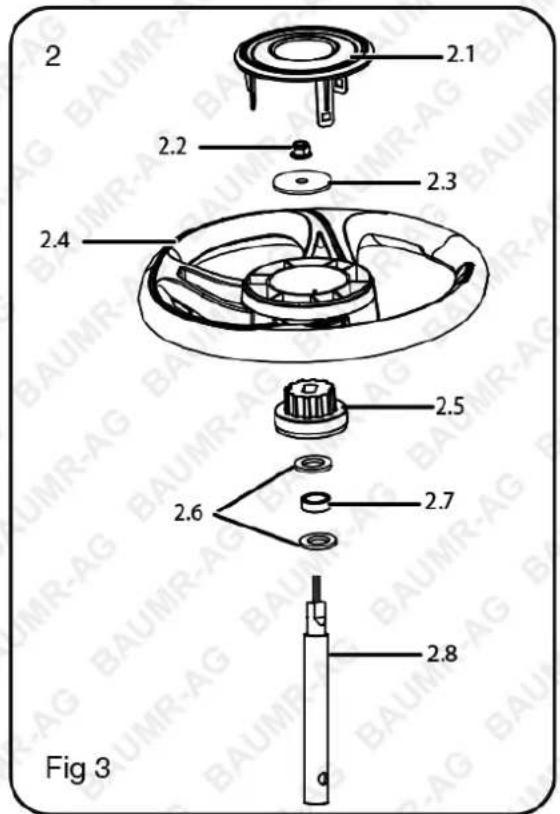

2.1	Steering wheel cover	1
2.2	Flange nut	1
2.3	Flat washer	1
2.4	Steering wheel	1
2.5	Steering wheel hub	1
2.6	Flange washer	2
2.7	Bushing	1

No.	Name	Qty.
2.8	Steering column	1

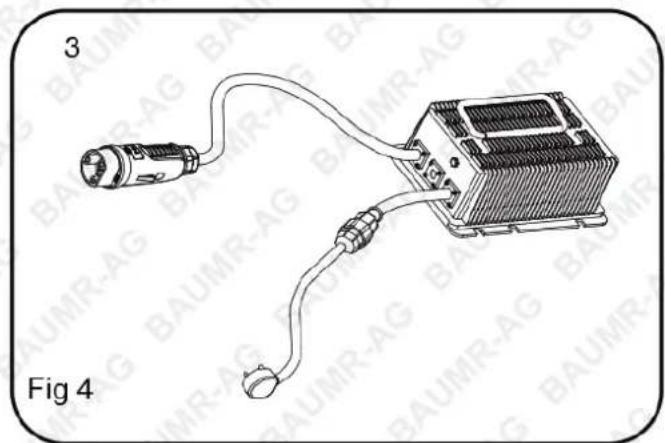

3	Battery charger	1

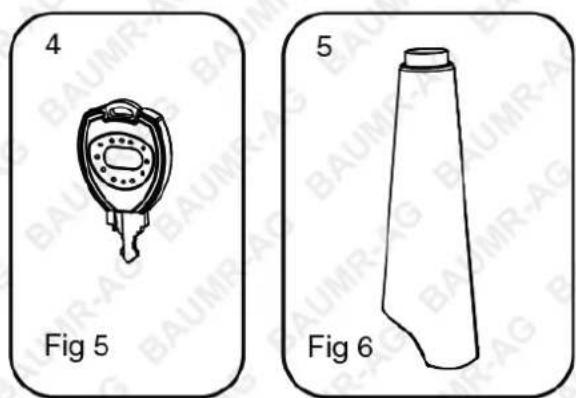

4	Start keys	1
5	Decorative tube	1
6	Tool	1

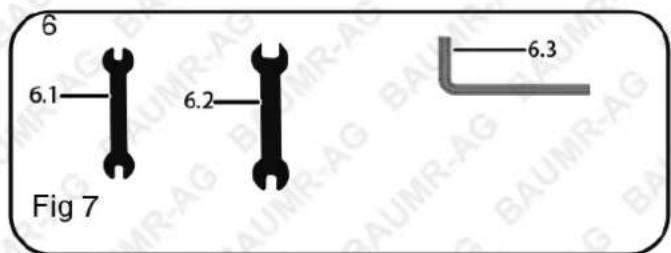

6.1	Wrench 10-13	1
6.2	Wrench 13-15	1
Allen wrench 1

WARNING: Strictly adhere to all torque wrench tightening specification. Failure to do so could cause serious personal injury.

WARNING: Do not attempt to modify the product or create accessories not recommended for use with the product. Any such alteration or modification is a misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING: To prevent accidental starting that could cause serious personal injury, always remove the start key from the product when assembling the parts.

Connecting the Battery

Fig 8

Battery quick-connect plug

When shipped from the factory, the product's batteries are disconnected.

To connect:

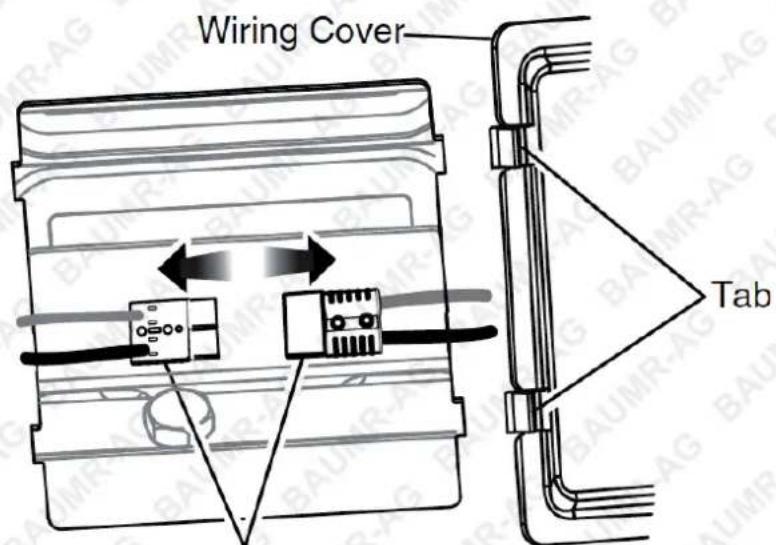

1. Press the tabs on the wiring cover and lift the cover to remove.
2. Connect the two ends of the battery quick connect plug together.

NOTE: Before reinstalling the wiring cover, install the seat as described in the next section.

Installing the Seat

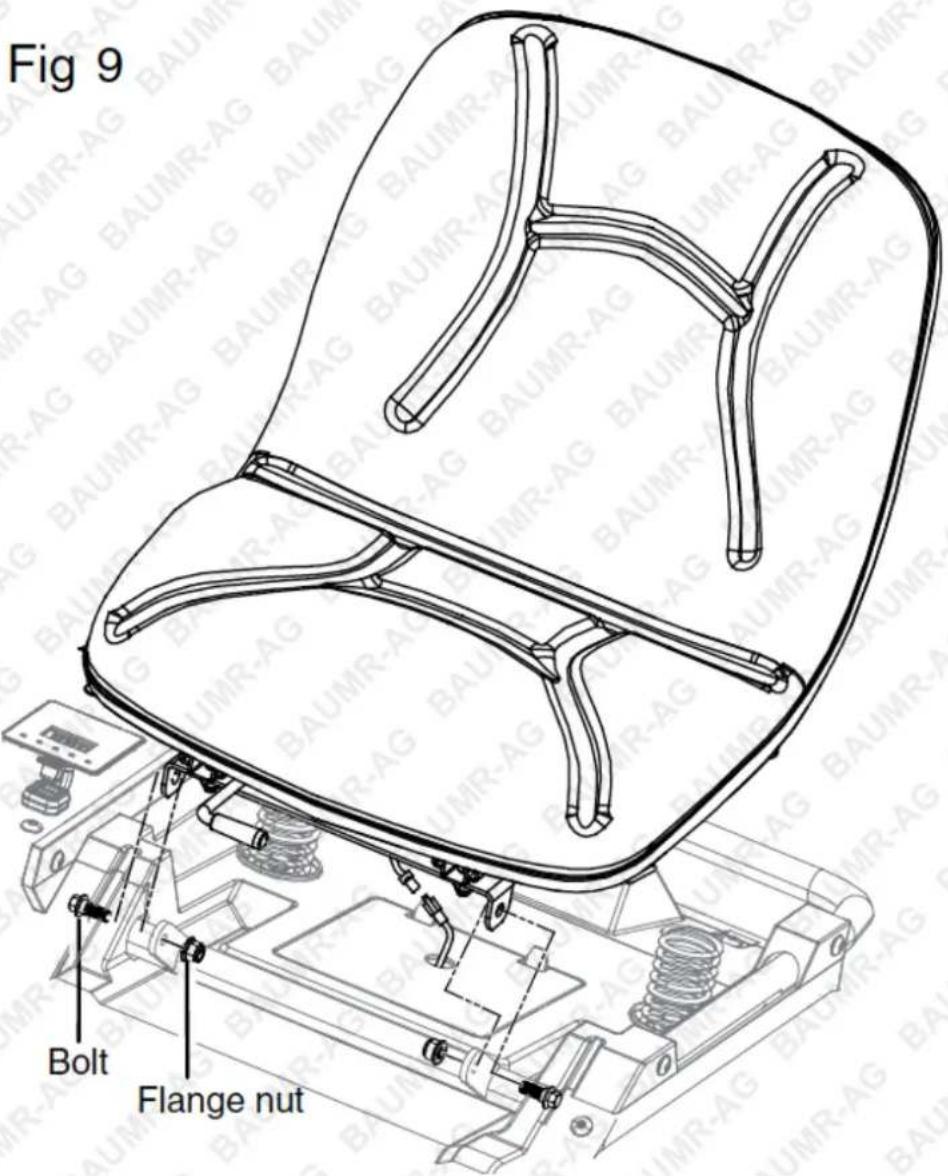

1. Remove the bolts and flange nuts from seat mounting brackets.
2. Place the seat assembly over the mounting brackets, aligning the holes as shown.
3. Reinstall and securely tighten the bolts and flange nuts.
4. Route the seat safety interlock cable through hole in the wiring cover, then connect to the plug on the mower.
5. Reinstall wiring cover and ensure that it is securely seated.

Installing the Steering Column

Fig 10

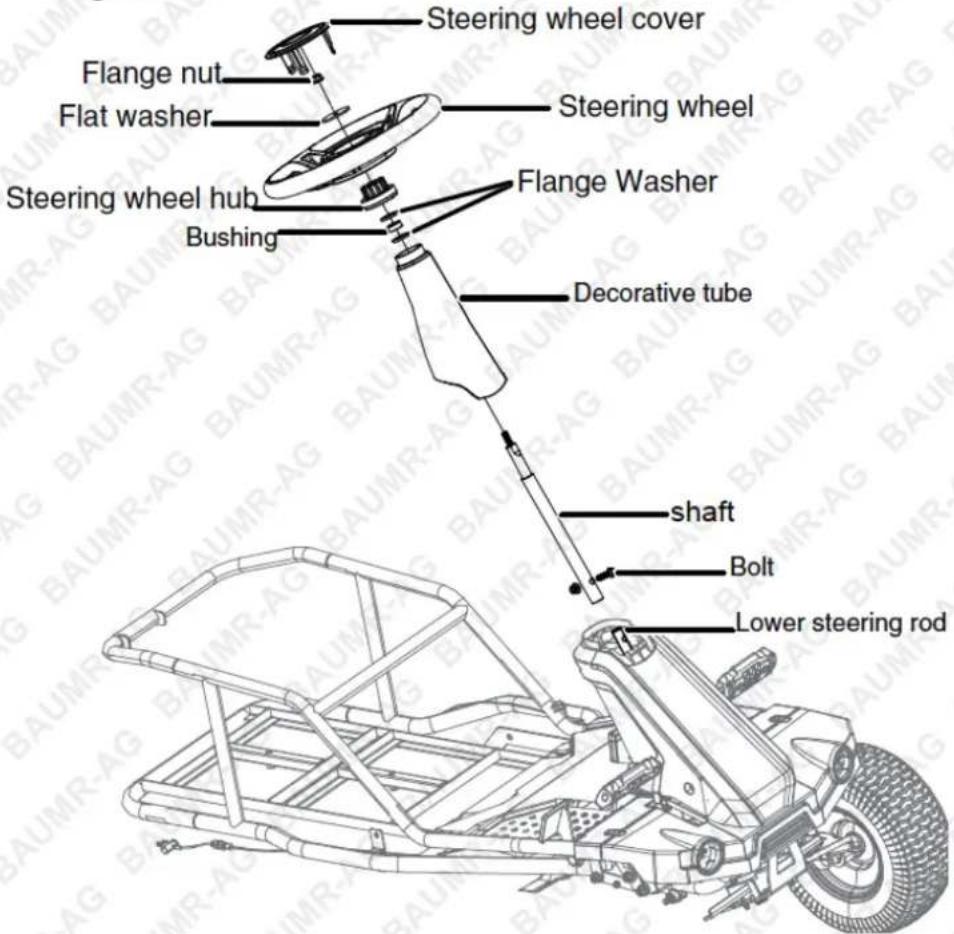

1. Put the shaft into the lower steering rod to align the shaft and lower steering rod mounting holes. After inserting the bolts, tighten them with Flange nut. The recommended torque is 25 ± 2 N.m.
2. After installing the shaft, put the decorative tube on the shaft,
3. Put flange Washer, bushing, flange Washer, Steering wheel hub on the shaft,
4. Then install steering wheel and flat washer in the order and direction as shown in the figure. The mounting points of the steering wheel and the steering wheel base are aligned and fixed with flange nut. The recommended torque is 24 ± 2 N.m.
5. Finally install Steering wheel cover on steering wheel.

Charging the Product

Mower batteries must be charged overnight before first use. To verify mower batteries are fully charged, check the battery level indicator. For best results:

1. Make sure both the charger and mower connections are clean and free of dirt or debris.

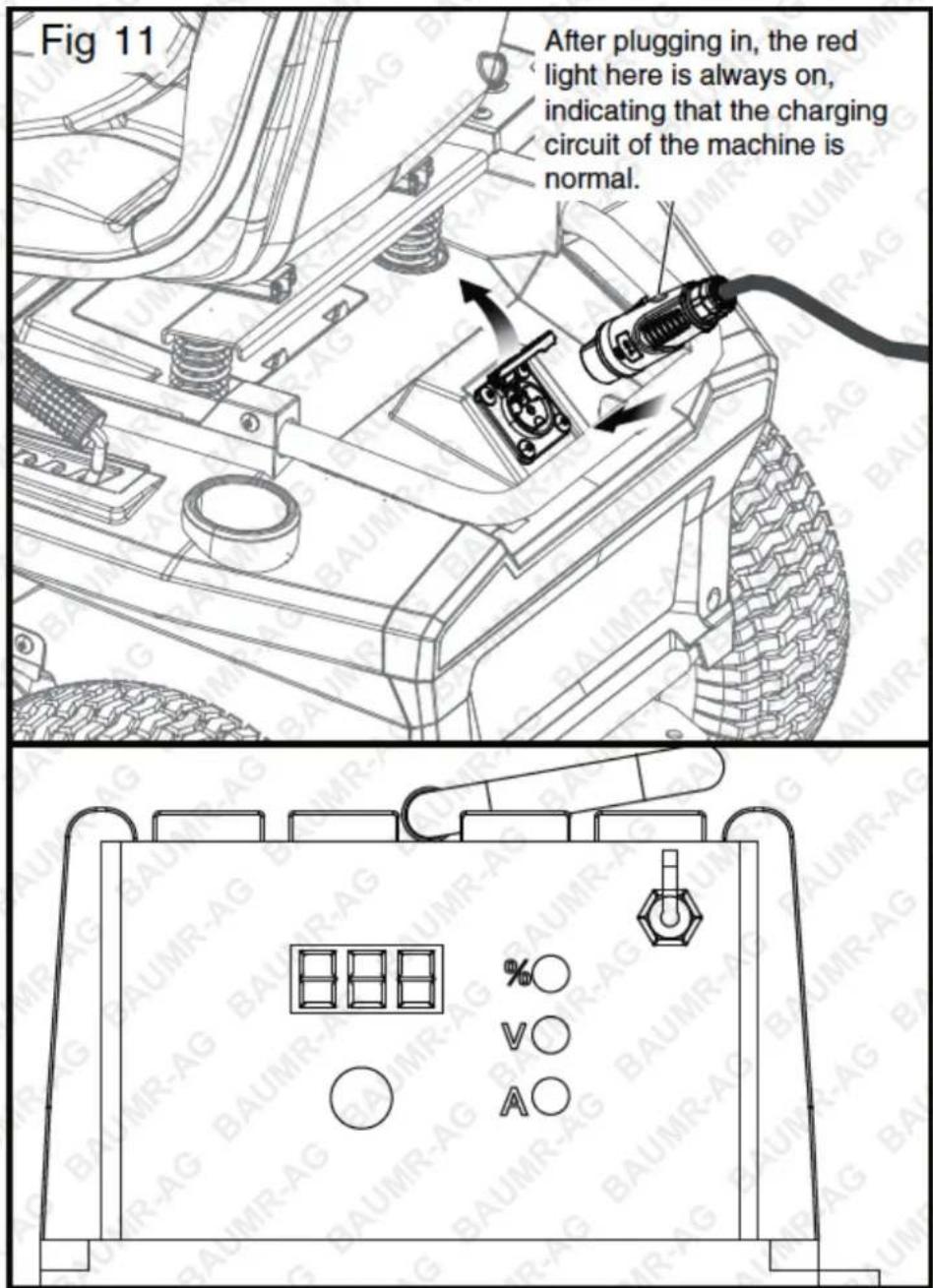

2. Insert charger plug into charging port on mower, making sure it is properly connected.
3. Charger input power specification: AC 100V\~240V, frequency 50/60Hz

NOTE: The charger is equipped with a plug featuring a grounding pin and must be plugged into a matching standard three prong outlet that has been properly installed and grounded in accordance with all local codes and ordinances. Do not use a two-prong outlet, adaptors, or modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician.

1. When powered, the LED indicator on the charger will illuminate to indicate the charger's status. See the chart that follows to determine the meaning of the LED's display.

2. When you are ready to mow, disconnect the charger from the power supply, then disconnect the charger from the mower.

3. If the machine is stored unused for a long time, in order to prolong the service life of the battery, it is recommended to charge it once every three months.
4. When charging, first connect the wire between the power supply and the charger, and then connect the charger and the machine.
5. If there is a filter, connect the filter between the power supply and the charger when charging.

Charging LED Indicators

LED Indicating Lamp	Battery / Charger Status
A Current charging current
V Current charging voltage
% Battery percentage

Features

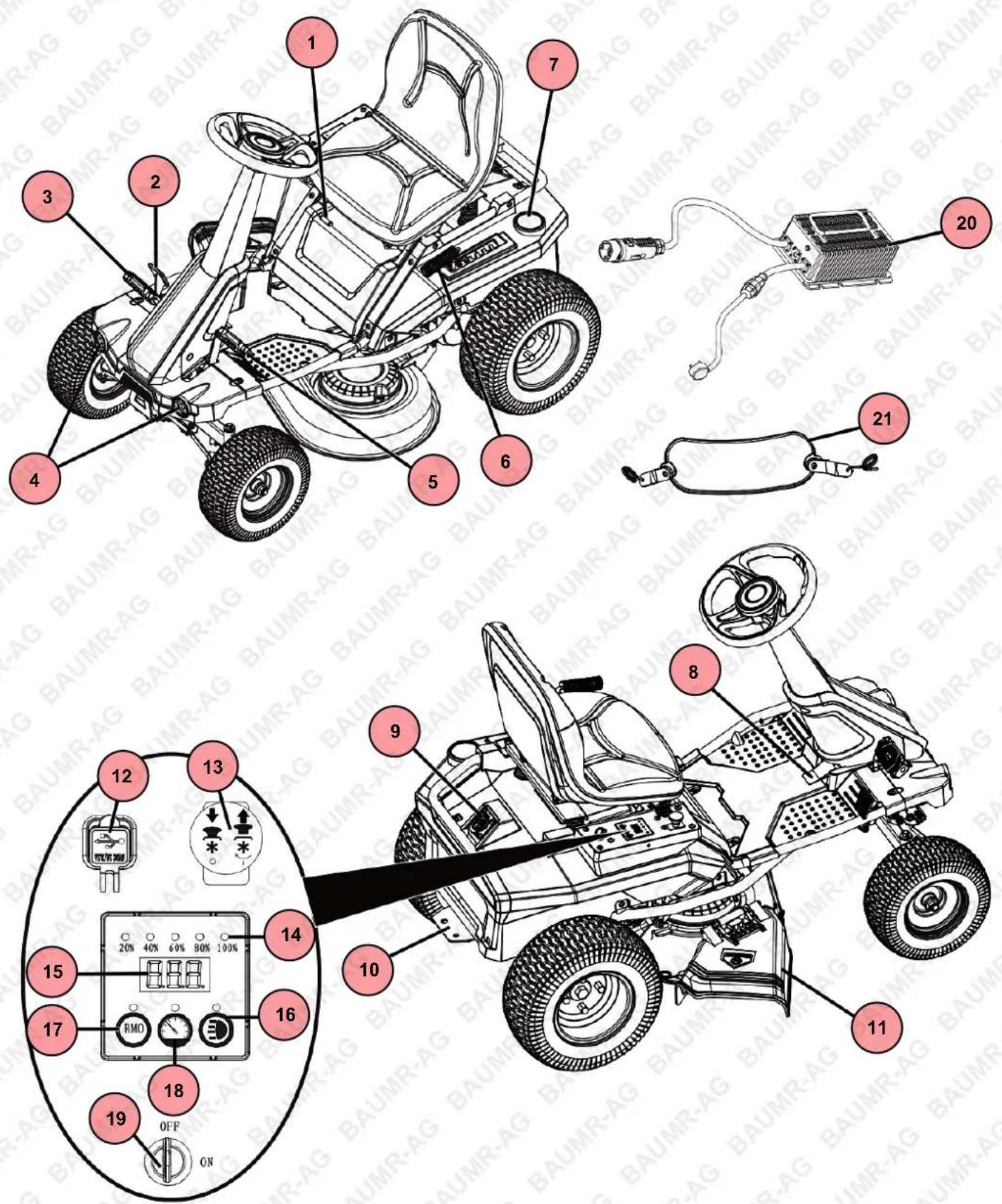

Know your Mower

No.	Name	Function & Purpose
1	Seat Adjustment Lever	Rotate the seat adjustment lever to adjust the front and rear position of the seat.
2	Reverse Pedal	The back pedal controls the back movement and speed of the riding mower.
3	Accelerator Pedal	The forward pedal controls the forward movement and speed of the riding mower.
4	Headlight To provide lighting.
5	Brake Pedal	The brake pedal is used to slow down and stop the movement of the riding mower.
6	Cutterhead Lifting Handle	Used to raise or lower the height of the mowing disc.
7	Cup Holder Used to hold cup.
8	Parking Pedal	Step on the parking pedal and then the brake pedal. After hearing the sound, the riding mower will be locked in the braking position.
9	Charging Socket	Use with charger to charge riding mower.
10	Trailer board	Used in conjunction with a trailer for easy towing.
11	Side Exhaust Duct	Used to guide the shredded grass blown out from the side discharge port.
12	USB Socket	The USB charging port can provide Total 5V 2A DC power to your mobile phone, MP3 or other USB devices.
13	Mower Motor Switch	Lift the switch upwards, the riding mower blades will start; press the switch, the riding mower blades will stop. Note that you must first press the RMO button before going back to mowing.
14	Battery Indicator	To show remaining battery.
15	Timer	To record the running time of the riding mower.
16	Headlight Switch	To control the headlights to turn ON and OFF.
17	Reverse Mowing Mode Switch	When the RMO button is pressed and the indicator light is on, then lift the blade motor switch, and the riding mower can cut the grass during the backward process. If you press the RMO button again, the indicator light goes out, and the backward mowing function is cancelled. If the RMO button is not pressed, the blade motor will not start when moving back.
18	Cruise control button	During in forward driving, press the cruise control button, the machine will keep the current speed and drive at a constant speed, and there is no need to keep pressing the forward pedal.
19	Power Switch	The power switch is used to disconnect and switch on the power of the riding mower. First insert the start key and turn it to “ON” to operate the riding mower. If the key is an accessory, other models of riding mowers approved by the manufacturer can also use this key as a power switch.
20	Charger	The charger of the riding mower has a keyhole suspension function, which is convenient to save space for storage. When hanging through the keyhole slot, at least one hole is fixed in place with a screw. When installing the keyhole suspension, make sure that the charger's LED light is in a visible position for charging.
21	Shredded Grass Baffle	To block the side discharge port, so that the grass can be cut into smaller pieces in the cutter head.

Pre-Operation Checks

• Remove any objects in the work area that may be knocked up or entangled by the blade.
• Check whether the brake is normal.
• Check tyre pressure.
• Check if the fasteners are loose.
• Check that all protective devices are installed in place and work normally.
• Clean up debris and broken grass on the riding mower.
  • Test the safety interlock system.
• Adjust the seat to a suitable position.
• Check the battery level.

NOTE: When the battery power is lower than 25%, the mowing motor will automatically shut down. Please return to charge immediately Electricity. When the battery power is less than 25%, continuing to mow the lawn may cause the riding mower to run aground; If the grass cart is stranded, please press the blade motor switch, turn off the power switch, and push the riding mower back to the charging position.

WARNING! Before operating the riding mower, remind people around to leave the mowing area. If someone enters the mowing area, please turn off the machine immediately, then continue mowing until person leave mowing area.

Installing the Mulch cover

The mower is configured for side discharge when shipped.

If mulching is desired:

1. Lift the stud and then raise the side discharge chute.
2. Place the mulch cover on the tab on the mower housing.
3. Connect the mulch cover latches to the two side mounting points on the mower deck housing.
4. Release the side discharge chute.

WARNING! After the assembly is complete, make sure that the shredded grass baffle is installed in place, otherwise May cause serious personal injury.

Engaging the Parking Brake

1. Fully depress and hold the brake pedal and depress the parking brake at the same time. Or firstly depress the parking brake, then fully depress the brake pedal.
2. Release the brake pedal.
3. Release the parking pedal.
4. Turn off the machine and take out the key.
5. If you need to unlock the parking brake, depress the brake pedal forcefully and hear a "click" or the parking brake pedal bounces, indicating that the unlocking is successful.

WARNING! Never leave the mower unattended when the motor is running. Verify that the parking brake is set, and the key has been removed. Failure to set the parking brake could cause the mower to move and leaving the key could allow unauthorized use that could result in serious personal injury.

Adjusting the Seat

Before operating the riding mower, adjust the seat position to ensure that your feet can step in the accelerator pedal or brake pedal firmly.

To move the seat:

1. Turn key to OFF position and set the parking brake.
2. Sit down on seat and lift the seat adjustment lever.
3. While holding the lever, slide the seat to the desired position.
4. Release the lever and make sure the seat is locked in position before operating the mower.

WARNING! Be sure the seat is locked into place before operating the mower. A seat that is not secure can cause the operator to shift and lose control of the mower and result in possible death of bus personal injury.

Setting the Cutting Deck Height

Before using the riding mower, raise the height of the cutter head to the most suitable cutting position for your lawn.

NOTE: To prevent the cutting blade from touching the ground at the highest point of the lawn during the mowing process, the knife The pan is at least 1 inch above the ground. During equipment transportation, set the height of the cutter head from the ground Set to 3 inches. You can change the height of the cutting blade according to the height of the mowing you need. For detailed operation, please refer to the part of adjusting the mower in the Maintenance chapter of this manual.

Adjust the height of the mower:

1. Stop the mower and disengage blades.
2. Turn key to OFF position and press the parking brake.

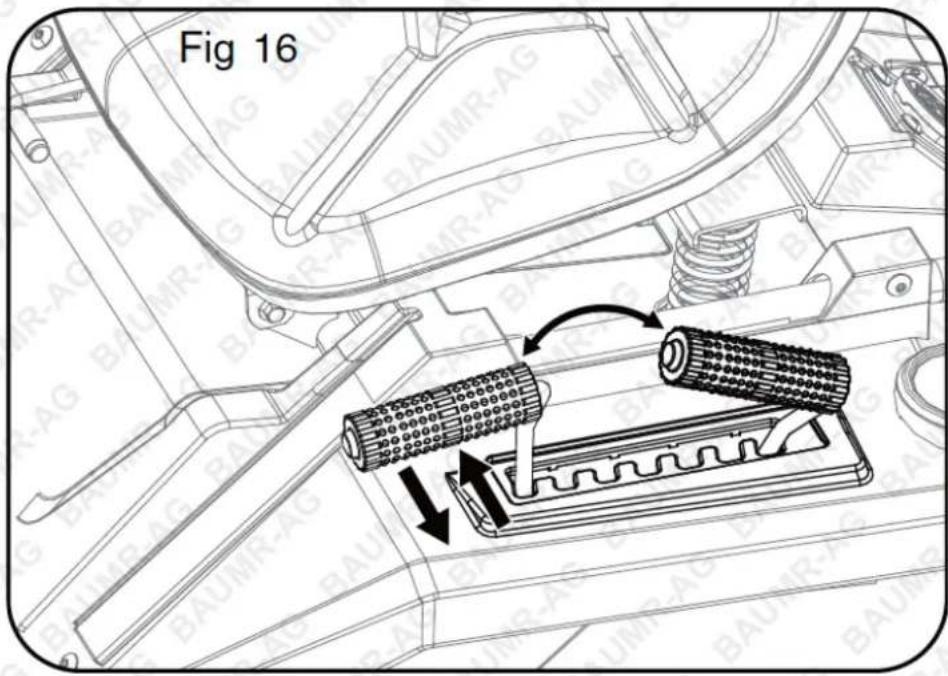

3. To raise the cutting deck, grasp the deck height adjustment lever, push left to disengage from slot, move toward the back of the mower, then push right into slot to secure.
4. To lower the cutting deck, grasp the deck height adjustment lever, push left to disengage from slot, move toward the front of the mower, then push right into slot to secure.

NOTE: When setting the height of the cutter head, grasp the handle of the height adjustment lever, only when it is fixed Release your hand only when you are in the required card slot. If the adjustment lever is released quickly, it may cause a danger of squeezing or pulling the operator's hand.

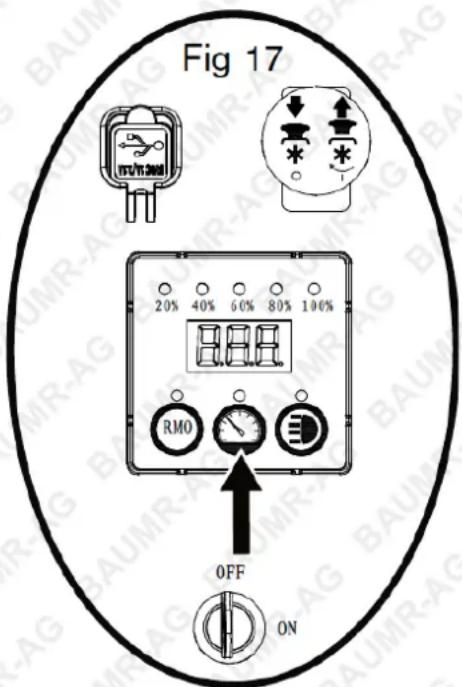

Setting the Cruise Control

Cruise control allows the mower to remain at a constant speed without the operator having to maintain pressure on the accelerator pedal. It should only be used in the forward position on relatively smooth, straight surfaces, and should never be used on slopes or rough terrain.

To set the cruise control:

1. While driving the mower forward, press the accelerator pedal until the desired rate of speed is achieved.
2. Press the cruise control button. The light around the button will illuminate to show cruise control is active.
3. Release pressure on the accelerator pedal. Mower speed should remain constant.
4. To release cruise control: tap on the accelerator pedal, depress the brake pedal, or press the cruise control button again. The light around the cruise control button will go out to indicate cruise control is no longer active.

Operation

WARNING! Clear the area of bystanders before operating the product. If anyone enters the mowing area, stop immediately and do not return to mowing until the bystanders leave the area.

Use caution when crossing over gravelly paths or driveways. Before crossing, stop the blades and set the cutting deck to the maximum height to minimize the possibility of ricochet. Drive slowly to avoid loss of traction and control. Do not attempt to change the direction of operation while the mower is in motion. Always come to a complete stop before changing the mower direction.

Before Starting the Mower

1. Insert the power switch key and turn it to the "ON" position. The machine will complete the system self-check within 3 seconds and a beep will indicate the completion of the self-check, and the machine will be able to start after the self-check is completed.
2. Ensure that the work area is clear of children, bystanders, and pets.
3. Clear the work area of objects that may be thrown by the mower blades.
4. Check the brake operation.
5. Check the tyre pressure.
6. Check for loose fasteners.
7. Make sure that all guards are in place and working properly.
8. Clean debris from mower.
9. Check the side discharge chute safety interlock system.
10. Test the operator presence safety interlock system.
11. Adjust the seat to the preferred position.
12. Verify the battery charge level.

WARNING! When the level of battery charge reaches the red zone on the battery charge indicator, the blades automatically stop. Immediately return to the charging location and go the mower. Continuing to mow when the battery charge level is in the red zone causes the to be stranded away from the charging area.

NOTE: If the mower is stranded away from the charger, set the direction control switch to the neutral (N) position, and push the mower back to the charging location.

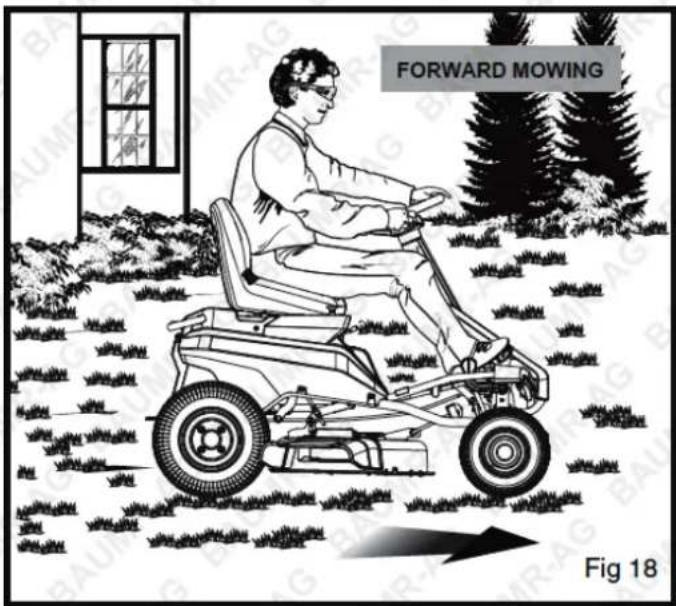

Mowing

1. Set the cutting deck to the maximum height.
2. Insert start key and turn the key to the ON position.
3. Disengage the parking brake.
4. Set the direction control switch in forward (OFF) position and drive to desired mowing location.

WARNING! Be certain that you have correctly set your intended direction of travel with the direction control switch before pressing the accelerator pedal. Failure to do so could result in having the mower in an unintended direction, which could cause loss of control or an accident in death, serious personal injury, or property damage.

1. Stop the mower, engage the parking brake, and turn the start key to the OFF position.
2. Set the cutting deck to the preferred position.
3. Turn the start key to the ON position and disengage the parking brake.
4. Pull up the blade engage knob to activate the blades, and step on the accelerator pedal to mow the lawn.

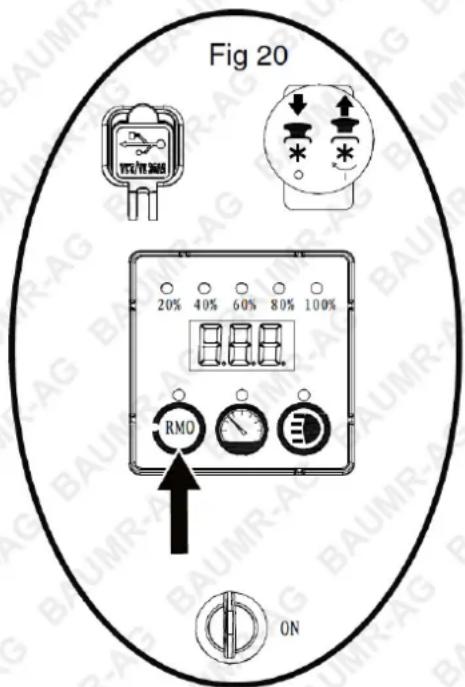

Reverse Mode Operation

1. Depress the brake pedal to bring the riding mower to a complete stop.
2. Press the blade motor switch to confirm that the blade stops rotating.

3. Press the "RMO" button to confirm that the indicator light is on.

4. Release the brake, pull up the switch of the blade motor, slowly step on the back pedal, according to Need to control the retreat direction and mowing range.

WARNING! The product will emit a constant beeping sound when operated in reverse with either the blade off or in reverse mode operation.

NOTE: Reverse mode operation resets each time the power switch is turned to the OFF position.

WARNING! Do not mow in reverse unless necessary. Always look down and behind before and while backing to make sure no children, bystanders, or pets enter the mowing area. Be aware that the reverse mode operation is activated when the reverse mode button is illuminated in red, and a constant beeping sound is emitted. Remember that a careless fraction of a second is sufficient to inflict death or serious injury.

When mowing is complete:

1. Stop mower on a flat, level surface. Do not stop the mower on a slope.
2. Push the blade engage knob down to turn blades off.
3. Set the parking brake.
4. Turn the start key OFF.

WARNING! If the mower emits a beeping noise after you leave the seat, verify that the parking brake is set, and the key has been removed. Failure to set the parking brake could cause the to move and leaving the key could allow unauthorized use that could result in serious personal

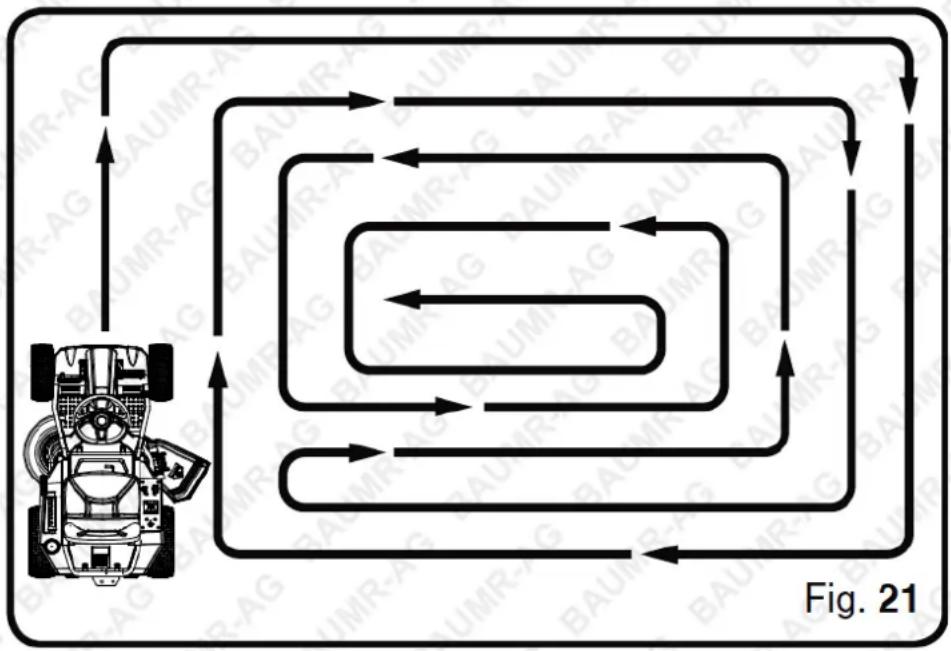

Mowing Tips

• Keep mower blades sharp.
• Make sure the lawn is clear of stones, sticks, wires, toys, tree nuts, tree branches, and other objects that could damage the riding mower blades or motor. Do not mow over property stakes or other metal posts. Such objects could damage the blade or be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.

• For a healthy lawn, always cut off one-third or less of the total length of the grass.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction, making left hand turns until finished.

• Mow so that discharged clippings exit in the direction of the lawn area that has already been cut.
• When cutting heavy grass, reduce speed to allow for more effective cutting and a proper discharge of the clippings.
• Do not cut wet grass. It will stick to the underside of the deck and prevent proper bagging or mulching of grass clippings.
• New or thick grass may require a narrower cut or a higher cutting height.
• Keep the mower deck and side discharge chute clean. Remove grass clippings, leaves, dirt, and any other ac-cumulated debris before and after each use. Do not spray with a garden hose to clean.

NOTE: Always stop mower, allow blades to completely stop, and remove the start key before cleaning underneath the mower.

Slope Operation

• Mow up and down, not across the face of slopes.
- Do not mow on wet grass. Wet grass can cause the tyres to lose traction or slip-on slopes, even though the brakes are functioning properly.
- Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over or thrown by the blade.
- Do not mow near drop-offs, ditches, or embankments.
- Drive slowly and do not make sudden changes in speed or direction.
- Avoid stopping on slope if possible. If stopping is unavoidable, make sure to engage parking brake. When restarting, use lowest possible speed. If turning is necessary, exercise extreme caution when changing direction and always turn downhill.

• Never attempt to stabilize the mower on a slope by placing your foot on the ground during operation.
• If using the optional bagger kit, use extreme caution and operate the mower slowly when operating on slopes, as the bagging kit can change the stability of the mower.
• Always use the brakes when travelling down the slope. Do not attempt to let the mower coast downhill in neutral.
• If at any point the tyres lose traction while operating on a slope, disengage the blades and proceed slowly and carefully straight down the slope.

WARNING! Slopes are a major factor related to tip-over and rollover accidents that can result in severe injury or death. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow steep slopes greater than 15 degrees. Make a copy or cut out the slope guide image on and use to determine if your slope is too steep for safe operation.

Lead-Acid Battery Care and Maintenance

Top 3 Battery Care Requirements

• Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged for 12 hours on the initial charge and 12 hours for each subsequent charge.
• Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10°C and 30°C
- When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
- Inspect the terminals, screws, clamps and cables for breakage, damage, or loose connections. These should be clean, tight, and free of corrosion.
• Use only with the battery charger specified by the manufacturer.
- Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.
- Do not use the charger in wet areas or expose it to rain or water.
- Keep the battery clean, dry, free of dirt and grime. A dirty battery can discharge across the grime on top of the battery casing.
- Apply a thin coating of high temperature grease to posts and cable connections for added protection.
- Inspect the battery case for obvious signs of physical damage or warpage. This usually indicates the battery has been overheated or has been overcharged.
- Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.
- Do not open the battery – danger of short-circuiting and/or explosion.
- Do not attempt to destroy or disassemble the battery pack or remove any of its components.
- Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.
- Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.
- Explosion hazard – do not open and/or short-circuit the battery.
- Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.
- Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating, or fire may result.

Transporting the Mower

Line drawing of a person riding an electric scooter next to a vehicle, with no visible text or symbols on the diagram itself.

1. Park the mower on a level surface.
2. Raise the cutting deck to the highest position.
3. Position and secure ramp to the trailer according to manufacturer's instructions. Slowly drive the mower onto the ramp and into the trailer.
4. Lower mower deck completely.
5. Set the parking brake.
6. Turn off mower and remove key.
7. Secure the mower as needed using straps or cables to prevent movement during transport.

NOTE: We recommend you use one full width loading ramp that is at least 1ft. wider than the mower to minimise the risk of the mower's wheels going off the side of the ramp.

WARNING! Use care when driving the mower from or onto a trailer or truck and press the brake pedal as needed to control the speed. The mower will freely roll if it is moved on an inclined surface without pressing the brake pedal or setting the parking brake. Failure to follow these instructions can result in loss of control and result in death, serious personal injury, or property damage.

WARNING! Use care when loading or unloading the mower onto a trailer. Ensure the cutting deck is raised to the highest position so that it is not caught on the ramp. The wheels on the mower can go off the ramp or trailer, causing the mower to pivot or tip over, and result in a crush hazard that can cause death or serious personal injury.

WARNING! To avoid accidental starting or movement that could result in serious personal injury, always remove the start key, and set the parking brake when transporting the mower.

Maintenance

WARNING! Before performing any maintenance, stop the mower, wait for the blades to come to a complete stop, and remove the start key to avoid accidental starting and possible serious personal injury.

WARNING! Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING! When servicing, use only authorised replacement parts. Use of any other parts can create a hazard or cause product damage.

WARNING! Strictly adhere to all torque wrench tightening specifications. Failure to do so could cause serious personal injury.

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied periodically, it will prevent rust from forming.

NOTICE: Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or an authorised service centre for assistance.

General Maintenance

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, dust, oil, grease.

WARNING! Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which can result in serious personal injury.

Remove any build-up of grass and leaves on or around the motor cover. Wipe the mower clean with a dry cloth occasionally. Do not use water.

Removing the Cutting Deck

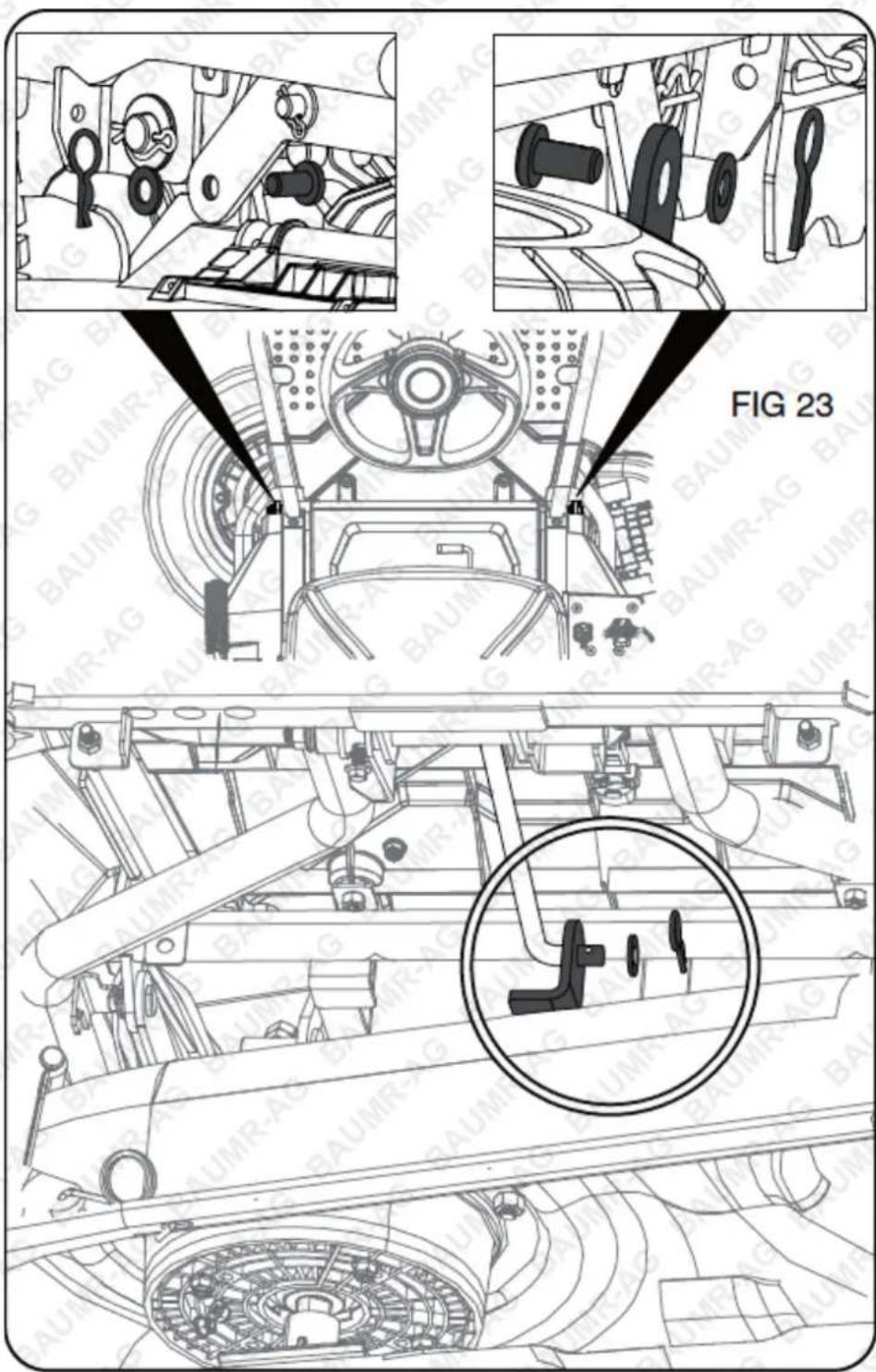

If desired, the cutting deck can be removed from the mower to make accessing the blades easier when changing.

1. Before disassembly, press the blade motor switch.
2. Turn the power switch to "OFF", remove the switch key, and set the parking brake.
3. Lower the position of the deck to the lowest level and disconnect the wire connecting the riding mower motor and the riding mower Rotate the cable anti-clockwise to lock and turn clockwise to loosen. Note when

installing, the left cutting deck wire connects to the right controller line, the right cutting deck wire connects to the left controller line.

1. Remove the three lock pins, gaskets, and pin shafts of the fixed cutting deck in sequence.
2. Slide the cutting deck out from under the riding mower. At this time, a staff member is also needed to stabilize Fixed lifting handle to prevent rebound from falling out.
3. If you need to reinstall the cutting deck, install the cutting deck back to the riding mower in the opposite direction of the slide out.

Replacing the Cutting Blades

WARNING! Only use replacement blades and blade bolts authorised by the manufacturer of your riding mower. Use of blades and blade bolts not authorized is hazardous and may damage your riding mower.

Technical line drawing of a mechanical assembly with concentric circular components and a central rectangular component (no text or symbols)

1. Place the machine on a stable ground and press the blade motor switch.
2. Turn off the power of the machine, remove the switch key, and set the parking brake.
3. Remove the cutter head as described in the previous section and replace the blade as shown above.

NOTE: When removing and replacing the cutter head and blades, at least two people are required to work together.

WARNING! If raising the mower to access the blades, make sure the mower is properly secured and the parking brake is set before proceeding. Failure to properly secure the mower could cause it to fall, resulting in death or possible serious personal injury.

1. Insert a wooden board between the blade and the wall of the cutter head of the mower to prevent the blade from rotating.

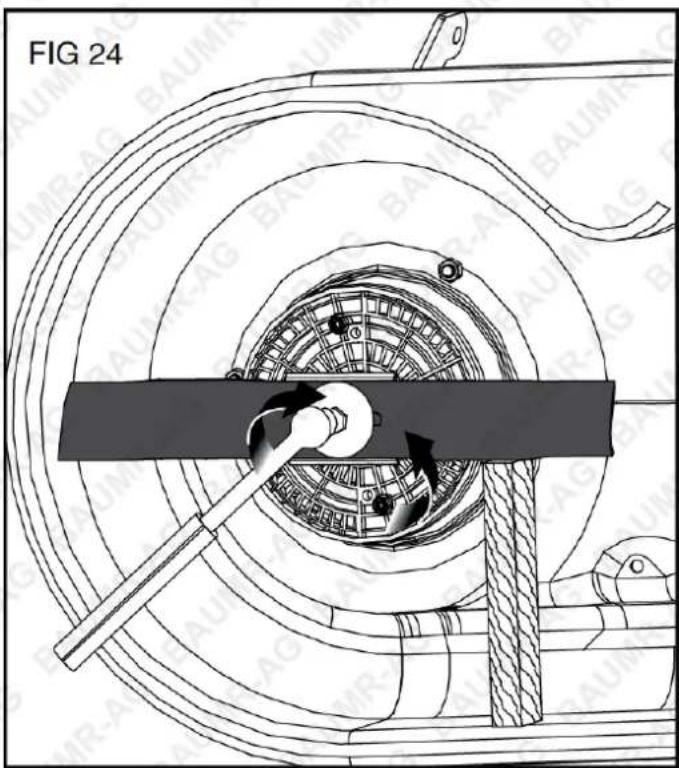

2. Use a 15mm wrench or socket to turn the blade bolt anti-clockwise (viewed from the bottom of the mower) to loosen the blade bolt.

3. Remove blade bolts, washers, flat washers, and blades.

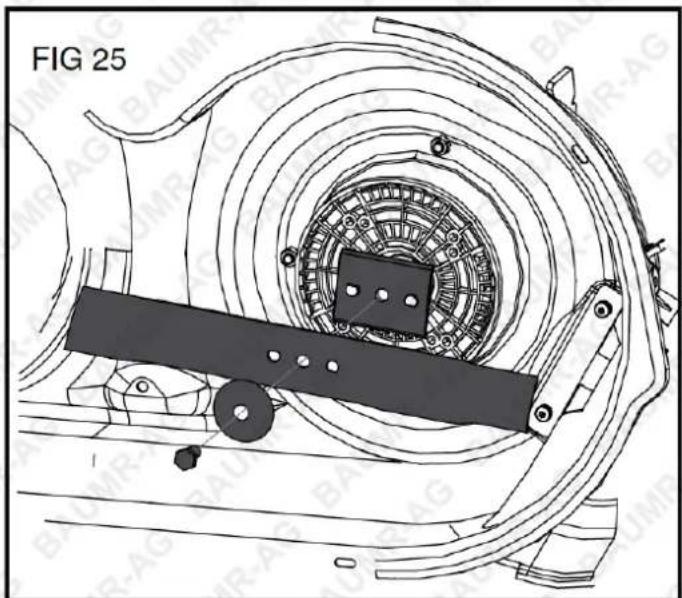

4. Place the new blade on the blade holder in the direction of the original blade, and make sure that the two semicircular holes at the centre of the blade fit into the semicircular protrusions of the blade holder.

5. Replace with new nylon flat gaskets, blade septa, and bolts. Note: Make sure to install the parts back in the reverse order of disassembly during assembly (see Figure 13).
6. Use a torque wrench (not provided) to tighten the blade bolts clockwise to ensure that the bolts are in place. The recommended torque of the blade bolt is: 40N.M.

WARNING! Ensure blade is properly seated and the blade nut is tightened to the torque specifications above. Failure to properly attach the blade could cause it to come loose and result in possible serious personal injury.

1. Repeat with second blade, if needed.

Tyre Maintenance

This mower is equipped with tubeless tyres of the size and type listed below:

Front Rear
Size	13"	16"

Tyre Air Pressure

Check the air pressure in all tyres before use. Improper air pressure will affect handling, steering response, traction, tyre life, level cutting, and operator comfort. Be sure tyres are inflated to the pressure shown below.

NOTE: Tyre pressure should only be measured or adjusted when tyres are cold.

Recommended Pressure: 20psi (137.9kpa)

WARNING! Check the tyre pressure carefully while inflating. Too much air in the tyre could cause the tyre to burst, causing serious personal injury.

WARNING! Maintaining correct air pressure in the tyres is very important. Too little pressure could allow the tyre to rotate off the wheel rim. Too much pressure could cause the tyre to burst. Failure to maintain correct air pressure in the tyres could cause problems with mower operation and stability, causing serious personal injury.

Tyre Repair

If a leak or flat tyre occurs due to a puncture, the tyre may be repaired using a plug type patch. If the damage is from a cut, or if the puncture cannot be repaired using a plug, the tyre should be replaced.

Replacing Tyres

When tyres are worn, the traction of the mower will be decreased, which increases the chance of having an accident. Tyres should be replaced when the depth on the tread is 0.16in. (4mm or less, or any time there is damage to the tyre. Always use identical replacement tyres. Using improper tyres on the mower could cause loss of control, which could cause serious personal injury.

Have tyres replaced by an authorised service centre or a qualified tyre repair station.

Adjusting the Brakes

Technical line drawing of a mechanical assembly with no visible text or symbols

Being able to stop the mower properly is critical to mowing safety. If you've noticed your mower traveling farther before stopping when you depress the brake pedal, the brakes may need adjusting.

To test:

1. Park the mower on a level surface and set the parking brake.
2. Place the direction control switch in neutral (N).
3. Stand behind the mower and try to push it forward. If the rear tyres turn, the brakes need to be tightened.

To tighten:

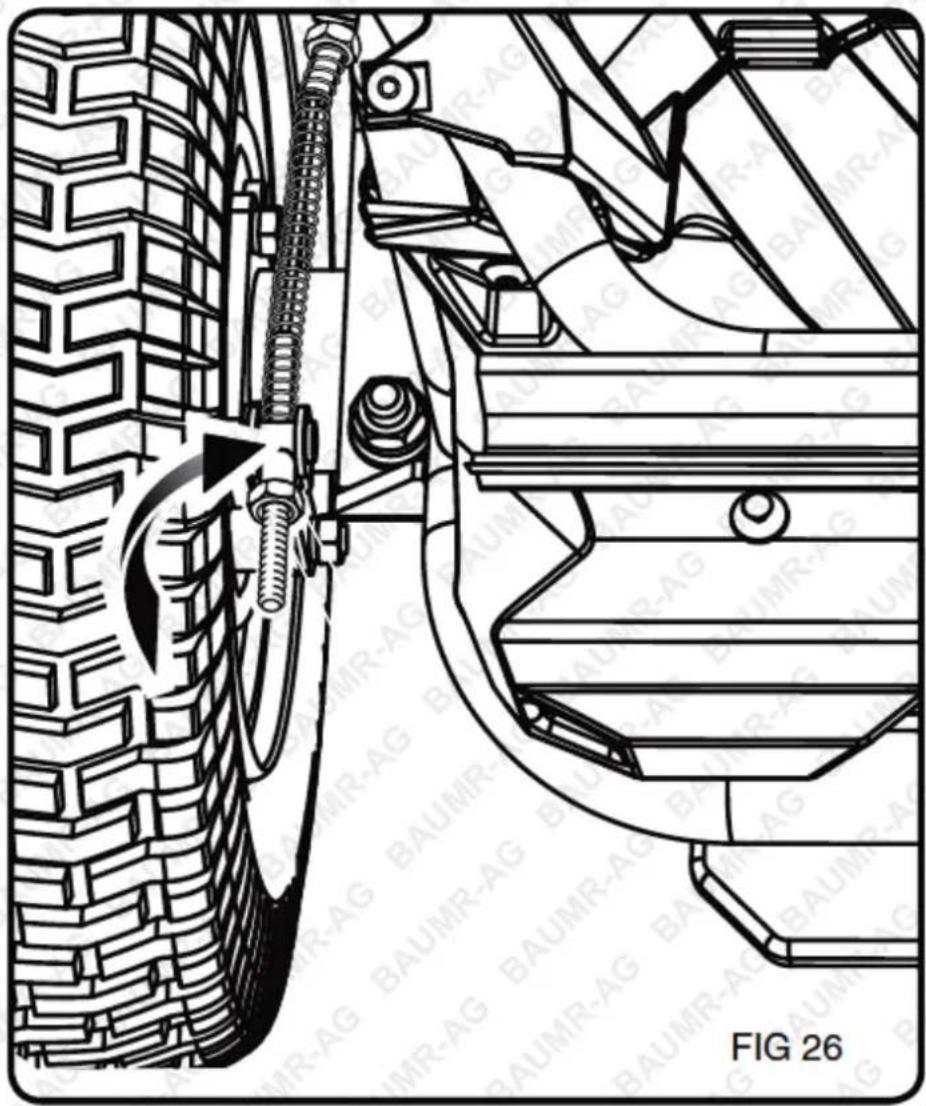

1. Locate the brake adjustment nuts on the interior side of each of the rear wheels.
2. Turn each adjustment nut 14 turn clockwise, then try again to push the mower.
3. Continue rotating each nut 14 turn and testing until the mower can no longer be moved by pushing.

After final adjustment, test the brakes by driving the mower at normal speed on flat ground to be sure the mower stops quickly when the brake pedal is depressed.

Replacing the Batteries

NOTE: This mower operates on four 12-volt batteries connected in a series. If replacing one or more of the batteries, always replace using a battery of the same type with equal voltage and capacity.

Technical line drawing of a vehicle chassis frame with visible tire, springs, and structural components (no text or symbols)

WARNING! Use only identical lead acid batteries when replacing. Never mix different makes and sizes of batteries in the series. Doing so will eventually cause damage to the batteries and may also damage the mower.

WARNING! Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. Do not dispose of the batteries in a fire. The batteries could explode. Check with local codes for possible special disposal instructions.

WARNING! When batteries are not in use, keep away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

WARNING! Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may over-heat and cause serious burns.

1. Park the riding mower on a level ground, set the parking brake, turn off the power, and take out the key.
2. Lift the seat forward and pull out the seat sensing cable from the middle joint.

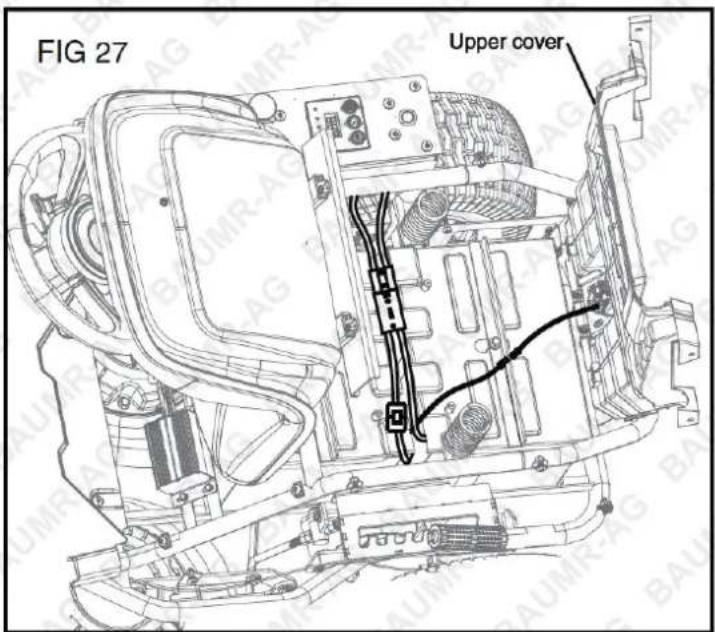

3. Remove the 6 screws fixing the upper cover, pull out the connection cable between the charging socket and the riding mower and take out the upper cover.
4. Disconnect all the connecting wires between the battery and the riding mower from the joints.
5. Remove the battery bead and screw of the battery waterproof cover, unfasten the clamps that fix the wiring harness, and take out the battery waterproof cover.
6. Remove the series wires from the battery terminals.

NOTE: Do not short-circuit between the terminals.

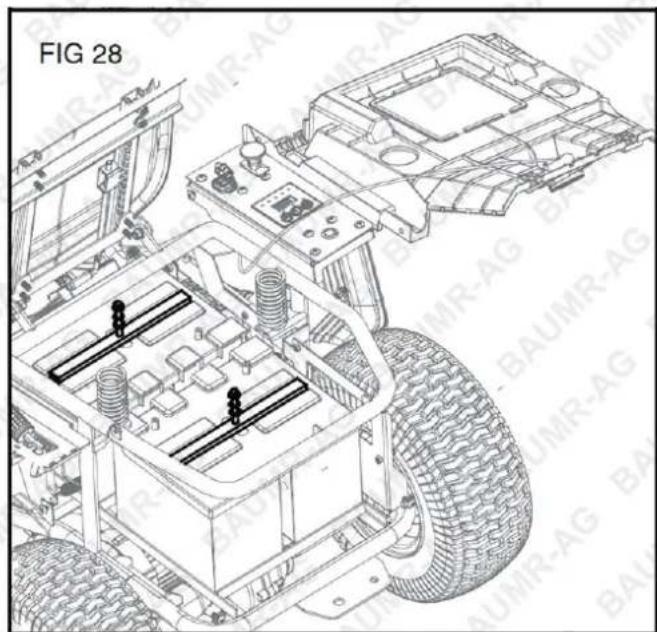

1. Pull out the battery from back to front until the battery to be replaced is taken out. The battery is heavy, please handle with care to prevent the battery from being damaged by collision. It is recommended to lift the battery at the same time, support the bottom of the battery with your other hand.
2. Put in the new battery from the front to the back and place it according to the position when it was taken out; Be careful of short-circuiting the battery.
3. In the reverse order of disassembly, install the battery waterproof cover, battery fixing plate and screw in sequence. Connect the battery power cord to the plug of the riding mower, and then fix it with a wire clip.
4. Connect the cable between the charging socket and the riding mower, the round hole of the cover plate of the upper cover penetrates upwards.
5. Fix the rear cover on the frame with screws and connect the upper joint of the seat sensor cable to the lower connector connection.
6. Reset the seat. The operator sits on the seat, inserts the key to turn on the power switch, and observes check whether the electricity meter is displayed normally.

NOTE: Be sure to observe the safety warning signs provided by the battery. According to when local regulations to dispose of used batteries.

WARNING! Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.

Maintenance Schedule

Inspect item	Inspect before each use	Every 24 hours	Every 50 hours	Every 100 hours	Before storage
Check brake operation	√
Check tyre pressure	√
Check safety interlock system	√
Check for loose fasteners	√				√
Clean debris from mower	√		√		√
Check/Replace mower blades		√	√
Adding oil to transaxle				√
Clean battery terminals			√
Lubricate mower pivot points, front axle pivot and axle spindles, front axle wheel bushings, and deck pivot points		√

- Maintenance should be performed more frequently when mower is used in dusty areas.

- When mower has exceeded the maximum figures specified in the table, maintenance should still be cycled according to the intervals of time or hours stated herein.

- If you are unsure how to perform any of the maintenance items listed above, take the mower to an authorised service centre for assistance.

Storing the Mower

Preparations Before Storage

The following steps should be taken before storing the mower for the season.

• Remove any build-up of grass and leaves on or around the motor cover. Wipe the mower clean with a dry cloth. Do not spray with a garden hose to clean.
• Plug the mower up to charge for the entire time of storage.

NOTE: If it is not possible to leave the mower charger connected during storage, charge the batteries at least once a month during storage.

- Store mower in a clean, dry place that is inaccessible to children. Do not store near any appliance that operates with flame such as a gas water heater, clothes dryer, or furnace.

NOTE: Do not leave the key in the mower during storage.

• If the mower must be stored outside, make sure it is covered completely to protect it from the elements.
• Keep away from corrosive agents such as garden chemicals and de-icing salts.

• For long periods of storage (2-3 months):

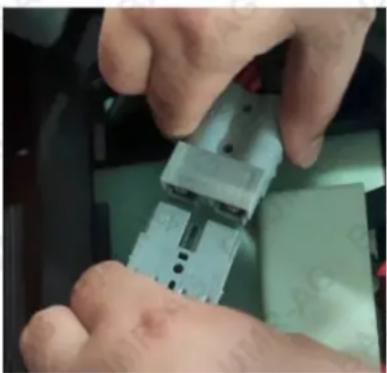

– Unplug the battery, as shown in the image below:

Close-up of hands assembling or adjusting a mechanical component (no visible text or symbols)

- Re-charge the battery every 2-3 months even if it is not being used. This will help the longevity of the battery.

Preparing For Use After Storage

The following steps should be taken before using the mower after it has been stored:

• Review maintenance chart.
• Fully charge the batteries.
- Check tyre pressure and inflate as needed.
- Briefly drive the mower and check all systems and components to ensure they are functioning correctly.

Battery Removal and Preparation for Recycling

To preserve natural resources, please recycle or dispose of batteries properly. This product uses lead acid batteries. Local regulations may prohibit disposal in ordinary trash. Handle the battery. For battery recycling and disposal program information, please consult your local waste authority.

WARNING! Upon removal, cover the battery's terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery or remove any of its components. Lead acid batteries must be recycled or disposed of properly. Also, never touch both terminals with metal objects and/or body parts as short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury.

Troubleshooting

If these solutions do not solve the problem, contact your authorised service centre.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The key is inserted but the machine does not start.	1. The battery is too low.2. The charger is not unplugged.3. The key is not turned to the "ON" position.4. Poor connection of battery circuit.	1. Charge the battery.2. Unplug the charger.3. Turn the key to the "on" position.4. Check and clean the wiring connection.
The riding mower does not work when the forward pedal is depressed.	1. Parking brake activated.2. The machine is low on battery.3. The machine is malfunctioning.	1. Cancel the parking brake.2. Charge the machine.3. Contact authorised after-sales service centre for testing.
The riding mower cuts the grass unevenly.	1. Uneven tyre air pressure.2. The left and right height difference of the cutter head is too large.3. Worn or damaged blades.4. Weeds piled up in the cutter head.5. Mowing too fast.	1. Check and adjust the air pressure of the four tyres.2. Adjust the left and right height of the cutter head.3. Replace the blade.4. Clean the weeds from the cutter head.5. Reduce mowing speed.
The riding mower vibrates severely.	1. The riding mower vibrates severely.2. The motor shaft of the blade is bent.	1. Replace the blade.2. Stop the machine and remove the start key to check for damage. If damaged, contact an authorised after-sales service centre for repair.
The mowing effect is not good.	1. Side exhaust ducts or openings are blocked.2. Grass is wet.3. Mowing too fast.4. The grass grows too high.	1. Clean side exhaust ducts or openings.2. Wait until the grass is dry.3. Reduce mowing speed.4. Re-mowing the area where the grass is too high.
The blade stops working while mowing.	1. The position of the cutter head is too low.2. The battery is too low.	1. Increase the height of the cutter head.2. Charge the battery.
The blade does not start.	1. The battery is too low.2. The motor switch of the blade is not turned on.3. Operator is not fully seated.4. There are debris in the cutter head blocking the blade from working.	1. Charge the battery.2. Turn on the blade motor switch3. The operator is fully seated in the seat.4. Clean the bottom of the cutter head.
The blade does not work when retreating to mowing.	1. RMO button is not pressed.2. The motor switch of the blade is not turned on.	1. Press the RMO button to enter the backward mowing mode.2. Turn on the blade motor switch.
Riding mower cannot reach full speed.	The battery is too low. Charge the battery.
After the operator is not activate the parking brake and leave the operating seat, the blade continued to work.	The security system is not working properly.	Send the riding mower to an authorised service centre for inspection and repair.
The headlight does not turn on when the light button is pressed.	1. Headlamp is damaged.2. Wiring is damaged.	1. Replace the headlight.2. Check wiring, contact an authorised service centre.
The battery cannot be charged.	1. Battery is damaged.2. The charging cradle's wiring failure.3. The charger is damaged.	1. To replace the battery.2. Send the riding mower to an authorised service centre for inspection and repair.3. Replace the charge.

Error Codes

Error Code	Causes Possible Solutions
E01	The battery is not well connected, or battery reversely connected, or battery is damaged.	Check battery connection is correct.Check charger connection is correct.Check each battery is good.
E02	Abnormal AC Power Input (Voltage).	Check AC input cord is connected between charger and AC outlet.Make sure AC plug is tightly inserted into AC outlet.
E03	Charger High Temperature Protection.	Charger shuts down and enters protection mode due to charger/environmental temperature is too high. Please place the charger in a well-ventilated environment.Disconnect the charger and wait for 15-20mins before reconnecting for charging.
E04	Battery High Temperature Protection.	Charger will reduce current even stop charging to prevent the battery from overheating when battery temperature exceeds the preset value.When the battery temperature drops, the charger will restart automatically.
E05	Discharging activities during charging cycle.Battery low voltage detected during charging cycle.Output current is too high (E05 will reappear even after unit reset	Make sure no discharging activity during charging/operation.Reset charger (disconnect AC power and reconnect for a 2nd charge cycle).If E05 reappear within 10 minutes, please return charger to supplier for repairs.
E06	Battery Voltage is too high	Check and ensure that the correct output battery voltage is connected.
E07	Address declaration failure	Return to the supplier for repairs.
E08	Internal error in product	Return to the supplier for repairs.
E10	Relay Fault	Return to the supplier for repairs.
E11	Battery error (battery damaged or battery system error)	Replace battery.

Specifications

Motor	Brushless DC (1x 1000w drive motor, 2x 1200w blade motors)
Power output DC 48V
Battery 75Ah Lead Acid
Max run time*	90 mins (cutting), 15 hours (driving)
Charge time 12 hours
Cutting width 914mm/36"
Cutting height adjustment	7 position (38-114)
Max speed (forward) 8km/h
Max speed (reverse) 3km/h
Turning circle radius 41cm
Tyres	Pneumatic (13 x 6" front, 16 x 8" rear)
Noise level	101dB(A)
Input voltage	240V AC
Power Plug	Australian Standard
Certificate approvals CE, EMC

Note: Some Assembly Required
*Note: operation times are dependent on conditions.

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2022 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
