ADD4970 - Water dispenser PHILIPS - Free user manual and instructions

Product Type	Water Dispenser
Brand	Philips
Model	ADD4970
Dimensions (H x W x D)	90 cm x 30 cm x 30 cm
Weight	10 kg
Power Supply	220 - 240 V, 50/60 Hz
Heating Power	500 W
Cooling Power	100 W
Hot Water Capacity	2 L
Cold Water Capacity	1 L
Water Temperature Settings	Hot, Cold, Room Temperature
Child Lock	Yes
Energy Saving Mode	Yes
Descaling Interval	Every 3 months
Drip Tray	Removable, Dishwasher Safe
Water Tank Material	BPA Free Plastic
Safety Features	Overheat Protection, Anti Dry Boiling
Replaceable Parts	Water Tank, Drip Tray, Faucets, Filter
Repairability	User Replaceable Parts, Serviceable by Technician
Included Accessories	User Manual, Warranty Card

Frequently Asked Questions - ADD4970 PHILIPS

How do I descale the Philips ADD4970 water dispenser?

To descale, mix a descaling solution (citric acid or vinegar) with water according to the instructions, run the solution through the hot and cold cycles, then rinse with clean water. Repeat every 3 months.

How often should I change the filter?

The filter should be replaced every 6 months or when the water flow reduces. Use only Philips approved filters.

How do I activate the child lock?

Press and hold the child lock button for 3 seconds until the indicator lights up. To deactivate, press and hold again. This prevents accidental hot water dispensing.

Why does the water taste or smell unusual?

Unusual taste or smell may indicate the need for descaling or filter replacement. Also, ensure the water tank is cleaned regularly.

The dispenser is making a loud noise. What should I do?

Noise can be due to air in the system or a loose component. Run water to purge air, and check that all parts are securely in place. If the noise persists, contact Philips support.

Can I adjust the water temperature?

The dispenser has preset temperatures for hot, cold, and room temperature. Hot water is typically at 85 - 95 °C, cold water at 5 - 10 °C. There is no user adjustment.

How do I clean the drip tray and water tank?

The drip tray is removable and dishwasher safe. Clean the water tank with a mild detergent and rinse thoroughly. Wipe the exterior with a damp cloth.

What is the power consumption in standby mode?

In standby mode, the power consumption is less than 1 W. The energy saving mode reduces power when not in use.

How do I install the water dispenser?

Place the dispenser on a flat, stable surface near a power outlet. Ensure proper ventilation. Fill the water tank with clean water. Plug in and allow the water to heat/cool before use. Refer to the user manual for detailed steps.

What is the warranty period for the ADD4970?

Philips offers a 2 year warranty for manufacturing defects. Register your product online to extend warranty. Keep the purchase receipt.

USER MANUAL ADD4970 PHILIPS

Four Philips water dispenser units in a row, displayed against a white background (no text or symbols visible on the devices themselves)

User Manual 1-9

1 Main technical specification 1
2 Product overview 2
3 Indicator panel and switch 4
4 Instruction 5
-UV-LED light 6
5 Precautions 7
6 Routine Maintenance 8

7 Trouble shooting 8

8 Guarantee and Service 9

9 Packing list 9

1 Main technical specification

Model	ADD4962 ADD4964 ADD4970
Rated voltage	220V
Rated frequency	50Hz
Heating power	Low Power 170W / High Power 350W
Cooling power	85W
Hot water	≥90°C, 3.8L/h with high power, 1.8L/h with low power
Cold water	≤10°C, 2L/h
Environmental temp.	T
Coolant	R134a, 38g
Relative humidity	≤90%
Protection of anti-electric shock	I

2 Product overview

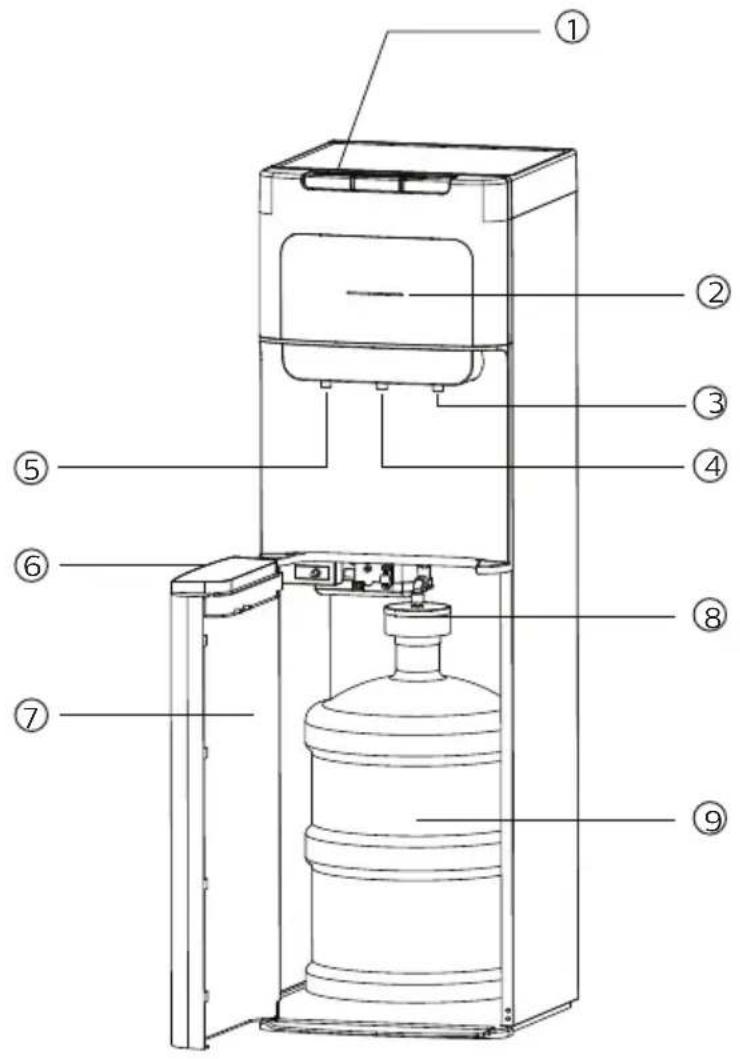

ADD4962 ADD4964

① LocnoldSedfietyt Doctor
② Indicator Panel
③ Cold Water Faucet
④ Ambient Water Faucet
⑤ Hot Water Faucet
⑥ Drip Tray

7
⑧ Water Bottle Cap with Hose
⑨ Water Bottle

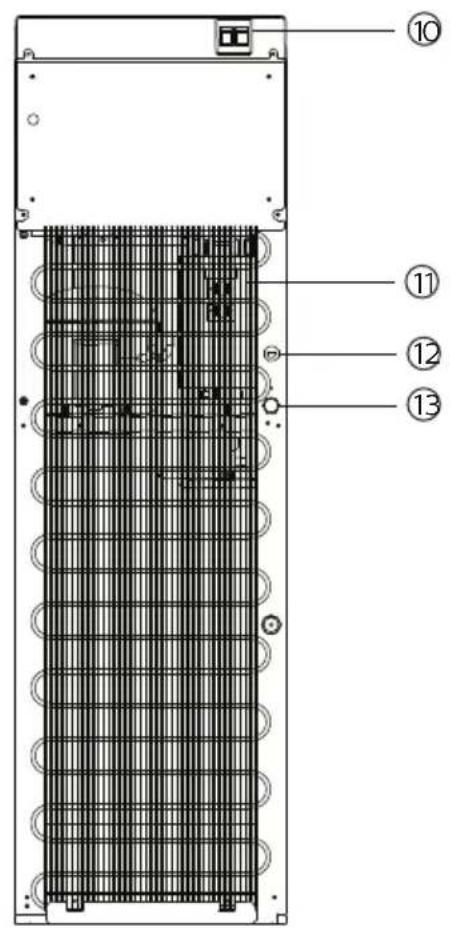

⑩ Power Switch
⑪ Condenser
⑫ Power Cord
⑬ Dispenser Flushing Drain

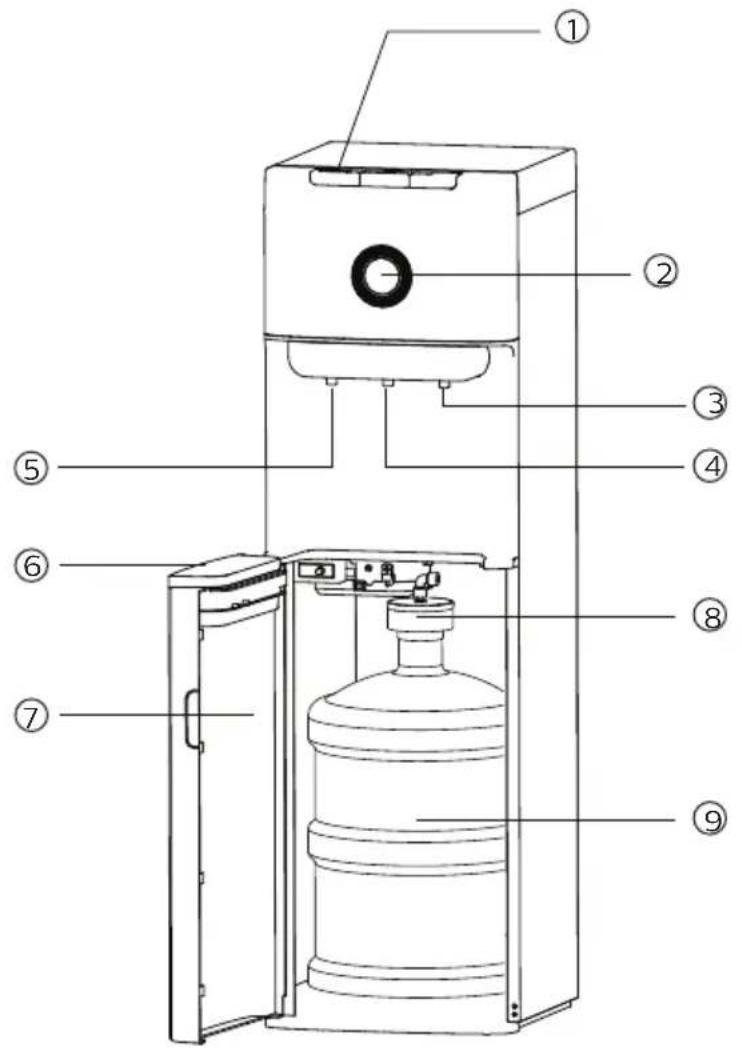

ADD4970

① LocneldSedfiertyt Doctor
② Indicator Panel
③ Cold Water Faucet
④ Ambient Water Faucet
⑤ Hot Water Faucet
⑥ Drip Tray

7
⑧ Water Bottle Cap with Hose
⑨ Water Bottle

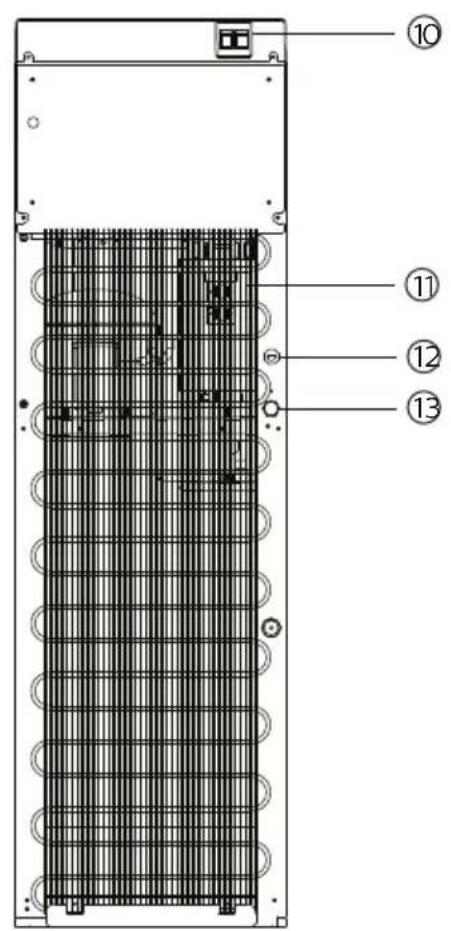

⑩ Power Switch
⑪ Condenser
⑫ Power Cord
⑬ Dispenser Flushing Drain

3 Indicator panel and switch

Power on indicator (applicable for ADD4962)

When the dispenser is connected with power and the power button switches on, the indicator will light up.

Heating indicator

When the dispenser is heating up the water in the hot water tank, the light will go on.

Cooling indicator

When the dispenser is cooling the water in the cold water tank, the light will be on.

Water shortage indicator

When there is no water in the bottle, the water shortage indicator will be on. Please replace with a new bottle.

UV working status indicator (applicable for ADD4964 and ADD4970)

When the UV sterilization is working, the UV working status indicator will light up. If there's malfunction with the UV, the light will flash to warn the user.

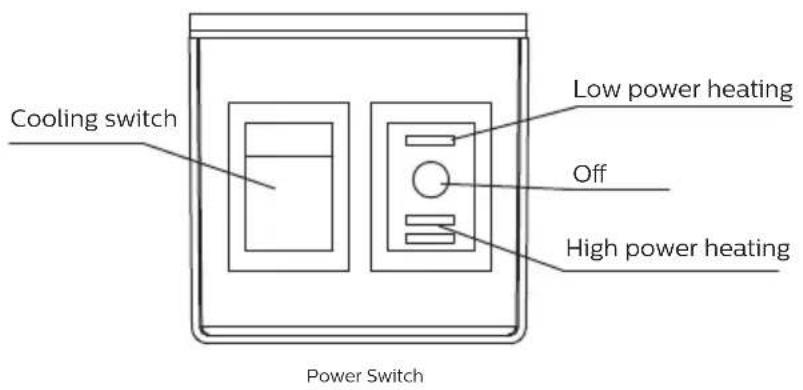

At the back of the dispenser there is a black switch which controls the heating power. You may press it to switch between high power, low power and OFF.

Every time when you plug in the water dispenser again, it will need some time for getting hot and cold water.

Turn the black heating switch to 'I', please wait for around 30 minutes for hot water; Turn the black heating switch to 'II', please wait for around 15 minutes for hot water; Turn the green cooling switch to 'ON', please wait for around an hour for cold water.

4 Instruction

(1) Unpacking the water dispenser

• Cut and remove the straps from the box. DO NOT turn the box upside down, or lay it on its side. The bottom of the box is separate from the top section. Lift straight up on the top box section to remove the top box section. Remove the Styrofoam packaging and plastic bag. Lift the water dispenser off the bottom of the bottom of the box. Wipe it clean if necessary.
• Place the machine on a hard, flat surface. Make certain the unit is leveled. The unit should not be placed near direct sunlight or other source of heat.
• It is best to place the water dispenser in an area with good air circulation. Make sure there is at least 4 inches (10cm) of space between the back of your water dispenser and the wall. Keep a minimum distance of 2 inches (5cm) on each side of your water dispenser.

Warning: the drain plug on the back of the unit may become loose during shipping. Fasten the drain plug tightly before you start to operate the unit. If the drain plug is loose, the unit may leak and cause floor damage.

(2) Settling water bottle

• Make sure the water dispenser is not plugged into an electrical outlet.
• Open the door of the lower cabinet.
• Place full water bottle on floor. Remove the plastic cover over the mouth of the water bottle.
• Place the stainless tube inside the bottle and place the water bottle cap firmly over the mouth of the water bottle.
• Attach the hose to the top of the cap using the quick connect system shown below*.
• Slide the bottle inside the cabinet and close the lower cabinet door.

* Your new water dispenser features an adjustable quick connect system. For proper operation, make sure the connector is sealed tight (Fig. 1);

The connector can be removed easily for cleaning with warm soapy water (Fig. 2);

The stainless steel tube can be adjusted up and down to accommodate both 3 gallon and 5 gallon water bottle (Fig. 3).

Technical line drawing of a mechanical component with a base and top, showing a vertical motion arrow (no text or symbols)

Note: If there is not a secure connection between the hose cap and the connector on the water dispenser, the water pump will operate but the water dispenser will not dispense water. Make sure the hose is connected to the water dispenser correctly.

(3) Dispense water

• Plug the water dispenser into a grounded power outlet. The unit will pump the water from the water bottle into the cooling and heating tanks.
• Slide the child safety lock to the left first, then press the hot water faucet until water flows out.
• Turn on the power switch on the back of the unit. The cooling or heating feature will start running. The indicator light will be on when heating or cooling function is working. Do not touch both switches during the time.
• Enjoy the hot or cold water you need.
• If you are not going to use hot water, turn the black heating switch to 'O'; if you are not going to use cold water, turn the green cooling switch to "OFF" to conserve energy.

Note: please wait until the water pump stops running before using the unit. If the water tank is not full, no water will dispense from the water faucet.

UV-LED light (applicable for ADD4964 and ADD4970)

The UV-LED light is installed in the cold water tank to kill the bacteria which may grow inside. It's controlled automatically by the software program once the dispenser is connected with power.

5 Precautions

Warning

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance.

• Do not let hot water touch bare skin. Keep combustible material such as furniture, bedding, pillows, clothes, and/or papers away from the back of the unit.
• Do not operate this, or any other appliance with a damaged power cord. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the outlet.
• Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away from high traffic areas, and do not submerge in water.
  · We do not recommend the use of extension cord as it may overheat and cause a risk of fire.

• Exercise caution and use reasonable supervision when the appliance is used by or near children.

• Do not use your water dispenser outdoors. Place the water dispenser away from direct sunlight and make sure that there is at least 4 inches (10cm) of space between the back of your unit and wall. Keep a minimum of 2 inches (5cm) on each side of your unit free.
  · Do not use this product to dispense anything other than water.

• To avoid a hazard due to instability of the appliance, it must be placed on even and flat surface.
• If the supply cord is damaged, please contact aftersales personnel to replace it in order to avoid a hazard.
  · This water dispenser must be positioned so that the plug is accessible.
• Disconnect the plug from the outlet when not in use.
• Remove power plug or disconnect from the main power source before servicing the appliance.

6 Cleaning and maintenance

· To avoid accidents, turn off and unplug the water dispenser from the outlet before cleaning.
- A soft damp cloth may be used to clean the surface of the water dispenser. When necessary, a mild detergent may be used. DO NOT use corrosive chemical solvents to clean the unit, as this may damage the surface of the water dispenser.
· DO NOT pour water on the exterior of the unit to avoid getting the internal electrical system wet. DO NOT immerse the unit in water when cleaning.
· The water bottle cap, hose, and drip tray may be washed in a dishwasher (top rack only).
- Keep the water dispenser 6 inches (15cm) away from the wall so it can work properly. Make certain all ventilation openings are clear of obstruction.
- Do not damage the heating or cooling system, paying particular attention to the black condenser or heating radiator on the back of the water dispenser.
- If you will not use the water dispenser for a long period of time, please unplug the power cord and drain the water dispenser. Drain the water from all faucets, then remove the drain cap on back and allow it to drain. Make certain the drain cap is fastened tightly when finished.

7 Trouble shooting

Trouble Possible causes Solutions
Unit does not dispense hot and cold water.	1. Unit is unplugged.2. Main power supply is off.3. Damaged water dispenser.4. The water bottle cap is not attached properly to the connector on the water dispenser.	1. Plug the power cord into an socket.2. Reestablish main power supply.3. Replace the dispenser or send for service4. Connect properly.
Unit does not dispense cold water.	1. Over consumption of cold water in a short time.2. System Malfunction3. The ventilation around the unit is insufficient.4. The temperature of water in the water bottle is too high. (When the bottle is exposed to direct sunlight for a long time.	1. Wait a moment for the water to cool.2. Contact aftersales personnel for support.3. Space the unit from the wall by more than 15 cm.4. Place the water bottle in a cool location out of direct sunlight.
Unit does not dispense hot water.	1. Over consumption of hot water in a short time.2. System Malfunctions	1. Wait a moment for the water to heat.2. Contact aftersales personnel for support
Water leaks from the faucet.	1. The top portion of the faucet has become loose.2. The faucet has been damaged.	1. Tighten the top threaded portion of the faucet.2. Contact aftersales personnel for support.
Water is dripping out of the water dispenser and onto the floor.	1. The Hose Connector is not connected properly or the inside hot or cold water tanks is leaking.2. The drain cap on the back is not fastened properly.	1. Make sure the hose connector is properly connected. Contact dealer if a water tank is leaking2. Tighten the drain cap. If the sealing silicon material inside the drain cap is torn or damaged, then replace with a new one.
The water being dispensed has a strange taste.	This is not uncommon with new water dispensers. Do not worry, this is not dangerous to your health. This water dispenser is FDA approved.	Clean the hose in the dishwasher (top rack only) or let it soak in dish soap. The strange taste usually goes away after the first bottle has been used up.

8 Guarantee and Service

This product includes a two-year warranty for the dispenser and five-year warranty for compressor from the date of purchase. For more details about warranty conditions, please refer to the warranty information in the box. If you need more information, please visit: www.Philips.com.

Within the warranty period, you will receive free warranty service for any damage caused by the manufacturing process or components under normal operation confirmed by our maintenance service.

The warranty service does not include frequent replaced consumable components (water purifier filter, pitcher filter, granular activated carbon, ion exchange resin, hollow fiber membrane, etc.), auxiliary devices, transportation fee and door-to-door service.

Please show the proof of purchase to the service personnel during maintenance.

You cannot receive free warranty service under the following conditions:

1. Damage by improper operation, such as improper components connection, improper installation, deprived of manual use, misoperation.
2. Negligence and damage because of transportation or other accident.
3. Maintenance and modification without approval.
4. Other damage caused by force majeure (such as natural disaster, abnormal voltage, etc.).
5. Damage caused by general use outside home (e.g. industrial and commercial use).
6. Aging, wear and tear caused by normal operation of the product without affecting normal operation of the product.

This statement serves as a publicity for free maintenance within the specified time limit and conditions, and does not limit the legal rights of consumers.

9 Packing list

Water Dispenser	1x
User Manual	1x
Warranty Card	1x

Please keep this user manual for future reference.

Daftar Isi

①Piktunkapengabawakanak untuk air panas
② Panel indikator
③ Keran air dingin
④ Keran air normal
⑤ Keran air panas
⑥ Baki tetesan air

①Piktunkapengabawakanak untuk air panas
② Panel indikator
③ Keran air dingin
④ Keran air normal
⑤ Keran air panas
⑥ Baki tetesan air

Simple line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a spray gun with a lever and upward arrow (no text or symbols)

Register your product and learn more in the website link below: www.philips.com/welcome

Specifications are subject to change without notice

© 2020 AquaShield

All rights reserved.

The Philips trademark and the Philips Shield Emblem are registered trademarks

of Koninklijke Philips N.V. used under license.

This product has been manufactured by and is sold under the responsibility of Hong Kong AquaShield Health Technology Company Limited and Hong Kong AquaShield Health Technology Company Limited is the warrantor in relation to this product.

Rev B NOV 20

Diimpor oleh :

PT Akari Indonesia

Jl. Raya Waru No. 1, Waru - Sidoarjo, INDONESIA

Nomor Tanda Pendaftaran: I.6.AI5.02604.0919
