Product Type	13.3" Laptop
Model	K700 (KAL13K700PA)
Brand	Kogan
Operating System	Windows 11 Pro
Processor	Intel Celeron N4020 (1.1-2.8GHz)
Graphics	Intel UHD Graphics 600
RAM	4GB
Storage	128GB SSD (SATA 3.0 M.2 2280, expandable up to 1TB)
Display	13.3" HD LCD, 1366x768 resolution
Ports	USB 2.0 x1, USB 3.0 x1, Mini HDMI x1, USB Type-C (charging/data/video), 3.5mm audio, microSD card slot (up to 128GB)
Connectivity	Wi-Fi 802.11b/g/n/ac, Bluetooth 5.0
Camera	Built-in webcam
Audio	Dual 1W speakers with 3.5mm audio port
Battery	5000mAh lithium-ion polymer, 12V 2A adapter
Dimensions	315.9 x 214.3 x 17.4 mm
Weight	1.26 kg
Power	12V 2A DC input via USB Type-C port
Special Features	QWERTY keyboard with function keys, trackpad with gestures, SSD expansion slot
Cleaning	Use dry soft cloth; power off before cleaning
Safety	Do not expose to liquids, extreme temperatures, or magnetic fields; use only original battery
Warranty	See warranty card included; support at help.kogan.com

Frequently Asked Questions - K700 Kogan

How do I charge the laptop for the first time?

Plug the power adapter into the laptop's USB Type-C port and then into a power outlet. Charge for at least three hours before first use. The charging indicator will show red.

What should I do if the laptop does not turn on?

Ensure the battery is charged. If still off, press and hold the power button for several seconds to force shut down, then press again to turn on. If unresponsive, charge for at least an hour.

Can I upgrade the storage?

Yes, the laptop has an SSD expansion slot for a SATA 3.0 M.2 2280 SSD up to 1TB. Ensure the laptop is off, remove the bottom cover, insert the SSD with contacts facing right, and secure with screws.

How do I connect an external monitor?

Use the Mini HDMI port with a Mini HDMI cable (not included) to connect to a TV or monitor. Alternatively, the USB Type-C port supports video output.

Why is the screen dark when unplugged?

This is due to power plan settings. Go to Control Panel, select Power Options, and adjust the plan to keep the screen on when running on battery.

How do I reset a forgotten password?

You can reset using a password reset disc via USB, reset your Microsoft account online, or perform a factory reset (which deletes all personal data).

What are the recommended charging conditions?

Use only the supplied 12V 2A adapter. Do not use third-party adapters. Charge in a dry, non-tropical area below 2000m altitude and temperatures under 45°C.

Can I use a USB 3.0 device in the USB 2.0 port?

No, the USB 2.0 port does not support USB 3.0 or newer. Use the USB 3.0 port for faster devices.

How do I clean the laptop?

Turn off the laptop and wipe with a dry, soft cloth. Do not use chemical detergents or liquids.

What should I do if Wi-Fi is slow or disconnects?

Restart your modem/router, move closer to the router, check the password, or disconnect and reconnect the Wi-Fi network. If the issue persists, restart the laptop.

USER MANUAL K700 Kogan

Black laptop with open keyboard displaying a blue abstract 3D ribbon design on screen (no text or symbols visible on the device itself)

ATLAS 13.3" CELERON K700 LAPTOP

WITH WINDOWS 11 PRO (4GB, 128GB)

KAL13K700PA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

• This laptop is suitable for use in non-tropical areas below 2,000 metres.
• The supplied power adapter requires 12V and 2A to charge the laptop. Do not use any third-party adapters to charge the laptop.
• Do not drop the laptop.
• Do not have the laptop strongly impacted by heavy objects or surroundings.
• Do not use the laptop for long periods in any environment where it is too cold, too hot (>45°C), highly humid or dusty.
• Do not expose the laptop to direct sunlight.
• Avoid using the laptop in areas with strong magnetic or static fields.
• Do not allow water or any other liquid to touch the laptop. If any water or other liquid splashes onto the laptop, close it immediately and unplug the power adapter. Do not use the laptop until it is completely dry.
• Do not attempt to modify or disassemble the laptop yourself.
• Regularly back up data stored in the laptop to avoid the risk of accidental data loss.
• Do not clean the laptop with any chemical detergents or other liquids to avoid causing damage.
• Replacing the laptop battery with the incorrect type may result in an explosion. Ensure to only use the original batteries. If further assistance is needed, contact help.Kogan.com.
• Images used in this user guide are for reference only.

COMPONENTS

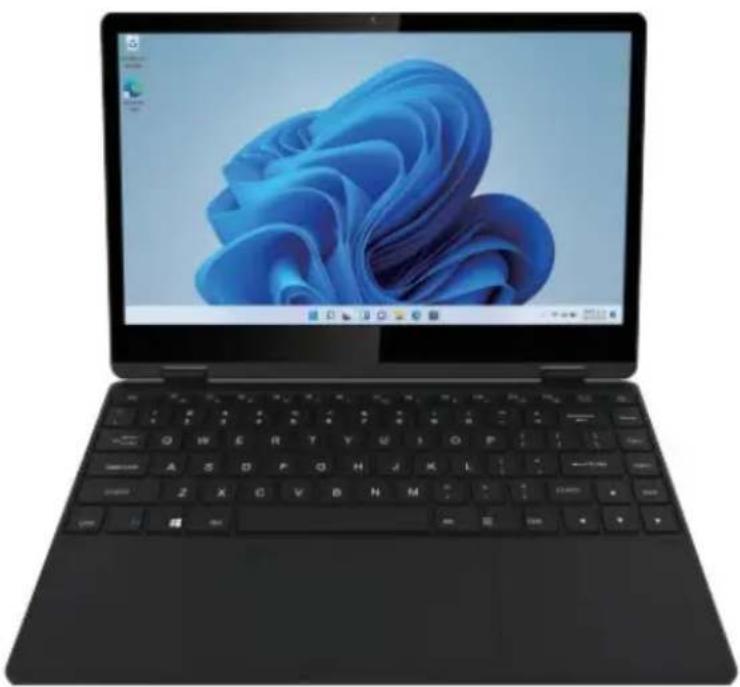

Black laptop with a blue abstract floral wallpaper displayed on its screen (no visible text or symbols on the device)

A Laptop

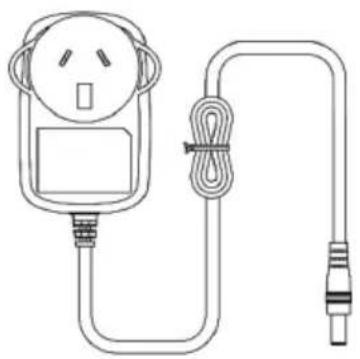

Line drawing of a simple electrical plug connected to a cable and plug (no text or symbols)

B Power adaptor

C User guide

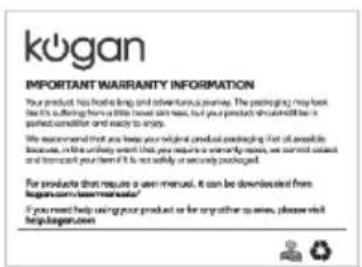

D Warranty card

OVERVIEW

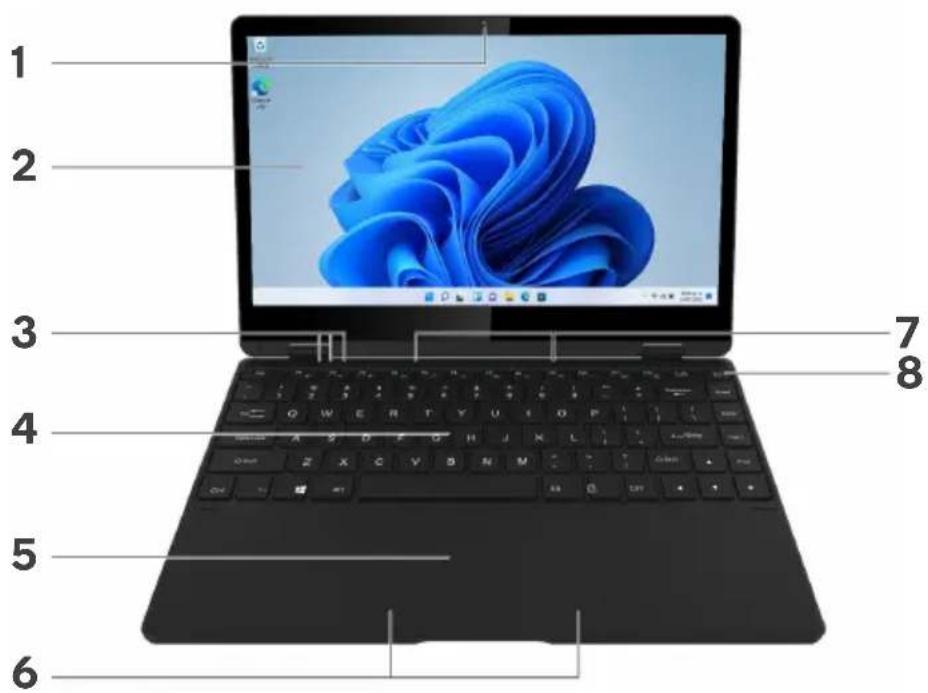

Front view

No.	Name	Description
1	Camera	Used for photos, recording video and video calls
2 Display HD LCD display panel
3 Indicator lights		These respective indicators will illuminate when the laptop is powered, or when the caps lock or touchpad lock is used.
4 Keyboard		QWERTY keyboard with Windows key and function options (for example, press F2 to mute audio playback)
5	Trackpad	Used as a mouse for on-screen navigation and gestures
6	Left/right trackpad buttons	Used as the left and right-click buttons of a traditional mouse
7 Microphones		Built-in microphones can be used to record audio and interact in video calls
8	Power button	Used to control the power status of the laptop

Left view

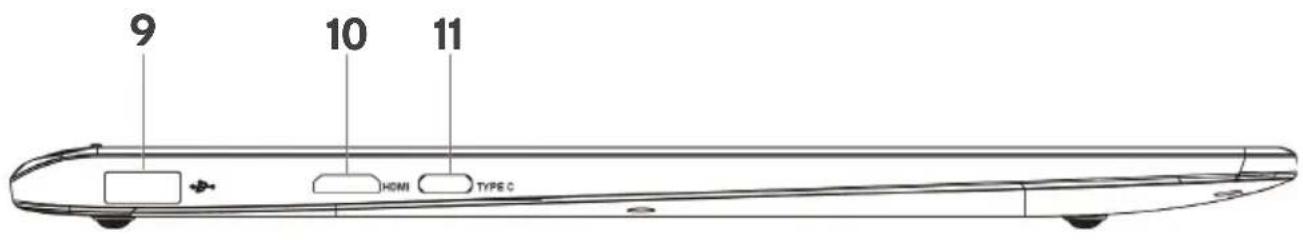

Right view

No.	Name	Description
9 USB 3.0 port		Input for flash drives, additional keyboard/mouse, and other compatible devices supporting USB 3.0 or older
10 Mini HDMI port		Suitable for connecting a TV or external monitor using a Mini HDMI cable (not supplied)
11 USB Type-C port		This port is used to charge the laptop with the provided adapterSuitable for connecting a device for data transferSuitable for connecting a monitor for video playback
12	microSD card slot	microSD card reader suitable for transferring files
13 3.5mm audio port		Suitable for connecting audio devices (for example, headphones, external speakers, amplifiers) using an AUX cable (not supplied)
14 USB 2.0 port		Input for flash drives, additional keyboard/mouse, and other compatible devicesThis port does not support devices using USB 3.0 or newer

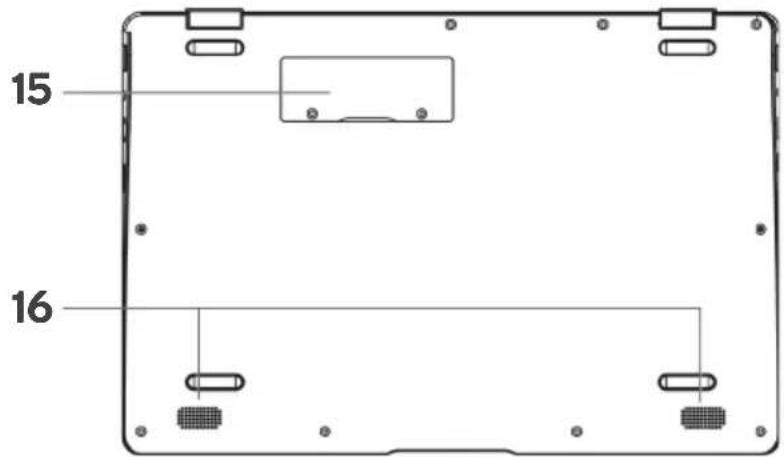

Bottom view

No.	Name	Description
15	SSD expansion slot	Expansion slot for internal storageThis laptop fits a SATA 3.0 M.2 2280 SSD with a maximum capacity of 1TB and is not compatible with other sizes
16	Speakers	Two built-in speakers allowing for stereo audio output

GETTING STARTED

Plug one end of the power adapter into the charging port then plug the other end into a power outlet. Switch the power on at the outlet.

The charging indicator should illuminate red.

Note:

Ensure to charge the laptop for at least three hours prior to turning it on for the first time.

Press the power button to turn on the laptop. When the laptop is turned on for the first time, you may be asked to set up Windows 11. Follow the on-screen prompts to complete the setup.

USING WINDOWS 11

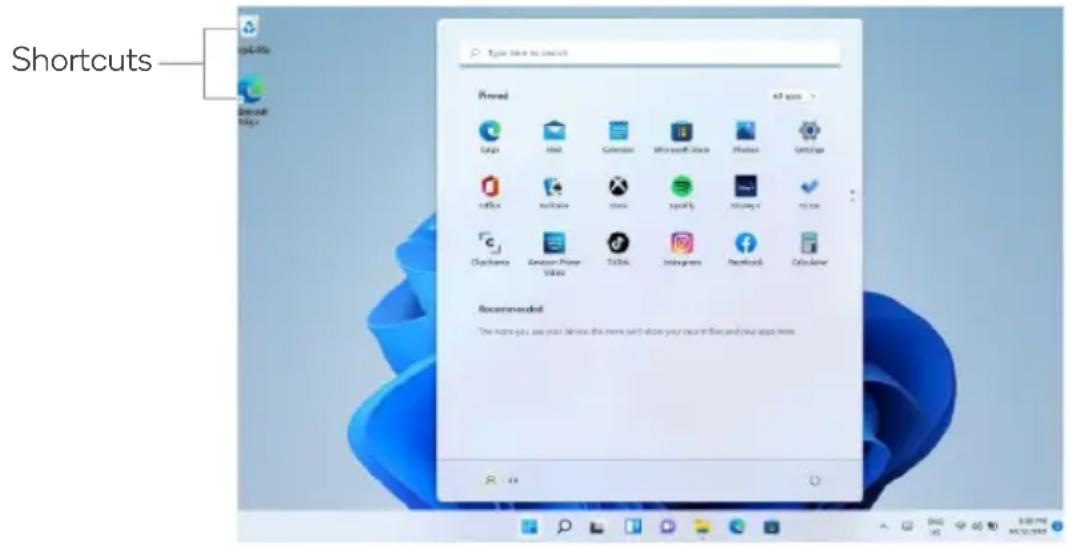

Desktop

Once setup has finished, the laptop will boot onto the desktop. There may be icons on the desktop. These act as shortcuts to access applications. They can be accessed by double-clicking on the shortcut.

Notes:

You may need to log into your Microsoft account for programs to run with full compatibility.

Start menu

Click on the Windows icon at the bottom of the screen to bring up the start menu.

Apps already installed on the computer can be accessed via the start menu.

Recently used apps will be listed under the ‘Recent’ heading in the start menu for easy access.

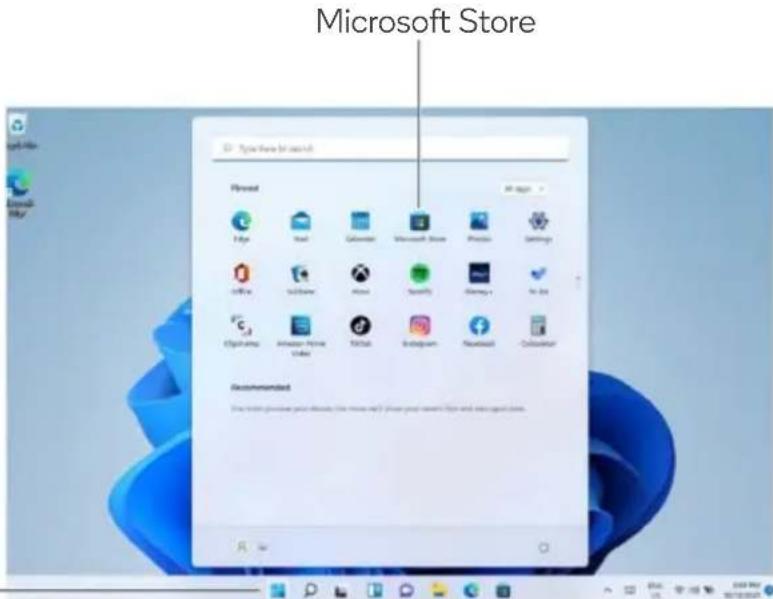

More apps can be installed via the Microsoft Store.

Windows icon

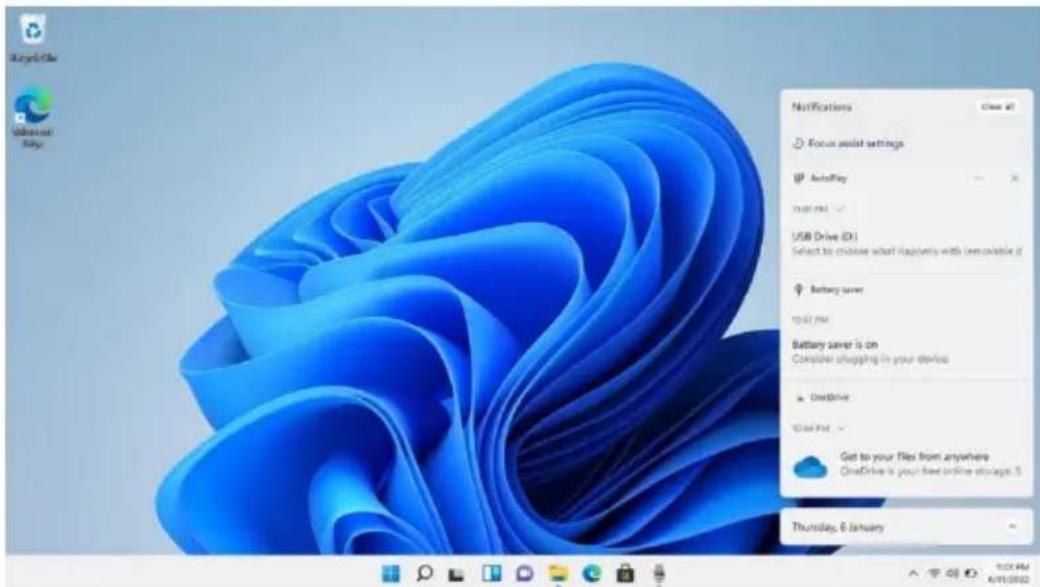

Notification menu

The notification menu is accessible by clicking on the time/date in the lower-right corner of the screen. It will show notifications such as updates, emails received, calendar reminders and allows for quick access to settings (for example, Wi-Fi, Bluetooth, brightness).

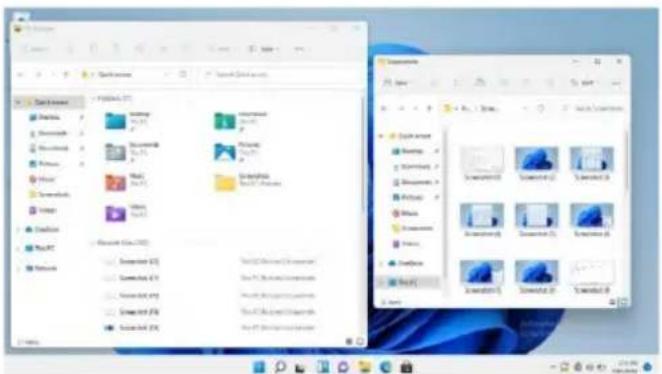

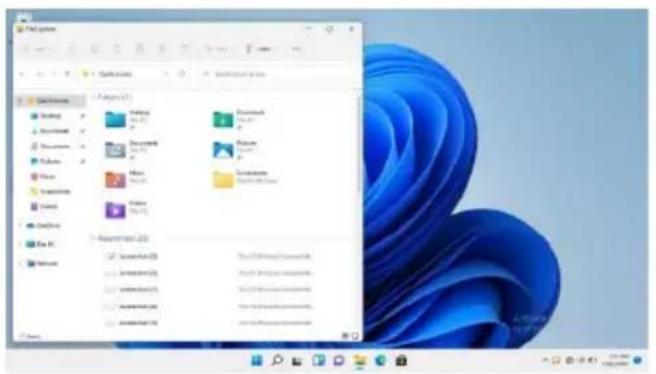

Multitasking

Drag one window to the left or right side of the screen and let go when you can see an overlay of the window around half of the screen. You can then select another open window to fill the free space on the other half of the screen.

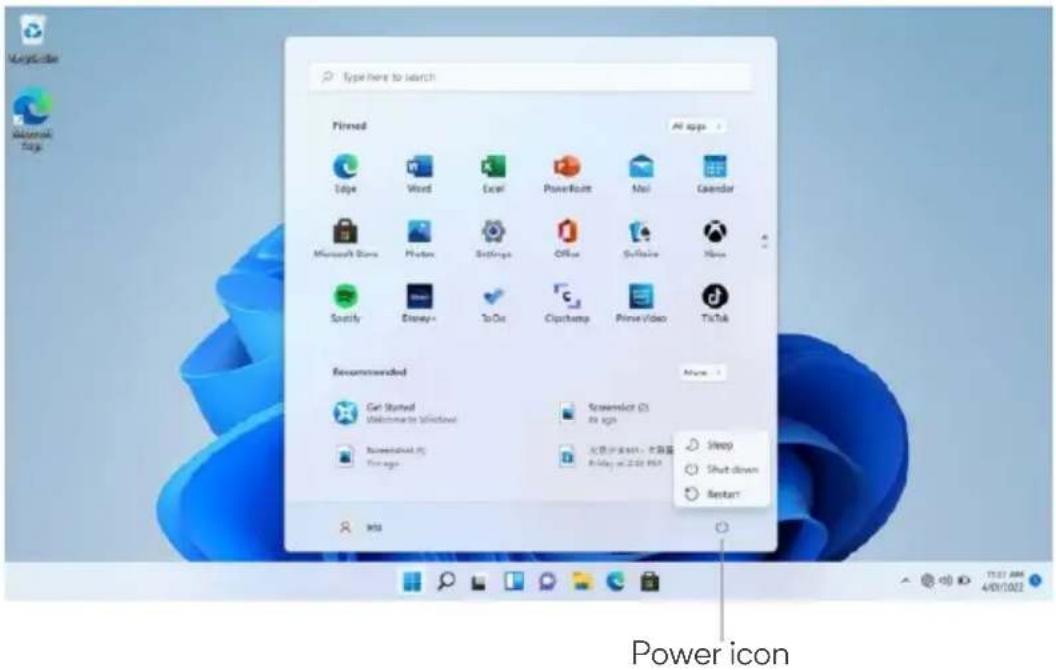

Sleep, restart and shut down

Click on the Windows icon on the bottom of the screen, then click on the power icon. Click on 'Sleep'. 'Restart' or 'Shut Down' to perform the appropriate action.

To wake the laptop from sleep, press the power button. If the laptop is unresponsive, press and hold down the power button to shut down the laptop. Press the power button again to turn the laptop back on.

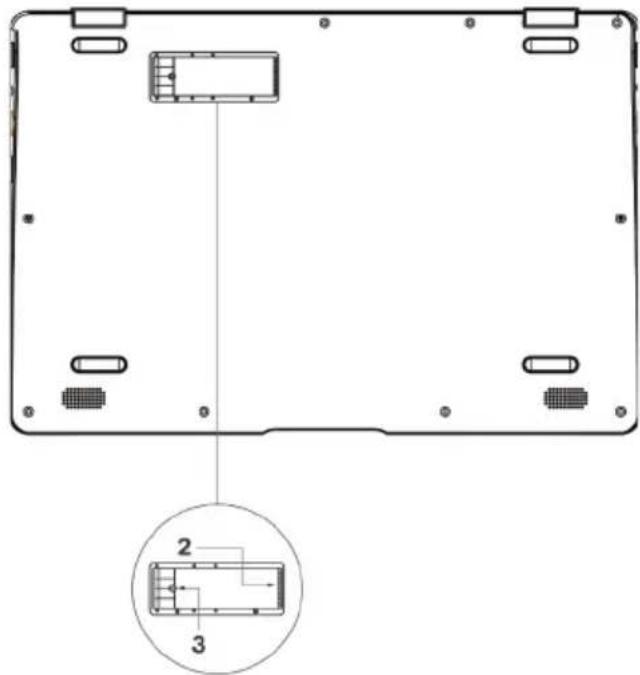

INSTALLING SSD

This laptop fits a SATA 3.0 M.2 2280 SSD with a maximum capacity of 1TB and is not compatible with other sizes.

Ensure the laptop is turned off before installing an external SSD (not supplied).

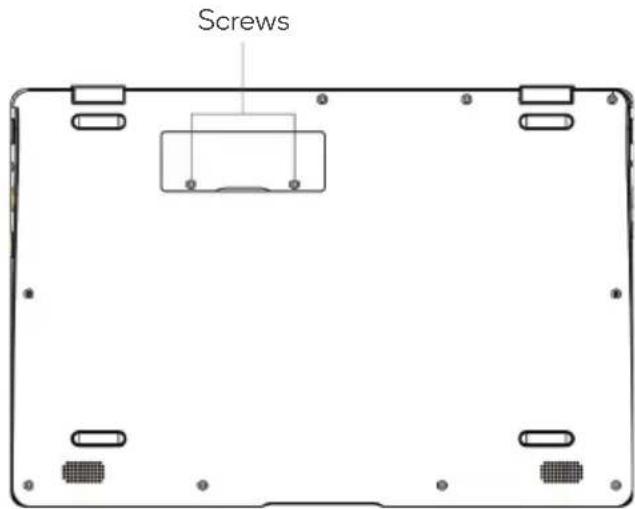

1. Flip the laptop over and remove the two screws holding the SSD cover in place. Remove the cover.
2. Place your SSD with the contacts facing right. This is where the contacts of the laptop are located. Slide the SSD to the right to install.
3. Use the existing threading to screw the SSD into place.
4. Place the cover back into position and replace the screws removed from step 1.

Notes:

• Your SSD may be inserted with either side facing up, however, only one SSD orientation will function correctly with the laptop. If you are unable to detect your SSD with one orientation, try to change the orientation of the SSD to show the other side.
• Be careful not to damage the contacts.

TROUBLESHOOTING

The laptop is not turning on

• The battery may have depleted. Charge for at least an hour before attempting to turn the laptop back on.
• Note if any lights turn on or if any internal components (for example, fans) turn on

Notes:

If in storage for extended periods of time, it is recommended to periodically charge the laptop to keep the battery capacity high, as batteries naturally deteriorate and eventually die over time.

The laptop is not charging

Inspect the laptop, charging port, and power adapter for any physical damage. If damaged, stop use immediately and contact help.Kogan.com for assistance.

The laptop is not connecting to Wi-Fi

• Restart your modem/router or both if you have separate units
• Reconnect any range extenders that may be in use
• Restart the laptop
• Move the laptop closer to the modem/router
• Double-check that the Wi-Fi password is correct
• If you can connect to Wi-Fi but it is running very slowly or has a weak signal, disconnect the laptop from the Wi-Fi network and reconnect

The laptop screen becomes dark when the power adapter is unplugged

This will be occurring due to your power plan settings. Go to the Control Panel and change your power plan settings to allow the screen to remain on when the laptop is not charging/unplugged.

Forgotten password

There are several options to reset a Microsoft password.

• Using a password reset disc via USB
- Resetting the Microsoft account password online with another device
- Resetting Windows 11 back to the factory default. Be aware that doing this will delete all personal data stored on the laptop.

SPECIFICATIONS

Display
Screen size 13.3"
Screen resolution 1366 x 768
Performance
CPU Intel® Celeron® Processor N4020
CPU speed 1.1-2.8GHz
GPU Intel® UHD Graphics	600
Operating system Windows 11 Pro
RAM 4GB
Power
Battery capacity 5000mAh
Battery type	Lithium-ion polymer battery
Storage
Storage type SSD
Storage capacity 128GB
SSD slot SATA 3.0 M.2 2280
Ports
3.5mm audio port Yes
Mini HDMI x1, 1.4a
USB 2.0 x1
USB 3.0 x1
MicroSD card slot Yes, up to 128GB
Connectivity
Bluetooth Yes, V5.0
Wi-Fi Yes
Wi-Fi protocols	802.11b/g/n/ac
Audio
Speaker x2, 1W
Other
Dimensions 315.9 x 214.3 x	17.4mm
Weight 1.26kg
Built-in webcam Yes

CLEANING & CARE

Ensure the laptop is switched off before cleaning.

Wipe the laptop surface with a dry, soft cloth or paper towel.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
