INTRODUCTION

Thank you for choosing our new Tablet PC.

This guide serves to enable users to get to know the features of the Tablet PC as quickly as possible.

CONTENTS

Precautions before Use 3

Key Layout and Definitions.... 4

Key Descriptions and Applications.... 5

Introduction to Desktop....6

Windows 10 Start Screen 6

Image Slide Application 6

Apps Introduction....8

Start menu 9

Multitasking operating interface....10

Basic Operations 11

Sleep, Restart, and Power off 11

• This production is suitable for use in non-tropic areas below 2,000 meters, and the mark in the nameplate indicates the product is suitable for use in non-tropic areas.
• Do not drop or shake the Tablet PC.
• Do not use the Tablet PC in extreme temperatures, or in humid or dusty environments. Do not expose the Tablet PC to sunlight.
• Avoid use of the Tablet PC near strong magnetic fields as much as possible.

- Once any water or other liquid splashes onto the Tablet PC, turn it off immediately and do not use until it dries out.

• Do not clean the Tablet PC with any detergent containing chemical element or other liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary, clean with dry soft cloth
• Kogan.com does not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal software and hardware operation, maintenance or any other accident.
• Please back up your important data to an external device regularly to avoid loss.
• Please do not disassemble the Tablet PC by yourself; doing so will void the warranty.
• This product supports the majority of 3G Dongles. We cannot guarantee complete compatibility with all 3G Dongles.
• Quick Use Guide and software may be updated at any time. For updated software version, visit www.kogan.com
• Replacement with incorrect type batteries may cause explosion. Make sure to use original batteries.

KEY LAYOUT AND DEFINITIONS

Life at a glance Calendar Mail Project Spartan Play and Explore Music Video Xbox Photos Search Money Sports People News OneNote Get started Insider Hub Windows Feedback

1. Power button: Press to start or close the touch screen panel. You can also put the computer into sleep mode using this button or wake from sleep mode.
2. Sound-/sound+: Lower/raise volume.

Loudspeaker: The built-in loudspeaker enables you to hear the sound without having to connect external speakers.

1. Front CCD camera: take photos, and record pictures.
2. Windows key: Press to return to the Start screen.

CCD camera indicator: The CCD camera indicator will be on when the built-in CCD camera is used.

1. Movable base keyboard interface: This interface is magnetic, which is convenient for alignment and firmly linking the Table PC and the keyboard.
2. 3.5mm audio jack: This socket can transmit the audio signals of Tablet PC to external speakers or headphones.
3. Micro USB Interface: Access data from an external source via micro USB.
4. Mini HDMI Interface: High-Definition Multimedia Interface.
5. USB 3.0 Interface: For direct connections of USB drives, or a USB mouse or keyboard.
6. DC Indicator: Becomes brighter when charging.
7. Microphone: For recording audio.
8. Back CCD camera: take photos, and record pictures.
9. Micro SD card slot: The built-in storage card reader slot supports MicroSD and MicroSDHC format.

KEY DESCRIPTIONS AND APPLICATIONS

Life at a glance Calendar Mail Project Spartan Play and Explore Music Video Xbox Photos Search Money Sports People News OneNote Get started Insider Hub Windows Feedback

1. Movable base keyboard interface: This interface is magnetic, which is convenient for alignment and firmly linking the Table PC and the keyboard.
2. Keyboard group: The keyboard group provides full size QWERTY keyboard layout.
3. Touch Tablet: Used to control the cursor on the Tablet PC, with the same function as a mouse.
4. Left key
5. Right key
6. Base: Folding base of Tablet PC.

INTRODUCTION TO DESKTOP

Windows 10 start image

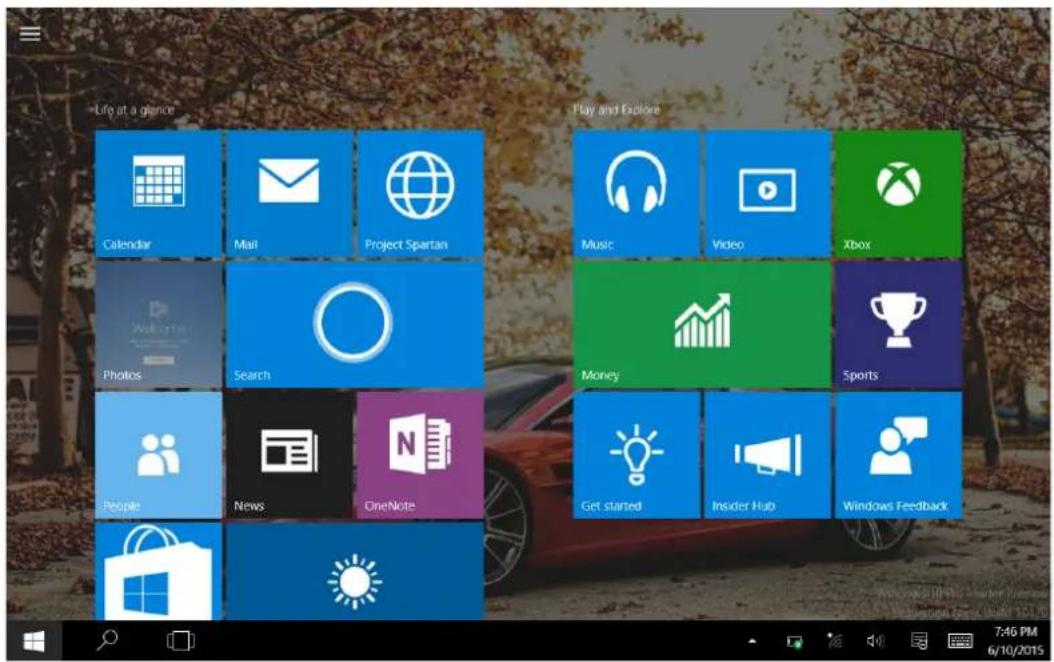

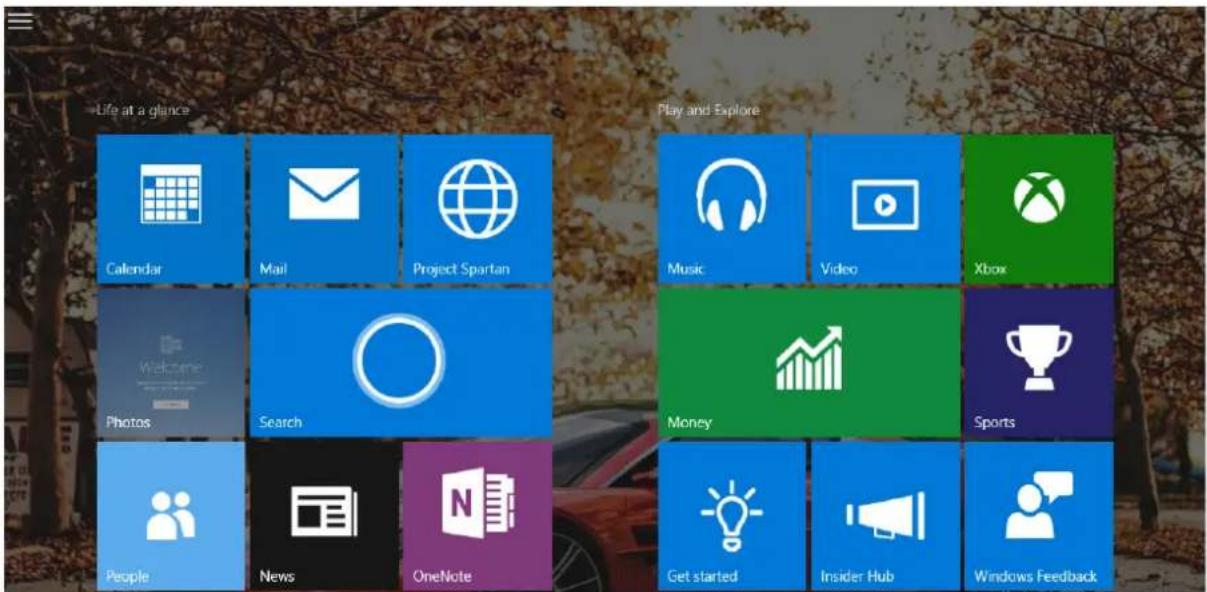

On the start screen, you will see many programs.

You may be prompted to log on to your Microsoft account before launching applications.

Life at a glance Calendar Mail Project Spartan Play and Explore Music Video Xbox Photos Search Money Sports People News OneNote Get started Insider Hub Windows Feedback 7:46 PM 6/10/2015

Image slide applications

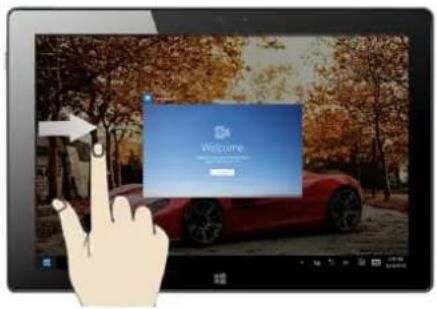

Slide to right

Welcome

Slide to the right from the left side of the screen to scan the application program in running.

Slide to left

No more notifications Hi less notifications

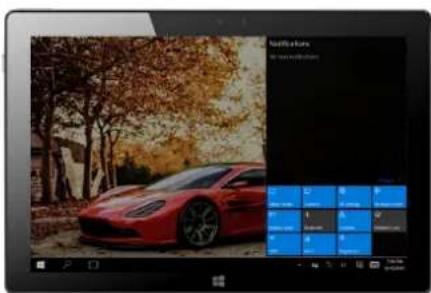

Slide to the left from the right side of the screen to setting Action Center.

Slide down

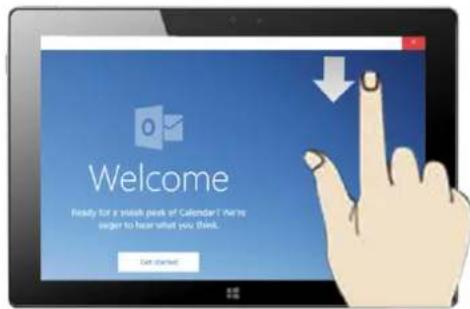

Welcome Ready for a smileh peak of Calendar! There's suger to hear what you think. Get started.

Slide up or down

Tablet screen displaying a grid of app icons with Chinese labels, including email, globe, and trophy, alongside a hand interacting with the screen.

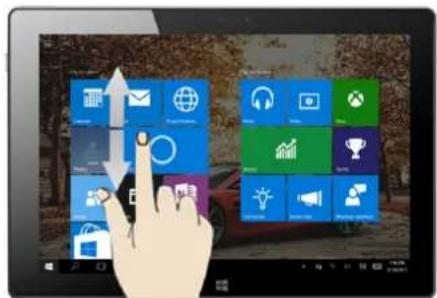

In start screen, slide from the top of the screen In start screen, slide finger up and down to view application programs to move the image.

Introduction to app Interface

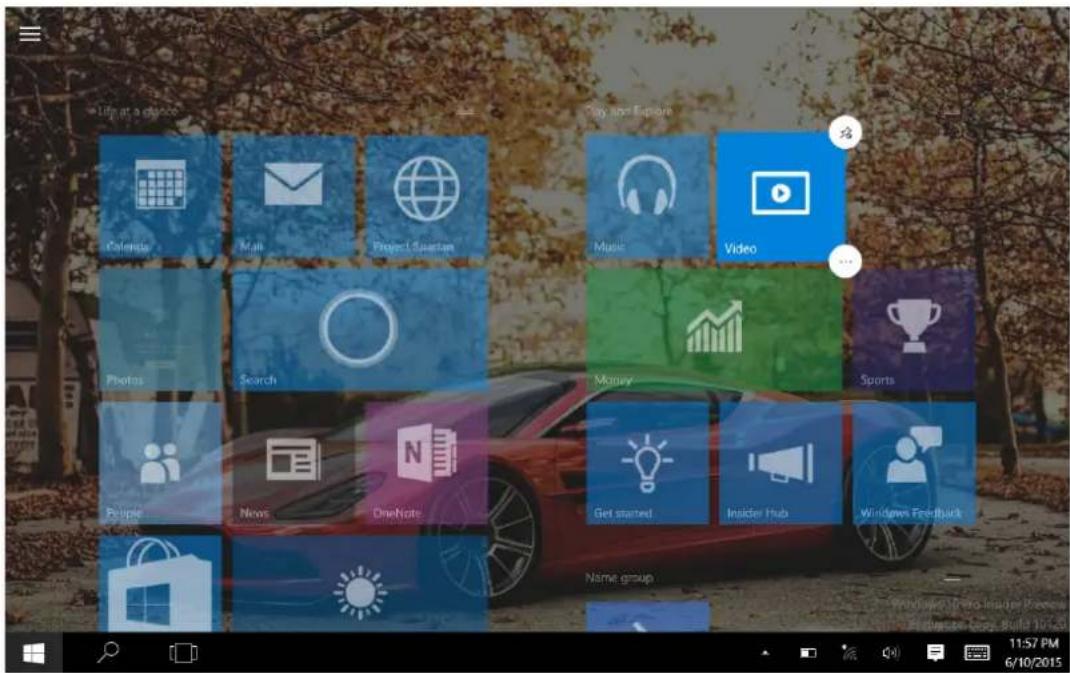

Besides the application programs already installed on the start screen, you can also start other application programs via the “All Applications” button, such as other software application programs installed on the Tablet PC.

Life at a glance Calendar Mail Project Spartan Music Video Xbox Photos Search Money Sports People News OneNote Get started Insider Hub Windows Feedback 7:46 PM 6/10/2015

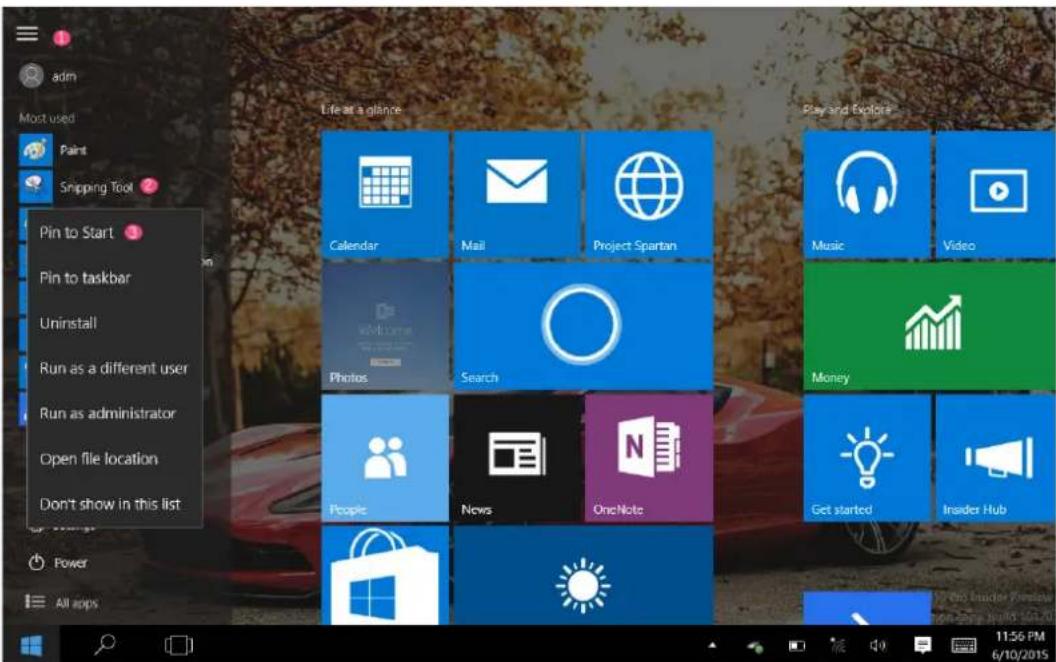

If you want to place more applications on the start screen, sfollow the instructions below, (1) Click the properties icon(2) press and hold the application program icon for about one second and then let go (3) Click the Pin to start.

adm Most used Paint Shipping Tool Pin to Start Pin to taskbar Uninstall Run as a different user Run as administrator Open file location Don't show in this list Power All apps Life at a glance Play and Explorer Calendar Mail Project Spartan Music Video Photos Search Money People News OneNote Get started Insider Hub 11:56 PM 6/10/2015

Conversely, if you want to cancel or delete a certain application in the start screen, (1) press and hold the application icon for about one second and then let it go and run, and select

Life at a glance Play and Explore Colorado Math Project Safari Music Video Photos Search Money Sports People News OneNote Get started Insider Hub Windows Feedback Name group 11:57 PM 6/10/2015

Start Menu

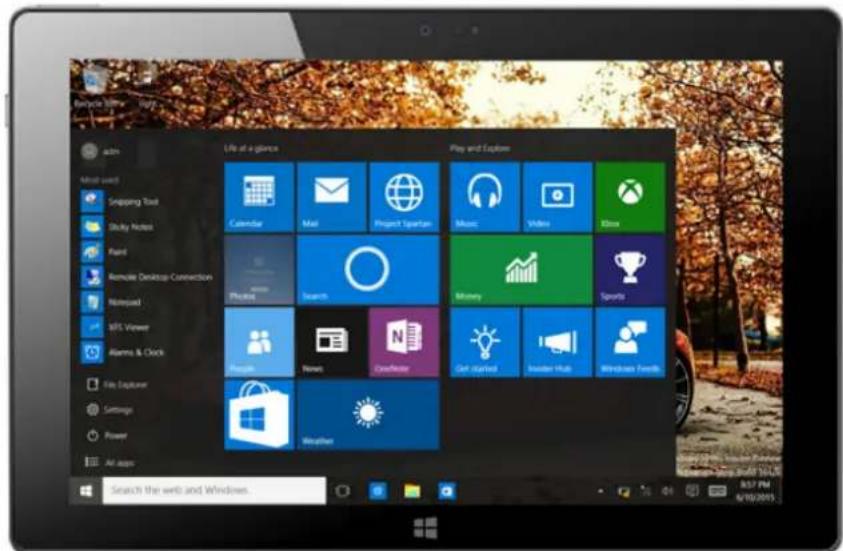

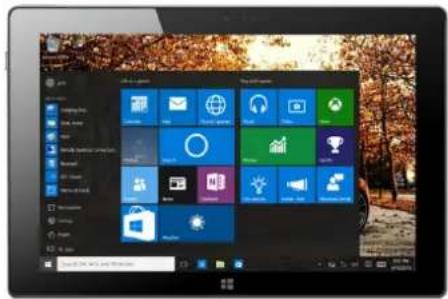

In PC mode, press Start icon, Start Menu will display, including: Start, Device, Setup, Share, and Search Program.

Bevacise Inside - Play Action About user Snipping Tool Dirty Notes Paint Remote Desktop Connection Hotspot MPS Viewer Alarms & Clock File Explorer Settings Power Air apps Search the web and Windows. Life at a glance Play and Explore Calendar Mail Project Sparkton Music Video Ibox Phone Search Money Sports Personal News Creditset Get Started Insider Hub Windows Tools

File Explorer, Settings, Power, and All apps

Can Sleep/Shut down/Restart the Tablet PC

Search for files and application programs in the Tablet PC.

Can let you set up the Table PC.

Can scan more apps

Search menu

Tablet displaying autumn maple leaves in a forest setting (no visible text or symbols)

Action Center

Screenshot of a video editing software interface showing a red sports car with autumn trees and a blue color palette panel.

Setup Menu

Screenshot of a macOS desktop with open Start menu and calendar interface displaying various app icons

Multitasking operating interface

Slide right from the left side of the screen, Let go when you can see the running applications. We can enter the application, also can be deleted.

Weather Forecast People Check your connection All bad! Select for you Welcome to the People App! Connect your connection to your connection to your connection to the People App! Add access Add Store (Beta) Check your connection All bad! Browse up 11:58 PM 6/10/2015

BASIC OPERATIONS

Sleep, Restart and Power Off

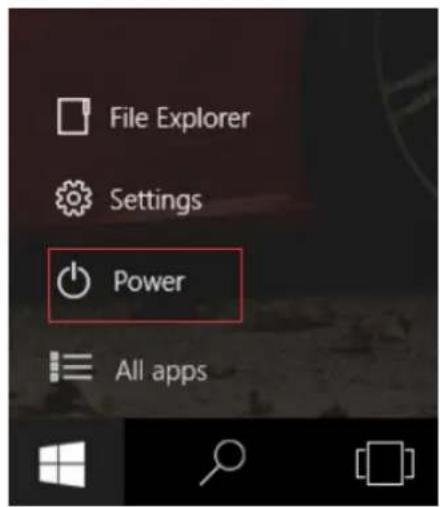

File Explorer Settings Power All apps

Sleep Shut down Restart
