USER MANUAL KAL11D700PA Kogan

Laptop screen displaying Windows 9.8 with open Start menu and desktop icons, showing 'Microsoft Teams' selected.

ATLAS11.6" HD CELERON L700 LAPTOP

WITH WINDOWS 11 PRO (4GB, 128GB)

KAL11L700PA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

• This laptop is suitable for use in non-tropical areas below 2,000 metres.
• The supplied power adapter requires 12V and 2A to charge the laptop. Do not use any third party adapters to charge the laptop.
• Do not drop the laptop.
• Do not have the laptop strongly impacted by heavy objects or surroundings.
• Do not use the laptop for long periods in any environment where it is too cold, too hot (>45°C), highly humid, or dusty.
• Do not expose the laptop to direct sunlight.
• Avoid using the laptop in areas with strong magnetic or static fields.
• Do not allow water or any other liquid to touch the laptop. If any water or other liquid splashes onto the laptop, close it immediately and unplug the power adapter. Do not use the laptop until it is completely dry.
• Do not attempt to modify or disassemble the laptop yourself.
• Regularly backup data stored in the laptop to avoid the risk of accidental data loss.
• Do not clean the laptop with any chemical detergents or other liquids to avoid causing damage.
• Replacing the laptop battery with the incorrect type may result in an explosion. Ensure to only use the original batteries. If further assistance is needed, contact help.Kogan.com.

CLEANING & CARE

• Ensure the laptop is switched off before cleaning.
• Wipe the laptop surface with a dry, soft cloth or paper towel.

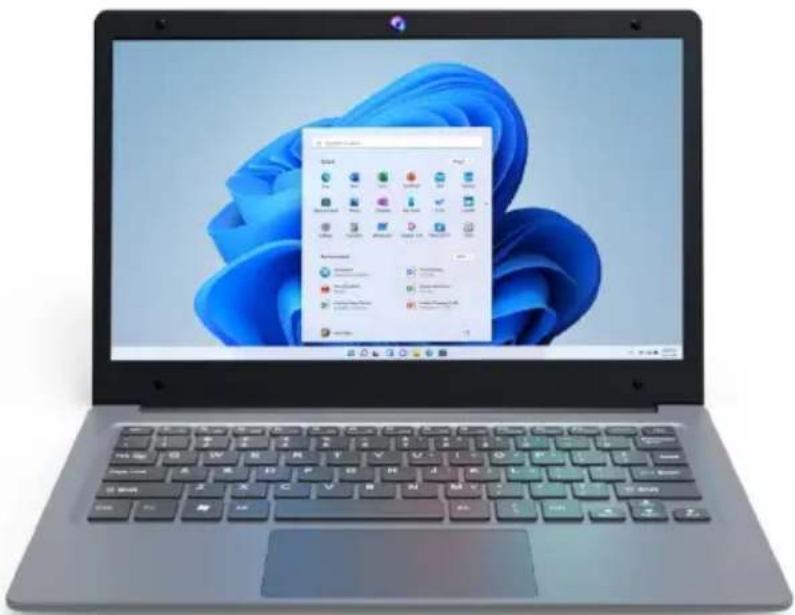

COMPONENTS

Laptop screen displaying a Windows desktop with the Start menu open, showing the 'Microsoft Teams' logo and system icons.

Laptop

Line drawing of a power meter connected to a cable and plug (no text or symbols)

Power adapter

USER GUIDE kdigan.com ATLAS 11.6" HD CELERON L700 LAPTOP

User guide

Kogan IMPORTANT WARRANTY INFORMATION You would be providing a long and short-term planning. The product is now full that's 10% trading from an 2000 retail week, but you should do not be in presented together with money to buy. You want to help you keep your products purchasing 10% of the product in excess, if you need to pay for you, then you can't only pay the next quarter and make your product if it's not willing to be usually priced For a purchase there are an offer, we can be determined from In addition to this product. If you need help you buy your product or for the other parties, please read http://www.kogan.com

Warranty card

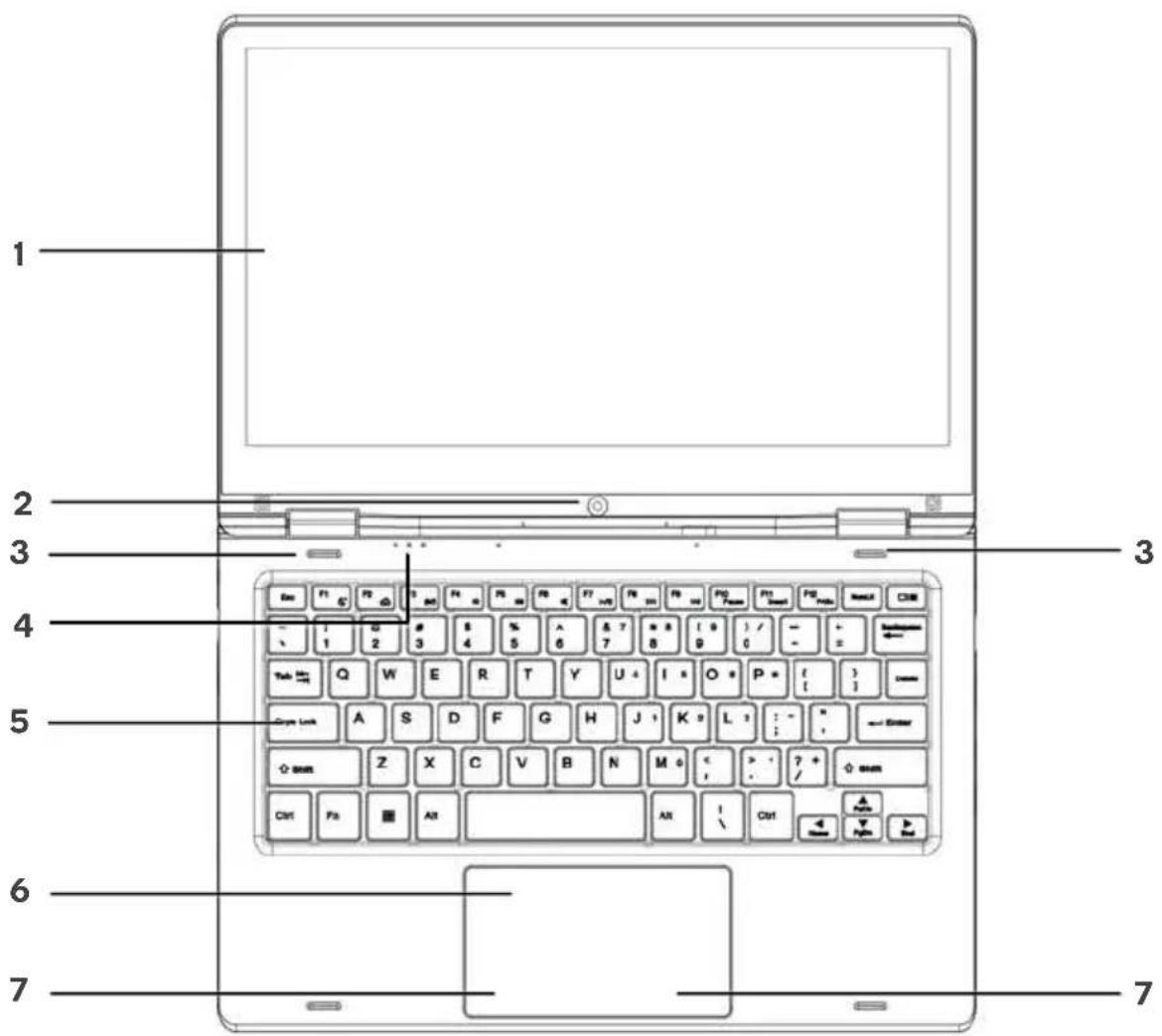

1 2 3 4 5 6 7 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

No.	Name	Description
1	Display	HD LCD panel
2	Camera	Used for photos, recording video, and video calls.
3	Microphones	Built-in twin microphones can be used to record audio and interact in video calls.
4	Indicator lights	These respective indicators will illuminate when power, caps lock, or the digital key lock is used.
5	Keyboard	QWERTY keyboard with Windows key and function options (for example, press Fn + F5 to mute audio playback).
6	Trackpad	Used as a mouse for on-screen navigation and gestures.
7	Left/right trackpad buttons	Used as the left and right-click buttons of a traditional mouse.

Left side

DC 0.45 HDM Type-C 8 9 10 11 12

Right side

13 14 15 16

No.	Name	Description
8	Charging indicator	Illuminates red when the laptop is being charged.
9	Charging port	Plug the power adapter into the charging port to charge the laptop.
10	USB 3.0 port	Input for flash drives, additional keyboard/mouse, and other compatible devices supporting USB 3.0 or older.
11	HDMI port	Suitable for connecting a TV or external monitor using a mini HDMI cable (not supplied).
12	USB C port	Suitable for connecting a device for data transferSuitable for connecting a monitor for video playback
13	Power button	Used to control the power status of the laptop.
14	microSD card slot	microSD card reader suitable for transferring files.
15	USB 2.0 port	Input for flash drives, additional keyboard/mouse, and other compatible devicesThis port does not support devices using USB 3.0 or newer
16	3.5mm audio port	Suitable for connecting audio devices (for example, headphones, external speakers, amplifiers) using an AUX cable (not supplied).

Bottom view

Technical line drawing of a rectangular frame with mounting holes and bolt holes, no text or symbols present

No.	Name	Description
17	Speakers	Two built-in speakers allowing for stereo audio output.

GETTING STARTED

Plug one end of the power adapter into the charging port then plug the other end into a power outlet. Switch the power on at the outlet.

The charging indicator should illuminate red.

Note:

Ensure to charge the laptop for at least 3 hours prior to turning it on for the first time.

Press the power button to turn on the laptop. When the laptop is turned on for the first time, you may be asked to set up Windows 11. Follow the on-screen prompts to complete the setup.

USING WINDOWS 11

Desktop

Once setup has finished, the laptop will boot onto the desktop. There may be icons on the desktop. These act as shortcuts to access applications. They can be accessed by double-clicking on the shortcut.

Shortcuts Options here to search Planned All rights Log Mail Calendar Microsoft Style Product Settings Office Include Data Apache History Physics Amazon Power Video YouTube Instagram Facebook Options Recommended This is currently used your device, the world will also use your network. This will also use your own

Note:

You may need to log into your Microsoft account for programs to run with full compatibility.

Start menu

Click on the Windows icon at the bottom of the screen to bring up the start menu.

Apps already installed on the computer can be accessed via the start menu. Recently used apps will be listed under the 'Recent' heading in the start menu for easy access.

More apps can be installed via the Microsoft Store.

Microsoft Store Typed here to search Printed Edge Auto Controller Microsoft Store Python Database Office Cataline iBox Spotify Chrome On Dis ClipChamp Amazon Prime Video T-Mobile Instagram Facebook Cablebox Recommended Find more you have your DISCIs. You can use Catebox your name? What is you want to store.

Windows icon

Notification menu

The notification menu is accessible by clicking on the time/date in the lower-right corner of the screen. It will show notifications such as updates, emails received, calendar reminders, and allows for quick access to settings (for example, Wi-Fi, Bluetooth, brightness).

Mac OS X Mouse Italy Notifications Clear all Focus assist settings AutoPlay 11:00 PM USB Drive (D3) Select to choose what happens with removable d Battery saver 10:37 PM Battery saver is on Consider plugging in your device. OneDrive 10:44 PM Get to your files from anywhere OneDrive is your free online storage. S Thursday, 6 January

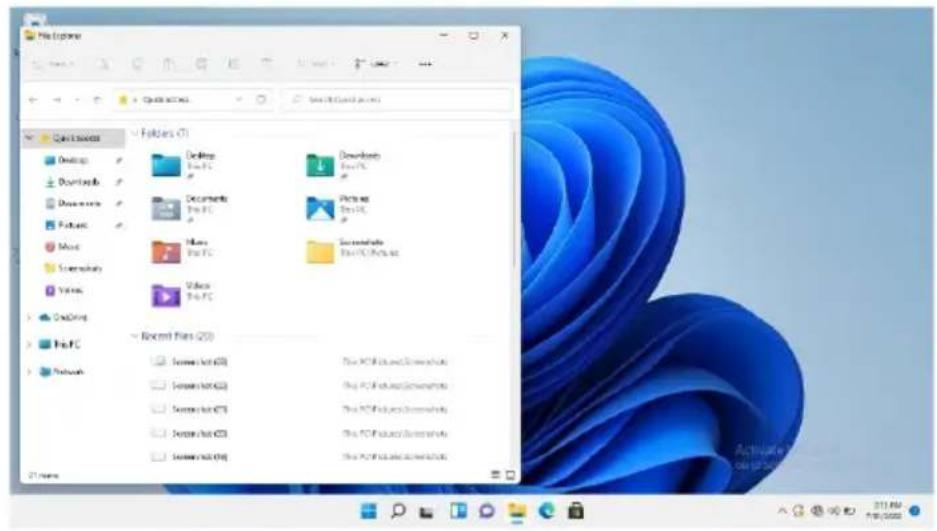

Multitasking

Drag one window to the left or right side of the screen and let go when you can see an overlay of the window around half of the screen. You can then select another open window to fill the free space on the other half of the screen.

File Explorer My Computer Windows 95 Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Quadrant My Computer Q30 My Computer Q31 My Computer Q32 My Computer Q33 My Computer Q34 My Computer Q35 My Computer Q36 My Computer Q37 My Computer Q38 My Computer Q39 My Computer Q40 My Computer Q41 My Computer Q42 My Computer Q43 My Computer Q44 My Computer Q45 My Computer Q46 My Computer Q47 My Computer Q48 My Computer Q49 My Computer Q50 My Computer Q51 My Computer Q52 My Computer Q53 My Computer Q54 My Computer Q55 My Computer Q56 My Computer Q57 My Computer Q58 My Computer Q59 My Computer Q60 My Computer Q61 My Computer Q62 My Computer Q63 My Computer Q64 My Computer Q65 My Computer Q66 My Computer Q67 My Computer Q68 My Computer Q69 My Computer Q70 My Computer Q71 My Computer Q72 My Computer Q73 My Computer Q74 My Computer Q75 My Computer Q76 My Computer Q77 My Computer Q78 My Computer Q79 My Computer Q80 My Computer

Sceninfo Sceninfo (1) Sceninfo (2) Sceninfo (3) Sceninfo (4) Sceninfo (5) Sceninfo (6) Sceninfo (7) Sceninfo (8) Sceninfo (9) Sceninfo (10) Sceninfo (11) Sceninfo (12) Sceninfo (13) Sceninfo (14) Sceninfo (15) Sceninfo (16) Sceninfo (17) Sceninfo (18) Sceninfo (19) Sceninfo (20) Sceninfo (21) Sceninfo (22) Sceninfo (23) Sceninfo (24) Sceninfo (25) Sceninfo (26) Sceninfo (27) Sceninfo (28) Sceninfo (29) Sceninfo (30) Sceninfo (31) Sceninfo (32) Sceninfo (33) Sceninfo (34) Sceninfo (35) Sceninfo (36) Sceninfo (37) Sceninfo (38) Sceninfo (39) Sceninfo (40) Sceninfo (41) Sceninfo (42) Sceninfo (43) Sceninfo (44) Sceninfo (45) Sceninfo (46) Sceninfo (47) Sceninfo (48) Sceninfo (49) Sceninfo (50) Sceninfo (51) Sceninfo (52) Sceninfo (53) Sceninfo (54) Sceninfo (55) Sceninfo (56) Sceninfo (57) Sceninfo (58) Sceninfo (59) Sceninfo (60) Sceninfo (61) Sceninfo (62) Sceninfo (63) Sceninfo (64) Sceninfo (65) Sceninfo (66) Sceninfo (67) Sceninfo (68) Sceninfo (69) Sceninfo (70) Sceninfo (71) Sceninfo (72) Sceninfo (73) Sceninfo (74) Sceninfo (75) Sceninfo (76) Sceninfo (77) Sceninfo (78) Sceninfo (79) Sceninfo (80) Sceninfo (81) Sceninfo (82) Sceninfo (83) Sceninfo (84) Sceninfo (85) Sceninfo (86) Sceninfo (87) Sceninfo (88) Sceninfo (89) Sceninfo (90) Sceninfo (91) Sceninfo (92) Sceninfo (93) Sceninfo (94) Sceninfo (95) Sceninfo (96) Sceninfo (97) Sceninfo (98) Sceninfo (99) Sceninfo (100)

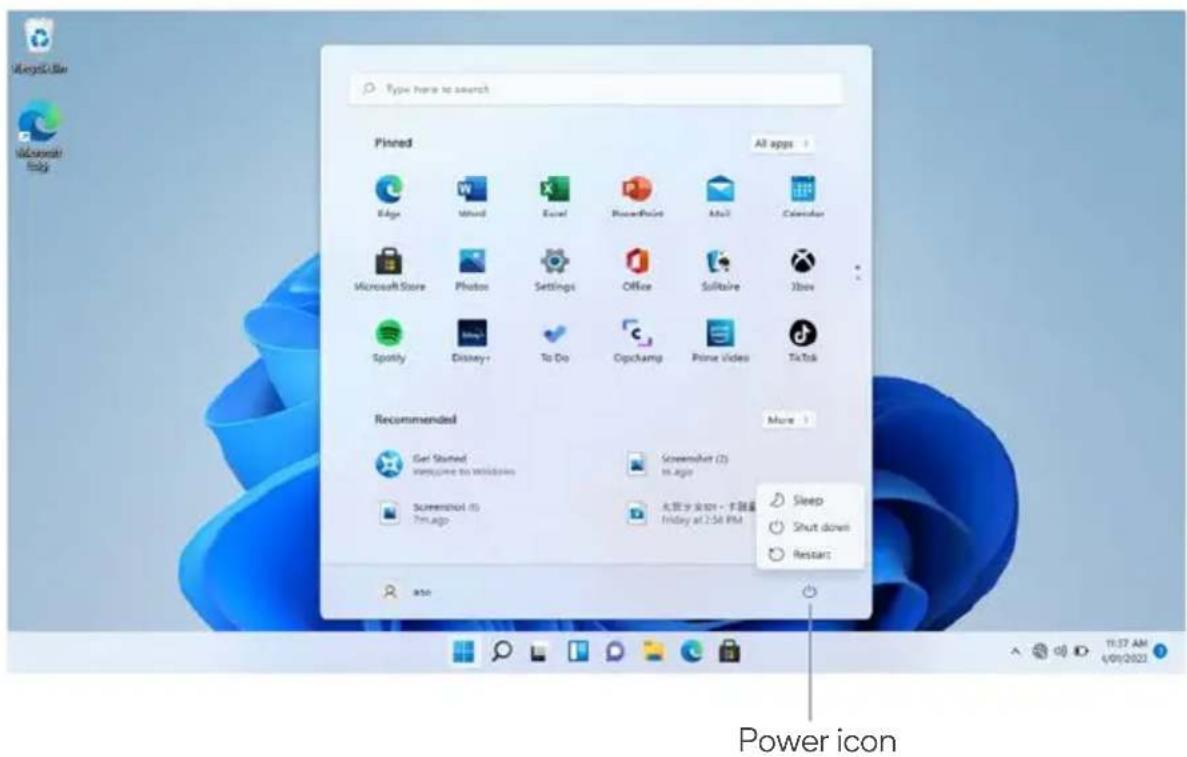

Sleep, restart and shut down

Click on the Windows icon on the bottom of the screen, then click on the power icon. Click on 'Sleep', 'Restart' or 'Shut Down' to perform the appropriate action.

Type here to search Pinned All apps Edge Wind Excel PowerPoint Multi Calendar Microsoft Store Photos Settings Office Suitable Ibox Spotify Disney+ To Do Opckamp Pone Video TikTok Recommended Get Started Welcome to Windows Screenshot (5) 7m ago Sleep Shut down Restart Power icon

To wake up the laptop from sleep, press the power button. If the laptop is unresponsive, press and hold down the power button to shut down the laptop. Press the power button again to turn the laptop back on.

TROUBLESHOOTING

The laptop is not turning on

• The battery may have depleted. Charge for at least an hour before attempting to turn the laptop back on.
• Make note if any lights turn on, or if any internal components like fans turn on.

Note:

If in storage for extended periods of time, it is recommended to periodically charge the laptop to keep the battery capacity high, as batteries naturally deteriorate and eventually die over time.

The laptop is not charging

Inspect the laptop, charging port, and power adapter for any physical damage. If damaged, stop use immediately and contact help.Kogan.com for assistance.

The laptop is not connecting to Wi-Fi

• Restart your modem/router, or both if you have separate units.
• Reconnect any range extenders that may be in use.
• Restart the laptop.
• Move the laptop closer to the modem/router.
• Double-check that the Wi-Fi password is correct.
• If you can connect to Wi-Fi but it is running very slowly or has a weak signal, disconnect the laptop from the Wi-Fi network and reconnect.

The laptop screen becomes dark when the power adapter is unplugged

This will be occurring due to your power plan settings. Go to the Control Panel and change your power plan settings to allow the screen to remain on when the laptop is not charging/unplugged.

Forgotten password

There are several options to reset a Microsoft password.

• Using a password reset disc via USB.
- Resetting the Microsoft account password online with another device.
- Resetting Windows 11 back to the factory default. Be aware that doing this will delete all personal data stored on the laptop.

SPECIFICATIONS

Display

Screen size 11.6"

Screen resolution 1366 x 768

Performance

CPU Intel® Celeron® Processor N4020

CPU speed 1.1–2.8GHz

GPU Intel® UHD Graphics 600

Operating system Windows 11 Pro

System memory (RAM) 4GB

Power

Battery capacity 4000mAh

Battery life 4 hours

Battery type Lithium-ion polymer battery

Storage

Storage capacity 128GB

Storage type eMMC

Ports

3.5mm audio port Yes

Mini HDMI x1, 1.4a

USB 2.0 x1

USB 3.0 x1

MicroSD card slot x1

Connectivity

Bluetooth Yes, V4.2

Wi-Fi Yes

Wi-Fi protocols 802.11b/g/n/ac

Audio

Speaker x2,1W

Other

Dimensions 329 x 219 x 22.8mm

Weight 1.26kg

Built-in webcam Yes
