USER MANUAL Infiny City AKAI

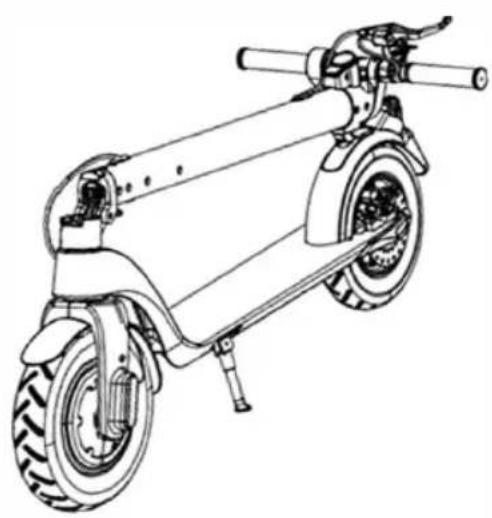

Line drawing of a fully electric scooter with visible wheels and suspension rod (no text or symbols)

Line drawing of a fully electric scooter with visible suspension and wheel (no text or symbols)

About the manual and warnings

• Thank you for choosing and purchasing our electric scooter series products!
- The manual introduces the safe operation instructions and precautions of the electric scooter. Please read them carefully before using them for the first time. If it is not used according to the manual, it may bring danger. Our company will not bear any responsibility for the personal injury or property loss caused by it!
- For the safety, please read the manual carefully before use to ensure correct and safe driving!
- If you have any questions in the use process, or cannot get the information you need from the manual, please contact your dealer in time!
• Protective helmet is strongly recommended.
- Stop using the product when damaged.
• Never use the product close to a water source.
- Do not use this product outside the space allowed by regulations.
- Children under 14 years old are not allowed to use this vehicle without careful supervision of an adult.
- People without experience, poor physical coordination ability, should learn to use the scooter together with a supervisor or instructor.
- It is forbidden to clean and maintain the product by children.

- Charging the battery will only be done by adults.

Warning!

Improper use can lead to serious body injury! The seller assumes no responsibility for injuries caused by improper use of the product!

⚠️ Please keep the manual properly for reference at any time!

1 Safety Notes

1.1 About safety

There's risk for any vehicle, including e-scooter. For your safety, please learn to ride safely and obey the local rules and enjoy the riding.

• Before riding the scooter, please check whether the fastening screws of the body are loose, and whether there are sharp edges on the exterior decorations and movable parts, whether the brake, vertical lever folding buckle, front and rear lights, and tire pressure are normal. If there is any abnormality, please stop riding and contact your dealer for repair!
• Please do not do anything that may harm other people or their properties with e-scooter.
• Any conversion of the e-scooter is prohibited as it will change its performance or damage the structure, which may bring serious injury.
• Please do not put the electric scooter in the water, which will not only damage the electric scooter, but also cause a safety accident.
• It is forbidden to attach any load to the handlebar, which will affect the stability of the vehicle.
• Avoid riding in areas with heavy traffic or overcrowded areas. Pay attention to giving way to pedestrians politely.
• Please don't lend the electric scooter to the user who hasn't read the manual to avoid accidents, because you have the responsibility to ensure the safety of new users!
• Electric scooter is only for users over 14 years old!
• Electric scooter is only for personal use, not for acrobatics or extreme sports!

- Only accessories or spare parts certified by manufacturer can be used for maintenance. Using spare parts not certified by manufacturer may damage the vehicle or cause danger!

1.2 Safety Precautions

Please note that you may lose balance, crash or fall down when you ride an e-scooter. To avoid injury, you should be familiar with this manual and keep the e-scooter in good condition.

Side-view line drawing of a person wearing a helmet and holding a device (no text or symbols)

WARNING!

You must wear a helmet and protective gear before riding.

Simple line drawing of a human figure standing with water spray, no text or symbols present

Do not ride on rainy days or over water roads to avoid danger.

Simple line drawing of a person standing on a road with a car nearby (no text or symbols)

Do not ride on vehicle road.

Line drawing of two people using electric scooters, one standing and one seated, both wearing helmets (no text or symbols)

It is forbidden add goods on the pedal except the rider. It is forbidden for many people to ride a scooter at the same time.

Line drawing of a person riding an electric scooter with a speech bubble showing wine and a glass (no text or symbols)

Do not ride after drinking or taking medicine.

Line drawing of a person riding a scooter (no text or symbols)

Do not call or listen to music when you ride the e-scooter.

Line drawing of a person riding a scooter with a 15-degree angle marker (no text or symbols on the figure itself)

Be careful of the road with roadblock, sandstone, ponding, mud, wet, ice and snow, slope (angle >15°) stairs, dark area when you are riding.

Do not park in the building foyer, evacuation corridor or safety exit.

Illustration of a person using a tire to adjust the wheel (no text or symbols present)

After riding for a long time, the motor hub and disc brake disc would be possible with high temperature. Don't touch them directly to avoid scalding.

2 Product description

2.1 Overall, View

Instructions of Buttons

1. Power Switch: Long press the power button to turn on/off.
2. Function key:

A: Short press the function key once: Cycle to switch gears.

Pedestrian mode: Gear indicator Ⓓ is not displayed. The pedestrian indicator flashes in breathing state. Normal mode: Gear indicator Ⓓ shows white.

Sports mode: Gear indicator D shows red.

B: Short press the function key twice: turn on / off the front and rear lights. When the front lights are on, the taillights are always on.

1. Accelerator: Press the acceleration button to start and accelerate.
2. Brake: Hold the brake handle to brake. Lightly step on the rear fender to assist the brakes.
3. Cruise mode: after the constant speed cruise function is turned on, maintain the current vehicle speed for 6 seconds (vehicle speed ≥ 6km/h). Enter the cruise mode automatically, and exit the cruise mode when pressing the acceleration dial again or holding the brake firmly

2.2 Pre-assembly instructions

Mechanical linkage diagram showing a lever and wheel with directional arrows (no text or symbols)

1. Pull up the lever while pressing down the rear wheel fender.

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

1. Raise the pole, Fasten the folding spanner.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Fix the brake lever with M5 hex wrench.

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

1. During riding, the fixed buckle may be loose. At this time, just need to adjust the screw with clockwise.

Mechanical diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

1. Tighten handlebars (Pay attention to the direction of rotation when tighten).

Line drawing of a single electric scooter with two wheels and a vertical suspension (no text or symbols)

2.3 Folding chart

Line drawing of a mechanical component with a handle and lever mechanism (no text or symbols)

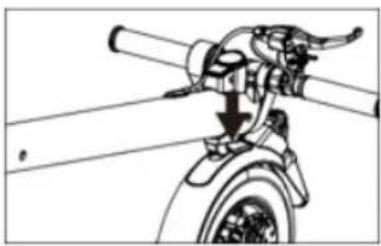

1. Pull the Fixed buckle up.

Mechanical component diagram showing a lever mechanism with a black arrow indicating rotation (no text or symbols)

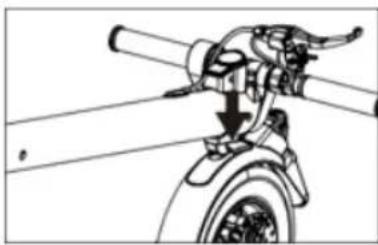

1. Pull down the folding wrench.

Mechanical assembly diagram showing a turning tool with a curved arrow indicating rotational motion (no text or symbols)

1. Open the folder wrench and lower the pole.

Line drawing of a fully electric scooter with wheels and suspension components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a rotating wheel and shaft (no text or symbols)

1. Align the hook with the hole of the rear fender and press down.

2.4 Battery's disassemble and assemble Instructions

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

1. Pull up and press the dashboard cover lock to open the cover.

Illustration of a cartoon astronaut holding a rocket launcher (no text or symbols)

1. Unscrew the battery cover.

Line drawing of a mechanical device with a knob and attached components (no text or symbols)

1. Unscrew the battery cover.

Illustration of a mechanical device with no visible text or symbols

1. Open the dashboard cover and battery cover.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

1. Align the battery groove with the groove in the pole and slowly put the battery inside(please pay attention to the groove direction)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Tighten the battery cover and push the dashboard cover lock down, complete the installation.
   Assemble

Disassemble

Line drawing of a scooter with wheels and suspension components (no text or symbols)

3 How to ride the E-scooter

Side-by-side line drawing of a person wearing a helmet and a foot with a bandage device (no text or symbols)

Please wear helmet, kneecap, elbow-pad when you learn to ride the scooter.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Long-press the power button for 2 seconds.

2. Stand on the pedal with single foot, press the acceleration dial, and push the other foot backward.

Line drawing of a person riding a scooter (no text or symbols)

1. When the electric scooter starts to slide, the other foot needs step on the pedal to keep stable riding.

Line drawing of a person using a scooter with a magnified inset showing the camera (no text or symbols)

1. Continue to press the thumb shifter to speed up, turn the grip to adjust the direction.

Illustration of a person using a scooter with an inset showing a cylindrical object (no text or symbols)

1. Hold the brake handle tightly to slow down and stop.

Line drawing of a person riding a scooter (no text or symbols)

1. When the scooter slows down and stops, put down one foot and get off the scooter normally.

1. Before getting familiar with the performance of the scooter, please do not ride at high speed to avoid accidents and dangers.

Note:

1. When riding in rainy and snowy days, the braking distance will be extended, so it is necessary to slow down;
2. When riding, please keep a proper speed and try not to brake in an emergency. When braking in an emergency, the grip of the tire will be weakened, and the car may slip swing, and other dangerous situations, which will cause serious injury to the rider!

4 Battery Instruction

This is about how consumers charge and maintenance, also hereby listed the detailed spec of battery for your info, please refer to this manual well and follow so as to keep long lifespan, performance for the battery.

4.1 Battery Parameters

Name	Parameter	Name	Parameter	Name	Parameter
Type	Li-ion battery	Working Temperature	0°C-35°C	Store Time (-10°C-40°C)	3 months (full charge)
Charging Time	3-4 hours	Charging Temperature	0°C-35°C	Initial Volume	6.4Ah
Voltage	36V	Max Charging Voltage	42V	Max Charging Current	2A

4.2 Warnings for battery

1. The battery must be charged and used within the temperature range required by the battery specification to make the electric scooter work stably and efficiently.
2. Please make sure you take off the charger when you install the battery to prevent any danger from happening.
3. It is never allowed to dissolve or impale the battery, also make sure NO metal stuff go contact with the battery pin electrode, otherwise it might break the battery.
4. It is forbidden to disassemble or pierce the battery pack casing to avoid short circuit caused by metal objects contacting the battery contacts, otherwise it may cause battery damage or personal injury.
5. It is potentially causing fire or explosion if water entering battery circuit, thus stop using the battery in case this happening and go to the after sale immediately.
6. You are only allowed to charge the battery with the original adaptor packed, otherwise it will be causing any unexpected consequence.
7. If finding the battery broken and smells bad or felt hot, you need to stop using and keep the battery away from other stuffs.
8. It helps prolong the lifespan if storing battery after 100% fully charged.
9. It is not allowed to store the battery under -20°C or higher 50°C condition.

10. You have to charge it to at least 80% capacity if battery not used more than 30 days. Better to charge it 100% full every 90 days to protect the battery function.

11. It will help prolong the battery lifespan significantly that you charge well accordingly to the manuals after every driving instead of running it out. At room temperature, the battery can play a higher range and performance. But battery life and performance will degrade if used at temperatures below 0°C. Typically, the range may be half or less than at room temperature at -10°C.

12. Do not charge and park electric scooters in residential buildings. Keep away from combustibles when charging, and the charging time should not be too long.

13. Improper disposal of used batteries may seriously pollute the environment. Please abide by local regulations when disposing of this battery.

When the internal temperature of the battery exceeds 50^ C, the battery is in a protected state and cannot be charged.

After fully charged, the electric scooter exhausts its stored power after about 90-120 days of standby. If it is not charged in time, it may cause damage to the battery due to excessive discharge. This damage is unrecoverable and it is beyond of our warranty

4.3 Charging steps

- Open the charging port cover, make sure the charging port is clean and dry.

- Connect the charger with the battery and the other end with power (100V-240V; 50/60Hz), make sure the charging indicator is on.

• When the indicator light on the charger changes, indicating that the charging process is normal, otherwise check if the line connection is good.
• When the indicator on the charger has color change, it indicates that the battery has been filled to 99%, Please stop charging; long time over charge will affect the battery life.

Charging method 1:

Line drawing of a scooter with attached cable and sensor, showing front wheel assembly and side view (no text or symbols)

Charging method 2:

Tips:

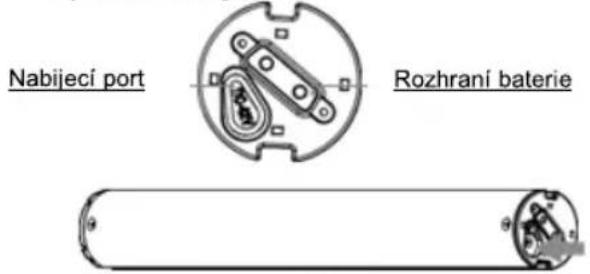

Remove the battery to open the silicone charging port, plug the charger DC plug into the battery charging port; plug the power cord into the charger, then connect the other port to the socket (100V-240V; 50/60Hz), and confirm the charger indicator is on normally. Cover the charging port with the anti-dust cap in case some metal may touch the charging port and bring short-circuit after charging finished.

Autonomy is tested in closed space, with a weight of 65-70Kg (person height 1.75m), constant speed of 20-25Km/h or eco mode, outdoor temperature 20-25 degrees, wind under 15Km/h and straight horizontal plane (no slope).

Keep the battery charge level above 10%.

If you don't use your electric scooter for a longer period of time, such as in the cold season, it is recommended and even mandatory to charge the battery every 3 months so that it doesn't run out completely.

For optimal safety, it is recommended to check the braking system and the proper fastening of the bolts the first time the scooter is used.

It is forbidden to use when the ground temperature is above 48^ C.

Imminent risk of explosion and battery ignition.

It is strictly forbidden for children to charge the battery!

5 Specifications

Item	8.5 inch	10 inch
Product
ScooterSpecification
Unfolded size	1070*400*1175mm	1080*400*1185mm
Folded size	1070*400*450mm	1080*400*460mm
Height from pedal to ground	110mm	115mm
Net weight	12.5kg	13kg
BasicInformation
Capacity	36V/6.4Ah	36V/6.4Ah
Moto power	350W	350W
Mileage per charge	15-25km	15-25km
Max speed	25km/h	25km/h
Max loading	100kg	100kg
Climbing angle	15°	15°
ChargerSpecification
Input voltage	100-240Vac	100-240Vac
Frequency	50-60Hz	50-60Hz
Output voltage	42V	42V
Output current	2A	2A
Store temperature	-10°C-35°C	-10°C-35°C

6 Maintenance

Maintenance considerations:

• Make sure the electric scooter charger and charging line are disconnected and ensure that the electric scooter is off.
• Wipe the shell with a soft cloth to clean the electric scooter. Please don't put more lubricating oil on bearing when you do the maintenance for it.
• It is recommended to check the tire pressure before driving to ensure driving safety. Tire pressure standard: 320kpa \~ 340kpa.
• Please check the brake system and tire are vulnerable parts at least once a month. When the brake performance and tire grip are reduced, please contact the dealer to replace the corresponding parts.
• Please do not replace the accessories which not provided by manufacturer without permission, to avoid the safety hazard caused by the inconsistency for accessories with the scooter.
• It is forbidden to clean electric scooters by using water cannon or soaking in liquid. This will cause permanent damage of the electronic devices in the host.
• In order to protect the user's safety, the user cannot take apart the electric scooter, otherwise, the user will give up the maintenance warranty rights of the product automatically.

7 Troubleshooting

Please contact the sales office or the dealer with no hesitate for repair when the electric scooter fails to ride normally.

Description of adverse phenomena	Solution
unable starting up	Check to see if the battery is powered
cannot charge	1. Check whether the plug board has electricity;2. Check the charger whether connect AC plug (the light whether is on);3. Check the plug of the charger and the charging port of the whole scooter has been inserted correctly.
No horn, no blue tooth signal	Check the Bluetooth switch whether turn on.

8 Package Content

E-scooter: 1PC

Charger: 1PC

Manual: 1PC

Screws & Wrench: 1set

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product or packaging means that the product should not be treated as household waste. Do not throw garbage at the end of its life, but take it to a collection center for recycling. In this way you will help to protect the environment and be able to prevent any negative consequences that it would have on the environment and human health.

To find your nearest collection center:

- Contact local authorities

- Access the website: www.mmediu.ro

- Request additional information from the store where you purchased the product.

Producer/Importer:

SC Intervision Trading RO SRL

Pitesti city, Bd. I.C. Bratianu street, no. 48-52, building A,

floor. 5, room 504-505,

Arges county, Romania,

Postal code: 110121

Phone: [phone]

Email: [e-mail];

www.akai.com.ro

AKAI

Infiny City

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Side-view line drawing of a person wearing a helmet and holding a device (no text or symbols)

AVERTISMENT!

Simple line drawing of a person standing in water with raindrops falling (no text or symbols)

Line drawing of a person standing on a road with a car and a vehicle nearby (no text or symbols)

Line drawing of two people using electric scooters, one standing and one seated (no text or symbols)

Line drawing of a person riding an electric scooter with a thought bubble showing wine and glass (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker (no text or symbols on the figure itself)

Line drawing of a person riding a scooter with a magnified inset showing the wheel assembly (no text or symbols)

Mechanical diagram showing a linkage mechanism with arrows indicating motion direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or symbols)

Line drawing of a fully extended electric scooter with wheels and suspension components (no text or symbols)

2.3 Instructiuni de pliere

Line drawing of a hand gripping a mechanical component (no text or symbols)

Diagram of a mechanical clamp or bracket with a black arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Line drawing of a two-wheeled electric scooter with wheels and suspension components (no text or symbols)

Mechanical assembly diagram showing a rotating wheel with levers and shafts (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols)

Illustration of a cartoon astronaut holding a helmet and arm (no text or symbols)

Line drawing of a mechanical device with attached components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a scooter with wheels and handle (no text or symbols)

Side-view line drawing of a human head and neck with a medical device attached (no text or symbols)

Technical line drawing of a mechanical device with a close-up inset showing a button (no text or symbols)

Line drawing of a person riding a scooter with a headband (no text or symbols)

Line drawing of a person using a scooter with a hand gesture overlay (no text or symbols)

Illustration of a person using a scooter with an inset showing a cylindrical object (no text or symbols)

Line drawing of a person riding a scooter with a helmet (no text or symbols)

Line drawing of a scooter with attached cable and plug, showing front wheel assembly and side profile (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Side-view line drawing of a person wearing a helmet and holding an arm device (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ!

Simple line drawing of a person standing in water with raindrops falling (no text or symbols)

Line drawing of a person standing on a road with a car and a vehicle nearby (no text or symbols)

Line drawing of two people using electric scooters, one standing and one seated, both wearing helmets (no text or symbols)

Line drawing of a person riding an electric scooter with a speech bubble showing wine and beer (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker (no text or symbols on the diagram itself)

Diagram of a person riding an electric scooter with a tire being inserted, showing the wheel and gear assembly (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing interconnected components without any text or symbols

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

Line drawing of a fully extended electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a hand holding a device with a black arrow pointing to the handle (no text or symbols)

Diagram of a mechanical clamp or bracket with a black arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a clamping tool interacting with a bracket (no text or symbols visible)

Line drawing of a fully extended electric scooter with wheels and suspension components (no text or symbols)

Mechanical assembly diagram showing a wheel and lever mechanism (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols)

Illustration of a cartoon astronaut holding a helmet and arm (no text or symbols)

Line drawing of a mechanical device with attached components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Сглобяване

Side-view line drawing of a person wearing a helmet and a medical device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person using a scooter with a hand gesture overlay (no text or symbols)

Illustration of a person using a scooter with an inset showing a cylindrical object (no text or symbols)

Simple line drawing of a person riding a scooter (no text or symbols)

Line drawing of a scooter with attached cable and sensor, showing front wheel assembly and side view (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Side-view line drawing of a person wearing a helmet and a wristband device (no text or symbols)

OSTRZEŻENIE!

Simple line drawing of a person standing in water with raindrops falling (no text or symbols)

Line drawing of a person standing on a road with a car and vehicle nearby (no text or symbols)

Line drawing of two people using electric scooters, one standing and one seated (no text or symbols)

Line drawing of a person riding an electric scooter with a speech bubble showing wine and a glass (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15-degree angle marker (no text or symbols on the figure itself)

Line drawing of a person riding a scooter with a magnified inset showing the wheel assembly (no text or symbols)

Diagram of a mechanical linkage or lever mechanism with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or symbols)

Line drawing of a multi-wheeled electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a hand gripping a mechanical component (no text or symbols)

1. Pociągnąć klamrę.

Diagram of a mechanical clamp or bracket with a black arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Line drawing of a fully electric scooter with wheels and suspension components (no text or symbols)

Mechanical assembly diagram showing a rotating wheel connected to a shaft, with no visible text or symbols.

Mechanical assembly diagram showing a clamp or bracket with a directional arrow (no text or symbols)

Illustration of a person in space suits with mechanical components (no text or symbols)

Line drawing of a robotic arm with a sensor and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a pulley or lever mechanism with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a scooter with wheels and handle (no text or symbols)

Side-view line drawing of a helmet and arm joint (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person riding a scooter with a headband (no text or symbols)

Line drawing of a person using a scooter with a hand gesture overlay (no text or symbols)

Illustration of a person using a scooter with a magnified inset showing a cable being inserted (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a scooter with attached cable and sensor, showing front wheel assembly and side view (no text or symbols)

Metoda ładowania 2:

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Side-view line drawing of a person wearing a helmet and a wristband device (no text or symbols)

⚠ POZOR!

Simple line drawing of a person standing in water with raindrops falling (no text or symbols)

Line drawing of a person walking on a road with a car and a vehicle nearby (no text or symbols)

Line drawing of two people using electric scooters, one standing and one seated, both wearing helmets (no text or symbols)

Line drawing of a person riding a scooter with a speech bubble showing wine and wine glass (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15° angle marker (no text or symbols on the figure itself)

Illustration of a person riding a scooter with a magnified inset showing the wheel assembly (no text or symbols)

Mechanical linkage diagram showing a lever and wheel with directional arrows (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing interconnected components with no visible text or symbols

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or symbols)

Line drawing of a fully extended electric scooter with wheels and suspension components (no text or symbols)

Line drawing of a hand gripping a mechanical component (no text or symbols)

Diagram of a mechanical clamp or bracket with a black arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Line drawing of a fully electric scooter with wheels and suspension components (no text or symbols)

Mechanical assembly diagram showing a rotating wheel with levers and a shaft (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols)

Simple line drawing of a astronaut in space suits, no text or symbols present

Simple line drawing of a mechanical device with no visible text or symbols

Illustration of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a two-wheeled scooter with wheels and handle (no text or symbols)

Side-view line drawing of a helmet and arm joint (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person using a scooter with a hand gesture overlay (no text or symbols)

Illustration of a person using a scooter with a magnified inset showing a cylindrical object (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a scooter with attached cable and motor, showing front wheel assembly and side detail (no text or symbols)

Způsob nabíjení 2:

Tipy:

Simple line drawing of a trash bin crossed out by two diagonal lines (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Line drawing of a modern electric scooter with visible wheels and suspension components (no text or symbols)

Side-view line drawing of a person wearing a helmet and a wristband device (no text or symbols)

⚠️ VAROVANIE!

Simple line drawing of a person standing in water with raindrops falling (no text or symbols)

Line drawing of a person walking on a road with a car and vehicle nearby (no text or symbols)

Line drawing of two people using electric scooters, one standing and one seated (no text or symbols)

Line drawing of a person riding an electric scooter with a speech bubble showing wine and wine glass (no text or symbols)

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Line drawing of a person riding a scooter with a 15-degree angle marker (no text or symbols on the figure itself)

Line drawing of a person riding a scooter with a magnified inset showing the wheel assembly (no text or symbols)

Mechanical linkage diagram showing a lever and wheel with directional arrows (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

1. Zdvihnite tyč do zvislej polohy, pripevnite sklopnú svorku.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Brzdovú páku zaistite pomocou šesthranného klúča M5.

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Mechanical linkage diagram showing lever and lever assembly with directional arrows (no text or labels)

Line drawing of a fully extended electric scooter with wheels and suspension components (no text or symbols)

2.3 Pokyny na skladanie

Line drawing of a mechanical clamp or grip assembly (no text or symbols)

1. Zatiahnite za pevnú pracku.

Diagram of a mechanical clamp or bracket with a curved arrow indicating motion (no text or symbols present)

1. Stiahnite sklopnú svorku.

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Line drawing of a fully electric scooter with wheels and suspension components (no text or symbols)

Mechanical assembly diagram showing a rotating wheel with shafts and levers (no text or symbols)

1. Zarovnajte hák s otvorom v zadnom blatníku a zatlačte.

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols)

Illustration of a cartoon astronaut holding a helmet and arm (no text or symbols)

1. Odskrutkujte kryt batérie.

Simple line drawing of a robotic arm with a sensor and sensor device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

1. Zarovnajte drážku batérie s drážkou v stípe a pomaly vložte batériu dovnútra (dávajte pozor na smer drážky).

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a scooter with wheels and handle (no text or symbols)

Side-view line drawing of a person wearing a helmet and holding a medical device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person using a scooter with a hand gesture overlay (no text or symbols)

Illustration of a person using a scooter with a magnified inset showing a cable being inserted (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a scooter with attached cable and motor, showing front wheel assembly and side view (no text or symbols)

Spôsob nabíjania 2:

Rady:

Symbol of a trash bin crossed with a diagonal line, no text or labels present
