Z890A-SILVER - Motherboard BIOSTAR - Free user manual and instructions

Product Type	Motherboard
Brand	Biostar
Model	Z890A-SILVER
Chipset	Intel Z890
Socket	LGA 1851
Form Factor	ATX (305 x 244 mm)
Weight	Approx. 1.2 kg (2.65 lbs)
Memory Support	DDR5, up to 192 GB, 4 slots
PCIe Slots	1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1
Storage Interfaces	4x SATA III, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
USB Ports (Rear I/O)	2x USB 3.2 Gen2 (Type-A), 2x USB 3.2 Gen2 (Type-C), 4x USB 3.2 Gen1, 2x USB 2.0
Video Outputs	1x HDMI 2.1, 1x DisplayPort 2.0
Networking	1x 2.5 Gigabit LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4
Audio	Realtek ALC1220, 7.1-channel HD Audio

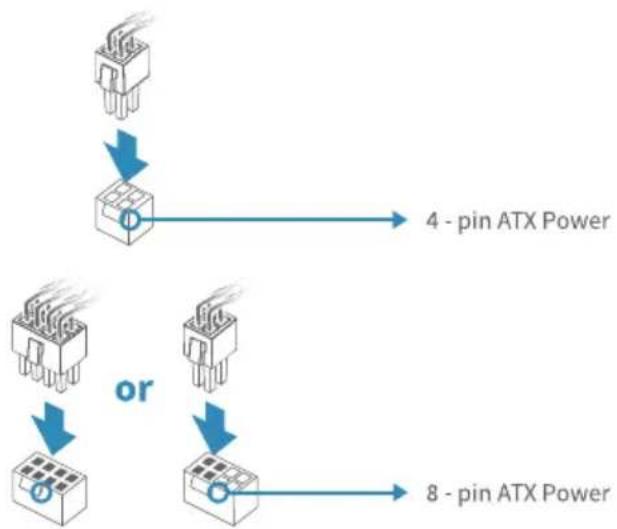

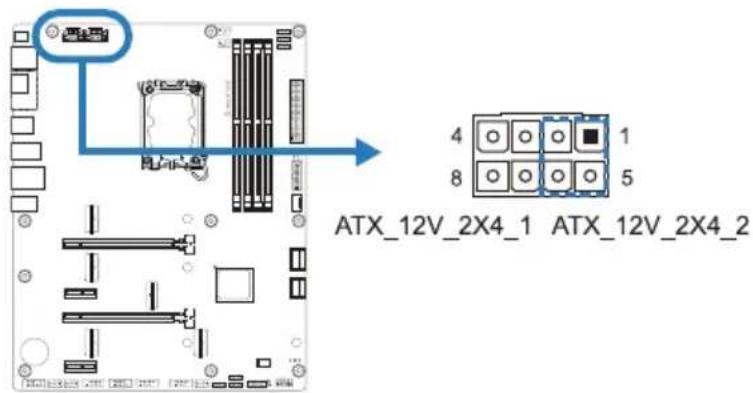

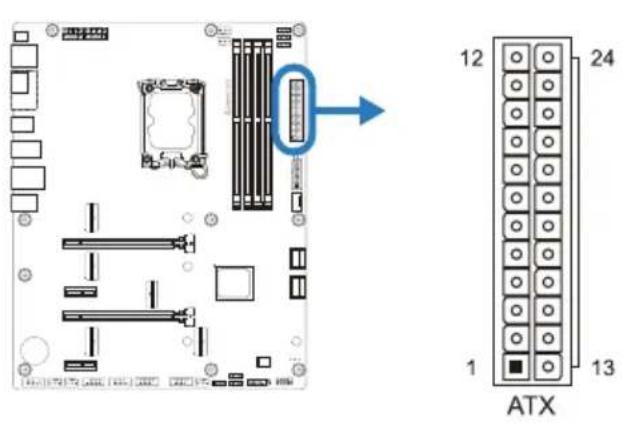

Power Connectors	24-pin ATX, 8-pin EPS12V
RGB Headers	3x Addressable RGB, 2x RGB LED
Operating System Support	Windows 11, Windows 10 64-bit
Maintenance	Clean with dry cloth, keep vents free of dust
Safety	Handle with electrostatic discharge precautions, unplug before installation
Spare Parts & Repairability	Replacement parts available online, standard ATX form factor for easy integration
Warranty	3 years limited manufacturer warranty

Frequently Asked Questions - Z890A-SILVER BIOSTAR

How do I update the BIOS on the Biostar Z890A-SILVER?

Download the latest BIOS from Biostar's official website, save to a FAT32 USB drive, and use the BIOS Flashback feature or enter the BIOS setup (press DEL/F2 during boot) to update via the built-in EZ Flash utility.

What type of RAM does the Z890A-SILVER support?

It supports DDR5 memory modules, up to 192 GB in total across 4 slots. Speeds may vary based on CPU and XMP profiles.

Does the motherboard have integrated Wi-Fi and Bluetooth?

Yes, the Z890A-SILVER includes Wi-Fi 7 (802.11be) and Bluetooth 5.4 capabilities via an onboard M.2 E-key module.

How many M.2 slots are available and what PCIe generation?

There are three M.2 slots: one supports PCIe 5.0 x4 (M.2_1) and two support PCIe 4.0 x4 (M.2_2 and M.2_3). All slots accept both SATA and NVMe SSDs.

Can I use a PCIe 3.0 graphics card on this motherboard?

Yes, it is fully backward compatible. The primary PCIe x16 slot operates at PCIe 5.0 but will negotiate down to PCIe 3.0 if the card supports it.

How many fan headers are on the board?

It has 6 fan headers (including CPU_FAN, CPU_OPT, and SYS_FAN) all supporting PWM control, plus a pump header for water cooling.

Does the motherboard support RGB lighting control?

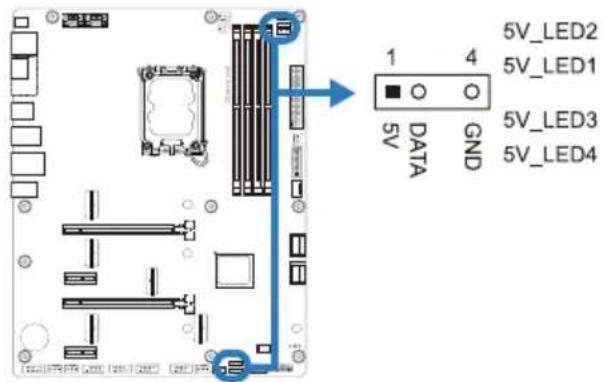

Yes, it has 3 addressable RGB (5V) headers and 2 standard RGB (12V) headers, compatible with software like Biostar's VIVID LED DJ.

What processors are compatible with the Z890A-SILVER?

It supports Intel Core Ultra 200 series processors (LGA 1851 socket), including Core 9, 7, and 5 parts.

How can I troubleshoot if the motherboard won't boot?

Check that all power cables (24-pin and 8-pin) are securely connected, reseat RAM and GPU, clear CMOS (use jumper or remove battery), and ensure the BIOS is compatible with your CPU. The onboard diagnostic LEDs can help identify issues.

Are there any known issues with the Z890A-SILVER?

Some early boards may require a BIOS update for certain RAM kits or CPU revisions. Refer to the latest manual and support page. Overall, it's a stable premium motherboard.

USER MANUAL Z890A-SILVER BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Avoidance of electrostatic operation rules

Electrostatic discharge can seriously damage your device, Take special care when handling motherboards and other system devices, Avoid unnecessary contact with system parts on the motherboard, Keep working in an antistatic environment, Avoid electrostatic discharge that may damage the motherboard, When inserting or removing devices in your chassis. Make sure the power is off. The manufacturer is not responsible for any damage to the motherboard caused by failure to comply with this operating rule or failure to comply with safety regulations.

Warning

Motherboards are easily damaged by electrostatic discharge. Please follow the operating rules.

Table Of Contents

Chapter 1: Introduction......4

1.1 Before You Start 4
1.2 Specifications....5
1.3 Rear Panel Connectors....7
1.4 Motherboard Layout 8

Chapter 2: Hardware installation....9

2.1 Install Central Processing Unit (CPU) 9
2.2 Install a Heatsink.... 11
2.3 Connect Cooling Fans 12
2.4 Install System Memory 13
2.5 Expansion Slots 15
2.6 Jumper & Switch Setting.... 18
2.7 Headers & Connectors.... 19

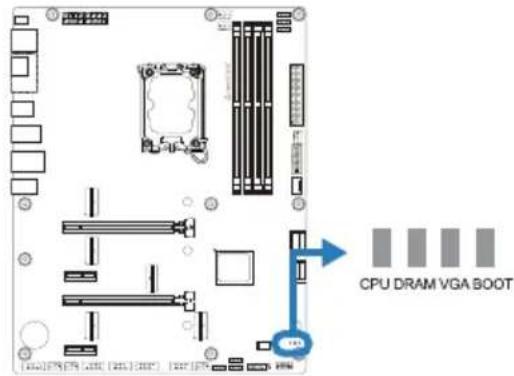

2.8 LEDs 26

Chapter 3: UEFI BIOS & Software....27

3.1 UEFI BIOS Setup 27

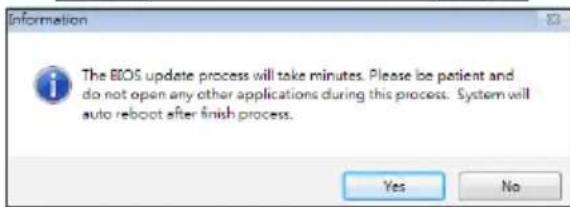

3.2 BIOS Update.... 27
3.3 Motherboard BIOS Update 27
3.4 Software.... 32

Chapter 4: Useful help.... 43

4.1 Auto Installer 43
4.2 RAID Functions.... 46

APPENDIX: Specifications in Other Languages 48

Arabic....48
German....50
Spanish 52
Thai 54
Japan....56

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
• Always disconnect the computer from power outlet before operation.
- Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

- Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

- Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.

- Keep the computer from dangerous area, such as heat source, humid air and water.

- The operating temperatures of the computer should be 0 to 45 degrees Celsius.

- To avoid injury, be careful of: Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Specifications

Specifications
CPU Support	Support for Intel® CoreTM Ultra 9 / 7 / 5 processors in the LGA1851 package* Please refer to www.biostar.com.tw for CPU support list.
Chipset Intel® Z890
Memory	Supports Dual Channel DDR5 - 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 56004 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB MemoryEach DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 moduleSupport Intel® Extreme Memory Profile (XMP) memory modules* Please refer to www.biostar.com.tw for Memory support list.

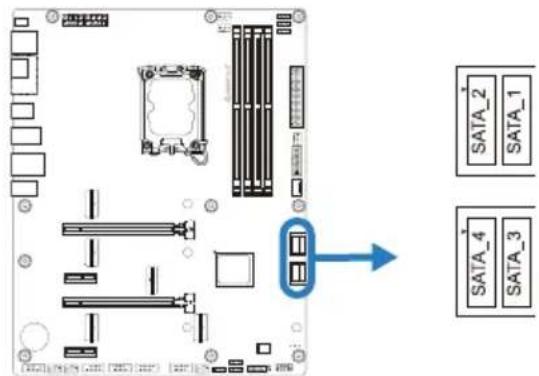

Storage	— Total supports 4 x M.2 socket and 4 x SATA III (6Gb/s) portsIntel Core Ultra Processors1 x M.2 (M Key) Socket (M2M_CPU_1):Supports M.2 Type 2280 SSD moduleSupports PCIe 5.0 x4 (128Gb/s) - NVMe SSD1 x M.2 (M Key) Socket (M2M_CPU_2):Supports M.2 Type 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) - NVMe SSDIntel Z890 Chipset1 x M.2 (M Key) Socket (M2M_SB_1):Supports M.2 Type 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) - NVMe SSD1 x M.2 (M Key) Socket (M2M_SB_2):Supports M.2 Type 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) - NVMe SSD4 x SATA III Connector (6Gb/s):Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology* Specifications vary by CPU types.
RAID	Supports RAID 0, 1, 5, 10 for SATA storage devicesSupports RAID 0, 1, 5, 10 for M.2 NVMe storage devices
LAN	Realtek® RTL8125D10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	Realtek® ALC12207.1 Channels, High Definition Audio
USB	2 x USB 3.2 (Gen2) Type-C port(1 on rear I/O and 1 via internal header)9 x USB 3.2 (Gen2) port(7 on rear I/O and 2 via internal header)4 x USB 2.0 port(4 via internal header)
Expansion Slots	Intel Core Ultra Processors1 x PCIe 5.0 x16 Slot (x16 mode)Intel Z890 Chipset1 x PCIe 4.0 x16 Slot (x4 mode)2 x PCIe 3.0 x1 Slot (x1 mode)* Specifications vary by CPU types.
Rear I/Os	2 x WIFI Antenna Port1 x HDMI Port (HDMI2.1)1 x HDMI Port (HDMI1.4b)1 x DP Port (DP1.2)1 x USB 3.2 (Gen2) Type-C Port7 x USB 3.2 (Gen2) Port1 x 2.5 Gigabit LAN port3 x Audio Jack1 x SMART BIOS UPDATE Button1 x SMART BIOS USB Port
Internal I/Os	4 x SATA III Connector (6Gb/s)1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® GEN2 CNVi1 x USB 3.2 (Gen2) Type-C Header(each header supports 1 USB 3.2 (Gen2) Type-C ports)1 x USB 3.2 (Gen2) Header(each header supports 2 USB 3.2 (Gen2) ports)2 x USB 2.0 Header(each header supports 2 USB 2.0 ports)2 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x CPU water cooling connector (CPU_OPT)4 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Internal Stereo Speaker Header1 x Clear CMOS Header1 x COM Port Header1 x TPM Header1 x Thunderbolt Header4 x LED Header (5V)1 x LED Header (12V)* M.2 (E Key) Wi-Fi card is not provided
Form Factor ATX Form	Factor, 305 mm x 244 mm
OS Support	Windows 10(64bit) / Windows 11(64bit)* Biostar reserves the right to add or remove support for any OS with or without notice.

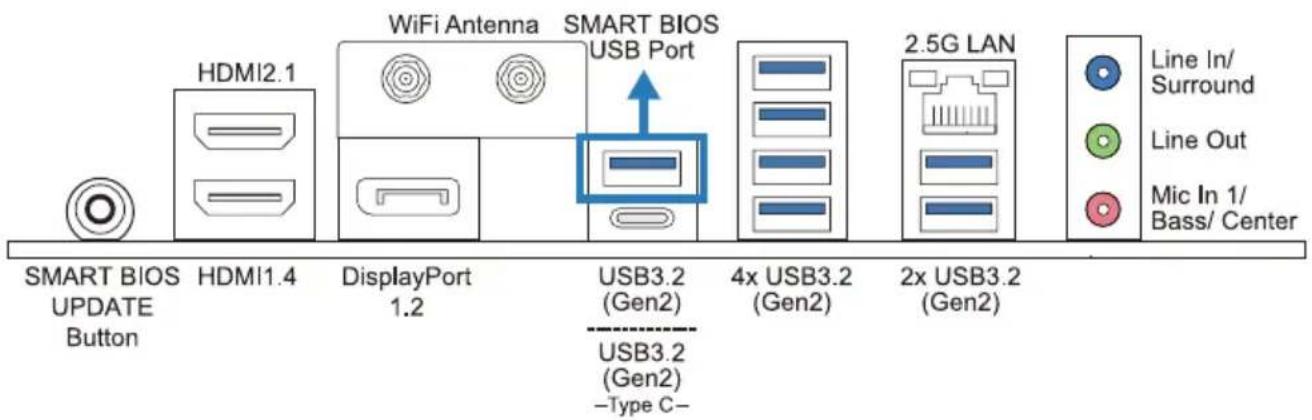

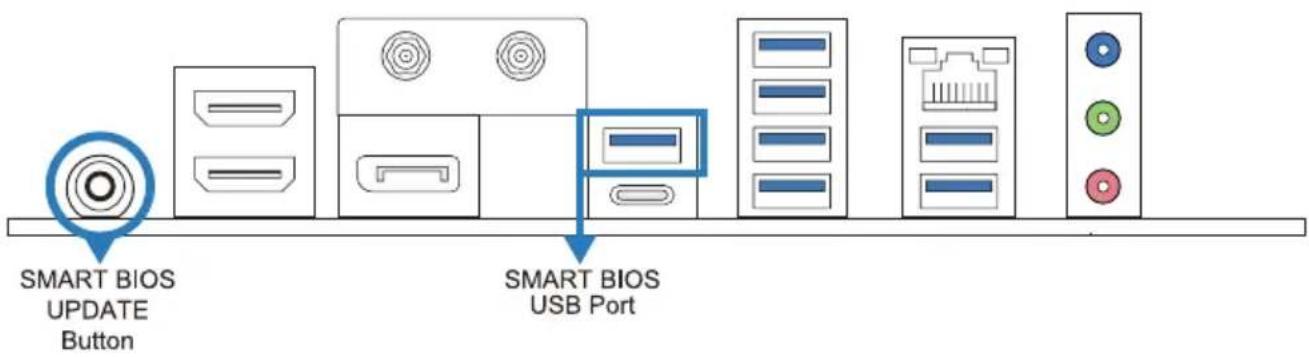

1.3 Rear Panel Connectors

Note

» HDMI/ DP ports only work with an Intel® integrated Graphics Processor.
» Maximum resolution

HDMI:

4096 x 2304@60Hz, compliant with HDMI 2.1

4096 x 2304@30Hz, compliant with HDMI 1.4b

DP:

4096 x 2304@60Hz, compliant with DP 1.2

» The mainboard supports 3 onboard display outputs at same time and the display output configuration can be selected in Intel graphics driver utility.
» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» The WiFi antenna port allows you to connect to the E Key module and use the WiFi & Bluetooth function.

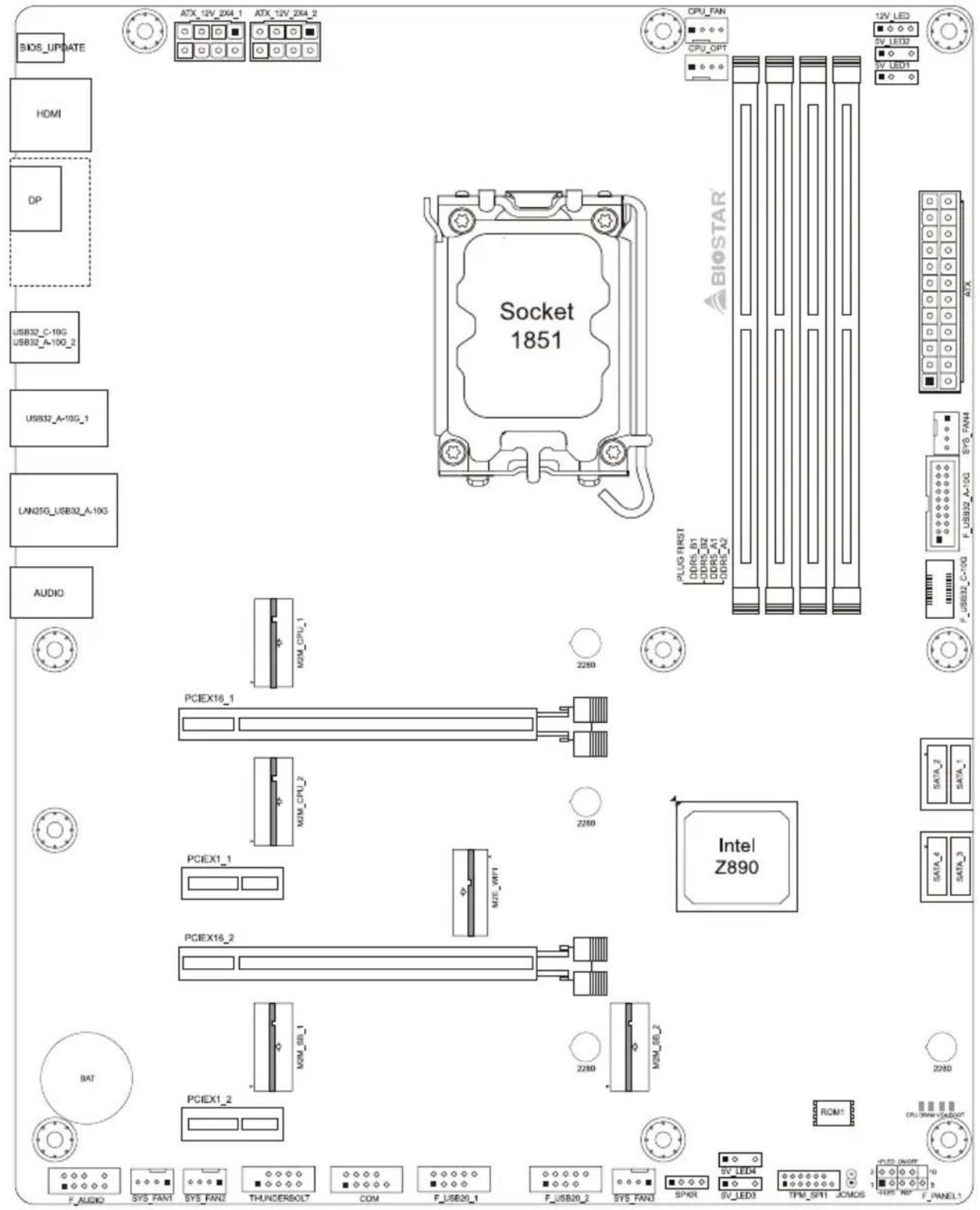

1.4 Motherboard Layout

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Install Central Processing Unit (CPU)

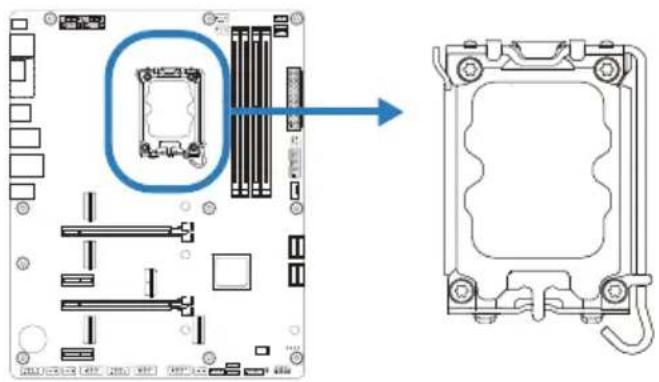

Step 1: Locate the CPU socket on the motherboard

Note

» Remove pin cap before installation, and make good preservation for future use. When the CPU is removed, cover the pin cap on the empty socket to ensure pin legs won't be damaged.
» The motherboard might equip with two different types of pin cap. Please refer below instruction to remove the pin cap.

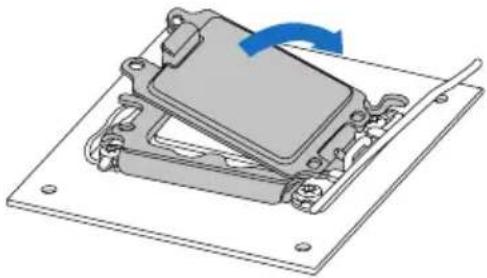

Step 2: Open ILM Lever and then load plate using finger tab.

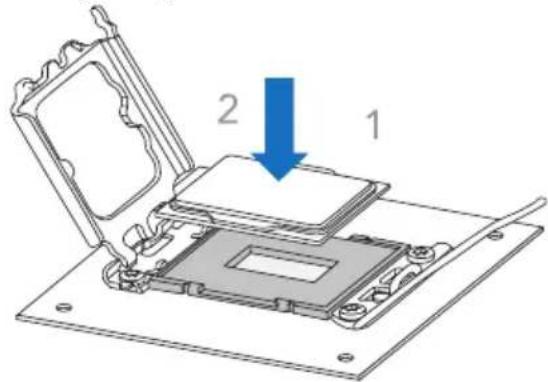

Step 3: Align and seat processor package on socket.

Step 4: Close the load plate.

Technical line drawing of a mechanical component with mounting flanges and internal components (no text or symbols)

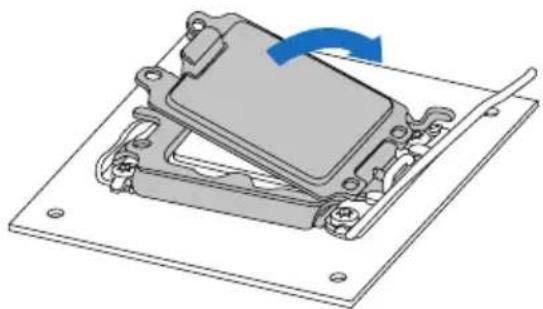

Step 5: Remove and save cover.

Mechanical assembly diagram showing a component being rotated with a blue arrow (no text or symbols present)

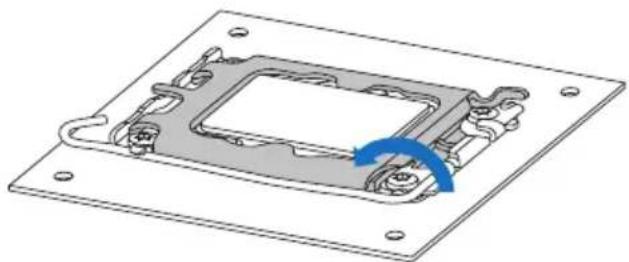

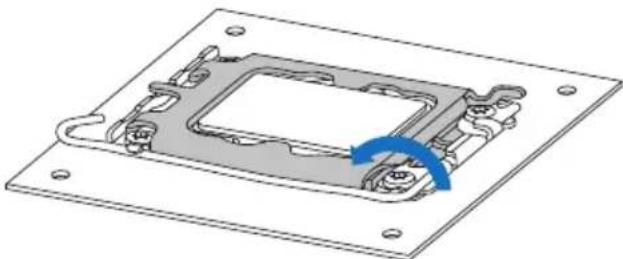

Step 6: Close ILM Lever and latch

3D diagram of a mechanical component with a blue rotation arrow indicating assembly (no text or symbols)

Note

» Ensure that you install the correct CPU designed for LGA1851 socket.

» The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent damaging the CPU.

2.2 Install a Heatsink

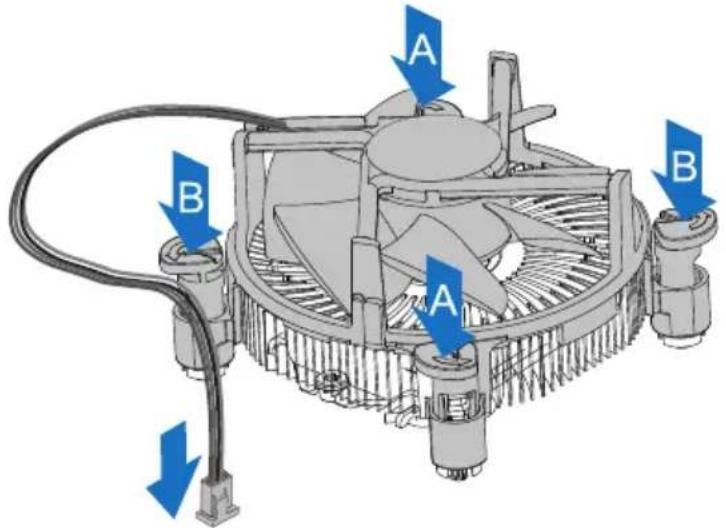

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure the CPU fan assembly in place. As each fastener locks into position a click should be heard.

Note

» Apply the thermal interface material on the CPU before heatsink installation, if necessary.
» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

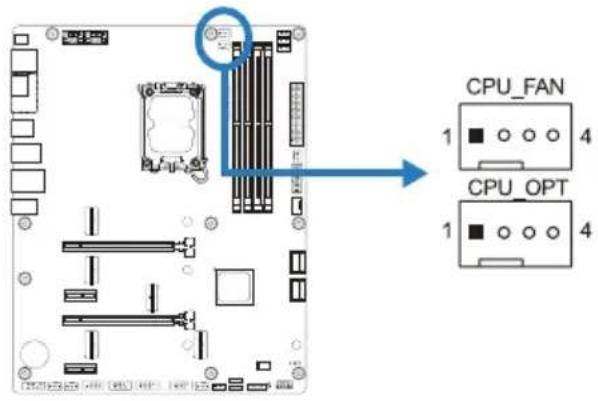

CPU_FAN/ CPU_OPT: CPU Fan Header

Pin	Assignment
1	Ground
2	+12V
3	FAN RPM rate sense
4	AI Fan Control

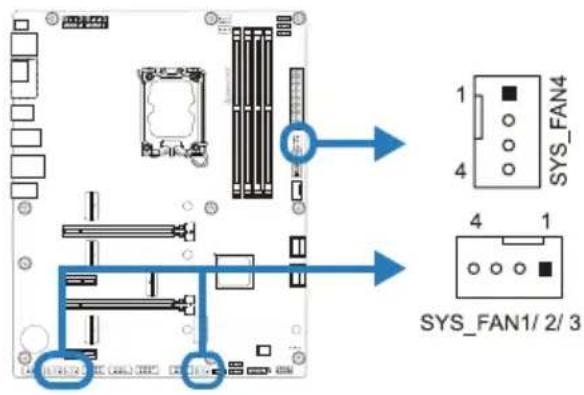

SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4: System Fan Header

Pin	Assignment
1	Ground
2	+12V
3	FAN RPM rate sense
4	Al Fan Control

Note

» CPU_FAN, CPU_OPT, SYS_FAN1/2/3/4 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).
» CPU Fan Header (CPU_OPT): Support water cooling fan and CPU fan.

2.4 Install System Memory

DDR5 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Technical line drawing of a computer RAM module with mounting bracket and scroll wheel (no text or symbols)

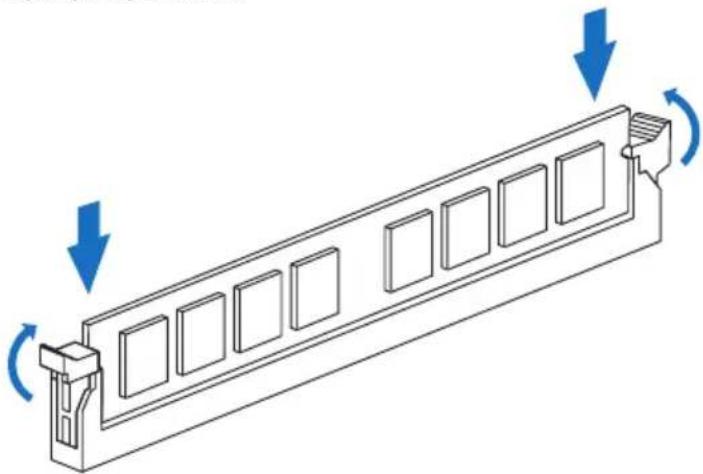

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR5 Module Total Memory Size
DDR5_A1 8GB/16GB/24GB/32GB/48GB	Max is 192GB.
DDR5_A2 8GB/16GB/24GB/32GB/48GB
DDR5_B1 8GB/16GB/24GB/32GB/48GB
DDR5_B2 8GB/16GB/24GB/32GB/48GB

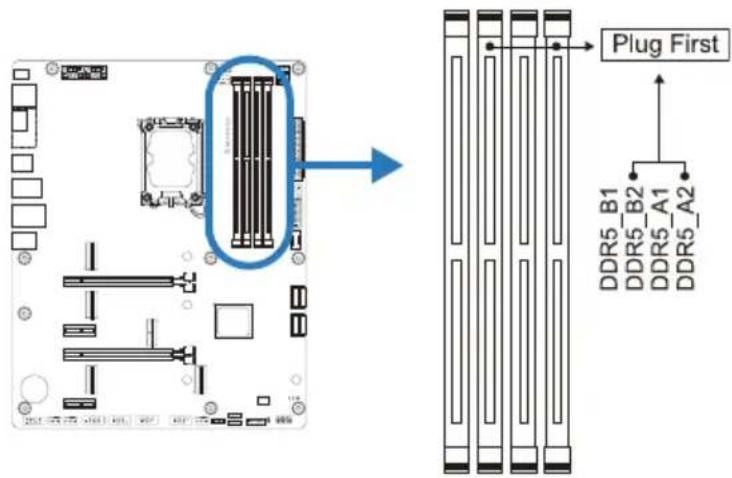

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

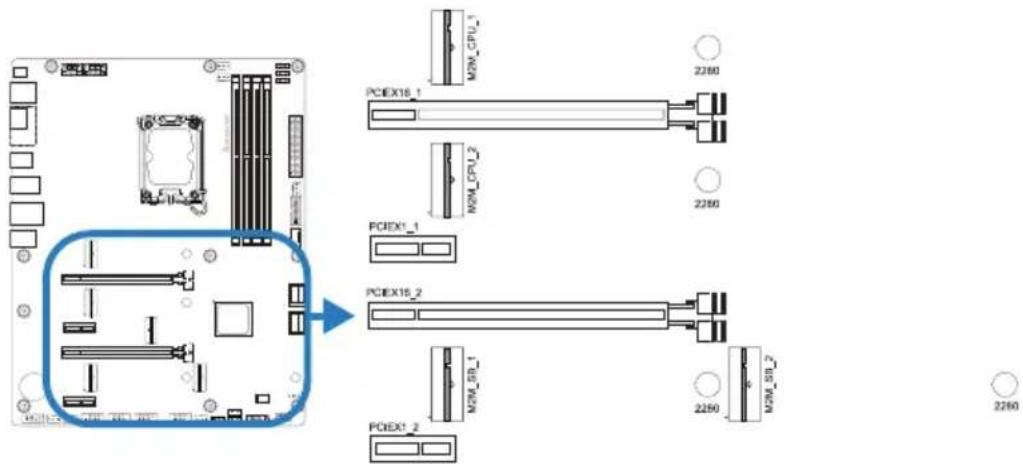

2.5 Expansion Slots

PCIEX16\_1: PCI-Express Gen5 x16 Slots (x16 mode or x8/x8 mode)

• PCI-Express 5.0 compliant.
• The maximum bandwidth of the PCIe slot is 128GB/s.

PCIEX16\_2: PCI-Express Gen4 x16 Slots (x4 mode)

• PCI-Express 4.0 compliant.
• The maximum bandwidth of the PCIe slot is 16GB/s.

PCIEX1\_1/ PCIEX1\_2: PCI-Express Gen3 x1 Slots

• PCI-Express 3.0 compliant.
• The maximum bandwidth of the PCIe slot is 2GB/s.

M2M\_CPU\_1: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 5.0x 4 (128Gb/s) - NVMe SSD

M2M\_CPU\_2: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe SSD

M2M\_SB\_1: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe SSD

M2M\_SB\_2: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe SSD

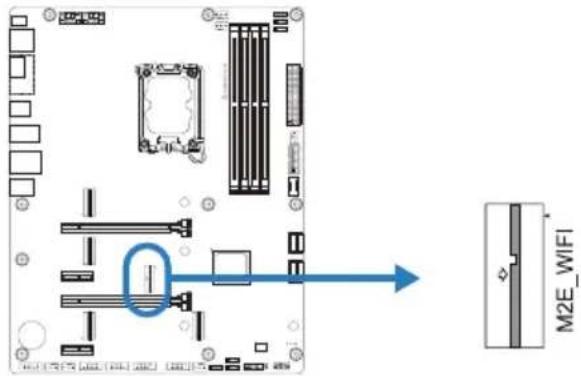

M2E\_WIFI: M.2 (E Key) Socket (M.2 (E Key) Wi-Fi card is not provided)

• Support M.2 socket 2230 type module.
- Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only for installing a VGA card.).
• Replace your computer's chassis cover.
  • Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

Note

» Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be damaged.

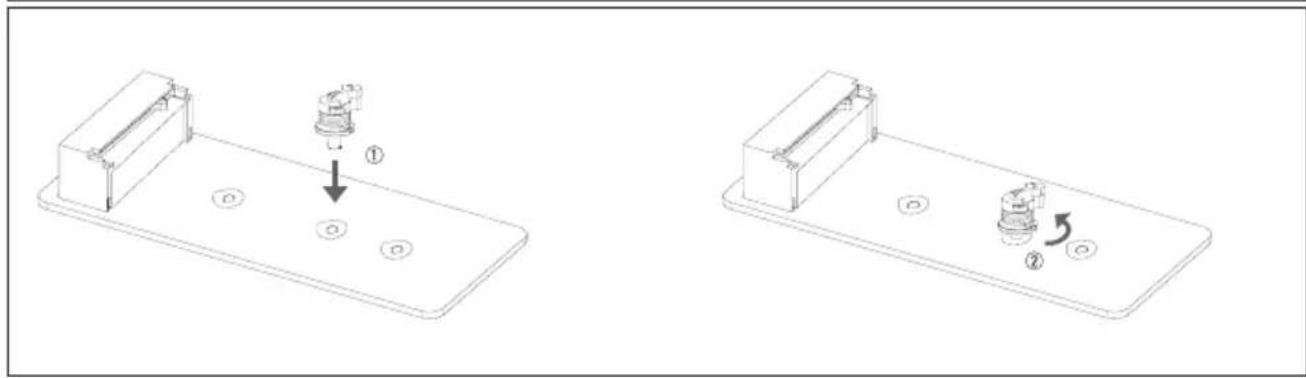

Installing M.2 Rotary Auto Anchor

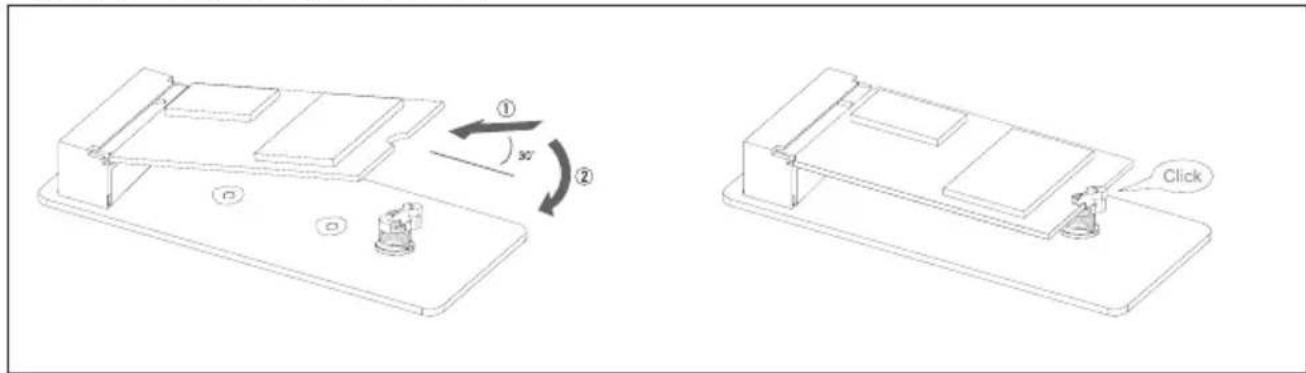

Installing an M.2 SSD card

1. Insert the M.2 SSD into the M.2 slot at a 30-degree angle.
2. Lower the M.2 SSD into position.
3. Latch "Click" to secure M.2 SSD.

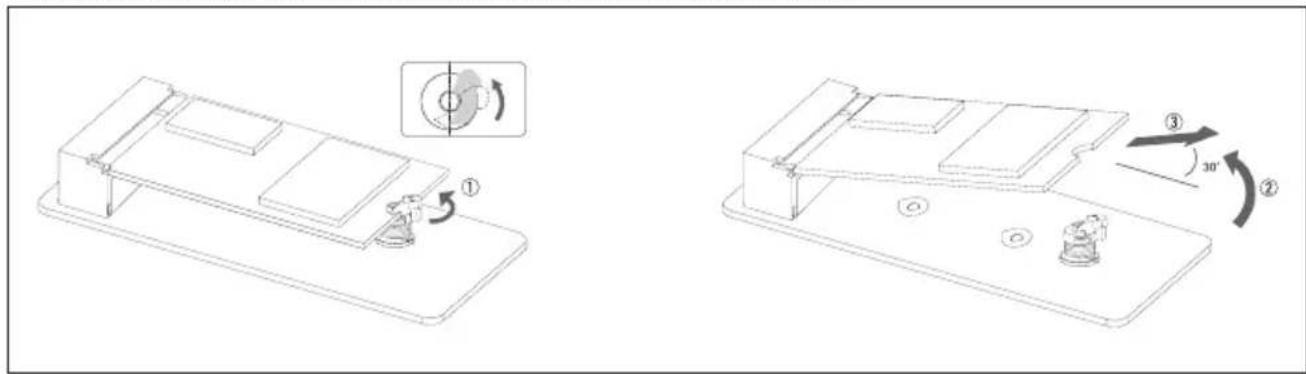

Remove the M.2 SSD card

1. Unlatch the M.2 latch.
2. Lift the M.2 SSD.
3. Move the M.2 SSD out of the M.2 slot at a 30-degree angle.

Technical line drawing of a mechanical assembly with numbered components and rotation indicators (no text or symbols)

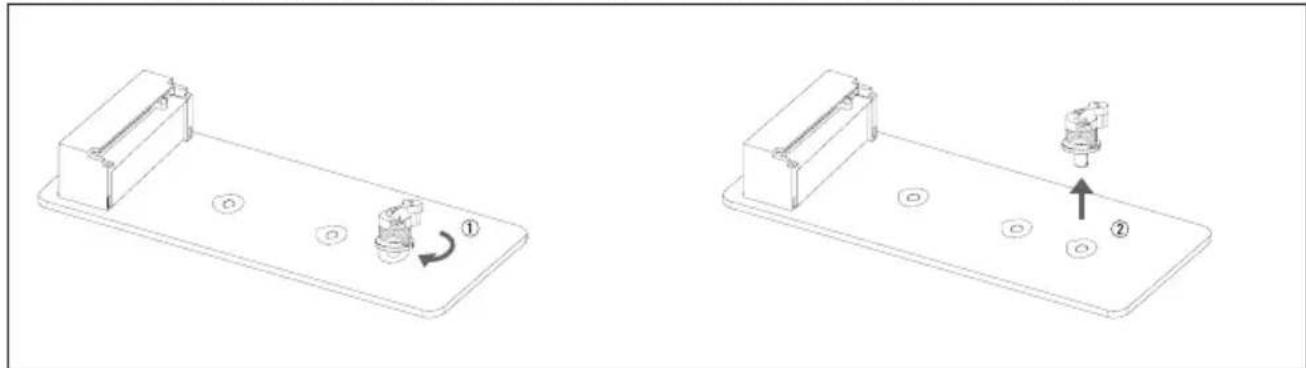

"M.2 Rotary Auto Anchor" replacement hole position: removal and installation

Technical line drawing showing two mechanical components with numbered parts and rotation indicators (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and a valve, shown from different angles (no text or symbols)

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin opened Pin closed Pin 1-2 closed

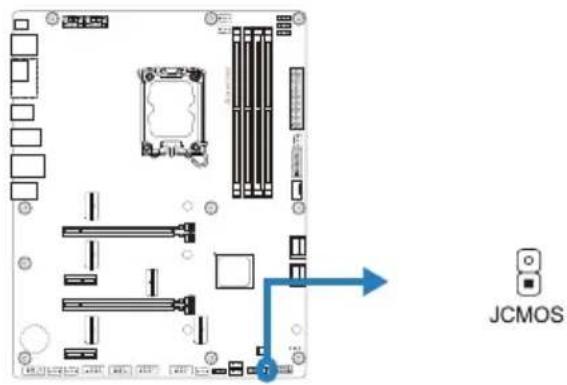

JCMOS: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open: Normal Operation (Default)

Pin 1-2 Short: Clear CMOS data

Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to "Pin 1-2 short", you can use a metal object like a screwdriver to touch the two pins.

3. Wait for five seconds.

4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

2.7 Headers & Connectors

ATX: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Vol tage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

ATX\_12V\_2X4\_1/ ATX\_12V\_2X4\_2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, Please refer to the following methods to install:

1. When Power Supply has two 8-pin CPU power plugs: please install at ATX_12V_2X4_1 and ATX_12V_2X4_2.
2. When Power Supply has only one 8pin CPU power plug: please install it in ATX_12V_2X4_1 or ATX_12V_2X4_2.
3. When the Power Supply has only a 4-pin CPU power plug: Please install on Pin 1-2-5-6 of ATX 12V 2X4 1 or Pin 1-2-5-6 of ATX 12V 2X4 2.

Pin A	Assignment
1	+12V
2	+12V
3	+12V
4	+12V
5	Ground
6	Ground
7	Ground
8	Ground

Note

» Before you power on the system, please make sure that both ATX, ATX_12V_2X4_1 and ATX_12V_2X4_2 connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

ATX Power Connection

24-pin ATX Power: The main power supply connector is located along the edge of the board next to the DIMM slots. Firmly plug the power supply cable into the connector and make sure it is secure.

4 or 8-pin ATX Power: The 4 or 8-pin ATX 12V power connector is used to provide power to the CPU. Align the pins to the connector and press firmly until seated.


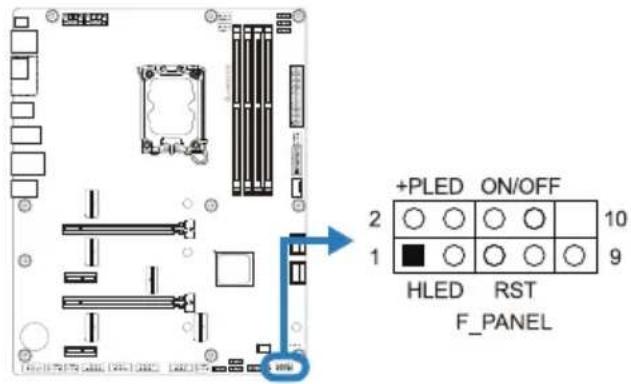

F\_PANEL: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connection.

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED (-)	2 Power LED (+)	PowerLED
3 HDD LED(-) 4 PowerLED
5 Ground	Reset Button	6 Power Button	Power-OnButton
7 Reset Control 8
9 NC NC 10 Key Key

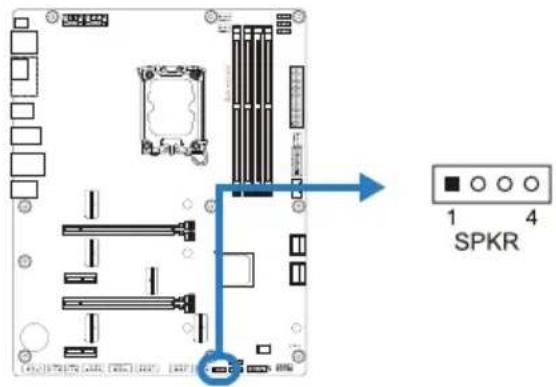

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin	Assignment
1 +5V
2 N/A
3 N/A
4 Speaker

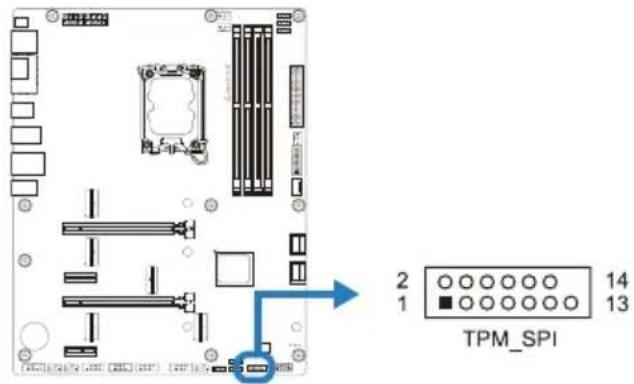

TPM\_SPI: Trusted Platform Module Header

This header allows you to store cryptographic keys that protect information.

Pin	Assignment	Pin	Assignment
1	VCCSPI	2	S_SPI_TPM_IRQ#
3	S_PLTRST#	4	S_SPI_TPM_CS2#
5	NC	6	F_BIOS_WP#_R
7	+3V_SPI	8	GND
9	F_SPI_CS0#_R	10	T_SPI_CLK
11 T	SPI_MISO 12 T_SPI_MOSI
13 F	SPI_HOLD#_R 14 N/A

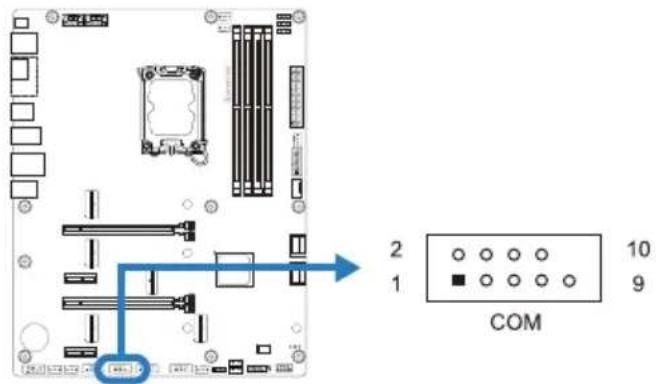

COM: Serial Port Header

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

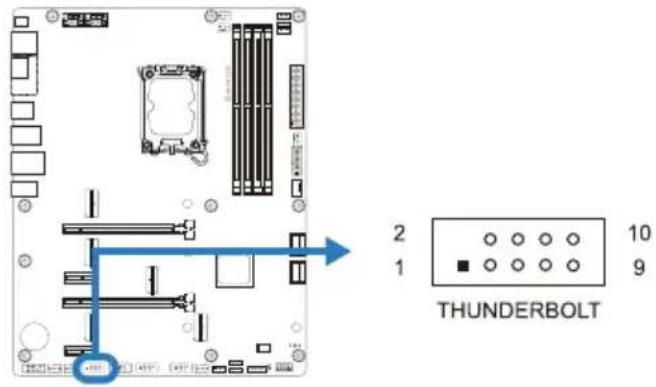

THUNDERBOLT: Thunderbolt Header

This header allows user to add additional Thunderbolt ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 Force Power

2 Key

3 CIO Plug Event

4 SMB_DATA_MAIN

5 SLP_S3_N

6 SMB_CLK_MAIN

7 SLP_S5_N

8 3V3_AIC_PD_INT#

9 GND

10 GND

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

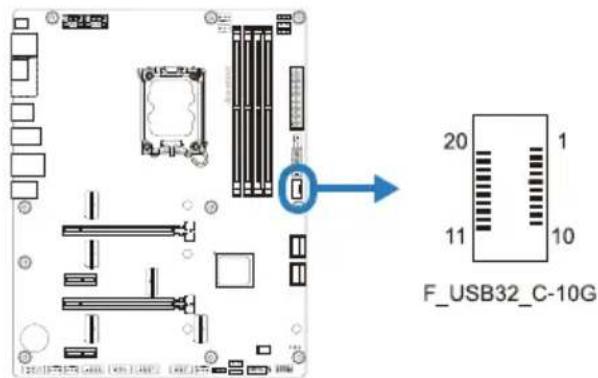

F\_USB32\_C-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This USB type-C header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment Pin	Assignment
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4 Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16 SSRX2-
7 VBUS 17 Ground
8 CC1 18 D-
9 SBU1 19 D+
10 SBU2 20 CC2

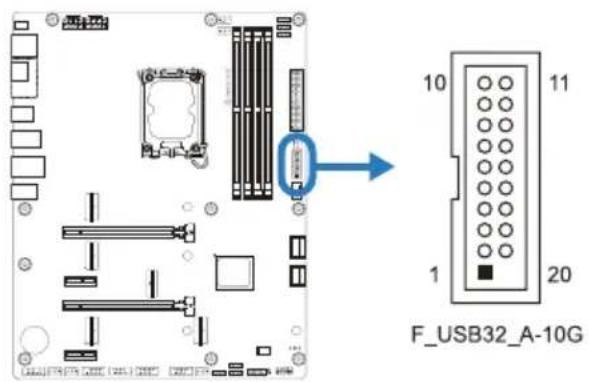

F\_USB32\_A-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment Pin	Assignment
1	VBUS0 11 D2+
2	SSRX1- 12 D2-
3	SSRX1+ 13 Ground
4	Ground 14 SSTX2-
5	SSTX1- 15 SSTX2-
6	SSTX1+ 16 Ground
7	Ground 17 SSRX2-
8	D1- 18	SSRX2-
9	D1+ 19	VBUS1
10	ID 20 Key

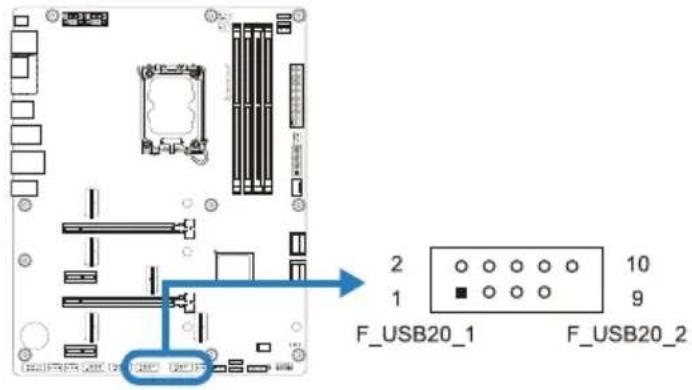

F\_USB20\_1/ F\_USB20\_2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

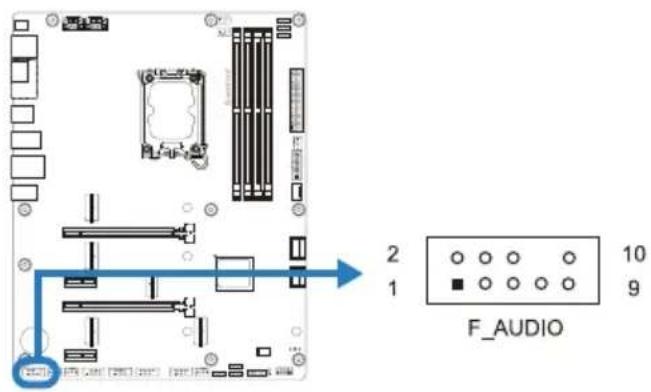

F\_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD.

HD Audio

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

Note

» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

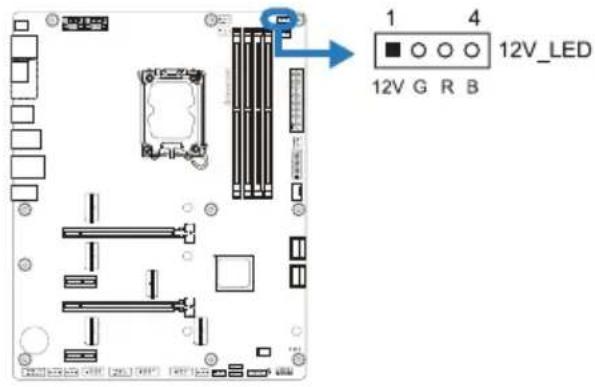

12V\_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

Pin	Cable Color Assignment
1	12 V (Black) VCC 12
2	G (Green) LED_GREEN
3	R (Red) LED_RED
4	B (Blue) LED_BLUE

5V\_LED1/ 5V\_LED2/ 5V\_LED3/ 5V\_LED4: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for RGB LED Device (WS2818B).

Pin Assignment

1 VCC5

2 Data

3 Key

4 GND

Note

» Ensure proper pin connecting to your LED device, wrong connection may damage your LED device or motherboard.
» The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rating of 3A (12V).
» The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips with the maximum power rating of 3A (5V).
» Please use the Vivid LED DJ software to control the LEDs. For detailed software setting information, refer to chapter 3.3.

2.8 LEDs

Debug LED: Debug LED Indicators

This LEDs indicate the status of the motherboard.

CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates booting device is not detected or fail.

Note

» After starting the computer, the LED indicators will light up in the following order: CPU → DRAM → VGA → BOOT
» When the computer is ready, the LED indicator will show where the error occurred and will stay on until the problem is solved.
» After the computer is started, the Debug LED will not light up if there is no abnormality detected.

LEDs

Below LEDs are controlled by SILVER LIGHTNING program. Please refer to Chapter 3.3 for more detail software setting.

Blank white image with a vertical line of small rectangular shapes and two blue circular markers at the bottom (no text or symbols)

- RGB LED Header(5V/12V)

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

3.3 Motherboard BIOS Update

• Upload the newly update of BIOS into USB drive, change the file name to : CREATIVE. ROM (type each letter as exactly). For example: XXXXXXXX.BST to CREATIVE.ROM
• Connect the power into ATX 24PIN at motherboard, turn on AC power (only turn on Power supply unit, no need for power on)
• Insert USB Drive with the file name: CREATIVE.ROM into programmer(hardware)
• Press BIOS Update button for 3\~5 seconds, LED will start flickering, when LED light is off, then the burning is completed.

BIOSTAR BIO-Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

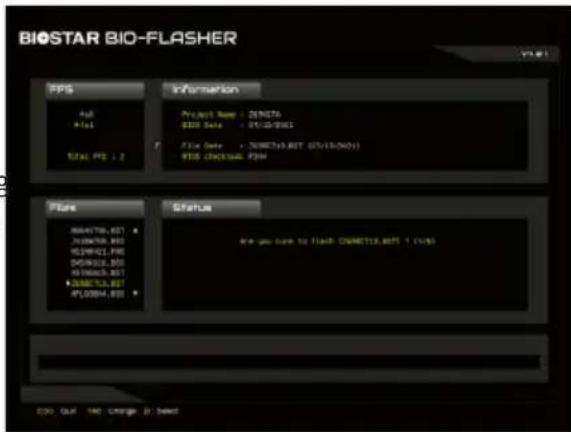

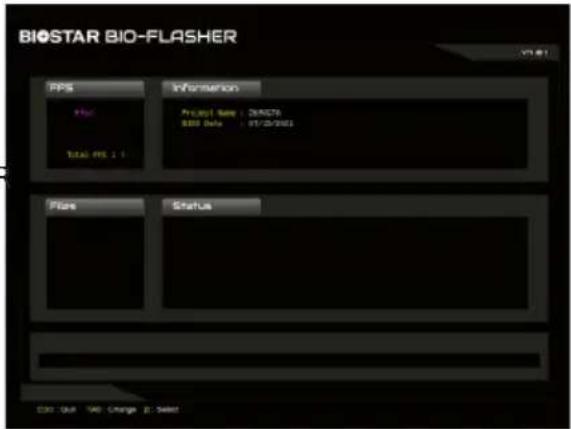

5. After entering the POST screen, the BIO-FLASHER utility pops out. Choose to search for the BIOS file.

6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

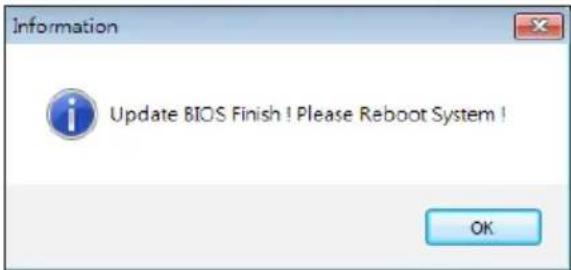

7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

4. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

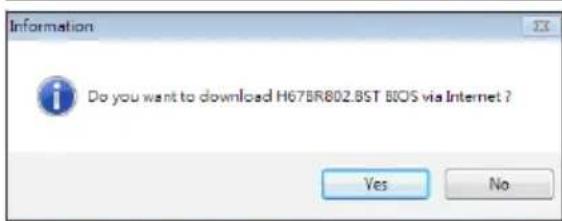

5. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.
6. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.
7. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

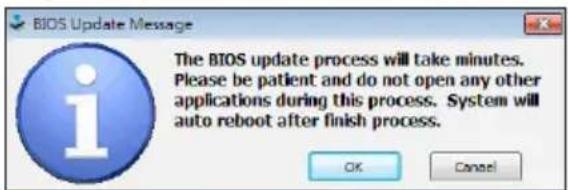

4. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

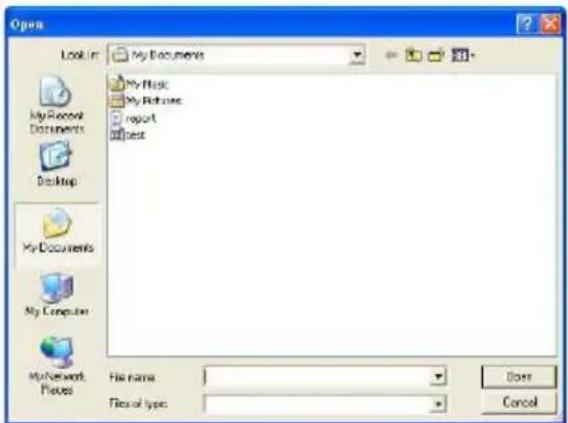

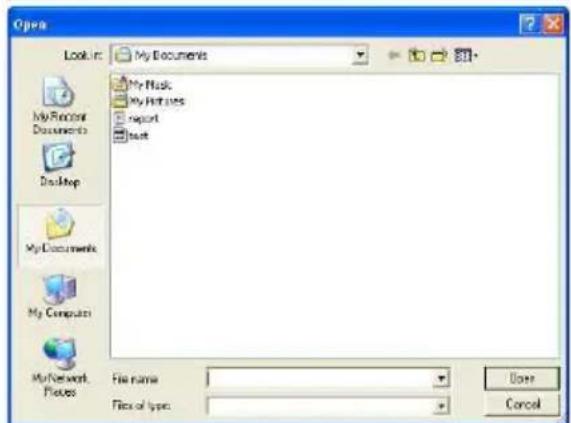

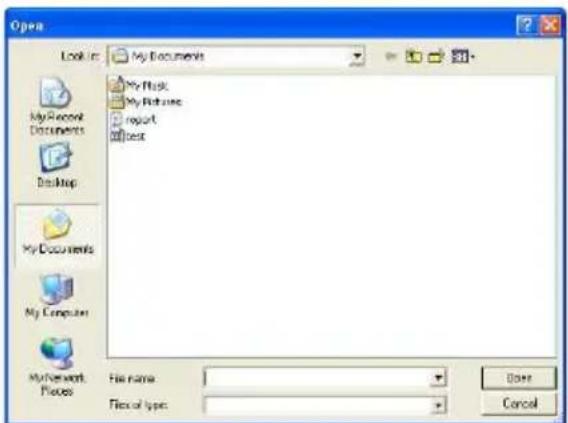

5. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

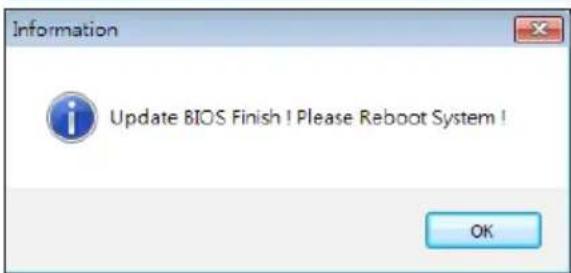

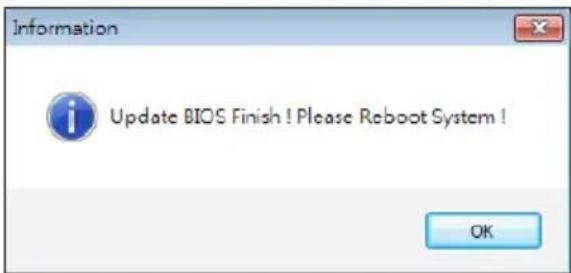

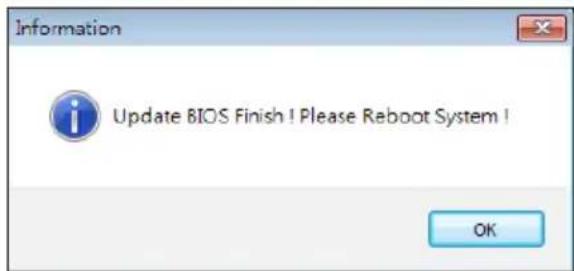

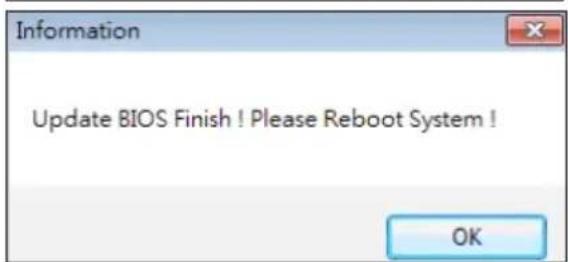

6. After the BIOS Update process is finished, click on "OK" to reboot the system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

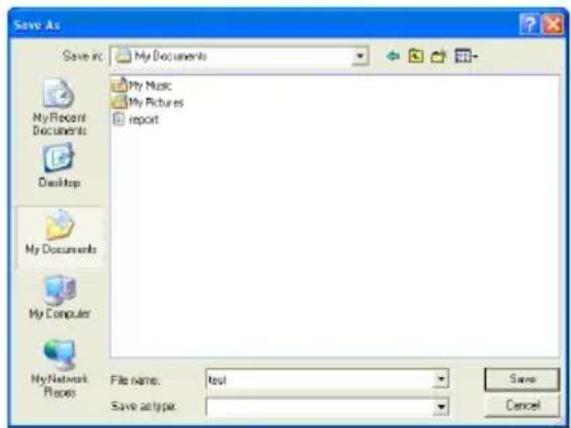

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.4 Software

Installing Software

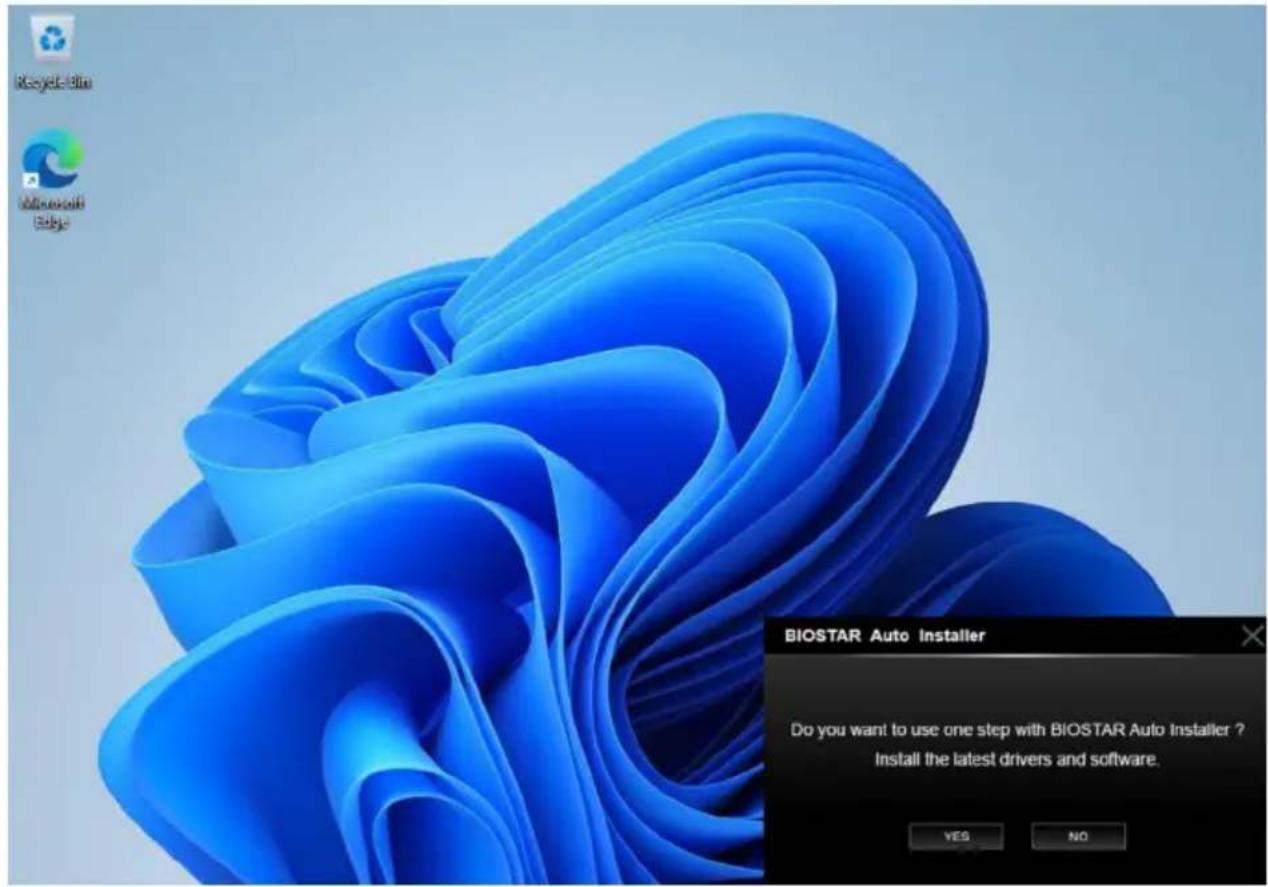

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.

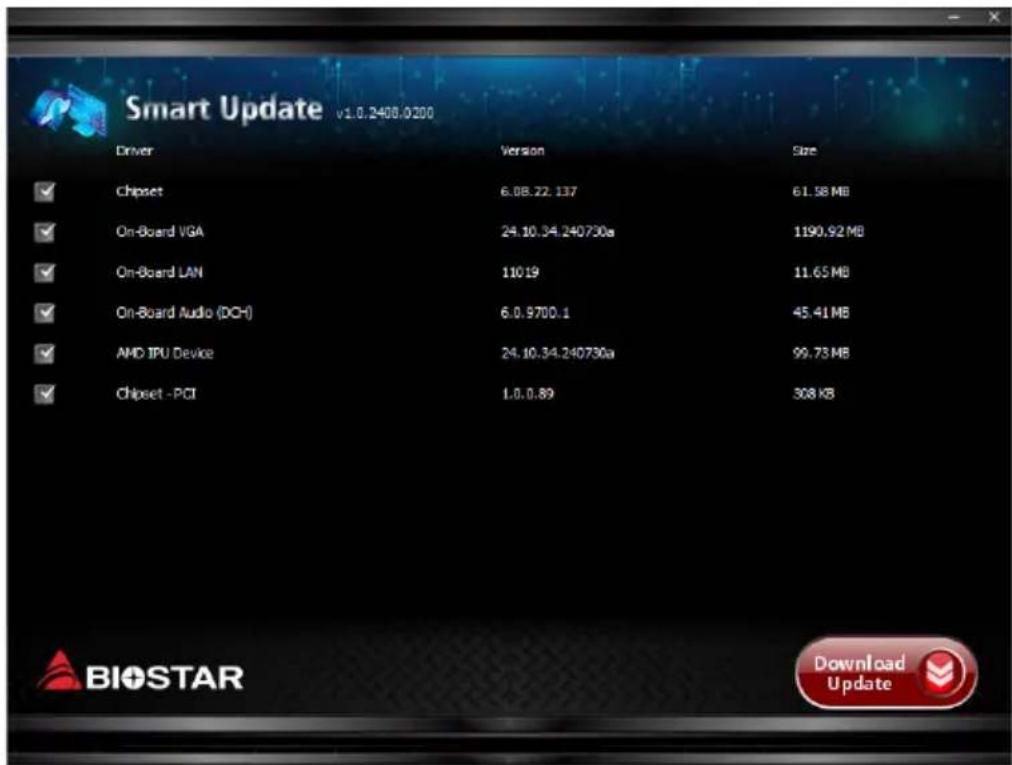

2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

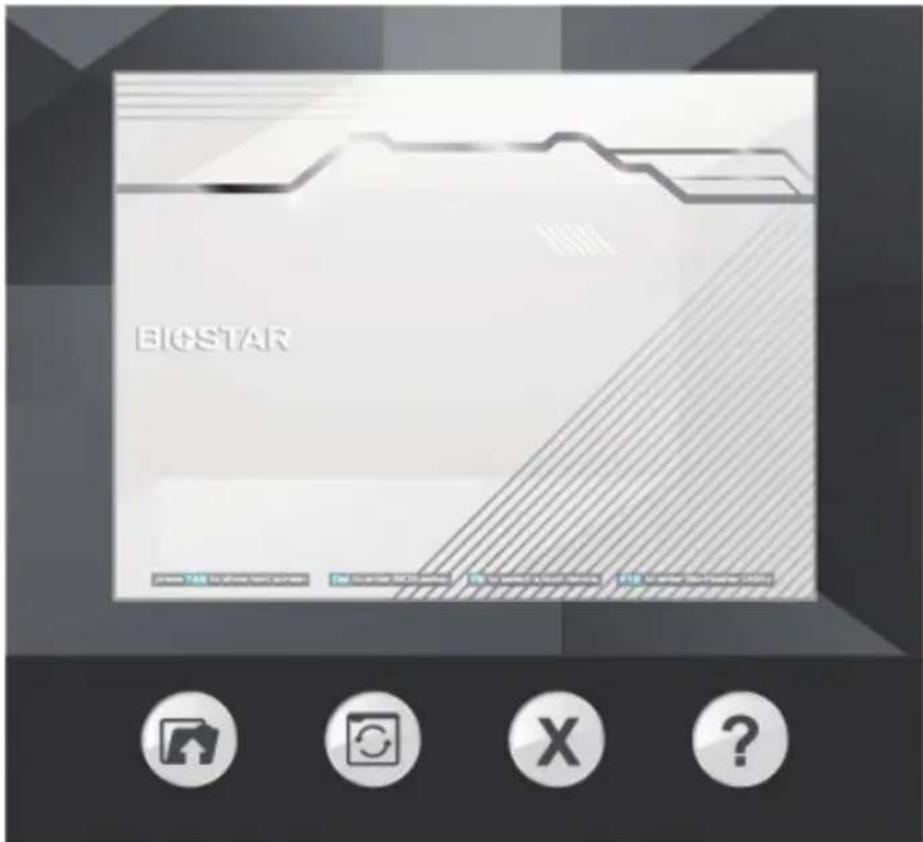

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

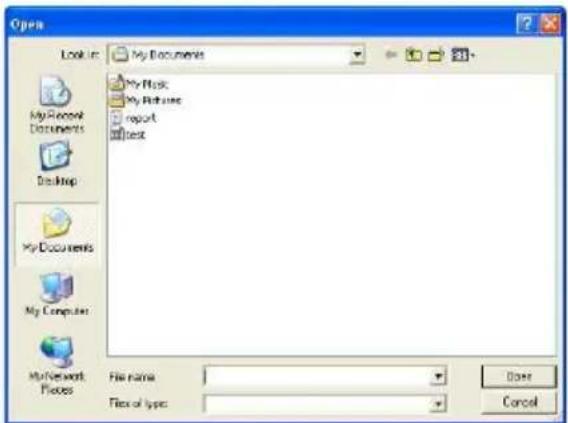

• Load Image: Choose the picture as the boot logo.
• Update Bios: Write the picture to BIOS Memory to complete the update.
• Close
• About

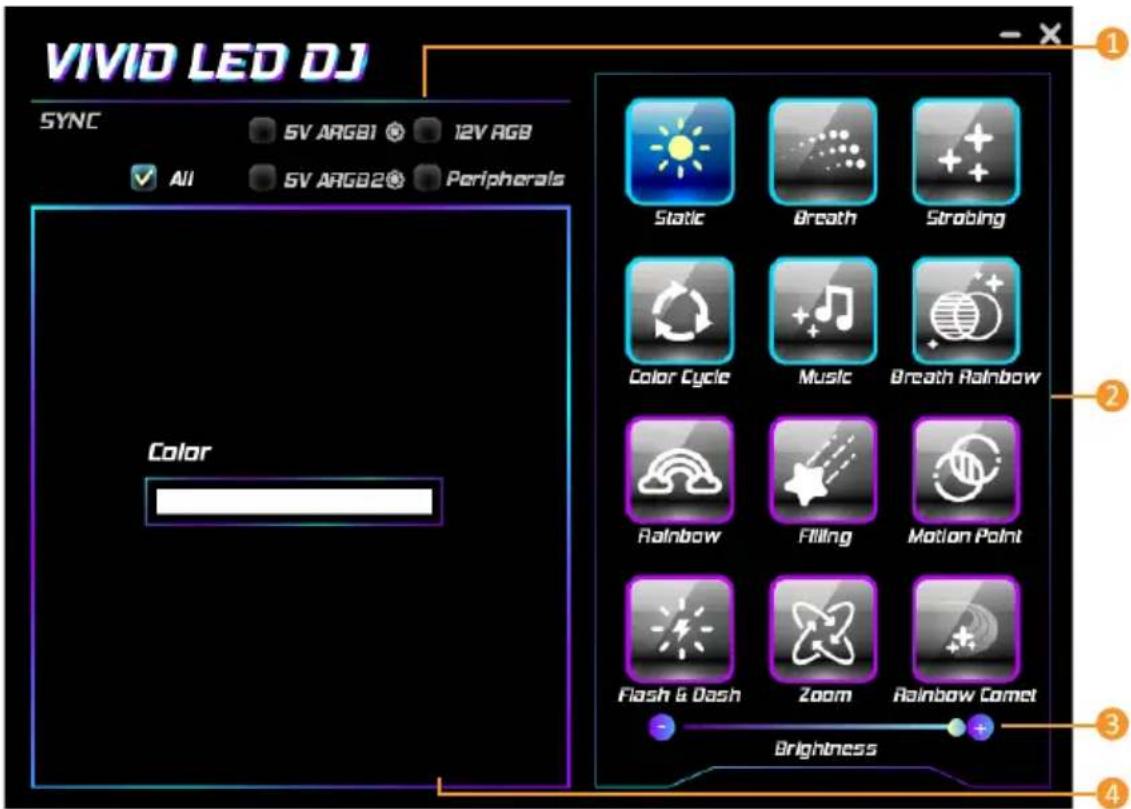

Vivid LED DJ

Vivid LED DJ can adjust your color scheme of ARMOR GEAR, RGB LED Device.

1. LED Type: Select the LED lighting blocks.

• All : All LED illuminations.
• 12V RGB : The 12V LED illumination. (12V_LED Device)
- 5V ARGB1 / 5V ARGB2 : The 5V LED illumination. (5V_LED Device)
• Peripherals : The RGB LED illumination.

1. LED SPARKLE: Allows to you choose sparkle of the LEDs.

2. Static

3. Breath
4. Strobing
5. Color Cycle
6. Music
7. Breath Rainbow
8. Rainbow
9. Filling
10. Motion Point
11. Flash & Dash
12. Zoom

13. Rainbow Comet

14. Brightness: Allow to adjust brightness of the LEDs.

15. Color Palette: Allows to you choose specific color of the LEDs.

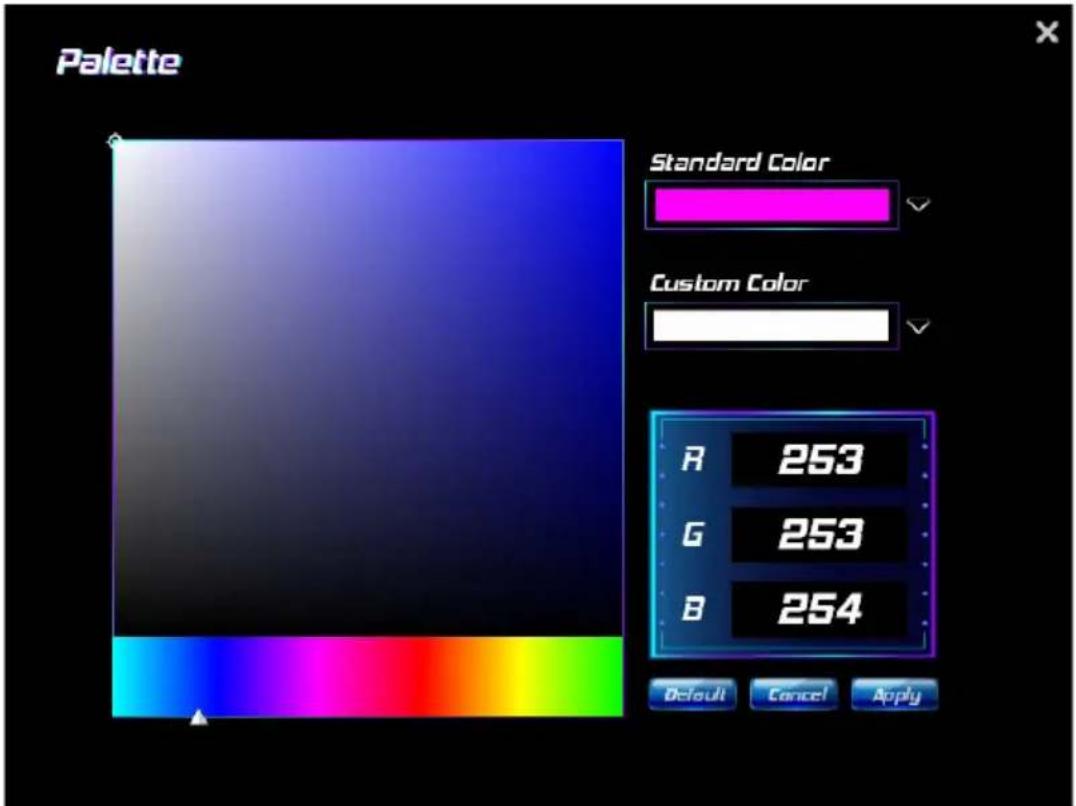

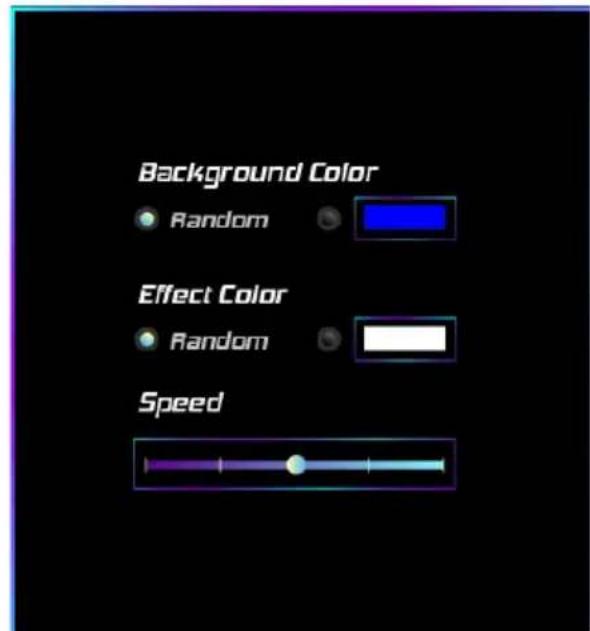

- Palette: Allows to you choose specific color of the LEDs.

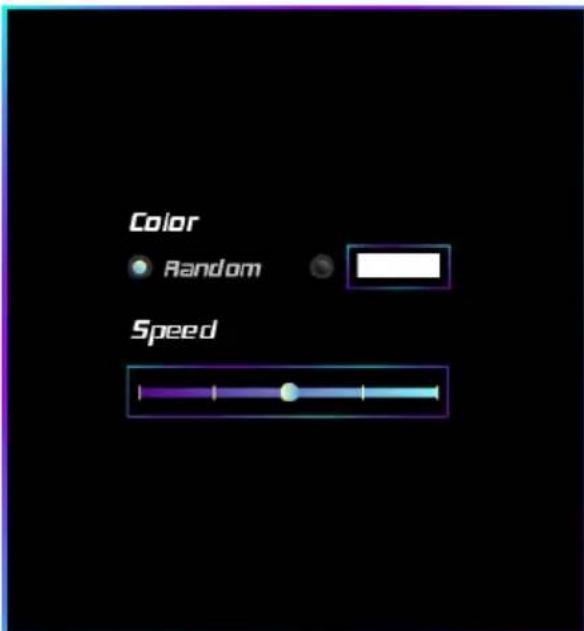

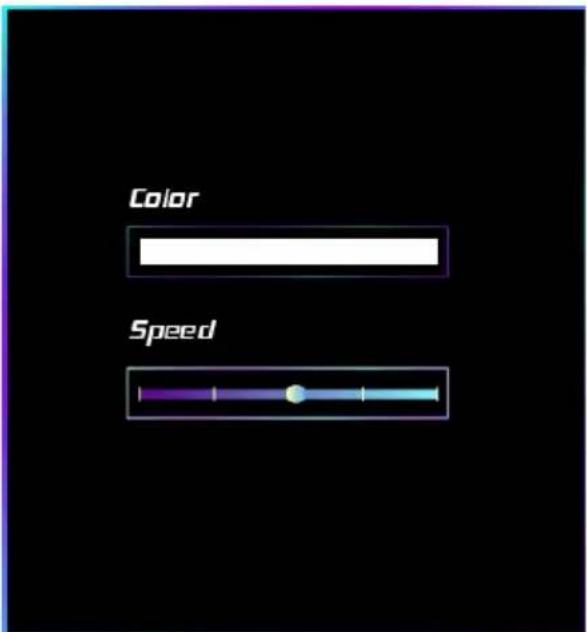

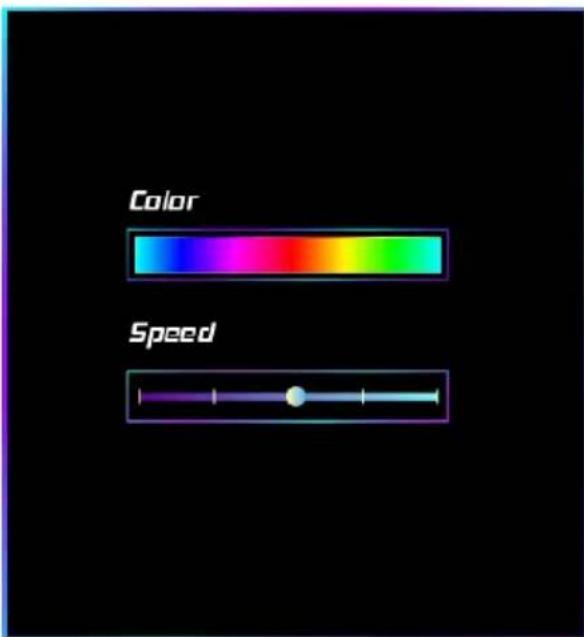

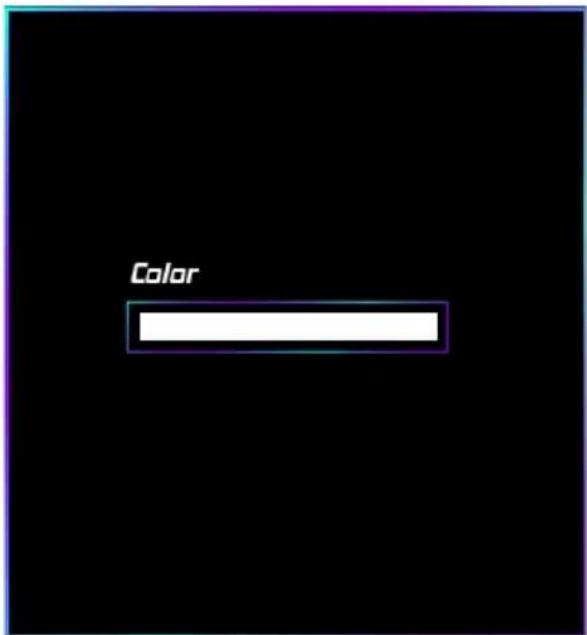

• Color: Allows to you choose color.

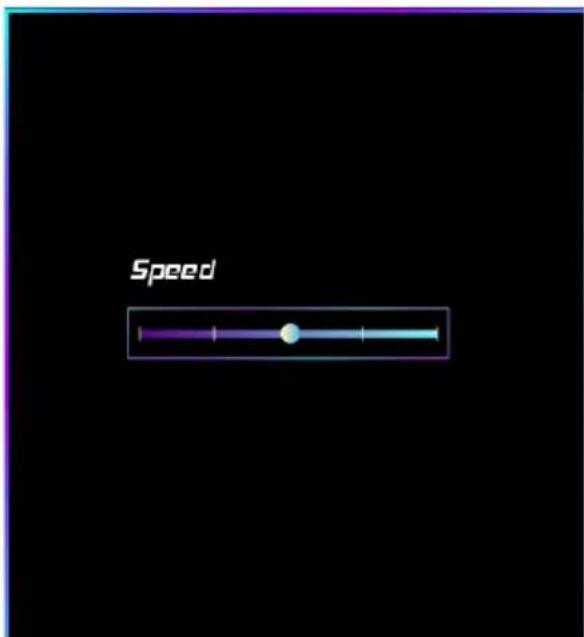

• Speed: Allows to you adjust speed.

• Color: Allows to you choose color.
• Speed: Allows to you adjust speed.

• Color: Allows to you choose color.
• Speed: Allows to you adjust speed.
- Random: LEDs will Automatically change the Color Palette.

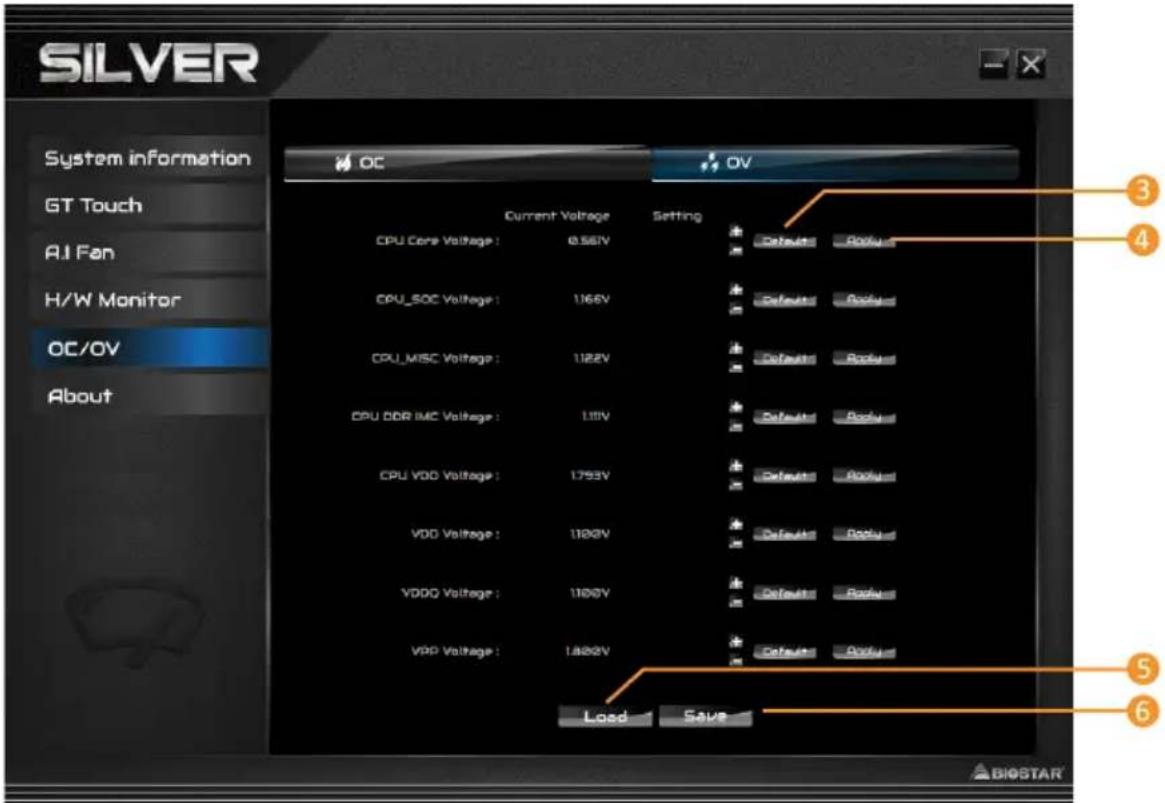

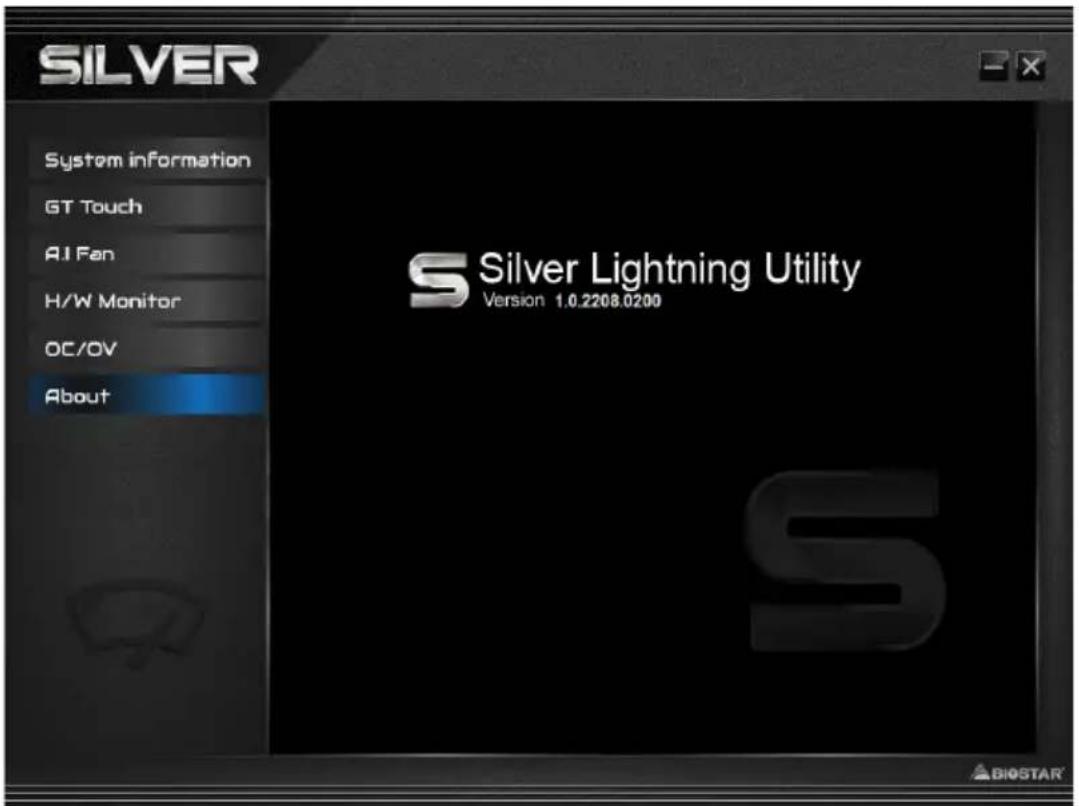

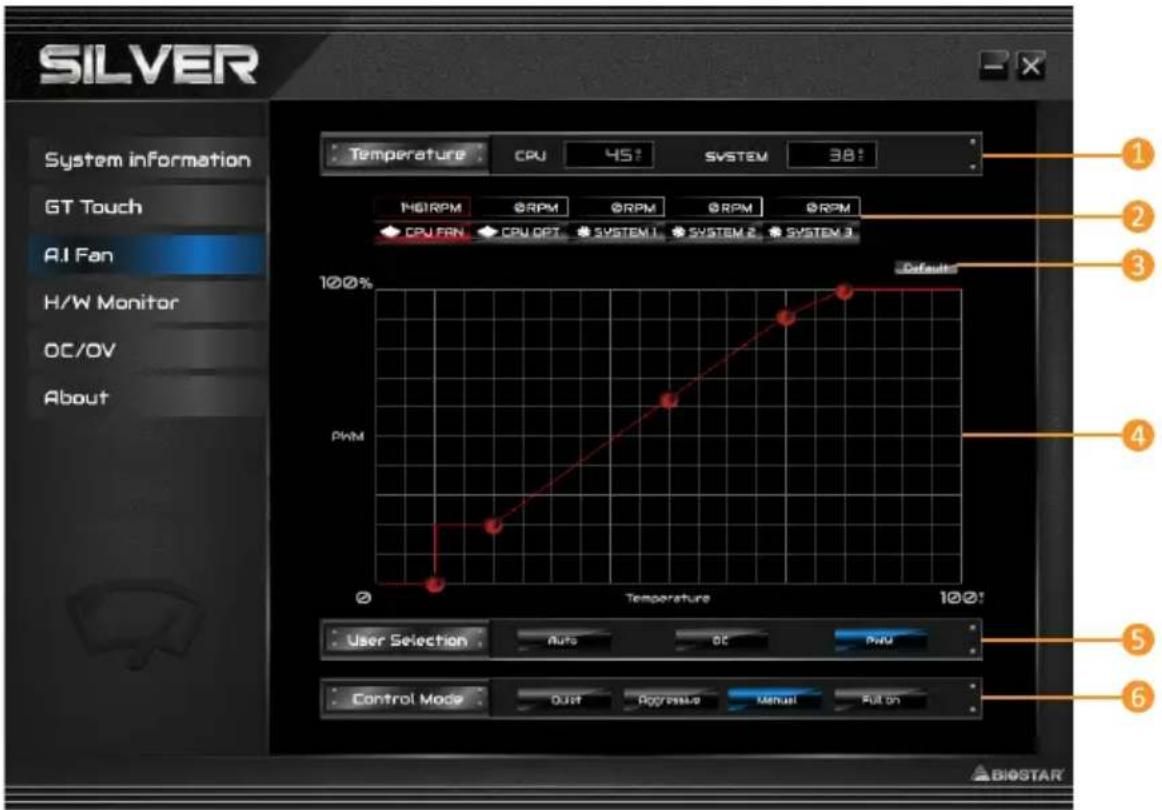

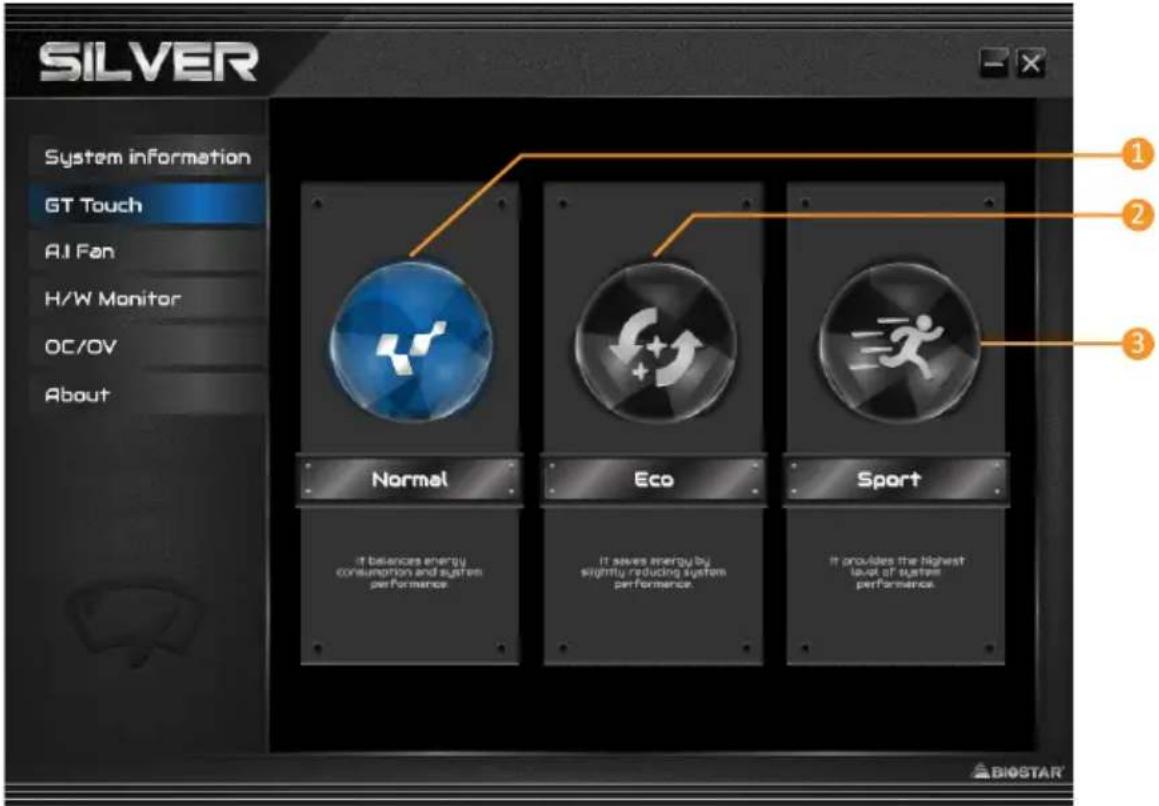

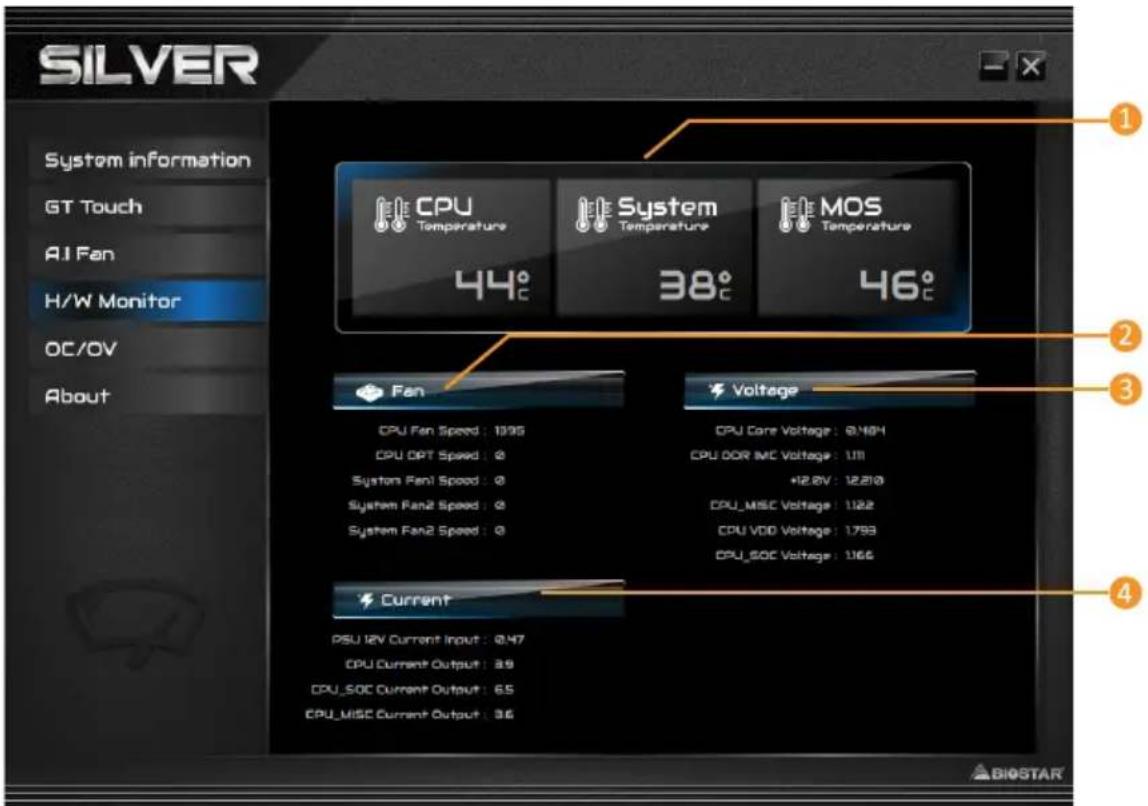

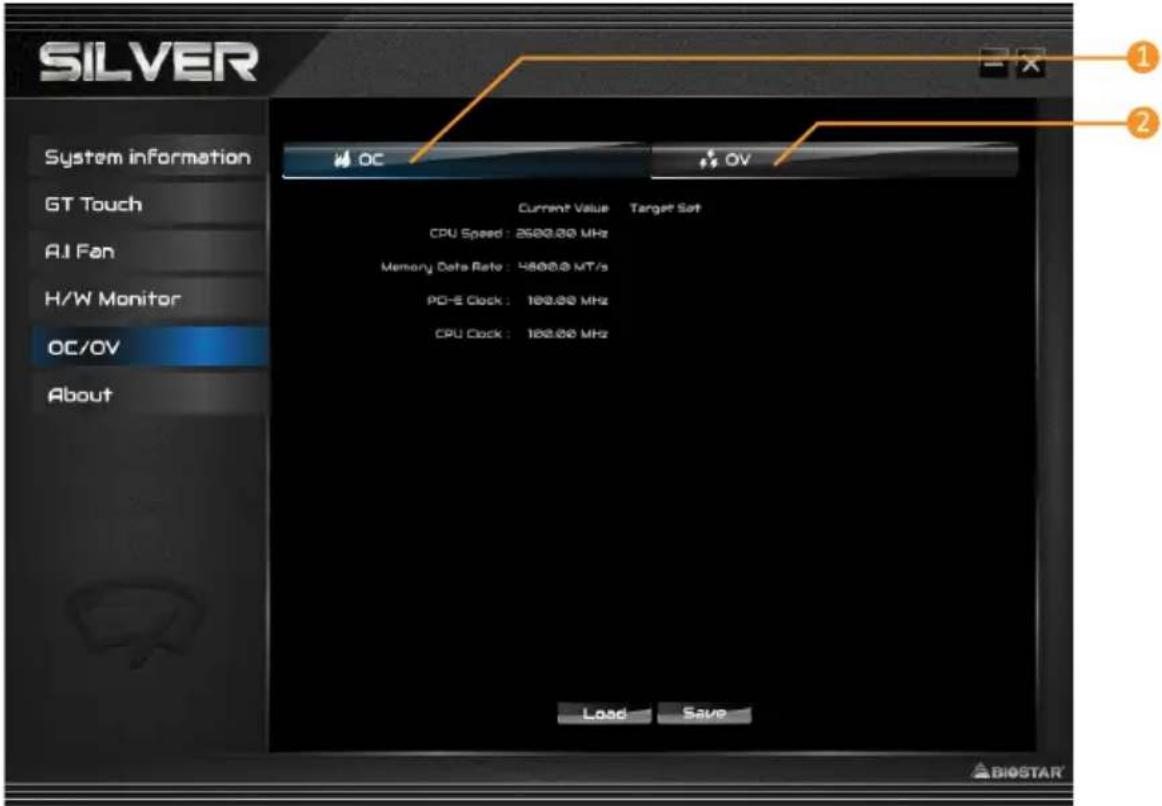

SILVER LIGHTNING

SILVER LIGHTNING is an easy-to-use program that integrates several BIOSTAR utilities and allows users to configure these utilities simultaneously and seamlessly.

Note

» Menu contents of SILVER LIGHTNING will be different slightly, depending on different motherboard of users' computers.
» When the software is installed or removed, restart your computer.

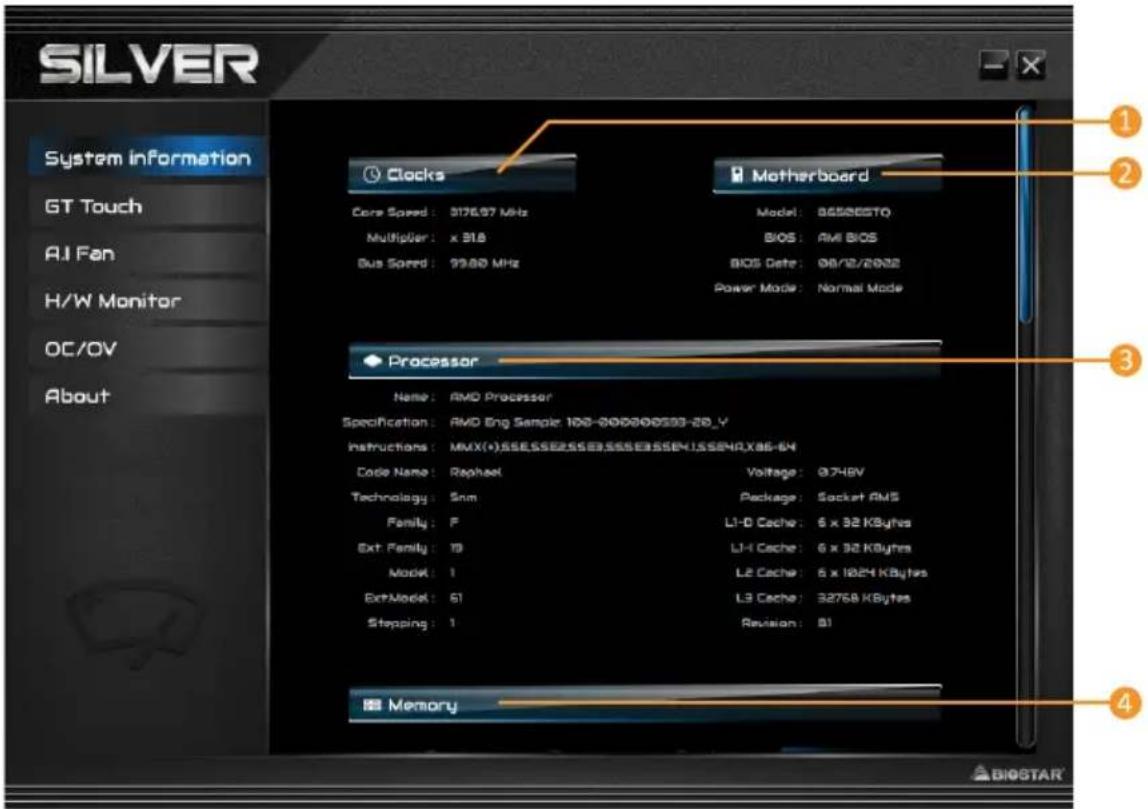

System Information

This System Information tab provides you an overview of the basic system information.

1. Clocks: Shows core speed, multiplier and bus speed.
2. Motherboard: Shows motherboard information.
3. Processor: Shows CPU information.
4. Memory: Shows memory information.
   » Click on different memory slot buttons to get the memory information.

GT Touch

GT Touch allows you to adjust Normal, ECO and Sport mode when running SILVER LIGHTNING program in Windows environment.

1. Normal Mode: It balances energy consumption and system performance.
2. ECO Mode: It saves energy by slightly reducing system performance.
3. Sport Mode: It provides the highest level of system performance.

A.I Fan

A.I FAN utility smartly allows PC users to have more customizability of fan operating modes and automatically detects different temperatures to make fan operating at defined speed for optimal cooling performance.

1. Temperature: Shows the current CPU and system temperature.

2. CPU FAN/ CPU OPT RPM & SYSTEM1/2/3 RPM: Click button to set the status value of CPU and system fan.

» Display items, please focus on the actual motherboard.

1. Default: Restore defaults your changes value of a single item.

2. PWM/ Temperature Panel: According to the fan PWM value corresponding to CPU and system temperature to adjust the fan speed.

» Allows you to adjust according to your preferences.

1. User Selection: Sets the fan property controls the actual selection operation.

• Auto: Allows you to adjust the Automatic detection Mode.

• DC: Allows you to adjust the Direct Current (DC) Mode.

- PWM: Allows you to adjust the Pulse Width Modulation (PWM) Mode.

1. Control Mode: Allows you to control mode of the fans.

- Quiet: Enable Quiet mode.

- Aggressive: Enable Aggressive mode.

- Manual: Enable Manual mode.

• Full on: Enable Full On mode.

H/W Monitor

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature.

1. CPU Temperature/System Temperature/MOS Temperature:

Shows the current CPU, system temperature and Mos Temperature.

1. Fan: Shows the current fans' speed.
2. Voltage: Shows the current voltages of CPU and memory.
3. Current: Shows the current of PSU 12V, CPU and CPU GT.

OC/OV

The OC/OV tab allows you to save or load the OC/OV setting profiles, change system frequency and voltage settings.

1. OC: Allows you to adjust overclocking profile values.
2. OV: Allows you to adjust voltage profile values.

1. Default: Restore defaults your changes.
2. Apply: Apply your changes.
3. Load: Load the profile values from the file.
4. Save: Store the profile values for future use.

Note

» Not all types of CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.
» Overclock is an optional process, but not a “must-do” process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

About

The About menu to display the SILVER LIGHTNING Utility version information.

Chapter 4: Useful help

4.1 Auto Installer

After connecting to the Internet and booting, BIOSTAR AUTO Installer will be displayed in the lower right corner. (Press "Yes")

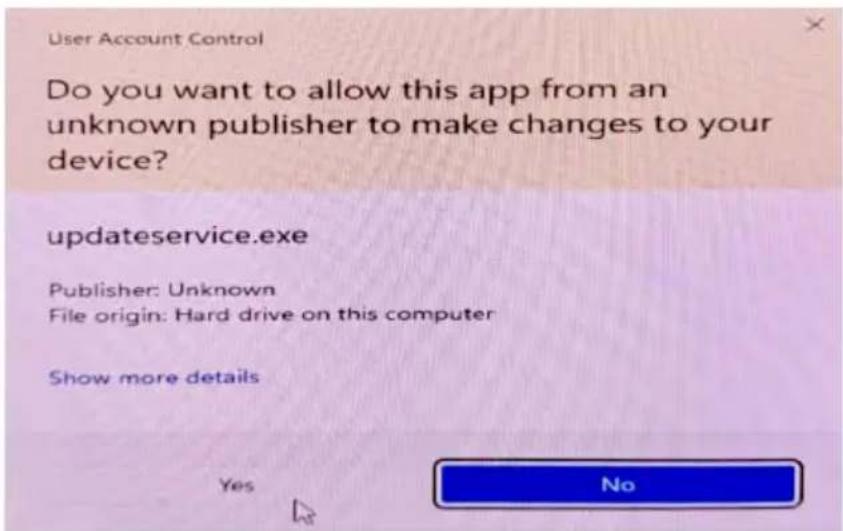

Press "Yes"

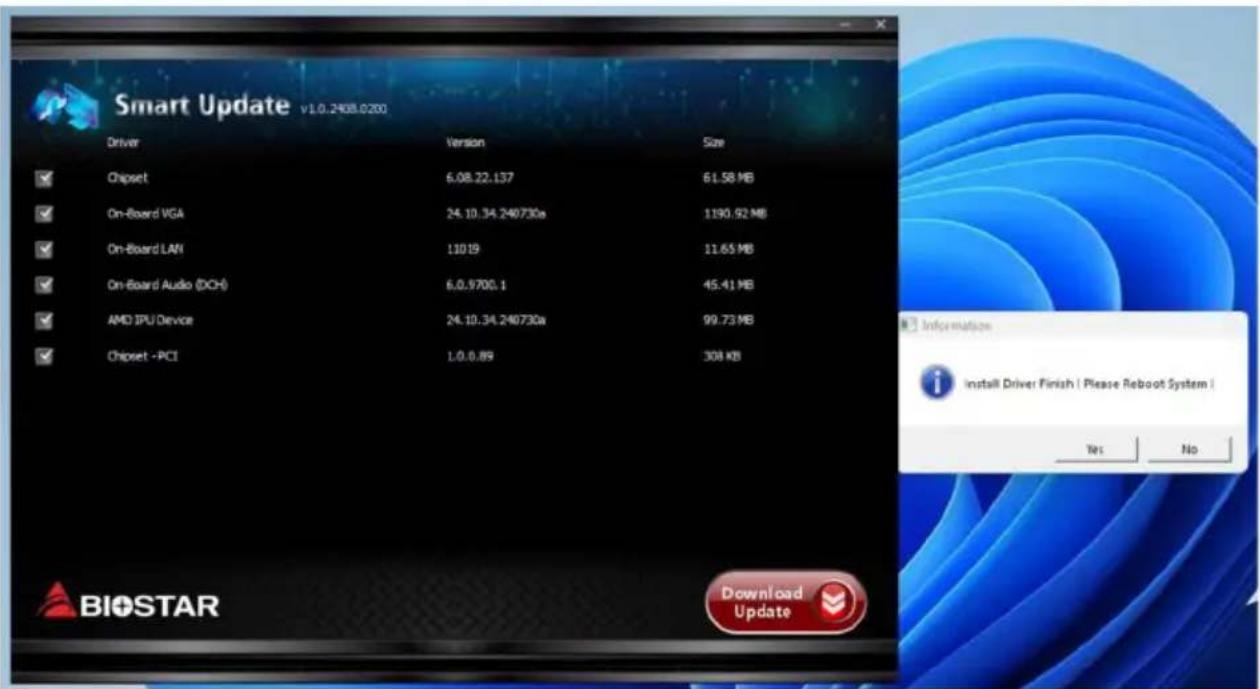

Press Lower right "Download Update"

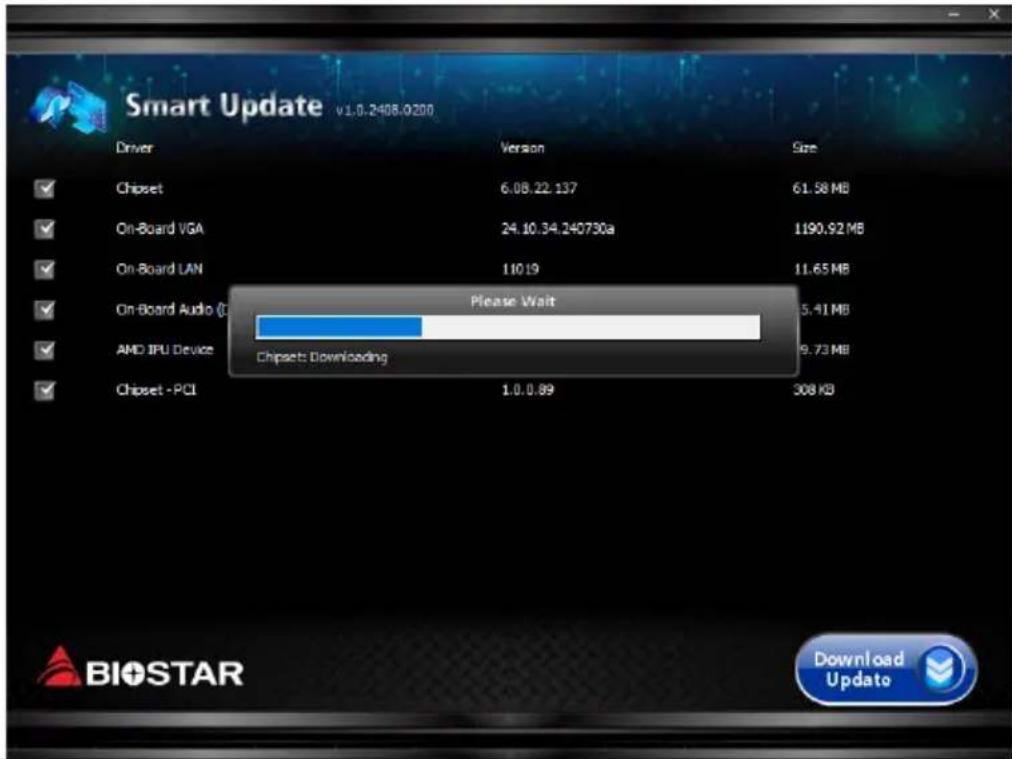

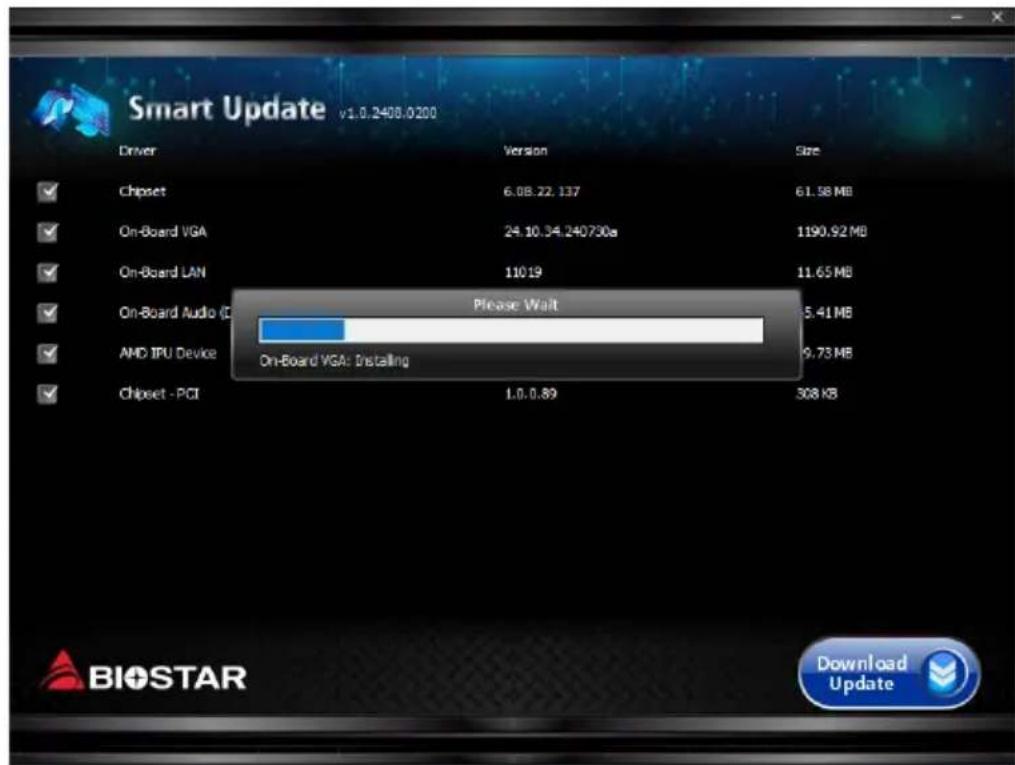

Wait download process is complete.

After the download and installation are complete, please restart your system.

4.2 RAID Functions

RAID Definitions

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.
  • Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

RAID 1

Data are stored twice by writing them to both the data disk (or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
- Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
- Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
- Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
- Fault Tolerance: Yes.

RAID 10 (1+0)

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

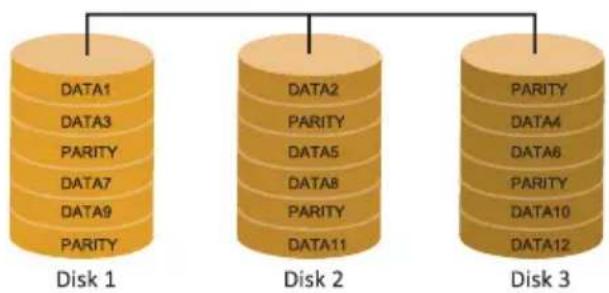

RAID 5
parity across disks

A RAID 5 array can withstand a single disk failure without losing data or access to data. Although RAID 5 can be achieved in software, a hardware controller is recommended. Often extra cache memory is used on these controllers to improve the write performance.

Features and Benefits

• Drives: Minimum 3.
  • Uses: RAID 5 is recommended for transaction processing and general purpose service.
• Benefits: An ideal combination of good performance, good fault tolerance, and high capacity and storage efficiency.
• Drawbacks: Individual block data transfer rate same as a single disk. Write performance can be CPU intensive.
• Fault Tolerance: Yes.

Note

» For more details settings about Intel® Rapid Storage Technology (Intel® RST), please visit http://www.intel.com/p/en_US/support/highlights/chpsts/imsm

APPENDIX: Specifications in Other Languages

Arabic

LGA1851 Intel® CoreTM Ultra 9/7/[e-mail]/40.2016
Intel® Z890
8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/DDR56600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600×4 DDR DVM45+ECG 8/16EPM2/48.Intel® Extreme Memory Profile (XMP)* www.biostar.com.tw
Intel Core Ultra Processors:(M2M1CPU,M2MM.2 Type 2280-SSDNVMe SSD-(128Gb/s)PCIe 5x3×4:(M2M1CPU,M2MM.2 Type 2280-SSDNVMe SSD-(64Gb/s)PCIe 4x3×4Intel Z890 Chipset:(M2M-SB,M2MM.2 Type 2280-SSDNVMe SSD-(64Gb/s)PCIe 4x3×4:(M2M-SB,M2MM.2 Type 2280-SSDNVMe SSD-(64Gb/s)PCIe 4x3×4:(GB/s)SAJA III10015010 RAID #AHCI*الايم الملاة عناجها لاتلاة
RAID 0x3 SAOTARAID0M2 MVM0e
Realtek® RTL8125D2500/1800/4000x30
Realtek® ALC12207x1
USB 3x2 Gen2USB 3x29 Gen2USB 3x29 x 4 USB 2.0USB
Intel Core Ultra Processors: RQ165 0x16Intel Z890 Chipset) PCIe (4x16) PCIe (4x16)*
الله الحرفية
الله الحرفية
(6Gb/s) SATA14 Inte 3.21 (Gen2) × C USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2)	(6Gb/s) SATA14 Inte 3.21 (Gen2) × C USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) USB 3.21 (Gen2) × USB 3.21 (Gen2) USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB 3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,3.21 (Gen2) × USB,0 (6Gb/s) SATA14 Inte 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2) × C USB 3.21 (Gen2)

German

Diagram showing a computer motherboard with an inset view of the internal components (no text or symbols present)

Примечание

Technical illustration of a mechanical component with mounting flanges and internal parts (no text or symbols)

3D diagram of a mechanical assembly with a blue arrow indicating rotation, no text or symbols present

3D diagram of a mechanical component with a blue arrow indicating rotation or movement (no text or symbols)

Примечание

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4AI Fan Control

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4Al Fan Control

Примечание

Technical line drawing of a computer RAM module with scroll and clamping mechanism (no text or symbols)

Technical line drawing of a mechanical component with multiple slots and directional arrows indicating motion (no text or symbols)

Примечание

Technical line drawing of a mechanical assembly with a labeled component 'Click' (no other text or symbols)

Technical line drawing of a mechanical assembly with a gear and rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with numbered components and angular annotations (no readable text or symbols)

Technical line drawing of a mechanical component with mounting holes and a rotating knob (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical assembly with a component and circular holes (no text or symbols)

Technical line drawing of a mechanical component with two circular holes and a central cylindrical assembly (no text or symbols)

Diagram of a computer motherboard showing CPU socket, RAM slots, and memory compartment (no text or labels)

Pin	Assignment Pin	Assignment
13	+3.3V 1 +3.3V
14	-12V 2 +3.3V
15	Ground 3 Ground
16	PS_ON 4+5V
17	Ground 5 Ground
18	Ground 6 +5V
19	Ground 7Ground
20	NC 8PW_OK
21	+5V 9Standby Voltage	-5V
22	+5V 10 +12V
23	+5V 11 +12V
24	Ground 12 +3.3V

Pin Assignment

1 +12V

2 +12V

3 +12V

4+12V

5 Ground

6 Ground

7Ground

8Ground

Примечание

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED (-)	2 Power LED (+)	PowerLED
3 HDD LED(-) 4PowerLED
5 Ground	ResetButton	6 Power Button	Power-OnButton
7 Reset Control 8G
9NC NC 10 Key Key

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4Data terminal ready

5 Signal ground

6 Data set ready

7Request to send

8Clear to send

9Ring indicator

10 Key

Pin Assignment

1 Force Power

2 Key

3 CIO Plug Event

4SMB_DATA_MAIN

5 SLP_S3_N

6 SMB_CLK_MAIN

7SLP_S5_N

83V3_AIC_PD_INT#

9GND

10 GND

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4: разъемыSerial ATA 6,0 Гбит/с

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

Blank document page with placeholder boxes and two blue circular buttons at the top (no text or symbols)

1. CPU Temperature/System Temperature/MOS Temperature

Нажмите «Yes»

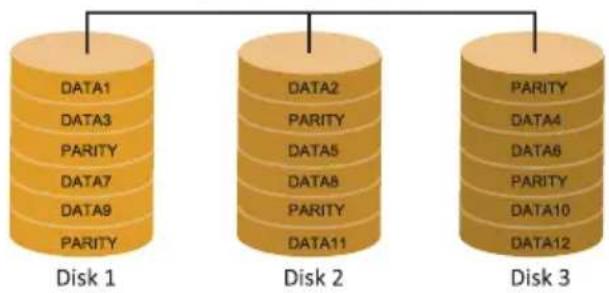

RAID 5
parity across disks

주의

Technical line drawing of a mechanical component with mounting flanges and internal components (no text or symbols)

5 플라스틱 보호덮개를 제거합니다.

3D mechanical assembly diagram showing a component being rotated with a blue arrow (no text or symbols)

3D diagram of a mechanical component with a blue curved arrow indicating rotation or movement (no text or symbols)

주의

핀	배열
1 Ground
2 + 12V
3 FAN RPM rate sense
4 A	Fan Control

SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4: 시스템 팬 헤더

핀	배열
1 Ground
2 +12V
3 FAN RPM rate sense
4 A	Fan Control

주의

Technical line drawing of a RAM module with a clamping mechanism and rotation indicator (no text or symbols)

Technical line drawing of a mechanical component with multiple slots and directional arrows indicating motion (no text or symbols)

주의

DIMM 소켓 위치 DDR5 모듈 총 메모리 크기
DDR5_A1 8GB/16GB/24GB/32GB/48GB	최대 192GB.
DDR5_A2 8GB/16GB/24GB/32GB/48GB
DDR5_B1 8GB/16GB/24GB/32GB/48GB
DDR5_B2 8GB/16GB/24GB/32GB/48GB

듀얼 채널 메모리 설치

Technical line drawing of a mechanical assembly with labeled components and rotation arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a labeled component 'Click' (no other text or symbols)

M.2 SSD 카드 제거

Technical line drawing of a mechanical assembly with a gear and rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with numbered components and angular annotations (no readable text or symbols)

Technical line drawing of a mechanical assembly with a base plate and a rotating component (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a numbered component (no text or symbols)

Technical line drawing of a mechanical assembly with a component and circular base (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a rotating knob (no text or symbols)

2.6 점퍼 & 스위치 설정

Pin opened Pin closed Pin 1-2 closed

JCMOS: CMOS 클리어 점퍼

Diagram of a computer motherboard showing CPU socket, RAM slots, and an indicator light (no text or symbols present)

핀	배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7Ground

HD Audio
핀	배열
1 Mlc Left in
2 Ground
3 Mlc Right in
4 GPIO
5 Right line in
6 Jack Sense
7Front Sense
8 Key
9 Left line in
10 Jack Sense

주의

5V\_LED1/5V\_LED2/ 5V\_LED3/ 5V\_LED4: Addressable RGB LED 장치 (WS2818B) 헤더

Blank white image with a vertical line and two blue circular markers at the bottom (no text or symbols)

- RGB LED 헤더 (5V/12V)

바이오스의 백업

3.4 소프트웨어

소프트웨어의 설치

챔터 4: 유용한 도움말

"Yes" 를 누릅니다.

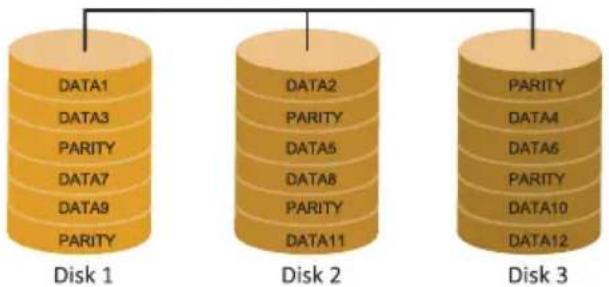

RAID 5
parity across disks
    subgraph_Disk_1["Disk 1"]
        A1["DATA1"] --> A2["PARITY"]
        A3["DATA3"] --> A4["DATA7"]
        A4["PARITY"] --> A5["DATA9"]
        A5["PARITY"] --> A6["PARITY"]
    end
    subgraph_Disk_2["Disk 2"]
        B2["DATA2"] --> B3["PARITY"]
        B4["DATA5"] --> B5["DATA8"]
        B5["PARITY"] --> B6["DATA11"]
    end
    subgraph_Disk_3["Disk 3"]
        C3["PARITY"] --> C4["DATA4"]
        C5["DATA6"] --> C6["PARITY"]
        C6["DATA10"] --> C7["DATA12"]
    end
    A1 --> B2
    B2 --> C3

注意

Technical illustration of a mechanical component with mounting flanges and internal components (no text or symbols)

步驟 5: 取下塑膠保護殼。

Mechanical assembly diagram showing a component being rotated with a blue arrow (no text or symbols present)

步驟 6: 將 ILM 拉桿完全閉合。

Technical diagram of a mechanical component with mounting flanges and a blue circular arrow indicating rotation (no text or symbols)

注意

Technical line drawing of a computer RAM module with no text or symbols

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

注意

雙通道狀態 DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

Technical line drawing of a mechanical assembly with a labeled component 'Click' (no other text or symbols)

移除 M.2 SSD 卡

Technical line drawing of a mechanical assembly with a gear and rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components and angular motion indicator (no text or symbols)

“M.2 旋轉自動扣具” 更換孔位：移除、安裝

Technical line drawing of a mechanical component with mounting holes and a rotating knob (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a numbered component (no text or symbols)

Technical line drawing of a mechanical assembly with a component and circular base (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a rotating knob (no text or symbols)

2.6 跳線設定

Diagram of a computer motherboard showing CPU socket, RAM slots, and memory compartment (no text or labels)

Simple geometric diagram with rectangles and circles, no text or symbols present

- RGB LED 接頭 (5V/12V)

第三章: UEFI BIOS 和軟體

3.1 UEFI BIOS 設定

BIOS 備份

3.4 軟體

安裝軟體

SILVER LIGHTNING Utility

第四章：幫助訊息

4.1 一鍵安裝 (Auto Installer)

按 "Yes"

按右下角 “Download Update”

等待下載過程完成。

下載並安裝完成後，請重新啟動系統。

4.2 RAID 功能

RAID 定義

RAID 5
parity across disks
    end
