DCTF104DG - Household Fan DIMPLEX - Free user manual and instructions

Product Type	Domestic Tower Fan
Brand	Dimplex
Model	DCTF104DG
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	50 W
Fan Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, 75° wide oscillation
Timer	7.5 hours timer with auto-off
Remote Control	Yes, included with battery
Height	100 cm
Width	25 cm
Depth	25 cm
Weight	4.0 kg
Noise Level	< 50 dB (A)
Airflow	1500 m³/h
Cleaning Instructions	Wipe with a soft damp cloth; do not use abrasive cleaners
Safety Features	Overheat protection, tip-over switch
Spare Parts	Replacement remote, power adapter, fan blades available from Dimplex service
Repairability	User-replaceable fuse and remote control battery

Frequently Asked Questions - DCTF104DG DIMPLEX

How do I clean the fan blades?

Unplug the fan. Use a soft damp cloth to gently wipe the blades. Do not use water or solvents directly on the motor.

The remote control is not working. What should I do?

Check if the battery is inserted correctly. Replace with a fresh CR2025 battery. Ensure nothing is blocking the signal between the remote and the fan.

Can I use the fan outdoors?

This fan is designed for indoor use only. Exposure to moisture or dust may cause damage.

How do I set the timer?

Press the timer button repeatedly to select the desired off time (up to 7.5 hours). The fan will automatically shut off after the set time.

Why is the fan making a clicking noise?

A clicking noise is normal during oscillation. If the noise is excessive, check if the fan is on a level surface and the oscillation knob is properly engaged.

Can I adjust the height of the fan?

No, this model has a fixed height. It is designed as a tower fan with a stable base.

What does the tip-over switch do?

The tip-over switch automatically cuts power to the fan if it is accidentally knocked over, preventing potential hazards.

Is the fan safe to use overnight?

Yes, the fan has overheat protection and a timer. It is safe to use while sleeping, but ensure proper ventilation and keep away from curtains.

How do I store the fan when not in use?

Clean the fan, disconnect the power, and store it in a dry, dust-free place. Keep the remote control in a safe location.

Where can I find spare parts?

Contact Dimplex customer service or visit the official website for replacement parts like remote controls, adapters, or fan blades.

USER MANUAL DCTF104DG DIMPLEX

Illustration of a vertical cylindrical object with ribbed structure against a solid red background (no text or symbols)

104cm Digital Tower Fan

Model: DCTF104DG

For domestic household use only.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.

WARNING - This appliance must not be used in a bathroom.

WARNING - Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.

• If the mains lead is damaged it must only be replaced by the manufacturers service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a firm, flat surface.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or is otherwise damaged.
• Please ask a professional service agent to repair the product. Improper repair may cause danger to users.
• Disconnect the appliance from mains power whenever it is not

in use, before relocating it, and before cleaning.

• Operate the appliance only at the voltage specified on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This fan is only intended for INDOOR RESIDENTIAL applications. This fan should not be used for commercial or industrial or leisure applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord away from traffic areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water collection may lead to a risk of fire or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away from walls, furniture and overhanging objects such as curtains or a shelf.
• WARNING: To avoid danger of suffocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children and babies.
• NEVER drop or insert any object or fingers into any openings.
• Do not use the appliance in locations where paint, petrol or other flammable liquids are used or stored.
• Do not use bug sprays or other flammable cleansers/vapour sprays on or around the unit.

• Always switch off the unit and take the plug out of the socket:

• If you are not using the unit
• Before you clean or carry out maintenance on the unit
• If a fault occurs
  • In the event of an electrical storm.

- Avoid electromagnetic interference. Keep the unit at least 1 metre away from electrical appliances such as televisions & radios.

- DO NOT use this appliance with an extension lead or power board.

Exposed to the weather outdoors

Near water If the power cable wires are frayed or cut

wires are frayed or cut

Black silhouette of a person running with a red X symbol crossed out (no text or numbers present)

Where small children may be left unattended

No extension leads or power boards

Where the power cable may be damaged

Symbol of a black box with a red X mark crossed out, representing prohibition or rejection (no text present)

On a slope or uneven surface

Where there is risk of fire or close to a naked flame

Where it may be damaged by chemicals

Where there is a risk of interference by foreign objects

This product is not made for DIY repair

If there is a risk of water falling on the unit

Specification

Model no. DCTF104DG
Colour	Grey
Power supply	220-240V~ 50-60Hz
Rated power	45W
Speed settings	4
Modes 4
Timer 1-12hrs
Air speed 5.5m/s
Oscillation 60°
Controls Button & Remote
Noise level	48dB
Weight (net) 3.7kg
Dimensions (w x d x h) 320 x 320 x 1040mm

- For greater precision, please always refer to the rating label placed on the product.

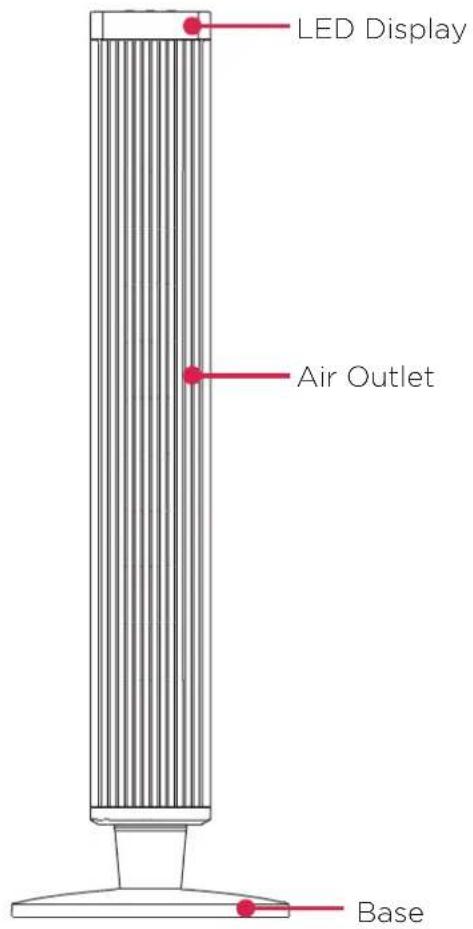

Parts

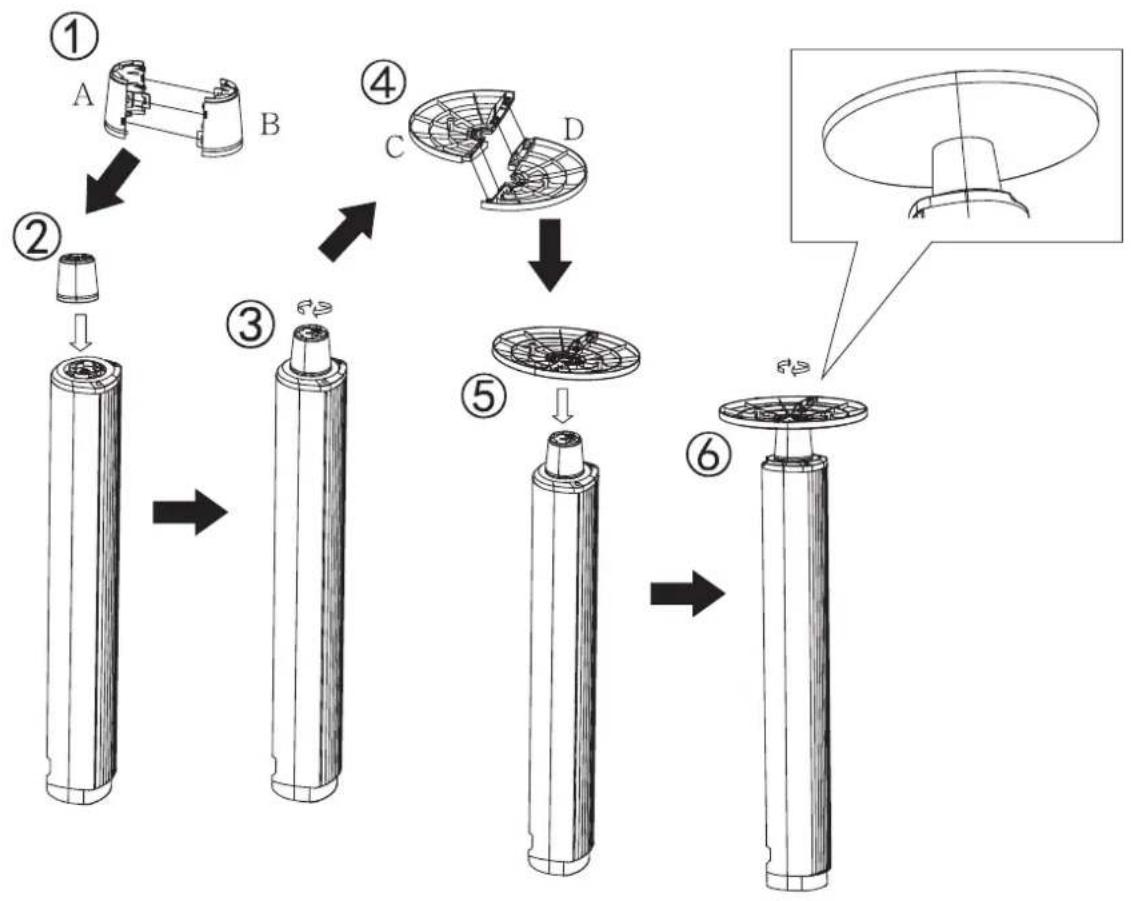

Assembly

1. Take the two parts of the pole (A and B) and assemble them together.
2. Position the larger end of the pole at the bottom of the tower fan body and place into the groove.
3. Turn the pole clockwise until an audible click is heard.
4. Take the two parts of the base (C and D). Insert the two poles of part C into the two holes of part D, and insert the two poles of part D into the two holes of part C.
5. Position the base onto the smaller end of the pole.
6. Turn the base clockwise until an audible click is heard. The boundary of the pole should align with the boundary of the base.

Operation

This tower fan can be operated by the control panel and remote control. Please refer to the below diagrams and descriptions.

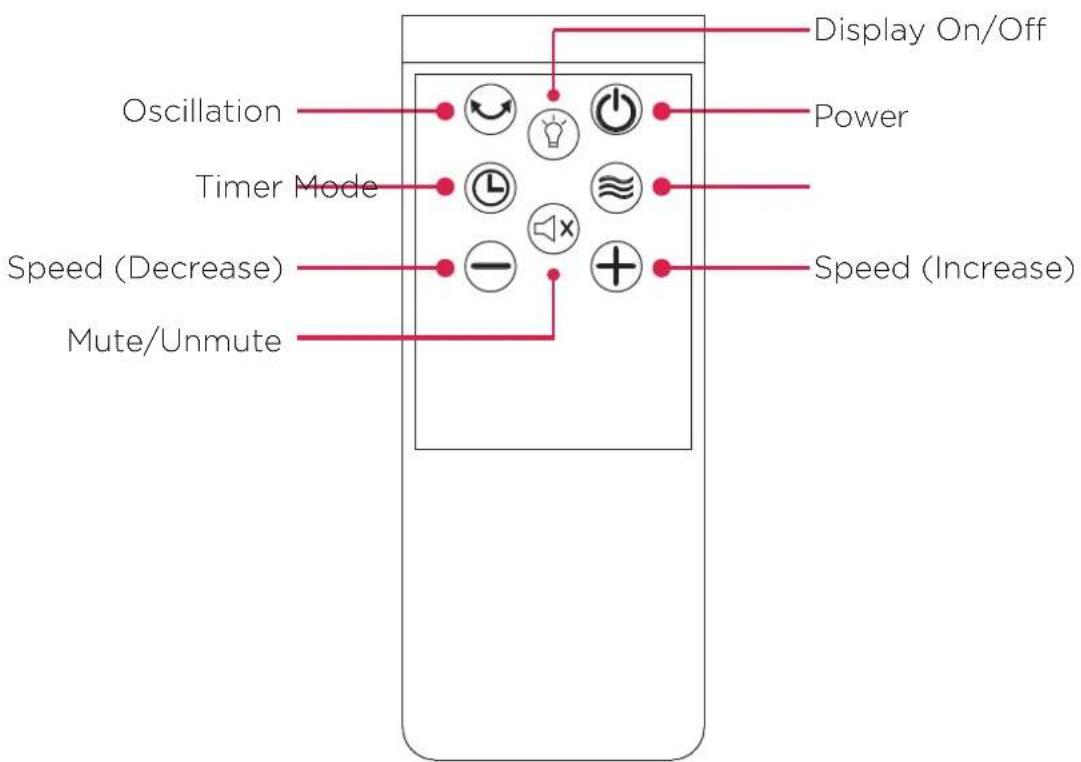

Remote Control

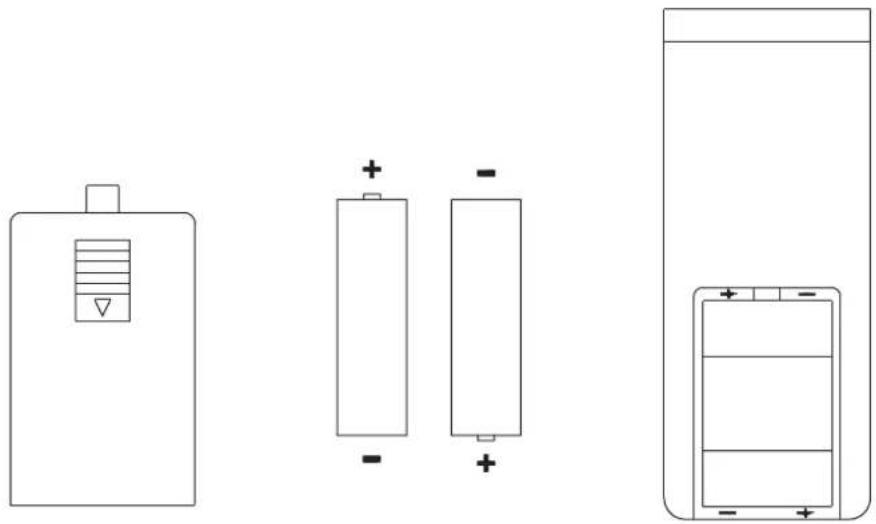

1. Install 2 x AAA batteries (not included) into the remote.

Diagram showing three battery types: a battery with a stopper, two connected batteries, and a battery casing (no text or symbols present)

1. All remote control buttons are labeled as below and all the remote control functions work identically as the manual controls.

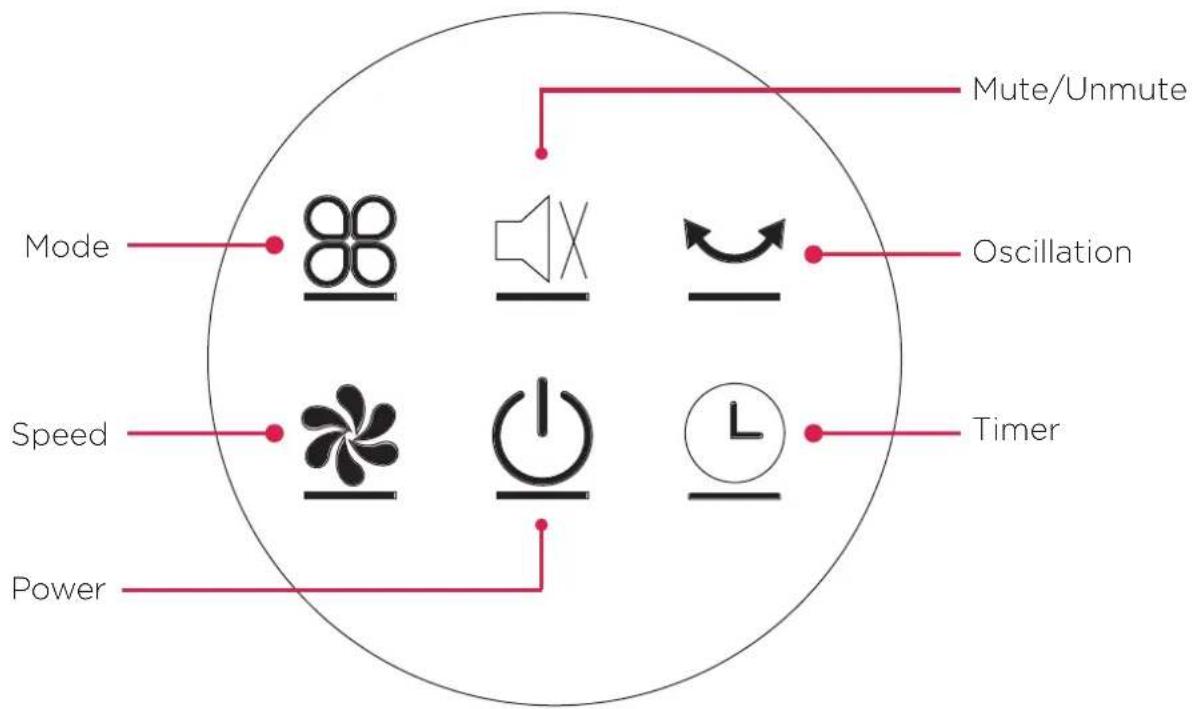

Control Panel

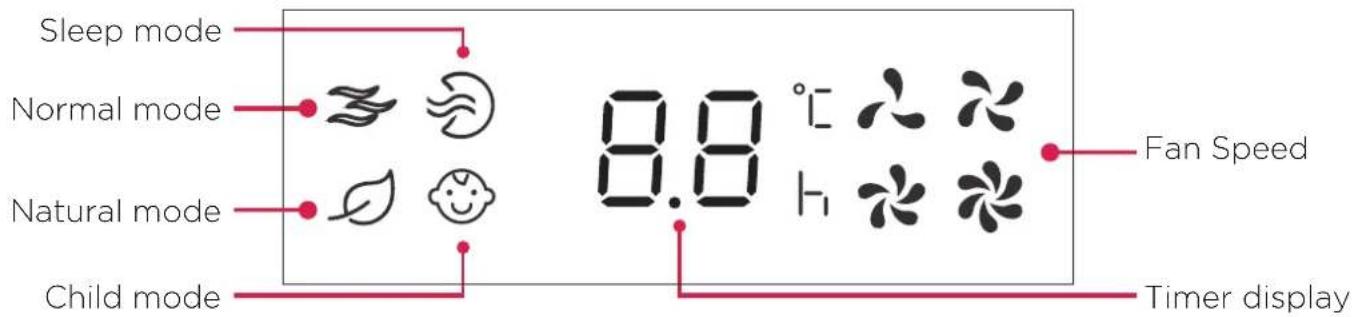

LED Display

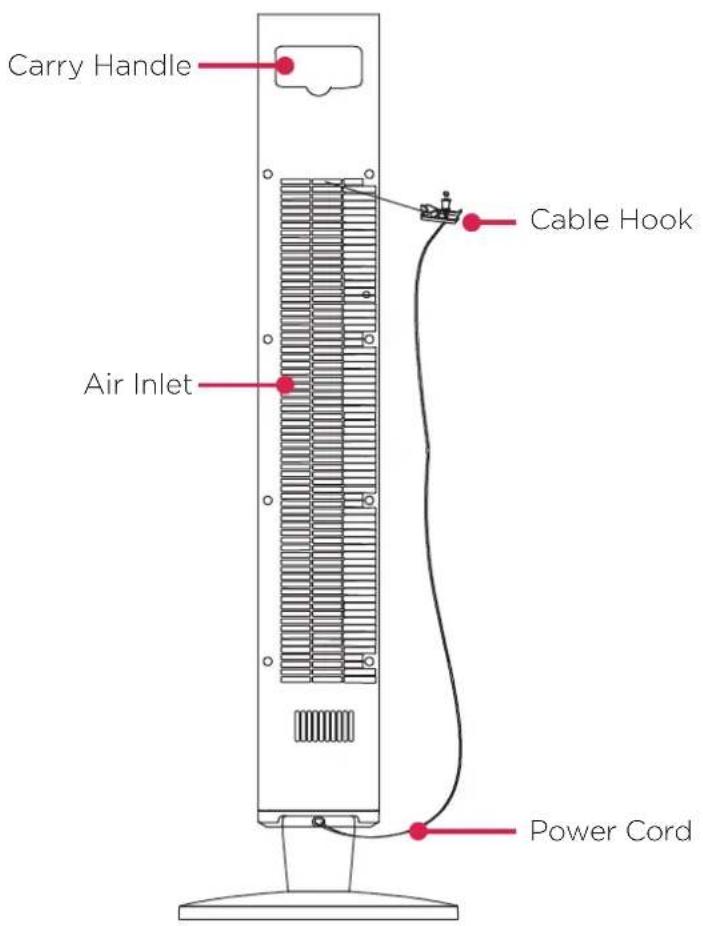

Cable Hook:

The cable hook is packed with the user manual. Take it out and install it on the grille of the Air Inlet on the backside of the fan. The power cord can be hung at the cable hook when the fan is not in use.

Diagram of a vertical electric heater with heat distribution and a cable, no text or symbols present

Operation

Manual Controls

1. Place the fan on a stable, flat surface. Plug the cord set into an appropriate electrical outlet.
2. Turn the fan on by pressing the 'POWER' button. Turn the fan off by pressing the 'POWER' button again.
3. You can adjust the fan speed to the desired level: 1 (low), 2 (medium-low), 3 (medium-high) and 4 (high) by pressing the 'SPEED' button. The speed setting is displayed on the LED panel.
4. You can adjust the fan mode by pressing the 'MODE' button. The four modes are 'natural' 'normal' 'sleep' and 'child'.
5. To set the fans timer, press the 'TIMER' button. This allows you to set the fans length of operation between 1-12 hours in intervals of 1 hour. To cancel the Timer function, press the Timer button continuously until the timer light is no longer displayed.
6. To make the fan oscillate, press the 'OSCILLATION' button. This allows the fan to oscillate up to 60^ .
7. To toggle the operating sounds, press the 'MUTE/UNMUTE' button.
8. Turn the LED display temporarily off by pressing the 'DISPLAY ON/OFF' button on the remote. The display will light up again once any control button is pressed. Note: The LED display will turn off automatically after 30 seconds on inactivity. The Display On/Off button can be held for three seconds after turning the LED display on to cancel this feature. To re-enable the feature, press and hold the button for 3 seconds once again.

Operation Modes

NORMAL Mode ≈ The normal mode has 4 fan speeds (1, 2, 3, 4, from low to high). The fan will run continuously at the selected speed, and will not change automatically

NATURAL Mode ☑ - The natural mode has 3 fan speeds (2, 3, 4). When set to natural mode, the fan will automatically switch circulation between fan speeds 2/3/4 based on the current selected fan speed to simulate natural wind.

SLEEP Mode The sleep mode has 4 fan speeds (1, 2, 3, 4). When set to sleep mode, the fan will automatically switch circulation between 1/2/3/4 fan speeds based on the current selected fan speed in order to provide a comfortable breeze during sleep.

CHILD Mode The child mode is designed especially for children and babies. The child mode has 3 wind speeds (1, 2, 3) which provide a soft airflow. The fan will automatically switch circulation between 1/2/3 fan speeds based on the currently selected fan speed. By default, oscillation is enabled in this mode. The oscillation can be cancelled by pressing the Oscillation button.

Cleaning

Over time, dust can accumulate on the fan grille, which can affect the fans performance. It is recommended to clean the fan at least once a month.

1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used for any stubborn marks.

Do not use abrasive sponges, scouring pads, or a stiff brush to clean the unit.

IMPORTANT

The control panel and other parts must not come into contact with water or any other liquids.

Storage

If not using the unit for an extended period of time. After cleaning please:

• Turn the unit off, unplug and take care of the mains lead & plug.
• Cover the unit and store it upright in a location where it will not receive direct sunlight. NB- Prolonged exposure to direct sunlight will discolour the enclosure.

Maintenance

If the unit fails to operate efficiently, is broken or other problems arise, unplug and do not operate. Ask for advice by calling your local after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).

Warranty

Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below.

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd

8 Lakeview Drive, 38 Harris Road, East Tamaki,

Scoresby 3179, Victoria Auckland 2013

Australia New Zealand

Ph: 1300 556 816 Ph: 0800 666 2824

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water, polluting the food chain and damaging health and well-being.
