USER MANUAL BP-VG3080FE Bitspower

Please tear off the protective film on the mirror plate.

請接①主版或②其他設備的DRGB插槽。

Digital RGB PIN on ① motherboard or ② other equipment.

请接①主版或②其他设备的DRGB插槽。

1

主版 motherboard 主版

② → BPTA-DRGBMFC

DRGB控制器(不包括) DRGB Multi Function Controller(Not included) DRGB控制器(不包括)

請從冷頭拆下背板後再依照說明書，把冷頭，背板安裝到顯卡上。
Please remove the back plate from the waterblock, and then according the installation guide to install the waterblock, back plate with your graphics card. 请从冷头拆下背板后再按照说明书，把冷头，背板安装到插件上。

Design for GeForce RTX 3080 Founders Edition

配件

① BP-VG3080FE 1 PCS
② 1.0 mm Thermal pad 9 PCS
③ 2.5 mm Thermal pad 1 PCS
④ Booster screw (Has been Installed) 3 PCS
⑤ Washer 2 PCS
⑥ Back plate 1 PCS
⑦ M2.5 x 8 screw 10 PCS
⑧ M2.5 x 8Flatscrew2 PCS

配件

Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. 本公司保留对产品的设计更改以及解释的权力，如有更动恕不另行通知，产品颜色与配件以实物为准。

Bitspower®

Floor plan diagram with blue and white blocks, a central patterned area, and scattered geometric shapes (no text or labels)

Abstract geometric pattern with blue rectangular blocks and white squares on a light background (no text or symbols)

GeForce RTX 3080 Founders Edition

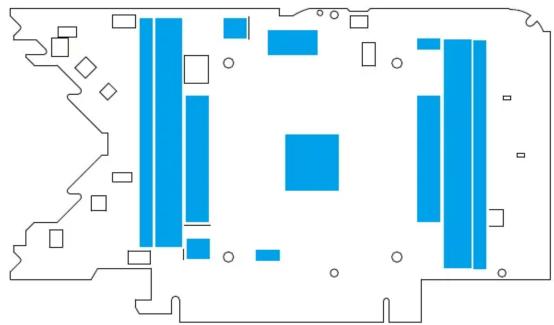

	Applying the thermal pad and thermal paste on correct positions.	导热垫片和导热膏的正确应用位置導熱
	Using appropriate amount of thermal paste.	适量使用导热膏
	1.0 mm Thermal pad	1.0 毫米导热垫片
	2.5 mm Thermal pad	2.5 毫米导热垫片
	Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply.	注意、跑水前,请先确认所有零件已安装在正确的位置上,在不开主机,单开水泵的情况下,进行24小时的跑水测试,确保无漏水情况后再开主机,避免发生漏水而导致电脑零件的损坏。

注意，跑水前，請先確認所有零件已安裝在正確的位置上，在不開主機，單開水泵的情況下，進行24小時的跑水測試，確保無漏水情況後再開主機，避免發生漏水而導致電腦零件的損壞
Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply.

Bitspower®

Notice:Bitspower recommends that consumers add the Bitspower dye to distilled water or purified water for their water-cooling liquid. If the

consumer chooses different water-cooling liquids, the resulting impurities may cause peeling of the coating on some of the hardware, water channels blockage by built-up residue, improper operation of the water pump, water tank tube breakage, and o-rings deformation leading to leakage. Any issues related to the use of inappropriate water-cooling liquid will be the responsibility of the consumer. Do not turn on the pump if the reservoir is empty.

Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. 本公司保留对产品的设计更改以及解释的权力，如有更动恕不另行通知，产品颜色与配件以实物为准。

V6/第六版
