USER MANUAL BP-VG3090EVXC3 Bitspower

Please tear off the protective film on the mirror plate.

請接①主版或②其他設備的DRGB插槽。

Digital RGB PIN on ① motherboard OF ② other equipment.

请接①主版或②其他设备的DRGB插槽。

1

主教 motherboard 主教

② → BPTA-DRGBMFC

DRGB 控制器(不包括) DRGB Multi Function Controller(Nor included) DRGB 控制器(不包括)

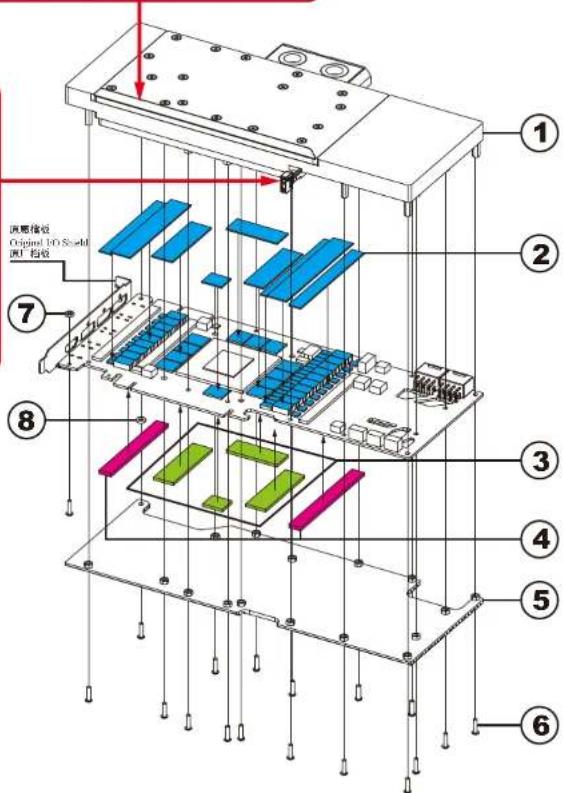

请说冷颜拆下背板后再依照说明言，把冷颜，背板安装到额卡上。
Please remove the back plate from the waterblock, and then according the
installation guide to install the waterblock, back plane with your graphics card.
请从冷头拆下背板后再按照说明书，把冷头，背板安装到插件上。

Design for EVGA GeForce RTX 3090 XC3 series

配件

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

EVGA GeForce RTX 3090 XC3 series

适量使用导热膏1.0 mm导热垫片2.0 mm导热垫片2.5 mm瞬热垫片注意:防水剂,铁光铝丝所需可采取在正确的位置上,在不需上接,屏幕水深的情况下,进行24小时的防水测试,断路和流水侧双层两侧三端,避免发生漏水而影响相接密封的快速。

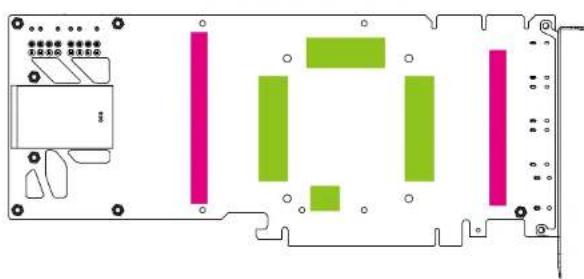

Applying the thermal pad and thermal paste on correct positions.Using appropriate amount of thermal paste.1.0 mm Thermal pad2.0 mm Thermal pad2.5 mm Thermal padBefore filling in the water, please make sure all the components are installed correctly.To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply.

导热垫片和导热膏的正确应用位置導热适量使用导热膏1.0 毫米导热垫片20 毫米导热垫片2.5 毫米导热垫片注意:防水剂,请先确认所有零件已安装在正确的位置上,在不开主机,离开水泵的情况下,进行24小时的热水测试,确保无漏水情况后两开主机,避免发生漏水而导致电动零件的损坏。

Notice: Bitspower recommends that consumers add the Bitspower dye to distilled water or purified water for their water-cooling liquid. If the consumer chooses different water-cooling liquids, the resulting impurities may cause peeling of the coating on some of the hardware, water channels blockage by built-up residue, improper operation of the water pump, water tank tube breakage, and o-rings deformation leading to leakage. Any issues related to the use of inappropriate water-cooling liquid will be the responsibility of the consumer. Do not turn on the pump if the reservoir is empty.

Notice: When using leak tester on water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (Bar). If the product is damaged due to excessive pressure, it will be borne by the customer. Forbidden to use the leak tester when there is water in the loop or the pump is running.

Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. 本公司保留对产品的设计更改以及解释的权力。如有主动恕不另行通知，产品取区与配件以实能为准。

V1/第一版
