RCM18SS - Rice cooker Khind - Free user manual and instructions

Product Type	Rice Cooker
Brand	Khind
Model	RCM18SS
Capacity	1.8 liters (uncooked rice: up to 10 cups)
Power Consumption	700 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	Approx. 27 x 27 x 27 cm
Weight	Approx. 2.5 kg
Material	Stainless steel body, non-stick inner pot
Cooking Functions	Cook, Keep Warm, Reheat
Controls	Simple switch with mechanical thermostat
Keep Warm Function	Automatic keep warm after cooking
Safety Features	Automatic shut-off, overheat protection
Inner Pot	Non-stick coating, removable
Accessories Included	Measuring cup, rice paddle, steam tray
Cleaning & Maintenance	Wipe exterior with damp cloth; wash inner pot, lid, and accessories with mild detergent
Repairability	Spare parts available from Khind service centers
Certification	CE, RoHS

Frequently Asked Questions - RCM18SS Khind

How do I cook rice with the Khind RCM18SS?

Measure rice using the provided cup, rinse, place in inner pot with corresponding water level. Close lid, plug in, press the cook switch. It will automatically switch to keep warm when done.

What is the capacity of the RCM18SS rice cooker?

The cooker has a 1.8-liter capacity, suitable for up to 10 cups of uncooked rice (about 20 cups cooked).

Can I cook other foods besides rice?

Yes, you can steam vegetables, fish, or reheat leftovers using the included steam tray. Avoid cooking oily or acidic foods directly in the pot.

How do I clean the rice cooker?

Unplug and let cool. Wash the inner pot, lid, and accessories with warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the base in water.

Why is my rice undercooked or burnt?

Undercooked: too little water or insufficient cooking time. Burnt: too much water or rice not rinsed. Adjust water level per markings. Ensure the pot is properly seated.

Does it have an automatic keep warm function?

Yes, the cooker automatically switches to keep warm mode once cooking is complete. It will keep rice warm for several hours.

What is the power consumption of the RCM18SS?

The rice cooker operates at 700 W. Always connect to a properly rated outlet (220-240 V).

Can I replace the inner pot or other parts?

Yes, Khind offers spare parts including inner pots, lids, and steam trays. Contact Khind customer service for purchase.

Is the rice cooker safe to leave unattended?

It has automatic shut-off and overheat protection, but we recommend not leaving it unattended while cooking. Keep away from flammable materials.

How do I download the manual?

You can download the PDF manual for free from notice-facile.com or the Khind official website. Search for 'Khind RCM18SS manual'.

USER MANUAL RCM18SS Khind

USER MANUAL

KHIND®

Experience More

DIGITAL RICE COOKER

RCM18SS

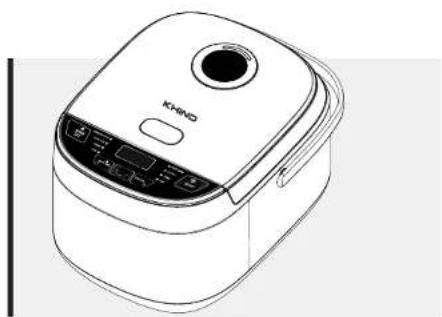

Line drawing of a KNOO rice cooker with control panel and buttons (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for

E-warranty & enjoy hassle-

free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

P/N: 405181300

Safety Precaution Information

Safety & Warning Information

1. Read the following instructions before using the appliance.
2. Check if the voltage indicated on the appliance corresponds to the local voltage before you connect to the appliance.
3. Do not use this appliance if the cord or plug is damaged, or if this unit is malfunctioned or damaged in any way.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.

5. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

6. The heating plate's surface is subject to residual heat after use. Do not touch the heated pot of the appliance during operation or immediately after use.

7. This appliance is intended for household use only.

8. Do not immerse the appliance into water or other liquids EXCEPT the inner pot.

9. WARNING! Avoid spillage on the power connector

10. WARNING! Misuse of this appliance may cause injury.

11. Beware of hot steam from the appliance during operation when lid is opened. Keep yourself away from the appliance to avoid steam.

12. Always place the rice cooker on flat and stable surface. Do not expose rice cooker to water, humid conditions or heat sources. Do not expose Inner Pot to direct flame.
13. While Inner Pot is not being placed into the rice cooker (when rice cooker is empty) never try to operate the rice cooker.
    Note: Do not place anything in between inner pot and the heating plate to avoid any damages.
14. The appliance is not intended to be operated by any external timer or separate remote-control system.

Important Information

1. The presence of either "minerals" or "hard water" in the water piping system, may cause brown or white spots and mineral scale which appear on the surface of the Stainless Steel Inner Pot. could visually resemble rust spots. As these spots are not rust, it is harmless and safe to consume water or food from the inner pot.
2. These spots can be removed by boiling Citric Acid Crystal Solution (Food Grade) to remove them. For tough stains, you may need to use a good metal cleaner to remove the stubborn stains and then wash off with soup solution before using.

Cleaning & Maintenance

1. Always switch off the appliance, unplug from main switch and let appliance cool down under below situation under below situation;
   a) When the appliance is not in use or; b) Before cleaning the appliance or;
   c) Before putting on or taking off parts from appliance.
2. Use a damp cloth to clean / wipe the outer body. Remove the Inner Pot and the Inner Lid, clean with dishwashing detergent and a soft sponge. Do not use abrasive material or corrosive chemical detergent on the appliance.
3. Do not use wire brush or hard brush to clean, it may scratch and cause damage to the surface.
4. Dry the rice cooker by using a soft cloth.
5. Grains of rice and other residues may stick onto the heating plate. These stains must be cleaned using by a soft damp cloth. It can maintain and improve the cooking performance.
6. Do not immerse the appliance into water or other liquids except the inner pot.

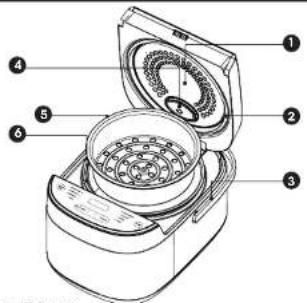

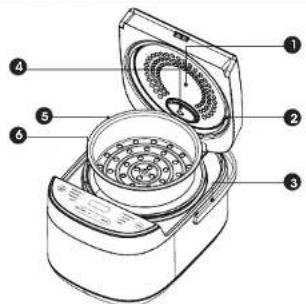

Parts Identification

1. Detachable Inner Lid
2. Seal Ring
3. Handle
4. Bubble Breaker
5. Stainless Steel Inner Pot
6. Plastic Steam Tray
7. Steam Vent
   B. Control Panel
8. Cover Lid
   10.Open Button
   1.Power Cord
   Pictures are for illustration purposes only.

3

Specifications

Model	RCM18SS
Voltage	220-240 - 50-60Hz
Power	790W
Gross Capacity	5L
Rice Capacity Only	1.8L
Quantity	1 Unit
Net Weight	4.1kg
Gross Weight	4.4kg
Product Dimension (lxWxH)	389 x 284 x 229mm
Box Dimension (lxWxH)	420 x 312 x 274mm
Colour	Red Alpha

* Specifications are subject to change without prior notice.

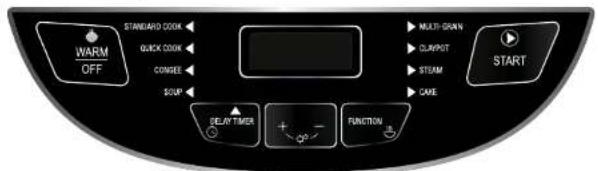

Operating Features

a) Display Screen

• LED Screen, Time, and Indicator are displayed.
  b) Start Button

Press to start cooking programs

c) Function Button
- Press to choose 8 preset cooking functions in Standard Cook, Quick Cook, Congee, Soup, Multi-grain, Claypot, Steam & Cake.
d) + / - Button

- Press + / - Button to adjust the time. Time adjustable range is 1 - 15 hours.

e) Delay Timer Button
- Press Delay Timer Button to preset cooking complete time.
- Delay Timer up to 15 hours.
1) Keep Warm / Off Button
- Once cooking finish, it will automatically turn into Keep Warm mode. The keep warm function lasts up to 15 hours, but we recommended to keep warm within 6 hours to avoid yellowish rice or bottom crusted.
- Press Keep Warm / Off Button when cancel or made error selection during operation.

How to Use

A. Preparation

1. Kindly take out all parts including plastics, Stainless Steel Inner Pot, Plastic Steam Tray, Detachable Cover Lid, Power Cord, and other accessories wash it before using.
2. Please ensure there are no impurities on bottom of inner pot and around heating element. Kindly ensure the Stainless Steel Inner Pot fits closely with heating element.
3. Measure and wash the required amount of rice in a separate container with measuring cup provided.
4. Rinse the rice several times until the water become clear.
5. Put the washed rice into Stainless Steel Inner Pot with corresponding amount of fresh water level on the indicator line based on your cooking preferences between Rice, Multigrain or Porridge.

Type	White Rice	Multigrain	Porridge
Rice (Cup/s)	Indicator Line	Indicator Line	Indicator Line
0.5	X	X	0.5
1	X	X	1
1.5	X	X	1.5
2	2	2	X
3	3	3	X
4	4	4	X
5	5	5	X
6	6	6	X
7	7	X	X
8	8	X	X
9	9	X	X
10	10	X	X

Reminder:

Please do not cook less than 2 cups of rice under White Rice & Multigrain mode. 0.5 cups under Porridge mode.
Please pre-soak brown rice for 30 minutes before cooking & do not cook more than 6 cups of brown rice.

* *You may adjust the amount of water according to own preferences based on type of rice.

**Table above is for references only.

1. Wipe off the water on the outside of Stainless Steel Inner Pot, place it into Rice Cooker to align it with heating element correctly, turn inner pot gently from right to left.
2. Kindly ensure the bubble breaker is properly assembled.
3. Close the cover lid and insert power plug and start operate.

4

5

B. Delay Timer Function

1. Press "Function" button to select the desired functions. Selected function indicator light will turn on.
2. Press Delay Timer Bullon, the indicator light will turn on. The preset time is completed cooking time.
3. Press + / - button to adjust desired delay timer from 1 - 15 hours.
4. Once all selected, press Start Bullon to start delay timer.
   * If preset time is longer than cooking time, indicator light for Delay Timer Button & Start Button will turn on.
   * If preset time is shorter than cooking time, only Indicator Light of Start Button will turn on.
5. If require to cancel or selected wrong function during operation, press Warm/Off button to cancel the function, and select again the desired function.
6. Below are the functions that available to preset delay timer:

White Rice Quick Rice Porridge Soup				Mult-grain	Claypot Steam Cake
○	○	○	○	○	○	○	×

* Not recommended to delay limer more than 13 hour, it may cause ingredient become slink.

C. Cooking Function

No	Function	Operation Step	Default Time	Time Adjustment	Preset
1	Standard Cook	Press "Function" button one time to "Standard Cook" > Indicator Light flashes > press "Start" to operate > Count-down timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	N/A	N/A	1-15 Hours
2	Quick Cook	Press "Function" button several times to "Quick Cook" > Indicator Light flashes > press "Start" to operate > Countdown timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	N/A	N/A	1-15 Hours
3	Congee	Press "Function" button several times to "Congee" > Indicator Light flashes > press "Start" to operate > Count-down timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	1:30 Hours	1 - 4 Hours	1-15 Hours

No	Function	Operation Step	Default Time	Time Adjustment	Preset
4	Soup	Press "Function" button several times to "Soup" > Indicator Light flashes > press "Start" to operate > Countdown timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	2 Hours	1 - 4 Hours	1-15 Hours
5	Multi-Grain	Press "Function" button several times to "Soup" > Indicator Light flashes > press "Start" to operate > Countdown timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	N/A	N/A	1-15 Hours
6	Claypot	Press "Function" button several times to "Claypot" > Indicator Light flashes > press "Start" to operate > Countdown timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	N/A	N/A	1-15 Hours
7	Steam	Press "Function" button several times to "Steam" > Indicator Light flashes > press "Start" to operate > Countdown timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	10 Minutes	1 Minutes - 1 Hour	1-15 Hours
8	Cake	Press "Function" button several times to "Cake" > Indicator Light flashes > press "Start" to operate > Countdown timer start 10 minutes before finish cooking > Automatically switch to Keep Warm mode after cooked.	45 Minutes	1.15 Hour	No

6

0零件名称

配件

Cooking Table for References:

Cooking Type Rice Limit Cooking Time Needed
White Rice 2-10 cups 36-55 minutes
Quick Rice 2-10 cups 30-50 minutes
Multi-Crain 2-6 cups About 60-80 minutes
Claypot	2-10 cups About 60-80 minutes

*Above table it's for cooking references only.

Information:

1. When select mode under Standard Cook, Quick Cook, Multi-Grain or Claypol, LED screen will display '----'. During cooking, LED screen will display '----', count down timer will operate 10 minutes before cooking finished.
2. When require to cook special rice such as stocked rice, glutinous rice or other food with condiment, please ensure select "Standard Cook" mode.
3. User able adjust water cooking level based on own taste preferences.
4. When using steam tray for steaming food, please add water to Stainless Steel Inner Pot up to "White Rice" water indicator level 2.
5. The inner pot is very hot after using. Be careful when holding it, ensure the inner pot cool down before cleaning it.
