Product Type	Canister Vacuum Cleaner
Brand	Imarflex
Model	IV-550B
Dimensions (approx.)	400 x 250 x 300 mm
Weight (approx.)	5 kg
Power Consumption	1200 W
Suction Power	Adjustable, up to 250 air watts
Filtration System	HEPA filter + exhaust filter
Dust Capacity	2.5 L (bag type)
Power Cord Length	6 m
Cleaning Functions	Dry vacuuming for carpets and hard floors
Attachments	Crevice tool, dusting brush, upholstery nozzle
Noise Level (approx.)	75 dB
Maintenance	Replace dust bag when full; clean filters monthly
Safety Features	Thermal overload protection; do not use outdoors
Spare Parts Availability	Dust bags (type IV-550B-BAG), HEPA filter (type IV-550B-HEPA)
Repairability	User-replaceable filters and bags; motor service by authorized center

Frequently Asked Questions - IV-550B Imarflex

How do I change the dust bag in my Imarflex IV-550B?

Open the front cover, remove the full bag, and insert a new type IV-550B-BAG dust bag. Ensure it clicks into place.

How often should I clean or replace the HEPA filter?

Clean the HEPA filter every month by tapping it gently. Replace it every 6 months or when visibly dirty. Use only IV-550B-HEPA filters.

My vacuum has weak suction. What should I check?

First, check if the dust bag is full. Then inspect the filters for clogs. Also ensure the hose and attachments are not blocked. If the problem persists, contact Imarflex support.

Can I use the IV-550B to vacuum liquids?

No, this vacuum is designed for dry vacuuming only. Using it on liquids may damage the motor and void the warranty.

What attachments come with the vacuum?

The package includes a crevice tool, a dusting brush, and an upholstery nozzle. These are stored on the canister.

How do I adjust the suction power?

Slide the power control on the handle or body to reduce suction for delicate surfaces like curtains.

The cord does not rewind fully. What can I do?

Pull out the entire cord and ensure it is straight. Then press the cord rewind button fully. If it still jams, contact service.

Is the vacuum suitable for pet hair?

Yes, it works well on pet hair from carpets and upholstery. Clean the brush nozzle regularly to prevent hair tangles.

Where can I buy spare parts?

Spare dust bags and filters are available from authorized Imarflex retailers or online. Use the exact model numbers for compatibility.

What does the thermal overload protection do?

If the vacuum overheats, it automatically shuts off. Unplug it and let it cool for 30 minutes before restarting. Check for blockages if it happens often.

USER MANUAL IV-550B Imarflex

Abstract logo design with curved lines and a stylized 'Y' symbol (no text or symbols present)

BAGLESS

MAX 600W

/vclone

HANDHELD VACUUM CLEANER

500cc

CAPACITY

LIGHTWEIGHT

TELESCOPIC

ALUMINUM TUBE

IV-550B

SPECIFICATION:

MODEL NO. : IV-550B

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 600 Watts

SUCTION POWER : 95W / 17kPa

MAX. WIND QUANTITY : 16.49L/S

DECIBEL : 86dB

CAPACITY : 500CC

BOX DIMENSION : 360*215*250mm

WEIGHT : 2.7 kg

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest lmarflex authorized service center.

4. Do not use a two-way socket with another appliance.

5. Do not use the Vacuum Cleaner near gas stove, electric stove or fire place.

6. Children should be supervised to ensure that they do not play with the appliance.

7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

8. Do not use the Vacuum Cleaner other than its intended use.

9. Avoid sharp objects that can get stuck in and block the hose.

10. Never pick up inflammable or corrosive liquids such as petrol or other volatile substance.

11. Never use the unit in sucking Flammable liquids, chemicals, and cigarette butts.

12. This appliance is not intended for outdoor use.

13. This appliance is intended for household use only. Do not use it other than its intended use.

14. Save this instruction for future reference.

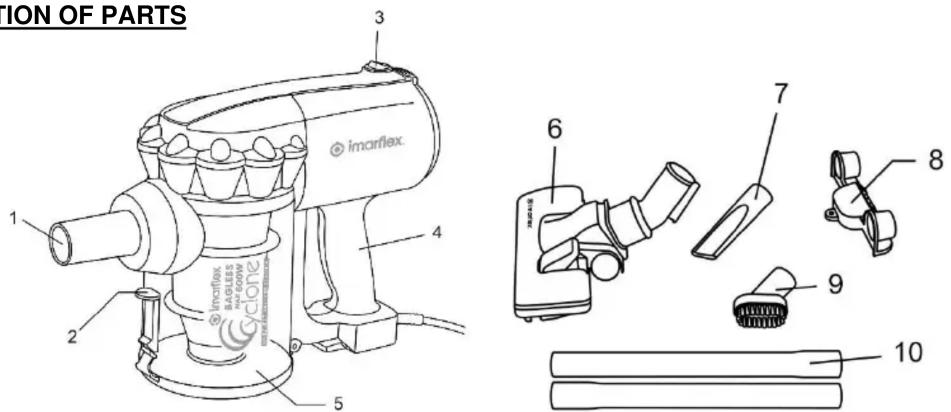

DESCRIPTION OF PARTS

NO.	DESCRIPTION	NO.	DESCRIPTION
1.	Air Inlet	6.	Floor Brush
2.	Dust Release	7.	Crevice Nozzle
3.	ON/OFF Switch	8.	Wall Mount Bracket
4.	Handle	9.	Furniture Brush
5.	Dust Container	10.	Telescopic Tube

HOW TO USE

1. Assemble the vacuum cleaner with the desired accessories.
2. Plug the unit into a convenience outlet.
3. Press the Switch Button (ON/OFF).
4. Unplug the unit after every use.

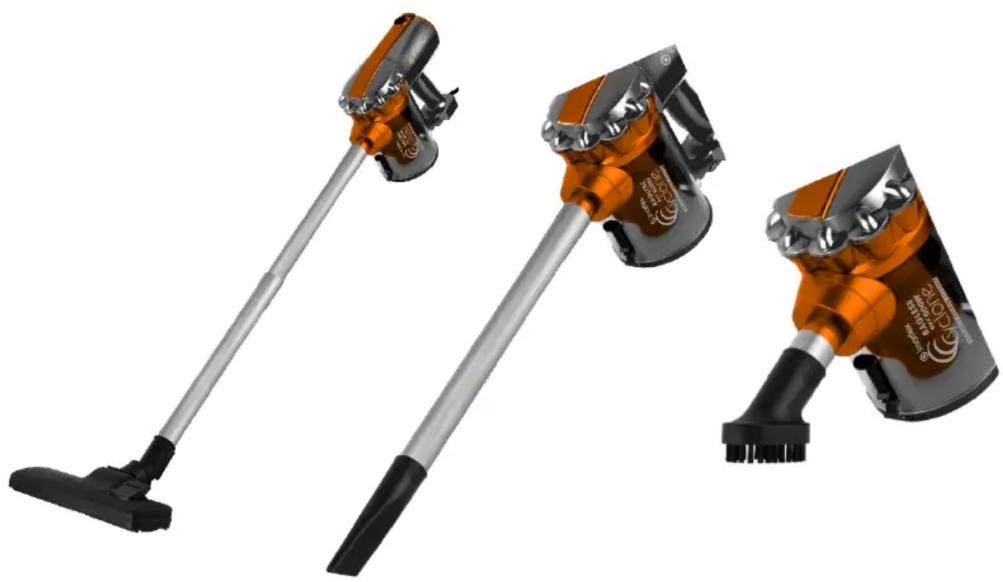

HOW TO ASSEMBLE AND USAGE OF THE ACCESSORIES

Extend the Telescopic Tube by pressing the button.

Insert the desired accessory into the Extension Wand: Carpet Brush, Squeegee Nozzles, Small Brush.

Use for Floor or Rough Surface.

Use for Carpets

Three different vacuum cleaner models shown from different angles (no text or symbols visible)

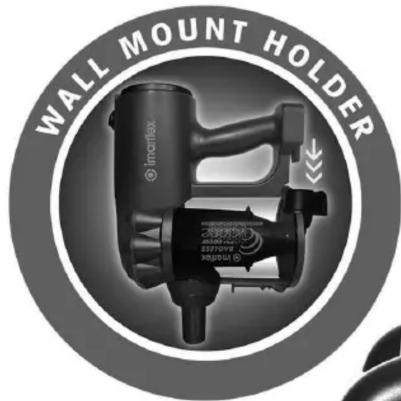

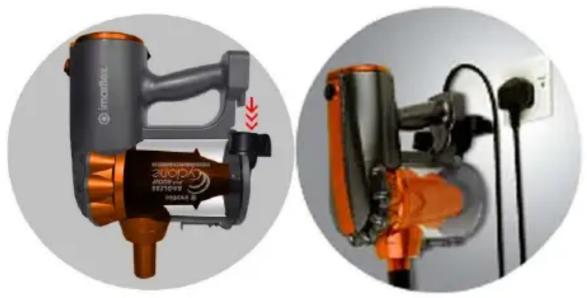

HOW TO WALL MOUNT THE VACUUM

1. Screw the wall mount bracket into the wall.
2. Place the vacuum cleaner into the wall mount bracket as shown in the photo.

Two views of a portable electric spray gun device, one showing internal components and the other showing electrical connections (no text or symbols visible)

CLEANING AND MAINTENANCE

1. Unplug the Vacuum Cleaner from the convenience outlet before removing or replacing its part or before cleaning.
2. Wipe the body with dry cloth.
3. Open the dust cup behind the on/off switch.
4. Remove the foam from the dust cup.

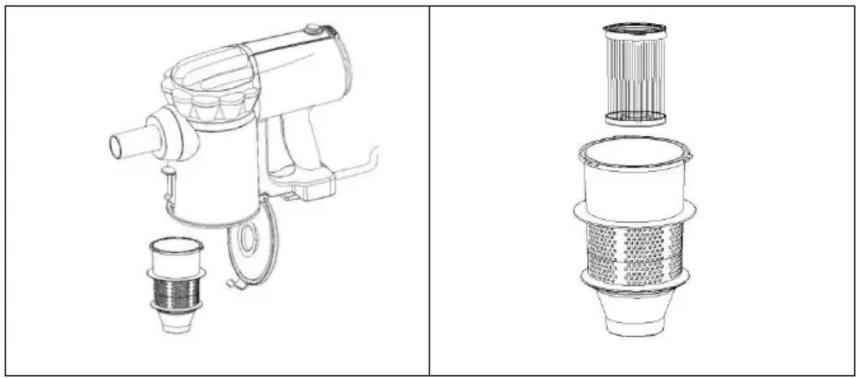

Note:

• Clean the foam with soap and water.

• Dry the foam every before use

• Clean off the dust inside the dust bin.

• Remove the mesh filter. Clean the mesh filter with warm water. Rotate counter clockwise to take out the mesh filter and HEPA filter.
• Wipe the internal of the dust compartment with a damp cloth.
• Clean the mesh filter and HEPA filter with a soft bristled brush and rinse with water. Do not use a hard-bristled brush to clean filters. This may result in damage to the filters.
• Dry thoroughly and reattaching the filters before next use.

Technical line drawings of a hand mixer and filter component (no text or symbols)

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Xelframe Enterprises Inc.

Unit 711 IPI Buendia Tower Condo., 501 Gil Puyat Ave, Pasay

Made in China
