IV-2050B - Vacuum Cleaner Imarflex - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Imarflex
Model	IV-2050B
Rated Voltage	230V a.c. 60Hz
Power Consumption	2000 Watts
Suction Power	240W / 22 kPa
Max Airflow	28 dm³/s
Noise Level	≤71 dB
Dust Bin Capacity	2.0 L
Dimensions (Box)	485 x 325 x 397 mm
Weight	7.0 kg
Motor Protection	Overload protection
Cord Rewind	Automatic
Filter Type	HEPA (replaceable, non-washable) + washable foam pre-filter
Accessories Included	Carpet brush, squeegee nozzles, small brush, extension wand
Hose Length	Approximately 2.0 m (estimated from product images)
Power Cord Length	Approximately 5.0 m (estimated from product class)
Control Type	Push button ON/OFF switch
Body Material	Plastic (standard appliance)

Frequently Asked Questions - IV-2050B Imarflex

What is the power consumption of the Imarflex IV-2050B?

The power consumption is 2000 Watts at rated voltage 230V a.c. 60Hz.

How do I rewind the power cord?

Press the Cable Rewind Button (labeled H on the unit) to automatically retract the cord. Ensure the cord is not extended beyond the RED mark.

What type of filter does the IV-2050B use?

It uses a HEPA filter which is replaceable and not washable, along with a washable foam pre-filter located in the dust cup.

How do I clean the dust bin?

Unplug the unit, lift the cover and open the dust cup. Remove the foam filter, clean the dust inside the bin, and wipe the body with a dry cloth. Rinse the foam with soap and water, dry thoroughly before reuse.

What accessories are included with the vacuum cleaner?

Included accessories: Carpet brush, Squeegee nozzles, Small brush, and Extension wand.

What is the suction power of the IV-2050B?

The suction power is 240W corresponding to 22 kPa of negative pressure.

How do I assemble the vacuum cleaner?

Insert the Extension Wand into the Hose Assembly Tube, extend by pressing the button, then attach the desired accessory (e.g., Carpet Brush, Squeegee Nozzles, Small Brush). Connect the hose to the hose inlet on the unit.

Can I use the vacuum cleaner to pick up liquids?

No, never pick up inflammable or corrosive liquids such as petrol, or other volatile substances. The appliance is for dry use only.

What is the capacity of the dust bin?

The dust bin has a capacity of 2.0 liters.

How do I maintain the foam filter?

Remove the foam from the dust cup, clean it with soap and water, and dry it thoroughly before each use. Do not operate without the foam filter in place.

USER MANUAL IV-2050B Imarflex

MOTOR with OVERLOAD PROTECTION

MAX POWER 2000W

AUTO

CORD

REWIND

Pure electrical circuit lines without any symbols

2 OLITERS

CAPACITY

SPECIFICATION

MODEL NO. : IV-2050B

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 2000 Watts

SUCTION POWER : 240W/ 22kPa

MAX. WIND QUANTITY : 28dm3/s

DECIBEL : ≤ 71dB

CAPACITY : 2.0L

BOX DIMENSION : 485*325*397mm

WEIGHT : 7.0 kg

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest lmarflex authorized service center.

4. Do not use two-way socket with another appliance.

5. Do not use the Vacuum Cleaner near gas stove, electric stove or fire place.

6. Children should be supervised to ensure that they do not play with the appliance.

7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

8. Do not use the Vacuum Cleaner other than its intended use.

9. Avoid sharp objects that can get stuck in and block the hose.

10. Never pick up inflammable or corrosive liquids such as petrol or other volatile substance.

11. Never use the unit in sucking Flammable liquids, chemicals, and cigarette butts.

12. Do not use it outdoors.

13. Save this instruction for future reference.

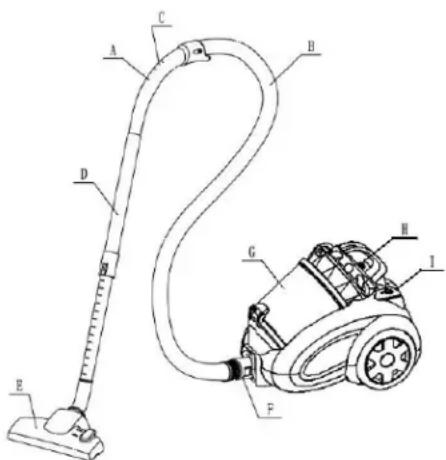

DESCRIPTION OF PARTS

NO.	DESCRIPTION	NO.	DESCRIPTION
A	Handle	F	Hose Inlet
B	Hose	G	Dust Bin
C	Air Flow Regulator	H	Cable Rewind Button
D	Hose Assembly Tube	I	Switch Button (ON/OFF)
E	Carpet Brush

HOW TO USE

1. Assemble the vacuum cleaner with the desired accessories.
2. Pull the power cable from the cable rewind slot and plug into a convenience outlet. Note:

• To rewind the power cable, press the Cable Rewind Button

- Do not extend the power cable beyond the RED mark

1. Press the Switch Button (ON/OFF).

HOW TO ASSEMBLE ACCESSORIES

Insert the Extension Wand into the Hose Assembly Tube.

Extend the Extension Wand by pressing the button.

Insert the desired accessory into the Extension Wand: Carpet Brush, Squeegee Nozzles, Small Brush.

USAGE OF ACCESSORIES

Use for Floor or Rough Surface.

Use for Carpets

Narrow Nozzle uses for cleaning

radiators, corners, edges,

drawers, etc.

Small Brush use for cleaning

curtains, shelves, books, inlaid

furniture, lamps.

CLEANING AND MAINTENANCE

1. Unplug the Vacuum Cleaner from the convenience outlet before cleaning.
2. Wipe the body with dry cloth.
3. Lift the cover and open the dust cup. (Pic 1)
4. Remove the foam from the dust cup.

Note:

• Clean the foam with soap and water.
• Dry the foam every before use
• Clean off the dust inside the dust bin. (Pic 2)
• The HEPA Filter is replaceable and not washable.

Line drawing of a robotic vacuum cleaner (no text or symbols)

Pic 1 Pic 2

Line drawing of a mechanical device with handle and base (no text or symbols)

REMINDER: Please do not forget to fill up and send the warranty card
