Brand	Imarflex
Model	IV-1700S
Product Type	Wet/Dry Vacuum Cleaner
Rated Voltage	230V a.c. 60Hz
Power Consumption	1000W
Suction Power	17.5 kPa
Max Airflow	29 dm³/s
Dust Capacity	20 L
Water Capacity	10 L
Container Material	Stainless Steel
Hose	Included, with airflow regulator
Telescopic Wand	Yes, adjustable length
Accessories Included	Carpet Brush, Squeegee Nozzle, Small Brush, Crevice Tool
Blower Function	Yes (hose attached to blower port)
Filtration	Washable dust filter with brace
Safety Floater	Yes (auto-shutoff for water)
Wheels	Yes, for mobility
Cord Storage	Yes, on unit
Accessory Holder	On unit for storage
Clasp System	Yes, for easy container access
Cleaning & Maintenance	Wash filter and container with soap and water; do not immerse head
Storage	Retract wand, store accessories on holder
Safety	Do not use near flames, avoid flammable liquids, unplug before cleaning

Frequently Asked Questions - IV-1700S Imarflex

What is the difference between wet and dry vacuuming on the IV-1700S?

The IV-1700S is a wet/dry vacuum. For dry vacuuming, use the carpet brush with the button forward. For wet vacuuming (e.g., water spillage), use the squeegee nozzle and press the button backward on the carpet brush. Always ensure the dust filter is in place for dry use.

How do I clean the dust filter?

Unplug the vacuum. Open the clasp, remove the vacuum head, then remove the dust filter brace and filter. Brush off dust and wash the filter thoroughly with soap and water. Let it dry completely before reinstalling.

What should I do when the safety floater stops suction?

The safety floater activates when the water level reaches maximum. Switch off the vacuum immediately. Open the clasp, remove the head, filter, and brace, then empty the water container. Allow the filter to dry if wet.

Can I vacuum flammable liquids with the IV-1700S?

No. Never use the vacuum to pick up flammable or corrosive liquids such as petrol, chemicals, or cigarette butts. This can cause fire or damage the unit.

How do I use the blower function?

Detach the hose from the intake and attach it to the blower port on the vacuum head. Switch on the unit. The blower can be used to clear debris or dry surfaces.

What accessories are included and what are they for?

Included accessories: carpet brush (for carpets), squeegee nozzle (for water spillage), small brush (for furniture screens), and crevice tool (for corners and drawers). All attach to the telescopic wand.

How do I extend or retract the telescopic wand?

Push the button on the wand and pull to extend. To retract, push the button and push the sections inward until locked.

Is the vacuum head washable?

No. The vacuum head (motor unit) should not be immersed in water. Only the dust filter, brace, and stainless steel container are washable with soap and water.

How should I store the vacuum cleaner?

After cleaning, retract the telescopic wand and hook it on the wand holder. Place accessories on the accessory holder. Store the hose loosely. Keep the unit in a dry place.

What is the voltage and power of the IV-1700S?

The IV-1700S operates at 230V a.c., 60Hz, with a power consumption of 1000W. Ensure your outlet matches these specifications.

USER MANUAL IV-1700S Imarflex

SPECIFICATION

MODEL NO. : IV-1700S

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1000 watts

SUCTION POWER : 17.5Kpa

MAX. WIND QUANTITY : 29dm³/s

CAPACITY : 10L Water, 20L Dust

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

4. Do not use two-way socket with another appliance.

5. Do not use the Vacuum Cleaner near gas stove, electric stove or fire place.

6. Close supervision is necessary when any appliance is used by or near children.

7. To protect against electric shock, do not immerse the Vacuum Cleaner Head in water.

8. Do not use the Vacuum Cleaner other than its intended use.

9. Avoid sharp objects that can get stuck in and block the hose.

10. Never pick up inflammable or corrosive liquids such as petrol or other volatile substance.

11. Be sure that the Dust Filter is attached when using the vacuum.

12. Never use the unit in sucking Flammable liquids, chemicals, and cigarette butts.

13. Never leave the dust in the Filter Bag for a long time.

14. Do not use it outdoors.

15. Save this instruction for future reference.

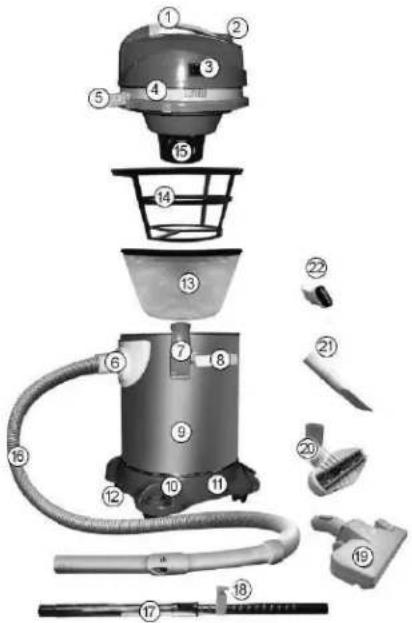

DESCRIPTION OF PARTS

1. Handle
2. Blower
3. Switch Button (ON/OFF)
4. Cord Storage
5. Telescopic Wand Holder
6. Hose Inlet
7. Clasp
8. Handle
9. Stainless Steel Container
10. Accessory Holder
11. Plastic Base
12. Wheel
13. Dust Filter
14. Dust Filter Brace
15. Safety Floater
16. Hose Assembly with Air Flow Regulator
17. Telescopic Wand
18. Hook

HOW TO USE

Close-up of hands adjusting a mechanical component (no visible text or symbols)

1. To Remove the Vacuum Head - Pull down the Clasp

Close-up of hands holding a bowl containing a white substance (no text or symbols visible)

1. Put the Dust Filter on the rim of the Plastic Container, simply fit the rubber gasket on the rim.

Close-up of hands handling a circular metal object with a mesh ring (no text or symbols visible)

1. Put the Dust Filter Brace inside the Dust Filter.
2. Put the Vacuum Head on the Plastic Container and push up the Clasp.

Close-up of a hand holding a cylindrical object with a textured surface (no visible text or symbols)

1. Insert the Hose Assembly into the Hose Inlet until it fits.

Close-up of hands holding a metallic tool with two arrows indicating movement or force (no text or symbols visible)

1. Insert the Telescopic Wand into the Hose Assembly Tube. To extend, push the button and pull. To retract, push the button and push inside

Close-up of a hand holding a handheld tool, possibly a brush or stylus (no visible text or symbols)

1. Insert the desired accessory into the Telescopic Wand: Carpet Brush, Squeegee Nozzle, Small Brush and Crevice Tool

Close-up of a black foot pressing down on a white surface (no visible text or symbols)

Carpet Brush – for carpet. Press the button forward for dry carpet. Press the button backward for wet carpet

Close-up of a white plastic soap dispenser on tiled floor (no text or symbols visible)

Squeegee Nozzle- for water spillage.

Close-up of a white mechanical component with a textured surface and diagonal grooves (no visible text or symbols)

Small Brush - for cleaning furniture, screen, blinds, etc.

Close-up of a tool applying material to a surface (no visible text or symbols)

Crevice Tool - for cleaning corners, drawer, etc.

Close-up of a hand pressing a button on a device (no visible text or symbols)

1. Plug the vacuum into the convenience outlet.

Close-up of a mechanical component with a coiled hose and fluid stream (no visible text or symbols)

TO USE THE BLOW DRY FUNCTION- put the hose assembly on the Blow slot and switch ON.
9. Switch ON.

• UNLOADING THE WATER

○ Switch OFF when Safety Floater stops suction or hearing abnormal sound.
- Open the Clasp, remove the Vacuum Cleaner Head, Dust Filter Brace, Dust Filter and unload the water.

• UNLOADING THE DUST.

○ Switch OFF.
- Open the Clasp and remove the Vacuum Cleaner Head.
o Remove the Dust Filter Brace and the Dust Filter.
- Brush out the dust and wash thoroughly with soap and water.
○ Let it dry.

CLEANING AND MAINTENANCE

1. Unplug the Vacuum Cleaner from the convenience outlet before cleaning.
2. All parts are washable with soap and water except the Vacuum Head.
3. Never leave dust inside the Container.

STORAGE

Close-up of a hand holding a small black object next to a metallic cylindrical object (no visible text or symbols)

Close-up of a robotic arm joint (no visible text or symbols)

Close-up of a hand pressing down on a metallic cylindrical device (no visible text or symbols)

• After cleaning insert the accessories on the Accessory Holder.

Close-up of a mechanical component with a black handle and arrow indicating direction (no visible text or symbols)

- For the Telescopic Wand, retract the wand and insert the hook on the Telescopic Wand Holder.

REMINDER: Please do not forget to fill up and send the warranty card
