Product Type	Vacuum Cleaner
Model	IV-1700P
Brand	Imarflex
Dimensions (L x W x H)	Approx. 400 x 280 x 250 mm
Weight	Approx. 5.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1200 W
Dust Capacity	2.5 L (bag or container)
Filtration System	HEPA filter (washable)
Cord Length	6 m
Noise Level	Approx. 78 dB
Suction Power	Adjustable, up to 400 W
Type	Canister vacuum cleaner
Accessories Included	Crevice tool, brush, floor nozzle
Operation	Mains powered, on/off switch
Maintenance	Clean filter every 3 months, replace bag when full
Safety Features	Thermal overload protection, motor protection filter
Spare Parts Availability	Filters, bags, hoses, and brushes available via service centers
Repairability	Replaceable cord, motor, and switch (authorized service)
Certifications	CE, RoHS compliant

Frequently Asked Questions - IV-1700P Imarflex

How do I replace the dust bag?

Turn off and unplug the vacuum. Open the bag compartment lid. Remove the full bag and insert a new one. Ensure the bag fits securely. Close the lid.

How often should I clean the HEPA filter?

It is recommended to clean the washable HEPA filter every 3 months. Rinse with water and let it air dry completely before reinstalling.

My vacuum loses suction. What could be the cause?

Possible causes: full dust bag, clogged filter, blockage in hose or nozzle, or a leak in the hose. Check and clean each part.

Can I use the vacuum without a dust bag?

No, the vacuum requires a dust bag to collect debris. Using it without a bag can damage the motor.

How do I clean the brush roll?

Unplug the vacuum and remove the brush roll from the floor nozzle. Use scissors to cut away tangled hair and threads. Wipe with a damp cloth.

What is the noise level of the IV-1700P?

The noise level is approximately 78 dB, which is typical for a standard household vacuum cleaner.

The vacuum overheats and shuts off. What should I do?

This indicates a blockage or full bag. Turn off and unplug. Check for blockages in hose and filters. Clean or replace the bag and filter. Allow to cool for 30 minutes before restarting.

What spare parts are available for this model?

Replacement dust bags, HEPA filters, hoses, crevice tools, brush nozzles, and motor brushes are available. Contact Imarflex service centers or authorized retailers.

Is the power cord replaceable?

Yes, the power cord can be replaced by a qualified technician. Do not attempt to replace it yourself unless you have experience.

How do I adjust the suction power?

The IV-1700P provides adjustable suction via a dial on the handle or body. Rotate it to increase or decrease power according to the surface being cleaned.

USER MANUAL IV-1700P Imarflex

SPECIFICATION

MODEL NO. : IV-1700P

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1200 watts

SUCTION POWER : 170W or 20Kpa

NOISE LEVEL : 85dB

BOX DIMENSION : 351*351*561mm

UNIT DIMENSION : 410*410*600mm

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Do not use two-way socket with another appliance.
5. Do not use the Vacuum Cleaner near gas stove, electric stove or fire place.
6. Close supervision is necessary when any appliance is used by or near children.
7. To protect against electric shock, do not immerse the Vacuum Cleaner Head in water.
8. Do not use the Vacuum Cleaner other than its intended use.
9. Avoid sharp objects that can get stuck in and block the hose.
10. Never pick up inflammable or corrosive liquids such as petrol or other volatile substance.
11. Be sure that the Dust Filter is attached when using the vacuum.
12. Never use the unit in sucking Flammable liquids, chemicals, and cigarette butts.
13. Never leave the dust in the Filter Bag for a long time.
14. Do not use it outdoors.
15. Save this instruction for future reference.

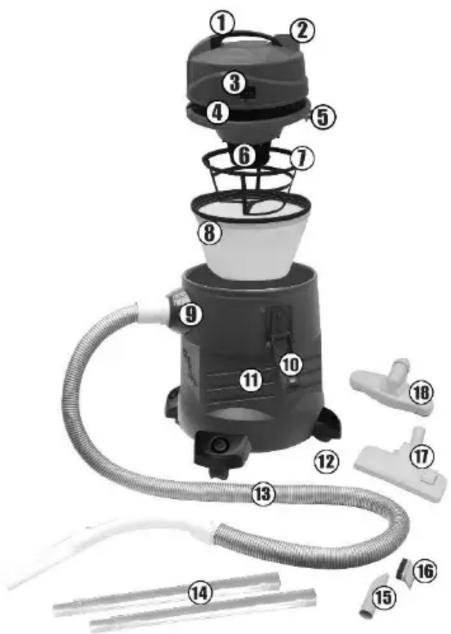

DESCRIPTION OF PARTS

1. Handle
2. Blower
3. Switch Button (ON/OFF)
4. Cord Storage
5. Accessory Holder
6. Safety Floater
7. Dust Filter Brace
8. Dust Filter
9. Hose Inlet
10. Clasp
11. Plastic Container
12. Wheel
13. Hose Assembly
14. Extension Wand
15. Crevice Tool
16. Small Brush
17. Carpet Brush
18. Squeegee Nozzle

HOW TO USE

Close-up of hands adjusting a small object on a surface (no visible text or symbols)

Close-up of hands holding a bowl with a spoon (no visible text or symbols)

Close-up of hands handling a circular metal object with a mesh basket (no text or symbols visible)

1. To Remove the Vacuum Head

2. Pull down the Clasp

3. Put the Dust Filter on the rim of the Plastic Container, simply fit the rubber gasket on the rim.

4. Put the Dust Filter Brace inside the Dust Filter.

5. Put the Vacuum Head on the Plastic Container and push up the Clasp.

Close-up of hands holding a flexible hose with a coiled tube (no visible text or symbols)

Close-up of a hand holding a cylindrical object with an arrow pointing to it, no visible text or symbols

Close-up of a black cable connector with a metallic clip (no text or symbols visible)

1. Insert the Hose Assembly into the Hose Inlet until it fits.

2. Insert the Detachable Extension Wand into the Hose Assembly Tube.

3. Insert the desired accessory into the Extension Wand: Carpet Brush, Squeegee Nozzle, Small Brush and Crevice Tool

Close-up of a black foot resting on a white surface, possibly a shoe or foot (no visible text or symbols)

Close-up of a white tiled floor drain with a small cylindrical component (no text or symbols visible)

Close-up of a ceiling-mounted mechanical component with grooves and a coiled spring (no text or symbols visible)

Carpet Brush – for carpet. Press the button forward for dry carpet. Press the button backward for wet carpet

Squeegee Nozzle- for water spillage.

Small Brush - for cleaning furniture, screen, blinds, etc.

Close-up of a white tool tip applying material to a textured surface (no visible text or symbols)

Crevice Tool - for cleaning corners, drawer, etc.

Close-up of a finger pressing a black square button on a white appliance (no visible text or symbols)

1. Plug the vacuum into the convenience outlet.

Close-up of a mechanical component with hoses and spray, no visible text or symbols

TO USE THE BLOW DRY FUNCTION- put the hose assembly on the Blow slot and switch ON.
9. Switch ON.

• UNLOADING THE WATER

• Switch OFF when Safety Floater stops suction or hearing abnormal sound.
• Open the Clasp, remove the Vacuum Cleaner Head, Dust Filter Brace, Dust Filter and unload the water.

• UNLOADING THE DUST.

○ Switch OFF.
- Open the Clasp and remove the Vacuum Cleaner Head.
- Remove the Dust Filter Brace and the Dust Filter.
- Brush out the dust and wash thoroughly with soap and water.
○ Let it dry.

CLEANING AND MAINTENANCE

1. Unplug the Vacuum Cleaner from the convenience outlet before cleaning.
2. All parts are washable with soap and water except the Vacuum Head.
3. Never leave dust inside the Container.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed by: Xelframe Enterprises Inc. Unit 711 IPI Buendia Tower Condo., 501 Gil Puyat Ave, Pasay Made in China
