IDX-1500 - Cooker Imarflex - Free user manual and instructions

Product Type	Induction Cooker
Brand	Imarflex
Model	IDX-1500
Rated Voltage	230 V a.c. ~ 60 Hz
Power Consumption	1800 W
Technology	Induction (Japan Technology)
Surface Material	Tempered glass
Functions	Hot Pot, Cook, Deep Fry, Milk, Boil, Stew, Slow Cook
Power Adjustment Range (Hot Pot)	300 W – 1800 W
Temperature Settings (Cook)	60°C, 90°C, 140°C, 200°C, 220°C, 240°C, 270°C
Timer	Yes (adjustable hours and minutes)
KW/hr Consumption Display	Yes
Voltage Display	Yes
Suitable Cookware	Magnetized stainless steel, cast iron
Unsuitable Cookware	Non-magnetized stainless steel, aluminum, plastic, glass, porcelain
Safety Features	Auto shut-off, overheat protection, low/high voltage detection, child supervision advice
Cleaning	Wipe with damp cloth; do not use chemical cleaners
Dimensions (Approx.)	29 x 36 x 6.5 cm (11.4 x 14.2 x 2.6 in)
Weight (Approx.)	2.5 kg (5.5 lbs)
Care Instructions	Unplug before cleaning; keep ventilation slots clear; do not immerse in water

Frequently Asked Questions - IDX-1500 Imarflex

Why won't the unit turn on?

Unplug and plug it again. Check if the power cord is damaged. Ensure the voltage matches 230V a.c. ~ 60Hz.

Why is the light blinking and no heat?

This usually indicates wrong cookware or the cookware is not centered on the induction plate. Use only magnetized stainless steel or cast iron pans.

What does the E1 error code mean?

E1 indicates the voltage is too low or too high (ideal: 200-240 volts). Unplug, wait, and plug again. If persists, check your power supply.

What does the E4 error code mean?

E4 means the pan temperature is too high. Select a function where temperature can be adjusted, such as Cook mode, and lower the temperature.

What cookware can I use with this induction cooker?

Only use magnetized stainless steel or cast iron pans. Non-magnetized stainless steel, aluminum, plastic, glass, and porcelain are not suitable.

How do I set the timer?

Press the TIMER key, then use the DOWN arrow to set hours and UP arrow to set minutes. To reset, turn the unit off and on again.

How can I check the power consumption?

Press the kw/hr key once to display total power usage in kW. Press it twice to see the input voltage.

Can I place the cooker on a metal table?

No, do not use the unit on any metal table. Place it on a stable, heat-resistant surface.

How do I clean the induction cooker?

Always unplug before cleaning. Wipe the body and induction plate with a damp cloth. Do not use chemical-based solutions.

Is it safe for people with pacemakers?

Persons with a pacemaker should keep a minimum distance of 60 cm from the unit while it is operating to avoid interference.

USER MANUAL IDX-1500 Imarflex

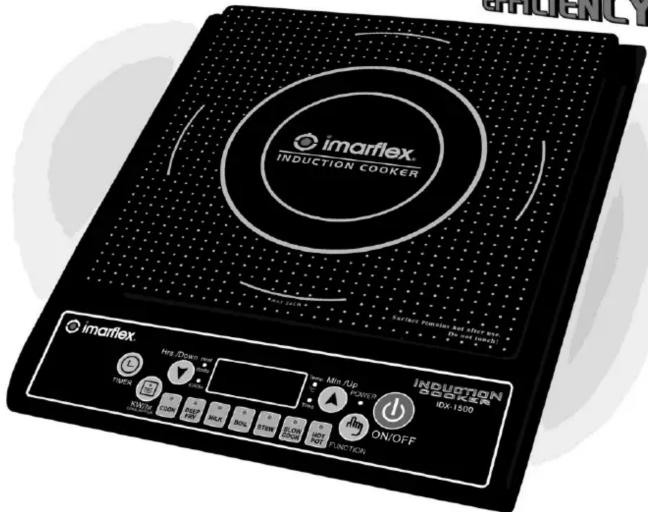

INDUCTION COOKER

JAPAN TECHNOLOGY

HIGH QUALITY INDUCTION PLATE

ULTRA-HIGH ENERGY EFFICIENCY

www.imarflex.com

IDX-1500

SPECIFICATION

MODEL NO. : IDX-1500

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 1800 watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Do not use the unit on any metal table.

3. Do not place the Induction Cooker next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged.

5. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

7. Do not use two-way socket with other appliance.

8. Do not touch the unit and the power plug with wet hands.

9. Do not block the ventilation slots of the unit. Keep a minimum distance of 10cm to 20cm from the wall or from other items.

10. The Induction Cooker's surface is made of tempered glass, in case of damage, unplug immediately.

11. Do not insert any objects like wires or tools into the ventilation slots, this may cause electric shocks.

12. The Induction Cooker does not heat up during cooking, but the heat from the cookware, transmit in the Induction Cooker. Do not touch the hot surface of the glass.

13. Scientific tests have proven that Induction Cookers are safe to use. However, persons with a pacemaker should keep a minimum distance of 60cm from the unit while using.

14. Do not place any metal kitchen utensils, pan lids, knives or other metal objects on the cooker. These may heat up when the unit is turned on.

15. Do not place any magnetic objects on the glass surface while the unit is in use.

16. To protect against electric shock, do not immerse the unit in water.

KW/hr CONSUMPTION KEY

1. While the unit is in use, press kw/hr key to check the POWER usage. The LED display will show the total POWER usage.

2. Press this button twice. The LED display will show the input VOLTAGE.

TIMER KEY

1. Press TIMER key.

2. Press DOWN arrow to change the HOUR setting and press UP arrow to change the MINUTE setting.

3. To re-set the TIMER back to zero, simply turn OFF and turn ON again.

TROUBLE SHOOTING

PROBLEM	TROUBLE SHOOTING
No power on Light Indicator and LED Display	1. Unplug and plug it again.2. Check for damage
The unit doesn’t heat-up and the Light Indicator is blinking.	1. Wrong Cookware.2. Cookware is not in the center of the Induction Plate.
The unit doesn’t heat-up and the Light Indicator is blinking (E1 appeared on the LED Display)	1. The voltage might be too low or too high (Ideal voltage should be 200-240 volts).2. Unplug and plug it again.
The unit doesn’t heat-up and the Light Indicator is blinking (E4 appeared on the LED Display)	1. Maybe the pan temperature is too high. Choose a FUNCTION wherein temperature is adjustable.

CLEANING AND MAINTENANCE

1. Always unplug the unit from the convenience outlet before cleaning.

2. Wipe the Body and the Induction Plate with damp cloth, regularly.

3. Do not use chemical base solution.

SUITABLE COOKWARES:

Magnetized stainless steel and cast iron

UNSUITABLE COOKWARES:

Non-magnetized stainless steel, aluminium, plastic, glass, and porcelain

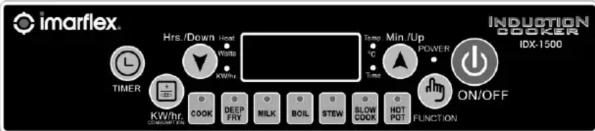

CONTROL PANEL

OPERATING INSTRUCTIONS:

1. Put the induction-ready cookware on the center of the Induction Plate.
2. Plug in (ON/OFF light indicator will blink, indicating that unit is in STAND-BY mode).
3. Press ON/OFF control key, to turn the unit ON.
4. The default FUNCTION is set on HOT POT

CAUTION: Do not leave an empty cookware with the Induction Cooker ON.

Pre-set Function Table:

Press the FUNCTION key to switch from one function to another.

PRE-SET FUNCTIONS	LIGHT INDICATOR	PROCEDURE
HOT POTNOTE:Pre-set WATTAGE is “1300” watts.	HEAT (watts)	1. Press the ON/OFF key, HOT POT light indicator will turn ON.2. To change the WATTAGE:Press the DOWN/UP arrow keys to change power setting from 300W to 1800W.3. To set the TIMER:Press TIMER key, press DOWN arrow to change the HOUR setting and press UP arrow to change the MINUTE setting.

PRE-SET FUNCTIONS	LIGHT INDICATOR	PROCEDURE
COOKNOTE:Pre-set TEMPERATURE is 200°C.	TEMP (°C)	1. Press FUNCTION key once, COOK light indicator will turn ON.2. To change the TEMPERATURE Setting: Press the DOWN/UP keys to change the setting. (Temperature stages: 60, 90, 140, 200, 220, 240, and 270°C)To set the TIMER: Press TIMER key, press DOWN arrow to change the HOUR setting and press UP arrow to change the MINUTE setting.
DEEP FRYNOTE:Pre-set time is “2:00” HOURSWhile cooking, simply press the timer key to view the remaining Time on the LED display.Once the set Time is up, a beep sound will be heard and the cooking process will automatically stop.	TIME (hh:mm)	1. Press the FUNCTION key twice, DEEP FRY light indicator will turn ON.2. To set the TIMER: Press TIMER key, press DOWN arrow to change the HOUR setting and press UP arrow to change the MINUTE setting.Reminder:Let the induction cooker pre-heat the oil first before putting any food for frying.
MILKNOTE:Pre-set TIME is 20 MINUTES 60°C	TIME (hh:mm)	1. Press the FUNCTION key 3 times, MILK light indicator will turn ON.2. To set the TIMER: Press TIMER key, press DOWN arrow to change the HOUR setting and press UP arrow to change the MINUTE setting.
BOIL	A1	1. Press FUNCTION key 4 times, BOIL light indicator will turn ON (“A1” will appear on the LED Display).2. This mode is for boiling of water.
STEWNOTE:Pre-set time is “1:00” HOUR	TIME (hh:mm)	1. Press FUNCTION key 5 times, STEW light indicator will turn ON.2. This mode is fixed (not adjustable), the unit will automatically shut-off after 1 hour.
SLOW COOKNOTE:Pre-set time is “2:00” HOURS	TIME (hh:mm)	1. Press FUNCTION key 6 times, SLOW COOK light indicator will turn ON.2. To set the TIMER: Press TIMER key, press DOWN arrow to change the HOUR setting and press UP arrow to change the MINUTE setting.

1. Close supervision is necessary when any appliance is used by or near children.
2. Do not use this unit for other than intended use.
3. Save this instruction for future reference.
4. For household use only, not for industrial use.

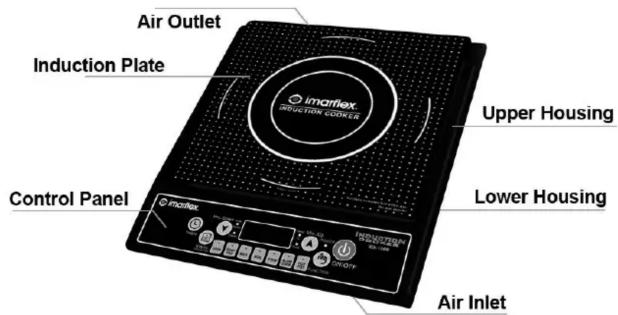

DESCRIPTION OF PARTS

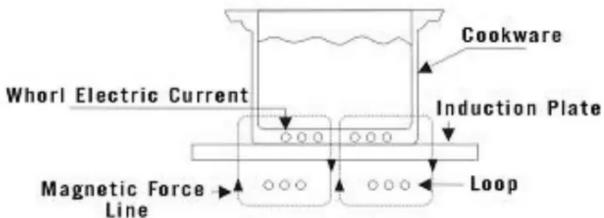

OPERATING PRINCIPLE

Induction Cooker applies the heating principle of the magnetic field inducing the whorl electric current. It utilizes the magnetic field produced by the current passing the loop when the magnetic force line passes the bottom of the stainless steel cookware. It produces numberless whorl electric current that will heat up the stainless steel cookware rapidly. This process is extremely efficient and minimizes the use of electricity.

The Imarflex Induction Cooker automatically detects if the cookware is induction-ready. It will beep if the cookware is not suitable.
