PCAM-CHMSL2-FD99 - Rear Camera EchoMaster - Free user manual and instructions

Product Type	Rear View Camera
Brand	EchoMaster
Model	PCAM-CHMSL2-FD99
Mounting Style	CHMSL (Center High Mount Stop Light) replacement
Dimensions (Approx.)	2.5 x 1.5 x 1.0 inches
Weight (Approx.)	150 g
Power Supply	12V DC from vehicle
Video Output	Composite RCA (NTSC)
Night Vision	Built-in IR LEDs (up to 5 m)
Parking Guidelines	Adjustable overlay
Image Sensor	CMOS, 0.1 Lux minimum illumination
Resolution	720 x 480 (NTSC)
Field of View	170 degrees diagonal
Waterproof Rating	IP67
Operating Temperature	-20°C to 70°C
Maintenance	Clean lens with a soft, dry cloth
Safety	For backup use only; check local regulations
Spare Parts	Replacement camera and wiring harness available
Repairability	Non-serviceable; replace unit if defective
General Information	Designed for vehicles with CHMSL; includes installation kit

Frequently Asked Questions - PCAM-CHMSL2-FD99 EchoMaster

How do I install the PCAM-CHMSL2-FD99 camera?

The camera replaces your existing center high mount stop light (CHMSL). Connect the red wire to reverse light positive, black to ground, and yellow RCA to your monitor.

What type of video output does it provide?

It provides a composite video output (NTSC format) via a standard yellow RCA connector.

Does this camera work at night?

Yes, it has built-in IR LEDs for night vision, allowing clear images up to 5 meters in total darkness.

What is the field of view?

The camera offers a 170-degree diagonal viewing angle, covering a wide area behind your vehicle.

Is the camera weatherproof?

Yes, it is rated IP67, meaning it is dust-tight and can withstand temporary immersion in water.

Can I adjust the parking guidelines?

Yes, the parking guideline overlay is adjustable via a small switch on the camera harness or remote control (included).

What vehicles is this compatible with?

It fits most vehicles with a center high mount stop light (CHMSL) housing that can accommodate the camera's shape. Check dimensions before purchase.

How do I clean the camera lens?

Use a soft, dry cloth to gently wipe the lens. Avoid abrasive cleaners or excessive moisture.

What should I do if the camera stops working?

First check wiring connections and reverse light power. If still not working, the unit is non-serviceable and should be replaced.

Does it include a monitor?

No, this camera is a standalone unit. You need a compatible monitor with RCA input.

USER MANUAL PCAM-CHMSL2-FD99 EchoMaster

3D rendered image of a mechanical lever component with mounting holes and a central hub (no text or symbols)

Third Brake Light Camera with Cargo and Side Blind Spot Views

Ford Super Duty Trucks (1999-2016)

ECHOMASTER PRO

PCAM-CHMSL2-FD99

Third Brake Light Camera

Introduction

Thank you for purchasing your EchoMaster Pro automotive camera.

EchoMaster cameras are designed to improve safety while driving by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle. They will also improve vehicle maneuvering capability by displaying blind spots not normally visible to the driver.

Please ensure you read and understand all aspects of this manual before installing or using your EchoMaster camera.

Key Features

1/3" CMOS Sensor
Operates at 0.3 LUX
Water/debris proof rating: IP67
3 Viewing Angles
- Right 95^
- Left 95^
- Rear 90^

PCAM-CHMSL2-FD99

Third Brake Light Camera

ECHOMASTER

PRO

Box Contents

Third Brake Light Camera and Bracket
17.5' Extension Cable
2 Phillips Mounting Screws
Camera Adjustment Tool
Installation Guide
Warranty Card

Product photo of a black plastic electronic device with coiled cable, power cord, and multicolored wires attached (no visible text or symbols)

Illustrations are typical and may not match exact vehicle details.

Installing the CHMSL Camera

Step 1

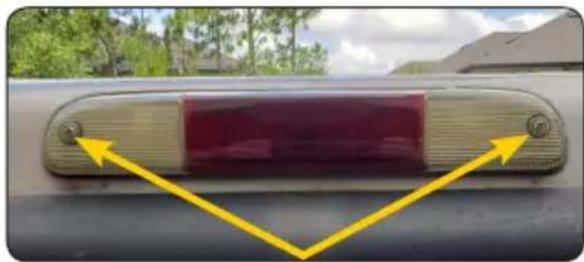

Remove the 2 screws that secure the third brake light.

Close-up of a car's rear windshield with yellow directional arrows pointing to the red panel (no text or symbols visible)

Step 2

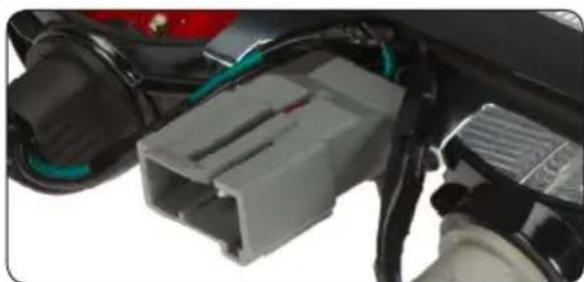

a. Remove the third brake light from the vehicle and disconnect connector.

b. Place the third brake light onto the third brake light camera bracket and line up the screw holes.

c. Reconnect the third brake light to the factory connector.

Close-up of a car electrical connector with gray plastic housing and black wiring (no visible text or symbols)

Interior view of an electronic device showing a black plastic housing with multiple small components and wiring (no visible text or symbols)

Step 3

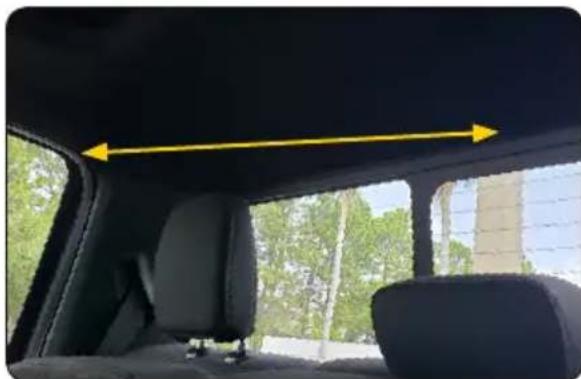

Using a long zip tie or fish tape with the camera cable attached to it, feed the camera cable from the third brake light opening into the vehicle and towards the b / c pillar to the right or the left. (The weather seal may need to be removed to gain access to the fish tool used to run the cable.)

Interior view of a car showing the rear seat, dashboard, and window with yellow directional arrows indicating top-down orientation (no text or symbols)

PCAM-CHMSL2-FD99

Third Brake Light Camera

ECHOMASTER

PRO

Step 4

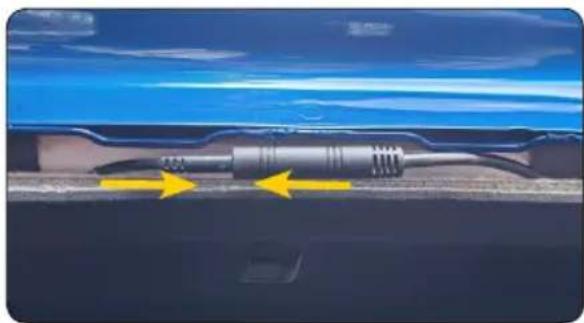

Connect the extension cable to the camera.

Close-up of a mechanical component with yellow arrows indicating direction, no visible text or symbols

Step 5

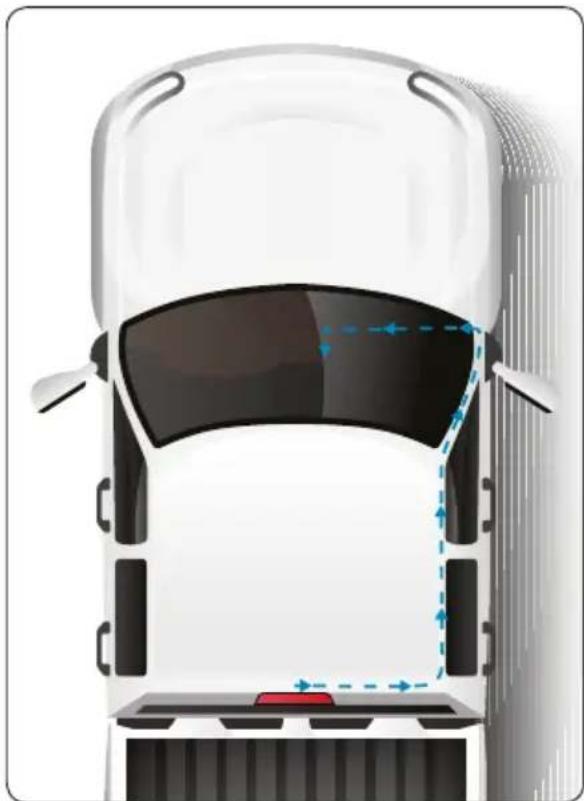

Route the cable to the front of the vehicle and behind the radio, monitor, or mirror monitor.

Top-down view of a car viewed from the side, showing front and rear views with no visible text or symbols.

Step 6

Remount third brake light and camera assembly using the longer mounting screws provided in the kit.

Close-up of a car's front panel with a red and gold tab, mounted on a gray vehicle (no visible text or symbols)

Step 7

Route the reverse and turn signal wires to their respective locations according to the table below

1999 - 2001
Turn Signal (Left) Light Green / White + Turn signal switch
Turn Signal (Right) White / Lt. Blue + Turn signal switch
Reverse Light Black / Pink + Under hood relay box
2002 - 2007
Turn Signal (Left)	Light Green / White	+	Turn signal switch, Gray 12 pin plug, pins 10
Turn Signal (Right)	White / Light Blue + Turn signal switch, Gray 12 pin plug, pins 7
Reverse Light Black / Pink + Dash fuse box, rear, Black 8 pin plug (G), pin 1
2008 - 2010
Turn Signal (Left) Blue / Green + SJB in passenger kick, Black 26 pin plug, pin 21
Turn Signal (Right) Yellow / Violet + SJB in passenger kick, Black 26 pin plug, pin 23
Reverse Light Green / Brown + Under steering column to left, Black 59 pin plug, pin 41
2011 - 2016
Turn Signal (Left) Blue / Green + BCM in passenger kick, Green 26 pin plug, pin 8
Turn Signal (Right) Yellow / Violet + BCM in passenger kick, Green 26 pin plug, pin 7
Reverse Light Blue / White + BCM in passenger kick, 32 pin plug, pin 13

PCAM-CHMSL2-FD99

Third Brake Light Camera

ECHOMASTER

PRO

Step 8

Connect the yellow video RCA to the rear camera input on the radio, monitor, or mirror monitor.

Step 9

Connect the Blue “Reverse power anode output” wire to the reverse trigger input on the radio, monitor, or mirror monitor.

Close-up of a yellow and black electrical connector with blue wires (no visible text or symbols)

Step 10

With the ignition in the on position, shift the vehicle into reverse.

Step 11

Using the supplied tool, adjust the camera's view to desired position. (Keep in mind that this adjustment will effect the blind spot view. It may be necessary to trigger the blind spot view to confirm desired position.)

Close-up of a black cylindrical camera lens mounted on a white surface, no visible text or symbols

Using the CHMSL Camera

Rear Cargo View Camera

With the ignition in the on position, shift the vehicle into reverse. The image should appear on the screen.

Exterior view of a modern building with several parked vehicles in the foreground (no visible text or signage)

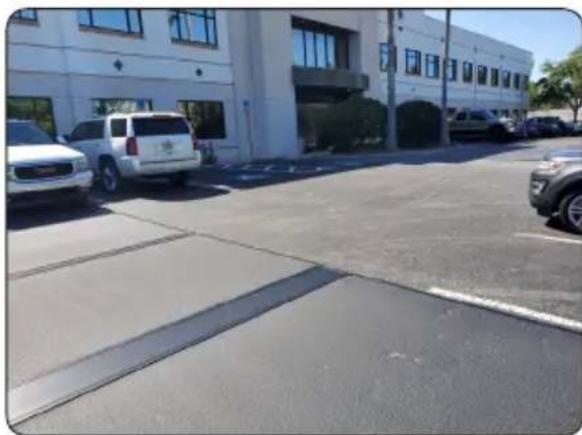

Left Blind Spot Camera

With the ignition in the on position, apply the left turn signal. The image should appear on the screen.

Exterior view of a modern office building with parked vehicles and adjacent parking lot (no signage or text visible)

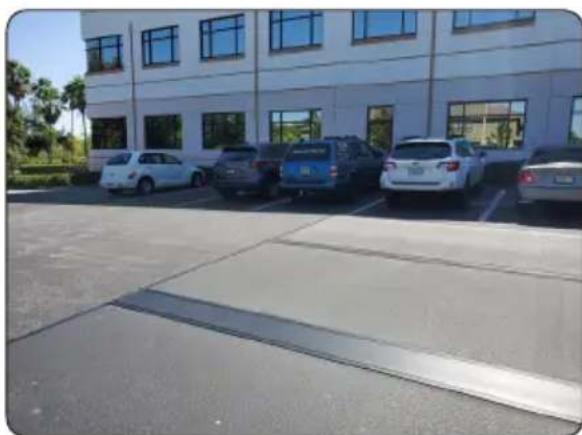

Right Blind Spot Camera

With the ignition in the on position, apply the right turn signal. The image should appear on the screen.

Exterior view of a modern multi-story building with several parked cars in front (no visible text or signage)

PCAM-CHMSL2-FD99

Third Brake Light Camera

ECHOMASTER

PRO

Views

ECHOMASTER

PRO

PCAM-CHMSL2-FD99

Third Brake Light Camera

Wiring Diagram

PCAM-CHMSL2-FD99

Third Brake Light Camera

ECHOMASTER

PRO

Notes:

AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use above and with all State and Federal laws. EchoMaster provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conformity with those instructions or other misuse of its product. If you do not agree, please discontinue use immediately and contact EchoMaster. This product is intended for off-road use and passenger use only.

ECHOMASTER

PRO

email - [e-mail]

tel-866-766-2267

Clearwater Florida 33760
