Product Type	Rear View Camera
Brand	EchoMaster
Model	PCAM-CHMSL2-FD15
Mounting Type	License Plate or CHMSL Replacement
Dimensions (Camera)	Approx. 2.5 x 1.5 x 1.2 inches
Weight	Approx. 0.15 lbs (70 g)
Power Supply	12V DC (vehicle electrical system)
Power Consumption	< 2W
Video Output	Composite CVBS (RCA or 4-pin)
Resolution	720 x 480 (NTSC) / 720 x 576 (PAL)
Viewing Angle	120° - 170° (typical)
Night Vision	IR LEDs (built-in)
Waterproof Rating	IP67 (dust and water resistant)
Operating Temperature	-20°C to 70°C (-4°F to 158°F)
Installation	Wired to reverse light for auto-activation
Maintenance	Clean lens with soft, damp cloth; avoid solvents
Safety	Use only with 12V systems; ensure secure mounting
Spare Parts	Mounting brackets, extension cables, connectors
Warranty	1-year limited (check with seller)
Included Accessories	Camera unit, power/video cable, mounting hardware

Frequently Asked Questions - PCAM-CHMSL2-FD15 EchoMaster

How do I install the EchoMaster PCAM-CHMSL2-FD15 camera?

Mount the camera on your license plate or replace the CHMSL. Connect the power wire to the reverse light circuit (usually 12V) and the video cable to your monitor or head unit. Use the included hardware for a secure fit.

Is this camera compatible with my vehicle?

The camera is universal but designed for vehicles with a standard license plate mount or CHMSL. Check the physical fitment and ensure your monitor has a composite video input (RCA or 4-pin). Confirm your vehicle's reverse light voltage is 12V.

Does the camera have parking guidelines?

No, this model does not include built-in parking guidelines. However, some monitors can overlay guidelines if compatible.

What type of video output does it have?

It outputs standard composite video (CVBS) via an RCA or 4-pin connector. It supports NTSC or PAL format (auto-detect). Perfect for aftermarket monitors or factory screens with an adapter.

Is the camera waterproof?

Yes, it has an IP67 rating, meaning it is dust-tight and can withstand temporary submersion in water. Suitable for outdoor use in rain or car washes.

How do I clean the camera lens?

Use a soft, lint-free microfiber cloth slightly dampened with water or a mild glass cleaner. Gently wipe the lens in a circular motion. Avoid abrasive materials or harsh chemicals.

What should I do if the camera shows no image?

Check the power connection to the reverse light (12V). Verify the video cable is securely plugged into the monitor. Test the monitor with another source. If the camera is defective, contact EchoMaster support.

Can I extend the camera cable?

Yes, you can use a composite video extension cable (RCA or 4-pin) and a 12V power extension. Keep the total cable length under 20 ft to avoid signal degradation.

What is the warranty period?

EchoMaster typically offers a 1-year limited warranty against manufacturing defects. Retain your purchase receipt. Check with the retailer for specific terms.

Does the camera work in low light?

Yes, it is equipped with IR LEDs for night vision. It provides clear images in near-dark conditions up to several feet. However, it performs best with some ambient light.

USER MANUAL PCAM-CHMSL2-FD15 EchoMaster

Metal automotive bracket component with mounting holes and a handle, shown against a teal background (no text or symbols visible)

Third Brake Light Camera with Cargo and Side Blind Spot Views

For Ford F-150 (2015-2019) and Ford Super Duty Trucks (2017-2019)

ECHOMASTER PRO

PCAM-CHMSL2-FD15

Third Brake Light Camera

Introduction

Thank you for purchasing your EchoMaster Pro automotive camera.

EchoMaster cameras are designed to improve safety while driving by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle. They will also improve vehicle maneuvering capability by displaying blind spots not normally visible to the driver.

Please ensure you read and understand all aspects of this manual before installing or using your EchoMaster camera.

Key Features

1/3" CMOS Sensor
Operates at 0.3 LUX
Water/debris proof rating: IP67
3 Viewing Angles
- Right 95^

- Left 95^

- Rear 90^

PCAM-CHMSL2-FD15

Third Brake Light Camera

ECHOMASTER

PRO

Box Contents

Third Brake Light Camera and Bracket
17.5' Extension Cable
Camera Adjustment Tool
Installation Guide
Warranty Card

Black plastic automotive sensor module with attached cable and wiring, no visible text or symbols

Illustrations are typical and may not match exact vehicle details.

Installing the CHMSL Camera

Step 1

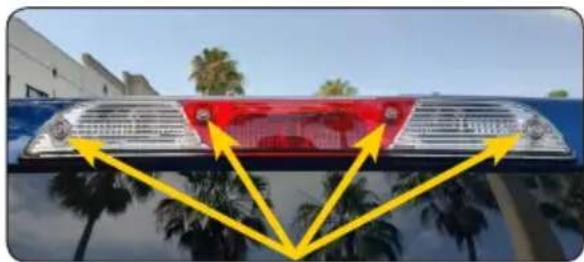

Remove the 4 screws that secure the third brake light.

Step 2

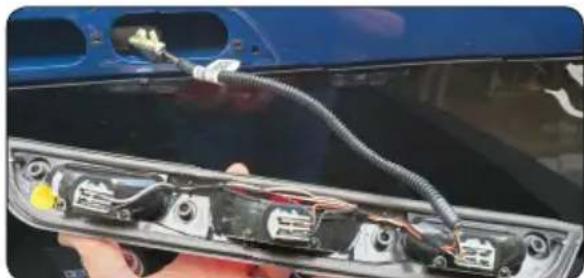

a. Remove the third brake light from the vehicle and disconnect connector.

b. Place the third brake light onto the third brake light camera bracket and line up the screw holes.

c. Reconnect the third brake light to the factory connector.

Step 3

Using a long zip tie or fish tape with the camera cable attached to it, feed the camera cable from the third brake light opening into the vehicle and towards the b / c pillar to the right or the left. (The weather seal may need to be removed to gain access to the fish tool used to run the cable.)

Front view of a car with illuminated windows and red header, surrounded by palm trees and buildings (no visible text or symbols)

Close-up of a car's front panel showing wiring and electronic components (no visible text or symbols)

Close-up of a car's front compartment showing electrical wiring and components (no visible text or symbols)

Close-up of a blue electric vehicle charging plug with attached cable and connector (no visible text or symbols)

Interior view of a car showing the rearview and side profile with yellow arrows pointing to the dashboard (no text or symbols visible)

PCAM-CHMSL2-FD15

Third Brake Light Camera

ECHOMASTER

PRO

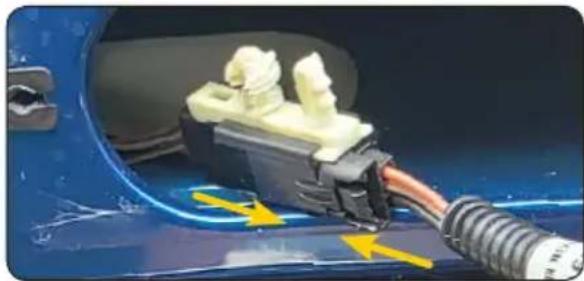

Step 4

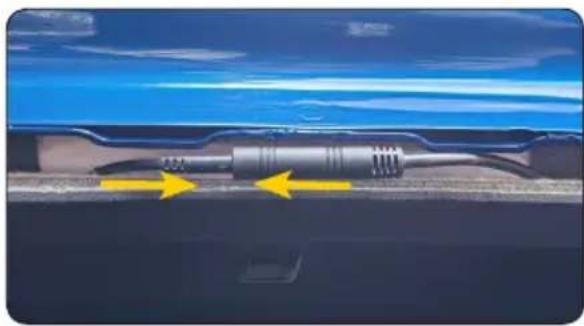

Connect the extension cable to the camera.

Close-up of a mechanical component with yellow arrows indicating direction, no visible text or symbols

Step 5

Route the cable to the front of the vehicle and behind the radio, monitor, or mirror monitor.

Top-down view of a car viewed from the side, showing front and rear views with no text or symbols.

Step 6

Remount third brake light and camera assembly using the original screws.

Front view of a blue car's front bumper with red and black highlights (no visible text or symbols)

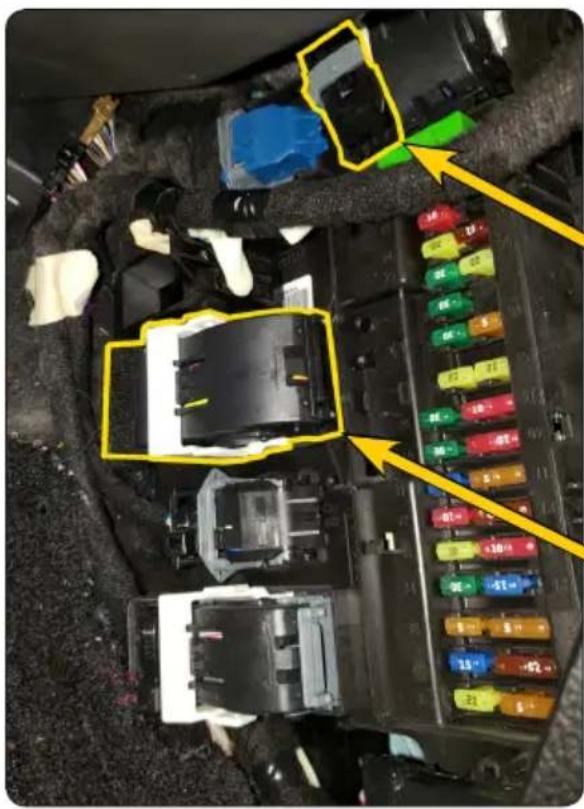

Step 7

Route the reverse and turn signal wires to their respective locations according to the table below

Turn Signal (Left)	Blue/Green	+	BCM in passenger kick, black 40 pin plug (J6), pin 39
Turn Signal (Right) Yellow/Blue or Yellow/Violet		+	BCM in passenger kick, black 40 pin plug (J6), pin 38
Reverse Light Green/Brown + BCM in pas			enger kick, black 36 pin plug (J3), pin 11

J3 Black 36 pin plug

J6 Black 40 pin plug

PCAM-CHMSL2-FD15

Third Brake Light Camera

ECHOMASTER

PRO

Step 8

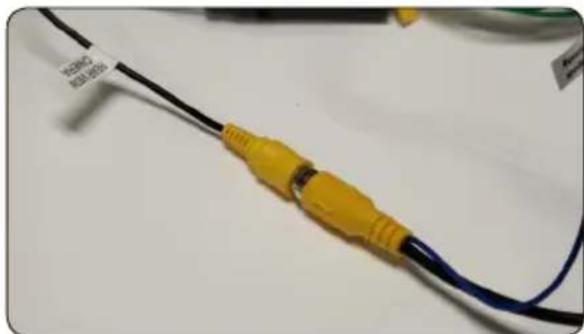

Connect the yellow video RCA to the rear camera input on the radio, monitor, or mirror monitor.

Step 9

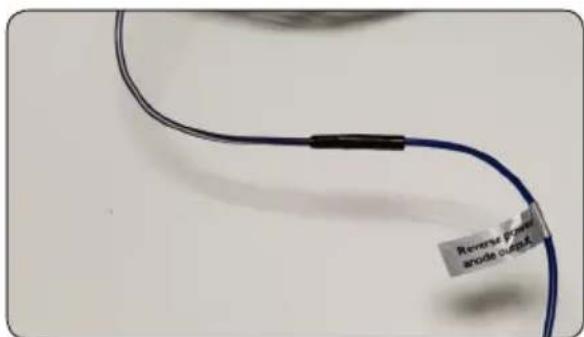

Connect the Blue “Reverse power anode output” wire to the reverse trigger input on the radio, monitor, or mirror monitor.

Close-up of a black cable with yellow connectors and blue wires, no visible text or symbols

Step 10

With the ignition in the on position, shift the vehicle into reverse.

Step 11

Using the supplied tool, adjust the camera's view to desired position. (Keep in mind that this adjustment will effect the blind spot view. It may be necessary to trigger the blind spot view to confirm desired position.)

Close-up of a black cylindrical camera lens mounted on a white surface, no visible text or symbols

Using the CHMSL Camera

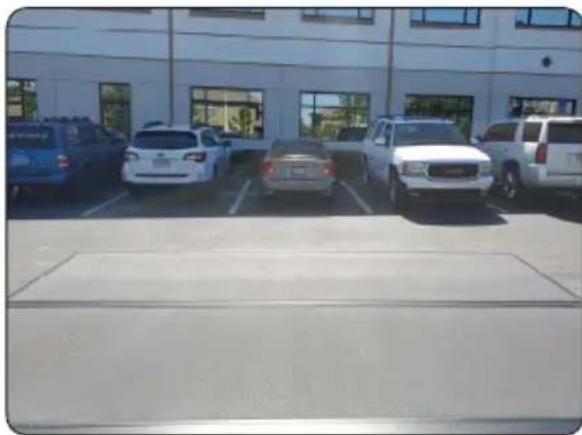

Rear Cargo View Camera

With the ignition in the on position, shift the vehicle into reverse. The image should appear on the screen.

Exterior view of a modern building with several parked vehicles in the foreground (no visible text or signage)

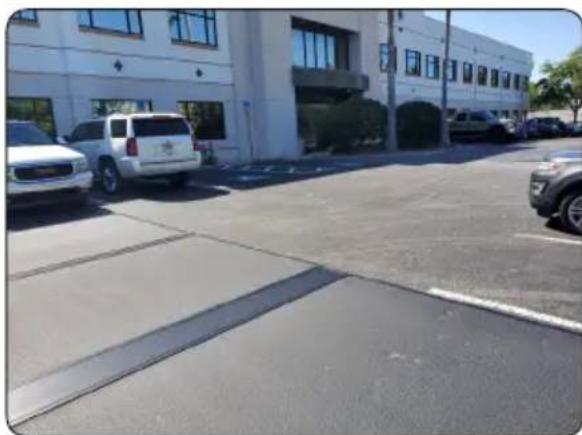

Left Blind Spot Camera

With the ignition in the on position, apply the left turn signal. The image should appear on the screen.

Exterior view of a modern office building with parked vehicles and adjacent parking lot (no signage or text visible)

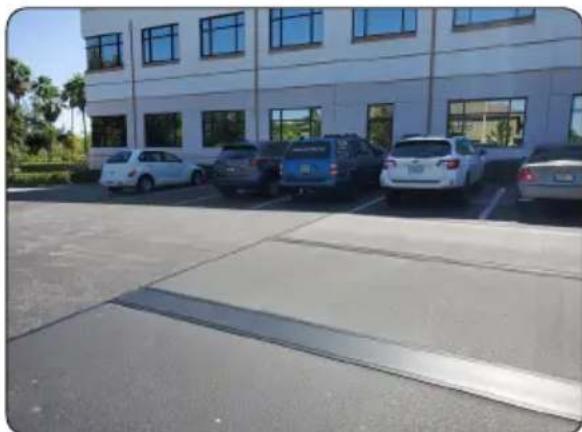

Right Blind Spot Camera

With the ignition in the on position, apply the right turn signal. The image should appear on the screen.

Exterior view of a modern multi-story building with several parked cars in front (no visible signage or text)

PCAM-CHMSL2-FD15

Third Brake Light Camera

ECHOMASTER

PRO

Views

ECHOMASTER

PRO

PCAM-CHMSL2-FD15

Third Brake Light Camera

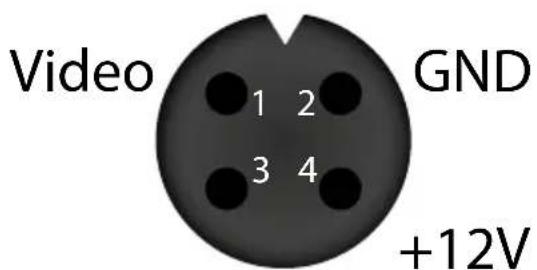

Wiring Diagram

PCAM-CHMSL2-FD15

Third Brake Light Camera

ECHOMASTER

PRO

Notes:

AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use above and with all State and Federal laws. EchoMaster provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conformity with those instructions or other misuse of its product. If you do not agree, please discontinue use immediately and contact EchoMaster. This product is intended for off-road use and passenger use only.

ECHOMASTER

PRO

email - [e-mail]

tel-866-766-2267

Clearwater Florida 33760
