USER MANUAL Zelus E4 Weave Gamdias

natural_image Simple line drawing of a cushioned bag with a mesh pattern on the side (no text or symbols)

Back

Gamdias Zelus E4 Weave - 1
Seat

Gamdias Zelus E4 Weave - 2
Mechanism

Gamdias Zelus E4 Weave - 3
Armrest

Gamdias Zelus E4 Weave - 4
Metal Plate

Gamdias Zelus E4 Weave - 5
Gas Lift Cover

Gamdias Zelus E4 Weave - 6
Gas Lift

Gamdias Zelus E4 Weave - 7
5 Star Base

Gamdias Zelus E4 Weave - 8
Casters

Gamdias Zelus E4 Weave - 9
Lumbar Pillow

Gamdias Zelus E4 Weave - 10
Headrest

Gamdias Zelus E4 Weave - 11

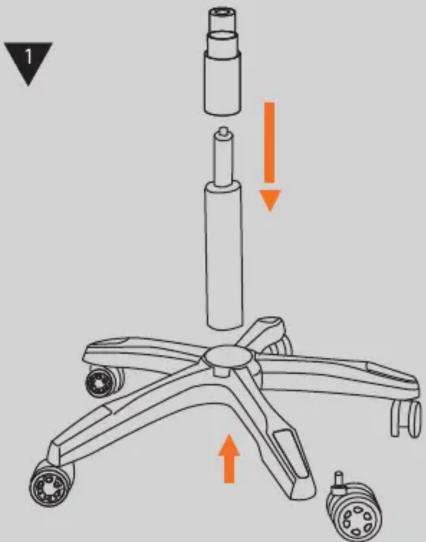

Assembly Instruction
Gamdias Zelus E4 Weave - 12

natural_image Diagram of a mechanical device with five legs and a central shaft, showing force application arrows (no text or symbols)

Gamdias Zelus E4 Weave - 13

Diagram of a mechanical clamp or bracket assembly with labeled component 'A' and dashed lines indicating alignment or connection.

Gamdias Zelus E4 Weave - 15

Gamdias Zelus E4 Weave - 16

natural_image Line drawing of an office chair with a mesh backrest and a downward arrow indicating rotation (no text or symbols)

4 NOTICE: 1 Pay attention to the position of steel plate 1 2 It is divided into upper part and down part. 3 longer part is upwards, shorter part adown. B D

5 6 C C

Gamdias Zelus E4 Weave - 19

Gamdias Zelus E4 Weave - 20

natural_image Line drawing of an office chair with patterned backrest and spoked wheels (no text or symbols)

NOTICE: The screw holes below are fixed and do not need to be installed.

Angle Adjuster Height Lifting

Gamdias Zelus E4 Weave - 22
Sit in the center of the chair, with your back to the backrest.

Gamdias Zelus E4 Weave - 23
Do not sit at the front edge of the chair.

Gamdias Zelus E4 Weave - 24
Do not stand on the chair.

Gamdias Zelus E4 Weave - 25
Do not use the chair with more than one person.

Gamdias Zelus E4 Weave - 26
Do not push the chair around when a person is sitting in it.

Gamdias Zelus E4 Weave - 27
Do not push down on the backrest when a person is reclined.

Gamdias Zelus E4 Weave - 28
Do not place all your weight on the backrest only.

Gamdias Zelus E4 Weave - 29
Do not place your hand or fingers near the recline mechanism.

GAMDIAS Technology Co., Ltd. www.GAMDIAS.com

© 2022 GAMDIAS Technology Co., Ltd. All rights reserved. All GAMDIAS trademarks and logos are registered trademarks of GAMDIAS Technology Co., Ltd. All other trademarks and logos presented in this material are the property of their respective owners. GAMDIAS Technology Co., Ltd. reserves the right to revise the specifications mentioned on this packaging.
